Brand	LG
Model	GBB72MCEGN
Product type	Freezer
Dimensions (H x W x D)	1860 / 2030 x 595 x 682 / 718 mm depending on version
Climate class	SN to T (10 °C to 43 °C)
Freezer temperature range	-15 °C to -23 °C
Refrigerator temperature range	1 °C to 7 °C
Default freezer temperature	-18 °C
Default refrigerator temperature	3 °C
Power supply	220-240 V, 50 Hz (standard estimate)
Refrigerant	Isobutane (R600a)
Main functions	Express Cool, Express Freeze, Vacation, Wi-Fi, Smart Diagnosis, High temperature alarm
Fresh converter	Yes (depending on model): adjustable for meat, fish, vegetables
Fresh vegetable drawer	Yes (depending on model): humidity control
Maximum freezing capacity	Activate via Express Freeze (24 h)
Automatic defrost	Yes
Control lock	Yes
Built-in Wi-Fi	Yes (2.4 GHz) with LG ThinQ app
Interior lighting	LED (efficiency class G)
Maintenance and cleaning	Unplug before cleaning; use a soft cloth and mild detergent; do not use abrasive or flammable products
Safety	Child lock (key depending on model), open door alarm, fire safety (combustible gas)
Spare parts and repairability	Parts available for 7 years, door seals for 10 years; repair by qualified LG personnel
Minimum warranty	24 months

Frequently Asked Questions - GBB72MCEGN LG

What are the exact dimensions of the LG GBB72MCEGN freezer?

Dimensions vary depending on version (compact handle or bar): height 1860 or 2030 mm, width 595 mm, depth 682 or 718 mm. Refer to the dimension table in the manual for exact values according to your model.

How to adjust the freezer temperature?

Press the Freezer button on the control panel several times to select the temperature between -15 °C and -23 °C. The default temperature is -18 °C. Wait 2 to 3 hours after plugging in before storing food.

How to activate the Express Freeze function?

Press the Express Freeze button to activate rapid freezing for 24 hours. The function deactivates automatically. For maximum freezing, activate it 7 hours before placing fresh food.

What to do if the high temperature alarm goes off?

The alarm sounds and the LED indicator flashes in case of power failure or prolonged door opening. Press the Freezer button to stop it. If the temperature returns to normal, the alarm stops automatically.

How to connect the freezer to the LG ThinQ app?

Download the LG ThinQ app from Google Play or the App Store. Make sure your smartphone is connected to a 2.4 GHz Wi-Fi network. On the appliance, press and hold the Wi-Fi button for 3 seconds, then follow the instructions in the app to register the appliance.

What regular maintenance is recommended for this freezer?

Unplug the appliance before cleaning. Clean the interior with a soft cloth and mild detergent in warm water. Do not use abrasive products, alcohol, or solvents. Dry thoroughly. Door seals should be wiped regularly.

How to defrost the freezer?

Defrosting is automatic under normal conditions. If frost buildup occurs, contact an LG service center. Never use mechanical devices or heat to speed up defrosting.

What foods can be stored in the fresh converter?

The fresh converter allows you to adjust the temperature via a lever: for vegetables (recommended), fish, or meat. Adjust the setting according to the food type to avoid cold damage.

How to save energy with this freezer?

Leave enough space between foods for good cold air circulation. Do not set the temperature lower than necessary. Keep the door closed and do not put hot food inside. Use the Vacation function if you are away.

What to do in case of refrigerant gas leak?

The freezer contains R600a (isobutane), a flammable gas. In case of leakage, do not use any flame or ignition source, ventilate the room for several minutes and contact a professional. Do not touch the appliance or the plug.

USER MANUAL GBB72MCEGN LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

EN ENGLISH ES ESPANOL IT ITALIANO PL POLSKI SR SRPSKI

BG BULGARIAN ET ESTONIAN LT LITHUANIAN PT PORTUGUESE SV SWEDISH

CZ CZECH FI FINNISH LV LATVIAN RO ROMANIAN

DA DANISH FR FRENCH MK MACEDONIAN SK SLOVAK

DE GERMAN HR CROATIAN NL DUTCH SL SLOVENIAN

EL GREEK HU HUNGARIAN NO NORWEGIAN SQ ALBANIAN

TABLE OF CONTENTS

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS 3

IMPORTANT SAFETY INSTRUCTIONS 3

INSTALLATION 10

Dimensions and Clearances 10

Ambient Temperature 10

OPERATION 11

Notes for Operation 11

Fresh Converter 12

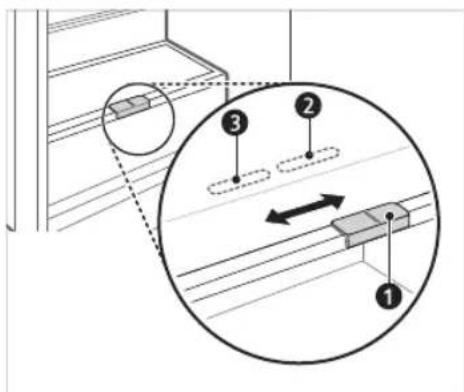

Fresh Vegetable Painter 12

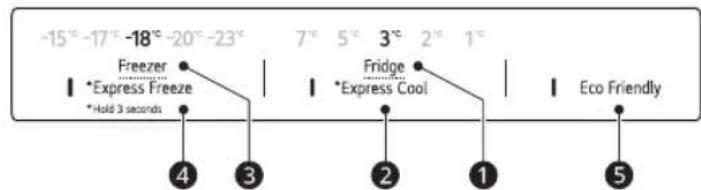

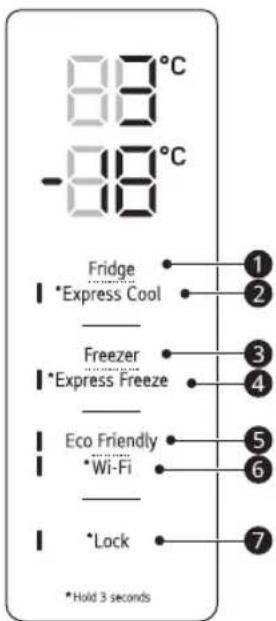

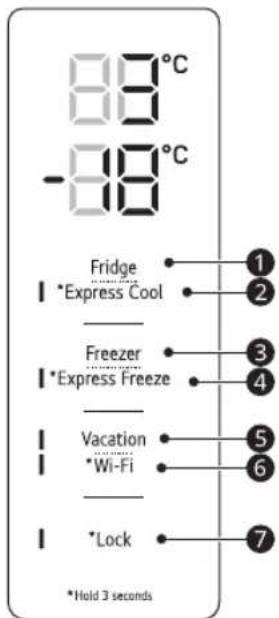

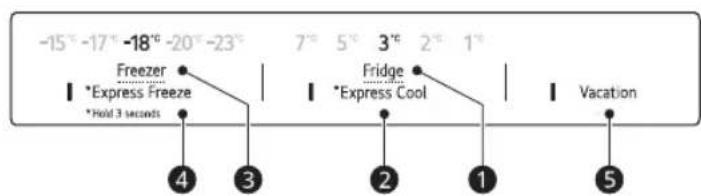

Control Panel 14

SMART FUNCTIONS 16

LG ThinQ Application 16

MAINTENANCE 18

Notes for Cleaning 18

Disposal of Your Old Appliance 18

TROUBLESHOOTING 19

Additional Information Of The Manual

This is a short version of Owner's Manual. For more information, please visit the LG website at http://www.lg.com

Troubleshooting

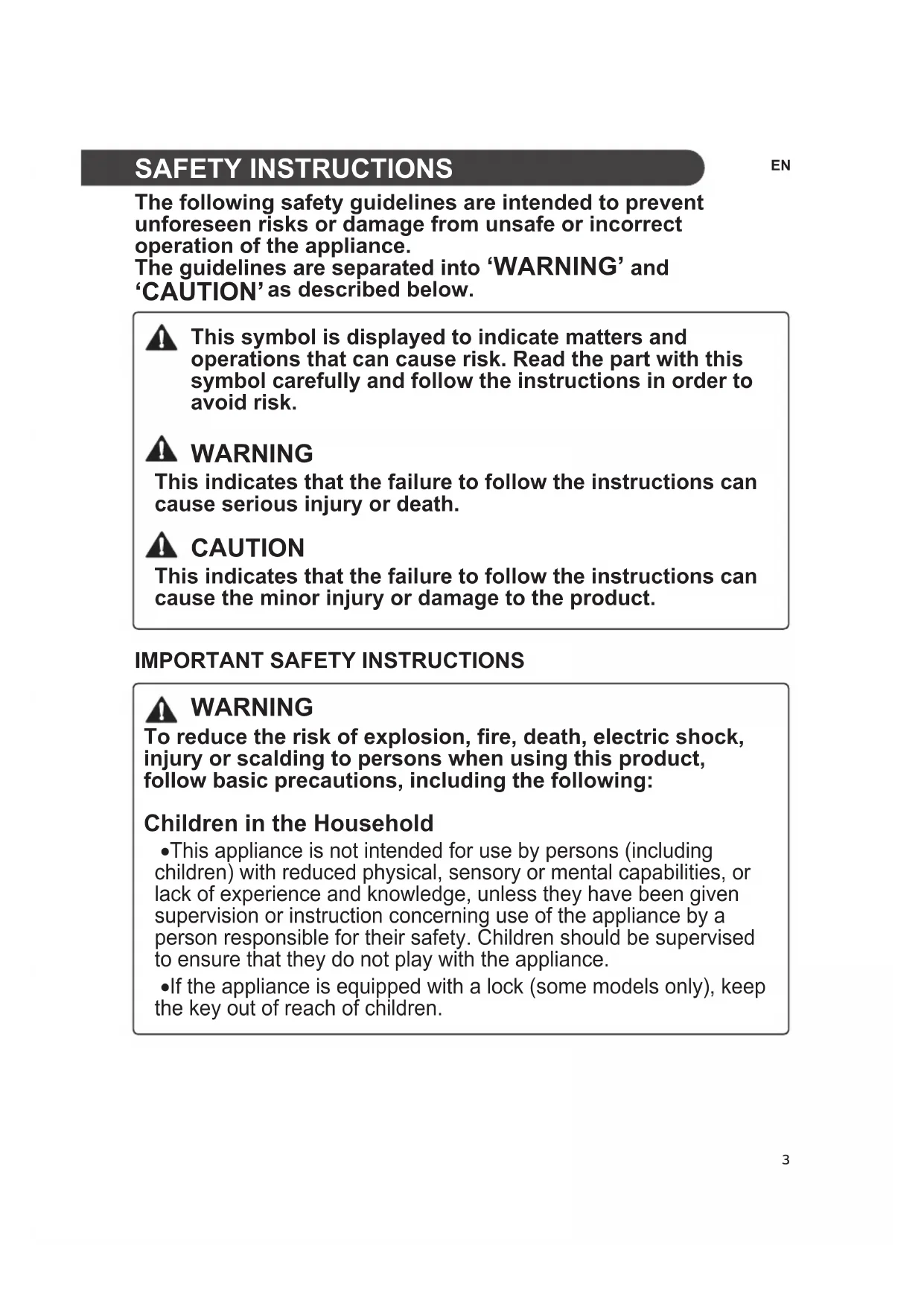

SAFETY INSTRUCTIONS

EN

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the appliance is equipped with a lock (some models only), keep the key out of reach of children.

For use in Europe:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Installation

• This appliance should only be transported by two or more people holding the appliance securely.
• Ensure that the socket outlet is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.
• This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.
• If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.
• Do not plug the appliance into a multi socket adapter which does not have a power cable (mounted).
• Do not modify or extend the power cable. The appliance should be connected to a dedicated power line which is separately fused.
• Do not use a multi socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi socket outlet (portable), use the multi socket outlet with the current capacity of the power code rating or higher and use the multi socket outlet only for the appliance.
• Install the appliance in a place where is easy to unplug the power plug of the appliance.
• Be careful not to point the power plug up or let the appliance lean against the power plug. Install the appliance on a firm and level floor.
• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.
• Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Be careful not to let the appliance door fall during assembly or disassembly.
• Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.
• Do not connect a plug adapter or other accessories to the power plug.

Operation

• Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.
• Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet hands.
• Do not bend the power cable excessively or place a heavy object on it.
• If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.
• Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.
• Do not apply excessive force or impact to the back cover of the appliance.
• Do not put animals, such as pets, into the appliance.
• Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.
• Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects (such as candles, lamps, etc.), or heating devices (such as stoves, heaters, etc.) on the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane, R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.
• Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
• Fill with potable water only into icemaker or dispenser water tank.
• Do not damage the refrigerant circuit.
• Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.

Maintenance

• Disconnect the power cord before cleaning the appliance or replacing the inside lamp (where fitted).
• Securely plug the power plug in the socket outlet after completely removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.
• Do not spray water or inflammable substances (toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
• Do not use a hair drier to dry the inside of the appliance or place a candle inside to remove the odours.
• Do not use mechanical devices or other means to accelerate the defrosting process.

Disposal

• When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.
• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

Technical Safety

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use electrical appliances inside the refrigerator.

• The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with service agent or a similarly qualified person before disposing of them.
• Refrigerant leaking out of the pipes could ignite or cause an explosion.

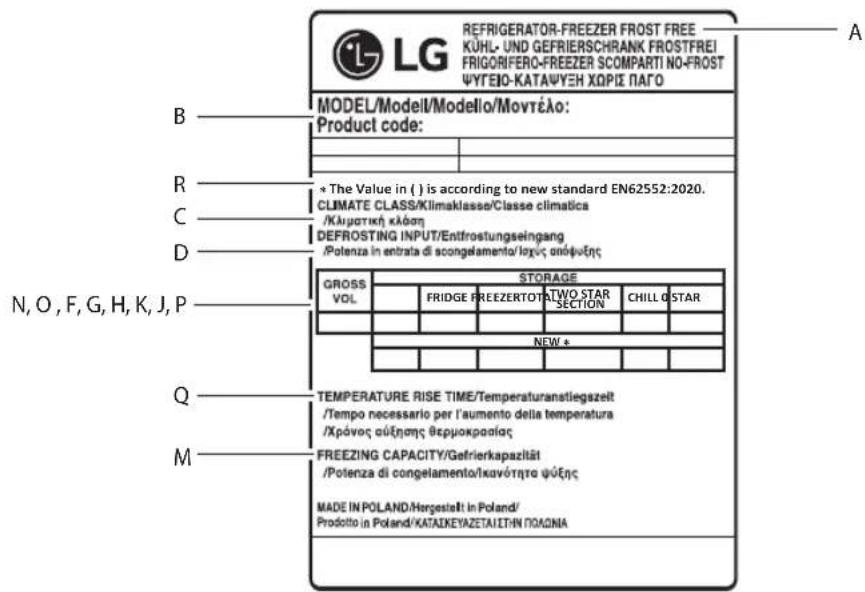

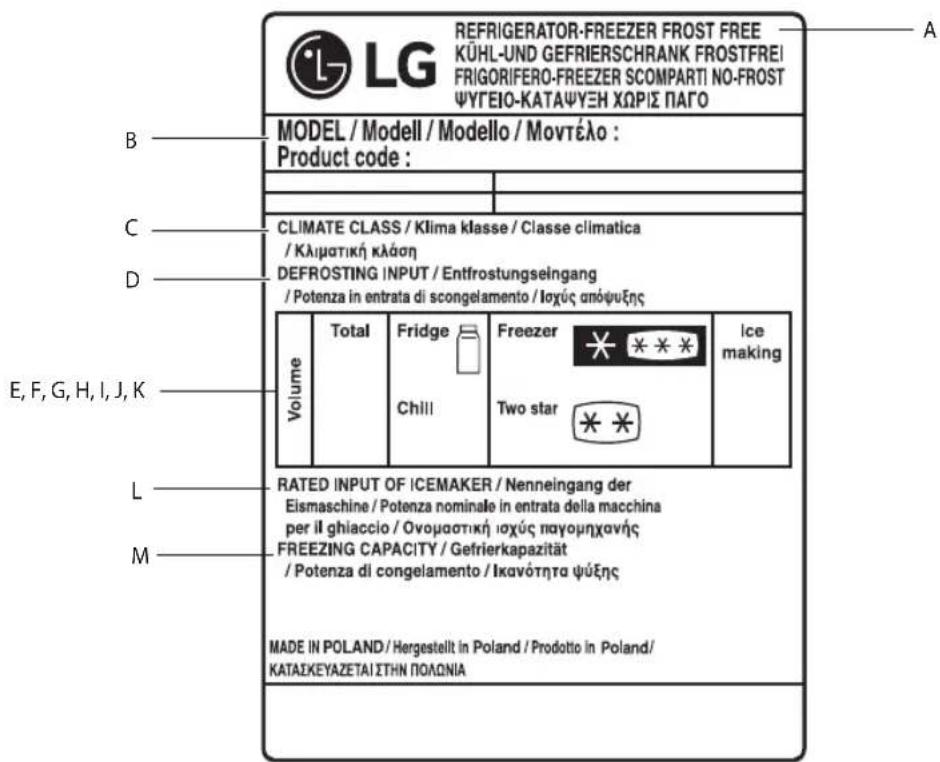

• The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• This appliance is intended to be used in household and similar applications only. It should not be used for commercial, or catering purposes, or in any mobile application such as a caravan or boat.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This refrigerating appliance is not intended to be used as a built-in appliance.

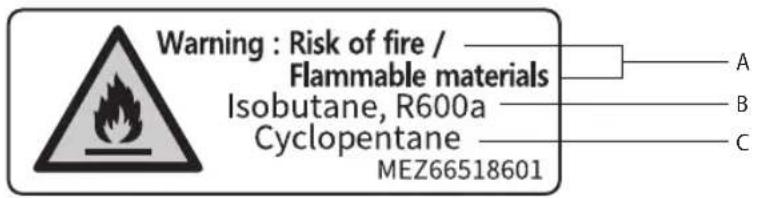

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

• This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
• If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1 m² in size for every 8 g of R600a refrigerant inside the appliance.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Do not tilt the appliance to pull or push it when transporting.
• Make sure not to get a body part such as a hand or foot stuck while moving the appliance.

Operation

• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with hands.
• Do not hang from the appliance doors, storage room, shelf or climb up into it.
• Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.
• Prevent animals from nibbling on the power cable or water hose.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.
• Do not clean glass shelves or covers with warm water when they are cold.
• Never eat frozen foods immediately after they have been taken out in the freezer compartment.
• Make sure not to get a hand or foot stuck upon opening or closing the appliance door.

Maintenance

• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics customer information centre.

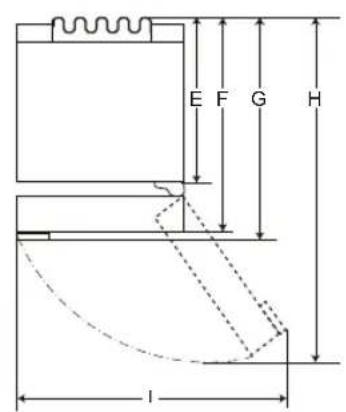

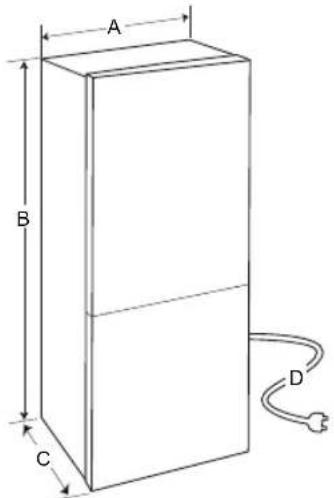

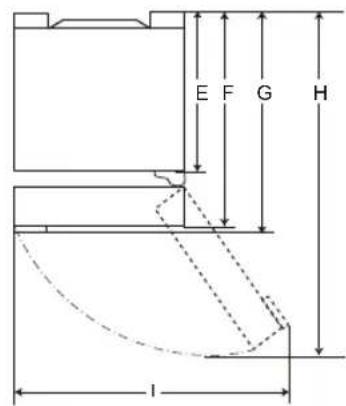

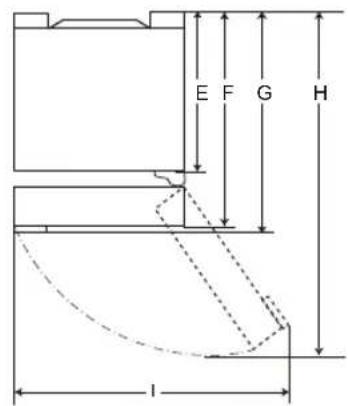

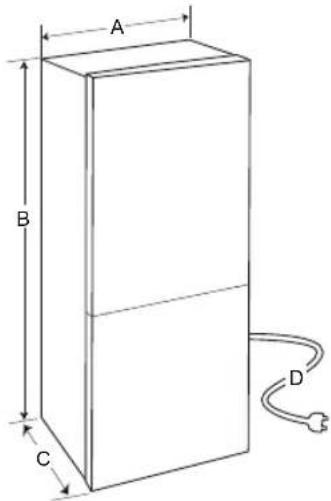

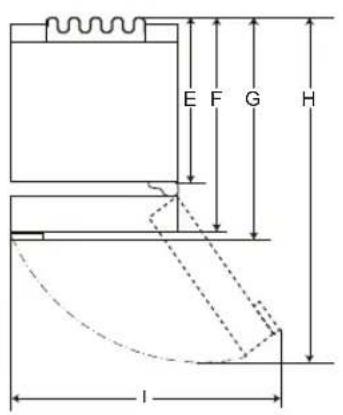

Dimensions and Clearances

Too small a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50 mm of clearance from each adjacent wall when installing the appliance.

1

2

	1		2
	Size [mm]
	Pocket Handle	Bar Handle	Pocket Handle	Bar Handle
A	595 595 595			595
B	860 / 2 030 1 860 / 2 030	860 / 2 030 1 860 / 2 030
C	682 718 675 712
D	2 100	2 100	2 100	2 100
	616	616 610 610E
	682 682		675 675F
	-	718	- 712G
H	1 230	1 237	1 225	1 232
I	995	995 995 995

Ambient Temperature

• The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone.
• The internal temperature could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on.
• The climate class can be found on the rating label.

Climate Class	Ambient Temperature Range °C
SN (Extended Temperate)	+10 - +32
N (Temperate)	+16 - +32
ST (Subtropical)	+16 - +38
T (Tropical)	+16 - +43 / +10 - +43*

*Australia, India, Kenya

NOTE

• The appliances rated from SN to T are intended to be used at an ambient temperature between 10°C and 43°C.

Notes for Operation

• Users should keep in mind that frost can form if the door is not closed completely, if the humidity is high during the summer, or if the freezer door is opened frequently.
• Ensure there is sufficient space between food stored on the shelf or door basket to allow the door to close completely.
• Opening the door for long periods can cause a significant increase in the temperature of the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Suggestion for Energy Saving

• Ensure there is sufficient space between stored foods. This allows cold air to be circulated evenly and lowers electricity bills.
• Store hot food only after it has cooled in order to prevent dew or frost.
• When storing food in the freezer compartment, set the freezer temperature lower than the temperature indicated on the food.
• Do not put food near the temperature sensor of the fridge compartment. Keep a distance of at least 3 cm from the sensor.
• Note that a temperature rise after defrosting has a permissible range in the appliance specifications. If you wish to minimise the impact this may have on the food storage due to a temperature rise, seal or wrap the stored food in several layers.
• The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions.
• For the most efficient use of energy, keep all inner parts (e.g. door bins, drawers and shelves) in their original location.
• Do not set the temperature of the appliance lower than needed.

Storing Foods Effectively

• Store frozen food or refrigerated food inside sealed containers.
• Check the expiration date and label (storage instructions) before storing food in the appliance.
• Do not store food for a long period of time if it spoils easily at a low temperature.
• Avoid refreezing any food which has been completely thawed. Freezing any food which has been completely thawed again will lower its taste and nutrition.
• Do not wrap and store vegetables with newspaper. Printing material of newspaper or other foreign substances may smear and contaminate food.
• Do not overfill the appliance. Cold air can not circulate properly if the appliance is overfilled.
• If you set an excessively low temperature for food, it may become frozen. Do not set a temperature lower than the required temperature for the food to be stored correctly.
• For more space, you can remove bottle rack, egg tray, ice tray and fresh converter drawer.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.
• Food may freeze or spoil if stored at the wrong temperature. Set the refrigerator to the correct temperature for the food being stored.

Max Freezing Capacity

• The Express Freeze function will set the freezer to its maximum freezing capacity. This generally takes up to 24 hours and automatically switches off. If the maximum freezing capacity is to be used, Express Freeze must be switched on for 7 hours before fresh produce is placed in the freezer compartment.

Freezing the Maximum Amount of Food

• To get better air circulation, insert all drawers.
• If large quantities of food are to be stored, all the freezer drawers shall be taken out of the appliance and the food shall be stacked directly on the freezer shelf (or shelves) in the freezer compartment.

NOTE

• To remove the drawers, first remove the food from drawers and then pull out the drawers carefully. Not doing so could cause injury or damage to the drawers.
• The shape of each drawer may be different, insert in the right position.

Setting the Temperature

This sets the fridge temperature or freezer temperature

Press the Fridge button or Freezer button to adjust the temperature.

The temperature can be adjusted.

Fridge: from 1°C to 7°C Freezer: from -15°C to -23°C

The initial temperature is set.

Fridge: 3°C - Freezer: -18°C

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within the appliance.

NOTE

• The default temperature setting may vary depending on the appliance.
• For optimal food preservation, increasing or decreasing 1°C or one level from the default temperature is recommended for each compartment.
• Wait until 2 or 3 hours have passed after connecting the appliance to the outlet before storing food in the appliance.
• For ice making in normal climates, the freezer temperatures should be set to -18 °C or colder.

High Temperature Alarm

When the freezer temperature goes too high due to power failure, the freezer temperature LED lamp blinks and an alarm sounds.

• Press the Freezer button to stop. If the temperature is sufficiently cold, the blinking and alarm will automatically stop. This function operates:
• When the refrigerator is turned on.
• When the freezer compartment gets too warm.
• When there is a power outage that lasts for a long period of time.
• When large amounts of warm food are placed in the freezer compartment.
• When the freezer door is open for too long or too frequently.

Fresh Converter (*)

As a chill compartment, the temperature in the fresh converter can be controlled by sliding the lever 1, located in front of the compartment, in either direction.

When keeping vegetables after setting up Meat or Fish, cold injury may occur.

For storing vegetables. (Recommended) For storing fish. For storing meat.

NOTE

(*): This feature varies depending on the model purchased.

Fresh Vegetable Painter (*)

The vegetable compartment can adjust the humidity by moving the knob 1.

For storing vegetables. (Recommended) For storing fruit.

NOTE

• (*): This feature varies depending on the model purchased.

Food Storage Compartments Storing Food in the Fridge Compartment

Fridge Shelf

• This is where refrigerated foods and other items are stored.
• The shelf height can be adjusted by inserting the shelf in another groove of different height.
• Store the foods with higher moisture content at the front of the shelf. The actual number of shelves will differ from model to model.
• Bottle Rack (*)
• This is where drinks tall bottles or containers are stored.
• Folding Shelf (*)
• This is where refrigerated foods and high items are stored.
• Fresh Vegetable Printer
• This is where fruits and vegetables are stored to help maintain freshness by adjusting the humidity controller. The appearance or components of the appliance may differ from model to model.
• Fresh Converter (*)
• As a chill compartment, this is where meat, fish and vegetables are stored. Help maintain freshness by adjusting the humidity controller located in the back of the fridge compartment.
• For more space, you can use the chill area without the chill compartment drawer.
• Movable Egg Tray
• This is where eggs are stored.
• You can move it to a desired position and use it as needed. However, do not use it as an ice bin or place it on the shelf on top of the fridge or the vegetables drawer. Fridge Door Basket
• This is where small packages of refrigerated foods, drinks, and sauce containers are stored.

Water Dispenser Tank (^*)

• This is where water to supply the dispenser or the automatic icemaker is stored. It requires manual filling. (Non-plumbed models only)

Storing Food in the Freezer Compartment

Ice Tray

• This is where ice is produced and stored.
• For more space, you can remove the ice tray or ice cubes bucket.
• Freezer Drawer
• This is for long-term storage of frozen items.
• To freeze food items quickly, store the food on the left side of the top drawer. Food items will freeze most quickly in the drawer.

NOTE

• * : This feature varies depending on the model purchased.
• For more information about other compartments, visit lg.com and download owner's manuals.

Control Panel

The actual control panel may differ from model to model.

Control Panel and Functions

*1 This feature is only available on some models.

The control panel can be found either on the Fridge Door or inside the Fridge depending on the model.

Type A

Type B

Fridge

Press this button repeatedly to select a desired temperature between 1°C and 7°C.

The default fridge temperature is 3°C.

Express Cool

This function can quickly cool a large amount of foods such as vegetable, fruit and so on.

• This function is enabled and disabled in turn each time you press the button for 3 seconds.

3 Freezer

Press this button repeatedly to select a desired temperature between -15 °C and -23 °C.

• The default freezer temperature is -18 °C.

4 Express Freeze

This function can quickly freeze a large amount of ice or frozen foods.

• Press the Express Freeze button to activate the function for 24 hours. The function automatically shuts off after 24 hours.
• This function is enabled and disabled in turn each time you press the button for 3 seconds.
• When this mode is on, noise may occur and energy consumption may increase.

Vacation

This function is useful when you are away on a holiday. When this function is on, the fridge temperature is 7°C and the freezer temperature -15°C. When this function is off, the fridge and freezer temperature return to the previous temperature settings.

• This function is enabled and disabled in turn each time you press the button.
• When this mode is on, the other buttons except Lock and Wi-Fi buttons will not operate.
• Eco Friendly has been renamed Vacation.

CAUTION

• When this function is on, be careful about storing foods that require a lower temperature than the default temperature.
• When you return home, remember to turn this function off to unlock the other buttons and return the refrigerator to its previous temperature settings.

6 Wi-Fi*1

This button allows the appliance to connect to a home Wi-Fi network. Refer to SMART FUNCTIONS for information on the initial setup of the LG ThinQ application.

7 Lock

This locks the buttons on the control panel.

• To lock the control panel buttons, press and hold the Lock button for 3 seconds until the function is activated.
• To disable the function, press and hold the Lock button for 3 seconds until the function is deactivated.

NOTE

• For optimal food preservation, increasing or decreasing 1°C or one level from the default temperature is recommended for each compartment.
• The displayed temperature is the target temperature, and not the actual temperature inside the appliance.
• The actual temperature inside the appliance depends on the following factors: room temperature, the amount of food and how often the doors are opened, where the appliance is. Set the temperatures by considering these factors.
• The control panel will turn off automatically for energy saving.
• If there is any finger or skin contacts to the control panel while cleaning it, the button function may operate.

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Smart Diagnosis

• If you experience a problem while using the appliance, this smart diagnosis feature will help you diagnose the problem.

Settings

• Allows you to set various options on the appliance and in the application.

NOTE

• If you change your wireless router, internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again. The application is subject to change for appliance improvement purposes without notice to users.
• Functions may vary by model.

Before Using LG ThinQ Application

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

• If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

3 Connect your smartphone to the wireless router.

NOTE

To verify the Wi-Fi connection, check that the icon on the control panel is lit. - The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual. LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection. - If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength. - The Wi-Fi connection may not connect or may be interrupted because of the home network environment. - The network connection may not work properly depending on the Internet service provider. - The surrounding wireless environment can make the wireless network service run slowly. - The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again. - If the firewall on your wireless router is enabled, disable the firewall or add an exception to it. - The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone.

• Follow instructions to download and install the application.

Connecting to Wi-Fi

The Wi-Fi button, when used with the LG ThinQ application, allows the appliance to connect to a home Wi-Fi network. The icon shows the status of the appliance's network connection. The icon illuminates when the appliance is connected to the Wi-Fi network.

Initial Appliance Registration

• Run the LG ThinQ application and follow the instructions in the application to register the appliance.

Re-registering the Appliance or Registering Another User

• Press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to register the appliance.

NOTE

• To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. On will be turned off.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses that have the obligations to disclose source code, that is contained in this product, and to access all referred license terms, copyright notices and other relevant documents please visit http://opensource.lge.com. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Notes for Cleaning

• When removing a shelf or drawer from inside the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to the appliance.
• Otherwise, injury may occur due to the weight of stored foods.
• If cleaning the outside air vents of the appliance by means of vacuuming, then the power cord should be unplugged from the outlet to avoid any static discharge that can damage the electronics or cause an electric shock.
• Detach the shelves and drawers and clean them with water, and then dry them sufficiently, before replacing them.

Regularly wipe the door gaskets with a wet soft towel.

• Door basket spills and stains should be cleaned as they can compromise storage ability of the basket and could even be damaged.
• After cleaning, check if the power cable is damaged, warm or improperly plugged.
• Keep the air vents on the exterior of the appliance clean.
• Blocked air vents can cause fire or appliance damage.
• When cleaning the inside or outside of the appliance pot, wipe it with a rough brush, toothpaste, or flammable materials. Do not use cleaning agents containing flammable substances.
• This may cause discoloration or damage to the appliance.
• Flammable substances: alcohol (ethanol, methanol, isopropyl alcohol, isobutyl alcohol, etc.), thinner, bleach, benzene, flammable liquid, abrasive, etc.
• For the appliance exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.
• Never clean the shelves or containers in the dishwasher.

The parts may become deformed due to the heat.

Regularly clean surfaces that can come in contact with food. - If the appliance is equipped with an LED lamp, do not remove lamp cover and LED lamp in any attempt to repair or service it. Please, contact an LG Electronics customer information centre.

Disposal of Your Old Appliance

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www/lg.com/global/recycling.

Before Calling for Service

Customer Care and Service

Contact an LG Electronics customer information centre.

To find information on LG authorized service centre, visit our website at www.lg.com. - Only qualified service personnel from LG authorized service centre should disassemble, repair, or modify the appliance. - The minimum warranty period of this refrigerating appliance is 24 months. - To purchase spare parts, contact an LG Electronics customer information centre or our website at www.lg.com. - Spare parts referenced in Regulation EU 2019/2019 are available for 7 years (only door gaskets are available for 10 years).

NOTE

• For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name (valid from 1st March 2021).
• Regulation EU 2019/2019, valid from 1st March 2021, is related to the Energy Efficiency classes by Regulation EU 2019/2016.
• Scan the QR code on the energy label supplied with the appliance, which provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference and all other documents supplied with the appliance (valid from 1st March 2021).
• The model name can be found on the rating label of the appliance.

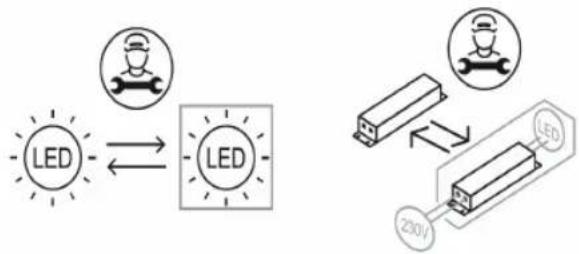

• This product contains a light source of energy efficiency class G.

OPERATING MANUAL

REFRIGERATOR-FREEZER

Read the operating manual carefully before using the appliance and keep it in a convenient place for reference at all times.

www.lg.com

SAFETY INSTRUCTIONS 3

Important safety instructions 3

INSTALLATION 10

Dimensions and connections 10

Ambient temperature 10

OPERATION 11

Notes on operation 11

Converter for fresh products (^*) 12

Compartment for fresh vegetables ( * ) 13

Control panel 15

SMART FUNCTIONS 17

LG ThinQ Application 17

MAINTENANCE 19

Cleaning and care 19

Disposal of old appliances 19

TROUBLESHOOTING 20

Additional information regarding the manual

This is a brief version of the manual

Mon, visit the website at http://www.lg.com

Troubleshooting

Safety Instructions

BG

The safety instructions are provided to prevent unforeseen risks and damage or injury from incorrect use of the product. The instructions are divided into "WARNING" and "CAUTION" sections, as described below.

This symbol is used to draw attention to factors and usage that could pose risks. Read the section marked with this symbol carefully and follow the instructions to avoid risks.

WARNING

This indicates that failure to follow the instructions may cause serious injury or death.

CAUTION

This indicates that failure to follow the instructions may cause minor injury or damage to the product.

Important Safety Instructions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using the product, basic safety precautions should always be followed, including the following:

Children in the household

This appliance is intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• If the appliance is equipped with a plug (only for certain models), place the plug in an easily accessible location.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Installation

This appliance must be transported only by two or more people holding the appliance securely. - Make sure the plug is properly connected and that the grounding wire on the electrical cable is not damaged or disconnected. For more information on grounding, contact the LG Electronics customer information center.

The appliance is equipped with a power cord with a grounding wire for grounding the appliance and with a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

• If the power cord is damaged, do not use the cord and contact an authorized service center. Do not plug the appliance into a multi-outlet adapter that has a power cord (extension). Do not modify or extend the electrical cord.
• The appliance must be connected to a dedicated electrical circuit with its own fuse. Do not use a multi-outlet adapter that is not properly grounded (e.g., a two-prong adapter). If using a properly grounded multi-outlet adapter (e.g., a three-prong adapter), use a multi-outlet adapter with a high current rating for the power cord, and use it only for this appliance. - Place the appliance in a location where the plug can be easily disconnected from the outlet.

Be careful not to pinch the power cord and do not place the appliance on top of it. - Place the appliance on a stable, level surface. - Do not install the appliance in a damp or dusty place. Do not install the appliance outdoors or in a place exposed to atmospheric conditions such as direct sunlight, wind, rain, or temperatures below freezing. Do not place the appliance in direct sunlight and do not expose it to heat from heating appliances, such as radiators or heaters. Be careful not to expose the rear part of the appliance during installation. Be careful that the door of the appliance does not fall during assembly or disassembly. Be careful not to puncture, crush, or damage the cord during assembly or disassembly of the appliance door. - Do not connect adapters or extension cords to the outlet.

Operation

Do not store explosive or flammable materials (such as gas cartridges or containers for transport) in the appliance, as they differ from containers for storing food in the household. Unplug the appliance during thunderstorms, when cleaning, or when it is not in use for a long time. Do not touch the plug or the appliance controls with wet hands. Do not bend the power cord excessively or place heavy objects on it. If water penetrates the electrical parts of the appliance, unplug it and contact the LG Electronics customer information center. Do not place shelves or metal objects in the area from which cold air flows, above the duct or the grille, as this may cause a fire hazard. Do not apply excessive force to the door of the appliance. Do not place live animals in the product. The animal may suffocate.

Be careful if there are children when you open or close the appliance door. The door may be heavy and cause injury. Do not allow anyone to sit or climb on the door, as this may cause the appliance to tip over and result in serious injury. Be aware of the risk of children getting trapped in the appliance. A child trapped inside can suffocate. Do not place heavy or sharp objects, items with liquids, flammable substances, easily ignitable items (such as candles, lamps, etc.), or heating devices (such as stoves, radiators, etc.) on top of the appliance. If there is a gas leak (butane, propane, natural gas, etc.), do not touch the appliance, do not unplug the power cord, and immediately ventilate the area. This appliance uses a flammable refrigerant (isobutane, R600a). Although it uses a small amount of gas, it is still flammable. A gas leak during transport, installation, or operation can cause a fire, explosion, or injury if sparks occur. Do not use or store flammable or combustible substances (such as ether, benzene, alcohol, chemicals, liquefied petroleum gas, flammable sprays, insecticides, air fresheners, cosmetics, etc.) near the appliance. If you notice any unusual noise, smell, or smoke coming from the appliance, unplug it immediately and contact the LG Electronics customer information center. Fill the ice maker or water tank with drinking water only. Do not damage the refrigerant pipes. Do not place other electrical appliances (such as a heater or mobile phone) inside the appliance.

Maintenance

Unplug the power cord before cleaning the appliance or replacing the interior lamp (if applicable). Insert the plug properly, after removing any moisture or dust from it. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull it straight out from the outlet.

• Do not store flammable substances (such as gasoline, alcohol, solvents, benzene, flammable liquids, abrasives, etc.) inside or near the appliance. Do not use the appliance with a cloth, brush, or sponge with a rough surface, or with abrasive materials.
• Only qualified service personnel from an LG Electronics service center should disassemble, repair, or modify the appliance. Contact the LG Electronics customer information center if you are installing or relocating the appliance to another location. Do not use a hair dryer to dry the inside of the appliance, and do not place candles inside to remove odors.
• Do not use mechanical devices or other means to accelerate the defrosting process.

Disposal

When disposing of the appliance, remove the door gasket, leave the shelves and baskets in place, and keep children away from the appliance. Dispose of the packaging material (such as plastic bags and Styrofoam) away from children. Packaging materials can cause suffocation.

Technical Safety

Do not place obstacles in front of the ventilation openings or in the surrounding walls of the appliance, or in the built-in space. Do not use electrical appliances inside the refrigerator. - Special disposal procedures are required for the refrigerant and for the insulating foam, which contains flammable gas. Consult a technician or other similarly qualified person before disposing of them. The refrigerant that escapes from the pipes may ignite or cause an explosion. - The amount of refrigerant for your specific appliance is indicated on the identification label inside the appliance. - Never plug in an appliance that shows signs of damage. If in doubt, consult your dealer.

This appliance is intended for household use only or similar non-commercial applications. It should not be used for commercial purposes, such as in a caravan or mobile home. Do not store explosive substances such as aerosol cans with flammable gas inside the appliance. This refrigerator is not intended to be used as a built-in appliance.

Risk of fire and flammable materials

This symbol warns you of flammable materials that can ignite and cause a fire if you are not careful.

The appliance contains a small quantity of the refrigerant isobutane (R600a), which is flammable. When transporting and installing the appliance, be careful not to damage any part of the cooling circuit. - If a leak is detected, avoid open flames or potential ignition sources and ventilate the room in which the appliance is located for a few minutes. To avoid the formation of a flammable gas-air mixture, the size of the room in which the appliance is used must correspond to the amount of refrigerant used. The room must be at least 1 m² for every 8 g of refrigerant R600a in the appliance. When positioning the appliance, make sure that the supply cord is not trapped or damaged. Do not place multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

To reduce the risk of injury to persons, malfunction, or damage to the product or property, follow the basic safety precautions, including:

Installation

• Do not tip the appliance to connect or disconnect it during transport.
• Be careful not to pinch parts of the body (such as hands or feet) while moving the appliance.

Operation

Do not touch frozen food or metal parts in the freezer compartment with wet or damp hands. This may cause frostbite. Do not place glass containers, bottles, or cans (especially those with carbonated drinks) in the freezer compartment, on the shelves, or in the ice container, where they will be exposed to temperatures below freezing. - The glass in the front part of the appliance door or on the shelves may break if hit. Do not handle it with wet hands if it breaks. Do not lean on the appliance door, on the shelves, or on the ice maker. Do not climb onto them. - Do not store an excessive amount of water bottles or beverage containers in the door bins. - Do not allow pets to chew on the power cord or the water connection. - Do not open or close the appliance door with excessive force. If the appliance door is damaged or does not work properly, stop using it and contact an authorized service center.

Do not wash the shelves or containers with hot water when they are cold.

• Never eat frozen food immediately after removing it from the freezer. Be careful not to pinch your hands or feet when opening or closing the appliance door.

Maintenance

Do not place the shelves upside down. They may break. - To dispose of the appliance, contact the LG Electronics customer service center for information.

Dimensions and Clearances

The distance to surrounding objects may increase the energy consumption and increase the need for energy. Keep a distance of more than 50 mm from the surrounding walls when installing the device.

1

2

	1		2
	Размер [MM]
	Джобна дрьжka	Лостова дрьжka	Джобна дрьжka	Лostова дрьжka
A	595 595 595			595
B	1860 / 2030	1860 / 2030	1860 / 2030	1860 / 2030
C	682 718 675	712
D	2100	2100	2100	2100
	616	616 610	610
F	682 682		675	675
G	-	718	-	712
H	1230	1237	1225	1232
I	995	995 995	995

Ambient temperature

• The device is intended for operation in a limited temperature range depending on the climate zone. The temperature of the device must be within the ambient temperature, the frequency of door opening, etc. The climate class can be indicated with data.

КлIMаТичЕн Клас	Диапазон Ha okолна Температура в °C
SN (РаЗширен умерен) +10 - +32
N (Умерен) +16 - +32
ST (Субтошичен) +16 - +38
T (Трочen) +16 - +43 / +10 - +43*

Australia, India, Kenya

INSTALLATION

The device with category from SN to T is intended for use at ambient temperatures from 10°C to 43°C

Operating instructions

• Consumers must have a proper seal, which can form frost if the doors are not closed properly, if the humidity is high during the summer or if the freezer door is opened often.
• Make sure there is enough space between the stored food on the work surface and the door gasket, so that the door can close completely.

- Leaving the door open for a long time can lead to a significant increase in the temperature of the device. - If the cooling device is left open for a long time, you must turn it off, defrost, clean, dry, and leave the door open to prevent the formation of mold in the device.

Energy saving tips

• Make sure there is enough space between the stored food. This allows for even circulation of cold air and lowers the electricity bills.
• Store hot food only after it has cooled down, to avoid the formation of condensation or frost. When storing food in the freezer, set the freezer temperature to a lower value than the temperature indicated on the food. Do not place food close to the temperature sensor of the refrigerator. Leave a distance of at least 3 cm from the sensor. - Keep in mind that the temperature increase after defrosting has an acceptable range in the device specifications. If you want to reduce the impact that this temperature increase may have on food storage, close the hermetic seal and store the food in several.
• The appliance is designed to operate normally under normal conditions and does not require any special maintenance. For the most efficient use of energy, keep all internal parts (e.g., door shelves, drawers, and racks) in their original positions.

Do not set the temperature of the appliance lower than necessary.

Efficient storage of food

Store highly perishable or frozen food in sealed containers. - Check the expiration date on the label (storage instructions) before placing food for storage in the appliance. - Do not store food for a long time if it has started to thaw at low temperatures. - Place chilled or deeply frozen food in the refrigerator or freezer as soon as possible after purchase. Store strictly according to the instructions in the appropriate compartments of the refrigerator, so that they do not come into contact with other food or drip onto it. - Avoid refreezing food that has been completely thawed. Refreezing food that has been completely thawed will impair the taste and nutritional qualities. - Do not wrap or store vegetables in newspaper. The printing ink or other chemical substances may contaminate or block the food. Do not overload the appliance. The cold air cannot circulate properly if the appliance is overloaded. If you set too low a temperature, the food may freeze. Do not set the temperature lower than necessary for proper food storage. For more space, you can remove the bottle rack, the can rack, the drawer for vegetables, and the shelf for fresh products. Food may freeze or spoil if stored at the wrong temperature. Set the refrigerator to the correct temperature for the food being stored.

Max. freezing capacity

- The Express Freeze function sets the freezer to maximum freezing capacity. This usually lasts up to 24 hours and turns off automatically. If you need to use the maximum freezing capacity, Express Freeze should be turned on for seven hours before placing fresh products in the freezer compartment.

Freezing the maximum amount of food

For better air circulation, remove all drawers. If large quantities of food need to be stored, all drawers of the freezer must be removed and the food placed directly on the shelves (or racks) in the freezer compartment.

REMOVAL

To remove the drawers, first remove the food from the drawers and then pull them out carefully. Failure to follow this instruction may lead to scratching or damage to the drawers. - The shape of each drawer may be different, place them in the correct position.

Setting the temperature

This sets the temperature of the refrigerator or freezer.

• Press the Fridge button or the Freezer button to adjust the temperature.
• The temperature can be adjusted. -Refrigerator: from 1 °C to 7 °C -Freezer: from -15 °C to -23 °C -The default temperature is set. -Refrigerator: 3°C -Freezer: -18°C

The set temperature may vary depending on the state of the food, as the set temperature is the target, not the actual temperature in the environment.

SAFETY PRECAUTIONS

The set temperature may differ depending on the environment. For optimal food storage, it is recommended to increase or decrease the temperature by 1°C and then check the set temperature for each compartment. - Remove the drawers and shelves as needed to store food properly.

To produce normal ice, the freezer temperature should be set to -18°C or lower.

Temperature setting

Press the Fridge or Freezer button to adjust the temperature.

Installation of LG ThinQ application

Search for the LG ThinQ app on the Google Play Store or Apple's App Store on a smartphone.

Important safety instructions 3

INSTALLATION 10

IMPORTANT SAFETY INSTRUCTIONS

DANGER

Additional Information Of The Manual

Movable egg tray

LG ThinQ application

IMPORTANT SAFETY INSTRUCTIONS 3

INSTALLATION 10

Dimensions and Clearance 10

Ambient Temperature 10

OPERATION 11

Operating Notes 11

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury, or burns to persons when using this product, follow basic precautions, including the following:

Children in the Household

• This appliance should not be used by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are supervised or given instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the appliance is equipped with a lock (only on some models), keep the key out of reach of children.

For use in Europe:

Copyright © 2019-2023 LG Electronics Inc. All Rights Reserved

Store fresh and frozen food in closed containers. - Set the temperature for the duration of storage. - Place the food in the appliance. - Do not store food for a long period (more than 4 weeks), if it spoils at low temperature. Place fresh or frozen food in the refrigerator or freezer after purchase. Avoid refreezing food that has been completely thawed. Refreezing any food that has been completely thawed will reduce its nutritional value. - Keep fresh meat and fish in suitable containers in the refrigerator to prevent contact with other food. Do not store vegetables in the freezer. Certain materials such as vegetables or other food items can contaminate and spoil food. Do not overload the appliance. Cold air cannot circulate properly if the freezer is overloaded. - If you set a very low temperature, food may freeze. Do not set the temperature lower than necessary for proper food storage.

For more space, you can remove the drawers for vegetables, for meat, for ice cream, and the shelf for fresh food.

Food may freeze or spoil if stored at the wrong temperature. Set the temperature in the refrigerator to the correct one for the food stored in it.

Maximum freezing capacity

- The Express Freeze function ensures that freezing is set to maximum capacity. - The function is usually active for 24 hours, then it automatically turns off. - If you want to use the maximum freezing capacity, the Express Freeze function must be turned on for several hours, and then fresh products can be placed in the freezing compartment.

Freezing maximum quantity of food

To improve air circulation, insert the drawers. - If large quantities of food need to be stored, then the drawers of the freezer should be removed and the food placed directly on the shelves (or drawers) of the freezer in the compartment.

NOTE

To remove the drawers, first remove the food from them, then pull them out carefully. If you do not do this, you may damage or break the drawers. - The shape of each drawer may be different, so insert them into the corresponding slot.

Setting the temperature

Set the temperature of the refrigerator or freezer.

- Press the Fridge and Freezer buttons to adjust the temperature. - The temperature can be adjusted. - Fridge: from 1°C to 7°C - Freezer: from -15°C to -23°C - Default temperature is set. - Fridge: 3°C - Freezer: -18°C

The actual internal temperature varies depending on the status of the food; the above setting for temperature is the set temperature, not the actual temperature in the appliance.

NOTE

• The appliance should be switched off before cleaning. For optimal food preservation, it is recommended to adjust the temperature setting to the standard temperature for each compartment by 1°C or one level.
• Wait 2 to 3 hours after connecting the appliance to the power supply before placing food inside. To make ice in a normal climate, the temperature for freezing should be set to -18°C or lower.

Connect to Wi-Fi

Energy saving tips

Foldable shelf (*)

TROUBLESHOOTING. 19

Copyright © 2019-2023 LG Electronics Inc. All Rights Reserved

SAFETY INSTRUCTIONS 3

IMPORTANT SAFETY INSTRUCTIONS

WARNING

TABLE OF CONTENTS

for more information.

Troubleshooting

SAFETY INSTRUCTIONS

Set the temperature

Using the button, set the refrigerator or freezer temperature.

Press the Fridge button or the

Freezer button to adjust the temperature.

• The temperature can be adjusted.

Refrigerator: from 1°C to 7°C - Freezer: from -15°C to -23°C

• The initial temperature is set.

Refrigerator: 3°C - Freezer: -18 °C

• (^*) : This feature varies depending on the model purchased.

Warning for flammable material

A (EN) Warning: Risk of fire / Flammable materials / (BG) Пedlyрждени: Рск OT похар / Залиму matерпан / (CZ) Varovani: Nebezpeci vzniku požaru / Hořlavе materially / (DA) Adversel: brandrisiko /brandbare materialer / (DE) Warning: Brandgefahr / Brennbare Materialien / (ES) Advertencia: Riesgo de incendio Mat eriales inflamables / (ET) Hoiatus: tuleoht / Tuleohtlikud materjalid / (FI) Varoitus: Tulipalovaara/sytyviá materiaaleja / (FR) Avertissement: Risque d'incendie / Materiaux inflammables / (GR) Пождбогон: Kivduvoč φωτιαc / (EUφλεκτα ωικα / (HR) Upozorenje: Opasnost(68) požara / Zapaljivi materijali / (HU) Figyelmeztêtes: Tuzveszély/Gyulékony anyagok/ (M) Attenzione: rischio d'incendio / Materiale inflammabile (LT) Jspejimas: gaisro rizika / Degiosios medziagos / (LV) Brīdinajums: Ugunsgreka risks / Viegli uzliemosojiši materiali / (MK) Пedlyредува bene: Onachoct od noхар / Заллели матерпани / (NL) Waarschuwing: Brandgevaar / Brandbare materialen / (NO) Adversel: Brannfare / Brennbar e materialer / (PL) Ostrzezenia: Ryzyko požaru / Materialy latwopalne / (PT) Aviso: Risco de incendió/Materiais inflamáveis / (RO) Avertissement: Risc de incendiu / Materiale inflamabile / (SK) Varovanie: Nebezpečestvo požiaru / Horlavé materially / (SL) Opozorilo: nevarnost požara / Vnetljivi materiali / (SQ) Paralajmerim: Rrezik zjarri / Materiale te ndeshme / (SR) Upozorenje: Opasnost od požar a / Zapaljivi materijali / (SV) Varning: Brandrisk / Brandfarligt material B (BN) Isobutane, R600a/ (BG) N3o6yraH, R600a/ (CZ) Izobutan, R600a/ (DA) Isobutan, R600a/ (DE) Isobutan, R600a/ (ES) Isobutano, R600a/ (ETD) Isobutaan, R600a/ (FJ) Isobutaani, R600a/ (FR) Isobutane, R600a/ (GR) IooBoutavio, R600a/ (HR) Izobutan, R600a/ (HU) Izobutan, R600a/ (IT) Isobutano, R600a/ (LT) Izobutanas, R600a/ (LV) Izobutans, R600a/ (MK) N3o6yraH, R600a/ (NL) Isobutaan, R600a/ (NO) Isobutan, R600a/ (PL) Izobutan, R600a/ (PT) Isobutano, R600a/ (RO) Izobutan, R600a/ (SR) Izobutan, R600a/ (SL) Izobutan, R600a/ (SQ) Izobutan, R600a/ (SR) Izobutan, R600a/ (SV) Isobuten, R600a C (EN) Cyclopentane/ (BG) LUKNOneHTAH/ (CZ) Cyklopentan/ (DA) Cyklopentan/ (DE) Zyklo-Pentan / (ES) Ciclopentano / (ET) Tsuklopentaan / (FI) syklopentaani / (FR) Cyclopentane / (GR) Kuklonεταvio / (HR) Ciklopentan/ (HU) Ciklopentan/ (IT) Ciclopentano/ (LT) Ciklopentanas / (LV) Ciklopentans / (MK) LUKNOneHTAH/ (NL) Cyclopentaan / (NO) Syklopentan/ (PL) Cyklopentan/ (PT) Ciclopentano / (RO) Ciclopentan/ (SK) Cyklopentan/ (SL) Ciklopentan/ (SQ) Ciklopentan/ (SR) Ciklopentan / (SV) Cyclopentan

Rating label

A (EN) Refrigerator-freezer Frost free / (BG) Xладинник-фризер без скреж / (CZ) Chladnička s mrazničkou, beznámrazová / (DA) No frost-køleskab/fryser / (ES) Refrigerador-congelador libre de escarcha / (ET) Külmik-sügavkülmik, külmumiskindel / (FI) Jääkaappi-pakastin, automaattisulatteinen / (FR) Réfrigérateur-congélateur sans givre / (HR) Hladnjak-zamrzivač bez nakupljanja leda / (HU) Hűtőszekrény-fagyasztó, jégmentesített / (LT) Šaldytuvas-šaldiklis be šerkšno / (LV) Ledusskapis-saldētava bez apsarmojuma / (MK) Фрижидер-замрзнувач без мраз / (NL) Koel-vriescombinatie no-frost / (NO) Frostfri kjøleskap med fryser / (PL) Chłodziarko-zamrażarka system bezszronowy / (PT) Frigorífico-congelador sem gelo / (RO) Frigider-congelator fără gheață / (SK) Chladnička s mrazničkou, beznámrazový systém / (SL) Hladilnik-zamrzovalnik brez ledu / (SQ) Frigorifer-ngrirës pa ngricë / (SR) Frižider-zamrzivač bez zamrzavanja / (SV) Frostfritt kyl-och frysskåp B (EN) Model / (BG) Модел / (CZ) Model / (DA) Model / (ES) Model / (ET) Model / (FI) Malli / (FR) Modèle / (HR) Model / (HU) Modell / (LT) Modelis / (LV) Modelis / (MK) Модел / (NL) Model / (NO) Modell / (PL) Model / (PT) Modelo / (RO) Model / (SK) Model / (SL) Model / (SQ) Model / (SR) Model / (SV) Modell C (EN) Climate class / (BG) Климатичен клас / (CZ) Klimatická třída / (DA) Klimaklasse / (ES) Clase climática / (ET) Kliimaklass / (FI) Ilmastoluokka / (FR) Classe climatique / (HR) Klimatski razred / (HU) Klíma osztály / (LT) Klimato klasė / (LV) Klimata klase / (MK) Климатска класа / (NL) Klimaatklasse / (NO) Klimaklasse / (PL) Klasa klimatyczna / (PT) Classe climática / (RO) Clasă de climatizare / (SK) Klimatická trieda / (SL) Klimatski razred / (SQ) Kategoria e klimës / (SR) Klimatska klasa / (SV) Miljöklass D (EN) Defrosting input / (BG) Потребена мощност за размразяване / (CZ) Příkon při rozmrazování / (DA) Afrimningsindgang / (ES) Entrada de descongelación / (ET) Sulatamise sisend / (FI) Sulatuksen tulo / (FR) Entrée de décongélation / (HR) Ulaz odmrzavanja / (HU) Leolvasztási bemenet / (LT) Energijos poreikis atšildymui / (LV) Atsaldēšanas ievade / (MK) Одмрзнување влез / (NL) Ingang ontdooien / (NO) Nominell avriming / (PL) Pobór mocy przy rozmrażaniu / (PT) Entrada para descongelação / (RO) Putere de dezghețare / (SK) Príkon rozmrazovania / (SL) Odjemna moč za odleditev / (SQ) Hyrja e shkrirjes / (SR) Ulazna snaga za odmrzavanje / (SV) Avfrostningseffekt E (EN) Volume / (BG) Обем / (CZ) Objem / (DA) Volumen / (DE) Volumen / (EL) Όγκος / (ES) Volumen / (ET) Maht / (FI) Määrä / (FR) Volume / (HR) Zapremina / (HU) Térfogat / (IT) Volume / (LT) Talpa / (LV) Skalums / (MK) Волумен / (NL) Volume / (NO) Volum / (PL) Objętość / (PT) Volume / (RO) Volum / (SK) Objem / (SL) Prostornina / (SQ) Vëllim / (SR) Zapremina / (SV) Volym F (EN) Total / (BG) Общо / (CZ) Celkem / (DA) Total / (DE) Gesamt / (EL) Σύνολο / (ES) Total / (ET) Kokku / (FI) Yhteensä / (FR) Total / (HR) Ukupno / (HU) Összesen / (IT) Totale / (LT) Iš viso / (LV) Kopā / (MK) Вкупно / (NL) Totaal / (NO) Total / (PL) Łącznie / (PT) Total / (RO) Total / (SK) Celkovo / (SL) Skupaj / (SQ) Totali / (SR) Ukupno / (SV) Total G (EN) Fridge / (BG) Хладилник / (CZ) Chladnička / (DE) Kühlschrank / (DA) Køleskab / (EL) Καταψύκτης / (ES) Frigorífico / (ET) Külmik / (FI) Jääkaappi / (FR) Réfrigérateur / (HR) Hladnjak / (HU) Hűtőszekrény / (IT) Frigorifero / (LT) Šaldytuvas / (LV) Ledusskapis / (MK) Фрижидер / (NL) Koelkast / (NO) Kjøleskap / (PL) Lodówka / (PT) Frigorífico / (RO) Frigider / (SK) Chladnička / (SL) Hladilnik / (SQ) Frigoriferi / (SR) Frižider / (SV) Kylskåp H (EN) Freezer / (BG) Фризер / (CZ) Mraznička / (DA) Fryser / (DE) Gefrierschrank / (ES) Congelador / (ET) Sügavkülmik / (FI) Pakastin / (FR) Congélateur / (GR) Καταψύκτης / (HR) Zamrzivač / (HU) Fagyasztó / (IT) Freezer / (LT) Šaldiklis / (LV) Saldētava / (MK) Замрзнувач / (NL) Vriescombinatie / (NO) Fryser / (PL) Zamrażarka / (PT) Congelador / (RO) Congelator / (SK) Mraznička / (SL) Zamrzovalnik / (SQ) Ngrirës / (SR) Zamrzivač / (SV) Frysskåp I (EN) Ice making / (BG) Производство на лед / (CZ) Výroba ledu / (DA) Isterningmaskine / (DE) Eisherstellung / (EL) Παραγωγή πάγου / (ES) Fabricación de hielo / (ET) Jää valmistamine / (FI) Jääpalojen valmistus / (FR) Fabrication de glace / (HR) Pravljenje leda / (HU) Jégkészítés / (IT) Produzione ghiaccio / (LT) Ledo gaminimas / (LV) Ledus gatavošana / (MK) Производство мраз / (NL) IJs maken / (NO) Ismaskin / (PL) Wytwarzanie lodu / (PT) Produção de gelo / (RO) Utilizarea dozatorului de gheață / (SK) Výrobník ľadu / (SL) Izdelava ledu / (SQ) Prodhimi i akullit / (SR) Ledomat / (SV) Istillverkning J (EN) Chill / (BG) Студено / (CZ) Chlad / (DA) Kold / (DE) Kühle / (ES) Frío / (EL) Ψύχρα / (ET) Külmus / (FI) Jäähdytys / (FR) Fraîcheur / (HR) Hladnoća / (HU) Hűtés / (IT) Freddo / (LT) Šaltumas / (LV) Aukstums / (MK) Студено / (NL) Koude / (NO) Avkjøling / (PL) Komora chłodzenia / (PT) Frio / (RO) Răcire / (SK) Chlad / (SL) Hladnost / (SQ) Ftohtësi / (SR) Hladnoća / (SV) Kyla K (EN) Two star / (BG) 2 звезди / (CZ) Dvě hvězdičky / (DA) To stjerner / (DE) Zwei Sterne / (EL) 2 αστέρων / (ES) 2 estrellas / (ET) Kahetärniline / (FI) Kaksi tähteä / (FR) Deux étoiles / (HR) Dvije zvijezde / (HU) Két csillag / (IT) 2 stelle / (LT) Dvi žvaigždutės / (LV) Divas zvaigznes / (MK) 2 ѕвезди / (NL) Twee sterren / (NO) To stjerner / (PL) Dwie gwiazdki / (PT) Duas estrelas / (RO) Două stele / (SK) Dve hviezdičky / (SL) Dve zvezdici / (SQ) Me dy yje / (SR) Dve zvezdice / (SV) Två stjärnor

L (EN) Rated input of icemaker / (BG) Rated input of icemaker / (CZ) Jmenovitý vstup výrobníku ledu / (DA) Vurderet input af isterningsmaskine / (DE) Nennlast von EISBEREITER / (EL) Ονομαστική είσοδος παραγωγού πάγου / (ES) Entrada nominal del fabricador de hielo / (ET) Hinnanguline jäämasina sisend / (FI) Jääpalakoneen nimellissyöttöteho / (FR) Puissance nominale machine à glace / (HR) Nazivna ulazna snaga ledomata / (HU) A jégkészítő névleges bemenete / (IT) Potenza nominale di ingresso della macchina per il ghiaccio / (LT) Ledo gaminimo aparato vardinė įėjimo galia / (LV) Ledus ražotāja nominālā ieeja / (MK) Номинална моќност на апарат за мраз / (NL) Nominale ingang van de ijsmachine / (NO) Rangert inngang av ismaskin / (PL) Znamionowa moc wejściowa kostkarki do lodu / (PT) Potência de entrada nominal da máquina de gelo / (RO) Putere consumată dozatorului de gheață / (SK) Menovitý príkon výrobníka ľadu / (SL) Nazivni vhod aparata za led / (SQ) Inputi i vlerësuar i makinërisë së akullit / (SR) Nazivni ulaz ledomata / (SV) Märkeffekt för ismaskin / M (EN) Freezing Capacity / (BG) Капацитет на замразяване / (CZ) Mrazicí výkon / (DA) Nedfrysningskapacitet / (ES) Capacidad de congelación / (ET) Külmutusvõimsus / (FI) Pakastuskapasiteetti / (FR) Capacité de congélation / (HR) Kapacitet zamrzavanja / (HU) Fagyasztási kapacitás / (LT) Šaldymo geba / (LV) Saldēšanas jauda / (MK) Капацитет за замрзнување / (NL) Vriesvermogen / (NO) Frysekapasitet / (PL) Wydajność zamrażania / (PT) Capacidade de congelamento / (RO) Capacitatea frigiderului / (SK) Kapacita mrazenia / (SL) Zamrzovalna zmogljivost / (SQ) Kapaciteti i ngrirjes / (SR) Kapacitet zamrzavanja / (SV) Fryskapacitet / N (EN) Gross Volume / (BG) Бруто обем / (CZ) Hrubý objem úložného prostoru / (DA) Bruttokapacitet / (DE) Bruttovolumen / (EL) Συνολικός όγκος / (ES) Volumen bruto / (ET) Kogumaht / (FI) Bruttotilavuus / (FR) Volume brut / (HR) Bruto obujam / (HU) Bruttó térfogat / (IT) Volume lordo / (LT) Bendroji talpa / (LV) Bruto tilpums / (MK) Бруто волумен / (NL) Brutovolume / (NO) Bruttovolum / (PL) Pojemność brutto / (PT) Volume bruto / (RO) Volum brut / (SK) Hrubý objem / (SL) Bruto prostornina / (SQ) Volumi bruto / (SR) Bruto zapremina / (SV) Bruttovolym / O (EN) Storage Volume / (BG) Обем за съхранение / (CZ) Úložný prostor / (DA) Opbevaringskapacitet / (DE) Speichervolumen / (EL) Αποθηκευτικός όγκος / (ES) Volumen de almacenaje / (ET) Hoiustamise kogumaht / (FI) Säilytystilavuus / (FR) Volume de stockage / (HR) Obujam skladištenja / (HU) Tároló térfogat / (IT) Volume di conservazione / (LT) Sandėliavimo talpa / (LV) Uzglabāšanas tilpums / (MK) Волумен за складирање / (NL) Opslagvolume / (NO) Lagringsvolum / (PL) Pojemność przechowywania / (PT) Volume de armazenamento / (RO) Volum de depozitare / (SK) Objem úložného priestoru / (SL) Prostornina shranjevalnega prostora / (SQ) Volumi i ruajtjes / (SR) Skladišna zapremina / (SV) Lagringsvolym / P (EN) 0 star / (BG) 0 звезди / (CZ) 0 hvězdiček / (DA) 0 stjernet / (DE) 0 Sterne / (EL) 0 αστέρων / (ES) 0 estrella / (ET) 0-tärniline / (FI) 0 tähteä / (FR) 0 étoile / (HR) 0 zvjezdica / (HU) 0 csillagos / (IT) 0 stelle / (LT) 0 žvaigždučių / (LV) 0 zvaigžņu / (MK) 0 ѕвезди / (NL) 0-ster / (NO) 0-stjerners / (PL) 0 gwiazdek / (PT) 0 estrelas / (RO) 0 stele / (SK) 0 hviezdičkový / (SL) Oddelek z 0 / (SQ) 0 yje / (SR) 0 zvezdica / (SV) 0-stjärnig / Q (EN) Temperature rise time / (BG) Време за повишаване на температурата / (CZ) Bezpečná doba uchování bez napájení / (DA) Temperaturstigningstid / (ES) Tiempo de incremento de temperatura / (ET) Temperatuuri tõusmise aeg / (FI) Lämpötilan nousuaika / (FR) Durée de l'augmentation de température / (HR) Vrijeme porasta temperature / (HU) Visszamelegedési idő / (LT) Temperatūros nuostolio pasiekimo trukmė / (LV) Temperatūras paaugstināšanās laiks / (MK) Време на зголемување на температурата / (NL) Tijd temperatuurstijging / (NO) Temperaturstigningstid / (PL) Czas wzrostu temperatury / (PT) Tempo de subida da temperatura / (RO) Timp de creștere a temperaturii / (SK) Doba bezpečného uchovania pri vypnutom napájaní / (SL) Čas dviga temperature / (SQ) Koha e ngritjes së temperaturës / (SR) Vreme rasta temperature / (SV) Temperaturens ökningstid / R (EN) The value in () is according to new standard EN62552:2020. / (BG) Стойността в () е съгласно новия стандарт EN62552:2020. / (CZ) Hodnota v () je podle nové normy EN62552:2020. / (DA) Værdien i () er ifølge ny standard EN62552:2020. / (DE) Der Wert in () entspricht der neuen Norm EN62552:2020. / (ES) El valor de () es conforme al nuevo estándar EN62552:2020. / (EL) Η τιμή στο () είναι σύμφωνη με το νέο πρότυπο EN62552:2020. / (ET) Sulgudes toodud väärtus () vastab uuele standardile EN62552:2020. / (FI) Arvo kohdassa () on uuden standardin EN62552:2020 mukainen. / (FR) La valeur dans () correspond à la nouvelle norme EN62552:2020. / (HR) Vrijednost u () u skladu je s novim standardom EN62552:2020. / (HU) A zárójelben () az új, EN62552:2020 szabvány szerinti érték látható. / (IT) Il valore in () è secondo la nuova norma EN62552:2020. / (LT) Reikšmė () pateikta pagal naująjį standartą EN62552:2020. / (LV) Vērtība () ir saskaņā ar jauno standartu EN62552:2020. / (MK) Вредноста во () е во согласност со новиот стандард EN62552:2020. / (NO) Verdien i () er i henhold til ny standard EN62552:2020. / (NL) De waarde in () is volgens de nieuwe norm EN62552:2020. / (PL) Wartość podana w () jest zgodna z nową normą EN62552:2020. / (PT) O valor de () está de acordo com a nova norma EN62552:2020. / (RO) Valoarea din () este conformă noului standard EN62552:2020. / (SK) Hodnota v () je podľa novej normy EN62552:2020. / (SL) Vrednost v () je v skladu z novim standardom EN62552:2020. / (SQ) Vlera në () është vendosur sipas standardit të ri EN62552:2020. / (SR) Vrednost u () je po novom standardu EN62552:2020. / (SV) Värdet i () är enligt ny standard EN62552:2020.

Life's Good
