Connect TS21 - Optical audio switch MARMITEK - Free user manual and instructions

Product type	Optical audio switch
Brand	Marmitek
Model	Connect TS21
Number of inputs	2 x optical Toslink
Number of outputs	1 x optical Toslink
Supported audio formats	PCM 2-channel, Dolby Digital 5.1, DTS 5.1
Max sampling frequency	192 kHz
Power supply	5V DC power adapter (included)
Dimensions (L x W x H)	46 x 46 x 24 mm
Weight	22 g
Operating temperature	0 to 40 °C
Operating humidity	10% to 85%
LED indicator	Yes (power)
Input selection	Push button on the back
Housing material	Plastic
Intended use	Indoor, dry locations
Maintenance and cleaning	Clean with a soft, dry cloth
Safety	Do not open, do not expose to moisture
Package contents	Switch, power adapter, manual
Warranty	Manufacturer's warranty (see manual)

Frequently Asked Questions - Connect TS21 MARMITEK

How to connect the Connect TS21 optical audio switch?

Plug the included power adapter into the DC 5V port on the back, then connect your audio sources (e.g., Blu-ray player, console) to the optical inputs using Toslink cables (not included). Finally, connect the optical output to your amplifier or active speakers.

What audio formats are supported?

The Connect TS21 supports uncompressed PCM 2-channel, compressed Dolby Digital 5.1 and DTS 5.1. It does not convert signals, it simply switches the optical stream.

Can I use the switch without the power adapter?

No, the device requires an external 5V DC power supply via the included adapter to operate. Without it, the switch will not power on.

How do I select the active audio input?

Press the push button on the back of the unit to switch between the two optical inputs. The power LED remains on during operation.

Does the Connect TS21 work with coaxial digital audio cables?

No, the Connect TS21 is designed exclusively for optical Toslink connections. It does not have a coaxial input.

What is the maximum supported sampling frequency?

The device supports a sampling frequency up to 192 kHz, ensuring high-quality sound reproduction.

What to do if the power LED does not light up?

Check that the power adapter is properly connected to the switch and to a working power outlet. Try another 5V adapter if possible. If the problem persists, contact customer service.

Can I use the switch with a soundbar?

Yes, if your soundbar has an optical Toslink input, you can connect the output of the Connect TS21 to it. Make sure the soundbar supports the transmitted audio formats.

Does the switch cause audio quality loss?

No, the Connect TS21 switches the optical signal without modifying or degrading it. The audio quality remains identical to the source, with no latency or loss.

How to clean the Connect TS21?

Unplug the power adapter, then clean the unit with a soft, dry cloth. Do not use chemicals or liquids, as they could damage the device.

USER MANUAL Connect TS21 MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Do not open the product: the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

1. INTRODUCTION

Congratulations on the purchase of your Connect TS21 ^™ . The Optical (Toslink) Digital Audio Switcher can switch two optical digital inputs to a single optical digital output without delay or loss of quality.

2. PACKAGE CONTENTS:

1 x Digital Audio Switcher 1 x Power Adapter 1x User Manual

3. FEATURES

• Perfect if your Audio Amplifier has too few digital audio inputs
• With improved 192kHz sample rate for the best sound reproduction
  • Supports the S/PDIF and Toslink standard
  • Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation) audio signal
  • Supports compressed 2-channel and multi-channel Dolby Digital and DTS audio signals

4. CONNECTIONS

4.1 Top

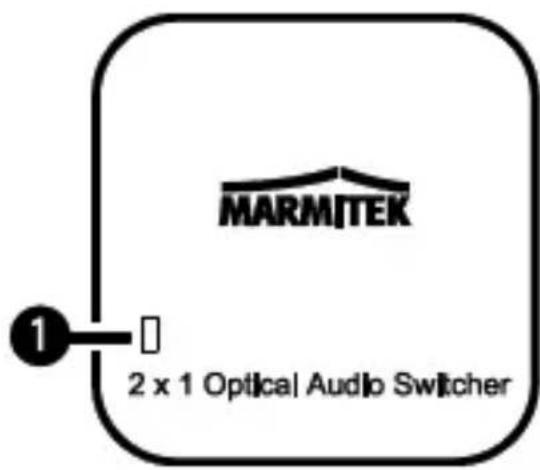

1. Power LED: This LED lights up when the audio switch is connected to a power adapter.

4.2 Left

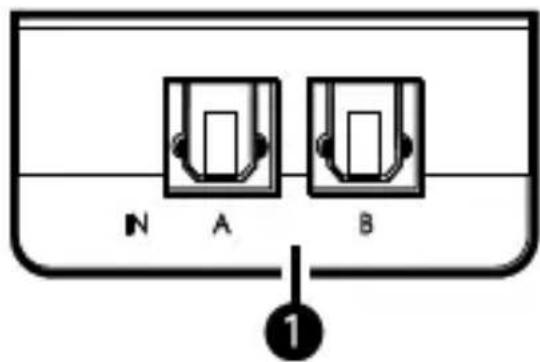

1. Optical In: Connect your audio sources to these inputs with an optical (Toslink) digital audio cable (not supplied).

4.3 Right

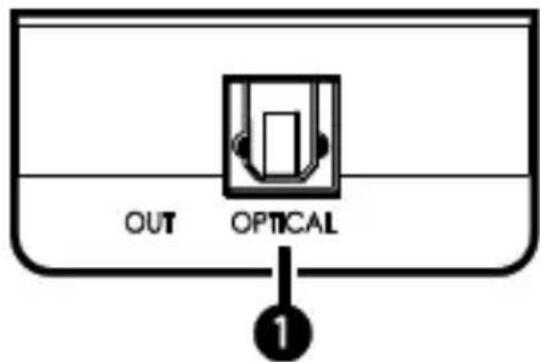

1. Optical Out: Connect your audio amplifier or powered speakers to this output using an optical (Toslink) digital audio cable (not supplied).

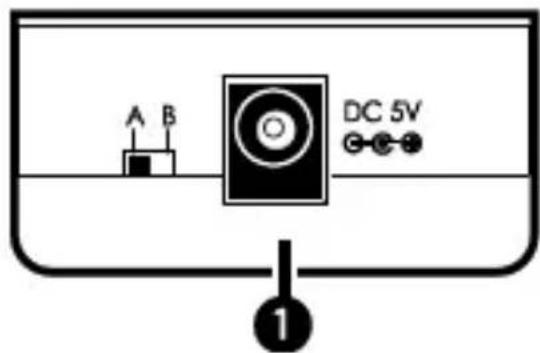

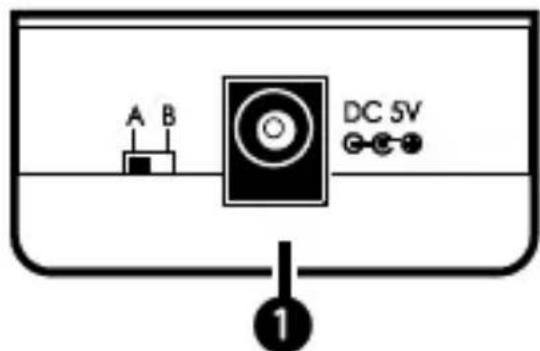

4.4 Back

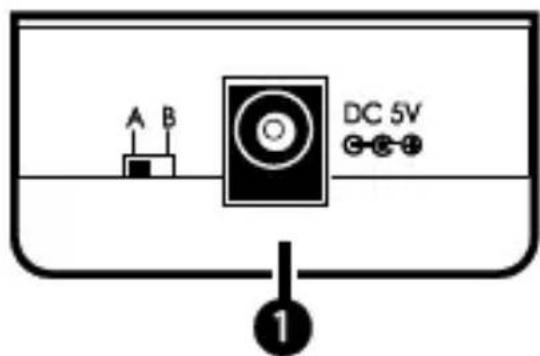

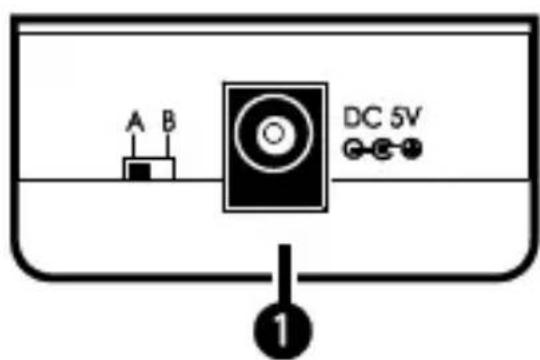

1. DC 5V: Connect the power adapter (included) and plug it into the mains.
2. Input: Use this button to select which audio input is switched to the audio output.

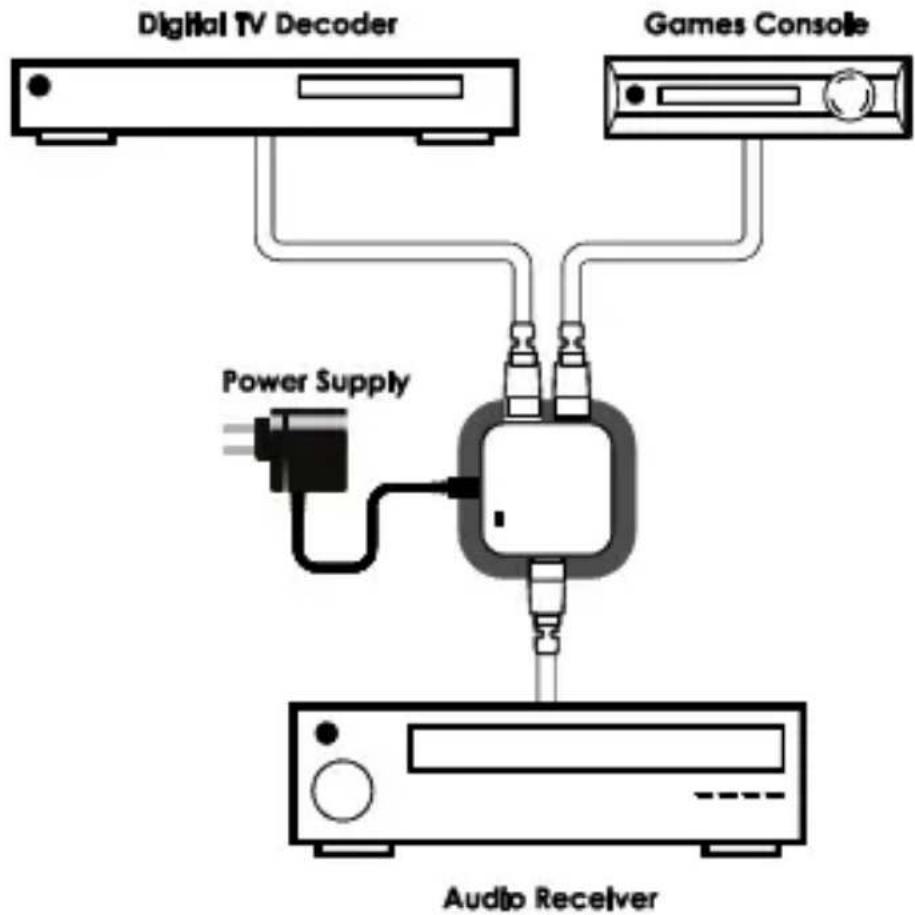

5. CONNECTION DIAGRAM

6. TECHNICAL DATA

Audio Input: 2x Optical (Toslink)

Audio Output: 1x Optical (Toslink)

Supported Audio: PCM2, Dolby Digital 5.1 & DTS 5.1

Sample rate: up to 192kHz

Power: 100-240VAC @ 50-60Hz

Dimensions: 46 x 46 x 24mm

Weight: 22 gr

Environment

Temperature: +0 tot +40°C

Humidity: 10% tot 85%

Specifications may change before prior notice.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no readable text or symbols)

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

SICHERHEITSHINWEISE

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

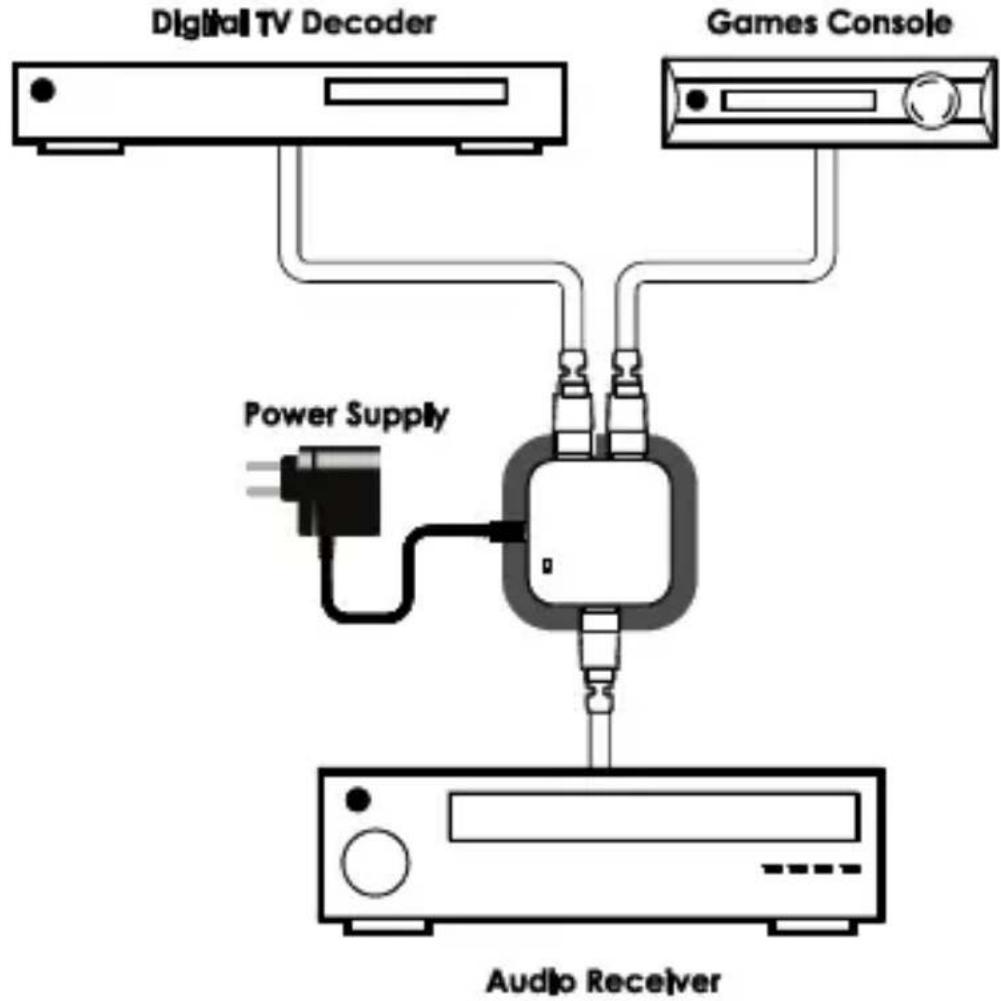

5. SCHÉMA DE CONNEXION

6. CARACTÉRISTIQUES TECHNIQUES

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

VEILIGHEIDSWAARSCHUWINGEN

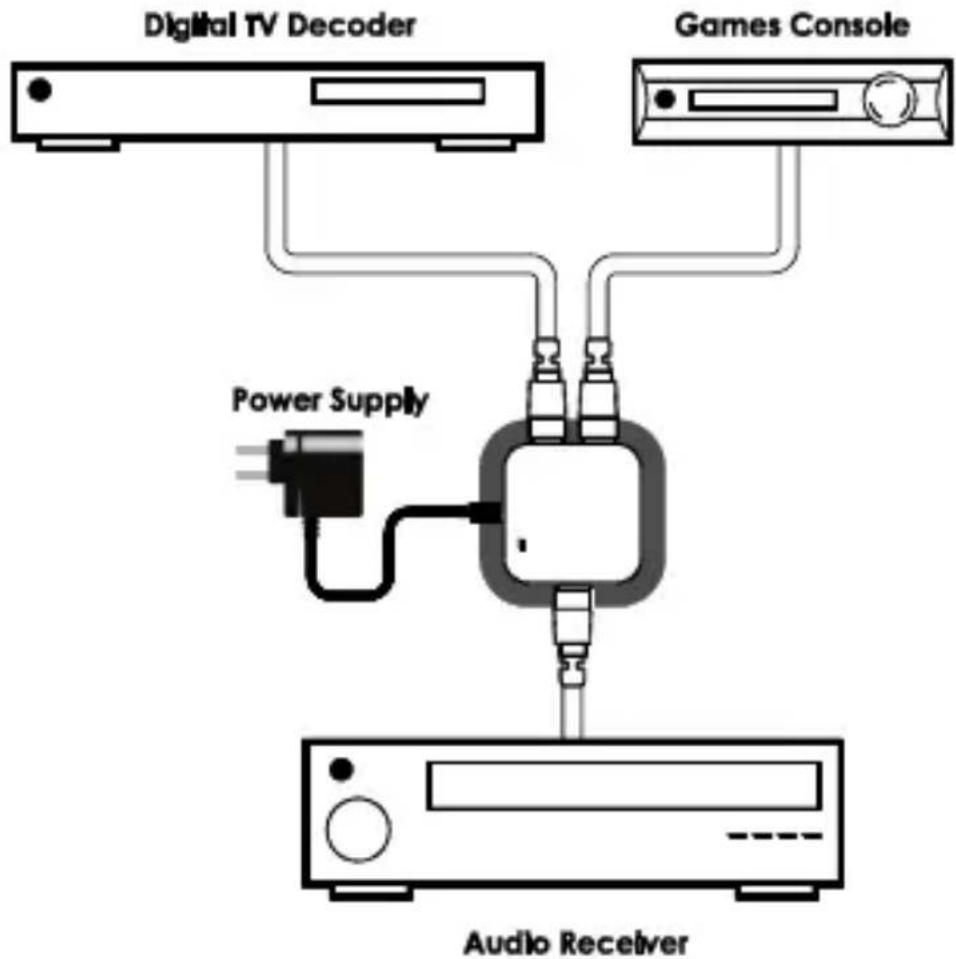


Sample rate: up to 192kHz

Voeding: 100-240VAC @ 50-60Hz

Afmetingen: 46 x 46 x 24mm

Gewicht: 22 gr

Omgeving

Symbol of a trash bin crossed with no visible text or labels

Marmitek is a trademark of Pattitude B.V. Connect TS21 ^™ is a trademark of Marmitek B.V. All rights reserved.

Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this CONNECT TS21 ^™ is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2004/108/ec of the european parliament and of the council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for no-load condition electric power consumption and average active efficiency of external power supplies
