Super Uno AM3140 - Deep fryer MOULINEX - Free user manual and instructions

Product type	Deep fryer
Brand	Moulinex
Model	Super Uno AM3140
Intended use	Household use only
Power supply	Alternating current (refer to rating plate)
Bowl material	Stainless steel (depending on model)
Bowl capacity	Approximately 1.5 L (estimate)
Adjustable thermostat	Yes, up to 190 °C
Removable basket	Yes
Removable lid	Yes
Removable odor filter	Yes (depending on model)
Cleaning of removable parts	Dishwasher (depending on model) or sponge
Cleaning of electrical unit	Damp sponge, do not immerse
Maximum operating altitude	4000 m
Child safety	Keep appliance out of reach of children under 8 years
Cord type	Removable (depending on model)
Maximum oil temperature	190 °C (stabilized before immersion)
Minimum and maximum oil quantity	Follow the markings inside the bowl
Solid fat	Melt separately before use
Storage	Dry and ventilated place, after cooling
Recycling	Appliance contains recyclable materials

Frequently Asked Questions - Super Uno AM3140 MOULINEX

How to clean my Moulinex Super Uno AM3140 deep fryer?

The removable parts (lid, bowl, basket) can be washed in the dishwasher or with a sponge and water. The electrical unit must be cleaned separately with a damp sponge, never immersing it in water.

Can I use olive oil in my deep fryer?

Yes, but it is better to use oils that can withstand heat (frying temperature). Avoid unrefined oils. Follow the minimum and maximum oil quantities indicated.

How much oil should I put?

Pour the oil following the minimum and maximum level markings inside the bowl. Never operate the deep fryer empty.

Why is my deep fryer smoking?

Smoke can be due to too high a temperature (do not exceed 190 °C), burnt food residue in the oil, or oil that is too old. Filter the oil after each use and change it regularly.

Can I put frozen fries directly in the deep fryer?

Yes, but remove excess ice before plunging them into the oil to avoid water splashes. Do not overload the basket (maximum 1/2 basket per batch).

How to change the odor filter?

Depending on the model, the filter can be foam (to be changed every 10-15 uses), a cartridge with indicator (30-40 uses), or a carbon filter (80 uses). Some models have a permanent metal filter that does not need replacement.

My appliance no longer heats up, what should I do?

First check that the plug is connected and the cord is not damaged. If the problem persists, contact an Approved Service Center. Never disassemble the appliance yourself.

Can I leave the oil in the deep fryer after use?

It is recommended to filter the oil after each use to remove residues, then store it in a sealed container away from light. You can reuse it several times, but change it regularly.

Can children use the deep fryer?

This appliance can be used by children aged 8 years and older under constant supervision. Keep the appliance and its cord out of reach of children under 8 years. Cleaning should not be performed by children.

How to store the deep fryer?

Wait until the oil has completely cooled before storing the appliance. Store it in a dry and ventilated place, away from water splashes. Do not store it outdoors.

USER MANUAL Super Uno AM3140 MOULINEX

BEZPEČNOSTNÉ POKYNY SK

BEZBEDNOSNA UPUTSTVA SR

SIGURNOSNE UPUTE HR

VARNOSTNI PREDPISI SL

SIGURNOSNE UPUTE BS

ИНСТРУКЦИИ ЗА БЕЗОПАСНОСТ BG

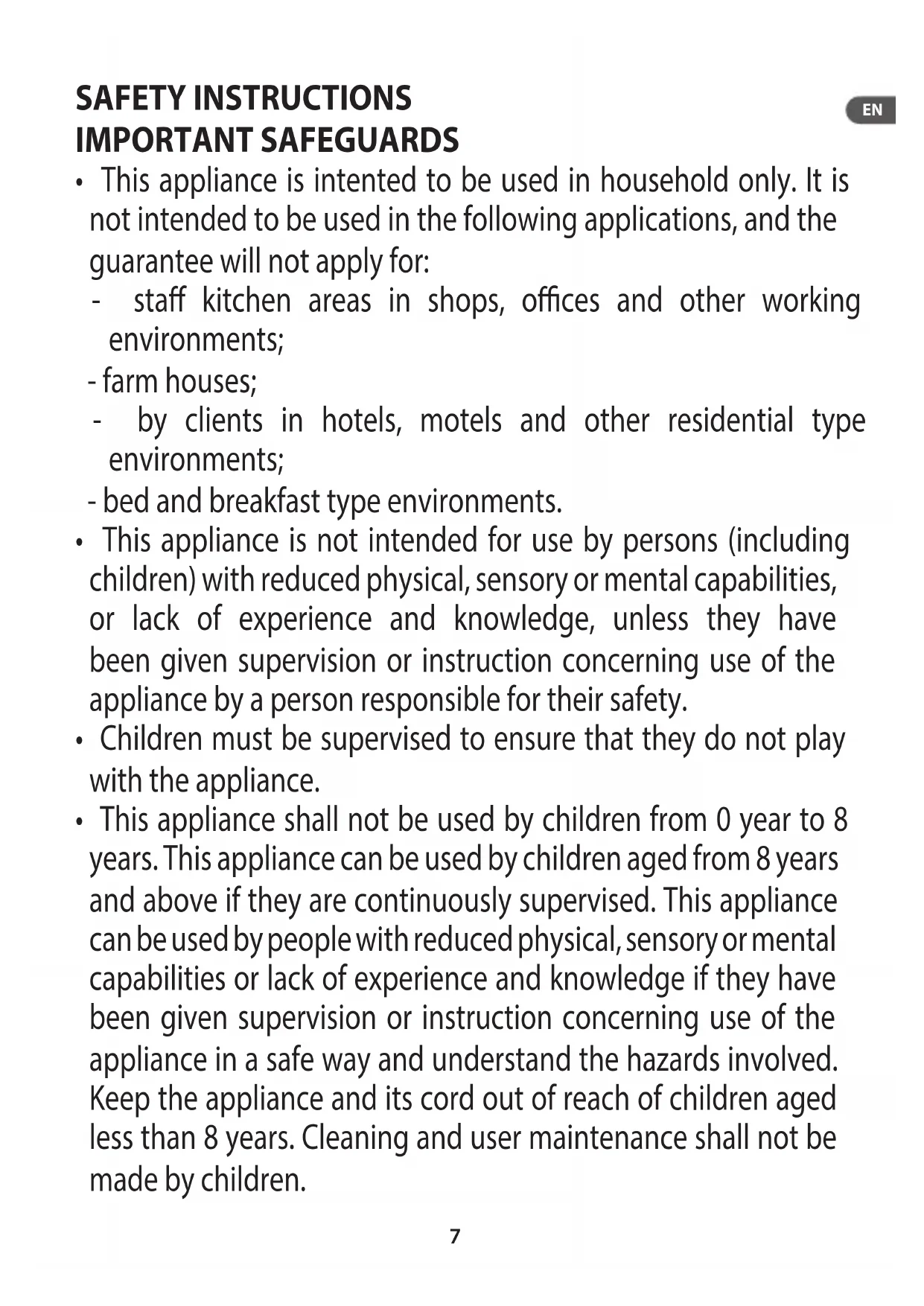

- This appliance is intended to be used in household only. It is not intended to be used in the following applications, and the guarantee will not apply for:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children must be supervised to ensure that they do not play with the appliance.

- This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.

• Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.
• This appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• If the power supply cord is damaged, it must be replaced by the manufacturer, an authorised service centre or a similarly qualified person in order to avoid any danger.
• The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the hot surfaces of the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Clean the lid, bowl, body and basket with a sponge and some water or in a dishwasher (depending on the model). Clean the electric unit separately with a sponge. Please refer to the «Cleaning» section of the instructions for use.
• Never immerse the appliance or the electrical control unit in water!
• The appliance can be used up to an altitude of 4000 m.
• Caution: the surface of heating element is subject to residual heat after use.
• Caution: risk of injury due to improper use of the appliance.
• Caution: do not spill liquid on the connector (depending on model).

Do

• Read and follow the instructions for use. Keep them safe.
• Check that the power supply voltage corresponds to that shown on the appliance

(alternating current).

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved Service Centre.
• Remove all packaging materials and any promotional labels or stickers from your deep fryer before use. Be sure to also remove any materials from underneath the removable bowl (depending on model).
• Do not use the appliance if the appliance or the cord is damaged, if the appliance has fallen or shows visible damage or does not work properly. In the event of the above, the appliance must be sent to an approved Service Centre. Do not take the appliance apart yourself.
  • Always plug the appliance into an earthed socket.
  • Always unplug the appliance: immediately after use, when moving it, prior to any cleaning or maintenance.
• Use a flat, stable, heat-resistant surface, away from any water splashes.

Do not

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has an earthed plug and is suited to the power of the appliance.
• Do not leave the cord hanging. The power cord must never be in close proximity to or in contact with the hot parts of your appliance, close to a source of heat or rest on sharp edges.
• Do not unplug the appliance by pulling on the cord.
• Never leave the appliance unattended when in use.
• Do not switch on the appliance near to flammable materials (blinds, curtains...). or close to an external heat source (gas stove, hot plate etc.).
• Do not move the appliance when it is full of liquids or hot food.
• If you have a removable bowl, never take it out when the fryer is switched on.
• Do not store your deep fryer outside. Store it in a dry and well ventilated area.
• Never plug in the deep fryer without oil or fat inside. The oil level must always be between the min and max markers.
• Never put solid fat directly into the deep fryer bowl or fryer basket as this will lead to deterioration of the appliance.
• Do not mix different types of oil. Never add water to the oil or fat.
• Do not overfill the basket, never exceed the maximum capacity.

Advice/information

• For your safety, this appliance conforms to applicable standards and regulations: (Low Voltage Directive, Electromagnetic compatibility, Materials in contact with food, Environment.)
• This appliance is designed for domestic use only and not outdoor. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.

- For your own safety, use only accessories and spare parts which are suitable for your appliance.

- For models with removable cord, only the original power cord can be used.

- In the event of fire, never try to extinguish the flames with water. Close the lid. Unplug the appliance. Smother the flames with a damp cloth.

- Before discarding your appliance you should remove the battery from the timer and dispose of it at a local civic waste collection centre (according to model).

- It is essential that you wait until the oil has cooled down before storing the fryer.

- If you use solid vegetable fat, cut it into pieces and melt it over a slow heat in a separate pan beforehand, then slowly pour it into the deep fryer bowl.

- If you have a removable anti-odour filter, change it after every 10 - 15 uses (foam filter) or after 30 - 40 uses (cartridge with saturation indicator), or 80 uses (carbon filter). Some models are equipped with a permanent metallic filter, which does not need to be changed.

- Limit the cooking temperature to 170^ C , especially for potatoes.

- Use the basket for chips.

• Control the cooking: Do not eat burnt food.

- Clean your oil after every use to avoid burnt crumbs and change it regularly.

- Eat a balanced and varied diet which includes plenty of fruits and vegetables.

- Store your fresh potatoes in a room above 8°C.

- For best results and fast cooking, we recommend that you limit the quantity of chips to 1/2 basket per frying.

- For a larger quantity of food or potatoes, the temperature drops very fast just after having lowered the basket. This lowers the oil temperature considerably and it never reaches above 175°C, even if the thermostat is set at 190°C. (=Stabilized Temperature before lowering).

- Given that water and oil do not mix, this can lead to splashes that cause severe burns when the oil is heating, during the cooking cycle and after cooking.

These splashes are caused by too much water in the oil or fat.

To prevent water from getting into the deep fryer, please strictly observe the various rules of use and storage provided by the manufacturer, particularly regarding food, ingredients (fatty substances), regularly changing the oil, and maintaining the deep fryer and any accessories (oil pan).

SICHERHEITSHINWEISE

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.
