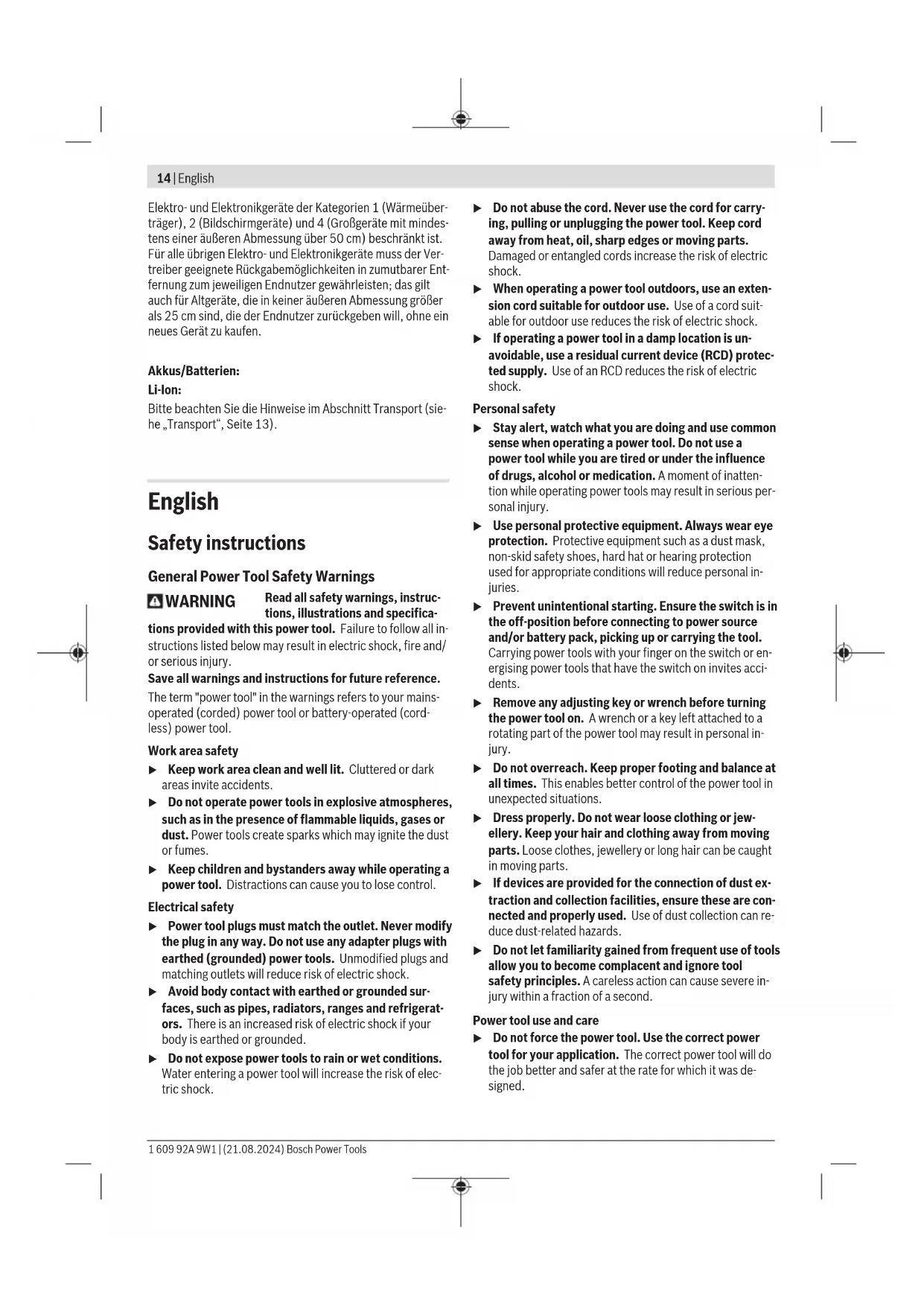

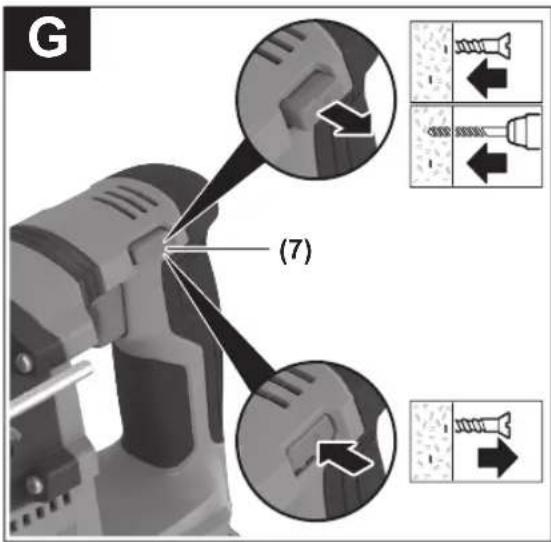

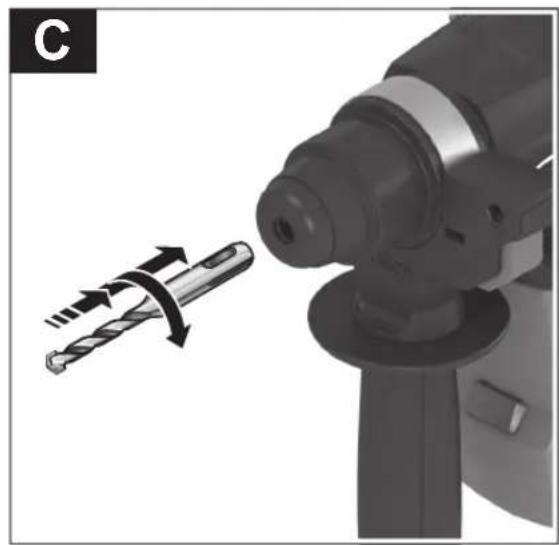

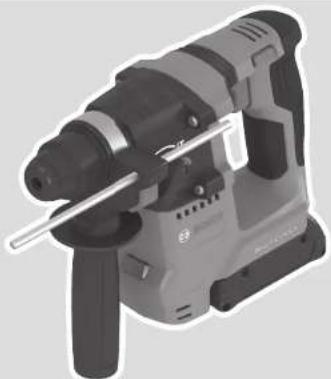

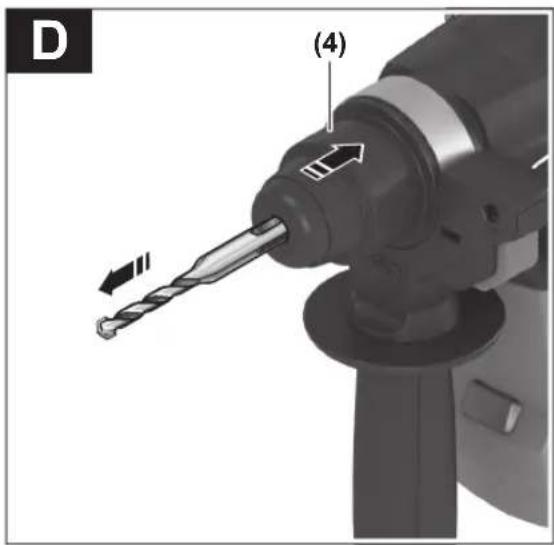

(7) Rotational direction switch (8) Handle (insulated gripping surface) (9) On/off switch (10) Rechargeable battery

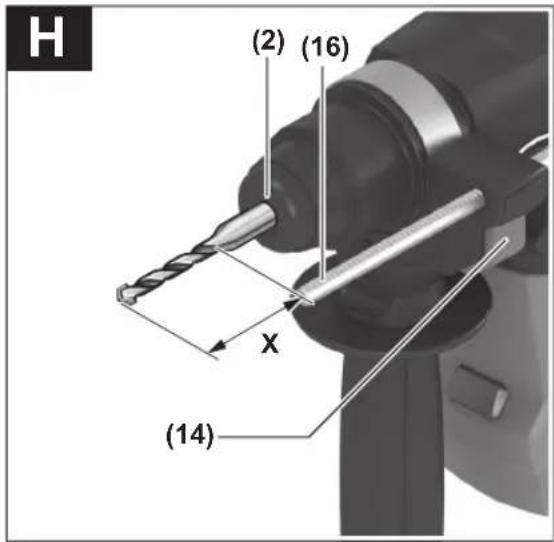

(11) Release button for impact/mode selector switch (12) Impact/mode selector switch (13) Worklight (14) Button for depth stop adjustment (15) Auxiliary handle (insulated gripping surface) (16) Depth stop (17) Securing screw for keyed chuck

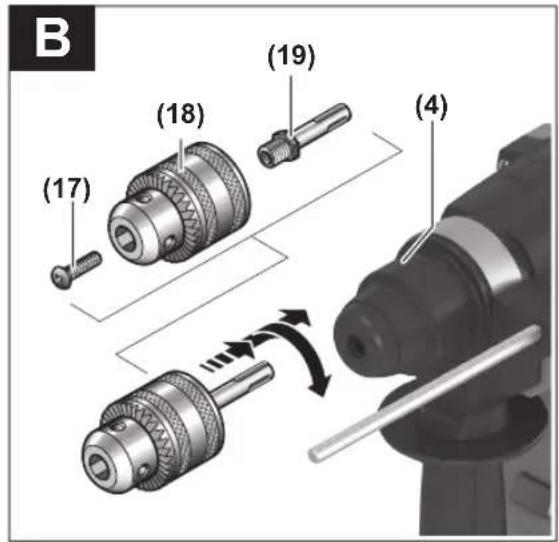

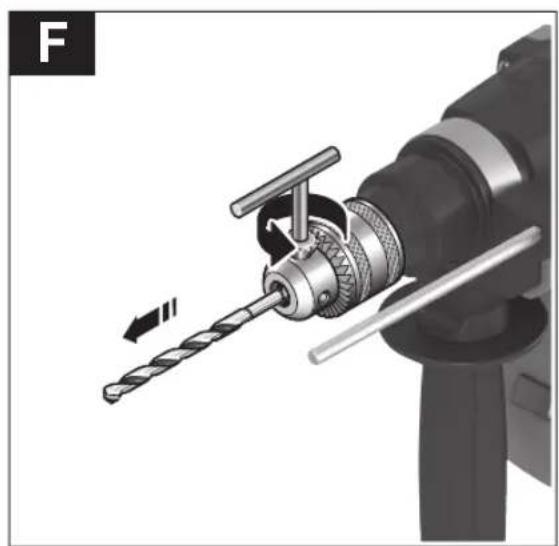

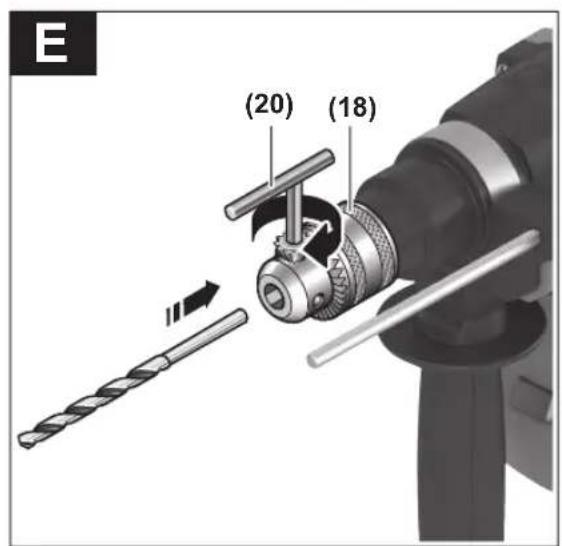

(19) SDSplus shank for drill chuck

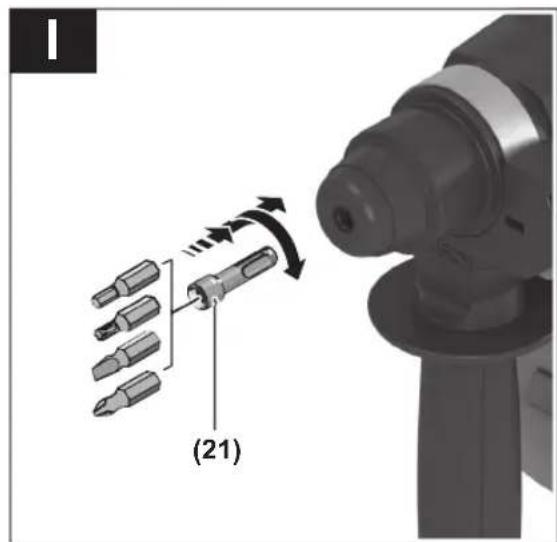

(21) Universal holder with SDSplus shank

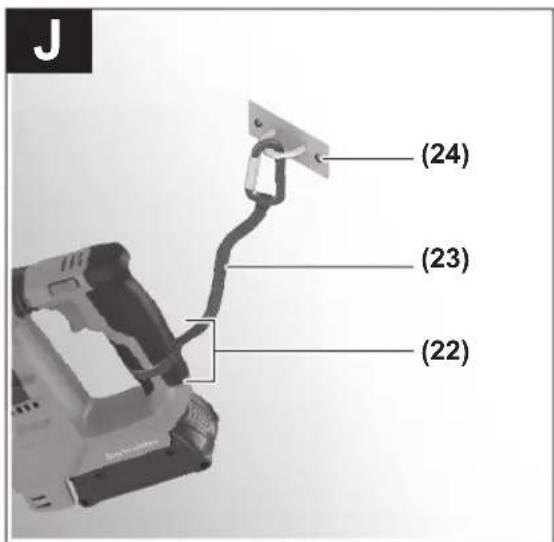

(22) Attachment area for the fall protection system on the power tool (23) Fall protection system

This accessory is not part of the standard scope of delivery.

This accessory described here is not included with the product as standard, nor is it part of the Bosch range of ac- cessories. Technical Data Cordless rotary hammer GBH 18V-18 Article number 3611J270.. Rated voltage V 18 Rated speed

kg 2.0 (1.5 Ah)–3.0 (12.0 Ah) Recommended ambient tem- perature during charging °C 0to+35 Permitted ambient temperat- ure during operation

and during storage °C −20to+50 Recommended rechargeable batteries GBA18V... ProCORE18V... 1 609 92A 9W1 | (21.08.2024) Bosch Power ToolsEnglish | 17 Cordless rotary hammer GBH 18V-18 Recommended chargers GAL18... GAX18... GAL36... A) Measured at 20–25°C with rechargeable batteryGBA18V4.0Ah B) Depending on battery in use C) Limited performance at temperatures <0°C Technical data determined using the battery that comes with the product. Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac. Noise/Vibration Information Noise emission values determined according toEN IEC 62841-2-6. Typically, the A-weighted noise level of the power tool is: Sound pressure level97dB(A); sound power level105dB(A). Uncertainty K=3dB. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according toEN IEC 62841-2-6: Hammer drilling into concrete: a
