SF311A - Flow sensor IFM - Free user manual and instructions

Brand	IFM
Model	SF311A
Product type	Flow sensor
Application	Flow monitoring of liquids and gases with VS2000 Exi electronic unit
ATEX classification	II 1/2G Ex ia IIC T4 Ga/Gb, Ta = -20 ... +60 °C
Process connection	G1/2 (probable)
Cable length	6 m (standard)
Housing material	Stainless steel 316L
Ambient temperature range	-20 °C to +60 °C
Fluid temperature range	-20 °C to +60 °C
Internal inductance (Li)	6 μH + 0.68 μH/m × cable length
Internal capacitance (Ci)	1.2 nF + 0.095 nF/m × cable length
Power supply	Via VS2000 Exi electronic unit in intrinsic safety
Main function	Flow detection with switching signal (fluid flowing / not flowing)
Installation	In a separating wall (category 1/2G), e.g. tanks or pipes
Maintenance	Include in the recurring pressure test of the tank or pipe
Repairability	Not repairable by the user; contact the manufacturer in case of defect
Safety	Comply with standards EN 60079-0, EN 60079-11, EN 60079-26
CE type certificate	DMT 03 ATEX E090 X

Frequently Asked Questions - SF311A IFM

What is the process connection of the SF311A?

The SF311A is probably equipped with a G1/2 connection. The manual indicates that models SF31*A use a G1/2 connection.

What is the standard cable length of the SF311A?

The SF311A is supplied with a 6-meter molded cable.

What is the operating temperature range?

The ambient and fluid temperature range is -20 °C to +60 °C.

Can the SF311A be used in explosive atmospheres?

Yes, it is ATEX certified II 1/2G Ex ia IIC T4 Ga/Gb. It is suitable for installation in a separating wall between Zone 0 (Category 1G) and Zone 1/2 (Category 2G/3G).

How to connect the SF311A to the electronic unit?

The connection is made according to the wiring diagram: the wires BN (brown), BK (black), GY (gray), WH (white) and BU (blue) connect to the VS2000 Exi unit on the corresponding terminals.

What are the intrinsic safety values of the cable?

For a 6 m cable, the total internal inductance is approximately 6 μH + (6 m × 0.68 μH/m) = 10.08 μH, and the total internal capacitance is approximately 1.2 nF + (6 m × 0.095 nF/m) = 1.77 nF.

Can I repair the SF311A myself?

No, the product cannot be modified and no repair is possible by the user. In case of defect, contact the manufacturer.

What is the main function of the SF311A?

It monitors the flow of liquids and gases and provides a switching signal indicating whether flow is present (fluid flowing) or absent (fluid not flowing).

What is the housing material of the SF311A?

The probe housing part is made of corrosion-resistant steel 316L.

How to install the SF311A in a tank?

It must be mounted in a separating wall (category 1/2G) with an appropriate sealing gasket. The part immersed in Zone 0 has a minimum wall thickness of 0.6 mm. Ensure that sealing conditions and risks of corrosion or mechanical damage are evaluated.

USER MANUAL SF311A IFM

Abstract icon of a factory building with smokestacks, no text or symbols present

BetriebsanleitungStrömungssensoren

Operating instructionsFlow sensors

Notice d‘utilisationSondes de débit

Istruzioni per l‘usoSensori di flusso

Instrucciones de usoSensores de caudal

BruksanvisningFlödesgivare

SF*1*A

DE

UK

FR

IT

ES

SE

BG български

According to the ATEX directive 94/9/EC (ATEX) the original operating instructions and a translation of 1. these operating instructions into the language or languages of the EU user country must be provided when a unit or protective system is put into operation within the member countries of the European Union (EU).

If no operating instructions or EC declaration of conformity is supplied with this product in the language 2. of the EU user country, these can be requested from your dealer (see delivery note) or manufacturer (see cover sheet / back).

Only qualified personnel is allowed to set up the product. Furthermore, we expressly point out that any 3. liability is excluded resulting from putting the unit into operation without the corresponding operating instructions in the language of the EU user country.

ES Español

SN2301, SN2302, SN2303, SN2304, SR2301

- Anschlussbelegung

- Prozessanschlüsse

$$ \mathrm{SF11} ^ {} \mathrm{A} = \mathrm{M12SF21} ^ {} \mathrm{A} = \mathrm{G} ^ {1 / 4} \mathrm{SF31} ^ {*} \mathrm{A} = \mathrm{G} ^ {1 / 2} $$

Operating instructions (safety-related part ATEX)

Remarks for safe use in hazardous areas

Functions and features

In conjunction with the control monitor VS2000 Exi the flow sensor monitors flows in liquid and gaseous media and detects whether a preset flow value is reached (= medium is flowing) or not (= medium is not flowing) and provides a switching signal.

• Use in hazardous areas according to the classification
  II 1/2G (group II, category 1/2 G, apparatus for gas atmosphere).
• The flow sensors are suitable for installation in the partition 1/2G.
• The requirements of the standards EN 60079-0, EN 60079-11, EN 60079-26 are met.
  EC type test certificate

DMT 03 ATEX E090 X

- Marking

II 1/2G Ex ia IIC T4 Ga/Gb Ta = -20 ... +60°C

Installation / Set-up

The units must only be installed, connected and set up by qualified staff. The qualified staff must have knowledge of protection classes, regulations and provisions for apparatus in hazardous areas.

Check whether the classification (see "Marking" above and marking on the unit) is suitable for the application.

The flow sensors are only allowed to be connected to the specified control monitors type VS2000 Exi type of protection intrinsic safety II (1) G [Ex ia] IIC

with the EC type test certificate PTB 01 ATEX 2075. Take the connection values into account.

Connection to the following control monitors is allowed:

SN2301, SN2302, SN2303, SN2304, SR2301

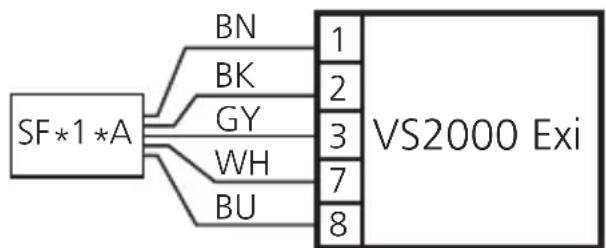

- Wiring

- Process connections

$$ \mathrm{SF11} ^ {} \mathrm{A} = \mathrm{M12SF21} ^ {} \mathrm{A} = \mathrm{G} ^ {1 / 4} \mathrm{SF31} ^ {*} \mathrm{A} = \mathrm{G} ^ {1 / 2} $$

- Permissible operating temperature range at the mounting location and maximum temperature range of the medium:

$$ - 2 0 \dots + 6 0 ^ {\circ} \mathrm{C} $$

• In principle, the type test according to 94/9/EC only takes atmospheric conditions (0.8...1.1bar and mixture temperatures of -20...+60°C) into account. For pressures outside these ranges use must be assessed and approved by the user.
• Maximum effective internal inductance (Li) and capacitance (Ci) of the flow sensors (the values apply to potted cables):

Article no. Cable	length Internal inductance	(total) in μH	Internal capacitance (total) in nF
SF311A 6 m 6	1.2
SF211A 6 m 6	1.2
SF111A 6 m 6	1.2
SF*1*A xx m 1*)	2*)

UK

Articles with cable/variants of cable units SF*1*A:

For variants of cable units with potted cables of a different length the values of the cable must be taken into account.

0.68 H (Li) / 95 pF (Ci) per metre of potted cable.

*1) Thus the maximum effective internal inductance of the unit results in:

Li = 6 μH + cable length in (m) × 0.68 μH

*2) Thus the maximum effective internal capacitance of the unit results in:

Ci = 1.2 nF + cable length in (m) x 0.095 nF.

Installation remarks / Installation

• Adhere to the relevant national regulations and provisions.
• The relevant installation regulations (e.g. EN 60079-14) must be adhered to.
• Avoid electrostatic charging on plastic parts and cables.
• Protect the units efficiently against damage.
• The cable must be firmly laid and protected efficiently against damage.
• Steps must be taken to ensure the equalisation of potential of metal parts (housing and fixing material).
• The unit is suitable for installation in the partition 1/2 G. Please take the special conditions for safe operation into account.

Special conditions for safe operation

The unit is suited for installation in the partition (category 1/2G); e.g. tank, pipes. Sealing at the transition (category 1/2G) must be rated according to the conditions of the corresponding application. The part of the sensor housing of corrosion-resistant steel (316S12) which reaches into the category 1G (zone 0) has a wall thickness of minimum 0.6 mm due to function. In the application the user must ensure that in this area risks, e.g. due to aggressive media or mechanical hazards, are excluded.

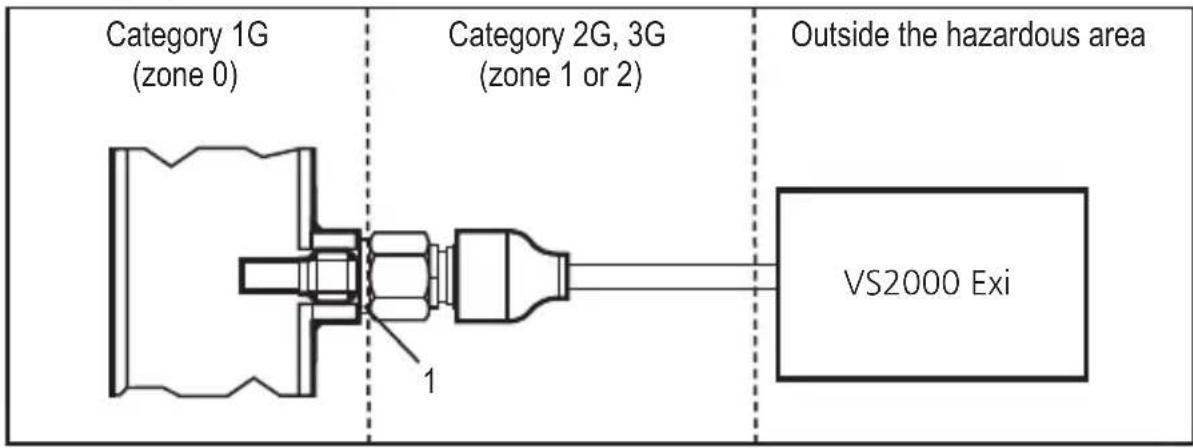

Mounting in pipes or tanks:

Category 1G (zone 0) Category 2G, 3G (zone 1 or 2) Outside the hazardous area VS2000 Exi

1: seal

Maintenance / Repair

• The flow sensor has to be included in the recurrent pressure test of the tank or pipe.
• The unit must not be modified nor can it be repaired. In case of a fault please contact the manufacturer.
• If needed, you can obtain data sheets or EC type test certificates from the manufacturer (see cover sheet / back).

Scale drawings and notes for the correct installation are given in the separately enclosed part of the operating instructions ("Operating instructions / Installation instructions").

UK

SN2301, SN2302, SN2303, SN2304, SR2301

SN2301, SN2302, SN2303, SN2304, SR2301

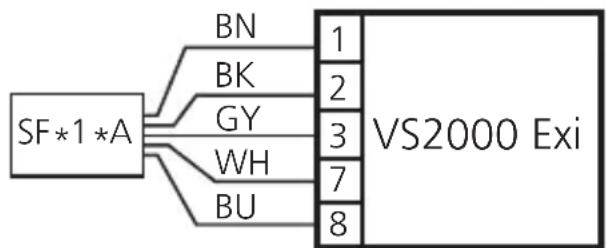

- Cablaggio

SN2301, SN2302, SN2303, SN2304, SR2301

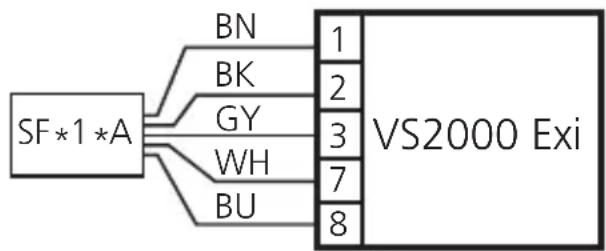

- Conexionado


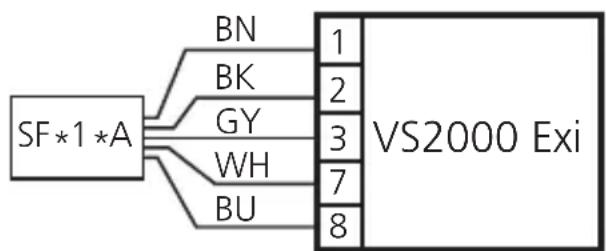

SN2301, SN2302, SN2303, SN2304, SR2301

- Anslutning

- Processanslutningar

$$ \mathrm{SF11} ^ {} \mathrm{A} = \mathrm{M12SF21} ^ {} \mathrm{A} = \mathrm{G} ^ {1 / 4} \mathrm{SF31} ^ {*} \mathrm{A} = \mathrm{G} ^ {1 / 2} $$
