Smart Light Module - Lighting GYS - Free user manual and instructions

Product Type	Lighting and signaling accessory for GYS Connected products
Brand	GYS
Model	Smart Light Module
Power supply	Supplied and managed by the host product (charger, welding machine, etc.)
Main functions	Multicolor indicator (off, yellow, cyan, green, red flashing) and audible alarm to signal operating status
Connector	SMC connector with locking screws and Grower washers
Mounting	Black Velcro adhesive strips under the mounting feet
Cable length	SMC connecting cable (ref. 025691) – 3 m option available
Maintenance and cleaning	Clean surfaces with a dry cloth. Do not use solvents or harsh products. Maintenance by qualified personnel.
Safety	Indoor use only. Do not expose to rain. Avoid heat sources and temperatures >50°C. Do not block openings.
Compliance	Compliant with European directives, UKCA requirements, and Moroccan standards (CMIM). Declarations available on the GYS website.
Warranty	2 years (parts and labor) from date of purchase. Does not cover normal wear, transport damage, or misuse.
Spare parts and repairability	SMC connecting cable 3 m (ref. 025691), screws and Grower washers. In case of failure, return to the distributor with proof of purchase and explanatory note.
General information	Manufactured by GYS, 1 rue de la Croix des Landes, CS 54159, 53941 SAINT-BERTHEVIN Cedex, France. Manual available in several languages.

Frequently Asked Questions - Smart Light Module GYS

How to connect the Smart Light Module to my GYS charger?

Connect the SMC connecting cable (ref. 025691) between the module's SMC connector and the host product's connector. Make sure to tighten the locking screws with the supplied Grower washers to ensure the connection.

What does the yellow indicator color mean?

The yellow color indicates that the charger is charging a lead battery (normal charge).

What does the cyan indicator color mean?

The cyan color indicates that the charger is charging a lithium battery.

What does the flashing red color mean?

Flashing red indicates a charging fault or error on the charger. The audible alarm also sounds.

How to disable the audible alarm?

The module's audible alarm is linked to that of the Gysflash CNT. Disabling the charger's alarm also disables the module's.

The indicator stays off, what to do?

Check the connection and condition of the SMC connecting cable. If the problem persists, it may be an electronic issue; contact the dealer.

Can I use the Smart Light Module outdoors?

No, the device is intended for indoor use only. It must not be exposed to rain.

Which GYS products are compatible with this module?

The module is designed for GYS 'Connected' products, such as Gysflash Pro CNT chargers and compatible welding machines. Refer to your host product's manual.

How to clean the Smart Light Module?

Use a dry cloth to clean the surfaces. Never use solvents or harsh cleaning products. Maintenance must be carried out by qualified personnel.

What is the length of the supplied cable?

The supplied connecting cable is the standard model (not specified in the manual). A 3-meter version is available as an option under reference 025691.

USER MANUAL Smart Light Module GYS

Technical line drawing of a mechanical component with a dome-shaped top and mounting base (no text or symbols)

FR 2 / 3-5 / 24-28

EN 2 / 6-8 / 24-28

DE 2 / 9-11 / 24-28

ES 2 / 12-14 / 24-28

RU 2 / 15-17 / 24-28

NL 2 / 18-20 / 24-28

IT 2 / 21-23 / 24-28

SMART LIGHT MODULE

FIG I

Technical diagram of an electronic device with labeled components including a cylindrical component, internal connectors, and wiring.

INSTRUCTIONS DE SÉCURITÉ

Coiled black cable with two connectors (no text or symbols visible)

INSTALLATION ET CONNEXION AU PRODUIT HÔTE

SMC câble SMC fourni SMC

Technical diagram of a mechanical device with a dome and base, connected to three curved black strips (no text or symbols present)

CONDITIONS DE GARANTIE

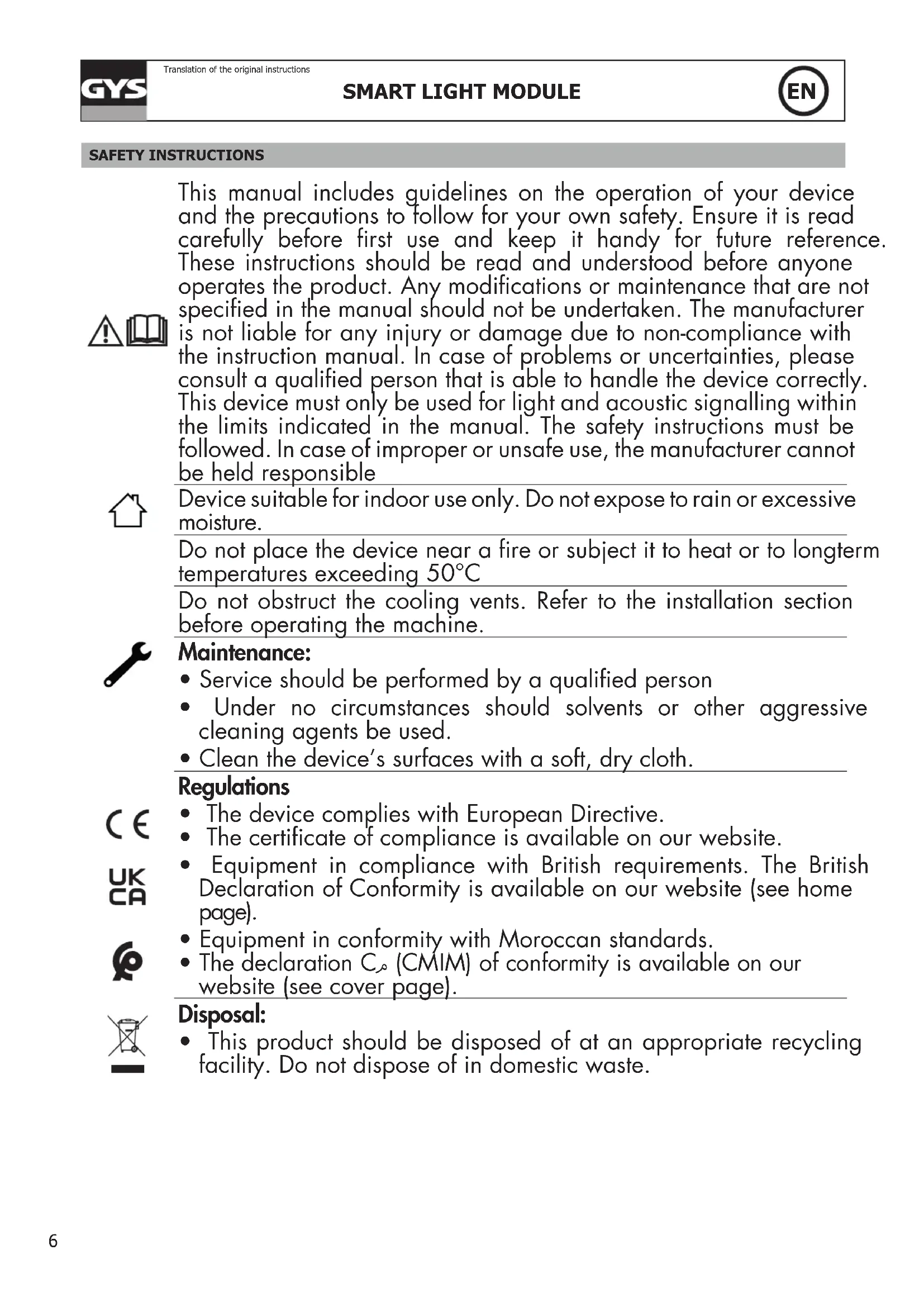

This manual includes guidelines on the operation of your device and the precautions to follow for your own safety. Ensure it is read carefully before first use and keep it handy for future reference. These instructions should be read and understood before anyone operates the product. Any modifications or maintenance that are not specified in the manual should not be undertaken. The manufacturer is not liable for any injury or damage due to non-compliance with the instruction manual. In case of problems or uncertainties, please consult a qualified person that is able to handle the device correctly. This device must only be used for light and acoustic signalling within the limits indicated in the manual. The safety instructions must be followed. In case of improper or unsafe use, the manufacturer cannot be held responsible

Device suitable for indoor use only. Do not expose to rain or excessive moisture.

Do not place the device near a fire or subject it to heat or to longterm temperatures exceeding 50°C

Do not obstruct the cooling vents. Refer to the installation section before operating the machine.

Maintenance:

• Service should be performed by a qualified person
- Under no circumstances should solvents or other aggressive cleaning agents be used.
- Clean the device's surfaces with a soft, dry cloth.

Regulations

• The device complies with European Directive.
• The certificate of compliance is available on our website.
• Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).
  • Equipment in conformity with Moroccan standards.
• The declaration C_ (CMIM) of conformity is available on our website (see cover page).

Disposal:

- This product should be disposed of at an appropriate recycling facility. Do not dispose of in domestic waste.

DESCRIPTION OF THE ITEM

The Smart Light Module is an accessory for GYS «Connected» products (chargers, welding machines, etc.) to display their operating status by means of a multicolored indicator and an audible warning.

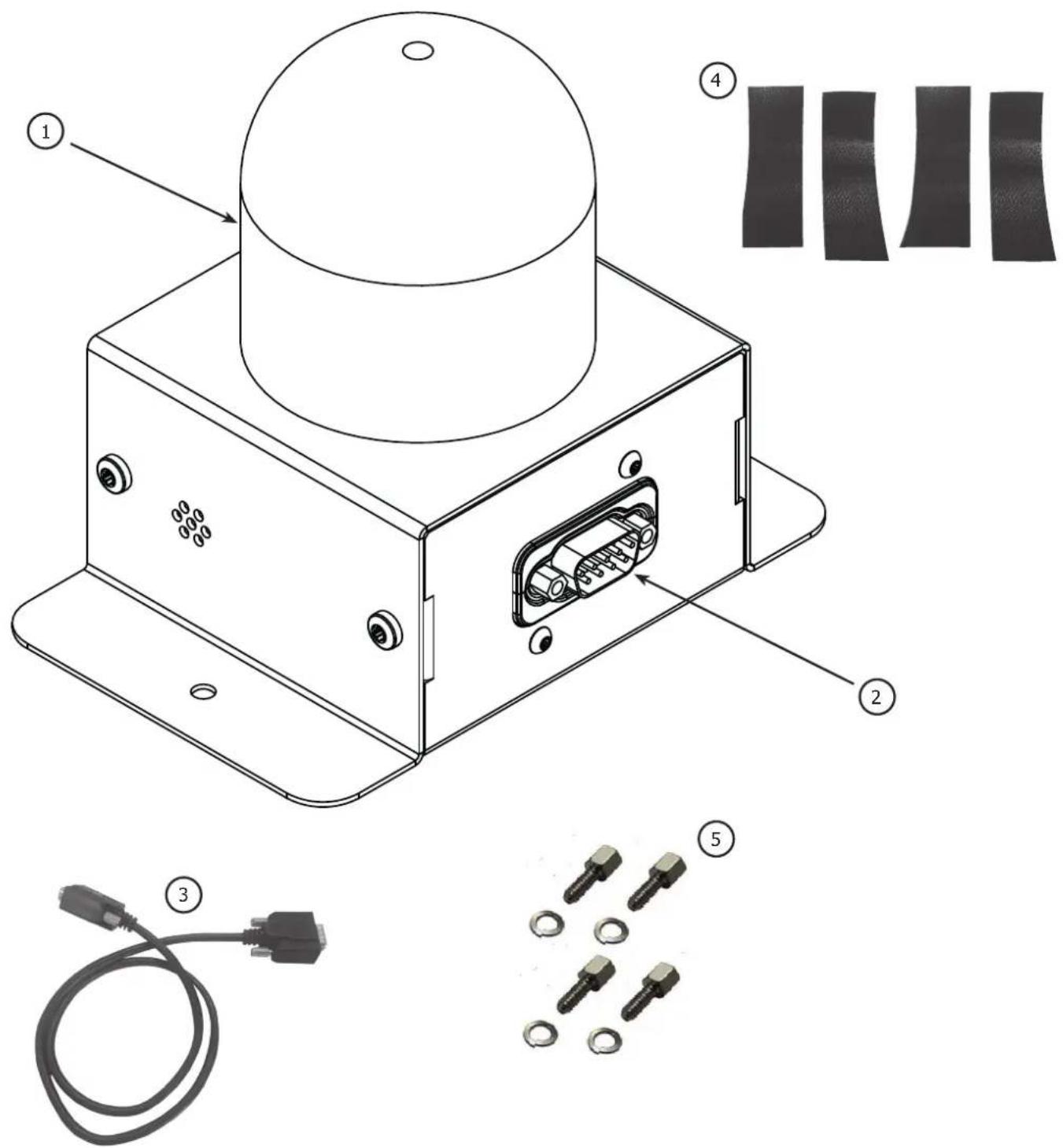

1- Multicolored indicator
2- SMC connector
3- SMC connecting cable
4- Velcro strap
5- SMC connector locking screw

OPTION

Coiled black cable with two connectors (no text or symbols visible)

3m SMC connecting cable réf. 025691

INSTALLATION AND CONNECTION TO THE HOST PRODUCT

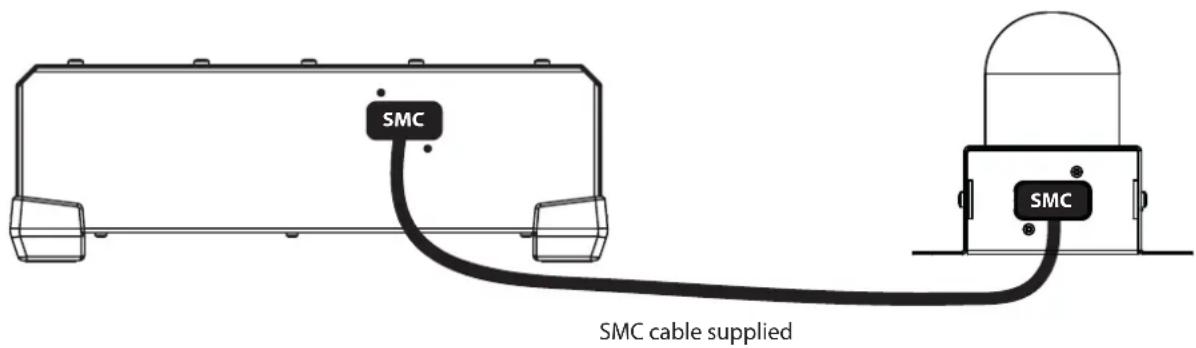

Connect the SLM to the host product using the SMC connection cable (ref. 025691).

SMC SMC SMC cable supplied

The power supply and control of the SLM is from the host product.

SLM LED STATUS Charger Status
Off No charging in progress / battery disconnected
Yellow Battery charge Lead in progress
Blue Charging in progress
Green Charge completed
Red Flashing Charging fault or charger error

Buzzer

In addition to the indicator light which flashing red in the event of a fault, the SLM is fitted with an audible warning device.

The SLM buzzer is linked directly to the Gysflash CNT audible buzzer. Deactivating the charger buzzer deactivates that of the SLM and vice versa.

FAULT IDENTIFICATION

Problem Meaning Solution
LED off SMC connection cable badly connected or damaged		Check the connection and condition of the SMC connecting cable
		Electronic problem on the card Contact your distributor
Buzzer not working SMC connection cable badly connected or damaged		Check the connection and condition of the SMC connecting cable
		Electronic problem on the card Contact your distributor

INSTALLING THE SMC CONNECTOR LOCKING SCREWS

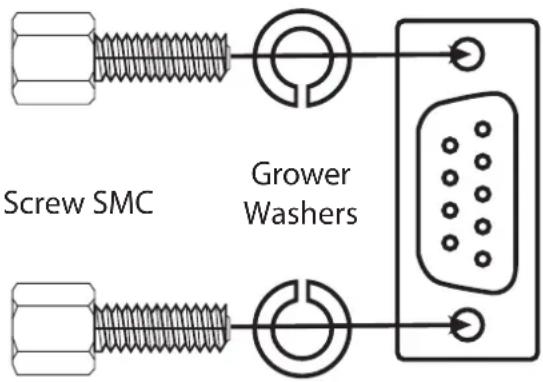

To ensure a good connection of the SMC cable between the SLM and the host product, it is recommended to fit the supplied screws and spring washers on the SMC connectors in accordance with the assembly below:

Screw SMC Grower Washers

VELCRO FASTENING

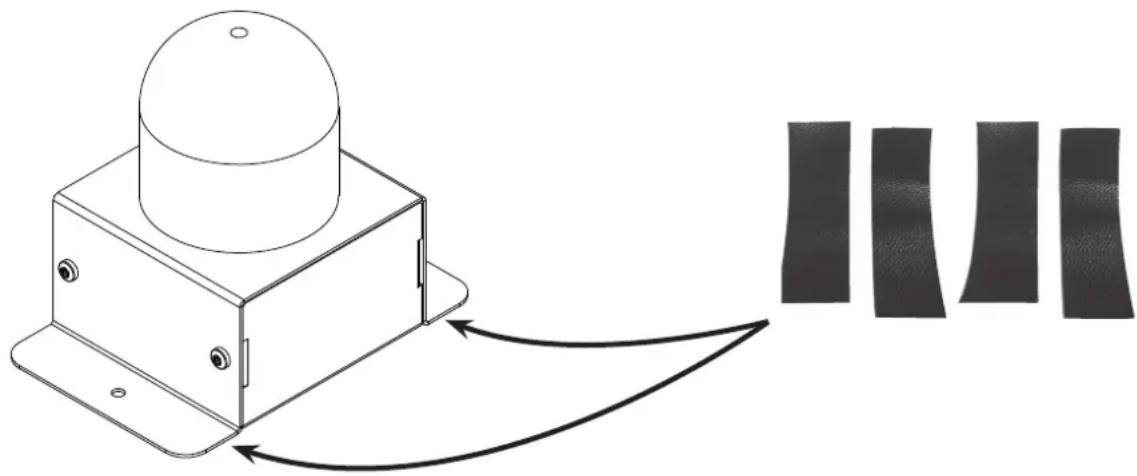

The black Velcro straps can be glued under the mounting plates of the SLM in order to fix it easily.

Technical diagram of a mechanical component with a dome and base, connected to three curved black strips (no text or symbols present)

WARRANTY

The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).

The warranty does not cover:

• Transit damage.
• Normal wear of parts (eg. : cables, clamps, etc..).
• Damages due to misuse (power supply error, dropping of equipment, disassembling).
• Environment related failures (pollution, rust, dust).

In case of failure, return the unit to your distributor together with:

- The proof of purchase (receipt etc ...)

- A description of the fault reported

Coiled black cable with two connectors (no text or symbols visible)

Diagram of a mechanical device with a cylindrical component and three separate curved strips, showing directional flow (no text or symbols)

HERSTELLERGARANTIE

Coiled black cable with two connectors (no text or symbols visible)

Technical diagram of a mechanical device with a dome component and three separate curved strips, showing directional flow (no text or symbols)

GARANTÍA

Coiled black cable with two connectors (no text or symbols visible)

Diagram of a mechanical device with a dome component and three separate curved strips, showing directional flow (no text or symbols)

ГАРАНТИЯ

OMSCHRIJVING VAN HET APPARAAT

Coiled black cable with two connectors (no text or symbols visible)

Technical diagram of a mechanical device with a dome component and three separate curved strips, showing directional flow (no text or symbols)

GARANTIE

Technical diagram of a mechanical device with a dome component and three separate curved strips, showing directional flow (no text or symbols)

GARANZIA

Exploded view diagram of a device assembly with numbered parts including a sensor, housing, and cable connection.

1	Voyant muticolore / Multicolor indicator lamp / Mehrfarbige Kontrollleuchte / Indicador multicolor / Многоцветный индикатор / Multicolor lamp / Spia multicolore	52457
2	Carte électronique / Electronic card / Platine / Tarjeta electrónica / Электронная плата / Elektrisch circuit / Scheda elettrica	97809C
3	Connecteur DB9 / DB9 Connector / DB9-Anschluss / Conector DB9 / Разъем DB9и / DB9 aansluiting / Connettore DB9	94515ST
4	Câble de liaison SMC / SMC connecting cable / SMC-Verbindungskabel / Cable de unión SMC / SMC соединительный кабель / Verbindingskabel SMC / Cavo di collegamento SMC	70999

SCHÉMA ÉLECTRIQUE / ELECTRICAL DIAGRAM / SCHALTPLAN / ESQUEMA ELÉCTRICO / ЭЛЕКТРИЧЕСКАЯ СХЕМА / ELEKTRISCH SCHEMA / SCHEMA ELETTRICO

94515ST 10 97809C N J V R BLACK YELLOW RED GREEN 52457

SPÉCIFICATIONS TECHNIQUES / TECHNICAL SPECIFICATIONS / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / TEXНИЧЕСКИЕ СПЕЦИФИКАЦИИ / TECHNISCHE GEGEVENS / TECHNISCHE SPECIFICATIES

	Smart Light Module
Référence | Reference | Artikelnummer | Referencia | Артикул | Referentie | Riferimento	027978
Tension assignée d'emploi (Ue) | Rated operational voltage (Ue) | Betriebsspannung (Ue) | Tensión asignada de empleo (Ue) | Номинальное рабочее напряжение (Ue) | Nominale gebruiksspanning (Ue) | Tensione nominale operativa (Ue)	24 V
Courant assigné d'emploi (Ie) | Rated operational current (Ie) | Betriebsstrom (Ie) | Corriente asignada de empleo (Ie) | Номинальный рабочий ток (Ie) | Nominale gebruiksstroom (Ie) | Corrente nominale operativa (Ie)	30 mA
Tension assignée d'isolement (Ui ) | Rated insulation voltage (Ui) | Isolierungsspannung (Ui ) | Tensión asignada de aislamiento (Ui ) | Номинальное напряжение изоляции (Ui) | Nomine isolatiespanning (Ui ) | Tensione nominale di isolamento (Ui )	250 VRMS
Tension assignée de tenue aux chocs (Uimp) | Rated impulse withstand voltage (Uimp) | Bemessungs-Stoßspannungs-Festigkeit (Uimp) | Tensión asignada para los choques (Uimp) | Номинальное импульсное выдерживаемое напряжение (Uimp) | Stoothoudspanning (Uimp) | Tensione nominale di tenuta agli shock (Uimp)	2.5 kV
Température de fonctionnement | Operating temperature (Top) | Betriebstemperatur | Temperatura de funcionamiento | Рабочая температура | Bedrijfstemperatuur | Temperatura di funzionamento	-0°C - +40°C
Température de stockage | Storage temperature | Lagertemperatur | Temperatura de almacenaje | Температура хранения | Opslagtemperatuur | Temperatura di stoccaggio	-10°C - +50°C
Indice de protection | IP Rating | Schutzart | Índice de protección | Степень защиты | Beveiligingsindex | Indice di protezione	IP20
Degré de pollution | Degree of pollution | Verschmuzungsgrad | Grado de contaminación | Степень загрязнения | Vervuilingsgraad | Grado di inquinamento	3
Niveau sonore de l'avertisseur à 1m | Sound level of the alarm at 1m | Schallpegel des Warntons in 1m Abstand | Nivel sonor de la alarma a 1m | Уровень звука тревоги на 1m | Geluids-niveau op 1 meter afstand | Livello sonoro dell'allarme a 1m	≈ 65 dB
Poids | Weight | Gewicht | Peso | Bec | Gewicht | Peso 560grs
Dimensions | Dimensions | Abmessungen | Dimensiones | Габариты | Afmetingen | Dimensioni (L x H x P)	126 x 146 x 93
Normes | Standards | Normen | Normas | Нормы | Normen | Norme	EN60947-5-1EN 62233 (EMF)CEI EN 60529 (IP)EN 50581 (RoHS)EN 55014-2 (CEM)

ICÔNES / SYMBOLS / SYMBOLE / ICONOS / ИКОНКИ / ICONEN / ICONE

	- Matériel conforme aux directives européennes. La déclaration UE de conformité est disponible sur notre site (voir à la page de couverture).- Material complies with European directives. The EU declaration of conformity is available on our website (see on the cover page).- Das Gerät entspricht den europäischen Richtlinien und Normen. Die EU-Konformitätserklärung ist auf unserer Internetseite verfügbar (siehe Titelseite).- Material conforme a las Directivas europeas. La declaración de conformidad UE está disponible en nuestra página web (dirección en la portada).- Устройство соответствует директивам Евросоюза. Декларация UE о соответствии доступна для просмотра на нашем сайте (ссылка на обложке).- Het apparaat is in overeenstemming met de Europese richtlijnen. Het EU certificaat van overeenstemming kunt u vinden op onze website (zie omslag van deze handleiding).- Materiale conforme alle Direttive europee La dichiarazione UE di conformità è disponibile sul nostro sito internet (vedere la pagina di copertina).
	- Matériel conforme aux exigences britanniques. La déclaration de conformité britannique est disponible sur notre site (voir à la page de couverture).(voir à la page de couverture).- Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).- Das Gerät entspricht den britischen Richtlinien und Normen. Die Konformitätserklärung für Grossbritannien ist auf unserer Internetseite verfügbar (siehe Titelseite).- Equipo conforme a los requisitos británicos. La Declaración de Conformidad Británica está disponible en nuestra página web (véase la portada).- Материал соответствует требованиям Великобритании. Заявление о соответствии для Великобритании доступно на нашем веб-сайте (см. главную страницу).- Materiaal conform aan de Britse eisen. De Britse verklaring van overeenkomt is beschikbaar op onze website (zie omslagpagina).- Materiale conforme alla esigenze britanniche. La dichiarazione di conformità britannica è disponibile sul nostro sito (vedere pagina di copertina).
	- Appareil conforme aux normes Marocaines. La déclaration C_р (CMIM) de conformité est disponible sur notre site internet (voir à la page de couverture).- Equipment in conformity with Moroccan standards. The declaration C_р (CMIM) of conformity is available on our website (see cover page).- Das Gerät entspricht die marokkanischen Standards. Die Konformitätserklärung C_р (CMIM) ist auf unserer Webseite verfügbar (siehe Titelseite).- Equipamiento conforme a las normas marroquíes. La declaración de conformidad C_р (CMIM) está disponible en nuestra página web (ver página de portada).- Товар соответствует нормам Марокко. Декларация C_р (CMIM) доступна для скачивания на нашем сайте (см на титульной странице).- Dit materiaal voldoet aan de Marokkaanse normen. De verklaring C_р (CMIM) van overeenstemming is beschikbaar op onze internet site (vermeld op de omslag)- Materiale conforme alle normative marocchine. La dichiarazione C_р (CMIM) di conformità è disponibile sul nostro sito (vedi scheda del prodotto)
	- Ce matériel fait l'objet d'une collecte sélective selon la directive européenne 2012/19/UE. Ne pas jeter dans une poubelle domestique!- This material is subject to separate collection according to EU Directive 2012/19 / EU. Do not dispose with household waste!- Dieses Gerät entspricht der 2012/19/EU-Richtlinie über Elektronik- und Elektro-Altgeräte (Altgeräteverordnung) und darf daher nicht im Hausmüll entsorgt werden. Entsorgen Sie das Gerät über Ihre kommunale Sammelstelle für Elektro-Altgeräte!- Este material requiere una recogida de basuras selectiva según la directiva europea 2012/19/UE. ¡No tirar este producto a la basura doméstica!- Это оборудование подлежит переработке согласно директиве Евросоюза 2012/19/UE. Не выбрасывать в общий мусоросборник!- Dit materiaal maakt deel uit van een gericht inzamelingsbeleid volgens de Europese richtlijn 2012/19/EU. Niet weggooien met het huishoudelijk afval!- Questo materiale è soggetto alla raccolta differenziata secondo la direttiva europea 2012/19/UE. Non smaltire con i rifiuti domestici.
	- Triman- Triman- Triman-Zertifizierung für recyclebare und getrennt gesammelte Produkte (Frankreich)- Triman- Triman- Triman- Triman

GYS SAS
