| Product type | Gasoline brush cutter |
| Brand | Zipper |
| Model | ZIMOS145JAK |
| Engine | 2-stroke, 52 cc |
| Power | 1.5 kW |
| Fuel tank capacity | 0.7 L |
| Fuel type | 2-stroke oil-gasoline mixture (40:1) |
| Cutting system | Trimmer line spool (Ø 2.4 mm) and metal blade |
| Cutting diameter | 40 cm (line) / 255 mm (blade) |
| Weight | 7 kg |
| Dimensions (L × W × H) | 1800 × 300 × 250 mm |
| Sound power level (LWA) | 115 dB(A) |
| Ignition | Manual recoil starter |
| Safety | Protective cover, engine stop, safety strap |
| Included accessories | Trimmer line spool, metal blade, strap, assembly tool |
| Routine maintenance | Air filter cleaning (20-30 h), spark plug (25 h) |
| Warranty | 2 years (non-commercial use), 1 year (commercial use) |
Frequently Asked Questions - ZIMOS145JAK Zipper
User questions about ZIMOS145JAK Zipper
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lawn mower in PDF format for free! Find your manual ZIMOS145JAK - Zipper and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZIMOS145JAK by Zipper.
USER MANUAL ZIMOS145JAK Zipper
EAN: 9120039233208
CE
1 INHALT / INDEX
1 INHALT / INDEX 2
11.2 Safety instructions .... 19
11.3 Remaining risk factors.... 21
11.4 Personal wear 22
11.5 Belt....22
12 ASSEMBLY 23
12.1 Assembly 23
12.1.1 Handle bar 23
12.1.2 Safety cover 23
12.1.3 Nylon cutter 23
12.1.4 Blade 23
13 OPERATION 24
13.1 Operation instructions....24
13.2 Start 24
13.3 Stop....24
14 MAINTENANCE 25
14.1 Cleaning 25
14.1.1 Cleaning the air filter 25
14.1.2 Check the spark plug 25
14.1.3 Carburettor 25
14.2 Storage.... 26
14.3 Disposal....26
15 TROUBLE SHOOTING 26
16 ELOSZÓ (HU) 27
17 BIZTONSAG 28
EN EC-CONFORM - This product complies with the EC-directives.
EN READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.
EN ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.
EN Protective clothing!
HU Védőfelszerelés!
SL Zaščitna oprema!
HR Zaštitna oprema!
EN Highly flammable! Naked flames prohibited
EN Solid Objects can be thrown away!
EN Don't touch the cutting tool!
EN Keep safe distance!
| 2 | Fadenmesser / nylon cutter blade / lánckés / Rezilo odvečne nitke / Nož za reznu nit / Coupe-fil | 10 | Tank / tank / tartály / Rezervoar / Spremnik / Réservoir |
| 3 | Schutzabdeckung / safety cover / védôburkolat / Zaščitni pokrov / Zaštitni poklopac / Cache de protection | 11 | Gurt / belt / szíj / Pas za prenašanje / Pojas / Sangle |
| 4 | Stange / pole / rúd / Drog / Šipka / Perche | 12 | Mähmesser 3 Zahn / 3-tooth blade / 3-fogas kés /3-zobni nož / Nož za košnju s 3 zupca / Lame 3 dents |
| 5 | Handgriff / handle / fogantyú / Ročaj / Drška / Poignée | 13 | Mähmesser 8 Zahn / 8-tooth blade / 8-fogas kés /8-zobni nož / Nož za košnju s 8 zubaca / Lame 8 dents |
| 6 | Gurtöse / belt eyelet / emelőfül / Uho za pas za prenašanje / Ušica za remen / Anneau de transport | 14 | Werkzeug / tools / szerszám / Orodje / Alat / Outil |
| 7 | Motor / engine / motor / motor /motor / Moteur | 15 | Mixbehälter / mix box / keverótartály / Posoda za mešanje / Spremnik mješavine / Réservoir de mélange |
| 8 | Zündkerzenstecker / spark plug / gyertyapipa / Pokrov vžigalne svečke / Utikač za svjećicu / Logement de bougie d'allumage | 16 | ZI-BR3 (optional) / ZI-BR3 (optional) / ZI-BR3 (tartozék) / ZI-BR3 (opcijski) / ZI-BR3 (opcionalno) / ZI-BR3 (en option) |
3.2 Technische Daten / Technical data / Műszaki adatok / Tehnični podatki / Tehnički podaci / Données techniques
| Motortyp (Bezeichnung) / engine type (designation) /motortípus (megnevezés) / Tip motorja (oznaka) / Vrstamotora (naziv) / Type de moteur (désignation) | 2-Takt /2-stroke /2-ütem / 2-taktni motor /2 temps1E44F-5 |
| Motorleistung / engine power (rated) / motorteljesítmény /Moč motorja / Snaga motora / Puissance du moteur | 1,45 kW |
| Hubraum / displacement / hengerúrtartalom / Prostornina /Zapremina / Cylindrée | 51,7 cm3 |
| Leerlaufdrehzahl / idle speed / üresjárati fordulatszám /Število vrtljajev v prostem teku / Broj okretaja praznog hoda/ Régime à vide | 3000 min-1 |
| max. Drehzahl Schneidgarnitur / max. speed cuttingequipment / vágóberendezés max. Fordulatszám / Maks.število vrtljajev rezalne garniture / Maks. broj okretajaopreme za košnju / max. Vitesse de rotation de la garniturede coupe | 9200 min-1 |
| Stange / dimension pole / rúd / Drog / Šipka / Perche | 1500 mm ∅ 26mm |
| Durchmesser Aufnahmewelle / diameter / tartótengelyátmérő / Premer gibljive gredi / Promjer vratila za prihvat /Diamètre de l'arbre de réception | 8 mm |
| Zündung / ignition type / gyújtás / Vžig / Paljenje / Allumage | CDI |
| Tankvolumen / fuel tank capacity / tartály úrtartalom /Prostornina rezervoarja / Volumen spremnika / Volume duréservoir | 1,2 l |
| Kraftstoff / fuel / üzemanyag / Gorivo / Gorivo / Carburant | 40:1 Gemisch40:1 mixture40:1 keverék40:1 mješavinaMélange 40:1 |
| Gewicht / weight / súly / Teža / Težina / Poids | 7,0 kg |
| Starter / starter / indító / Zaganjalnik / Pokretač / Démarreur | easy Starter Seilzugeasy starter recoileasy indítókötélEasy vrvični zaganjalnikeasy Starter potezno užeCordon de démarreur facile |
| Garantiertter Schall-Leistungspegel / guaranteed sound powerlevel / garantált zajteljesítményszint / Zajamčen nivo zvočnemoči / Zajamčena razina zvučne snage LWA / Seuil de pressionacoustique garanti | 114 dB (A) |
| Vibration/ vibration / vibráció / Vibracija / Vibracija /Vibrations | ~10,21 m/s2 k:1,5m/s2 |
| Maximale Schnittbreite / max. cutting width / maximálisvágásszélesség / Maksimalna širina reza / Maksimalna širinarezanja / Largeur de coupe maximale | 430 mm |
| Fadenlänge / thread length / szálhossz / Dolžina nitke /Duljina niti/ longueur de fil | 4 m |
| Fadenstärke / thread thickness / szálerősség / Debelina nitke/ Debljina niti / Épaisseur de fil | ∅ 2,4 mm |
| Mähmesser 3 Zahn / 3-tooth blade dimension / 3-fogas kés/3-zobni nož / Nož za košnju s 3 zupca / Lame 3 dents | ∅255 x ∅25,4 x 1,4mm |
| Mähmesser 8 Zahn / 8-tooth blade dimension / 8-fogas kés/8-zobni nož / Nož za košnju s 8 zubaca / Lame 8 dents | ∅255 x ∅25,4 x 1,4mm |
4 VORWORT (DE)
This manual contains important information and advice for the correct and safe use and maintenance of the brush cutter ZI-MOS145JAK.
Following the usual commercial name of the machine (see cover) is substituted in this manual with the name "machine".
The manual is part of the machine and may not be stored separately. Read it profoundly before first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.
Please follow the security instructions!
Please read the entire manual, to prevent misunderstandings, machine damage or even injuries!
Due to continuous development of our products illustrations, pictures might differ slightly.
If you however find errors in this manual, please inform us.
Technical changes excepted!
Copyright law
© 2018
This manual is protected by copyright law – all rights reserved. Especially the reprinting as well as the translation and depiction of pictures will be prosecuted by law. Court of jurisdiction is the Landesgericht Linz or the competent court for 4707 Schlüsslberg, AUSTRIA.
Customer Support
The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse.
To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.
All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.
It is also imperative to observe the accident prevention regulations in force in your area.
The same applies for the general rules of occupational health and safety.
The machine is used for:
Mowing and trimming grass at moderate and non-slippery terrain and for cutting twigs and hedges.
Any manipulation of the machine or its parts is a misuse, in this case ZIPPER-MASCHINEN and its sales partners cannot be made liable for ANY direct or indirect damage.
WARNING
- Do not change the mowing attachment!
- Damaged cutting tools may be not straightened or welded in no case
HIGHEST RISK OF INJURY!
11.2 Safety instructions
Missing or non-readable security stickers have to be replaced immediately!
To avoid malfunction, machine defects and injuries, read the following security instructions!
The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!
• Use the machine only in good enough light to allow a safe operation can be guaranteed.
- In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited!
- Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides / stumble / traps are a major cause of serious injury or death.
- The machine may only be operated by trained personnel.
- Unauthorized persons, especially children and not trained personnel must be kept away from the running machine!
• If you pass the machine to third, these instructions must be attached to the machine.
- Before each use, the reliability of the machine is to be checked (tightness of the cutting tool, the proper function of the throttle lever)
- Danger of burns! During the operation flow of hot exhaust gases and engine parts such as the carburettor and engine become hot.
- Never place a hot brush cutter in dry grass or other easily flammable materials.
• After the operation, the machine must cool down. Otherwise there is an imminent risk of burns
- WARNING: Gasoline is highly flammable!
- Smoking and open flames are prohibited during refuelling. Do not refuel when the engine and carburettor are still very hot.
- Refuel only outdoors or in a well ventilated area.
- Avoid contact with skin and clothes (fire hazard).
- Check after refuelling tank cap and check for leaks.
- Start the engine at least 3 meters from the tank location.
- Spilled fuel is wipe immediately.
- Work attentively, safety conscious and always be fully aware safe stand when working! Caution on uneven work surfaces and work surfaces with a slope!
-
Never cutting:
-
above hip height
- on a ladder
- on trees
- Regular breaks reduce the security risk to loss of control due to fatigue. Change the working position over again.
- Avoid abnormal posture.
- At idle, the blade should not rotate!
• The maximum shaft speed must not exceed the specified speed. Checked settings!
- No other person shall remain within 15m!
- This distance also adhere to things! Danger of damage!
• Solid objects, stones, metal parts, or the like can be thrown out - risk of injury!
- Use personal safety equipment: ear protectors, safety goggles, safety shoes and safety helmet when working with the machine
- Never leave the machine running unattended! Before leaving the working area switch the machine off and wait until the machine stops.
- Switch off the machine before maintenance or adjustment.
- Storage always with an empty tank in a safe place.
- Do not grab in the cutting tool while it is rotating.
• Take care that you do not get under the cutting tool!
• Always use the correct cutting tool for the work to be done.
- Do not operate in an enclosed or confined areas.
- Exhaust contains poisonous carbon monoxide. The exposure can cause unconsciousness and death.
- Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition.
- Wear firm gloves when you use the brush cutter or if you install or remove the cutting blade.
TRANSPORT NOTES:
- Switch off the engine
- Fit the blade guard
- Secure the machine
• Empty tank completely, avoid fuel spillage
• To avoid damage to the device never drag but always lift correctly.
STORAGE NOTES:
- Remove and clean thread head and cutter blade
- Fit the blade guard
- Clean the machine and dry
• Empty Tank completely, avoid fuel spillage
• Store in a dry, out of reach of children place, well packaged (protection against cuts)
11.3 Remaining risk factors
Working with a brush cutter always poses some risks that cannot be eliminated entirely:
- Noise: Working for a long time can damage your hearing if you do not have a very good hearing protection.
- Risks of injury:
Be aware that the cutter might stall and lead you to fall.
Small objects might be caught by the machine and catapulted into the air.
The contact with the rotating moving cutter causes severe injuries! Protect especially your feet by wearing reinforced security shoes.
Never get with your fingers or hands near the rotating moving cutter.
Do not touch the muffler or other machine components during operation – They become hot!
- Risk to the hands or fingers:
Access while it is working in the mowing apparatus. After the operation, the machine must cool down.
Otherwise, there is an acute risk of scalding! Wear protective gloves to avoid injury
- Vibration:
The declared vibration emission value has been for a standardized test is measured and can be used to compare one tool with another electric are.
The declared vibration emission value may also be used for a preliminary assessment of exposure.
- Warning:
Emission level of vibration can be different from the specified value during the actual use of the electric tool, depending on the manner in which the power tool is used
- Kickback
When working with metal cutting blades, it can, if fixed objects (trees, branches, stones, or the like) are involved, come to a check of the entire unit or to an abrupt train forward.
This check occurs suddenly without warning and can lead to loss of control of the unit and endanger the user and bystanders.
Special Threatened in poor visibility areas and dense vegetation.
So keep checking by kickback:
- Hold the unit with both hands when working securely.
- Be easily spread on a secure footing and keep your feet always count on you with a possible setback.
- Do not overestimate yourself and keep it in working balance at all times.
• The knife should have reached full operating speed before cutting begins. - When clearing stones and debris can be thrown and cause serious injury.
Make sure that the cover is securely mounted.
Be rotating parts (blades) mounted incorrectly, this can lead to serious accidents.
Check before starting work, the cutting blade for tight fit
11.4 Personal wear
A. Security helmet
B. Hearing protection
C. Face production
D. Belt
E. Safety gloves
F. Safety cover of moving unit
G. Safety shoes
H. Working trousers
The tool only use before using adapted to the operator, shoulder strap. Never operate the trimmer with one hand!
11.5 Belt
- Pull the belt over your shoulders 2.
- Close the belt lock 3.
- Adjust the belt length at the belt tensioner 1 of the shoulder straps so that the machine holder 4 is at hip height.
- Adjust the belt lengths so that the machine weight is distributed evenly onto the two shoulders.
- Hook the belt with the quick coupling into the belt eyelet of the machine.
Never work without using the belt
Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.
12.1 Assembly
When assembling make sure that they interlock with one another. Before commissioning check all screw connections and tighten them if necessary.
12.1.1 Handle bar
- Loosen the premounted screws of the handle bar bracket and insert the handles from the side into the bracket.
- Tighten the handles to the bracket by tightening the screws.
12.1.2 Safety cover
- Fix the safety cover with the mounting screws.

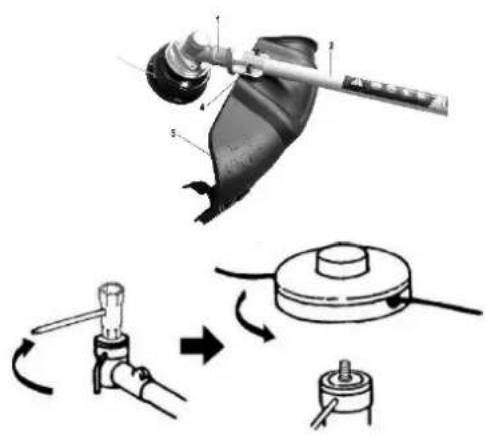

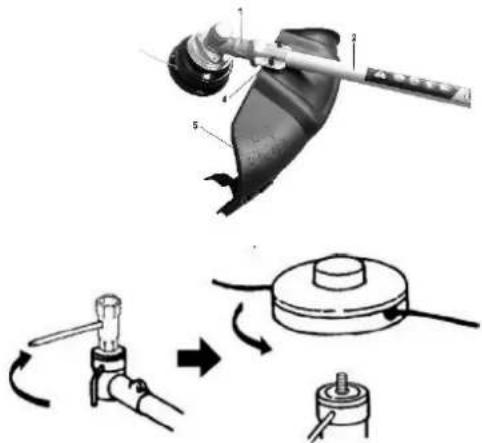

12.1.3 Nylon cutter
- Lock the gear shaft by inserting the supplied tool into the upper holder on the gear box
- Fit the nylon cutter on the thread (left thread!).
The nylon cutter is suitable for lawn or grass cuts.

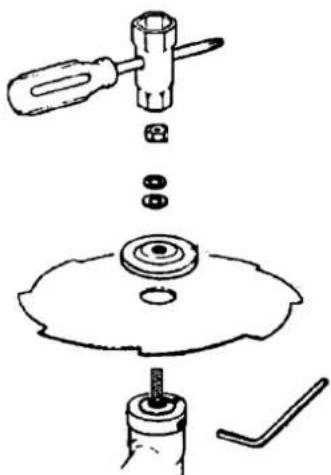

12.1.4 Blade
- Lock the gear shaft by inserting the supplied tool into the upper holder on the gear box.
- Place the blade onto the gear shaft.
- Place the cover, washer and spring and fasten the blade with the nut.
Blades are suitable for the cutting of weeds, scrub, undergrowth and tall grass.
Machine to be operated in a perfect state only. Inspect the device visually every time it is to be used. Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.
13.1 Operation instructions
NOTICE
- Shut off the machine and let it cool down before start any cleaning, upkeep, checks or maintenance!
- Operate the machine always with belt!
- In dangerous situations detach the machine with the quick release from shoulder strap
- Make sure the fuel and tank are in perfect condition before each start!
13.2 Start
- Set the main switch (3) to position on „I“.
- Set Choke in position CLOSE.
HINWEIS
When the choke stands on the CLOSE position, the fuel mixture gets concentrated for starting of the cold engine. The position OPEN produces the right fuel mixture for the usual operation after starting and for starting the machine when the engine is hot.
- Push the primer pump several times until over flown fuel flows out in the clear tube.
- You find the primer between fuel tank and carburetor-bottom.
- Set the throttle lever to the start position (1▶2▶3)
- Grab the starting handle and start moving it slowly. At one position the resistance gets very hard. Let the cable rewind a bit and pull on it powerfully.
- If the engine is running well, set the Choke to position OPEN.
- Release the throttle lever and set the main switch (3) to position off „0“.
14 MAINTENANCE
ATTENTION
No cleaning, upkeep, checks or maintenance when machine is running
Shut off the machine and let it cool down before start servicing!
The machine does not require intense maintenance. However, to ensure a long lifespan, we strongly recommend following the upkeep and maintenance plan.
Repairs must be carried out by specialists! Use original ZIPPER parts only!
Ware safety gloves if you are work on the cutting tool!
Damaged cutting tools may never be straightened or welded!
NOTICE
Only a properly maintained equipment may be a satisfactory tool. Care and maintenance deficiencies can cause unpredictable accidents and injuries.
Repairs should be performed only by authorized service centers.
Improper operation may damage the equipment or endanger your safety.
| Controls for the maintenance of the machine | |
| Loose or lost screws, nuts, bolts | Regularly prior to each operation |
| Damage of any part of the machine | Regularly prior to each operation |
| Damage of cutting tools | Regularly prior to each operation |
| Fuel tank of tightness | Regularly prior to each operation |
| Machine cleaning | Regularly after operation |
| Cleaning spark plug | Every 25 working hours |
| Cleaning air filter | Every 20-30 working hours |
14.1 Cleaning
Clean the machine and the working attachment from soil, dust, grass, chips, and small twigs, etc.
Clean the machine housing with a wet cloth and a mild detergent.
NOTE
Do not use cleaning agents or solvents; these could attack the plastic parts of the machine!
Put on all coatless flats a thin coat of oil.
14.1.1 Cleaning the air filter
The air filter has to be cleaned approx. every 20-30 working hours. This may vary depending on the air quality of your working area.
Polluted and clogged air filters reduce the engine output by far and may lead to engine damage.
To clean the air filter just remove the black air filter cover and take the filter out. Wash it in a mild water based solvent, squeeze it out, let it dry and put it back again.
14.1.2 Check the spark plug
- Clean of debris with metal brush.
- Check spark plugs match of 0.6-0.7mm
14.1.3 Carburettor
NOTE
Carburetor adjustments should be carried out only by trained specialist personnel!
14.2 Storage
If the machine will be stored longer than 30 days:
- Let the machine cool down.
• Empty Tank completely, avoid fuel spillage. - Remove and clean thread head and cutter blade
• Fit the blade guard - Clean the machine and dry
• Store in a dry, out of reach of children place, well packaged (protection against cuts)
14.3 Disposal
Do not dispose the machine, machine components fuel and oil in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.
15 TROUBLE SHOOTING
| Trouble | Possible cause | Solution |
| Engine does not start | Incorrect starting sequence | Observe the correct starting sequence |
| Dirty air filter | Clean/replace air filter | |
| No fuel supply | Refuel | |
| Fault in the fuel line | Check the fuel line for kinks or damages | |
| Engine flooded. | Screw off, clean and dry the spark plug. Then pull the cranking rope several times and reinstall the spark plug | |
| Spark plug connector not placed on. | Place on the spark plug connector | |
| No ignition spark | Clean/replace spark plugCheck ignition cable | |
| Engine starts and is stalled immediately | Incorrect idle adjustment | Contact customer service |
| Machine works with interruptions | Carburetor incorrectly adjusted | Contact customer service |
| Spark plug fouled | Clean/replace spark plugCheck spark plug connector | |
| Smoke | Incorrect fuel mixture (2-stroke engine) | Use correct fuel mixture |
| Carburetor incorrectly adjusted | Contact customer service | |
| Machine does not work with full performance | Machine overloaded | Too much pressureCutting material too tough |
| Dirty air filter | Clean/replace air filter | |
| Carburetor incorrectly adjusted | Contact customer service | |
| Blade rotates at idling | Idle speed too high | Adjust a lower idle speed |
| Blade rotates but has no power | Choke is ON | Set Choke to OFF |
| Bad cuts | Foreign material wrapped, grass around the sheet | Shut machine off, wait until cutter stands still, remove the winded up material |
| Long grass | Remove material | |
| Blunt saw blade | Sharpen or replace saw blade |
NOTICE
Should you in necessary repairs not able to properly to perform or you have not the prescribed training for it always attract a workshop to fix the problem.
16 ELÓSZÓ (HU)
Tisztelt Vásárlónk!
19.3 Leállítás
31.3 Zaustavljanje
- Pustite ručicu gasa i glavni prekidač (3) stavite na „0“.
32 ODRŽAVANJE
PAŽNJA
Prije radova održavanja isključite stroj i pustite ga da se ohladi!
Cher client, chère cliente,
38.3 Arrêt
(EN) With original ZIPPER spare parts you use parts that are attuned to each other shorten the installation time and elongate your machines lifespan.
IMP OR TAN T
The installation of other than original spare parts voids the warranty!
So you always have to use original spare parts
When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.
You find the order address in the preface of this operation manual.
| 1 | Engine | 1 | 16 | Handle holder pressure plate | 1 |
| 2 | Connection plate assembly | 1 | 17 | Handle fixed seat shock | 1 |
| 3 | Hexagon socket screw M6x30 | 4 | 18 | Handle fixed seat under pressure plate | 1 |
| 4 | Hexagon socket screw M5x12 | 2 | 19 | Hexagon socket screw M5x25 | 3 |
| 5 | Hexagon socket screw M6x25/8,8 | 1 | 20 | Left handle | 1 |
| 6 | Oil bearing | 5 | 21 | Head gear box | 1 |
| 7 | Right handle | 1 | 22 | Nylon head | 1 |
| 8 | Alumonun tube 1500 | 1 | 23 | Blade | 1 |
| 9 | 9 tooth drive shafat 1530 | 1 | 24 | Hexagon socket screw M6x20 | 2 |
| 10 | Rings | 1 | 25 | Protective cover plate | 1 |
| 11 | Hexagon socket screw M5x20 | 1 | 26 | Protective cover | 1 |
| 12 | Hanging ring clip | 1 | 27 | Protective cover sidebar | 1 |
| 13 | Hex nut M5 black | 1 | 28 | Cross tapping screw ST5x12 | 2 |
| 14 | Hexagon socket screw M6x20/8,8 | 2 | 29 | Two holes small blade | 1 |
| 15 | Handle pressure plate | 1 | 30 | Throttle card | 2 |
| 1 | Hex combination screw M5x20 | 11 | 28 | Ignition coil | 1 |
| 2 | Oil pot holder | 1 | 29 | Needle roller bearing K101415 | 1 |
| 3 | Damping oil can press plate | 1 | 30 | Spring piston pin card | 2 |
| 4 | Easy starter | 1 | 31 | Piston pin | 1 |
| 5 | Starter gasket | 1 | 32 | Piston | 1 |
| 6 | Hexaconal nut M8 | 1 | 33 | Piston ring | 2 |
| 7 | Dial | 1 | 34 | Cylinder pad | 1 |
| 8 | Oil seal 12x22x7 | 1 | 35 | Cylinder | 1 |
| 9 | Small box | 1 | 36 | Spark plug L8RTC | 1 |
| 10 | Box pad | 1 | 37 | Intake pipe pad | 1 |
| 11 | Deep groove ball bearing 6202 | 2 | 38 | Inlet pipe | 1 |
| 12 | Crankshaft connecting road | 1 | 39 | Carburator pad | 1 |
| 13 | Woodruff key | 1 | 40 | Carburator | 1 |
| 14 | Cylindrical pin | 2 | 41 | Socket head cap screw M5x50 | 2 |
| 15 | Big box | 1 | 42 | Empty filter assembly | 1 |
| 16 | Hexgonal stud M5 | 2 | 43 | Hex combination screw M5x12 | 3 |
| 17 | Hex combination screw M5x35 | 4 | 44 | Empty filter base | 1 |
| 18 | Oil seal 15x30x7 | 1 | 45 | Silencer | 1 |
| 19 | Flywheel | 1 | 46 | Muffler isolation plate | 1 |
| 20 | Hex flange surface nut M8 10x1,25 | 1 | 47 | Flat gasket | 2 |
| 21 | Flat washer 8x16x1 | 2 | 48 | Socket head cap screw M6x55 | 2 |
| 22 | Two shoe block clutch | 1 | 49 | Cylinder cover | 1 |
| 23 | Saddle pad | 2 | 50 | Clamp | 1 |
| 24 | Outside hexagon screw M8x25 | 2 | 51 | Cross head combination screw M4x12 | 1 |
| 25 | Side cover | 1 | 52 | Flat gasket | 2 |
| 26 | Hex combination screw M5x30 | 2 | 53 | Oil can | 1 |
| 27 | Hex combination screw M5x25 | 6 | 54 | Oil can stand | 1 |
42 EU-KONFORMITÄTSERKLÄRUNG / CE-DECLARATION OF CONFORMITY / EU-MEGFELELOSEGI NYILATKOZAT / EU-IZJAVA O SKLADNOSTI / EU POTVRDA O SUKLADNOSTI / DECLARATION DE CONFORMITE UE
Inverkehrbringer / Distributor
(EN) Hereby we declare that the above mentioned machines meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.
Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.
2.) Report:
In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shippings by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.
3.) Regulations:
a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.
4.) Claims for compensation and other liabilities:
The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.
45 JÓTÁLLÁS (HU)
1.) Jótállás:
Product experience form
We observe the quality of our delivered products in the frame of a Quality Management policy.
Your opinion is essential for further product development and product choice. Please let us know about your:
- Impressions and suggestions for improvement.
- experiences that may be useful for other users and for product design
- Experiences with malfunctions that occur in specific operation modes
We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:
Opažanja v zvezi s proizvodom
Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?
3. Bitte beachten
/ Additional information
INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- LERATES THE HANDLING OF YOUR INQUIRY.
