| Product type | Lawn mower |
| Brand | Zipper |
| Model | ZIBM870ECO |
| Power source | 4-stroke petrol engine |
| Engine type | Internal combustion engine |
| Maximum cutting height | 6 cm |
| Cutting system | Cutter bar |
| Driven wheel | Yes, activation/deactivation by stirrup |
| Maximum slope | 15° |
| Operating temperature | +5°C to +40°C |
| Legal warranty | 2 years (mechanical and electrical parts) |
| Periodic maintenance | Oil change every 3 months or 25 hours, air filter cleaning, spark plug check |
| Cleaning | Clean regularly, avoid aggressive solvents |
| Safety | Emergency stop, protection against unintended start, spark plug cap removed for maintenance |
| Spare parts | Available from the manufacturer |
| Intended use | Mowing of grassy surfaces |
Frequently Asked Questions - ZIBM870ECO Zipper
User questions about ZIBM870ECO Zipper
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lawn mower in PDF format for free! Find your manual ZIBM870ECO - Zipper and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZIBM870ECO by Zipper.
USER MANUAL ZIBM870ECO Zipper
16.2 Assembling the Machine 27
16.3 Checklist before Start-up 28
16.31 Checking/refilling engine oil 29
16.32 Checking fuel tank level / Refueling Fuel Tank 29
17 OPERATION 29
17.1 Informationen on Initial Start-up 29
17.11 Test Run Initial Start-up 29
17.12 Notes for the first 20 operating hours 30
17.2 Operating instructions 30
17.3 Operating 30

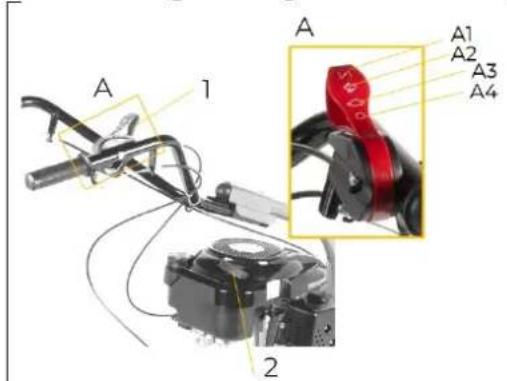

17.3.1 Starting the engine 30
17.3.2 Start cutting (cutting bar) 30
17.3.3 Activate/deactivate wheel-drive 30

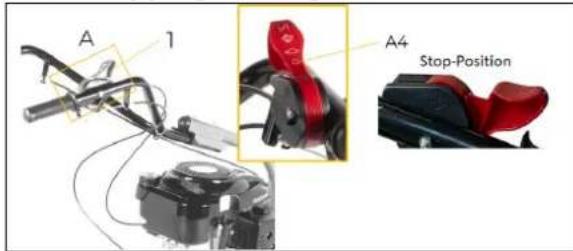

17.3.4 Stopping the engine 31
18 MAINTENANCE 31
18.1 Maintenance and Servicing Plan 31
18.2 Changing the engine oil 31
18.3 Cutter bar checking / changing 31
18.4 Cleaning the air filter 32
18.5 Cleaning / replacing the spark plug 32
19 TRANSPORT 32
20 STORAGE 33
2] CLEANING 33
22 DISPOSAL 33
23 TROUBLESHOOTING 33
24 UVODNI SLOVO (CZ) 34
25 BEZPECNOST 35
25.1 Pouzitiv souladus urcenim 35
35.1.1 Restrictions techniques 47
35.12 Applications interdites / Mauvaises applications dangereuses 47
EN CE-Conformal! - This product complies with the EC-directives.
CZ VYHOVUJE CE! - Tento vyrobek vyhovuje smernicim ES.
EN Follow the instructions!
CZ Dodržujte nayod!
FR Respecter le manuel!
EN No open flame, fire, open source of ignition and smoking prohibited!
EN Danger of Intoxication! Only use outdoors and far from open windows and vents!
CZ Nebezpeci intoxikace! Nepouzivejte ve vnitnich prostorach a v blizkosti otevrenych oken a ventilace
EN Wear personal protective equipment!
EN Keep safe distance!
EN Remove spark plug connector before maintenance work
CZ Pred placemi spojenymi s udrzbou vytahnete konektor zapalovac svicky
EN Keep hands and feet away from the blades

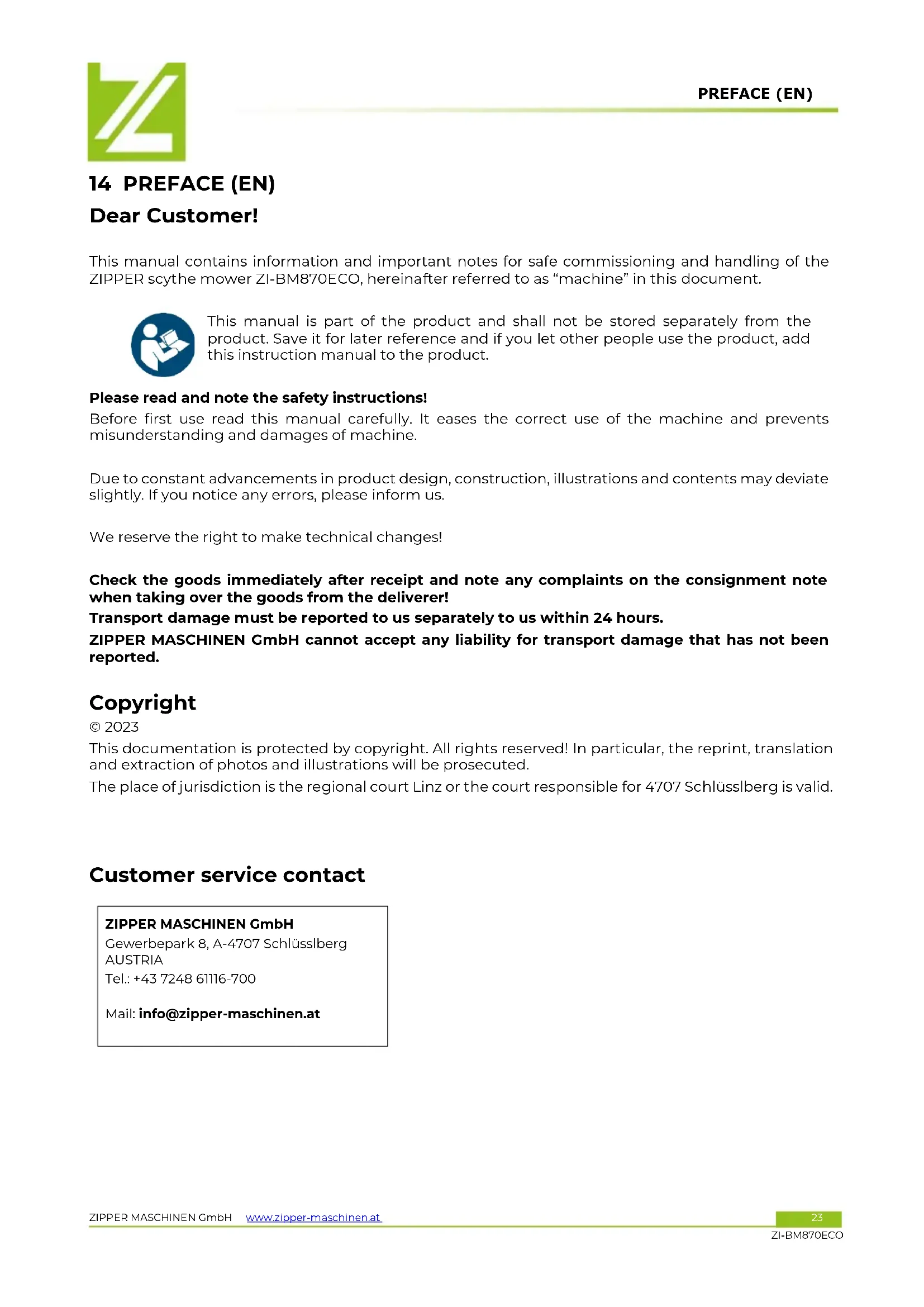

This manual contains information and important notes for safe commissioning and handling of the ZIPPER scythe mower ZI-BM870ECO, hereinafter referred to as "machine" in this document.
This manual is part of the product and shall not be stored separately from the product. Save it for later reference and if you let other people use the product, add this instruction manual to the product.
Please read and note the safety instructions!
Before first use read this manual carefully. It eases the correct use of the machine and prevents misunderstanding and damages of machine.
Due to constant advancements in product design, construction, illustrations and contents may deviate slightly. If you notice any errors, please inform us.
We reserve the right to make technical changes!
Check the goods immediately after receipt and note any complaints on the consignment note when taking over the goods from the deliverer!
Transport damage must be reported to us separately to us within 24 hours.
ZIPPER MASCHINEN GmbH cannot accept any liability for transport damage that has not been reported.
Copyright
© 2023
This documentation is protected by copyright. All rights reserved! In particular, the reprint, translation and extraction of photos and illustrations will be prosecuted.
The place of jurisdiction is the regional court Linz or the court responsible for 4707 Schlusslberg is valid.
Customer service contact
This section contains information and important notices for safe commissioning and handling of machine.
For your own safety, read these operating instructions carefully before putting the machine into operation. This will enable you to handle the machine safely and prevent misunderstandings as well as possible damage to property and persons. Also observe the symbols and pictograms used as well as the safety instructions and hazard warnings!
15.1 Intended use of the machine
The machine is intended exclusively for the following activities:
For cutting grass areas within the specified application limits.
NOTE
ZIPPER MASCHINEN assumes no responsibility or warranty for any other use or use beyond this and for any resulting damage to property or injury.
15.1.1 Technical Restrictions
The machine is intended for use under the following ambient conditions:
Relative humidity: max. 65%
Temperature (for operation) +5^ C bis +40^ C
Temperature (for storage and/or transport) -20°C bis +55°C
15.1.2 Prohibited Use / Forseeable Misuse
Operation of the machine without adequate physical and mental aptitude
- Operating the machine without appropriate knowledge of the operating instructions (machine + motor).
Changes in the design of the machine
- Operating the machine in wet and rainy conditions
- Operating the machine in a potentially explosive environment
- Operating the machine indoors or in closed areas
Operation of the machine without functioning or missing guards
- Remove the safety markings attached to the machine.
- Modify, circumvent or disable the safety devices of the machine.
Use of the machine for the transport of persons
The prohibited/hazardous use or disregard of the information and instructions presented in this manual will result in the voiding of all warranty and damage claims against Zipper Maschinen GmbH.
15.2 User Qualification
Prerequisite for the use / operation of the machine is a corresponding physical and mental aptitude as well as knowledge and understanding of the instruction Manual.
Please note that local laws and regulations may determine the minimum age of the operator and restrict the use of this machine!
Put on your personal protective equipment before working on the machine.
Work on electrical components or equipment may only be carried out by a qualified electrician or carried out under the guidance and supervision of a qualified Electrician.
15.3 Safety instructions
In order to avoid malfunctions, damage and health hazards when working with this machine, in addition to the general rules for safe working, the following measures in particular must be observed UNCONDITIONALLY:
- Check that the machine is in perfect condition before each use. Ensure that all guards are in place and working properly and that all nuts, bolts, etc. are securely tightened. Do not take the machine into operation if you notice that parts are missing or damaged!
-
Ensure sufficient lighting conditions in the working and surrounding areas of the machine.
-
Keep hands and feet away from moving machine parts and always ensure a safe stand when working.
- Remove the adjustment tool from the machine before operation.
- Never leave the running machine unattended (always stop the machine before leaving it).
- Ensure that unauthorised persons maintain a safe distance from the machine and keep children away from the machine.
- The machine may only be operated, serviced or repaired by persons who are familiar with it and who have been informed of the dangers arising during this work.
Always wear suitable personal protective equipment (ear protection, safety shoes etc.)! - Do not work with the machine if you are tired, not concentrated or under the influence of medication, alcohol or drugs!
- Never operate the unit in the presence of flammable liquids or gases (danger of explosion!).
- Carry out maintenance, adjustment and cleaning work only when the engine is switched off.
- Only use spare parts and accessories recommended by Zipper machines.
15.4 Special safety instructions for the operation
- The machine is designed to be operated by one person. Always operate the machine from behind. Never stand to the side or in front of the machine when the engine is running.
- Do not use the machine in the rain or when the grass is wet.
- The machine must only be operated with the blades firmly tightened.
- Excessive noise can cause hearing damage and temporary or permanent loss of hearing. Wear hearing protection certified to health and safety regulations to limit noise exposure
- Do not increase the engine's idle speed on your own. This could result in damage to the machine or personal injury.
Cutting hazard! Keep hands and fingers away from the cutter bar! - Never work on excessively steep slopes (max. slope 15^!
- On slopes, always mow across the slope and never up or down the slope.
Take particular care when changing direction! - After completing the mowing work, refit / attach the protective bar to the cutter bar (exposed cutting edges) to minimize the risk of injury..
15.5 Safety instructions for machines with combustion engine
- Do not touch the engine and/or muffler during operation or immediately after switching off! These areas become hot during operation and can cause burns.
- Do not touch the spark plug connector when the engine is running (electric shock!).
- Do not operate the unit in closed areas or in poorly ventilated rooms unless there is adequate ventilation through exhaust fans or hoses. (Risk of suffocation from carbon monoxide!)
- Do not smoke while the machine is in operation.
- Do not smoke when refuelling the machine.
- Refuel the machine only in a well ventilated area.
- Do not refuel the machine when the engine is running or the machine is still hot.
- Do not refuel the machine near naked flames.
- Do not spill fuel when refuelling.
- Do not crank a gas flooded engine as long as the spark plug is removed- fuel in the cylinder sprays out of the spark plug opening.
- Do not carry out an ignition spark test on engines if the engine is flooded or gas can be smelled. A stray spark could ignite the vapours.
- Do not use fuel to clean machine parts, especially indoors. Vapours from fuels may explode.
Always keep the area around the muffler free of foreign substances such as leaves, paper, cardboard, etc. A hot muffler could ignite these substances and cause a fire. - Close the filler cap after refuelling.
- Check the fuel line and tank regularly for leaks and cracks. Do not operate the machine if leaks in the fuel system are known.
- Store fuel only in designated and approved containers.
15.6 Hazard warnings
Despite intended use, certain residual risks remain.
Remaining risks:
- Risk of injury due to noise:
Working for a long time can damage your hearing if you do not have a very good hearing protection. - Risk of injury due to the working area:
Solid objects, stones, metal parts, or the like can be thrown out! - Risk to the hands or fingers:
Do not grab in the cutting tool while it is rotating.
- Risk of injury due to pick up and roll up:
Wires and cords can be detected by the cutting tool and can damage the machine and can cause injuries. Unplug battery and safety switch (if equipped) before removing the deposits!
- Risk of injury due to vibration:
The declared vibration emission value has been for a standardized test is measured and can be used to compare one tool with another electric are.
The declared vibration emission value may also be used for a preliminary assessment of exposure. Warning: Emission level of vibration can be different from the specified value during the actual use of the electric tool, depending on the manner in which the power tool is used. When you feel uncomfortable or notice discoloration of skin on your hands during the use of the machine, stop working immediately. Observe sufficient break times to rest. Failure to have sufficient break times may result in a hand-arm vibration syndrome.
The extent of exposure depending on the type of work or machine use should be estimated and appropriate breaks taken. In this way, the extent of exposure can be considerably reduced over the entire work time. Minimize the risk caused by vibrations. Maintain this machine according to the instructions in the manual.
- Risk of burns:
Touching the mufflers, exhaust and other machine components which can be hot after prolonged continuous operation or when the engine is hot cause severe burns.
- Risk of fire and explosion:
Gasoline is highly flammable and explosive under certain conditions.
NEVER refuel fuel or engine oil while the machine is in operation or is hot.
When refueling and at places where fuel is stored not smoke or allow open flames or sparks.
Do not overfill the fuel tank and avoid the spillage of gasoline during refueling. If fuel is spilled make sure the area is completely dry and cleaned before starting the engine.
Make sure that the filler cap is tightly closed again after refueling safely.
Chemical risks:
Never use or refuel a gasoline or diesel engine in a closed area without adequate ventilation.
Carbon monoxide emissions from the internal drive units of the engine can cause in confined spaces through inhalation health effects and death. Therefore use the machine only in well-ventilated rooms or outdoors in operation.
Liquid fuels can cause serious damage on the skin and the environment.
These risk factors can be minimized through obeying all security and operation instructions, proper machine maintenance, proficient and appropriate operation by persons with technical knowledge and experience
Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:
DANGER
A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Such a safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.
CAUTION
A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE
A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage.
Irrespective of all safety regulations, their sound common sense and corresponding technical suitability/training are and remain the most important safety factor in the error-free operation of the machine. Safe working depends first and foremost on you!
16 ASSEMBLY
16.1 Checking Delivery Content
Check the machine immediately after delivery for transport damage and missing parts.
16.2 Assembling the Machine
The machine comes pre-assembled, only the parts dismantled for transport have to be reassembled.
| Assemble the skids on the cutter bar: Fix the two skids (1) to the cutter bar with 2 bolts (2), washers (3) and nuts (4) each as shown. | |
| Assemble cutter bar drive-motor Connect the motor drive unit (1) and the cutter bar drive (2) by inserting the bolt (4) of the cutter bar drive (2) into the tube (3) of the motor drive unit (1). Place the belt (5) on the belt pulley of the drive unit. Hook in the two springs (6) as shown to finally fix the two parts. | |
| Assemble cutter bar on cutter bar drive: Insert the sliding block (3) into the cutter head (4) and insert the bolt (5) of the cutter bar drive (2) into the sliding block as shown. Fix the cutter bar (1) to the cutter bar drive (2) using the 4 bolts/nuts/washers (6) as shown. | |
| Assemble the operating handle: Fix the operating handle (1) to the guide bar (4) using the two bolts/nuts/washers (3) and enclosing the rubber damper mat (2) as shown. The rubber damper mat must be placed between the guide rail (4) and the operating handle (1) and the rubber washer (3a) between the washer and the rubber dumper mat (2). | |
| 6 6a 1 2 3 4a 5 4 | Assemble the blade drive lever: Fix the blade drive lever (1) to the left-hand operating handle (2) using the bolt (3) and nut (3a) as shown. Then fix the cable (4) to the operating handle (2) at position (5) and attach the eye (4a) of the cable to the bolt (6) and secure it against removal with the nut (6a). |
| 8 1 2 4 3 2a 7 4a | Assemble throttle lever / wheel drive lever: Fix the throttle lever (1) by means of screw (2) and nut (2a) to the right-hand operating handle (8) as shown. Fix the wheel drive lever (3) to the operating handle (8) using screw (4) and nut (4a) as shown. Hook the end of the cable (7) onto the wheel drive lever as shown and fix the cable (5) to the operating handle (8) using nut (6). |
| 4 1 2 3 1 | Assemble the cover: Place cover (1) on bolt on travel drive unit (2) and secure with washer and nut (4). Secure the cover (1) at the end of the cutter bar using the screw (3). |
| Assembling successfully completed |
16.3 Checklist before Start-up
NOTICE
The use of paint thinners, petrol, aggressive chemicals or abrasives leads to material damage to the surfaces! Therefore use only mild detergents for cleaning!
Clean the machine and remove dirt and grass if necessary.
If the air filter is dirty, blow the filter cartridge from the inside by moving a jet of dry compressed air up and down. Continue until all dust has been removed. Replace the air filter with a new one if necessary.
- Check the carburetor for external dirt and dust and clean it with dry compressed air if necessary.
- Check the nuts and bolts for tightness, paying particular attention to the knife. (Screws or bolts loosened by vibrations can lead to accidents)
16.3.1 Checking/refilling engine oil
NOTICE
Too low an oil level will damage the engine and shorten the life of the machine. Therefore, check the engine oil level before each start and top up if necessary.
- To check the engine oil level, place the machine on a safe, level surface. Switch off the engine and allow the machine to stand for ten minutes so that the circulating oil can collect in the oil pan.
- Unscrew the oil dipstick and wipe it with a clean, lint-free cloth or a non-fibrous paper towel.
- Push the measuring rod back into the opening as far as it will go, but do not screw it in. (Make sure that the rod has really been pushed in completely - sometimes it cants itself).
- Pull out the oil dipstick again and read off the oil level. There are two markings for this - see illustration on the left.
- If the oil level is low, top up recommended oil to the upper limit (maximum filling volume according to technical data).
- Insert the oil dipstick again and tighten it.
16.3.2 Checking fuel tank level / Refueling Fuel Tank
NOTICE
Observe the safety regulations for fuel control. Filter the fuel during refueling to prevent foreign particles from entering the combustion chamber. Wipe up leaked fuel.
Process:
- Screw on the tank cap (sits on the fuel tank).
- Level check in the form of a visual inspection. If necessary, top up petrol with the appropriate octane number (RON 95) (maximum tank volume according to technical data).
- Close the filler cap tightly after refueling.
17 OPERATION
Only put the machine into operation after you have read and understood the safety instructions and carried out the necessary measures before initial commissioning..
17.1 Informationen on Initial Start-up
NOTICE
The machine is delivered without engine oil and fuel. Make sure that this equipment is filled up before the machine is put into operation for the first time.
17.1.1 Test Run Initial Start-up
-
Let the machine run idle for about 3 minutes.
-
Watch out for abnormal noises.
Pay attention to the exhaust fumes (too black, too white)?
17.1.2 Notes for the first 20 operating hours
In order to optimize the life expectancy of your machine, the following points should be observed:
- Spare the engine for the first 20 operating hours (this also applies to used engines after extensive maintenance). This means lower speed and lower maximum working load than during normal operation.
- Change the engine oil after the first 20 hours of operation.
17.2 Operating instructions
- Never pull out the starter cable while the engine is running. This will damage the motor.
- The pull mechanism for changing the motor speed is limited by an adjusting screw. This is factory set. Never change this setting on your own, you could overload the motor.
- Under no circumstances should you operate the machine on slopes of more than 15^ , as even with an optimum oil level the engine may not be supplied with sufficient lubrication.
- In the direction of the forward movement of the machine and within a range of one meter around the machine, nobody but the operator must stand.
- Pay particular attention to the following particularly dangerous areas: Special precautions must be taken when mowing on slopes. Only mow crosswise to the slope, never downwards or upwards, observing the maximum permissible slope angle.
- The cutting height can be adjusted via the skids on the machine, adjust them for the respective condition of the grass area to be worked. The maximum mowing height is 6cm . Both skids should be set to the same height.
17.3 Operating
17.3.1 Starting the engine
Cold start
- Move throttle lever (l) to position (Al).
- Stand next to the machine with sufficient distance to the cutter bar
Pull the recoil starter handle (2) through quickly. - Slowly return the recoil starter handle (2) to the cable guide as soon as the engine starts.
After a few seconds, move the throttle lever (1) to a middle position between (A2) and (A3).
Warm engine start
- If the engine has already warmed up, it is normally sufficient to bring the throttle lever (1) to the middle throttle lever position (A2) and (A3) before starting.
17.3.2 Start cutting (cutting bar)
To start the cutter bar knives, release the safety lever (3) and push down the knife drive lever (4).
17.3.3 Activate/deactivate wheel-drive
Activate wheel drive
- Push the drive lever (2) towards the handle and the wheel drive is activated to support forward movement.
Deactivate wheel drive
- Release the drive bracket (2) and the wheel drive is deactivated.
17.3.4 Stopping the engine
Move the throttle lever to position 0 (stop position)
18 MAINTENANCE
WARNING
Hot surfaces and rotating machine parts while the engine is running can cause serious injury or even death. Always stop the machine before carrying out any conversion, adjustment, cleaning or maintenance work, let it cool down and secure it against unintentional restarting.
18.1 Maintenance and Servicing Plan
| What to do? | frequency |
| Check fuel level | before each start-up |
| Check engine oil level | before each start-up |
| Control of the operating elements | before each start-up |
| Check for damaged parts | before each start-up |
| Checking for loose or lost screws | before each start-up |
| Change engine oil | First after 5h or 1 month, then every 3 months or 25h |
| Air filter cleaning/replacement | every 25h or 3 months |
| Spark plug test/replacement | every 200 h or 2 years |
| Fuelfilter cleaning | every 25h or 3 months |
The specified intervals refer to working under "normal" operating conditions. Depending on the load, a change/exchange may also be necessary at an earlier point in time.
18.2 Changing the engine oil
NOTICE
Engine oil is toxic and must not be released into the environment. When changing, use suitable collecting containers with sufficient volume! Observe the manufacturer's instructions and, if necessary, contact your local authorities for further information regarding proper disposal.
?
1
Change engine oil:
- drain the used oil while the engine is warm. Warm oil drains quickly and completely.
- wipe the oil filling area clean and then remove the oil drain screw.
- After draining, tighten the oil drain plug (1) again.
- Fill with the recommended oil. Do not overfill! Wait a few minutes for the oil to settle in the engine and only then measure the oil level.
18.3 Cutter bar checking / changing
NOTICE
After assembly, check that the blade screws are firmly tightened. Always wear protective gloves when working on the blade.
Oil the cutter bar with organic rapeseed oil at periodic intervals and before each storage.
Operation will cause the upper and lower mower blades to become somewhat loose over time.
Caution. Mower knives are sharp! Wear protective gloves!
By removing one washer at a time, the cutter bars can be tightened again after retightening the lock nuts.
18.4 Cleaning the air filter
NOTICE
If the engine is operated with or without a damaged air filter, dirt will get into the engine, resulting in rapid engine wear.
To clean the air filter, proceed as follows:
- Press on the clamps and remove the air filter cover.
- Take out the filter.
- Check the filter or foam element and replace it if it is damaged.
- Clean the filter by tapping it several times on a hard surface to remove dirt or blow compressed air through the inside of the air filter.
Never try to brush off dirt; brushing will force dirt into the fibers.
- Remove the dirt on the inside of the air filter base and the cover with a damp cloth. Ensure that no dirt gets into the air duct leading to the carburetor.
- Reinstall the filter and cover.
18.5 Cleaning / replacing the spark plug
NOTICE
A loose spark plug can overheat and damage the engine. Tightening the spark plug too much can damage the thread in the cylinder head.
For error-free operation, the contact surface of the candle in the cylinder head and the sealing ring of the candle must be clean and free of residues.
- Take off the spark plug cap and remove any dirt underneath.
- Remove the spark plug with a spark plug wrench.
- Check the spark plug. Replace it if the electrodes are worn out or if the insulator is torn or broken.
- Measure the electrode gap of the spark plug with a suitable measuring device. The distance should be 0.7 - 0.8 mm. If necessary, correct the gap by carefully bending the side electrode with a suitable tool.
- Fit the spark plug cap.
19 TRANSPORT
WARNING
Never lift or transport the machine with the engine running!
Secure the machine in its position (tying up, jamming the wheels) Empty fuel tank completely to avoid fuel leakage
20 STORAGE
- To reduce the risk of fire, keep the engine, silencer, battery compartment and fuel tank free of grass, leaves or excessive grease.
- Allow the product to cool for at least 30 minutes before storage.
Before storage, clean the mower thoroughly and store it in a dry, frost-free place. - Never store the mower with fuel in the tank inside a building where it can reach an open flame or spark.
If the fuel tank needs to be emptied, this should be done outdoors.
If the machine is not used for a longer period of time (>30 days):
- Empty the oil or fuel tank.
- Remove the spark plug and pour a few drops of engine oil into the cylinder. Using a rope starter, turn the engine a few times so that the oil is well distributed inside the cylinder. (Clean spark plug before reuse!)
21 CLEANING
NOTICE
Incorrect cleaning agents can attack the paint on the machine. Do not use solvents, nitro thinner or other cleaning agents that could damage the machine's paint.
Regular cleaning is also a basic rule for the safe operation of the machine and a long lifetime of the machine.
22 DISPOSAL
Do not dispose of your machine in residual waste. Contact your local authorities for information on available disposal options. If you buy a new vibratory plate or equivalent from your dealer, he is obliged in certain countries to dispose of your old machine properly.
23 TROUBLESHOOTING
WARNING
Hot surfaces and rotating machine parts while the engine is running can cause serious injury or even death. Switch off the machine before carrying out any troubleshooting work and secure it against unintentional restarting.
| Failure | Possible cause | Repair |
| Engine does not start | Incorrect starting sequence | Observe the correct starting sequence |
| Dirty air filter | Clean/replace air filter | |
| No fuel supply | Refuel | |
| Fault in the fuel line | Check the fuel line for kinks or damages | |
| Engine flooded. | Screw off, clean and dry the spark plug. Then pull the cranking rope several times and reinstall the spark plug | |
| Spark plug connector not placed on. | Place on the spark plug connector | |
| No ignition spark | Clean/replace spark plugCheck ignition cable | |
| Engine starts and is stalled immediately | Incorrect idle adjustment | Contact customer service |
| Machine works with interruptions | Carburetor incorrectly adjusted | Contact customer service |
| Spark plug fouled | Clean/replace spark plugCheck spark plug connector | |
| Smoke | Incorrect fuel | Use correct fuel |
| Carburetor incorrectly adjusted | Contact customer service | |
| Machine does not work with full performance | Machine overloaded | Grass too tough |
| Dirty air filter | Clean/replace air filter | |
| Carburetor incorrectly adjusted | Contact customer service | |
| Rough running, vibrations | Loose blade screw | Tighten blade screw |
| Damaged blade | replace blade | |
| Low quality cut | Foreign material/grass wrapped, around the blade | Remove Foreign material/grass |
| To high grass | Set to correct cutting height |
24 UVODNI SLOVO (CZ)
Vázeny zákazníku!
Cher client, chere cliente!
35.1.1 Restrictions techniques
(EN) With original ZIPPER spare parts you use parts that are attuned to each other shorten the installation time and elongate your products lifespan.
NOTE
The installation of parts other than original spare parts leads to the loss of the guarantee!
Therefore: When replacing components/parts, only use spare parts recommended by the manufacturer.
Order the spare parts directly on our homepage – category SPARE PARTS or contact our customer service
- via our Homepage - category SERVICE/NEWS - SPARE PARTS REQUEST,
by e-mail to eg01@zipper-maschinen.at.
Always state the machine type, spare part number and designation. To prevent misunderstandings, we recommend that you add a copy of the spare parts drawing with the spare parts order, on which the required spare parts are clearly marked, especially when not using the online-spare-part catalogue.
ZIPPER machines are subject to the legal warranty, which is valid in the current version. (For electrical and mechanical components, this is equivalent to 2 years (excluding wearing parts and batteries), starting from the date of purchase by the end user/buyer. For rechargeable batteries and batteries, the legal warranty of 6 months applies, starting from the date of purchase by the end user/buyer). In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.
2.) Report:
In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shipments by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.
3.) Regulations:
a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.
4.) Claims for compensation and other liabilities:
The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.
SERVICE
After Guarantee and warranty expiration specialist repair shops can perform maintenance and repair jobs. But we are still at your service as well with spare parts and/or product service. Place your spare part/repair service cost inquiry by
- Mail to service@zipper-maschinen.at.
- Or use the online complaint order formula provided on our homepage - category service/news.
79 PROHLASENI O ZARUCE (CZ)
(EN) We monitor the quality of our delivered products in the frame of a Quality Management policy.
Your opinion is essential for further product development and product choice. Please let us know about your:
Impressions and suggestions for improvement.
- experiences that may be useful for other users and for product design
- Experiences with malfunctions that occur in specific operation modes
We would like to ask you to note down your experiences and observations and send them to us via E-Mail or by post:
