USER MANUAL PG 8565 SEVERIN

GB Instructions for use

FR Mode d'emploi

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

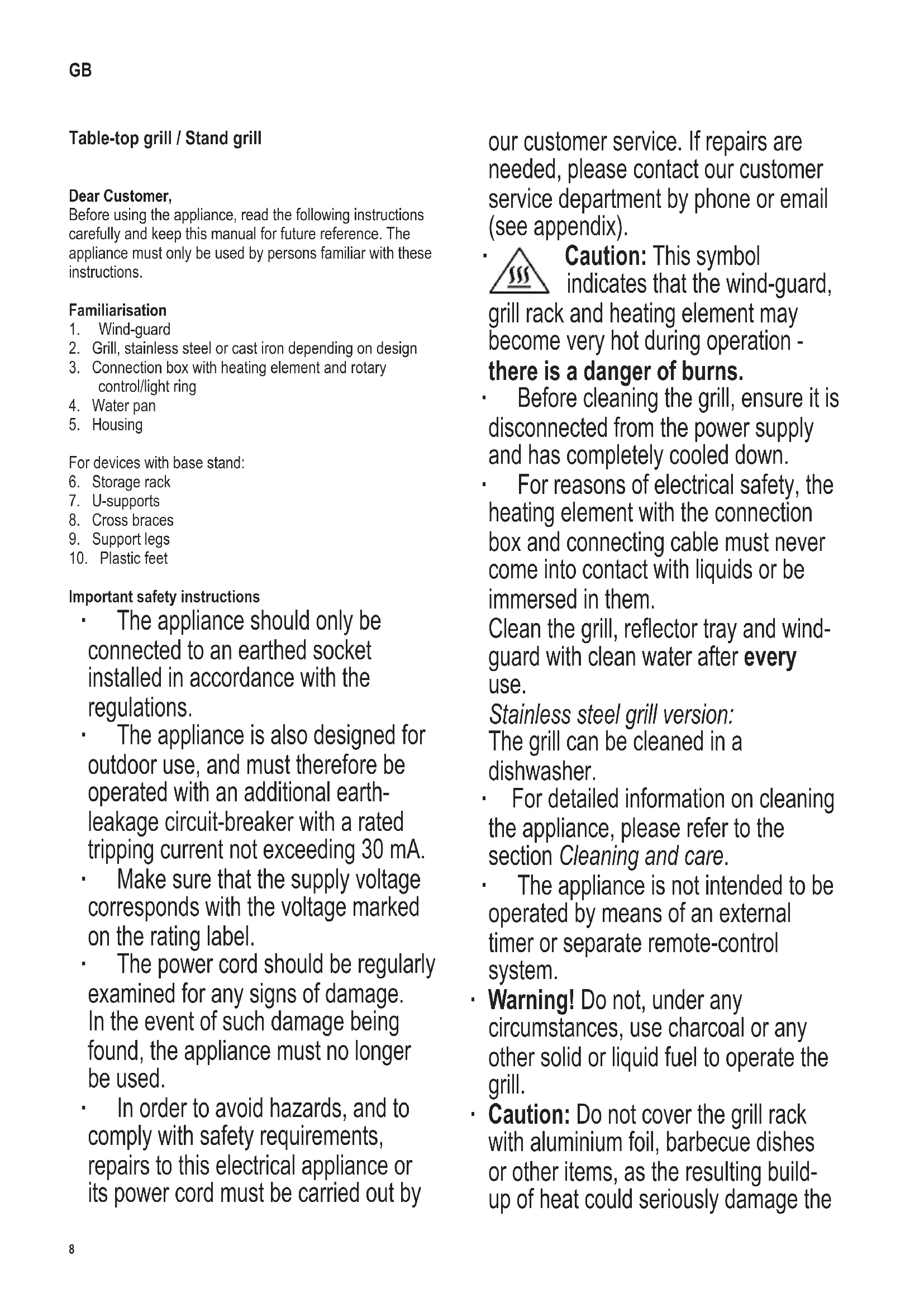

Familiarisation

1. Wind-guard
2. Grill, stainless steel or cast iron depending on design
3. Connection box with heating element and rotary control/light ring
4. Water pan
5. Housing

For devices with base stand:

1. Storage rack
2. U-supports
3. Cross braces
4. Support legs
5. Plastic feet

Important safety instructions

The appliance should only be connected to an earthed socket installed in accordance with the regulations.
The appliance is also designed for outdoor use, and must therefore be operated with an additional earthquake breaker with a rated tripping current not exceeding 30mA .
Make sure that the supply voltage corresponds with the voltage marked on the rating label.
The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by

our customer service. If repairs are needed, please contact our customer service department by phone or email (see appendix).

Caution: This symbol indicates that the wind-guard, and heating element may very hot during operation - a danger of burns.

• Before cleaning the grill, ensure it is disconnected from the power supply and has completely cooled down.
• For reasons of electrical safety, the heating element with the connection box and connecting cable must never come into contact with liquids or be immersed in them.

Clean the grill, reflector tray and windguard with clean water after every use.

Stainless steel grill version:

The grill can be cleaned in a dishwasher.

• For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
  The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Warning! Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.
• Caution: Do not cover the grill rack with aluminium foil, barbecue dishes or other items, as the resulting buildup of heat could seriously damage the

grill.

• A maximum of 1.1 litres of water may be poured into the reflector tray.

• This appliance is intended for domestic or similar applications, such as

• in staff kitchens in shops, offices and other similar working environments,

• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

Children must not be permitted to play with the appliance.
- Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
- The appliance and its power cord must be kept well away from children under 8 at all times.

• Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.
• Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects

on the operational safety of the appliance.
- During operation, the grill must be placed on a level, heat-resistant surface, impervious to splashes and stains. When grilling food with a high fat or moisture content, splashes are not always avoidable.
- Do not position the grill next to a wall or corner, and ensure that no inflammable materials are stored near it.
- If operating indoors, the wind-guard is not needed.
- Food with high fat content can ignite on the grill, so always make sure that the water pan is filled with water every time before starting use! Only then insert the plug into a power socket. This cools the water pan, reduces smoke generation and makes cleaning easier.
- Keep monitoring the water level. Water should be added in good time, while ensuring that it does not come into contact with the heating element. Caution: Disconnect the grill from the mains before adding water.
Prior to starting use, check that the heating element is correctly installed in the housing and in the water pan.
- The grill must be supervised at all times during operation.
- The heating element and the grill get very hot during operation. Even after switching off, do not touch the heating element until it cools down. There is a risk of burns!
- Do not allow the power cord to touch any hot parts of the appliance.
- Route the power cord in such a way that no one can trip over it.
Always remove the plug from the wall socket

• before filling with water,
  -after use,
• in case of any malfunction, and

• during cleaning.

• The use of an extension cord or reel causes a loss of power, possibly combined with a subsequent heat buildup in the cable. It is therefore necessary to unwind the cable completely before use. Make sure that the cord is approved for outdoor use and for the power specified (see rating label).

• For devices with base stand: The storage rack can be loaded with a maximum weight of 4kg .
• Never move the barbecue while it is in operation.
• Caution! Always make sure that the barbecue has cooled down completely before it is moved, cleaned, covered or stored.
• Caution! Whenever the barbecue is not in use, the heating element with the connection box must be removed from the barbecue and stored in a dry space indoors.
• The other parts of the barbecue must not be stored outdoors or in an open area where they could be affected by the weather.

• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

• This product complies with all binding CE labelling directives.

Before using for the first time

• Remove any packaging materials and stickers from the appliance.
• Remove the four silicone hoses on the cross struts of the heating element too.
• Clean the grill, water pan and wind-guard in hot water and dry thoroughly.
• Assemble the appliance as described in Preparing the unit.
• Let the grill heat up for approximately 10 minutes at maximum power without any food (see Grilling). This will remove the smell typically encountered when first switching on a grill. A little smoke may be emitted; for that reason, adequate ventilation should be ensured by opening windows or balcony doors; an extractor hood is also suitable.

Grill assembly

• Assemble the grill as shown in the diagrams:

• Place the water pan in the housing.

• Place the heating element with the connection box in the water pan. The device is equipped with a safety switch. If the connection box is not installed correctly, the device cannot be brought into operation.
• Put on the grill.
• Insert the side catches on the wind-guard first and then the rear catches into the openings on the water pan (only for outdoor operation).

Base stand assembly

• For grill models with base stand, assemble the stand as shown in the diagram:
• Place the four plastic feet on the four support legs.
• Insert the support legs into the U-supports.
• Attach the cross braces and tighten them with the eight screws and wing nuts.
• Insert the storage rack.
• Ensure that the stand is stable.
• Place the assembled grill on top.

Preparing the unit

• Assemble the appliance as described in Grill assembly. For grill models with base stand, refer to Base stand assembly.
• Fill the water pan with water up to the "Max" marking (maximum 1.1 litres). Water must never be poured directly onto the heating element.

Hint!

When using the barbecue, top up the water in the water pan regularly to make up for evaporation. Always unplug the device before doing this!

• Connect the appliance to the mains.
  The unit is ready for use.

Light ring

Stainless steel version:

Blue light ring:

The heating element is switched off.

Red light ring:

The heating element is switched on.

Cast iron version:

During the grilling process the heating element cycles and the light ring lights up alternately red and blue (on and off).

Grilling

• Set the rotary control to the select the desired position between min und max. The light ring shows steady red.
• Let the appliance heat up for around 10 minutes, and then place the food on the grill surface.

After grilling

• Always disconnect the unit from the mains and allow it to cool down after grilling.

Cleaning and care

• Ensure that the grill is thoroughly cleaned after use.
• Any residues of water, oil, fat and spices left on the reflector tray could damage it. If any damage is caused to the reflector tray by incorrect cleaning, the guarantee will no longer be valid.
• Before cleaning the grill, ensure it is disconnected from the power supply and has completely cooled down.
• Do not use metallic pads or abrasive cleaning agents.
• Remove the wind screen and the grill and rinse them in water, leave to soak if necessary.
• Remove the heating element with the junction box. To avoid the risk of electric shock, do not clean the heating element with water and do not immerse it in water. The heating element with junction box may be wiped with a slightly damp lint-free cloth.
• Remove the reflector tray and clean it in water, leave to soak for a short time if necessary.
• All other parts can be cleaned with a cloth soaked in soapy water, and should be wiped completely dry afterwards.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the

environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
