Product type	Scarifier
Brand	Texas
Model	Pro Cut 460TG
Working width	460 mm
Total width	700 mm
Length	1100 mm
Empty weight	66 kg
Rotor diameter	210 mm
Rotor speed	2000 rpm
Number of blades	48
Blade type	Flails, thickness 3 mm
Noise for user	83.5 dB
Handle vibration	2.64 – 2.84 m/s²
Power source	Gasoline engine (not specified)
Depth adjustment	Yes, via handle on the right
Blade clutch	Clutch handle on the handlebar
Transport position	Lifting via position adjustment
Maintenance	Brush cleaning, no high-pressure cleaner, anti-corrosion spray
Safety	Engine stop in case of accident, do not use on slopes, rotating blades
Spare parts	Available at texas.dk
Warranty	Void if non-approved parts

Frequently Asked Questions - Pro Cut 460TG Texas

How to start the Pro Cut 460TG scarifier?

Set the throttle choke/full throttle, then follow the engine starting instructions (see engine manual).

How to adjust the scarification depth?

Use the handle on the right side of the machine (figure 4, b) to adjust the working depth.

What type of engine oil to use?

Refer to the engine manual. Check the oil level before each start.

Can I use the scarifier on dry soil?

No, do not use the scarifier on dry soil, as this may damage the belt. Use it only in early spring or late autumn when the soil is soft and moist.

How to clean the scarifier after use?

Stop the engine, remove the spark plug protector, tilt the machine backwards and clean under the cover with a brush. You can use a low-pressure hose, but avoid directly spraying the blade holder. Never use a high-pressure cleaner.

How to replace the blades?

The blades are flails. For replacement, refer to figure 8 in the manual or contact your dealer. Spare parts are available at texas.dk.

What to do if the blades do not engage?

Check that the clutch trigger is held against the handlebar (figure 3, b). If the problem persists, inspect the clutch cable or contact a professional.

Can I use the machine on a slope?

No, using the machine on sloping terrain is dangerous. Only use the machine on flat surfaces or in safe conditions.

How to transport the scarifier?

Use the position adjustment on the right side of the machine (figure 5, a) to lift the machine into transport position.

Where to find spare parts?

Parts diagrams are available at www.texas.dk. For purchase, contact your dealer. Use only approved parts to preserve the warranty.

USER MANUAL Pro Cut 460TG Texas

Illustrations. 2
Safety precautions 8
Box Contents 9
Use 9
Under Operation 10
Cleaning and Maintenance 10
Technical specifications 10
CE Declaration of conformity 31

Spare parts

Spare part drawings for the specific product can be found on our website www texas.dk

If you find the part numbers yourself, this will facilitate more rapid service.

For purchase of spare parts, please contact your dealer.

You will find a list of dealers on the Texas website.

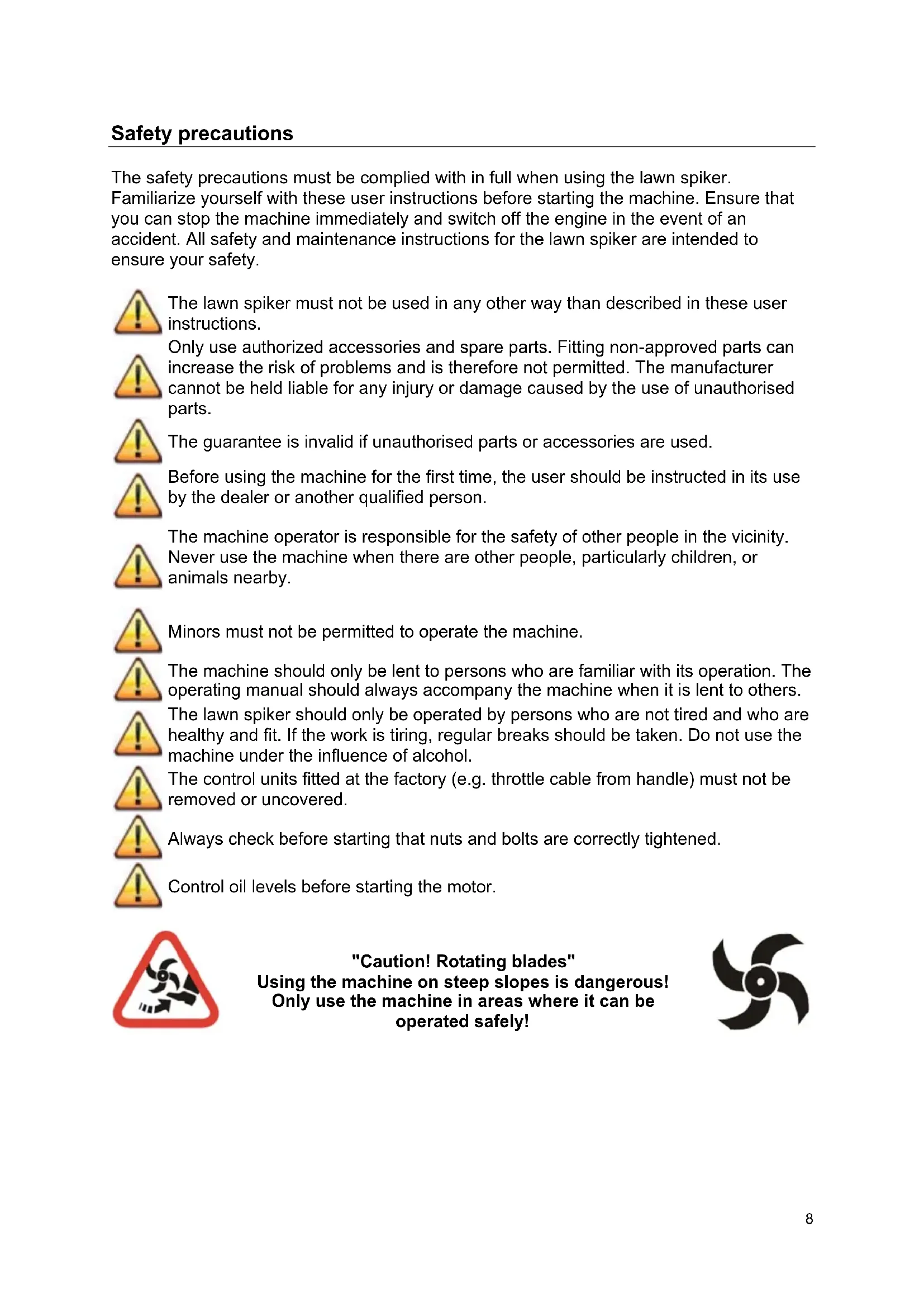

The safety precautions must be complied with in full when using the lawn spiker. Familiarize yourself with these user instructions before starting the machine. Ensure that you can stop the machine immediately and switch off the engine in the event of an accident. All safety and maintenance instructions for the lawn spiker are intended to ensure your safety.

The lawn spiker must not be used in any other way than described in these user instructions.

Only use authorized accessories and spare parts. Fitting non-approved parts can increase the risk of problems and is therefore not permitted. The manufacturer cannot be held liable for any injury or damage caused by the use of unauthorised parts.

The guarantee is invalid if unauthorised parts or accessories are used.

Before using the machine for the first time, the user should be instructed in its use by the dealer or another qualified person.

The machine operator is responsible for the safety of other people in the vicinity. Never use the machine when there are other people, particularly children, or animals nearby.

Minors must not be permitted to operate the machine.

The machine should only be lent to persons who are familiar with its operation. The operating manual should always accompany the machine when it is lent to others.

The lawn spiker should only be operated by persons who are not tired and who are healthy and fit. If the work is tiring, regular breaks should be taken. Do not use the machine under the influence of alcohol.

The control units fitted at the factory (e.g. throttle cable from handle) must not be removed or uncovered.

Always check before starting that nuts and bolts are correctly tightened.

Control oil levels before starting the motor.

"Caution! Rotating blades" Using the machine on steep slopes is dangerous! Only use the machine in areas where it can be operated safely!

Box Contents

1. Machine (Figure 1)
2. Operating manual and motor instructions

The lawn spiker is almost ready for use. Only the handlebar needs to be fitted.

Fit the bottom handlebar using the accompanying bolts. Figure 7.

Bottom handlebar must be fitted with tension plates inside. Figure 2

Fit the top handlebar, unfold the handlebar and secure it in the required position with the grips. See figure 3, c.

Use

Before use, follow the instructions for readying the motor in the motor instruction manual.

Before using the machine, remove all foreign objects from the vicinity. Stones, glass, branches and similar items can damage the machine. Also check that all bolts are tightened.

Control oil levels before starting the motor.

Start:

Set the gas handle to choker / full gas, figure 3,a.

Follow motor start instructions.

Stop:

Set the gas handle to minimum gas, figure 3,a.

Follow motor stop instructions.

The clutch grip on the handle is used to activate the rotating blades under the machine. It is important that the clutch allows for connection under operation, i.e. the clutch trigger is to be held tight up against the handle.

Figure 3, b.

The rotating blades disengage automatically when the trigger is released.

Working depth can be adjusted using the position settings on the right hand side of the machine, (figure 4, b).

The machine can be lifted to its transport position by using the handle on the right hand side of the machine, (figure 5, a).

Under Operation

The lawn spiker is used to loosen moss, etc. from the lawn. The machine's blades rotate in the direction of travel, thereby helping to propel the machine forward.

Note! Only use it early spring og late autumn, where the soil is soft and moist.

Start the motor and lower the machine to the "work" position using the handle on the right hand side of the machine. Activate the clutch trigger and engage the motor fully. Move the lawn spiker forwards and backwards across the lawn. After the first aeration remove any lose moss from the lawn. In the event that there is still moss in the lawn, aerate again at an angle of 90 degrees to the previous aeration. (figure 6)

Warning: Do not use the lawn spiker in hard dry soil. This can damage the belt!

Cleaning and Maintenance

After use remove any moss attached to the shield. Stop the motor, remove the sparkplug cap and tip the machine back. Clean under the shield with a brush.

If cleaning the machine with a hose, use a low pressure so as to avoid damaging the machines stickers. Also avoid spraying the blade bearing directly. After washing the machine it is a good idea to start the machine and let the rotor blades run without resistance for a short period of time.

Never use a high pressure cleaner to clean the lawn spiker.

Spray exposed areas with a corrosion protective spray.

Never tilt the machine more than 20 degrees as this can result in oil leaking into the cylinder.

Follow the motor manual instructions when performing motor maintenance.

For replacement of belt, see figure 8.

Technical specifications

Model Pro Cut 460
Working width (mm)	460
Total width (mm)	700
Length (mm)	1100
Weight w/o fuel (kg)	66
Rotor diameter (mm)	210
Rotor speed (rev./min.)	2000
Number of blades 48
Blade type (mm)	Flails,3
Noise for user	83.5
Handle vibration (m/s2)	2.64 - 2.84
