Product type	Thermic scarifier
Brand	Texas
Model	Pro Cut 460B
Working width (mm)	460
Total width (mm)	700
Length (mm)	1100
Empty weight (kg)	66
Engine	4-stroke petrol engine (not specified in manual)
Rotor diameter (mm)	210
Rotor speed (rpm)	2000
Number of blades	48
Blade type	3 mm flails
Sound level (dB)	83,5
Handlebar vibration (m/s²)	2,64 - 2,84
Adjustable working depth	Yes, via handle on the right side
Transport position	Yes, lifting by position adjustment
Blade clutch	Handle on the handlebar with automatic disengagement
Recommended use	Early spring and late autumn on damp soil
Engine maintenance	Follow engine manual, check oil before starting
Cleaning	Manual brush or low-pressure hose, no high-pressure cleaner
Spare parts	Available at www.texas.dk or via distributors
Safety	Emergency engine stop, rotating blades, minors prohibited

Frequently Asked Questions - Pro Cut 460B Texas

What type of fuel to use for the engine?

Use regular unleaded petrol for 4-stroke engines. Consult the engine manual for precise recommendations.

How to adjust the scarification depth?

The working depth is adjusted using the handle located on the right side of the machine. Turn it to adjust the blade height.

Can I use the scarifier on dry soil?

No, use on dry soil is not recommended as it may damage the belt. Use it only when the soil is soft and damp, in early spring or late autumn.

How to clean the scarifier after use?

Stop the engine, remove the spark plug protector, tilt the machine backwards and clean under the hood with a brush. You can use a low-pressure hose, but avoid spraying directly at the blade holder. Never use a high-pressure cleaner.

What to do if the blades do not rotate?

Check that the clutch is properly engaged: the trigger must be held firmly against the handlebar. If the problem persists, inspect the belt and connections. See figure 8 in the manual for belt replacement.

How to transport the scarifier?

Raise the machine to transport position using the position adjustment located on the right side of the machine (figure 5,a). Ensure the blades are disengaged.

Is it possible to use the machine on a slope?

Use on sloping terrain is dangerous due to rotating blades. Use the machine only in places where it can be handled safely.

Where to find spare parts for the Pro Cut 460B?

Parts diagrams are available on the website www.texas.dk. For purchasing, contact your distributor; the list of distributors is also on the Texas website.

What is the ideal time to scarify the lawn?

Use the scarifier in early spring and late autumn, when the soil is soft and damp. This allows effective removal of moss without damaging the grass.

How can I stop the engine in an emergency?

Set the throttle lever to the minimum position (figure 3,a) and follow the engine stop instructions. The blades stop automatically as soon as you release the clutch trigger.

USER MANUAL Pro Cut 460B Texas

Yellow lawn mower with black engine and black handle, no visible text or symbols

Illustrationer / Illustrations / Abbildungen / Illustrations / Ilustracje / Illustrazioni / Desene

Cleaning and Maintenance....10

Technical specifications....10

CE Declaration of conformity ....31

Spare parts

Spare part drawings for the specific product can be found on our website www.texas.dk

If you find the part numbers yourself, this will facilitate more rapid service.

For purchase of spare parts, please contact your dealer.

You will find a list of dealers on the Texas website.

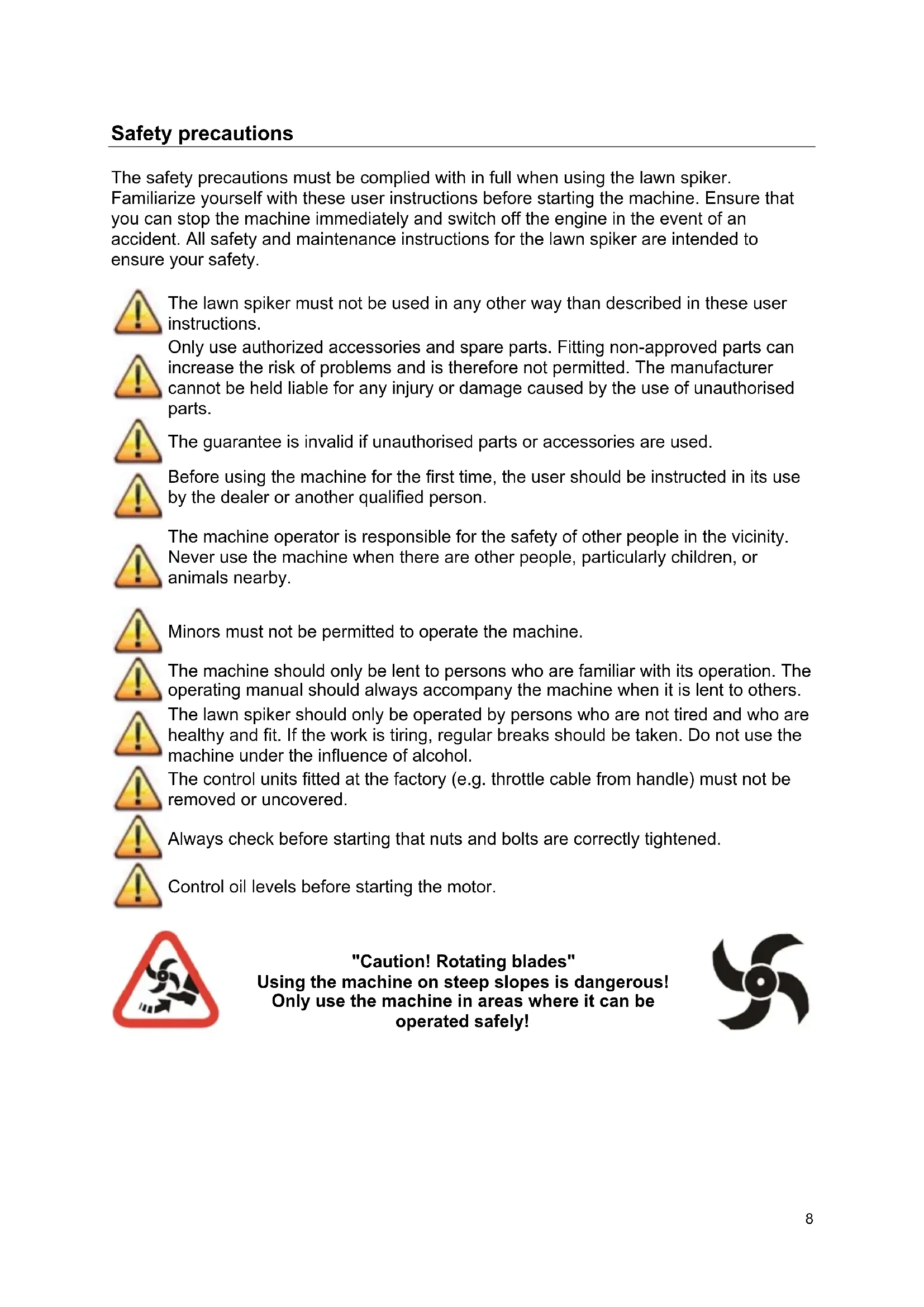

The safety precautions must be complied with in full when using the lawn spiker. Familiarize yourself with these user instructions before starting the machine. Ensure that you can stop the machine immediately and switch off the engine in the event of an accident. All safety and maintenance instructions for the lawn spiker are intended to ensure your safety.

The lawn spiker must not be used in any other way than described in these user instructions.

Only use authorized accessories and spare parts. Fitting non-approved parts can increase the risk of problems and is therefore not permitted. The manufacturer cannot be held liable for any injury or damage caused by the use of unauthorised parts.

The guarantee is invalid if unauthorised parts or accessories are used.

Before using the machine for the first time, the user should be instructed in its use by the dealer or another qualified person.

The machine operator is responsible for the safety of other people in the vicinity. Never use the machine when there are other people, particularly children, or animals nearby.

Minors must not be permitted to operate the machine.

The machine should only be lent to persons who are familiar with its operation. The operating manual should always accompany the machine when it is lent to others.

The lawn spiker should only be operated by persons who are not tired and who are healthy and fit. If the work is tiring, regular breaks should be taken. Do not use the machine under the influence of alcohol.

The control units fitted at the factory (e.g. throttle cable from handle) must not be removed or uncovered.

Always check before starting that nuts and bolts are correctly tightened.

Control oil levels before starting the motor.

"Caution! Rotating blades" Using the machine on steep slopes is dangerous! Only use the machine in areas where it can be operated safely!

Box Contents

1. Machine (Figure 1)
2. Operating manual and motor instructions

The lawn spiker is almost ready for use. Only the handlebar needs to be fitted.

Fit the bottom handlebar using the accompanying bolts. Figure 7.

Bottom handlebar must be fitted with tension plates inside. Figure 2

Fit the top handlebar, unfold the handlebar and secure it in the required position with the grips. See figure 3, c.

Use

Before use, follow the instructions for readying the motor in the motor instruction manual.

Before using the machine, remove all foreign objects from the vicinity. Stones, glass, branches and similar items can damage the machine. Also check that all bolts are tightened.

Control oil levels before starting the motor.

Start:

Set the gas handle to choker / full gas, figure 3,a.

Follow motor start instructions.

Stop:

Set the gas handle to minimum gas, figure 3,a.

Follow motor stop instructions.

The clutch grip on the handle is used to activate the rotating blades under the machine. It is important that the clutch allows for connection under operation, i.e. the clutch trigger is to be held tight up against the handle.

Figure 3, b.

The rotating blades disengage automatically when the trigger is released.

Working depth can be adjusted using the position settings on the right hand side of the machine, (figure 4, b).

The machine can be lifted to its transport position by using the handle on the right hand side of the machine, (figure 5, a).

Under Operation

The lawn spiker is used to loosen moss, etc. from the lawn. The machine's blades rotate in the direction of travel, thereby helping to propel the machine forward.

Note! Only use it early spring og late autumn, where the soil is soft and moist.

Start the motor and lower the machine to the "work" position using the handle on the right hand side of the machine. Activate the clutch trigger and engage the motor fully. Move the lawn spiker forwards and backwards across the lawn. After the first aeration remove any lose moss from the lawn. In the event that there is still moss in the lawn, aerate again at an angle of 90 degrees to the previous aeration. (figure 6)

Warning: Do not use the lawn spiker in hard dry soil. This can damage the belt!

Cleaning and Maintenance

After use remove any moss attached to the shield. Stop the motor, remove the sparkplug cap and tip the machine back. Clean under the shield with a brush.

If cleaning the machine with a hose, use a low pressure so as to avoid damaging the machines stickers. Also avoid spraying the blade bearing directly. After washing the machine it is a good idea to start the machine and let the rotor blades run without resistance for a short period of time.

Never use a high pressure cleaner to clean the lawn spiker.

Spray exposed areas with a corrosion protective spray.

Never tilt the machine more than 20 degrees as this can result in oil leaking into the cylinder.

Follow the motor manual instructions when performing motor maintenance.

For replacement of belt, see figure 8.

Technical specifications

Model Pro Cut 460
Working width (mm)	460
Total width (mm)	700
Length (mm)	1100
Weight w/o fuel (kg)	66
Rotor diameter (mm)	210
Rotor speed (rev./min.)	2000
Number of blades 48
Blade type (mm)	Flails,3
Noise for user	83.5
Handle vibration (m/s ^2 )	2.64 - 2.84

Inhaltsverzeichnis

Abbildungen....2

2006/42/EC - 2006/95/EC - 2000/14/EC amended by 2005/88/EC

Materiellet er udført i overensstemmelse med følgende standarder • Conforms with the following standards • In Übereinstimmung mit den folgende Standards • Conformément aux normes suivantes • Jest zgodna z następującymi normami • è prodotto secondo le direttive e seguenti modifiche

EN709:1997+A4:2009/AC:2012

Pro Cut 460TG L	wA: 99 dB(A) LpA: 98.6 dB(A)S/N: 2101101000 - 2312109999	Vibration ah = 2,64 m/s2
Pro Cut 460 B L	wA: 99 dB(A) LpA: 98.6 dB(A)S/N: 2101091000 - 2312099999	Vibration ah = 2,84 m/s2
Pro Cut 460 BS L	wA: 99 dB(A) LpA: 98.6 dB(A)S/N: 2101111000 - 2312119999	Vibration ah = 2,84 m/s2

Texas Andreas Petersen A/S

Knullen 22 • DK-5260 Odense S

Responsible for documentation

Johnny Lolk

08.07.2021

Harry Tahn

Johnny Lolk

Managing Director
