Product Type	4-stroke single-cylinder OHV air-cooled gasoline engine
Brand	Texas
Model	TG720ES
Displacement	212 cm³
Maximum Power	4.2 kW (5.7 hp) at 3600 rpm
Constant Power	3.7 kW (5.0 hp) at 3600 rpm
Bore x Stroke	70 x 55 mm
Dimensions (L x W x H)	390 x 320 x 345 mm
Weight (dry)	16.2 kg
Fuel Type	Unleaded gasoline 95 octane
Tank Capacity	3.6 liters
Engine Oil	SAE 30 or 10W-40
Oil Capacity	0.6 liter
Starting System	Recoil starter and 230V electric starter
Spark Plug(s)	F6RTC / 20EPR-V, gap 0.7-0.8 mm
Air Filter	Foam element and paper filter, regular cleaning
Oil Change	Every 20 hours of operation
Rotation Direction	Clockwise (viewed from PTO end)
Usage	Outdoor only, well-ventilated area
Included Accessories	User manual, spare spark plug not provided

Frequently Asked Questions - TG720ES Texas

How to start the TG720ES engine?

Open the fuel valve. On a cold engine, engage the choke. Turn the throttle control to full throttle. Pull gently on the recoil starter until you feel resistance, then pull vigorously. For the 230V electric starter, plug in the cord and press the red button.

What fuel to use?

Use only unleaded gasoline with an octane rating of at least 95. Do not overfill the tank (capacity 3.6 liters).

What engine oil is recommended?

SAE 30 (summer) or 10W-40 (all season). Capacity is 0.6 liter. Check the level with the engine horizontal.

How to drain the oil?

Run the engine for 5 minutes to warm the oil. Unscrew the drain plug (fig. 6.1) and let the oil drain into a suitable container. Screw the plug back on and fill with fresh oil up to the edge of the fill hole.

How often to clean the air filter?

Inspect the air filter every 20 hours of operation. Clean it every 50 hours or more often in dusty environments. Clean the foam element with gasoline or kerosene and lightly oil it.

How to check and replace the spark plug?

Remove the cap, clean the spark plug with a wire brush, measure the gap (0.7-0.8 mm). If the spark plug is worn, replace it with an F6RTC or 20EPR-V.

What to do in case of black smoke from the exhaust?

Black smoke indicates an overload or incorrect adjustment. Stop the engine and contact an authorized workshop if the problem persists.

How to store the engine for a long period?

Let the engine run until the fuel is consumed. Drain the carburetor. Remove the spark plug, add a tablespoon of oil into the cylinder and reinstall the plug. Pull the recoil starter until resistance to close the valves. Protect the engine with a coat of oil.

What are the essential safety precautions?

Use the engine only outdoors. Do not touch moving parts or hot exhaust. Never refuel while the engine is running. Stop the engine before any maintenance.

Where to find spare parts?

Contact your local Power Line dealer or an authorized workshop. Parts such as spark plugs, air filters, and gaskets are available from Texas distributors.

USER MANUAL TG720ES Texas

Exterior view of a black power plant turbine with visible branding and fan (no text-heavy elements)

VIGTIGT!

HUSK AT PÄFYLDE MOTOROLIE SAE-30

F∅R START!

IMPORTANT!

REMEMBER TO FILL WITH ENGINE OIL SAE-30

BEFORE START!

ACHTUNG!

DENKEN SIE DARAN, VOR

INBETRIEBNAHME MOTORÖL (SAE-30) AUFZUFÜLLEN!

ВАЖНО!

Blue circular icon with a white open book symbol (no text or numbers)

Warning sign depicting a flame symbol with red flame inside a white triangle, commonly used in safety or hazard prevention.

Warning symbol depicting a person with red smoke inside a triangle, surrounded by clouds (no text)

Simple line drawing of a house with crossed lines indicating restriction or exclusion (no text or symbols)

DK

Please read the user's manual carefully before operating the engine.

Check that there is no fuel spilling or fuel leakage.It can cause risk of fire.

Among engine exhaust emissions, there are toxic fumes.

Never use this engine in an enclosed area.

D

WARNING	Always read the user manual before use of the engine.
WARNING	Always follow the guidelines given by your Power Line dealer with regard to the engine.
WARNING	Always stop the engine before filling with gasoline or oil.
WARNING Always clean thoroughly if fluids are spilled.
WARNING	Always keep the engine at a distance from oils or other inflammable objects.
WARNING	Exhaust is dangerous; only use the engine outdoors or in a well-ventilated area.
WARNING	Draw attention to not getting into contact with the engine's rotating parts during operation.
WARNING	Draw attention to not getting in contact with the engine's exhaust and the engine's block as it gets very warm during operation.
WARNING	Never use the engine under influence of alcohol or drugs.

Table of contents

1. Illustrations	3
2. Starting	12
3. Operation	12
4. Stopping the engine	12
5. Fuel	13
6. Oil / changing oil	13
7. Air filter	14
8. Sparking plug	15
9. Transport and storage	15
10. Maintenance	15
11. Specifications	16

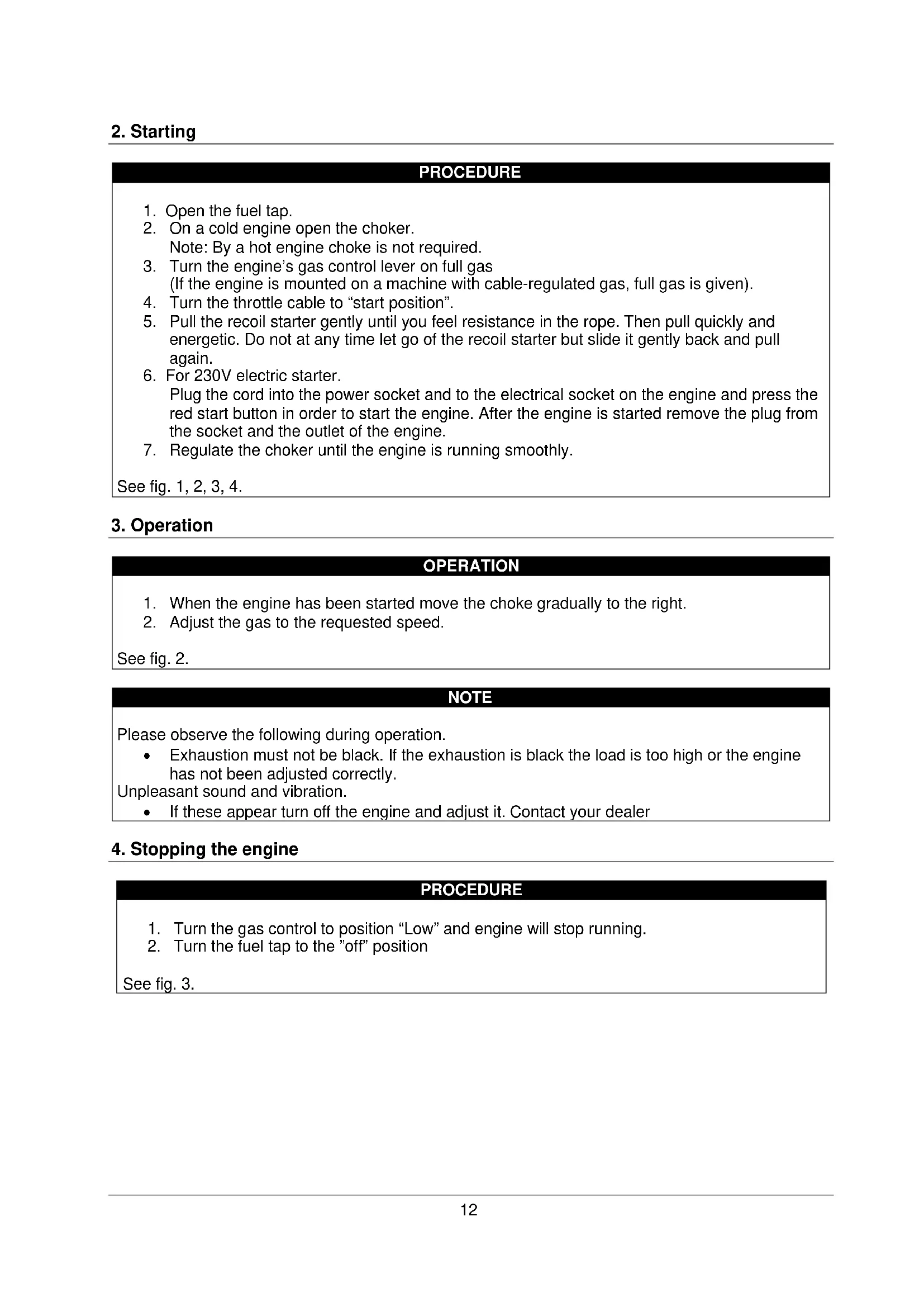

2. Starting

PROCEDURE

1. Open the fuel tap.
2. On a cold engine open the choker. Note: By a hot engine choke is not required.

3. Turn the engine's gas control lever on full gas (If the engine is mounted on a machine with cable-regulated gas, full gas is given).

4. Turn the throttle cable to "start position".

5. Pull the recoil starter gently until you feel resistance in the rope. Then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently back and pull again.

6. For 230V electric starter. Plug the cord into the power socket and to the electrical socket on the engine and press the red start button in order to start the engine. After the engine is started remove the plug from the socket and the outlet of the engine.

7. Regulate the choker until the engine is running smoothly.

See fig. 1, 2, 3, 4.

3. Operation

OPERATION

1. When the engine has been started move the choke gradually to the right.
2. Adjust the gas to the requested speed.

See fig. 2.

NOTE

Please observe the following during operation.

• Exhaustion must not be black. If the exhaustion is black the load is too high or the engine has not been adjusted correctly.
  Unpleasant sound and vibration.
  • If these appear turn off the engine and adjust it. Contact your dealer

4. Stopping the engine

PROCEDURE

1. Turn the gas control to position "Low" and engine will stop running.
2. Turn the fuel tap to the "off" position

See fig. 3.

5. Fuel

FUEL
Only use unleaded fuel octane 95 on your engine.Don't overfill the capacity of the fuel tank The indicator on the tank shows how much fuel is leftSee fig 7
TG620 / TG622 / TG720 / TG722	3,6 Litre

6. Oil / changing oil

OIL CAPACITY
Always check the oil level when the engine is placed in a horizontal position.Always check the oil level visible and to edge of fill holeSee fig. 5.
TG620 / TG622 / TG720 / TG722	0.6 Litre

CHANGING OIL

Change the oil according to the specifications of the machine.

1. Let the engine run 5 minutes, so the engine is hot.Warm oil liquefies, which makes it easier to drain the oil.2. Unscrew the drain plug (Fig 6.1) and let the warm oil run out of the engine.Remember to keep an appropriate container ready.3. Attach the drain plug and fasten.

Refilling oil (Fig 5)1. Remove the oil filler cap2. Refill the oil to the edge of the filling hole (see capacity above)Important: Before changing oil, ensure that the engine is level position.Important: By the right amount oil the oil MUST be visible and to edge of fill holePlease dispose the used engine oil environmentally correct. We suggest that you keep the used oil in a sealed container and dispose at your recycling center or service station for reclamation. Do not throw it in the waste; pour it on the ground; or down a drain.

AIR FILTER

The air filter should be inspected and cleaned regularly. If the filter has not been cleaned for a long period of time, this will influence the engine's combustion and engine power.

1. Remove the nut, washer and gasket (Figure 8.A,B,C) and remove cover (Fig 8.D).
2. Remove the nut (Fig 8.E) and remove the gasket (Figure 8.F)
3. Clean the air filter (Fig 8.G) before being removed.
4. Now carefully remove the air filter (Fig 8.G) out of the foam element (Fig 8.H)
5. Inspect and remove the dust from the air filter by tapping the element easily a few times. Alternatively run compressed air through the inside of the filter. Warning! Never try to brush away the dust. A brush will only push the dust further into the element. Replace the air filter if it is very dirty.
6. Inspect and clean the foam element (Fig 8.H) with petrol or kerosene
7. Wrench the foam element (Fig 8.H) and let it dry. Hereafter soak the element in fresh oil, squeeze any redundant oil out of the element.
8. Clean the lid (Fig 8.1)
9. Reattach the foam element (Fig 8.H) and the air filter (Fig 8.G) and fasten.
10. Please note that all parts are assembled correctly. (See Fig. 8)

IMPORTANT: Under no circumstances should oil be applied on the air filter (Fig.8G).

A. Nut
B. Washer
C. Gasket
D. Cover
E. Nut
F. Gasket

G. Air filter element

H. Foam element

I. Lid

J. Gasket

K. Lid

L. Engine

See fig 8, A-L

QUESTION

If you are in doubt that the air filter is mounted correctly, please contact your dealer.

ASSEMBLY

1. Attach the filter (Fig. 8 G and H) on the lid (Figure 8.I). Insert the gasket (Fig. 8.F) in the assembled filter.
2. Secure with nut (Fig 8.E.). Note: It is important that it fasten tightly.
3. Insert the cover (Fig 8.D) Mount gasket and washer (Fig 8.B and C) then fasten with a nut (Fig. 8.A).

Ensure that all parts are correctly fitted, this is to prevent that no air will get into the engine.

8. Sparking plug

PROCEDURE

• Remove the sparking plug cover.
• Brush off dirt from the sparking plug.
• Use a sparking-plug wrench to loosen the sparking plug.
• Inspect if the isolation is intact.
• Clean the sparking plug with a steel brush.
• Measure the electrode distance; make sure not to damage the electrode.
  • The distance should be: 0,7 – 0,8 mm
  • If the sparking plug is okay, put it back in its place.
• Put the sparking plug cover back in its place.

0.70-0.80mm

Note: The engine must be cold

9. Transport and storage

TRANSPORT AND STORAGE

Transport

- To avoid any spillage of fuel and oil is it important that the engine is placed horizontal during transport.

Storage

• Let the engine run till it stops.
• Loosen the drain screw on the carburettor and drain the remaining fuel.
• Reinstall the drain screw, and mount the fuel tube.
• Keep the old fuel in an approved container.
• Remove the sparkplug and poor 1 tablespoon of oil into the cylinder, mount the sparkplug.
• Do not mount the sparkplug cap. Pull the sparking cord, until there is resistance. This will close the valves and protect them from rust.
• Protect the oil with a thin layer of oil to avoid rust.

10. Maintenance

NOTE

• The purpose of maintenance is to keep the engine in its best possible shape.
  • Repairs must always be carried through by an authorized dealer.

Part\Interval	Every time	For every 20 running hrs	For every 50 running hrs	For every 100 running hrs	For every 200 running hrs
Inspect bolts and nuts	X
Inspect and fill with oil	X
Change oil		X
Inspect for oil leakage	X
Inspect air filter	X
Clean air filter			X^*
Clean fuel filter				X
Inspect sparking plug				X
Adjust valves					X
Inspect valves					X

* Maintenance of air filter in accordance with the user manual to the machine where the engine is mounted.

11. Specifications

Model	TG620 - TG622	TG620S	TG620ES
Type	4 stroke, air-cooled OHV, 1 cylinder, gasoline engine	4 stroke, air-cooled OHV, 1 cylinder, gasoline engine	4 stroke, air-cooled OHV, 1 cylinder, gasoline engine
Drilling x length of stroke mm	65 x 54 65 x 54	65 x 54
Stroke volume L	179 cc 179 cc 1	79 cc
Max power kW (HP) / rev/min	3,5 / 3600	3,5 / 3600	3,5 / 3600
Constant power kW (HP) / RPM	3,1 / 3600	3,1 / 3600	3,1 / 3600
Fuel	Unleaded gasoline	Unleaded gasoline	Unleaded gasoline
Fuel capacity	3,6 L 3,6 L 3,6 L
Lubricating oil	SAE30 SAE30 $AE30
Lubrication oil capacity	0,6 Litre	0,6 Litre	1,1 Litre
Starting system	Recoil	Recoil	Recoil / 230V
Sparking plug	F6RTC / 20EPR-V / Art no 10011219	F6RTC / 20EPR-V Art no 10011219	F6RTC / 20EPR-V Art no 10011219
Regulating system	Mechanical	Mechanical	Mechanical
Dimension (LxWxH), mm	390 x 320 x 345	390 x 320 x 345	465 x 413 x 440
Dry weight, kg	15.5	15.5	15.7

Model	TG720 - TG722	TG720S	TG720ES
Type	4 stroke, air-cooled OHV, 1 cylinder, gasoline engine	4 stroke, air-cooled OHV, 1 cylinder, gasoline engine	4 stroke, air-cooled OHV, 1 cylinder, gasoline engine
Drilling x length of stroke mm	70 x 55 70 x 55	70 x 55
Stroke volume L	212 cc	212 cc	212 cc
Max power kW (HP) / rev/min	4,2 / 3600	4,2 / 3600	4,2 / 3600
Constant power kW (HP) / RPM	3,7 / 3600	3,7 / 3600	3,7 / 3600
Fuel	Unleaded gasoline	Unleaded gasoline	Unleaded gasoline
Fuel capacity	3,6 L	3,6 L	3,6 L
Lubricating oil	SAE30	SAE30	SAE30
Lubrication oil capacity	0,6 Litre 0,6 Litre	0,6 Litre
Starting system	Recoil	Recoil	Recoil / 230V
Sparking plug	F6RTC / 20EPR-VArt no 10011219	F6RTC / 20EPR-VArt no 10011219	F6RTC / 20EPR-VArt no 10011219
Regulating system	Mechanical	Mechanical	Mechanical
Dimension (LxWxH), mm	390 x 320 x 345	390 x 320 x 345	390 x 320 x 345
Dry weight, kg	16	16	16.2

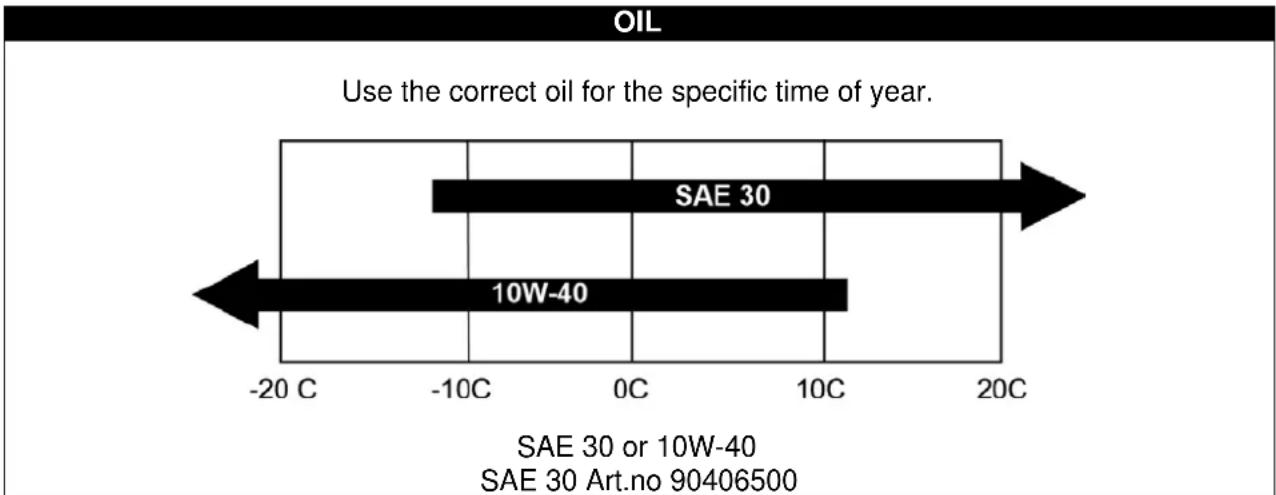

Use the correct oil for the specific time of year.

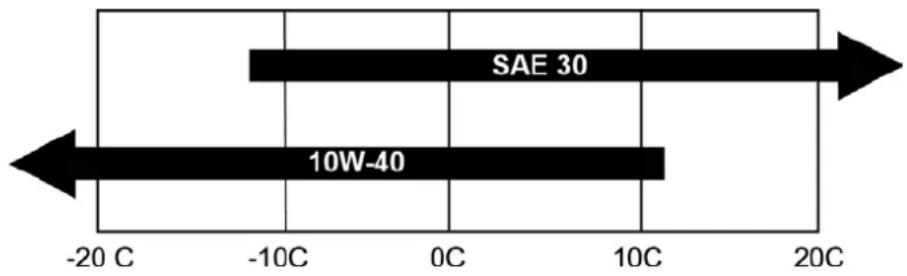

SAE 30 10W-40 -20 C -10C 0C 10C 20C

SAE 30 ali 10W-40

SAE 30 Št. izd. 90406500

KOLIČINA OLJA

• Vedno preverite nivo olja, ko je motor v vodoravnem položaju.
• Vedno preverite nivo olja, ne da bi pritrdili palico za olje.

Glejte slika 5.

TG620 / TG622 / TG720 / TG722

0,6 l.

MENJAVA OLJA

0.70-0.80mm

Važno: Motor mora biti hladen

0.70-0.80mm

Napomena: Motor mora biti hladan

0.70-0.80mm
