Product type	Single-cylinder 4-stroke petrol engine
Brand	Texas
Model	TG715
Displacement	208 cc
Bore x stroke	70 x 54 mm
Max power	4.2 kW (5.7 HP) at 3600 rpm
Continuous power	3.8 kW at 3600 rpm
Cooling system	Air, OHV
Starting system	Recoil (pull start)
Fuel tank	3.6 L
Fuel type	Unleaded 95 octane petrol
Oil capacity	0.6 L
Recommended oil type	SAE30 or 10W-40
Spark plug	F7RTC / 20EPR-U, gap 0.7-0.8 mm
Dimensions (L x W x H)	380 x 315 x 335 mm
Weight	16 kg
Maintenance - Oil change	Every 20 operating hours
Maintenance - Air filter	Cleaning every 50 hours
Maintenance - Spark plug	Check every 100 hours
Safety	Outdoor use only, avoid fuel leaks, do not touch moving parts
Spare parts	Available at Power Line dealer

Frequently Asked Questions - TG715 Texas

How to start the TG715 engine?

Open the fuel valve. On a cold engine, open the choke. Turn the throttle to full gas. Pull the starter rope slowly until you feel resistance, then pull quickly and firmly. For the 230V electric starter, plug in the cord and press the red button.

How to stop the engine?

Place the throttle in low position; the engine stops. Then close the fuel valve.

What type of fuel to use?

Use only unleaded 95 octane petrol. Never overfill the tank (capacity 3.6 L).

How to check the oil level?

Place the engine horizontally. Remove the oil filler cap. The level should be visible and flush with the edge of the filler hole.

When and how to change the oil?

Change every 20 operating hours. Run the engine for 5 minutes to warm the oil. Unscrew the drain plug (figure 6.1) and let the oil drain into a container. Screw the plug back in and fill with 0.6 L of SAE30 or 10W-40 oil.

How to clean the air filter?

Remove the cover, nut, then the air filter. Clean it by tapping gently or with compressed air. Clean the foam element with petrol or kerosene, dry it, then dip it in fresh oil and squeeze out excess. Reassemble. Important: never oil the paper air filter element.

How to check and clean the spark plug?

Remove the cap and clean the spark plug with a wire brush. Check the electrode gap: it should be 0.7 to 0.8 mm. If the plug is damaged, replace it with an F7RTC/20EPR-U.

How to transport and store the engine?

For transport, place the engine horizontally to avoid leaks. For storage, let the engine run until fuel is exhausted, drain the carburetor, remove the spark plug and add a tablespoon of oil into the cylinder, then reinstall the plug without the protector. Pull the starter rope until resistance to close the valves. Coat the engine with a thin layer of anti-corrosion oil.

What to do if the engine produces black smoke?

Black smoke indicates overload or incorrect adjustment. Stop the engine immediately, check the air filter and carburetor adjustment. If the problem persists, contact an authorized garage.

What are the essential safety precautions?

Always use the engine outdoors or in a well-ventilated area, as exhaust gases are toxic. Do not touch moving parts or the exhaust while running (risk of burns). Never refuel while the engine is running and do not consume alcohol or drugs before using the engine.

USER MANUAL TG715 Texas

MAINTIN AIR CERED Made in the manufacture of the main components of the main body of the maintenance system. The main body is designed to be a suitable for maintaining the main body of the maintenance system. The main body is designed to be a suitable for maintaining the main body of the maintenance system.

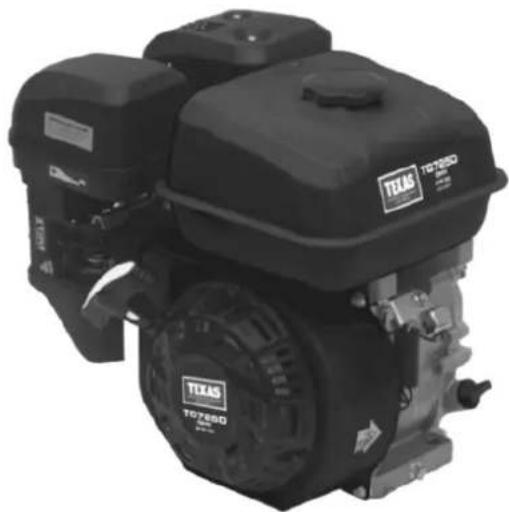

Exterior view of a black industrial engine with visible brand labels (no readable text beyond branding)

VIGTIGT!

HUSK AT PÄFYLDE MOTOROLIE

SAE-30

F∅R START!

IMPORTANT!

REMEMBER TO FILL WITH ENGINE OIL

SAE-30

BEFORE START!

ACHTUNG!

DENKEN SIE DARAN, VOR

INBETRIEBNAHME MOTORÖL (SAE-30)

AUFZUFÜLLEN!

ВАЖНО!

Blue circular icon with a white open book symbol (no text or numbers)

Warning sign depicting a flame symbol with red flame inside a white triangle, commonly used in safety or hazard prevention.

Warning sign depicting a person with smoke and red oxygen, symbolizing workplace safety or hazard.

Simple line drawing of a house with crossed lines indicating restriction or prohibition (no text or symbols)

DK

Please read the user's manual carefully before operating the engine.

Check that there is no fuel spilling or fuel leakage.It can cause risk of fire.

Among engine exhaust emissions, there are toxic fumes.

Never use this engine in an enclosed area.

D

WARNING Always read the user manual before use of the engine.

WARNING Always follow the guidelines given by your Power Line dealer with regard to the engine.

WARNING Always stop the engine before filling with gasoline or oil.

WARNING Always clean thoroughly if fluids are spilled.

WARNING Always keep the engine at a distance from oils or other inflammable objects.

WARNING Exhaust is dangerous; only use the engine outdoors or in a well-ventilated area.

WARNING Draw attention to not getting into contact with the engine's rotating parts during operation.

WARNING Draw attention to not getting in contact with the engine's exhaust and the engine's block as it gets very warm during operation.

WARNING Never use the engine under influence of alcohol or drugs.

Table of contents

1. Illustrations....2
2. Starting....12
3. Operation 12
4. Stopping the engine 12
5. Fuel 13
6. Oil / changing oil 13
7. Air filter....14
8. Sparking plug 15
9. Transport and storage.... 15
10. Maintenance 15
11. Specifications.... 16

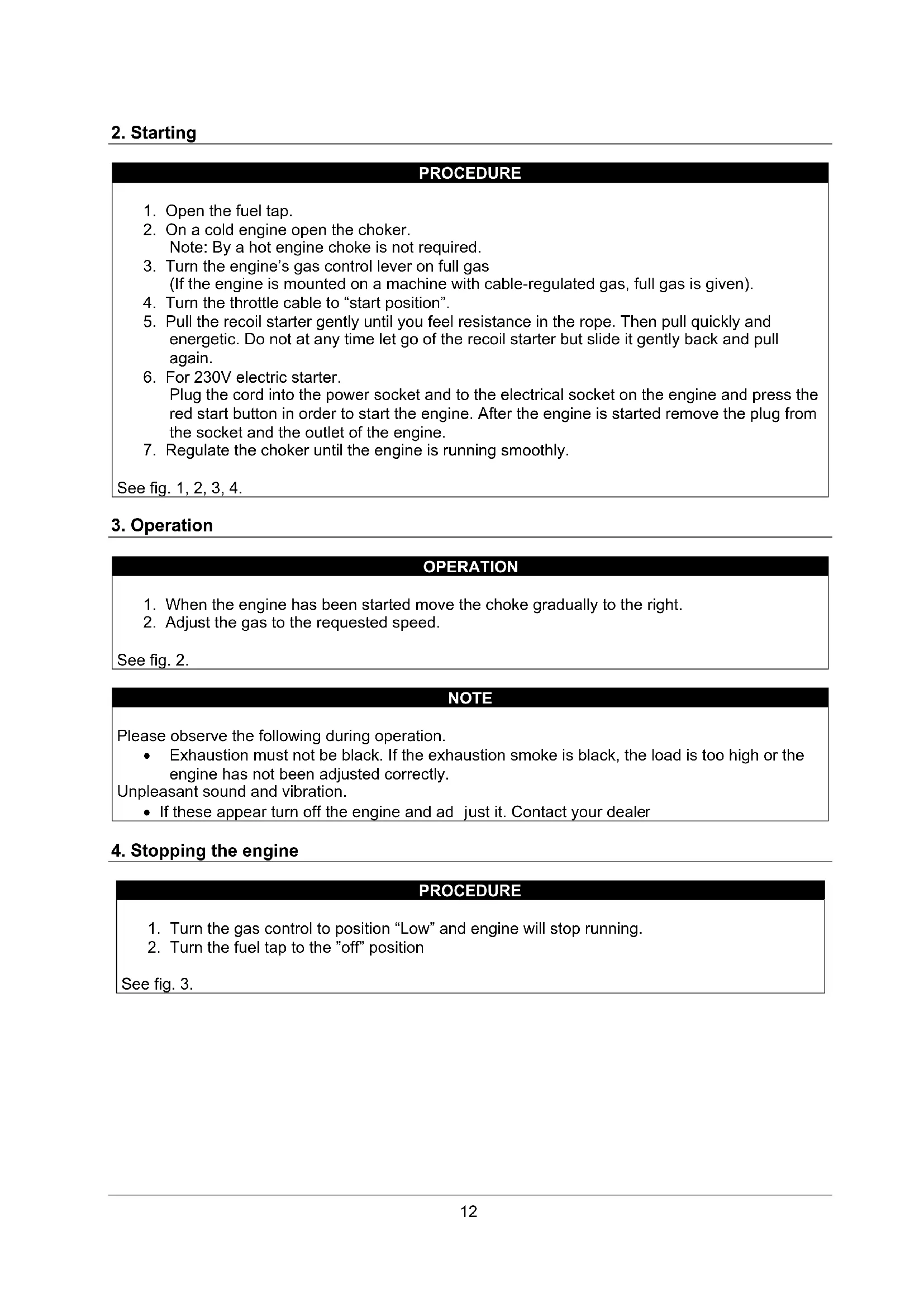

2. Starting

PROCEDURE

1. Open the fuel tap.
2. On a cold engine open the choker. Note: By a hot engine choke is not required.

3. Turn the engine's gas control lever on full gas (If the engine is mounted on a machine with cable-regulated gas, full gas is given).

4. Turn the throttle cable to "start position".

5. Pull the recoil starter gently until you feel resistance in the rope. Then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently back and pull again.

6. For 230V electric starter. Plug the cord into the power socket and to the electrical socket on the engine and press the red start button in order to start the engine. After the engine is started remove the plug from the socket and the outlet of the engine.

7. Regulate the choker until the engine is running smoothly.

See fig. 1, 2, 3, 4.

3. Operation

OPERATION

1. When the engine has been started move the choke gradually to the right.
2. Adjust the gas to the requested speed.

See fig. 2.

NOTE

Please observe the following during operation.

• Exhaustion must not be black. If the exhaustion smoke is black, the load is too high or the engine has not been adjusted correctly.
  Unpleasant sound and vibration.
• If these appear turn off the engine and ad just it. Contact your dealer

4. Stopping the engine

PROCEDURE

1. Turn the gas control to position "Low" and engine will stop running.
2. Turn the fuel tap to the "off" position

See fig. 3.

5. Fuel

FUEL

Only use unleaded fuel octane 95 on your engine. Don't overfill the capacity of the fuel tank. The indicator on the tank shows how much fuel is left

See fig 7

6. Oil / changing oil

OIL

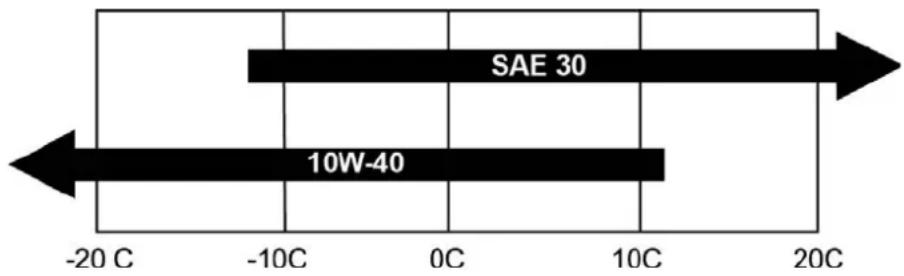

Use the correct oil for the specific time of year.

SAE 30 or 10W-40

SAE 30 Art.no 90406506

OIL CAPACITY

• Always check the oil level when the engine is placed in a horizontal position.
  • Always check the oil level visible and to edge of fill hole

See fig. 5.

Change the oil according to the specifications of the machine.

1. Let the engine run 5 minutes, so the engine is hot.
   Warm oil liquefies, which makes it easier to drain the oil.
2. Unscrew the drain plug (Fig 6.1) and let the warm oil run out of the engine.
   Remember to keep an appropriate container ready.
3. Attach the drain plug and fasten.

Refilling oil (Fig 5)

1. Remove the oil filler cap
2. Refill the oil to the edge of the filling hole (see capacity above)

Important: Before changing oil, ensure that the engine is level position.

Important: By the right amount oil the oil MUST be visible and to edge of fill hole

Please dispose the used engine oil environmentally correct. We suggest that you keep the used oil in a sealed container and dispose at your recycling center or service station for reclamation. Do not throw it in the waste; pour it on the ground; or down a drain.

AIR FILTER

The air filter should be inspected and cleaned regularly. If the filter has not been cleaned for a long period of time, this will influence the engine's combustion and engine power.

1. Remove the nut, washer and gasket (Figure 8.A,B,C) and remove cover (Fig 8.D).
2. Remove the nut (Fig 8.E) and remove the gasket (Figure 8.F)
3. Clean the air filter (Fig 8.G) before being removed.
4. Now carefully remove the air filter (Fig 8.G) out of the foam element (Fig 8.H)
5. Inspect and remove the dust from the air filter by tapping the element easily a few times. Alternatively run compressed air through the inside of the filter. Warning! Never try to brush away the dust. A brush will only push the dust further into the element. Replace the air filter if it is very dirty.
6. Inspect and clean the foam element (Fig 8.H) with petrol or kerosene
7. Wrench the foam element (Fig 8.H) and let it dry. Hereafter soak the element in fresh oil, squeeze any redundant oil out of the element.
8. Clean the lid (Fig 8.1)
9. Reattach the foam element (Fig 8.H) and the air filter (Fig 8.G) and fasten.
10. Please note that all parts are assembled correctly. (See Fig. 8)

IMPORTANT: Under no circumstances should oil be applied on the air filter (Fig.8G).

A. Nut
B. Washer
C. Gasket
D. Cover
E. Nut
F. Gasket

G. Air filter element

H. Foam element

I. Lid

J. Gasket

K. Lid

L. Engine

See fig 8, A-L

QUESTION

If you are in doubt that the air filter is mounted correctly, please contact your dealer.

ASSEMBLY

1. Attach the filter (Fig. 8 G and H) on the lid (Figure 8.I). Insert the gasket (Fig. 8.F) in the assembled filter.
2. Secure with nut (Fig 8.E). Note: It is important that it fasten tightly.
3. Insert the cover (Fig 8.D) Mount gasket and washer (Fig 8.B and C) then fasten with a nut (Fig. 8.A).

Ensure that all parts are correctly fitted, this is to prevent that no air will get into the engine.

PROCEDURE

• Remove the sparking plug cover.
• Brush off dirt from the sparking plug.
• Use a sparking-plug wrench to loosen the sparking plug.
• Inspect if the isolation is intact.
• Clean the sparking plug with a steel brush.
• Measure the electrode distance; make sure not to damage the electrode.
  • The distance should be: 0,7 – 0,8 mm
• If the sparking plug is okay, put it back in its place.
• Put the sparking plug cover back in its place.

0.70-0.80mm

Note: The engine must be cold

9. Transport and storage

TRANSPORT AND STORAGE

Transport

• To avoid any spillage of fuel and oil is it important that the engine is placed horizontal during transport.
• Let the engine run till it stops.
• Loosen the drain screw on the carburettor and drain the remaining fuel.
• Reinstall the drain screw and mount the fuel tube.
• Keep the old fuel in an approved container.
• Remove the sparkplug and poor 1 tablespoon of oil into the cylinder, mount the sparkplug.
• Do not mount the sparkplug cap. Pull the sparking cord, until there is resistance. This will close the valves and protect them from rust.
• Protect the oil with a thin layer of oil to avoid rust.

Storage

10. Maintenance

NOTE

• The purpose of maintenance is to keep the engine in its best possible shape.
  • Repairs must always be carried through by an authorized dealer.

Part\Interval	Every time	For every 20 running hrs	For every 50 running hrs	For every 100 running hrs	For every 200 running hrs
Inspect bolts and nuts X
Inspect and fill with oil X
Change oil X
Inspect for oil leakage X
Inspect air filter X
Clean air filter		X^*
Clean fuel filter			X
Inspect sparking plug			X
Adjust valves
Inspect valves

* Maintenance of air filter in accordance with the user manual to the machine where the engine is mounted.

11. Specifications

Model TG715 SERIES TG725 SERIES
Type	4 stroke, air-cooled OHV, 1 cylinder, gasoline engine	4 stroke, air-cooled OHV, 1 cylinder, gasoline engine
Drilling x length of stroke mm 70 x	54 70 x 55
Stroke volume L 208 cc 212 cc
Max power kW (HP) / rev/min 4,2 / 3600	4,2 / 3600
Constant power kW (HP) / RPM 3,8	/ 3600 3,8 / 3600
Fuel Unleaded gasoline Unleaded gasoline
Fuel capacity 3,6 L 3,6 L
Lubricating oil SAE30	SAE30
Lubrication oil capacity 0,6 Litre 0,6 Litre
Starting system	Recoil	Recoil
Sparking plug	F7RTC / 20EPR-U Art no 40-11294	F7RTC / 20EPR-U Art no 40-11294
Regulating system	Mechanical	Mechanical
Dimension (LxWxH), mm	380 x 315 x 335	380 x 315 x 335
Dry weight, kg	16	16
