Powerbank 24.0 - Power bank ANSMANN - Free user manual and instructions

Product type	Powerbank / Portable battery
Brand	Ansmann
Model	Powerbank 24.0
Battery capacity	24,000 mAh / 88.8 Wh
Cell type	Lithium-polymer (Li-Po)
Micro USB input	5 V DC, 2 A
USB-C input (PD)	5 V DC, 2 A / 9 V DC, 2 A
USB-A output (standard)	5 V DC, 3 A
USB-A output (QC 3.0) / USB-C output (PD)	5 V DC, 3 A / 9 V DC, 2 A / 12 V DC, 1.5 A
Maximum output power	18 W (total)
Charging time (9 V, 2 A)	Approximately 7 hours
Charging time (5 V, 2 A)	Approximately 12 hours
Safety functions	Protection against overcharge, deep discharge, overcurrent, short circuit
Display	4 LEDs (charge indicator)
Quick Charge 3.0	Yes (USB-A QC output)
Power Delivery (PD)	Yes (USB-C input/output)
Operating temperature	-10 °C to +25 °C
Included accessories	2 charging cables (USB-A to Micro USB, USB-C to USB-C)
Warranty	3 years
Care and cleaning	Protect from moisture and heat, clean with a dry cloth

Frequently Asked Questions - Powerbank 24.0 ANSMANN

What is the capacity of the Powerbank 24.0?

The capacity is 24,000 mAh (88.8 Wh), which allows you to charge a typical smartphone several times.

How long does it take to recharge the powerbank?

With a 9 V / 2 A input (USB-C PD), charging time is approximately 7 hours. With 5 V / 2 A, expect 12 hours.

Can I charge multiple devices at the same time?

Yes, but the total output current is limited to 5 V if you use 2 or 3 outputs simultaneously. The maximum total power is 18 W.

Which devices are compatible with fast charging QC 3.0 or PD?

The powerbank supports Quick Charge 3.0 on a USB-A output and Power Delivery on the USB-C output. Check your device's compatibility.

How to read the charge indicator LEDs?

Press the button: 4 LED = 75-100%, 3 LED = 50-75%, 2 LED = 25-50%, 1 LED = 1-25%, no LED = empty.

Can the powerbank heat up during use?

It is normal for it to heat up slightly during charging or discharging. Avoid exposing it to direct heat or sunlight.

What type of battery is used?

The battery is of type Lithium-polymer (Li-Po), with protection against overcharge, deep discharge, and short circuit.

What is the warranty of this powerbank?

Ansmann offers a 3-year warranty on the device, subject to compliance with the instructions for use.

How to dispose of the powerbank at end of life?

Do not dispose of the device in household waste. Drop it off at a collection point for electronic waste or return it to the store.

Can I charge the powerbank and a device at the same time?

No, it is not recommended to charge and discharge simultaneously. Use the powerbank either in charging or discharging mode for safety reasons.

USER MANUAL Powerbank 24.0 ANSMANN

Many thanks for choosing an ANSMANN POWERBANK. The operating instructions will help you to get the best from the functions of your new external rechargeable battery pack. We hope you enjoy your new product.

Your ANSMANN Team

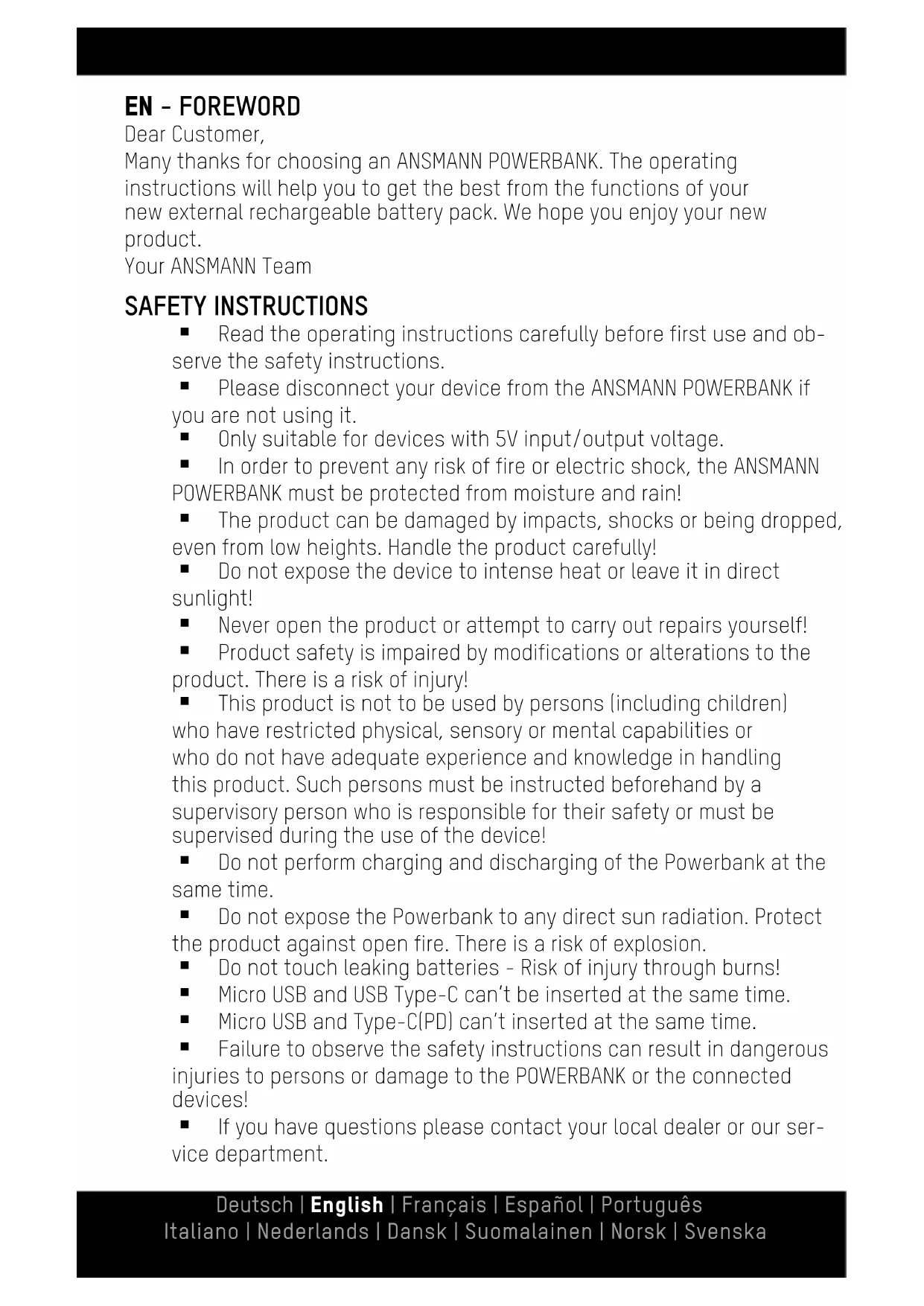

SAFETY INSTRUCTIONS

• Read the operating instructions carefully before first use and observe the safety instructions.
  ■ Please disconnect your device from the ANSMANN POWERBANK if you are not using it.

■ Only suitable for devices with 5V input/output voltage.

■ In order to prevent any risk of fire or electric shock, the ANSMANN POWERBANK must be protected from moisture and rain!

■ The product can be damaged by impacts, shocks or being dropped, even from low heights. Handle the product carefully!
■ Do not expose the device to intense heat or leave it in direct sunlight!

■ Never open the product or attempt to carry out repairs yourself!
■ Product safety is impaired by modifications or alterations to the product. There is a risk of injury!
This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the device!

• Do not perform charging and discharging of the Powerbank at the same time.
• Do not expose the Powerbank to any direct sun radiation. Protect the product against open fire. There is a risk of explosion.

■ Do not touch leaking batteries - Risk of injury through burns!
- Micro USB and USB Type-C can't be inserted at the same time.
■ Micro USB and Type-C(PD) can't inserted at the same time.
■ Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the POWERBANK or the connected devices!
■ If you have questions please contact your local dealer or our service department.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

USE

> CAPACITY INDICATION

Press the power button to check the energy remaining.

■ 4 LEDs illuminate: 75% - 100%
■ 3 LEDs illuminate: 50% - 75%
■ 2 LEDs illuminate: 25% - 50%
■ 1 LED illuminates: 1% - 25%
■ No LED illuminates: The POWERBANK is completely discharged.

Please charge the POWERBANK immediately. If the POWERBANK will not be used for an extended period of time, it is necessary to charge it before storage in order to avoid the rechargeable battery being damaged.

> CHARGING THE POWERBANK

MICRO USB

Insert the Micro-USB plug of the USB cable into the Micro-USB socket on the POWERBANK and the USB plug into the USB port on a computer or a USB charger.

TYPE C

Insert the type-C plug of the USB cable into the type-C socket on the POWERBANK and the USB plug into the USB port on a computer or a USB charger.

The charging process starts automatically. During the charging process, up to 4 white LEDs indicate the charge progress. After the charging process is complete, all 4 white LEDs illuminate steadily.

> CHARGING DEVICES

In order to charge a device, such as a smartphone for example, please use the USB cable supplied (provided that the Micro-USB plug fits your mobile device) or the original charge cable for your device. The Powerbank likewise has a type-C output. Please use a suitable type-C cable for this. Insert the USB / type C plug of the cable into the POWER-BANK and the other end into your device. The charging process starts automatically.

The POWERBANK has Quick Charge 3.0 and a Power Delivery (PD) protocol. To use this technology, please check whether your device is

Quick-Charge-capable or supports Power Delivery (PD). Please refer to this information from the product information or operating instructions of the respective manufacturer or the Internet.

Simultaneous charging of multiple end-devices is possible with restrictions. This depends on the total charge current required.

The POWERBANK switches off automatically after the charging is complete. Please disconnect your device from the POWERBANK once the charging process is complete. Please note that the Powerbank should not be charged and discharged simultaneously.

The POWERBANK has a smart microcontroller that detects the connected device, provides the optimum current, and thus reduces the charging time to a minimum.

The POWERBANK may heat up a little depending on the charge/discharge current.

TECHNICAL DATA

1. Cell type: Li-Po rechargeable battery pack
2. Capacity: 24.000mAh / 88.8Wh
3. Input: Micro-USB: 5VDC | 2000mA

Type C (PD): 5VDC | 2000mA

9VDC | 2000mA

1. Output: USB: 5VDC | 3000mA

USB (QC3.0) / USB Type C (PD):

5VDC | 3000mA

9VDC | 2000mA

12VDC | 1500mA

Total output: 18W

When any three or two outputs are loaded at

the same time, the output will jump to 5VDC.

1. Accessories: 2x charging cables (USB to Micro-USB and

USB Type C to USB Type C)

1. Operating temperature: -10°C to +25°C

2. Charge time: 5V | 2000mA: about 12h

9V | 2000mA: about 7h

1. Protective functions: Over-charging protection, deep discharge

protection, overload protection

short-circuit protection

1. Display: LED display

SIGNS AND SYMBOLS

Please take note of the following symbols on the product and on the packaging.

= The product meets the condition of the European directive.

= At the end of its service life, dispose of the product in keeping with all legal requirements. The dustbin symbol indicates that waste electrical and electronic equipment may not be disposed of with normal household waste within the EU.

Please use local recycling and collection points or contact the retailer where you purchased the product.

ENVIRONMENTAL INFORMATION

The device should not be discarded in the normal household waste under any circumstances. Dispose of the device via an authorised disposal centre or your communal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispose of all packaging materials via an environmentally friendly disposal facility.

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions.

GUARANTEE INFORMATION

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. You can find our warranty terms online at www.ansmann.de

Subject to technical changes. We assume no liability for printing errors. 06/2019
