Powerbank 5.4 - Power bank ANSMANN - Free user manual and instructions

Brand	ANSMANN
Model	Powerbank 5.4
Product type	Portable battery (Powerbank)
Capacity	5000 mAh / 18.5 Wh
Nominal voltage	3.7 V
Battery type	Lithium-ion (2 cells 18650)
Micro USB input	5V DC, max. 2000 mA
Type C input	5V DC, max. 2100 mA
USB output	5V DC, max. 3000 mA
Type C output	5V DC, max. 3000 mA
Total maximum output current	3000 mA (two outputs active simultaneously)
Charging time	Approximately 5 hours (depending on charger)
Operating temperature	0°C to +25°C
Display	4 LEDs for charge level
Protection functions	Overcharge, deep discharge, overvoltage, short circuit
Integrated LED light	Yes
Included accessories	1 x USB cable (micro USB)
Warranty	3 years
Maintenance	Protect from moisture and rain; clean with a dry cloth
Safety	Do not open, do not expose to heat, avoid shocks

Frequently Asked Questions - Powerbank 5.4 ANSMANN

How to check the power bank's charge level?

Briefly press the power button. The 4 LEDs indicate remaining capacity: 4 LEDs = 75-100%, 3 LEDs = 50-75%, 2 LEDs = 25-50%, 1 LED = 1-25%. No LED = battery empty, recharge immediately.

How to recharge the power bank?

Use the provided cable (micro USB) or a Type C cable. Connect the micro USB or Type C plug into the corresponding input of the power bank and the other end to a USB charger or computer. The charging process starts automatically; the LEDs flash during charging and stay steady once complete.

How to charge a smartphone with the power bank?

Connect your device's charging cable (or the provided cable if compatible) to the USB or Type C output of the power bank, then connect the other end to your smartphone. Charging starts automatically. Disconnect the device after charging.

Can I charge multiple devices at the same time?

Yes, the power bank has two outputs (USB and Type C) that can operate simultaneously. However, the total maximum output current is 3000 mA, so charging may be slower if both ports are used together.

Can I recharge the power bank while charging a device?

No, the power bank cannot be charged and discharged at the same time. Please charge the power bank before powering your devices.

What to do if the power bank does not turn on?

If no LED lights up, the battery is empty. Recharge it immediately to avoid deep discharge. If the problem persists, contact customer service.

How to activate the integrated LED light?

Quickly press the power button twice in succession to turn the LED light on or off.

What are the protection functions of the power bank?

The power bank includes protection against overcharge, deep discharge, overvoltage, and short circuits, ensuring safe use.

What to do if the power bank overheats?

Slight warming is normal during charging or discharging. In case of excessive overheating, immediately disconnect all cables and place the power bank in a cool place. If the problem persists, stop using it and contact support.

How to store the power bank long-term?

Recharge the power bank to about 50% before storing. Keep it in a dry, cool place away from direct sunlight and heat. Recharge it every 3 to 6 months to prevent deep discharge.

USER MANUAL Powerbank 5.4 ANSMANN

POWER button 106mm OUTPUT: 5V/3A 49,5mm INPUT: 5V/2.1A OUTPUT: 5V/3A INPUT: 5V/2A LED 27,5mm

1700-0094

DE - VORWORT

Many thanks for choosing an ANSMANN POWERBANK. The operating instructions will help you to get the best from the functions of your new external rechargeable battery pack. We hope you enjoy your new product. Your ANSMANN Team

SAFETY INSTRUCTIONS

• Read the operating instructions carefully before use and observe the safety instructions.
  ■ Please disconnect your device from the ANSMANN POWERBANK if you are not using it.
  ■ Only suitable for devices with 5V input voltage.
  In order to prevent any risk of fire or electric shock, the ANSMANN POWERBANK must be protected from moisture and rain!

■ The product can be damaged by impacts, shocks or being dropped, even from low heights. Handle the product carefully!

■ Do not expose the device to intense heat or leave it in direct sunlight!
■ Never open the product or attempt to carry out repairs yourself!

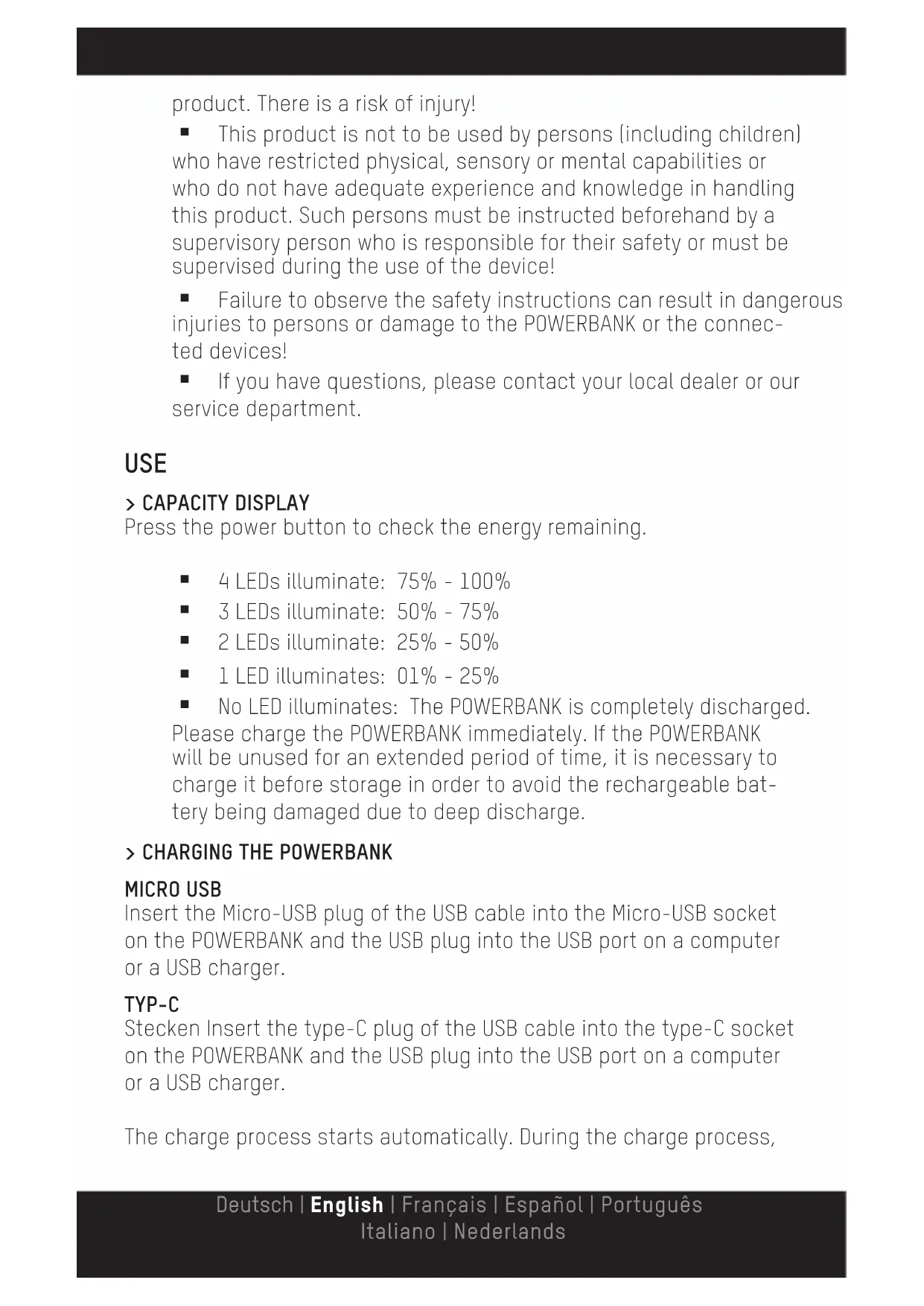

■ Product safety is impaired by modifications or alterations to the

product. There is a risk of injury!

This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the device!
■ Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the POWERBANK or the connected devices!
■ If you have questions, please contact your local dealer or our service department.

USE

> CAPACITY DISPLAY

Press the power button to check the energy remaining.

■ 4 LEDs illuminate: 75% - 100%
■ 3 LEDs illuminate: 50% - 75%
■ 2 LEDs illuminate: 25% - 50%
■ 1 LED illuminates: 01% - 25%
■ No LED illuminates: The POWERBANK is completely discharged.

Please charge the POWERBANK immediately. If the POWERBANK will be unused for an extended period of time, it is necessary to charge it before storage in order to avoid the rechargeable battery being damaged due to deep discharge.

> CHARGING THE POWERBANK

MICRO USB

Insert the Micro-USB plug of the USB cable into the Micro-USB socket on the POWERBANK and the USB plug into the USB port on a computer or a USB charger.

TYP-C

Stecken Insert the type-C plug of the USB cable into the type-C socket on the POWERBANK and the USB plug into the USB port on a computer or a USB charger.

The charge process starts automatically. During the charge process,

up to 4 flashing LEDs indicate the status of the charge progress. After the charge process is complete, all 4 LEDs illuminate steadily.

> CHARGING DEVICES

In order to charge a device, such as a smartphone for example, please use the USB cable supplied (provided that the Micro-USB plug fits your mobile device) or the original charge cable for your device. The Powerbank likewise has a type-C output. Please use a suitable type-C cable for this. Insert the USB plug of the cable into the POWERBANK and the other end into your device. The charge process starts automatically.

Simultaneous charging of multiple end-devices is possible with restrictions. This depends on the total charge current required.

The POWERBANK switches off automatically after the charging is complete. Please disconnect your device from the POWERBANK once the charge process is complete. Please note that the Powerbank cannot be charged and discharged simultaneously.

The POWERBANK may heat up a little depending on the charge/discharge current.

> LED lamp

The Powerbank has an LED lamp. Press the power button 2x in quick succession ("double-click") to activate or deactivate the LED lamp.

TECHNICAL DATA

1. Rechargeable battery type: 3.7V Lithium-Ion (2 x 18650 round cells)
2. Capacity / Energy: 5,000mAh / 18.5Wh
3. Input: Micro-USB 5V DC | max. 2000mA
   Type C 5V DC | max. 2100mA
4. Outputs: 2x 5V DC | max. 3000mA (both outputs active simultaneously)
   Output 1 (USB): 5V DC | max. 3000mA
   Output 2 (type C): 5V DC | max. 3000mA
5. Accessories: Charge cable (USB to Micro-USB)
6. Operating temperature: 0°C to +25°C

7. Charge time: ca. 5 hours (depending on the charger used)

8. Protective functions: Over-charging protection, deep discharge protection, overload protection, short-circuit protection

9. Display: LED display

ENVIRONMENTAL INFORMATION

The device should not be discarded in the normal household waste under any circumstances. Dispose of the device via an authorised disposal centre or your municipal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispose of all packaging materials via an environmentally friendly disposal facility.

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions.

GUARANTEE INFORMATION

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions.

Subject to technical changes. We assume no liability for printing errors. 10/2017
