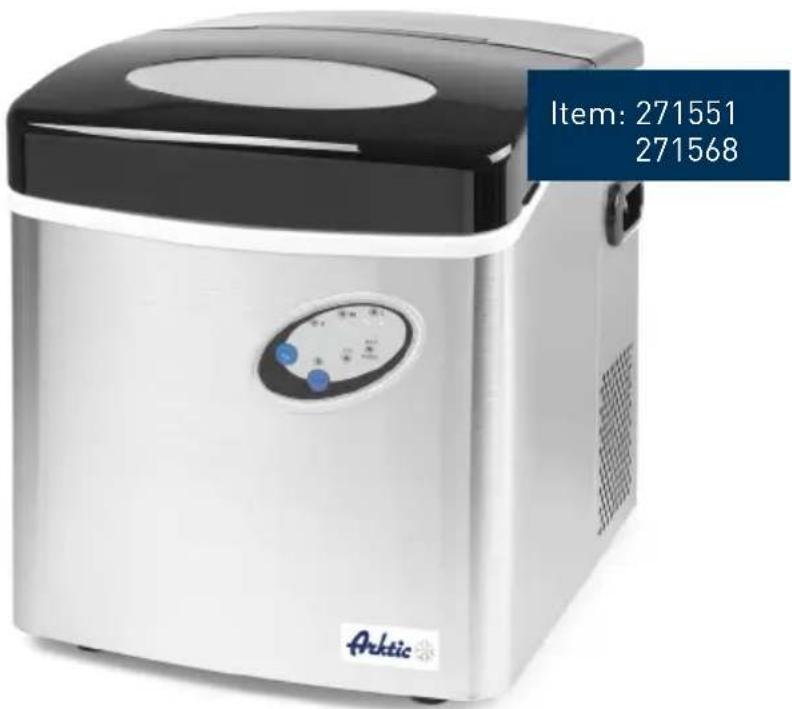

USER MANUAL 271551 Arktic

ICE CUBE MACHINE - KITCHEN LINE

Exterior view of a modern stainless steel water heater with control panel and display (no visible text or symbols)

You should read this user manual carefully before using the appliance.

Keep these instructions with the appliance.

Simple line drawing of a house with an arrow pointing left, labeled 'INDOOR' below (no other text or symbols)

For indoor use only.

Symbol of a trash bin crossed with no visible text or numbers, enclosed in a square frame (no text or numbers present)

CE

Thank you for purchasing this Arktic appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

Safety regulations

• This appliance is intended for buffet and household use.
• Only use the appliance for the intended purpose it was designed for as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Never attempt to open the housing of the appliance by yourself.
• Do not insert objects into the housing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.
• Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
• Warning! Do not immerse the electrical parts of the appliance in water or other liquids.
• Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
• Make sure that the power cord and/or extension cord do not cause a trip hazard.
• Never leave the appliance unattended during use.
• Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before unplugging it from the socket.
• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied together with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its power cord out of reach of children.
• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage.

Special safety regulations

• This appliance is intended only for making ice cube. Any other use may lead to damage of the appliance or personal injury.
• Use the appliance only as described in this manual.
• Caution! Hot surface! The surface is hot when in use.

Touch the control panel only.

Caution! Risk of fire! The refrigerant used is R290 for item 271551 and R600a for item 271568. It is a highly flammable refrigerant. The foam blowing agent used is Cyclopentane in this appliance. They are highly flammable.

• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc. Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- WARNING: Keep all ventilation openings in the appliance enclosure clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Fill with potable water only.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Allow at least 10 cm spacing around the appliance for ventilation purpose during use.

- Do not use hard utensils to hit the outer surface. Do not use water jet, flush directly with water or steam cleaner as the parts will get wet and electric shock might be resulted.

- Do not expose it to direct sunlight. Avoid mechanical shocks and vibrations.

- Always move or transport the appliance in an upright position or it may damage the appliance.

- Caution! Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.

- Do not clean or store the appliance unless it is completely cooled down.

- No any parts are dishwasher safe.

Intended use

• This appliance is intended for buffet and household use.
• The appliance is designed only for making ice cubes. Any other use may lead to damage to the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed as misuse of the device. The user shall be solely liable for the improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded.

Preparations before using for the first time

• Check to make sure the appliance is undamaged. In case of any damage, contact your supplier immediately and do NOT use the appliance.
• Remove all the packing material and protection film (if applicable).
• Clean the appliance with luke-warm water and a soft cloth.
• Place the appliance on a level and steady surface, unless mentioned otherwise.
• Make sure there is enough clearance around the appliance for ventilation purposes.

• Position the appliance in such a way that the plug is accessible at all times.

• Check that the ice basket and scoop are included. If any parts are missing, contact your supplier.

• Clean the inside of the appliance with lukewarm water and a soft cloth.
• Clean the ice basket.
• Do not place the ice maker in direct sunlight or close to a heat source.
• Do not use the ice maker for at least 24 hours after it has been transported and moved from one place to another.
• Keep the packaging for storing your appliance when not in use for an extended period of time.

EN

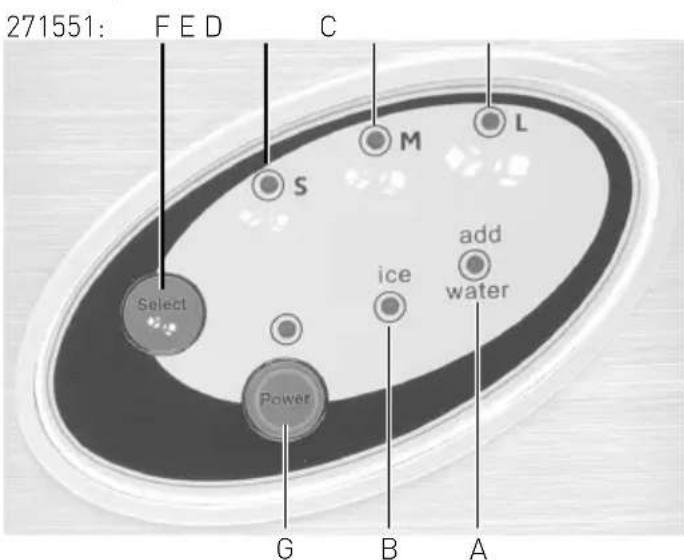

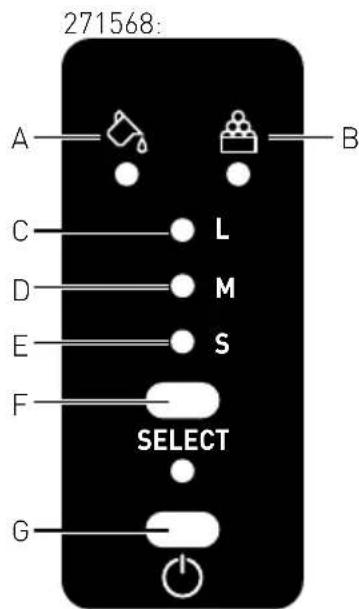

Control panel

A: Water level is too low
B: Storage tank is full
C, D, E: Size of ice cube (S - Small, M - medium, L - Large)

F: Select the size of ice
G: Power ON/OFF button

Instructions for use

• Open the lid, remove the basket and fill the reservoir with water. Do not fill beyond the level indicator. Make sure the basket is above water.
• Press the "Power" of button to start the process.
• Select the size of the ice cubes by pressing the "Select" button. If the room temperature is below 15°C, select "Small" or "Medium" ice cubes to prevent the ice cubes from melting together.
• The entire process of making ice cubes takes between 6 and 12.

• Check the water level regularly. When the water level is too low the appliance will stop automatically and the "add water" or 📋 indicator will light up. Press the "Power" or 🏠 button, fill the water reservoir up to the level indicator and press the "Power" or 🏠 button again.

• Let the appliance rest for 5 minutes to let the coolant in the compressor settle before restarting the appliance.

• The ice maker stops automatically when the basket is full.
• Put fresh water in the reservoir every day.
• When not in use, empty the reservoir via the drain tap.
• Beware: Never tip the appliance more than 45^ and do not turn the appliance upside down. This will damage the appliance beyond repair.

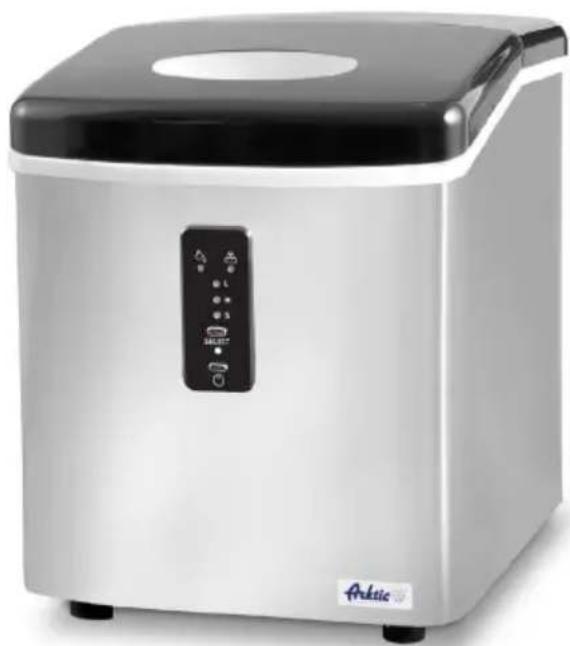

NOTE: The control functions are the same between 271551 and 271568 except design of control panel.

Cleaning and maintenance

• Always remove the plug from the socket before cleaning the appliance.
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• Never use aggressive cleaning agents or abrasives. Do not use any sharp or pointed objects. Do not use petrol or solvents! Clean with a damp cloth and detergent if necessary. Do not use abrasive materials.

- There is a filter in the water reservoir. This filter should be cleaned frequently. Remove the filter from the water reservoir and rinse it thoroughly with lukewarm water. Detergents may also be used. Rinse the filter afterwards with clean water so that no residue of detergents remain.

Descaling

This appliance should be descaled frequently. As soon as calcification occurs, this appliance will not function properly anymore. To keep this appliance in optimum condition and to ensure it's operation, it is crucial that you descale the appliance on a regular basis. Depending on the hardness of the water and the frequency of use, you need to repeat the following procedure regularly.

Use to decalcify the ice cube maker use a descaling agent that also is used for e.g. coffee makers. You can also use citric acid or cleaning vinegar as a de-scaling agent. To ensure the proper mixture read the instructions supplied with the agent.

1. Fill the water reservoir with the de-scaling agent according to the terms of the agent. Never exceed the maximum level.
2. Turn the power switch "On". The ice cube basin will now be filled with water. You can hear that the pump is pumping the water from the reservoir to the ice bucket.
3. At the time the ice cube basin is filled and the water supply stops: immediately push the button "Off".
4. The ice cube basin will reset to zero and the descaling agent will be spread through the appliance.
5. Switch the power switch back "On".

6. Repeat this procedure (step 1 till 4) several times with de-scaling agent.

7. After you have made sure that the appliance is totally clean, let the descaling agent pour out of the appliance through the drain plug on the left side of the appliance.

8. Now pour clean water in the water reservoir and repeat step 1 till 4 several times to make sure that there are no scraps of the descaling agent left in the appliance. The smell and taste of the

descaling agent should fully be disappeared. Take every time new clean water for this.

1. The appliance is now ready for use again.

Note: Warranty is void if failure to de-scale regularly leads to reduced functioning or failure of the appliance.

Problem Possible cause Solution
“add water” or indicator lights up.	Not enough water. Switch off the appliance	ance, fill up water before switch on the appliance again.
“ice” or indicator lights up.	Too much ice in the appliance. Remove the ice.
“add water” or and “ice” or indicators flash.	Scoop is jammed. Check whether the	scoop is blocked by ice. If not, contact your supplier.
Ice cubes melt together. The	cycle is too long. Switch the appliance	off and switch back on when the ice cubes melt. Select “Small” ice cubes.
	Water temperature in the reservoir is too low.	Change the water. The ideal water temperature is 5°-15°C.
Appliance does not give an error message, but does not make any ice cubes.	Room temperature or water temperature is too high.	Put the appliance in a cooler place and change the water.
	Leak in the cooling system. Contact your supplier.
	Blockage in the cooling system. Contact your supplier.

Technical specification

Item no. 271551	271568
Operating voltage and frequency	220-240V~ /50Hz
Rated input power	130W	120W
Rated current	1,1A	0,7A
Refrigerant used & injection quantity	R290 / 33g	R600a / 29g
Climate class	SN-T
Foam blowing agent	Cyclopentane
Protection class	I
Material	Stainless steel
Net weight (approx.)	14,8kg	10,5kg
Dimension	380x435x(H)431mm	297x367x(H)378mm

Remark: Technical specification is subjected to change without prior notification.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.
