USER MANUAL 222638 SousVideTools

SOUSVIDETOOLS

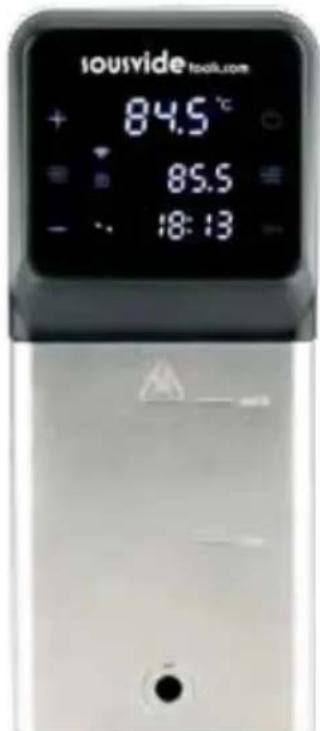

iVide PLUS JNR THERMAL CIRCULATOR

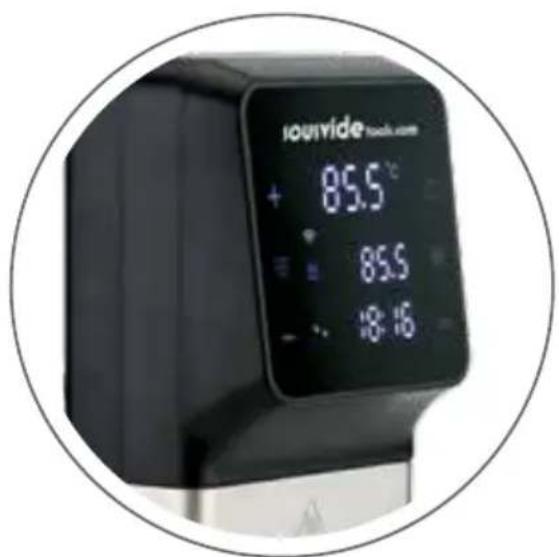

louvide 85.5 °C 85.5 18:16

USER GUIDE / BENUTZERHANDBUCH / MANUALE D'ISTRUZIONI / NOTICE D'UTILISATION / MANUAL DEL USUARIO / MANUAL DO USUÁRIO / OΔΗΓΙΕΣ ΧΡΗΣΗΣ / MANUAL DE INSTRUCTIUNI / INSTRUKCJA OBSŁUGI / GEBRUIKERSHANDLEIDING / BRUKERMANUAL / ANVÄNDARMANUAL / BRUGERVEJLEDNING

sousvide solutions.com + 84.5 ° - 85.5 - 18:13

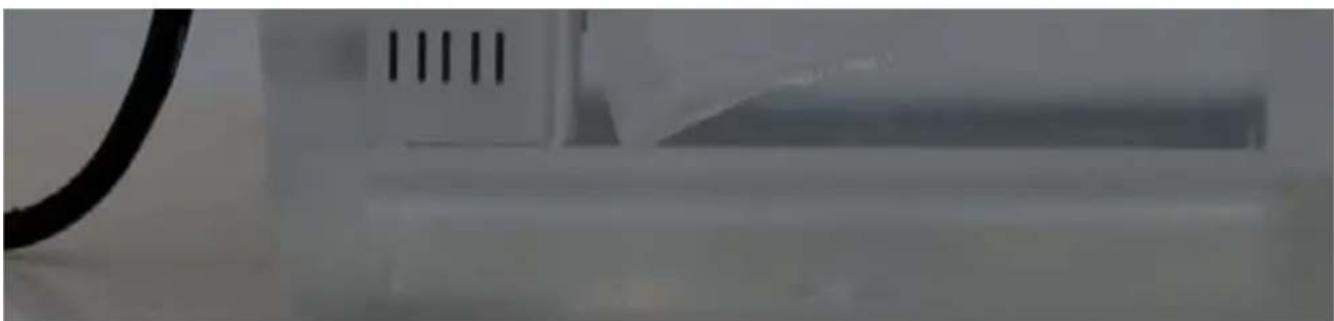

Close-up of a white electronic device with a black cable and ventilation slots (no visible text or symbols)

sousvide tools.com

CONTENTS / INHALT / INDICE / TABLE DES MATIÈRES / CONTENIDO / CONTEÚDO /

EN // USER GUIDE

About the iVide 4

Safety 4

Technical Parameters 5

Product Function 5-6

Product Structure 7

Control with the APP 8

Operating Instructions 9

Maintenance 9

How to Clean 10

Troubleshooting 10

Warranty and After Sales Service 11

Warranty and After Sales Service 12

DE // BENUTZERHANDBUCH

Der iVide 13

Sicherheit 13

Founded in 2011, SousVideTools.com are a food and technology company on a mission to help people cook smarter #clevercooking. Furthermore, we are the leading authority on our chosen subject, having produced 2 cook books, a sous vide calculator, an APP and a training guide in conjunction with the Campden BRI, the UK's leading provider of practical scientific, technical and advisory services and now the World's market leading sous vide cooker.

Our team is made up of 15 voices — and we all come to work each day with one thing in mind: working to create better tools that turn cooking stress into dinnertime success. (We call this “#clevercooking.”) Why? Because the more you know about cooking, the better you get at it. Our research chefs are constantly cooking, and you get to reap the benefits in the name of R&D.

So why the iVide Cooker? We want to make it easy for sous vide novices and experts alike to cook restaurant quality food at home, with the perfect finish every time. So say goodbye to overcooked dry food that tastes like cardboard and say hello gourmet dinner.

The SousVideTools iVide Plus Jnr Thermal Circulator with a high resolution 4 inch wide touch screen interface. It is WIFI enabled meaning you can control it remotely from anywhere via our APP, it's also designed to ensure food safety. With an 45 litre capacity it guarantees a temperature stability of 0.1°C between 5°C to 95°C. 2 year warranty.

The iVide Plus Jnr is the first water proof device for the commercial kitchen, certified to IPX7. Under the IPX7 designation, the iVide Plus Jnr Sous Vide cooker will be able to withstand immersion in water up to 1 meter for up to 30 minutes. This means should an accident happen, and the device is splashed or submerged it will not cause damage, but prolonged exposure — such as placing in a dishwasher — would be harmful.

SAFETY

Please follow these safety precautions:

- Operate the iVide Plus Jnr Thermal Circulator according to the user manual only. Failure to do so may result in damage to the machine.

- Connect the power supply shown on the rating label only.

- Connect with the safe grounded supply only.

- Turn off the power supply before removing the machine.

- Do not touch the liquid directly to check the temperature. Please use the temperature display or thermometer.

- The water level must be between the lowest water level "MIN" and the highest water level "MAX". Failure to do so may result in damage to the machine.

- Do not touch any hot surfaces on the iVide Plus Jnr Thermal Circulator during or immediately after use.

- If liquid is on the top of the iVide Plus Jnr Thermal Circulator (above the MAX water level), turn off the power and dry it before use.

- We recommend users of the iVide Plus Jnr Thermal Circulator are given full instructions before prior use or are supervised by an experience user.

- Keep liquid away from the power receptacle and fan on the back of the iVide Plus Jnr Thermal Circulator. Failure to do so may result in damage to the machine and the user.

TECHNICAL PARAMETERS

Rated voltage 220-240V\~

Rated frequency 50HZ

Rated power 1500W

Temperature setting range 5 - 95°C / 41 - 203°F

Time setting range 5 min - 99 hours 59 minutes

Display accuracy 0.1

Size 4.8"x6.3"x11.2" (121x159x285mm)

Weight 1.6 Kg

PRODUCT FUNCTION

sousvide tools.com 5 + 888.8 °C TEMP TIME LP SET TEMP 888.8 SET TIME 88:88 678 START STOP 1 2 3

1. ON/OFF

In standby mode, press the "on/off" key, the machine will enter the operation preparation mode. The display will show the current temperature and the setting time. The temperature indicator light will turn on and the fan will work. Press the "on/off" key for the second time to return to the standby mode, and the fan will stop automatically after about 30 minutes.

PRODUCT FUNCTION

2. °C/°F

Temperature unit switch button

- Click on °C / °F to select the temperature display unit of the machine. Please select celsius or fahrenheit.

3. START/STOP

In operation preparation mode, press the “start/stop” key to start the machine (the heating indicator light and water circulation light will begin to flicker). Press the “start/stop” key for the second time, the machine will begin the countdown. Press the “start/stop” key for the third time and the machine will stop working (the heating indicator light and water circulation light will turn off). If the temperature reaches the setting temperature, the machine will automatically start the countdown.

4. TEMP / TIME

Temperature, time adjustment switch button

• Click on TEMP / TIME to toggle the temperature or time setting. When the temperature digital reading (B) is flashing, set the desired target temperature with + and -. When the time digital reading (C) is flashing, the desired target time can be set with + and -.
  * If no time or temperature has been set after the digital reading flashes 10 times, the iVide Plus Jnr Thermal Circulator will exit the TEMP / TIME option. If you need to reset click TEMP / TIME again to enter the required details.
  * To display the set time and temperature, press the TEMP / TIME button for 3 seconds.

5. + -

Adjustment button

- To adjust the temperature or time, click on TEMP / TIME, select your required option and use the + and - buttons to adjust.

6. Temperature Digital Reading (A)

• Display real time working temperature.

7. Temperature Digital Reading (B)

• Display the set operating temperature.

8. Time Digital Reading (C)

• In operation preparation mode, the set target time is displayed.
• In working mode, the remaining working time is displayed.

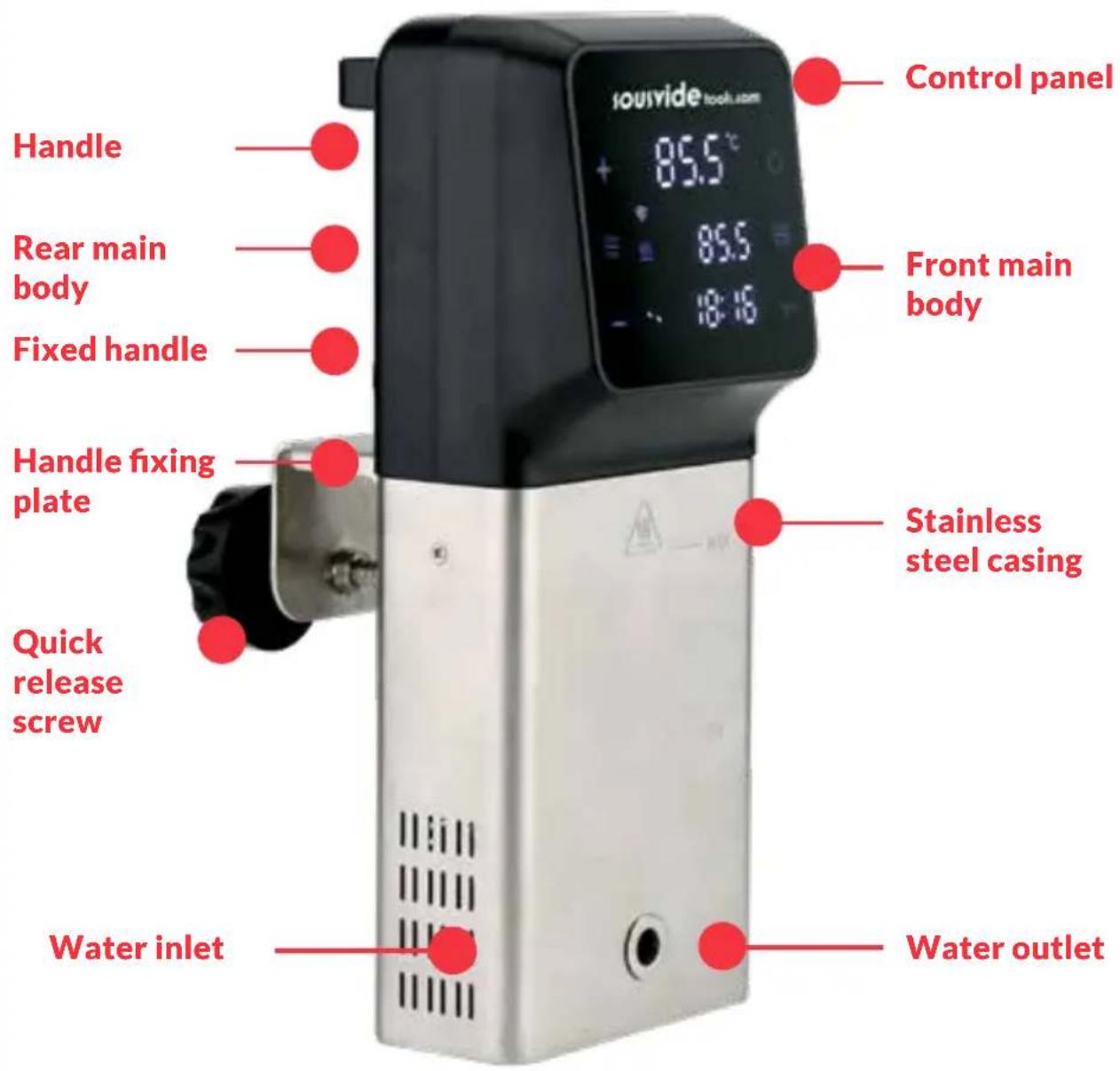

PRODUCT STRUCTURE

souiyide tool.com Control panel 85.5°C + - 85.5 18:16 Handle Rear main body Fixed handle Handle fixing plate Stainless steel casing Quick release screw Water inlet Water outlet

THE APP

Downloading The iVide Plus Jnr Thermal Circulator APP

If the iVide Plus Jnr Thermal Circulator APP has not yet been downloaded, it can be downloaded from the Apple Store (IOS) or Google Play (Android). It is compatible with IOS version 9.3.5 and later. It is compatible with Android version 4.3 and later.

Note: Please check with your mobile phone or device's manufacturer if you have a question about downloading APP.

Six Steps To Configure The iVide Plus Jnr Thermal Circulator APP

Installing theiVide Plus Jnr Thermal Circulator APP is quick, in contrast to some other apps. The iVide APP allows instant use, providing the necessary information exactly when you need it. We have developed a completely new approach to this kind of applications because every moment in the kitchen should be unforgettable. The APP is compatible with the iVide Plus Jnr Thermal Circulator with Wi-Fi. The App makes cooking with the iVide Plus Jnr Thermal Circulator incredibly easy. Simply select the food, adjust the settings, and press Start.

Six Easy Steps

1 Select the appliance you want to use, and press "CONNECT".
2 The app will detect a connected Wi-Fi network. Enter the password and press 'Confirm'.
3 The application starts searching for the iVide Plus Jnr Thermal Circulator. Hold down the °C / °F and START/STOP buttons for a couple of seconds until the Wi-Fi light begins to flash. Wait until the appliance finishes automatic configuration.
4 At the end, you will see a message confirming the appliance is ready to be connected.
5 Make sure the Wi-Fi light has stopped flashing and then press the 'Connect' button. If you need help, read the hints and tips on the display.
6 Congratulations! The iVide Plus Jnr Thermal Circulator has just been configured! Enjoy your cooking!

Note:The Apple and iPhone logos are trademarks of Apple Inc., registered in the USA and other countries. Apple Store is a service mark of Apple Inc. Android; Google Play and Google Play logo are trademarks of Google Inc.

OPERATING INSTRUCTIONS

1 Start by attaching the iVide Plus Jnr Thermal Circulator to the cooking vessel. Turn the knob counterclockwise, form a gap between the main body and the knob, insert the machine into the cooking vessel and tighten the knob clockwise to secure the machine.
2 Add water to the cooking vessel, ensuring the water level is between the minimum water level and the max water level.
3 Connect the power cord to turn on the machine and enter standby mode. Press the "on/off" key to enter operation preparation mode.
4 Click °C/°F to select the temperature display unit. The default is °C. Your selected temperature unit will be remembered for next time you use the machine.
5 Click TEMP /TIME to select the temperature or time and set the target value with the + and - keys.
6 After the setting is complete, click START/STOP to start the machine. After the temperature in the cooking vessel reaches the required temperature, the time digital reading (C) starts counting down - now add your vacuum packed food for constant temperature cooking.
7 After the cooking is finished, the iVide Plus Jnr Thermal Circulator will beep. Click START/ STOP to turn off. Note: If there is no operation, the machine will emit a continuous beep after 20 seconds, while the water temperature will remain at the preset temperature.
8 Take your vacuum packed food out. The food is now ready for the next process.
9 After using the iVide Plus Jnr Thermal Circulator, turn off and store in a safe place.

DON'T FORGET: Before Sous Vide cooking, the food must be vacuum packed. The water level (after the food is put in) should be higher than the MIN, but lower than the MAX marked on the machine. To avoid damaging the machine, drain the water after use and clean the water bath.

MAINTENANCE

To avoid burning, please make sure that the iVide Plus Jnr Thermal Circulator is turned off and cooled down to room temperature before cleaning.

1 Place the iVide Plus Jnr Thermal Circulator vertically after cleaning, do not place it horizontally or upside down.
2 During cleaning, do not damage the components inside the machine. Once the components are damaged, please ask a specialist to check and repair. Do not attempt unauthorised repairs as this may result in an accident.
3 Empty the old water after each use. Refill with fresh water when you next use the iVide Plus Jnr Thermal Circulator. If the water is reused, mineral substance may damage the components.
4 Remove the back cover of the iVide Plus Jnr Thermal Circulator to clean the heat tube and probe if the discharge capacity reduces or the components have collected dirt. It is recommended to clean the iVide Plus Thermal Circulator every 20 times or after 100 hours of use.
5 Do not put a hot iVide Plus Jnr Thermal Circulator in to cool water as this may cause damage. The iVide Plus Jnr Thermal Circulator should be cooled down to room temperature and put into cold water to use.

HOW TO CLEAN

Preparation

iVide Plus Jnr Thermal Circulator can be cleaned with food grade vinegar (white vinegar, apple vinegar, etc.)

Why the need to clean?

Normal tap water contains minerals which when the water is heated to a certain temperature will create a scale on the heater or surface of the machine. In this case, the scale will affect the performance of the machine. It is recommended to clean the machine every 20 times or after 100 hours of use. You can clean the machine according to your actual needs due to different water in different areas.

How to clean

1 Fill the container (up to the MAX line) with water. Add 5g vinegar into the water.
2 Turn on the iVide Plus Jnr Thermal Circulator, set the working temperature to 80°C (176°F) and the time to 3 hours (03:00). Click START/STOP. After 3 hours, the machine will beep and switch off.
*Quick cleaning procedure: Hold down the START/STOP and - buttons. The digital reading (B) will show the set temperature 80°C, the digital reading (C) will show the set time 3:00. Release the button and the digital reading (B) & (C) will flash 10 times. Click the START/STOP button to start the cleaning operation.
3 Check if the machine is clean. If the machine is not clean then add more vinegar and start the process again. If the machine is clean, please drain the vinegar from the machine, wash the machine with fresh water, dry and store away.

TROUBLESHOOTING

Error code	Cause of issue	Troubleshooting
E01	The water level is lower than the lowest water level or higher than the highest water level	Turn off the power. If the water level is too low, add the right amount of water to the container; if the water level is too high, remove the water from the container.
E02	1. Whether the heating pipe is normal;2. Whether the internal wiring of the machine is normal;3. Is the temperature sensor normal?	Need to ask a professional for repair
CLEAN	The machine has been working continuously for more than 100 hours	To clean the machine, refer to "How to Clean"
LP	The machine suddenly loses power during normal cooking

** During the use of the machine, if any other problems arise, please speak to a specialist. Do not attempt unauthorised repairs as this may result in an accident.

WARRANTY & AFTER SALES SERVICE

1 Make sure the working platform is flat, clean and tidy.
2 Warranty is limited to damage caused by production defects.
3 The cost of parts and maintenance will be charged due to improper use or other non-product quality problems.
4 Please keep the purchase vouchers.

Maintenance Card

First Name:

Last Name:

Phone:

Email:

Address:

Machine Model:

Purchase Date:

Supplier:

Repair Record

Date Cause By

CE CERTIFICATE

European Declaration of Conformity

Marking we

Gastronomy Plus Ltd t/a Sousvidetools.com

Central Barn

Claughton Business Park

Hornby Road

Claughton

Lancaster

United Kingdom

declare under our sole responsibility that the product

Article: Sous Vide Circulator

Trademark: sousvide tools.com

Model no.: SVT-01005 & SVT-01005EU

To which this declaration relates is in conformity with the following harmonized standards

EN 60950-1: 2006+A11(2009)+A1(2010)+A12

(2011)+A2(2013)

EN 62479: 2010

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

ETSI EN 301 489-01 V2.l.1 (2017-02)

ETSI EN 301 489-17 V3.l.1 (2017-02)

EN 300 328 V2.l.1: 2016-11

EN 60335-1:2012/All:2014

EN 60335-2-74:2003/A2:2009

EN 62233:2008

Following the provisions of

2014/53/EU (RED directive) 2014/30/EU (EMC directive) 2014/35/EU (LVD directive)

01.10.2020

Date / Place Name: Alex Shannon

Alex Shannon

Position: Managing Director

ÜBER DEN IVIDE

Claughton Business Park

Hornby Road

Claughton

Lancaster

United Kingdom

Claughton Business Park

Hornby Road

Claughton

Lancaster

United Kingdom

Claughton Business Park

Hornby Road

Claughton

Lancaster

United Kingdom

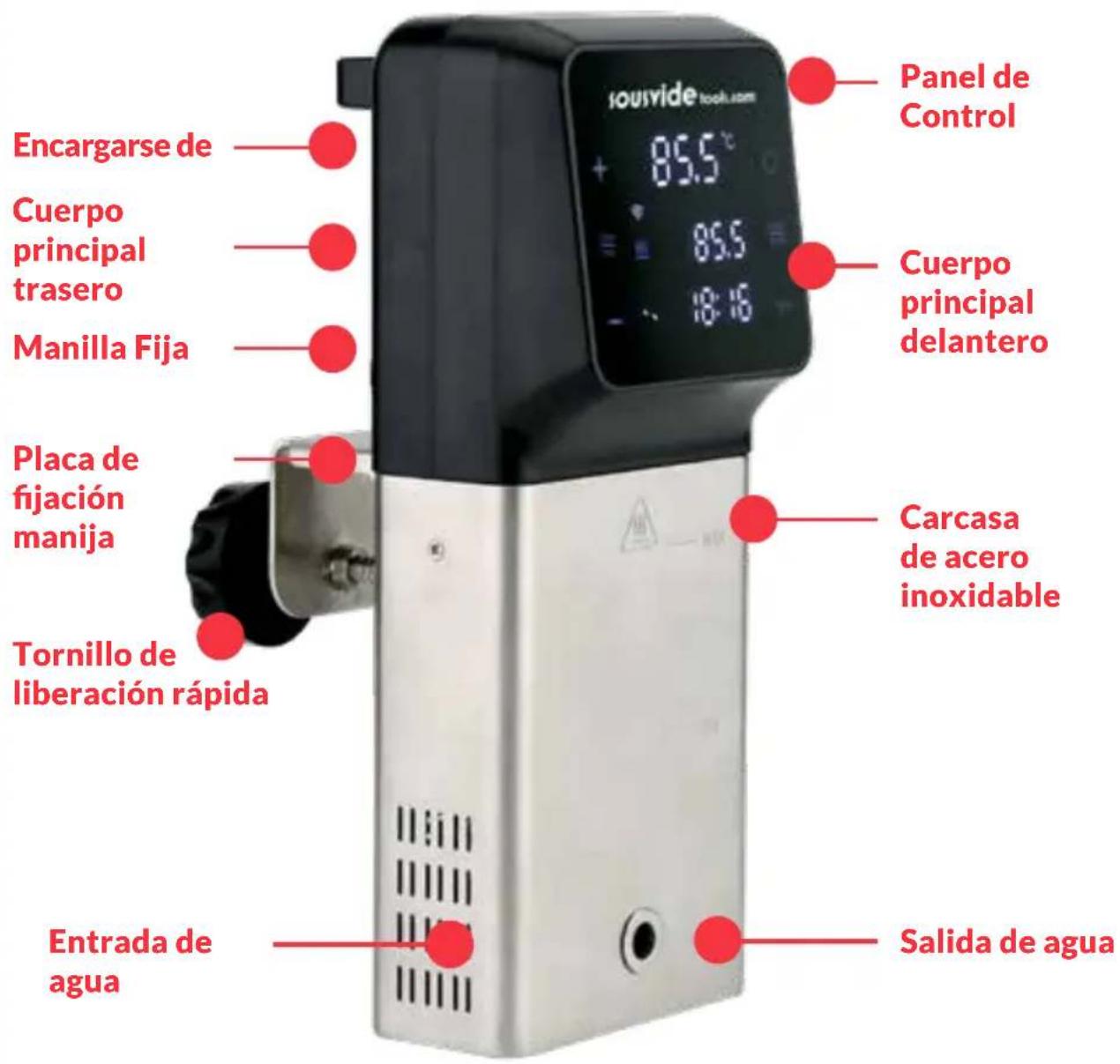

ESTRUCTURA DEL PRODUCTO
