CLR2477 - Alarm Clock ROADSTAR - Free user manual and instructions

Product Type	Clock Radio
Brand	Roadstar
Model	CLR2477
Dimensions (approx.)	20 x 10 x 10 cm
Weight (approx.)	0.5 kg
Main Power Supply	AC 240V ~ 50Hz
Backup Power Supply	CR2032 battery (not included)
Radio Frequency Band	FM 87.5 - 108 MHz
Speaker Power	1 x 0.5 W RMS
USB Charging	5V / 1A (max)
Alarm	Dual alarm with choice of BUZZER, FM or OFF
Snooze	Yes (9 minutes)
Sleep Timer	120, 90, 60, 45, 30, 15, 5 min and OFF
Radio Presets	20 memory stations (auto or manual)
Clock Setting	Manual (TIME button, HOUR/MIN buttons)
LED Brightness Dimmer	Yes (bright/dim)
Maintenance	Soft dry or slightly damp cloth, no solvents
Safety	Do not open the device, avoid moisture and heat sources
Certification	Compliant with directive 2014/53/EU

Frequently Asked Questions - CLR2477 ROADSTAR

How to set the time on the CLR2477 clock radio?

In standby mode, press and hold the TIME button (3) for 2 seconds, then use the HOUR (1) and MIN (2) buttons to set the hour and minutes. Press TIME again to confirm.

How to set an alarm on the Roadstar CLR2477?

In standby mode, press and hold the ALARM 1 button (5) or ALARM 2 button (4) for 2 seconds. Use the HOUR and MIN buttons to set the time, then press the same alarm button to confirm. In standby mode, a short press on these buttons allows selecting the alarm type: BUZZER, FM or OFF.

How to stop or snooze an alarm?

To temporarily stop the alarm, press the SNOOZE button (7): it will repeat after 9 minutes. To completely stop the alarm, press the AL OFF button (6); the alarm will sound again the next day.

How to use the radio and store stations?

Turn on the radio with POWER (6). Use the TUNING +/- buttons (1/2) to tune. To store a station, press and hold PRESET (3) until 'P' flashes, select a number with the tuning buttons, then confirm with PRESET. Auto memory of the first 20 stations is done in radio mode by pressing and holding POWER.

How to set the sleep timer?

When the radio is on, press SLEEP (7) repeatedly to choose a duration: 120, 90, 60, 45, 30, 15, 5 minutes or OFF. The radio will turn off automatically after the selected delay.

How to change the display brightness?

In radio mode, press and hold the SNOOZE button (7) to toggle between two brightness levels: bright or dim.

How to charge a USB device via the clock radio?

Connect your device (smartphone, MP3 player) to the USB port (8) on the back using a USB cable (not included). Charging occurs automatically (5V/1A max), but the device's content is not accessible via the clock radio.

What to do if the display flashes and the radio stops working?

This indicates a power interruption. The clock radio is equipped with a CR2032 backup battery (not included) that preserves clock and alarm settings. If the display flashes, check that the backup battery is installed and functional (replacement recommended every 9-12 months).
Once power is restored, the clock will display the correct time.

Where to install the backup battery and how to replace it?

The backup battery (CR2032) is located in the compartment under the device. Open the compartment, insert the battery with correct polarity, then close. Replace it every 9 to 12 months to avoid leakage.

How to clean and maintain the clock radio?

Unplug the device before cleaning. Use a clean, soft cloth lightly dampened with a non-abrasive detergent solution. Never use alcohol, benzene, or solvents. Avoid letting liquids enter the openings.

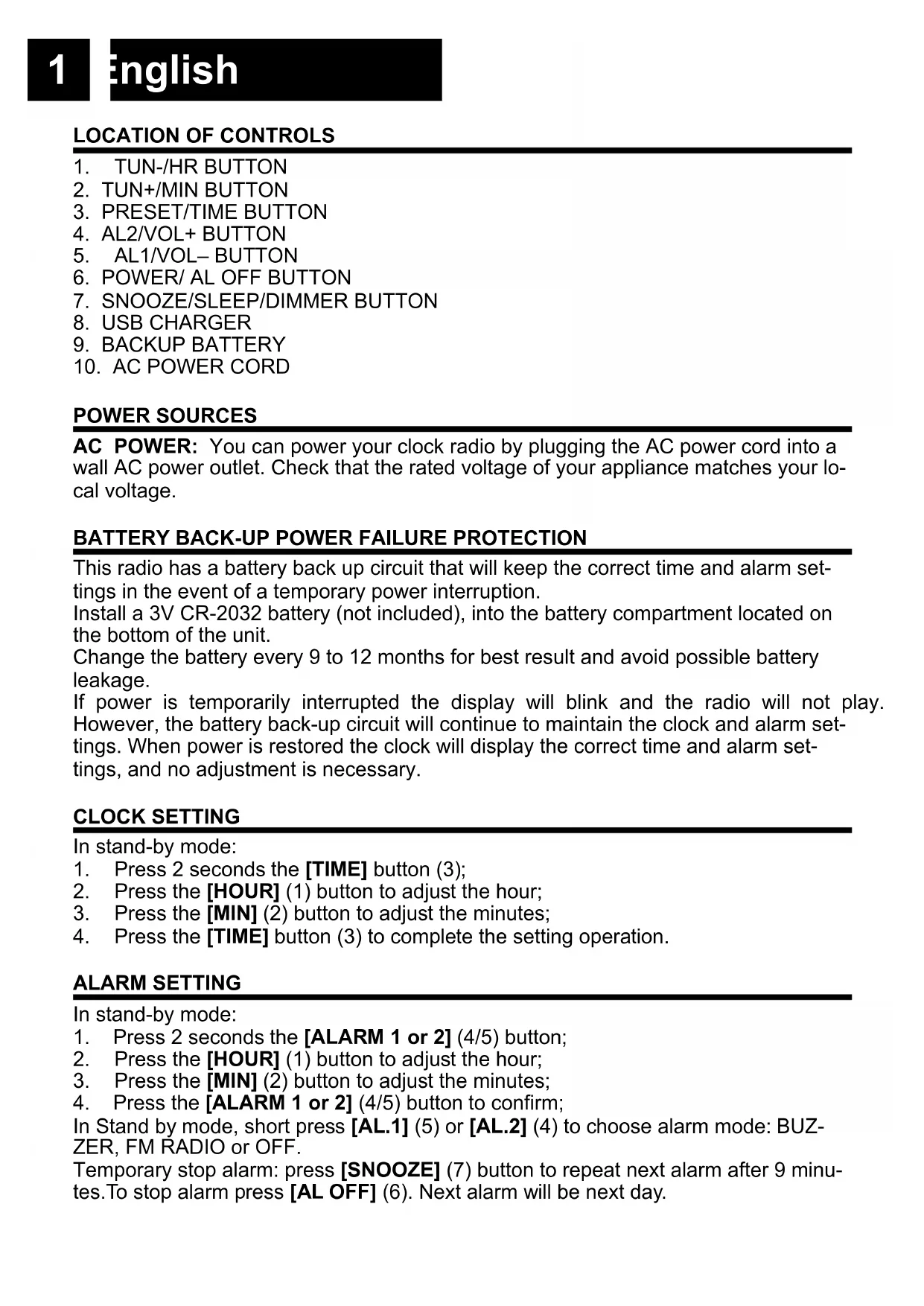

USER MANUAL CLR2477 ROADSTAR

Digital FM Clock Radio

User manual

Bedienungsanleitung

- Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

AC POWER: You can power your clock radio by plugging the AC power cord into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage.

BATTERY BACK-UP POWER FAILURE PROTECTION

This radio has a battery back up circuit that will keep the correct time and alarm settings in the event of a temporary power interruption.

Install a 3V CR-2032 battery (not included), into the battery compartment located on the bottom of the unit.

Change the battery every 9 to 12 months for best result and avoid possible battery leakage.

If power is temporarily interrupted the display will blink and the radio will not play. However, the battery back-up circuit will continue to maintain the clock and alarm settings. When power is restored the clock will display the correct time and alarm settings, and no adjustment is necessary.

CLOCK SETTING

In stand-by mode:

1. Press 2 seconds the [TIME] button (3);
2. Press the [HOUR] (1) button to adjust the hour;
3. Press the [MIN] (2) button to adjust the minutes;
4. Press the [TIME] button (3) to complete the setting operation.

ALARM SETTING

In stand-by mode:

1. Press 2 seconds the [ALARM 1 or 2] (4/5) button;
2. Press the [HOUR] (1) button to adjust the hour;
3. Press the [MIN] (2) button to adjust the minutes;
4. Press the [ALARM 1 or 2] (4/5) button to confirm;

In Stand by mode, short press [AL.1] (5) or [AL.2] (4) to choose alarm mode: BUZ-ZER, FM RADIO or OFF.

Temporary stop alarm: press [SNOOZE] (7) button to repeat next alarm after 9 minutes. To stop alarm press [AL OFF] (6). Next alarm will be next day.

TO USE THE RADIO

1. Press the [POWER] button (6) to power ON the unit;
2. Adjust radio frequency to your desired station by pressing the [TUNING +/-] buttons (1/2). (If you hold tuning button it will scan until it finds the next station);
3. Adjust the volume with the [VOLUME +/-] (5/4);
4. To switch off the radio, press the [POWER] button (2).

Note: For a better reception reorient the antenna.

PRESETS

1. Tune the desired station as explained above;
2. Press and hold [PRESET] button (3) until "P" will flash;
3. Press the [TUNING +/-] buttons (1/2) to choose the number;
4. Press the [PRESET] button (3) to save the radio station.

RECALL A PRESET STATION:

Press the [PRESET] button (3) and then choose the number of the preset by pressing the [TUNING +/-] buttons (1/2).

AUTO PRESET: In Radio mode, long press [POWER] (6) button, radio will be memorize first 20 stations received.

SLEEP TIMER

The sleep timer switches the radio off automatically after an adjustable time. When the radio is ON:

1. Press [SLEEP] button (7) repeatedly to adjust the sleep shutdown time. You can choose between 120-90-60-45-30-15-05-OFF;
2. Sleep time will be confirmed if no button is pressed within 5 seconds.

CANCEL SLEEP TIMER

Press [SLEEP] button (1) repeatedly to select "OFF".

LED DIMMER

In Radio mode, long press [SNOOZE] (7) button to set LED lightness: light or dark.

USB CHARGING

To charge a USB device, using a USB cable (not included), connect a USB device (e.g. smartphone, mp3 player) via to the USB port (8) on the back of this product. The contents in the connected USB device cannot be accessed by this product.

CARE AND MAINTENANCE

To prevent fire or shock hazard, do not allow this clock radio to be exposed to rain or moisture.

This clock radio should not be exposed to direct sunlight, very high or low temperature, moisture, vibration, or placed in a dusty environment.

Do not use abrasives, benzine, thinners, or other solvents to clean the surfaces of the clock radio. To clean it, wipe with a mild non-abrasive detergent solution on a clean soft cloth.

Never attempt to insert wires, pins, or other objects into the venlilation holes or ope-

nings on the clock radio.

Note: When setting the Clock or Alarm times remember that this clock radio has a 24 Hour clock mode.

TECNICAL SPECIFICATIONS

Power Supply: AC 240V \~ 50Hz.

Battery Backup 1X CR2032 (not included)

Radio Frequency Coverage

FM: 87.5 - 108 MHz.

General

Output Power: 1 x 0.5 Wrms.

USB charging 5V 1A output max

Specifications and design are subject to possible modifications without notice due to improvement.

WARNINGS

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present

CORRECT DISPOSAL OF THIS PRODUCT

(Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

LAGE DER BEDIENUNGSELEMENTE

1. TUN-/HR BUTTON
2. TUN+/MIN BUTTON
3. PRESET/TIME BUTTON
4. AL2/VOL+ BUTTON
5. AL1/VOL-BUTTON
6. POWER/ AL OFF BUTTON
7. SNOOZE/SLEEP/DIMMER BUTTON
8. USB CHARGER
9. BACKUP BATTERY
10. AC POWER CORD

STROMQUELLEN

Battery Backup 1X CR2032 (not included)

Simple line drawing of a trash bin with two crossed lines indicating possible disposal or waste (no text or symbols)

KORREKTE ENTSORGUNG DIESES PRODUKTS (Elektromüll)

Battery Backup 1X CR2032 (non inclus)

Simple line drawing of a trash bin with two crossed lines and a black rectangular base (no text or symbols)

COMMENT ÉLIMINER CE PRODUIT

CR-2032 (non incluse)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

ELIMINAÇÃO CORRECTA DESTE PRODUTO (Resíduo de Equipamentas Eléctricos e Electrónicos)

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

Simple line drawing of a trash bin with two crossed lines (no text or symbols)

Hereby, Roadstar Management SA declares that the radio equipment type CLR-2477 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://roadstar.com/images/ce/CLR-2477.pdf or by scanning the following QR Code.

Roadstar®

INTERNATIONAL WARRANTY - INTERNATIONALE GARANTIE GARANTIE INTERNATIONALE - GARANZIA INTERNAZIONALE GARANTIA INTERNACIONAL - GARANTIA INTERNACIONAL ΔΙΕΘΝΗΣ ΕΓΓΥΗΣΗ

Serial No.

Serien Nr.

No. de série

No. di serie

No. de serie

No. de série

ΑΡΙΘΜΟΣ ΣΕΙΡΑ

Type of set

Geräte Type

d'appareil

Tipo d'apparecchio

Tipo de aparato

Tipo de aparelho

Τύπος συσκευής

Purchase date

Kaufdatum

Date d'achat

Data d'acquisto

Fecha de compra

Data de compra

Ημερομηνία αγοράς

Dealer's Stamp / Händlerstampel / Timbre du négociant / Timbro del negoziante Sello del establecimento vendedor / Carimbo da loja de Venda / Σφραγίδα του καταστήματος

Abstract geometric logo design with stylized 'R' letters and curved lines (no text or symbols)

Roadstar®

is a registered Trademark of Roadstar S.A. - Switzerland. All rights reserved.

FRANÇAIS

Conditions Générales de Garantie Roadstar

Roadstar Warranty Terms and Conditions

Roadstar- by means of its sales organisation, representative or distributor- guarantees its products against manufacturing defects in material and/or workmanship throughout the period of warranty. Should the product fail to work or shows manufacturing defect within the warranty period, Roadstar- by means of its sales organisation, representative or distributor will take the necessary actions to restore the perfect functioning of the product. To repair or to replace is at discretion of Roadstar or it's representative or distributor. The warranty period is in accordance with directive 99/44/CE of the European Union. For all non EU members, please refer to the local law of each country. This warranty

does not cover normal wear and tear of the product and/or its parts, any damage, failure, or loss caused by accident, misuse, and any other failure not directly related to a defect of the product. This warranty does not void consumer's rights in accordance with EU Directive99/44/CE. For further information please visit the website www.roadstar.com, or write to [e-mail].
