USER MANUAL Aroma Star 28435 UNOLD

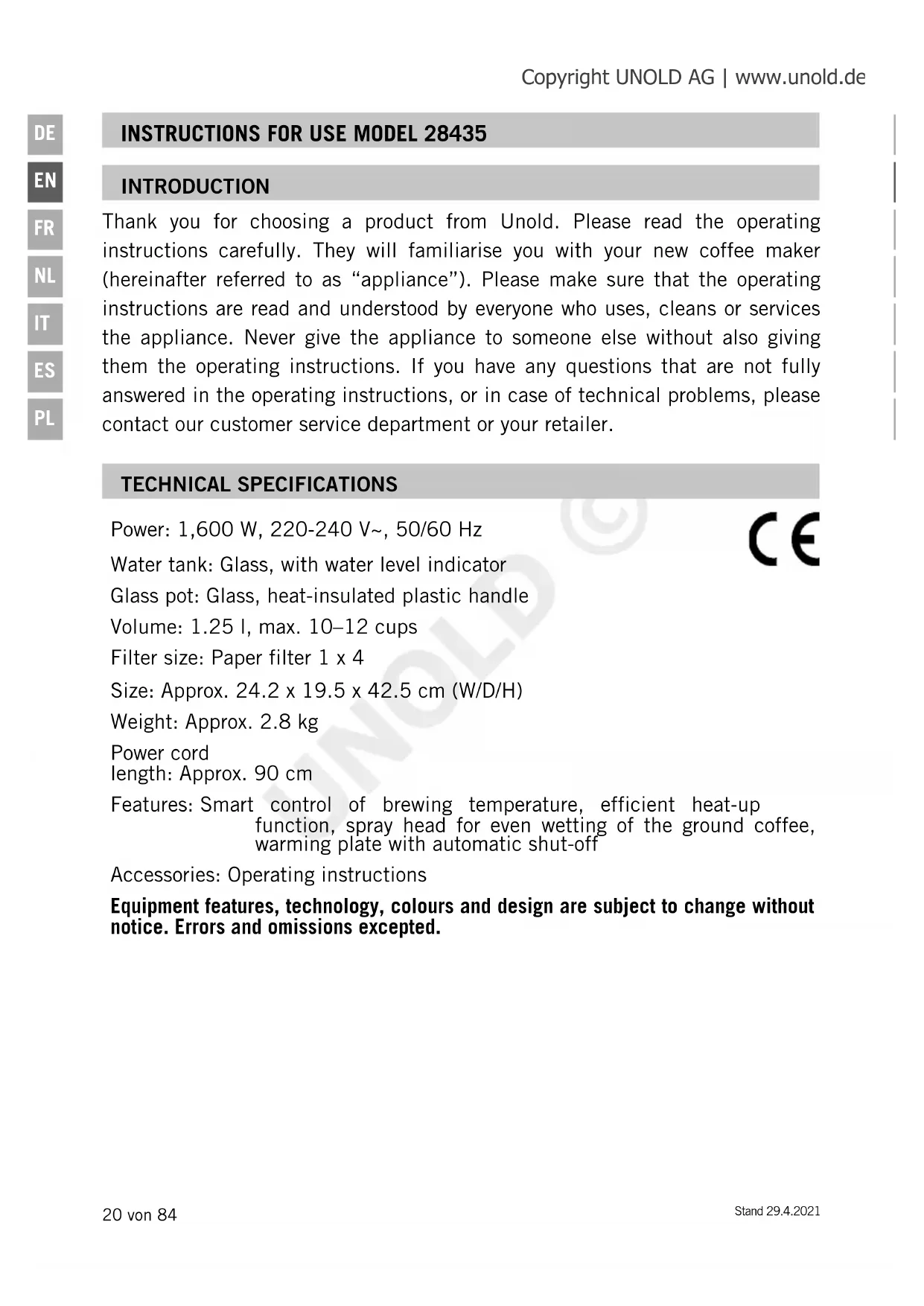

INTRODUCTION Thank you for choosing a product from Unold. Please read the operating instructions carefully. They will familiarise you with your new coffee maker (hereinafter referred to as “appliance”). Please make sure that the operating instructions are read and understood by everyone who uses, cleans or services the appliance. Never give the appliance to someone else without also giving them the operating instructions. If you have any questions that are not fully answered in the operating instructions, or in case of technical problems, please contact our customer service department or your retailer. Power: 1,600 W, 220-240 V~, 50/60 Hz Water tank: Glass, with water level indicator Glass pot: Glass, heat-insulated plastic handle Volume: 1.25 l, max. 10–12 cups Filter size: Paper filter 1 x 4 Size: Approx. 24.2 x 19.5 x 42.5 cm (W/D/H) Weight: Approx. 2.8 kg Power cord length: Approx. 90 cm Features: Smart control of brewing temperature, efficient heat-up function, spray head for even wetting of the ground coffee, warming plate with automatic shut-off Accessories: Operating instructions Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted. TECHNICAL SPECIFICATIONS Copyright UNOLD AG | www.unold.de UNOLD ©Stand 29.4.2021 21 von 84

This symbol denotes a possible hazard which could cause injury or damage to the appliance. This symbol indicates a potential burning hazard. Please be especially careful at all times here.

Please read the following instructions and keep them on hand for later reference. Instructions for persons in the household

1. This appliance can be used by children 8 years and

older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.

2. Children must not play with the appliance.

3. Children are not allowed to perform cleaning and user

maintenance, unless they are 8 years of age or older and are supervised.

4. Keep the appliance and the power cord out of the

reach of children under 8 years of age.

5. The packaging material is not a toy – danger of

suffocation! Therefore keep packaging materials away from children.

6. The appliance is intended for household use only, or

for similar areas of use, such as, kitchenettes in businesses, offices or other work- places, in agricultural enterprises, for use by guests in hotels, motels or other lodgings, in privately owned guest houses and holiday homes. Copyright UNOLD AG | www.unold.de UNOLD ©22 von 84 Stand 29.4.2021

Safety and electricity

7. Connect appliance only to an AC power supply with

voltage corresponding to the voltage on the rating plate.

8. This appliance must not be operated with an external

timer or a remote control system.

9. For reasons of electrical safety, never immerse the

appliance or the power cord in water or other liquids.

10. For reasons of electrical safety, do not clean the

appliance in the dishwasher.

11. The switch and power cord should never come into

contact with water or other liquids. If this should occur, all parts must be completely dry before operating the appliance again.

12. Never wrap the power cord around the appliance, and

avoid kinking of the power cord. Wrapping the power cord around the appliance can damage the power cord.

13. Unplug the mains plug from the electrical outlet

after use and before cleaning. Do not, under any circumstances, leave the appliance unattended when the mains plug is plugged in.

14. Do not, under any circumstances, touch the appliance

or power cord with wet hands. Safe set-up and operation of the appliance

15. For safety reasons, under no circumstances place

the appliance on hot surfaces, metal trays or a wet surface.

16. Do not place the appliance or power cord near open

flames during operation.

17. Always use the coffee maker on a level, uncluttered

and heat-resistant surface.

18. The appliance may be used only for brewing coffee,

never for heating milk or other liquids or keeping them warm.

19. Ensure that the power cord does not hang over the

accidents, for example if small children pull on the cord.

20. Route the power cord in such a manner that no one

can pull on it or trip over it.

21. Only use the coffee maker indoors.

22. Do not, under any circumstances, cover the appliance

during operation. Otherwise it could overheat.

23. To brew coffee, use fresh, clean water and fill the

water tank to at least the bottom mark (2 cups) or at most to the MAX mark.

24. Do not switch on the appliance until after you have

filled the water tank with water. Never operate the appliance without water. Such use could damage the appliance.

25. In case of repeated use, allow the appliance to cool

off at least 5 minutes before using it again.

26. Never use the glass coffee pot in the microwave; it is

not suitable for microwaves.

27. Do not move the appliance when in operation.

Otherwise there is danger of injury.

28. Ensure that all users, especially children, are aware

of the danger of injury from escaping steam and hot splashing water – danger of burns!

29. Do not use the appliance with accessories of other

manufacturers or brands. Such use could damage the appliance.

30. Check the appliance, the plug and the power cord

regularly for wear or damage. In the event of damage to the power cord or other parts, please send the appliance or the power cord to our customer service organisation for inspection and repair.

31. Unauthorised repairs can result in serious hazards for

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. CAUTION: The appliance becomes very hot during operation and maintains the heat during some time after disconnection. Do not open the housing of the appliance under any circumstances. There is danger of electric shock.

“Start/Stop” button Switches the appliance on and off

Bar symbol Flashes during the heat-up phase

“Menu” button Sets the desired number of cups Removes excess water from the water tank

1. Make sure that your coffee maker is clean and descaled at all times.

2. Keep coffee beans and ground coffee in a tightly closed can and store in a

cool, dark place, but not in the refrigerator.

3. For optimal coffee enjoyment we recommend grinding the coffee beans

immediately before use.

4. Use only fresh water.

5. Coffee tastes best freshly brewed. If coffee is kept warm too long, it can

6. The lid can remain closed when pouring coffee from the glass pot.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

1. Remove all packaging materials and any transport safeguards. Keep

packaging materials away from children – danger of suffocation! Dispose of packaging materials in accordance with local regulations.

2. Check the appliance for damage. If the appliance shows visible signs of

damage, do not operate it. Contact our customer service organisation instead.

3. Check whether all listed accessory parts are present.

4. Rinse glass pot, lid and filter holder in hot water with a mild washing-up

liquid, rinse with clean water and dry thoroughly.

5. Wipe off the housing with a damp cloth, and then dry it.

6. Before first use or if the appliance has not been used for an extended period,

fill the water tank to the maximum quantity with clean, cold water and carry out one or two brewing cycles without ground coffee.

OPERATION OF THE APPLIANCE

Filling the water tank

1. Take the lid off of the water tank.

2. Fill the water tank with fresh, cold water to the desired fill level. For orien-

tation, there is a scale with cup markings on the water tank.

3. Carefully close the lid of the water tank.

4. Make sure that the side of the lid with the steam exhaust opening points to

the back. For orientation the lid is labelled. The side with the word “Back” must point to the back, the side with the word “Front” to the front. Copyright UNOLD AG | www.unold.de UNOLD ©26 von 84 Stand 29.4.2021

5. Note: You can also put in more water than needed. The electronic control

unit ensures that only the amount of water needed for the number of cups is used. Never switch on the appliance if there is no water in the tank. Such use could damage the appliance. It is also important never to overfill the water tank (i.e. beyond the maximum mark), since the water would then boil over.

6. A small amount of water can evaporate during the brewing process, resulting

in fluctuation in the quantity of brewed coffee. Removing water

7. To remove remaining water from the tank, place the glass pot on the war-

ming plate, close the filter holder and plug in the appliance. Then press and hold the “Menu” button for at least 6 seconds. The valve in the water tank will open and 2–3 cups of water will flow into the glass pot. If there is more water in the tank, repeat the process until the water tank is completely empty. Adding ground coffee

8. Pull the handle of the filter holder to

remove it from the appliance (note the “Open” mark on the filter holder).

9. Fold the paper 1x4 filter on the bottom

and place the filter in the filter holder. Make sure that the paper filter does not protrude beyond the edge of the filter holder.

10. Spoon the desired quantity of ground

coffee into the paper filter. We recommend 5–7 g (about 1 measuring spoon) of medium ground coffee per cup. Coffee that is ground too fine can clog the pores in the filter, which can cause the coffee maker to overflow.

11. Push the filter holder back into the appliance, making sure that it clicks

into place. Brewing coffee

12. Place the glass coffee pot with the lid closed on the warming plate.

13. Plug the power cord of the appliance into an electrical outlet (220–240 V~

14. A short signal sounds, and “10” appears on the display. Important note:

If you do not press any buttons for several minutes (about 3 minutes) the appliance will switch to standby, and the display will show only the “Time” symbol.

15. Press the “Menu” button to select the desired number of cups, between

17. The display shows the current water temperature, and the bars in the symbol

flash to indicate that the water is heating.

18. The pre-brewing phase starts as soon as the water reaches a temperature

of 95°C. Hot water drips onto the ground coffee for about 6 seconds. The coffee swells, which enhances the aroma of the brewed coffee. A signal sounds, and the appliance pauses briefly, while the ground coffee swells.

19. Afterwards, another signal sounds, and the actual brewing process starts.

The remaining time is shown on the display, depending on the number of cups: Number of cups Total brewing time in minutes 10 02:46 8 02:23 6 02:03 4 01:33 2 01:03

20. As soon as the brewing time has elapsed, the warming time of 30 minutes

starts. This time is likewise shown in the display. 30 minutes after brewing is finished the appliance returns to standby mode. To completely switch off the appliance, press and hold the “Start/Stop” button until a signal sounds and the display is completely blank.

21. Note: You can switch off the appliance at any time by pressing the “Start/

Stop” button for at least 5 seconds. To switch it back on, press the “Start/ Stop” button again for at least 5 seconds.

22. After completion of brewing and as soon as all of the water has dripped from

Allow the appliance to cool before cleaning it. Before cleaning, always turn off the appliance and unplug it from the electrical outlet.

1. Remove the filter holder from the appliance. Remove the paper filter with the

coffee grounds. Dispose of the paper filter together with the coffee grounds.

2. Do not immerse the appliance in water or another liquids.

3. The removable parts, such as the glass pot and lid, can be washed in warm

water with a mild washing-up liquid, or in the dishwasher. We recommend cleaning these parts by hand. Cleaning them in the dishwasher can cause discolouration of the plastic parts. Discolouration does not affect the quality of the coffee nor the proper functioning of the appliance and is not a ground for complaint.

4. The lid of the glass pot can be removed for cleaning. Hold the lid vertically

and tilt it carefully to one side so that the retaining lug slides out of the slot. Reverse the sequence to put the lid back on.

5. Wipe off the outside of the appliance with a soft, damp cloth and dry it

6. Do not use any aggressive or scouring cleaners to the clean the appliance

23. You can remove the glass pot at any time during the brewing process. The

drip stop prevents residual coffee from dripping out of the filter. In this case, set the glass pot on the warming plate immediately, so that brewing can continue and the filter does not overflow.

24. After pouring out all of the coffee and emptying the pot completely, do not

place the empty glass pot on the hot warming plate.

25. Note: If the appliance aborts the brewing process, the appliance must be

descaled. For more information, see the section on “Descaling”. The appliance is very hot during and after operation! Copyright UNOLD AG | www.unold.de UNOLD ©Stand 29.4.2021 29 von 84

Allow the appliance to cool before descaling.

1. Descale your coffee maker on a regular basis, depending on the frequency

of use and local hardness of the water, to extend the service life of the appliance and to keep power consumption to a minimum.

2. If the appliance switches off before the end of the warming period or if water

remains in the water tank after brewing, it is strongly recommended that the appliance be descaled. Use a standard descaling product for household appliances (observe the manufacturer’s information!). If necessary repeat the descaling procedure.

3. Do not fill the water tank past the mark for 2–4 cups, to prevent the descaling

solution from boiling over.

4. Fill the water tank with descaling solution, following the manufacturer’s

6. After completion of brewing, press the “Start/Stop” button for 5 seconds to

prevent the appliance from switching to the warming phase.

7. In case of severe build-up, allow the descaling solution to soak for a while

before starting the brewing process.

8. After descaling allow the appliance to cool. Thereafter, let the maximum

fill quantity of cold water flow through the coffee maker at least twice to eliminate all descaler residues, if not descaler residues could impair the coffee flavour. DESCALING Copyright UNOLD AG | www.unold.de UNOLD ©30 von 84 Stand 29.4.2021

GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workman- ship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By sepa- rate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. The instruction booklet is also available for download: www.unold.de Copyright UNOLD AG | www.unold.de UNOLD ©Stand 29.4.2021 31 von 84
