USER MANUAL Compact 28120 UNOLD

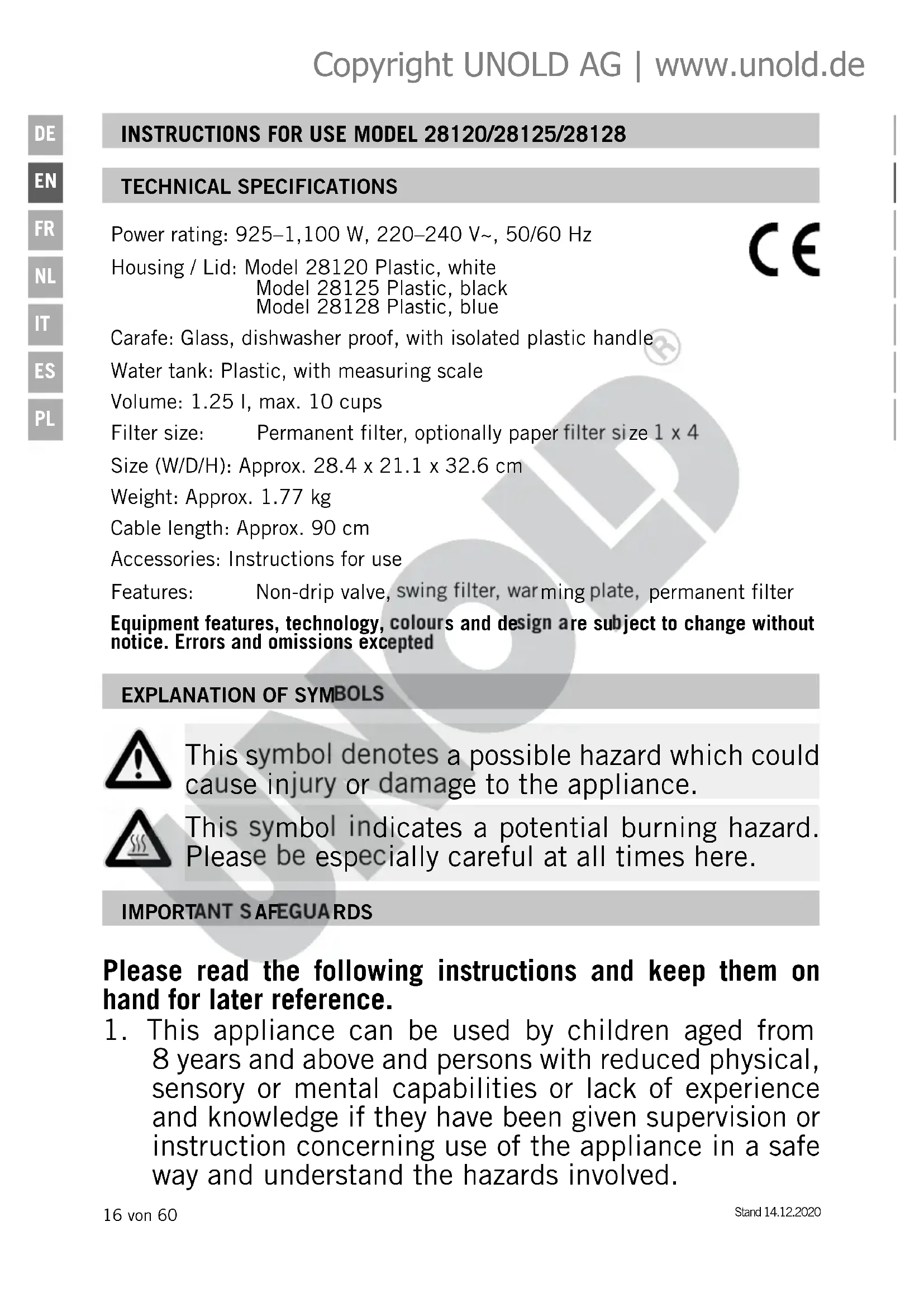

Power rating: 925–1,100 W, 220–240 V~, 50/60 Hz Housing / Lid: Model 28120 Plastic, white Model 28125 Plastic, black Model 28128 Plastic, blue Carafe: Glass, dishwasher proof, with isolated plastic handle Water tank: Plastic, with measuring scale Volume: 1.25 l, max. 10 cups Filter size: Permanent filter, optionally paper filter size 1 x 4 Size (W/D/H): Approx. 28.4 x 21.1 x 32.6 cm Weight: Approx. 1.77 kg Cable length: Approx. 90 cm Accessories: Instructions for use Features: Non-drip valve, swing filter, warming plate, permanent filter Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

This symbol denotes a possible hazard which could cause injury or damage to the appliance. This symbol indicates a potential burning hazard. Please be especially careful at all times here. IMPORTANT SAFEGUARDS Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Copyright UNOLD AG | www.unold.deStand 14.12.2020 17 von 60

2. Children shall not play with the appliance.

3. Cleaning and user maintenance must not be performed

by children, unless they are older than 8 years and are supervised.

4. Keep the appliance and the power cord out of the

reach of children under 8 years.

5. Connect appliance only to an AC power supply with

voltage corresponding to the voltage on the rating plate.

6. Do not operate this appliance with an external timer

or remote control system.

7. For reasons of electrical safety, never immerse the

appliance or the power cord in water or other liquids.

8. For reasons of electrical safety, do not clean the

appliance in the dishwasher.

9. The switch and power cord should never come into

contact with water or other liquids. In case this ever happens, all parts must be completely dry before operating the appliance again.

10. Never touch the appliance or power cord with wet

11. This appliance is intended to be used in household

and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by client in hotels, motels and other working environ- ments; bed and breakfast type environments.

12. For safety reasons, never place the appliance on hot

surfaces, a metal tray or a wet surface.

13. Do not place the appliance or power cord near open

flames during operation.

14. Always use the coffee-maker on a level, uncluttered

15. The appliance is approved for household use only and

may be used only for brewing coffee, never for heating milk or other liquids or keeping them warm.

16. Make sure that the power cord does not hang over the

edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.

17. Route the power cord so that there is no possibility of

the cord being pulled or tripped over.

18. Do not wrap the power cord around the appliance and

avoid kinking of the power cord to prevent damage.

19. Use the coffeemaker only indoors.

20. When in use, never cover the coffeemaker, since this

could cause the appliance to overheat.

21. Only use fresh, cold water to brew coffee. Fill the

water container at least up to the lowest marking (4 cups) and do not overfill.

22. Do not switch on the appliance until after you have

filled the water tank with water.

23. In case of repeated use, allow the appliance to cool

off at least 5 minutes between use.

24. Never use the coffee pot in the microwave; it is not

suitable for such use.

25. Do not move the appliance as long as it is in operation,

to prevent injuries.

26. Make sure that all users, especially children, are

aware of the danger of injury from emerging steam and hot splashing water – danger of burns!

27. Do not use the appliance with accessories of other

manufacturers or brands, to prevent damage.

28. Unplug the appliance from the power supply after

use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.

29. Check the appliance, the plug and the power cord

regularly for wear or damage. In case of damage to the power cord or other parts, please send the appli- Copyright UNOLD AG | www.unold.deStand 14.12.2020 19 von 60

ance or the power cord for inspection and repair to our after sales service.

30. Unauthorized repairs can result in serious risks to the

user and void the warranty. The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. CAUTION: The appliance becomes very hot during operation and maintains the heat during some time after disconnection. Never open the housing of the appliance. This can result in electric shock.

TIPS FOR PERFECT COFFEE ENJOYMENT

1. Make sure that your coffeemaker is clean and descaled at all times.

2. Keep coffee beans and ground coffee in a tightly closed can and store in a

cool, dark place, but not in the refrigerator.

3. For optimal coffee taste we recommend grinding the coffee beans right

4. Use only fresh water.

5. Coffee tastes best when it‘s freshly brewed. If coffee is kept warm too long,

it can become bitter.

6. The lid can remain closed when pouring coffee from the pot.

1. Remove all packaging materials and any transport safeguards. Keep

packaging materials away from children – danger of suffocation! Dispose of packaging materials in accordance with local regulations.

2. Check the appliance for damage. If the appliance shows visible signs of

damage, do not operate it. Contact our customer service organisation instead.

3. Check whether all listed accessory parts are present.

4. Clean the glass carafe, the lid, and the permanent filter in warm soapy

water, rinse them with clear water and dry them thoroughly. BEFORE USING THE COFFEEMAKER FOR THE FIRST TIME Copyright UNOLD AG | www.unold.de20 von 60 Stand 14.12.2020

1. Make sure that the plug is connected with a receptacle and that the

appliance is switched off.

2. To open the water tank tilt up the lid. Pour the desired volume of cold water

into the water reservoir and close the lid.

3. Please note that the water tank has a small hole at the top, for safety rea-

sons. The water tank cannot be filled with more than the maximum capac- ity of the coffee pot, so it cannot overflow during the brewing process.

4. Please observe the markings and do not overfill. The

labelling on the water container corresponds to the number of cups (cup volume approx. 125 ml). Please keep in mind that a certain portion of the water may evaporate during brewing.

5. To open the filter holder, press the button on upper

right side, then filter holder will pop-up, pull out the filter holder and rotate to left side.

6. If you prefer to use filter paper (size 1x4) remove the permanent filter from

the filter holder and place a filter paper into the filter cone after having folded the lower edge. The filter paper must not project over the filter holder.

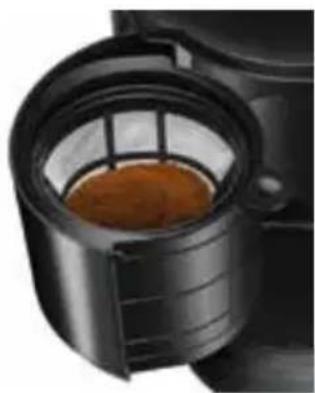

7. Fill the desired amount of ground coffee into the permanent or paper filter,

depending on your taste 5–7 g (approx. 1 measuring spoon) of medium ground coffee. If the coffee is ground too fine, the filter may be clogged up and the coffee may overflow.

8. Turn the swing filter back until it clicks into place.

9. Place the carafe with the lid on the hotplate.

10. Plug the power cord into an electrical outlet (220–240 V~, 50/60 Hz).

11. To start, press the ON/OFF-switch (I/O). The red pilot light will turn on to

indicate that the coffeemaker is switched on and that brewing has started.

12. When the brewing process is finished and the filter is empty you can remove

5. Wipe the surface of the appliance with a damp cloth and dry it.

6. Before using the appliance for the first time or after a longer period, fill the

water container up to the maximum with clear cold water and run it two or three times with water only. Copyright UNOLD AG | www.unold.deStand 14.12.2020 21 von 60

Before cleaning, always turn off the appliance and unplug it from the electrical outlet. Allow the appliance to cool before cleaning it.

1. Turn out the swing filter and remove the permanent filter resp. the used

filter paper. Empty the permanent filter resp. throw away the paper filter with the coffee grounds.

2. Never immerse the appliance in water or any other liquid.

3. The removable parts such as carafe, lid and permanent filter can be cleaned

in warm soapy water or in the dishwasher (this may cause some discoloration, which will, however, not affect the performance of the coffee maker). We recommend cleaning by hand.

4. For easier cleaning the lid of the carafe can be removed. Hold the lid

vertically and then tilt it towards one side, until the holding notch releases from the handle. To reinstall the lid, proceed in reverse order.

5. Clean the surface of the appliance with a damp cloth.

6. Do not use strong detergents or abrasive cloths/liquid, as this will damage

13. You can also remove the carafe during brewing. The drip stop valve prevents

the coffee from dripping out of the filter. In this case you should place the carafe on the hotplate again after having poured out your coffee to continue brewing and to prevent the filter from overflowing.

14. If the appliance is not switched off, the warming plate keeps warm. 35 min-

utes after ending of the brewing, the appliance will switch off automatically.

15. Do not leave the empty glass carafe on the hot warming plate.

16. To switch off the coffee machine, press ON/OFF-switch to O. The red pilot

light will go off. The appliance becomes very hot during operation and maintains the heat during some time after disconnection. Copyright UNOLD AG | www.unold.de22 von 60 Stand 14.12.2020

1. Decalcifying the coffee machine prolongs its life span and reduces power

consumption. For decalcification only use products especially made for decalcification of coffee makers. Always follow the instructions on the packet. Repeat this procedure if necessary.

2. Let the appliance cool down after decalcification. Then run it at least two

times with the maximum quantity of fresh cold water to remove any residues of the decalcifying agent which might affect the coffee taste. GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workman- ship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By sepa- rate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. The instruction booklet is also available for download: www.unold.de Copyright UNOLD AG | www.unold.deStand 14.12.2020 23 von 60
