Product type	Amplified speaker with MP3 player, Bluetooth and wireless microphone
Brand	MAC AUDIO
Model	PA 1500
Output power	250 watts RMS / 1000 watts peak
Speakers	380 mm (15") woofer, 38 mm (1.5") tweeter
Frequency response	80 - 18000 Hz (+/- 3 dB)
Signal-to-noise ratio	> 80 dB
Power supply	115V AC/60Hz or 230V AC/50Hz (selector)
Power consumption	200 W max
Connectivity	Bluetooth 3.0, USB 1.1, SD card reader, 2 microphone inputs (XLR/6.3 mm jack), AUX input/output (RCA)
Dimensions (H × W × D)	Speaker: 709 × 500 × 419 mm
Weight	Speaker: 21.5 kg; Tripod: 2.3 kg; Microphone: 0.2 kg
Included accessories	Remote control (CR2025 battery included), VHF wireless microphone (AA batteries not included), tripod, 3 m power cord, user manual
Main functions	MP3 playback (USB/SD), Bluetooth, 5-band equalizer, treble/bass adjustments, master volume, microphone volume, repeat/random
Maintenance and cleaning	Clean with a dry cloth only; do not use chemical solvents
Safety	Built-in fuse, ventilation required (min. 10 cm clearance), do not expose to water or heat, unplug during thunderstorms
Spare parts and repairability	Use only original parts; entrust all repairs to qualified personnel

Frequently Asked Questions - PA 1500 MAC AUDIO

How to turn on the PA 1500?

Use the POWER ON/OFF switch located on the back (mark 1). The POWER LED (mark 28) lights up when the unit is powered on.

How to connect a microphone?

Insert the microphone plug into an XLR or 6.3 mm jack input (marks 16, 17 for microphone 1; 19, 20 for microphone 2). Adjust the corresponding volume with the MIC 1 VOL (mark 15) or MIC 2 VOL (mark 18) potentiometers.

How to pair a phone via Bluetooth?

Press MODE (mark 9 or 37) several times until Bluetooth is selected. On your phone, search for devices and select 'MAC AUDIO PA 1500'. If a password is requested, enter '0000'.

What to do if the LIMIT LED lights up?

The LIMIT LED (mark 29) indicates acoustic saturation. Reduce the Master volume (mark 25), treble (mark 26) or bass (mark 27) until the LED turns off.

How to adjust the wireless microphone volume?

Use the WIRELESS VOL potentiometer (mark 13) on the back of the unit to adjust the voice volume of the wireless microphone.

Can the unit be used on 115 V voltage?

Yes, the unit is equipped with a mains voltage selector (mark 2). By default set to 230 V for Europe, you can switch it to 115 V. Caution: do not plug into 230 V if set to 115 V, this would damage the amplifier.

How to install the speaker on the tripod?

Place the PA 1500 on its side, slide the tripod into the bottom hole until it stops, then tighten the coupling nut. Adjust the height and secure with the splint. Gently lift the assembly. The setup should be done by two people.

What to do in case of malfunction?

First check that all instructions in the manual are followed. If the problem persists, unplug the unit and entrust the repair to a specialist. Never open the unit yourself.

How to clean the unit?

Use a dry, soft cloth. Do not use chemical solvents or cleaning products that could damage the surface.

How to dispose of the unit at the end of its life?

In accordance with European directive 2012/19/EU, do not dispose of the unit with household waste. Take it to a local collection point for used electrical and electronic equipment. Batteries must be removed and disposed of separately.

USER MANUAL PA 1500 MAC AUDIO

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Mac Audio is under license. Other trademarks and trade names are those of their respective owners.

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

D 4
GB 11
F 18
① 25
E 32

Thank you for choosing the Mac Audio PA 1500.

Please read the following information carefully before starting to use the PA 1500.

IMPORTANT SAFETY PRECAUTIONS

• Please read the instruction manual carefully before use and keep it in a safe place.
• This device is only intended for use with 230V AC/50Hz or 115V AC/60Hz.
• Only operate the device at an ambient/room temperature between 10^ and 40^ .
• Make sure there is sufficient ventilation for the device. There must be a minimum gap of 10cm between objects to the side, to the rear and above the device.
• The ventilation slots should not be covered by any items (e.g. curtains, newspaper, etc.) in order to ensure sufficient ventilation for the device. Please do not position any sources of heat, such as radiators, ovens, naked flames or other devices that generate heat in close proximity to the device.
• The device and the remote control should not be exposed to dripping or splash water or high levels of humidity.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• No objects filled with liquids, such as vases, shall be places on the unit.
• In the event of contact with moisture or liquids remove the mains adapter immediately.
• Only clean the device using a dry cloth.
• Do not use any cleaning agents or chemical solvents when cleaning, as these could damage the surface of the device.
• Never open the device.
• The mains cable must always be suitable for operation and it should only ever be laid out in a manner that prevents it from being trodden on. It should not be pinched by objects either, as this can damage the cable. When using plugs and power strips it must be ensured that the cable is not kinked at the point where it emerges from the socket. Do not connect or remove the mains cable with damp hands.
• Do not connect or remove the mains cable with damp hands.
• The mains plug is used as the disconnecting device. Disconnecting devices shall remain readily operable.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat, such as sunshine, fire and the like.
• Always refer to a qualified specialist for any maintenance or repair work.
• If the device is not going to be used for a prolonged period, remove the mains plug.
• Please remove the mains plug in the event of thunderstorms.

DAMAGE THAT MUST BE RECTIFIED BY A SPECIALIST:

If any of the following damage occurs, disconnect the device from the mains immediately and contact a specialist to conduct the repair work:

• Damage to the mains cable or the mains plug. A damaged cable should not be repaired, but must be replaced.

• If moisture or water has entered the device or foreign objects have fallen into the device.

• If the device has fallen and the housing is damaged.
• If the device does not work properly, even though all of the information in the instruction manual has been observed.

Only those subsequent alterations approved by the manufacturer may be conducted.

Only original spare parts should be used for repair.

After conducting any repairs the safety of device should be checked to ensure it is functioning correctly and safely.

Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards.

This symbol warns the user that high voltage is used within the device which can result in electric shock.

This symbol makes the user aware that there are important notes in the enclosed instruction manual which must be observed.

WARNING:DO NOT OPEN! RISK OF ELECTRIC SHOCK!

To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

DECLARATION OF CONFORMITY

Hereby, Magnat Audio-Produkte GmbH declares that the PA 1500 is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. The Declaration of Conformity can be found at http://www.mac-audio.de in the download area of the device.

USE AS DIRECTED

This device is designed for indoor use only.

INSTRUCTIONS FOR DISPOSAL

In accordance with European Directive 2012/19/EU all electrical and electronic appliances must be disposed of separately via local collection points. Please observe the local regulations and do not dispose of your old appliances with normal household waste.

BATTERY DISPOSAL

Old batteries are hazardous waste and must be disposed of in accordance with current regulations.

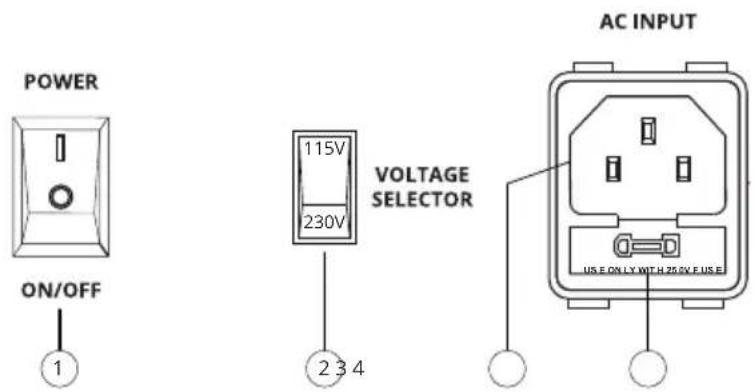

REAR OF THE UNIT

1 POWER ON/OFF: switches the device on or off.
2 Voltage selector switch: The voltage selector has been set at the factory to 230V for operation in Europe.

Warning: Connecting the device to a 230 V mains outlet while the voltage selector is set to 115 V will lead to immediate destruction of the amplifier!

3 AC INPUT: To plug the included power cord.
4 FUSE: built-in fuse.

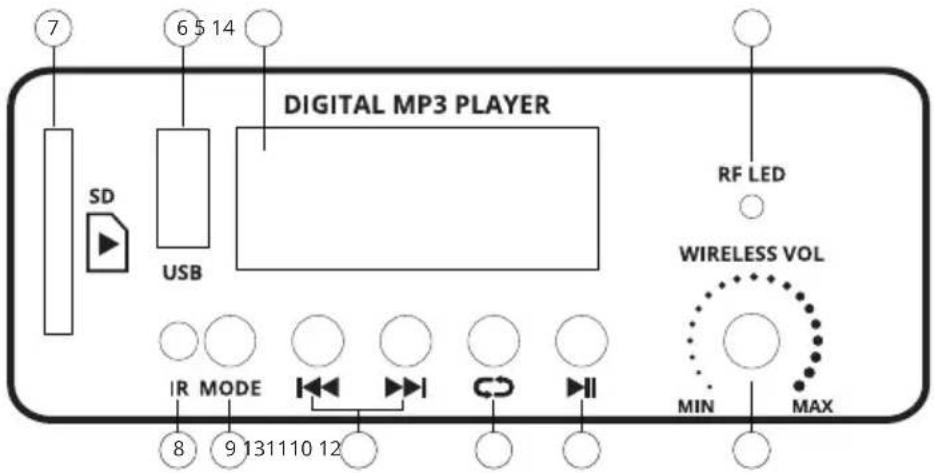

MP3 PLAYER AND WIRELESS MICROPHONE

5 Display: Display of the currently selected function or display of the current playback time when playing MP3s.
6 USB input: USB storage devices can be connected to the PA 1500 for MP3 music playback.

7 SD card slot

8 Remote control infrared receiver

9 MODE: You can cycle through the various sources in the following order by repeatedly pressing the MODE button: USB, SD card and Bluetooth. Search for new Bluetooth sources with your phone or tablet. You will find the MAC AUDIO PA 1500. Connect your device with the MAC AUDIO PA 1500. If you are asked for a password, use "0000".

10

MP3 playback:

Brief press: Jumps to previous/next track.

Press and hold: Decreases / increases the volume (VOL 0-31 max).

Bluetooth operation:

When the Bluetooth mode is used, the previous or next track can be selected

11 REPEAT:

USB/SD operation:

Activates the repeat function: Folder / Repeat 1 track/ random playback / repeat all tracks.

12 PLAY/PAUSE: Starts or pauses the playback.
13 WIRELESS VOL (Microphone volume): The volume that is used for making announcements can be adjusted via the microphone volume knob.
14 RF LED: illuminates when a wireless microphone is connected.

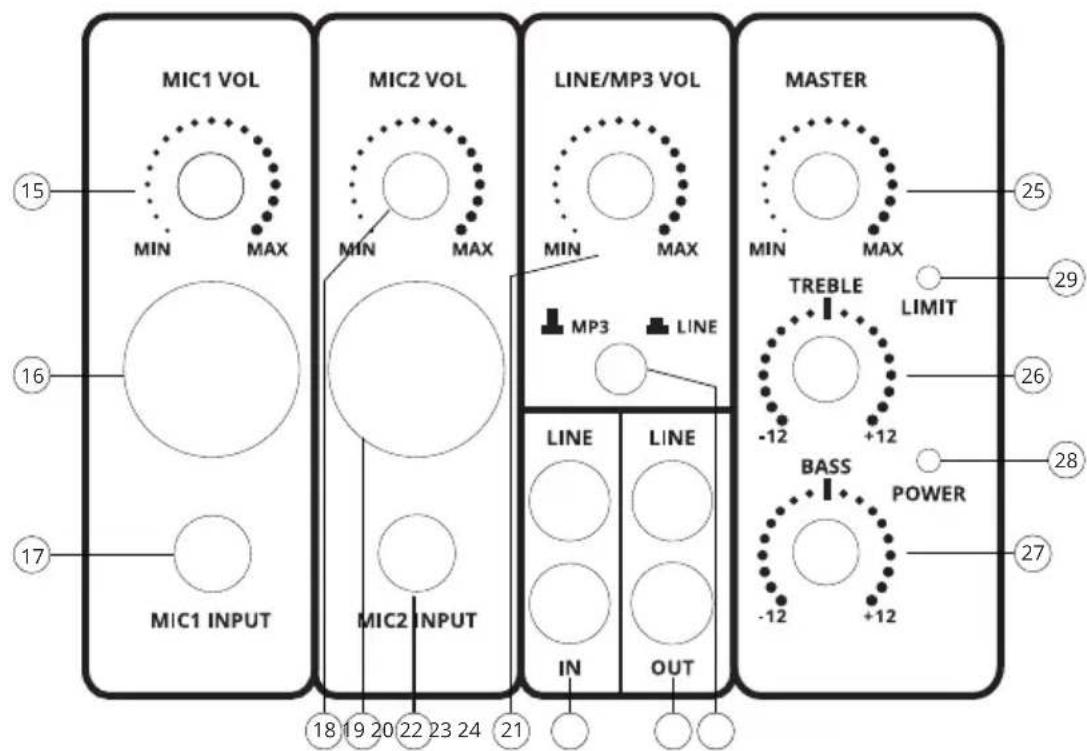

MASTER SETTINGS

15 MIC 1 VOL: Microphone volume control for microphone 1
16 XLR input for microphone 1
17 6.3mm jack for microphone 1
18 MIC 2 VOL: Microphone volume control for microphone 2
19 XLR input for microphone 2
20 6.3mm jack for microphone 2
21 LINE/MP3 master volume control
22 LINE input for external audio sources
23 Audio output (fixed level)
24 Switches between LINE IN and internal BT / MP3 player

25 Master-Volume of the PA 1500
26 Treble adjustment
27 Bass adjustment
28 POWER LED: Illuminates when the device is switched on.
29 LIMIT LED: illuminates in case of an acoustic overload. If necessary, reduce the Master Volume, Treble and Bass until the LED goes off.

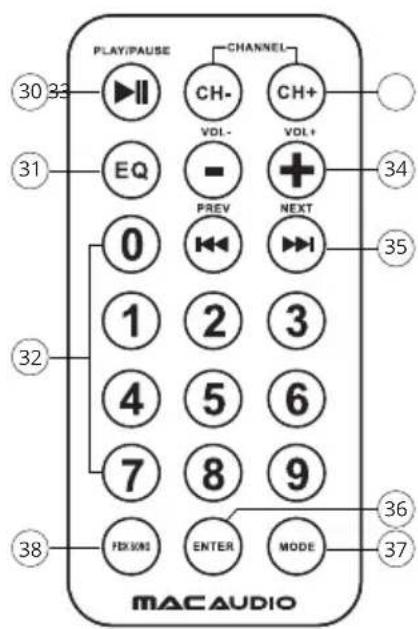

REMOTE CONTROL

30 PLAY/PAUSE: Starts or pauses the playback.
31 EQ: Use EQ to choose between the equaliser presets.
32 0-9 (numerical buttons):

USB/SD operation:

Direct selection of a track.

33 CH-/CH+

USB/SD operation:

Switches through the folders.

34 Volume - / + : Decreases / increases the volume (VOL 0-31 max).
35

MP3 playback:

Brief press: Jumps to previous/next track.

Press and hold: Rewinds/forwards the current track.

Bluetooth operation:

When the Bluetooth mode is used, the previous or next track can be selected.

36 ENTER (Repeat):

USB/SD operation:

Activates the repeat function: Repeat the album / repeat 1 track / random playback / repeat all tracks.

37 MODE: You can cycle through the various sources in the following order by repeatedly pressing the MODE button: USB, SD card and Bluetooth.
38 PICK SONG: No function.

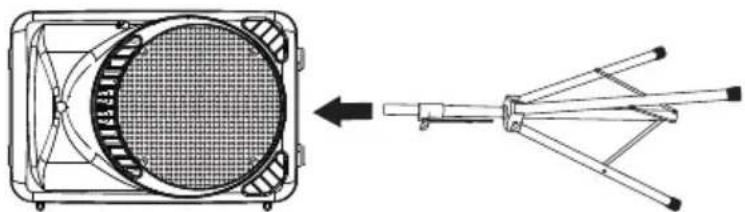

MOUNTING THE SPEAKER ON THE TRIPOD STAND

Important: For safety reasons, the installation of the PA 1500 should be carried out by 2 persons.

1. Put the PA 1500 on its side. Push the stand as far as it will go into the lower round opening.
2. Tighten the nut of the PA 1500 to lock the tripod tube.
3. Adjust the height of the tripod. Secure it with the help of the „Splint" against moving.
4. Slowly bring both the PA 1500 and the tripod into a standing position.

TECHNICAL SPECIFICATIONS

Phone Connectivity

Wireless Bluetooth® 3.0

Operating frequency

Microphone: 212.6 MHz

Bluetooth module: 2402-2480 MHz

Maximum power transmitted acc. EN 62311/EN 62479

Microphone: 0.49 dBm

Bluetooth module: 0.12 dBm

Drivers

380mm/15" woofer, 38mm/1.5" tweeter

VHF wireless microphone

Modulation mode: FM

Frequency: VHF 212.6 MHz

Frequency response: 80 - 18000Hz(+ / - 3dB) ,SNR: >80 dB

Power supply: 2 × 1.5V (2 x AA battery)

Power consumption: 120mA(+/-20mA)

VHF wireless receiver

Modulation mode: FM

Frequency: VHF 212.6 MHz

Sensitivity: -95 dB, S/N > 40 dB

Adjacent channel rejection: >80 dB

Miscellaneous

Total power output 250 watts / 1000 watts peak power

Connections USB input, version 1.1 (5V/500mA), MP3 playback

SD card slot, MP3 playback

2 microphone inputs, 6.3mm jack

AUX input / AUX output (RCA)

Mains voltage 115V AC/60 Hz

230V AC/50 Hz

built-in mains adapter

Electricity consumption 200 W max.

Display/Settings 4 segment display (color: blue)

5x equalizer

Weight Loudspeaker: 21.5kg

Tripod stand: 2.3kg

Microphone: 0.2kg

Dimensions (whexd) Loudspeaker: 500 × 709 × 419 ~mm

Tripod stand: 1400 × 800 × 700 ~mm

Microphone: 240 × 50 × 50 ~mm

Accessories: Remote control incl. battery (1 x CR2025)

Wireless microphone (2 x AA batteries not included)

Tripod speaker stand

3 m power cord

Owner's manual

Subject to technical modifications.
