USER MANUAL MP 16.2 MAC AUDIO

We congratulate you on acquiring this MAC AUDIO Car Stereo Product. You are now the proud owner of a top high-quality car audio appliance, which we hope will give you many years of enjoyment.

Please read these instructions carefully so as to ensure optimum and disturbance-free functioning of the appliance. Technical modifications reserved.

is the ultimate complement to your car stereo system. The speakers are designed to reproduce the overall frequency range linearly and as dynamically as possible. The speaker system should be connected to your car radio or an additional car stereo amplifier, something we recommend in every case. Technical data plus tips and further advice are also contained in these instructions.

TECHNICAL DATA

MP 2.16 MP 2.13

Load capacity RMS / max.: 70 w / 140 w 60 W / 120 W

Impedance (nominal): 4 ohm 4 Ohm

Frequency range: 36 - 23 000 Hz 39 - 23 000 Hz

Cutoff frequency(-ies): 4000 Hz 4000 Hz

Response: 91 dB/w/m 91 dB/W/m

MP 69.4 MP 20.4

Load capacity RMS / max.: 100 w / 150 w 100 w / 150 w

Impedance (nominal): 4 ohm 4 ohm

Frequency range: 32 - 22 000 Hz 32 - 22 000 Hz

Cutoff frequency(-ies): 900 / 5000 / 12000 Hz 900 / 5000 / 12000 Hz

Response: 91 dB/w/m 91 dB/w/m

MP 16.2 MP 13.2

Load capacity RMS / max.: 65 w / 130 w 55 w / 110 w

Impedance (nominal): 4 ohm

4 ohm

Frequency range: 38 - 22 000 Hz 40 - 22 000 Hz

Cutoff frequency(-ies): 4000 Hz 4000 Hz

Response: 90 dB/w/m 90 dB/w/m

MP 10.2

Load capacity RMS / max.: 45 w / 90 w

Impedance (nominal): 4 ohm

Frequency range: 42 - 22 000 Hz

Cutoff frequency(-ies): 4000 Hz

Response: 89 dB/w/m

POSITIONING AND SECURING THE SPEAKER SYSTEM (FIG. 1)

Use the mounting positions provided in your vehicle. If the speakers do not fit, they can be placed in the rear window shelf.

Fig. 1

(1) Depth
(2) Driver diameter

Fig. 1A

(1) Use mounting ring to mark position of speaker opening and fastening holes
(2) Cut out opening and drill holes

Make sure that the subwoofer is secured in such a way that it cannot slip or slide. Use the screws provided for this purpose. Damage resulting from sudden changes in speed (e.g. hard braking) is not covered under the terms of our guarantee.

CONNECTING TO THE RADIO / AMPLIFIER (FIG. 2)

The speaker system should preferably be connected to an external power amplifier. This can provide the required electrical power and create corresponding dynamic reserves. The relevant instructions also contain the customized connection diagram for the operation of a speaker system.

Should you not have a power amplifier, the speakers can also be connected directly to the radio. The relevant operating instructions also contain the connection diagram for this situation.

Fig. 2

(1) Connect to speaker
(2) Connect to amplifier
(3) Colour-coded

Please note that only limited dynamic reserves will be available in this case. Excessively low outputs combined with high distortions can destroy your speakers.

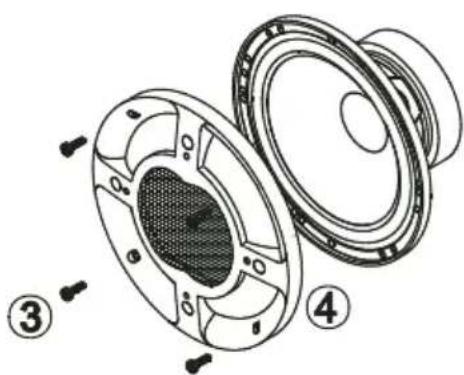

INSTALLING THE GRILLE (FIG. 3)

(1) Mounting surface
(2) Clamp-on nut
(3) Mounting screws
(4)Grille

TRÉS CHER CLIENT,

Fréquence(s) séparatrice(s): 4000 Hz 4000 Hz

Sensibilité: 91 dB/W/m 91 dB/W/m

MP 69.4 MP 20.4

Puissance admissible RMS/max.: 100 W / 150 W 100 W / 150 W

Fréquence(s) séparatrice(s): 4000 Hz 4000 Hz

Sensibilité: 90 dB/W/m 90 dB/W/m

MP 10.2

Puissance admissible RMS/max.: 45 W / 90 W

Fréquence(s) séparatrice(s): 4000 Hz

Scheidingsfrequentie(s): 4000 Hz 4000 Hz

Gevoeligheid: 91 dB/W/m 91 dB/W/m

MP 69.4 MP 20.4

Belasthaarheid RMS/max.: 100 W / 150 W 100 W / 150 W

Impedantie (nominaal): 4 ohm 4 ohm

Frequeniebereik: 32 - 22 000 Hz 32 - 22 000 Hz

Scheidingsfrequentie(s): 900 / 5000 / 12000 Hz 900 / 5000 / 12000 Hz

Gevoeligheid: 91 dB/W/m 91 dB/W/m

MP 16.2 MP 13.2

Belasthaarheid RMS/max.: 65 W / 130 W 55 W / 110 W

Impedantie (nominaal): 4 ohm 4 ohm

Frequeniebereik: 38 - 22 000 Hz 40 - 22 000 Hz

Scheidingsfrequentie(s): 4000 Hz 4000 Hz

Scheidingsfrequentie(s): 4000 Hz

Impedenza (nominate): 4 Ohm

DITT NYA HÖGTALARSYSTEM......

Woofer plugs:
pln: 4.8x0.5mm
ground: 2.8x0.5mm

Tweeter plugs:
pln: 2.8x0.5mm
ground 2.8x0.5mm

red/rot pln/plus black/schwarz ground/masse

Fig. 2
MP 2.13 / 2.16

Fig. 3

1

D

Congratulations! You have made a wise selection in becoming the owner of a MAC AUDIO HiFi equipment. Due to high quality MAC AUDIO HiFi products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 3-years warranty for MAC AUDIO HiFi products.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your MAC AUDIO HiFi equipment, kindly observe the following:

1. The 3-years guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequent damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that the component is packed in original factory packing in good condition the quality control card has been filled out and enclosed with the component your enclose your receipt as proof of purchase.

5. Excluded from the guarantee are: • Illuminates • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force. • Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us. • Consequential damages to other equipments.

6. Reimbursement of cools, without our prior consent, when repairing damages by third parties.

F

Toutes nos félicitations!

Name and address of the dealer/stamp

Käufer/Customer

Name/Name

Straße/Street

PLZ, Ort /City

Land/Country

Kaufdatum/buying date

No warranty without receipt!
