Thank you for choosing the Mac Audio MMC 800.

Please read the following information carefully before starting to use the MMC 800.

IMPORTANT SAFETY PRECAUTIONS

• Please read the instruction manual carefully before use and keep it in a safe place.
• This device is only intended for use with 100 - 240 V / 50/60 Hz AC voltage.
• Only operate the device at an ambient/room temperature between 10^ and 40^ .
• Make sure there is sufficient ventilation for the device. There must be a minimum gap of 10 cm between objects to the side, to the rear and above the device.
• The ventilation slots should not be covered by any items (e.g. curtains, newspaper, etc.) in order to ensure sufficient ventilation for the device. Please do not position any sources of heat, such as radiators, ovens, naked flames or other devices that generate heat in close proximity to the device.
• The device and the remote control should not be exposed to dripping or splash water or high levels of humidity.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• No objects filled with liquids, such as vases, shall be places on the unit.
• In the event of contact with moisture or liquids remove the mains adapter immediately.
• Only clean the device using a dry cloth.
• Do not use any cleaning agents or chemical solvents when cleaning, as these could damage the surface of the device.
• Never open the device.
• The mains cable must always be suitable for operation and it should only ever be laid out in a manner that prevents it from being trodden on. It should not be pinched by objects either, as this can damage the cable. When using plugs and power strips it must be ensured that the cable is not kinked at the point where it emerges from the socket. Do not connect or remove the mains cable with damp hands.
• Do not connect or remove the mains cable with damp hands.
• The mains plug is used as the disconnecting device. Disconnecting devices shall remain readily operable.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat, such as sunshine, fire and the like.
  • Always refer to a qualified specialist for any maintenance or repair work.
• If the device is not going to be used for a prolonged period, remove the mains plug.
• Please remove the mains plug in the event of thunderstorms.

DAMAGE THAT MUST BE RECTIFIED BY A SPECIALIST:

If any of the following damage occurs, disconnect the device from the mains immediately and contact a specialist to conduct the repair work:

- Damage to the mains cable or the mains plug. A damaged cable should not be repaired, but must be replaced.

• If moisture or water has entered the device or foreign objects have fallen into the device.
• If the device has fallen and the housing is damaged.
• If the device does not work properly, even though all of the information in the instruction manual has been observed.

Only those subsequent alterations approved by the manufacturer may be conducted.

Only original spare parts should be used for repair.

After conducting any repairs the safety of device should be checked to ensure it is functioning correctly and safely.

Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards.

This symbol warns the user that high voltage is used within the device which can result in electric shock.

This symbol makes the user aware that there are important notes in the enclosed instruction manual which must be observed.

WARNING:DO NOT OPEN! RISK OF ELECTRIC SHOCK!

To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.

This symbol informs the user that there is a class 1 laser operating inside the device which does not pose any hazardous threat outside the device.

DECLARATION OF CONFORMITY

Hereby, Magnat Audio-Produkte GmbH declares that the MMC 800 is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. The Declaration of Conformity can be found at http://www.mac-audio.de in the download area of the device.

INSTRUCTIONS FOR DISPOSAL

In accordance with European Directive 2012/19/EU all electrical and electronic appliances must be disposed of separately via local collection points. Please observe the local regulations and do not dispose of your old appliances with normal household waste.

BATTERY DISPOSAL

Old batteries are hazardous waste and must be disposed of in accordance with current regulations.

MAC AUDIO MMC 109 18 17 16 15 14 1 2 3 4 5 6 7 8 13 12 11 10 9 Barbott

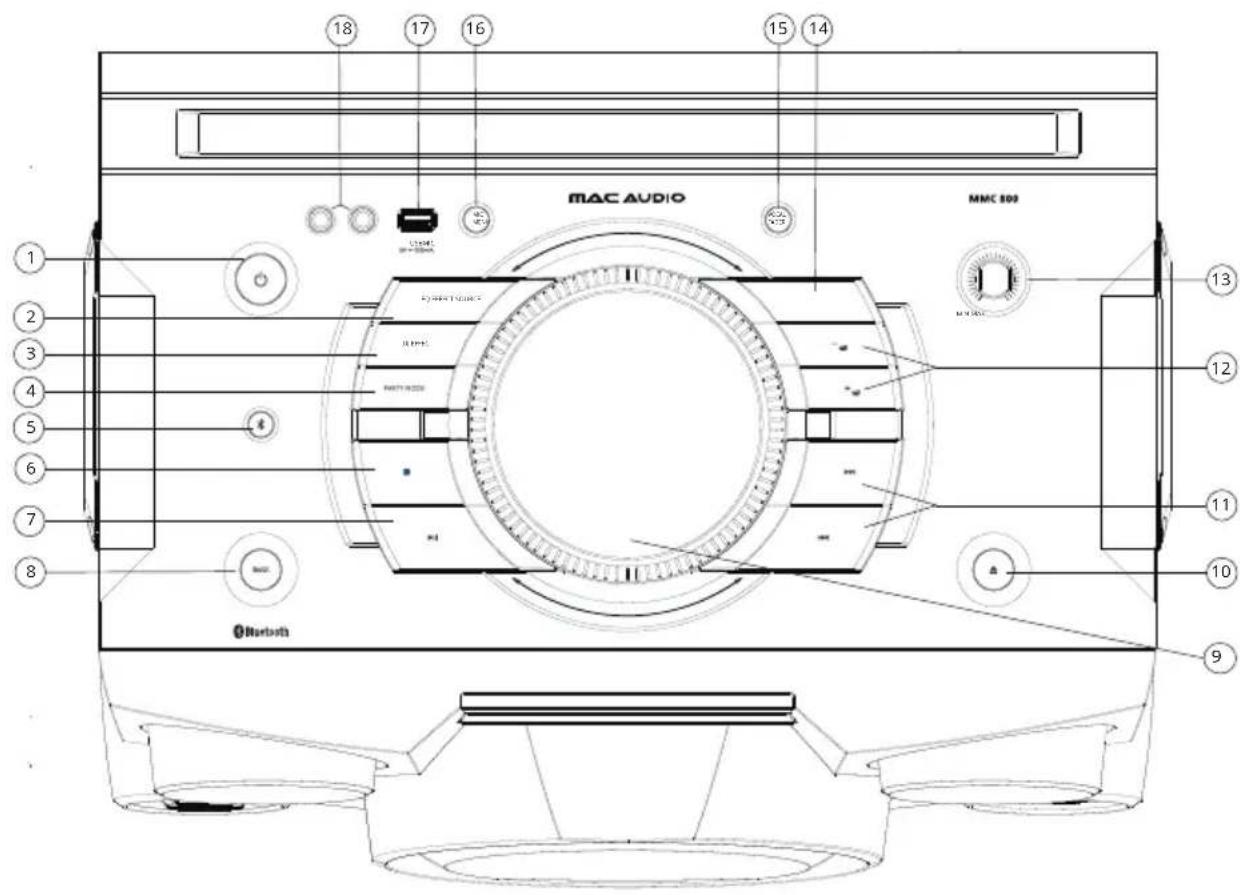

1 ON/STBY: Switches the device on when it is in the standby mode. Conversely the device can be switched from power operation to the standby mode.
2 Preset equalizers: Use EQ to choose between the equaliser presets (Flat, Rock, Jazz, Classic and Pop).
3 DJ: The DJ function is only available if no microphone is connected! DJ function can be switched ON/OFF with the button. The DJ mode is adjustable between -12 till +12 and decrease or increase the music playback. Adjustment by volumen knob (9).
4 Party Mode: The party function switch On/ Off the rear RCA output. This rear RCA output have a fixed output level of 1.5 Vrms. This output can be connected i.e. with a AUX input of an receiver and give him the ability to playback the same audio signal like MMC 800.
5 BT: You can directly select BT source.

6 Stop knob:

FM operation:

Automatic station storing and search.

CD operation:

Press once: Stops the playback of the CD.

USB operation:

Press once: Stops USB playback.

Bluetooth operation:

Unpairs a paired phone.

Search for new Bluetooth sources with your phone or tablet. You will find the MAC AUDIO MMC 800. Connect your device with the MAC AUDIO MMC 800. If you are asked for a password, use "0000".

7 PLAY/PAUSE:

When playing MP3s via USB, this button can be used to start or pause playback.

8 Bass: The volume is boosted significantly incl. loudness function by pressing the Bass button. (If a microphone is connected the bass function is not available!).

9 Volume knob: Adjusts the volume. The volume is shown on the display (19). (VOL 00 - VOL 40/ max).

10 EJECT: Opens or closes the CD compartment.

11

The previous or next track can be selected by pressing these buttons briefly during MP3 playback. Pressing and holding these buttons will rewind or fast forward the track. Pressing and holding these buttons in the radio mode will switch through stored broadcasters. When the Bluetooth mode is used, the previous or next track can be selected.

12 +/- and Ordner +/-:

FM reception mode:

Short press: The reception frequency can be gradually increased or decreased manually.

Press and hold: Increases/decreases the receiving frequency automatically.

CD/USB mode:

Parent folders or sub-folders can be selected.

13 Microphone volume: The volume that is used for karaoke or making announcements can be adjusted via the microphone volume knob. Due to High-Power output MMC 800 the microphone volume is effective over 50 percent.

14 Source: You can cycle through the various sources in the following order by repeatedly pressing the Source button: CD, USB, Bluetooth, AUX and Radio.

15 Vocal Fader: The Vocal Fader function reduce high and mid frequencies of current playback source to increase the microphone understandability.

Note: The vocal fader function is only available with connected microphone!

16 Mic menu: The mic menu allow following adjustments:

- Echo 0 – 10 (0 no echo till 10 lots of echo). Some of the following adjustments require that ECHO is activated!

• RPT (Repeat) 0 – 10 (no till lots of repeat effect)
• DLY (Delay) Delay is adjustable between 0 - 20 seconds.
• REV (Reverb) Reverb can be adjusted between 0 - 10.
• TIM (Time Reverb) The time reverb can be adjusted between 0 – 15 seconds.
• FBC (Acoustic Feedback) The acoustic feedback adjustment 0 – 4 allow to reduce them.

Note: In case microphone values are adjusted very high it can happen at high volume that the speaker output signal will be switched off to avoid MMC 800 damages!

17 Input source USB: One USB storage devices can be connected to the MMC 800 for MP3 music playback.
18 Mic 1/Mic 2: Up to two microphones can be connected for singing karaoke or for making announcements (6.3 mm jack).

19/20 MAC AUDIO

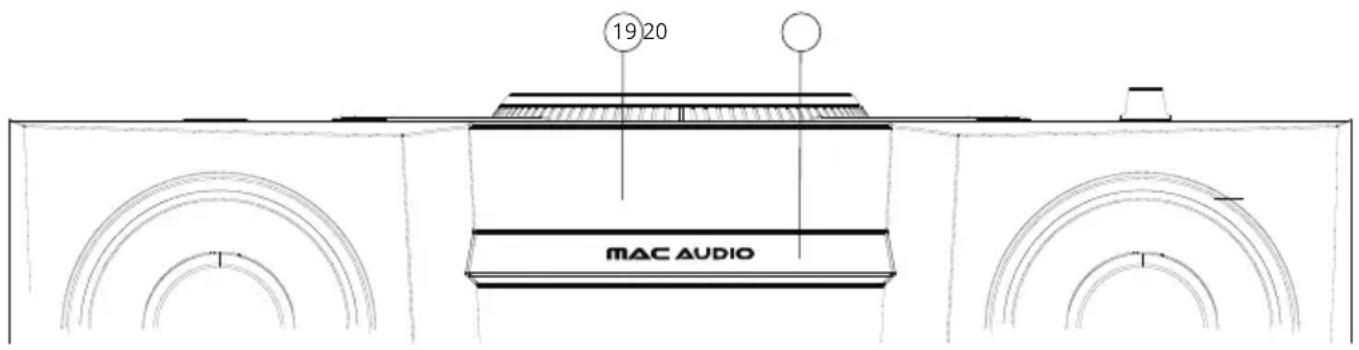

19 Display: Display of the currently selected function or display of the current playback time when playing MP3s.
20 CD COMPARTMENT: Insert the CD into the compartment with the label facing upwards.

REMOTE CONTROL ADDITIONAL FUNCTIONS REMOTE CONTROL

SOURCE LIGHT DJ SLEEP PARTY EQ VOCAL MIC MENU BASS - VOL- VOL+ TUNE TUNE + REPEAT RDS AUTO MAC AUDIO MMC 800 21 22 23 24 25

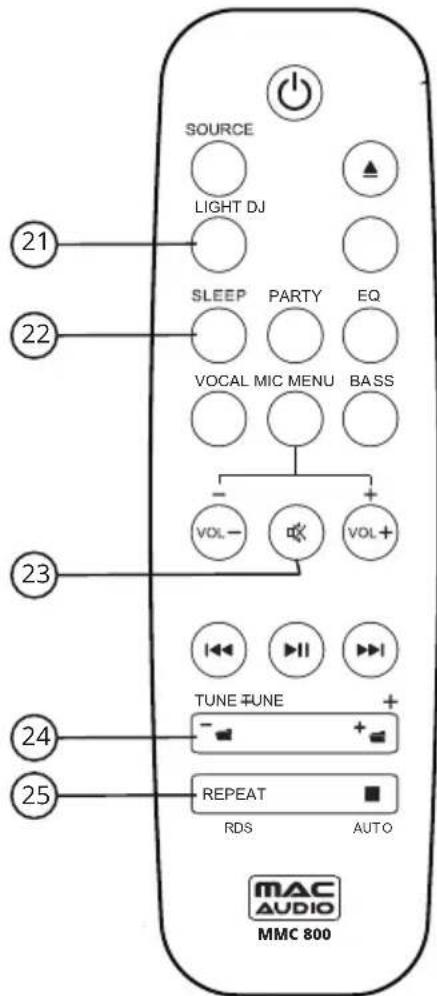

21 Light: Press the Light button to choose light effect. (Off, 1 = slow switching colors, 2 = faster switching colors, 3 = faster switching colors with flash effect).

22 SLEEP: The switch off function can be adjusted between OFF/10/15/30/45/60/90/120 minutes.

23 Mute: Switches the loudspeaker's audio on and off.

24 Tune - / Tune +:

FM reception mode:

Short press: The reception frequency can be gradually increased or decreased manually.

Parent folders or sub-folders can be selected.

25 RDS/REPEAT/SHUFFLE:

FM operation:

Switches between receiving frequency/Program Service (station name)/PTY (Program Type), Radio Text and CT (Clock Time), if supported by the station and/or the radio reception is sufficient.

CD operation:

Activates the repeat function: Repeat 1 track/repeat all tracks/random playback of the tracks on the CD/Off.

USB operation:

Activates the repeat function: Repeat 1 track/repeat the directory/repeat all tracks/random playback of the USB tracks/Off.

FM ANTENNA L R AUDIO AUX OUT IN 1 2

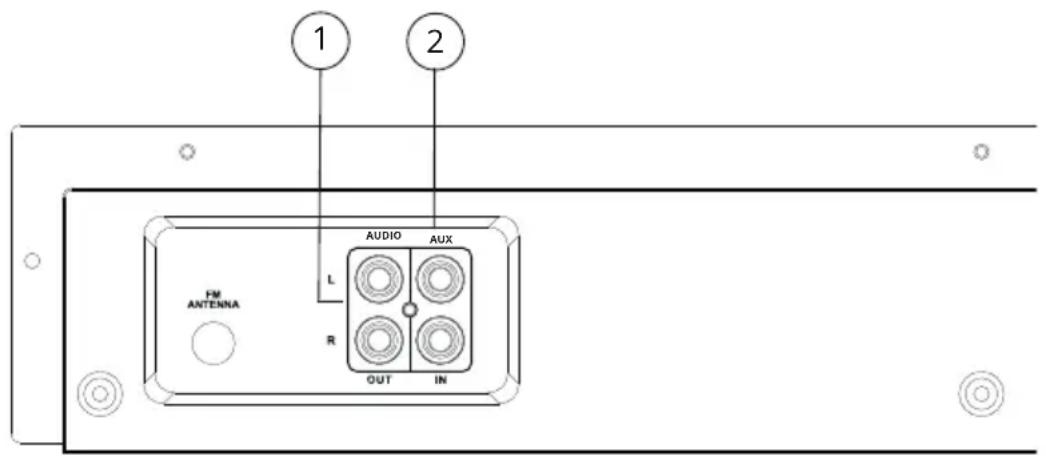

1 Party Mode: The party function switch On/ Off the rear RCA output. This rear RCA output have a fixed output level of 1.5 Vrms. This output can be connected i.e. with a AUX input of an receiver and give him the ability to playback the same audio signal like MMC 800.

2 AUX input: for external sources.

TECHNICAL SPECIFICATIONS

Phone Connectivity

Wireless Bluetooth® 2.1 with EDR (Enhanced Data Rate)

Operating frequency: 2402-2480 MHz

Maximum power transmitted acc. EN62479: 9.34 dBm

CD Player

Playable formats: CD/CD-R/CD-RW/MP3

USB

playable format: MP3 music

FM Tuner

FM RDS PLL Tuner (87.5 - 108 MHz)

30 station presets

FM 75 ohm antenna input

Drivers

1 x 8" woofer and 2 x 2" tweeter

Miscellaneous

Total power output 400 watts

Connections Top USB input: version 1.1 (5V/500mA) for MP3 playback

2 x karaoke microphone input (6.3 mm)

Rear AUX input (Cinch/RCA)

Audio-output (Cinch/RCA, fixed level 1,5 Vrms)

FM 75 ohm antenna input

Mains voltage 100 - 240 V AC/50 - 60 Hz, built-in linear power mains adapter

Electricity consumption 120 W

Standby: < 1.0 W

Display/Settings 5 digit display

5x equalizer

Weight 9.3 kg

Dimensions (wxhxd) 467 x 325 x 368 mm
