USER MANUAL SG1250 ABUS
Installation Guide
Thank you for purchasing this SOINT indoor siren. You made the right decision in choosing this state-of-the-art technology, which complies with the current standards of domestic and European regulations. The CE has been proven and all related certifications are available from the manufacturer upon request. To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instructions.
2. Features
The SOINT siren is designed for indoor use only.
The siren offers high sound pressure. Due to the signal frequency, it sounds extremely loud. It can be operated in two volume modes (90 or 110dB).
3. Precautions
Avoid rain and humidity. Do not use the siren in damp places.
The siren is designed for indoor use only.
Operate the siren only within the specified temperature and power ranges. Operating the siren outside the prescribed range can lead to reduced product life and early malfunction. Greatly exceeding the specified operating range can also result in immediate failure of the siren.
4. Connections
+12V Connect +12V here permanently.
-Hi Connect 0V here to activate the siren at maximum volume (approx. 110dBA).
-Lo Connect 0V here to activate the siren at a lower volume (approx. 90dBA).
-LED Connect 0V here to activate the LED.
Tamper Integrate this sabotage contact (NC contact) in the sabotage monitoring system of your alarm centre.
5. Description of siren


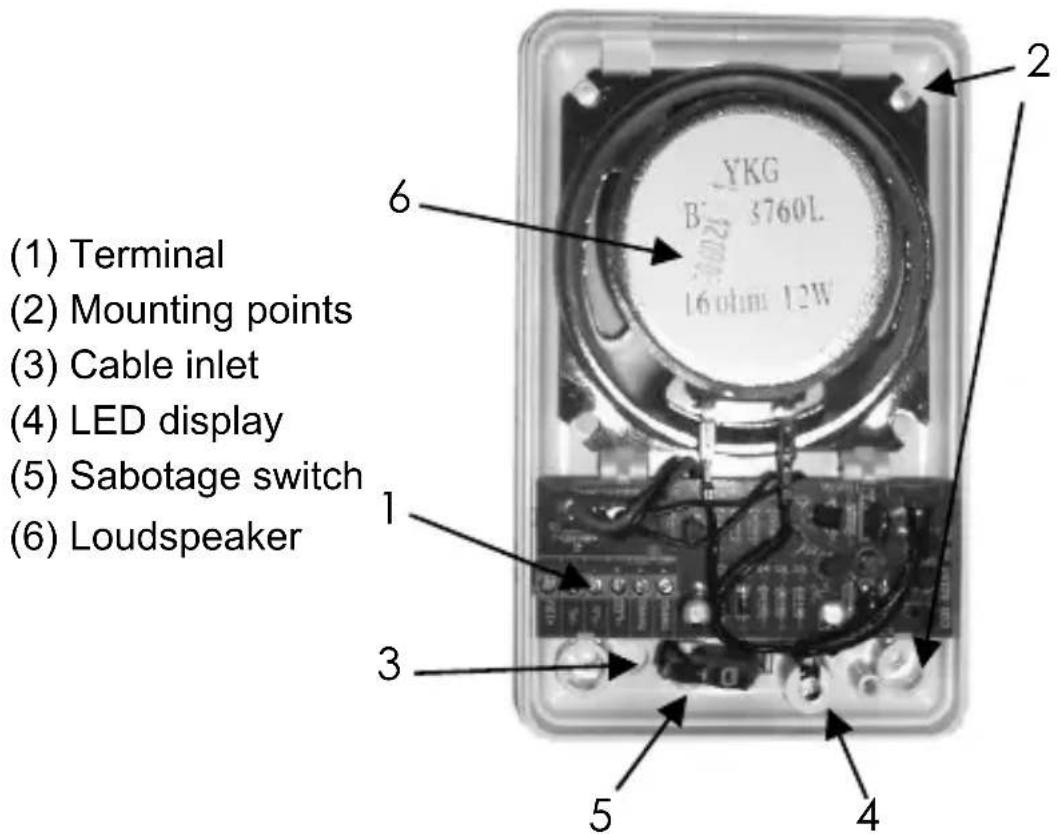

(1) Terminal (2) Mounting points (3) Cable inlet (4) LED display (5) Sabotage switch (6) Loudspeaker6. Technical data
| Model number SG1250 | |
| Volume | 90dBA110 dBA (high) |
| LED trigger Negative signal / 0V | |
| Siren trigger Negative signal / 0V | |
| Signal frequency 1.2 – 1.8 kHz | |
| Operating voltage 12V DC | |
| Power consumption 33mA @ 90dB (-Lo clamp)300mA @ 110dB (-Hi clamp) | |
| Tamper contact NC (normally closed) | |
| Dimensions (HxWxD) 155 x 100 x 48mm | |
| Ambient operating temperature | -10° – +50°C |
| Protection class IP54 | |
(low)
The manufacturer reserves the right to make technical modifications without prior notice.
This product complies with the requirements of the EU directive: 1995/5/EC “Directive on radio and telecommunications terminal equipment and the mutual recognition of their conformity”. The declaration of conformity can be ordered from:
