USER MANUAL Luna 35.1165.01 TFA

Thank you for choosing this instrument from TFA. Before you use this product

Please make sure you read the instruction manual carefully.

The operating instructions are enclosed with the device or can be downloaded at www.tfa-dostmann.de/en/ service/downloads/instruction-manuals

This product should only be used as described within these instructions.

Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these instructions.

Please take particular note of the safety advice!

Please keep this instruction manual safe for future reference.

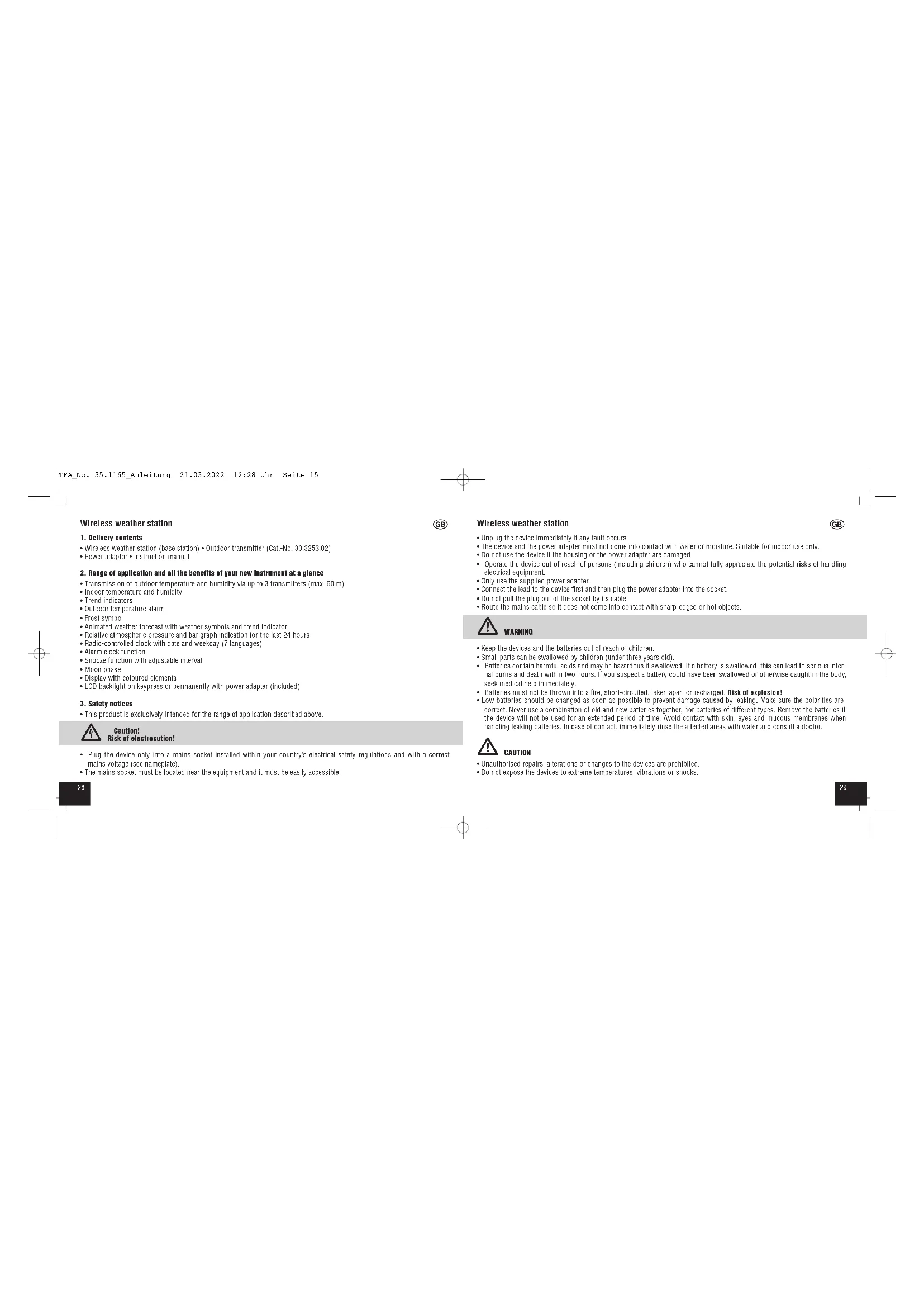

• Wireless weather station (base station) • Outdoor transmitter (Cat.-No. 30.3253.02)

• Power adaptor • Instruction manual

2. Range of application and all the benefits of your new instrument at a glance

• Transmission of outdoor temperature and humidity via up to 3 transmitters (max. 60 m)

• Indoor temperature and humidity

• Outdoor temperature alarm

• Animated weather forecast with weather symbols and trend indicator

• Relative atmospheric pressure and bar graph indication for the last 24 hours

• Radio-controlled clock with date and weekday (7 languages)

• Display with coloured elements

• LCD backlight on keypress or permanently with power adapter (included)

• This product is exclusively intended for the range of application described above. Caution! Risk of electrocution!

• Plug the device only into a mains socket installed within your country’s electrical safety regulations and with a correct mains voltage (see nameplate).

• The mains socket must be located near the equipment and it must be easily accessible. Wireless weather station

• Unplug the device immediately if any fault occurs.

• The device and the power adapter must not come into contact with water or moisture. Suitable for indoor use only.

• Do not use the device if the housing or the power adapter are damaged.

• Operate the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.

• Only use the supplied power adapter.

• Connect the lead to the device first and then plug the power adapter into the socket.

• Do not pull the plug out of the socket by its cable.

• Route the mains cable so it does not come into contact with sharp-edged or hot objects. WARNING

• Keep the devices and the batteries out of reach of children.

• Small parts can be swallowed by children (under three years old).

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious inter- nal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Never use a combination of old and new batteries together, nor batteries of different types. Remove the batteries if the device will not be used for an extended period of time. Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor. CAUTION

• Unauthorised repairs, alterations or changes to the devices are prohibited.

• Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.

• The base station is suitable for indoor use only. Protect it from moisture!

• The outdoor transmitter is splashproof, but not watertight. When placed outdoors, choose a dry place for the transmitter.

Wireless weather station (base station) A: Display (Fig. 1): Upper window (Forecast): A 1: Trend indicator A 2: Weather symbols A 3: Bar graph indication of A 4: Relative atmospheric pressure atmospheric pressure for the last 24 hours Middle right window (outdoor temperature and humidity): A 5: MAX/MIN values A 6: Trend indicator A 7: Outdoor temperature A 8: Outdoor humidity A 9: Frost symbol A 10: Upper/lower alarm level A 11: Symbol for temperature alarm A 12: Channel 1,2,3 A 13: Reception symbol for the transmitter A 14: Circle symbol for the alternating channel A 15: Battery symbol for the transmitter Lower window (time and date): A 16: DCF reception symbol A 17: Date/alarm time A 18: Moon phase A 19: Day of the week A 20: Snooze symbol A 21: Alarm symbol A 22: Daylight Saving Time symbol A 23: Time Middle left window (indoor temperature and humidity): A 24: MAX/MIN values A 25: Trend indicator Wireless weather station

A 26: Indoor humidity A 27: Indoor temperature A 28: Battery symbol for the base station B: Buttons (Fig. 2): B 1: SNOOZE/LIGHT sensor button B 2: SET/MODE button B 3: –/CH button B 4: LIGHT button B 5: + button B 6: ALARM button B 7: ALERT button B 8: MEM button C: Housing (Fig. 2): C 1: Battery compartment C 2: Stand C 3: Power adaptor connector D: Outdoor transmitter (Fig. 3): D 1: Temperature D 2: Battery symbol D 3: Humidity D 4: Channel number D 5: Reception symbol D 6: LED light D 7: Wall mounting hole D 8: °C/°F button D 9: TX button D 10: 1/2/3 switch D 11: Battery compartment

• Remove the protective film from the display.

• Place the base station and the transmitter on a table at a distance of about 1.5 meters from each other. Avoid being close to possible sources of interference such as electronic devices and radio equipment.

• Open the battery compartment at the back of the base station.

• Close the battery compartment.

• The device will alert you with a beep, all LCD segments will be displayed and the backlight will turn on for a short moment. The device is ready for use. The indoor temperature and humidity appear on the base station display.

• For a permanent backlight and to save battery life, use the supplied power adapter. Insert the power adapter pin into the device jack and connect the plug to a wall socket. Important! Make sure that your household voltage is no more than 240V! Otherwise your device may be damaged.

5.1 Inserting the batteries in the outdoor transmitter/Reception of outdoor values

• Slide down the battery compartment lid of the transmitter.

• Insert two new batteries 1,5 V AA into the battery compartment of the outdoor transmitter. Make sure the polarities are correct. The switch is set to channel 1. All LCD segments will be displayed for a short moment and the LED light flashes. The display shows the current temperature and humidity.

• Press the °C/°F button in the battery compartment of the transmitter, to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

• The base station automatically starts scanning the signals to register the outdoor transmitter at channel 1 after batteries are inserted. The reception symbol for the transmitter flashes.

• As soon as the base station receives the outdoor values, the values are permanently shown.

• If the reception of the outdoor values fails within three minutes, “- -” appears on the display. Check the batteries and try it again. Check if there is any source of interference.

• You can also start the outdoor transmitter search manually later on (for example when the outdoor transmitter is lost or the batteries are changed).

• Hold the –/CH button on the base station for three seconds.

• “- -” appears on the outdoor values display and the reception symbol for the transmitter flashes. Press the TX button in the transmitter's battery compartment.

• After a successful installation close the battery compartment of the outdoor transmitter carefully.

5.2 Reception of the DCF frequency signal

• A few minutes after start-up the clock will scan the DCF frequency signal and the DCF symbol flashes. Wireless weather station

• When the time code is successfully received after 3-7 minutes, the radio-controlled time, the date, the day of the week and the DCF symbol will be shown steadily on the display.

• The DCF reception always takes place at 1:00, 2:00 and 3:00 o'clock in the morning. If the signal is not successfully received, another DCF reception will take place the next full hour (up to 5 times).

• You can also activate the DCF reception manually. Press and hold the + button for 3 seconds.

• The DCF reception symbol flashes.

• Interrupt the reception by pressing the + button again. The DCF reception symbol disappears.

• Important: The device cannot be operated during the DCF time-signal reception. To avoid interference, the backlight turns off during the reception of the radio-controlled clock.

• There are 3 different reception symbols: flashing symbol – reception is active flashing – signal is found solid – reception is successful

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually.

• The clock will then work as a normal quartz clock (see: Manual settings).

5.3 Note on radio-controlled time

• The time is transmitted from an atomic clock near Frankfurt am Main by a DCF-77 (77.5 kHz) frequency signal with a range of about 1,500 km. Your radio-controlled clock receives the signal, converts it and always shows the exact time. The adjustment of Daylight Saving Time and Standard Time is also automatic. In Daylight Saving Time DST is shown on the display.

• Avoid being close to possible sources of interference that may affect radio reception (see “Positioning of the base station and mounting of the transmitter”).

• During night-time, the atmospheric interference is usually less severe. A single daily reception is adequate to keep the accuracy deviation under 1 second. TFA_No. 35.1165_Anleitung 21.03.2022 12:28 Uhr Seite 173534 Wireless weather station

6.1.1 Battery operation

• Press the SNOOZE/LIGHT button to activate the backlight for 15 seconds.

6.1.2 Adapter operation: the backlight is activated permanently.

• Press the LIGHT button to adjust the brightness in 3 levels or to switch it off (HIGH (default) – MIDDLE – LOW – OFF).

• Press and hold the SET/MODE button in normal mode for three seconds to enter the setting mode.

• The temperature unit (°C = default) flashes on the display.

• Press the + or –/CH button to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

• Confirm the setting with the SET/MODE button.

• The next adjustable value flashes on the display.

• Use the + or –/CH button to make the desired setting.

• Confirm with the SET/MODE button and go to the next setting.

– Atmospheric pressure setting – Weather symbol setting (default: partly cloudy) Note

• The device will automatically quit the setting mode if no button is pressed for a few seconds.

• Press and hold the + or –/CH button in setting mode for fast mode.

• By default, the DCF reception is activated (ON) and after successful reception of the DCF signal no manual time setting is necessary.

• Once the DCF time reception is deactivated (OFF) the clock must be manually set.

• If the DCF reception is activated, the manually set time will be overwritten by the DCF time when the signal is received suc- cessfully.

6.2.2 Time zone setting

• In the setting mode you can make the time zone correction

• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

6.2.3 Day-of-week language setting

• In the setting mode you can choose the day-of-the-week language: German (GE), French (FR), Spanish (SP), Italian (IT), Dutch (DU), Danish (DA and English (EN).

6.2.4 Atmospheric pressure setting

• The relative atmospheric pressure is referred to the sea level’s pressure and has to be adjusted first to your local altitude. Ask for the current atmospheric pressure of your home area (Local weather service, Internet, optician, calibrated instru- ments in public buildings and airport). TFA_No. 35.1165_Anleitung 21.03.2022 12:28 Uhr Seite 183736 Wireless weather station

• For a correct weather forecast the actual weather conditions have to be set (see "weather symbol"). The weather forecast may be not accurate if the entered weather symbol is incorrect.

• OFF, AL and 6:30 (default) or the last adjusted alarm time appear on the display.

• Press and hold the ALARM button for 3 seconds.

• The hour digit starts to flash.

• Press the + or –/CH button to adjust the hours.

• Press the ALARM button again and set minutes in the same way.

• Press the ALARM button again. Press the + or –/CH button to adjust the minutes (5 to 60) for the snooze function or to switch it off (OFF).

• Press the ALARM button again to return to normal mode.

• Press the ALARM button in normal mode, to activate (ON) or deactivate (OFF) the alarm function. The alarm symbol appears/disappears on the display.

• When the alarm is activated, the alarm starts to ring when the set alarm time is reached. The alarm symbol flashes on the display.

• Press briefly any button (except SNOOZE/LIGHT) or press and hold the SNOOZE/LIGHT button and the alarm will stop.

• If the alarm is not stopped manually, the alarm tone automatically turns off after two minutes and will be reactivated at the same set time in the following day. The alarm symbol remains on the display.

• When the alarm rings, press the SNOOZE/LIGHT button and the snooze function is activated.

• Zz flashes and the alarm will be interrupted for the set time.

• Press briefly any button (except SNOOZE/LIGHT) or press and hold the SNOOZE/LIGHT button and the snooze function will stop. Wireless weather station

8. Temperature and humidity

8.1 Trend indicators

• The trend arrows indicate whether the values for temperature and humidity are increasing, steady or decreasing. Temperature/humidity are increasing Temperature/humidity are stable Temperature/humidity are decreasing

8.2 Maximum and minimum values

• Press the MEM button in normal mode. MAX and the highest temperature and humidity values (IN and OUT) are displayed since the last reset.

• Press the MEM button again and MIN and the lowest temperature and humidity values (IN and OUT) are displayed since the last reset.

• Press the MEM button once more to go back to the current values display.

• The device will automatically quit the MAX/MIN mode if no button is pressed

• Press and hold the MEM button for 3 seconds to clear all recorded readings (display - -).

8.3 Setting of the outdoor temperature alarm

• The symbol for the lower alarm limit and -40°C (default) or the last adjusted lower outdoor temperature limit flashes on the display.

• Press the + or –/CH button to set the desired lower limit.

• Confirm the setting with the ALERT button to return to normal mode.

• Press the ALERT button in normal mode, to activate or deactivate the alarm function. The temperature alarm symbol appears on the display, if the alarm is activated.

• In the event of an alarm, the corresponding symbol (upper or lower alarm limit) will be flashing and an alarm tone will sound 5 times per minute.

• Stop the alarm sound with any button.

• The alert symbol continues to flash until the measured value is within the alarm limits.

• On the display flashes the symbol for frost, when the outdoor transmitter shows an outdoor temperature between -1°...3°C (30...37°F).

• The weather station has 6 different weather symbols: sunny partly cloudy cloudy rainy strong rain snow

• The weather forecast covers a range of 12 hours and indicates only a general weather trend. For example, if the current weather is cloudy and the rain symbol is displayed, it does not mean the product is faulty because it is not raining. It sim- ply means that the air pressure has dropped and the weather is expected to get worse but not necessarily rain. Wireless weather station

• The trend arrows on the display will show whether the atmospheric pressure is increasing, steady or decreasing. Atmospheric pressure is increasing Weather improvement Atmospheric pressure is steady Stable weather conditions Atmospheric pressure is decreasing Weather deterioration

9.3 Developing of atmospheric pressure

• The bar graph indication of atmospheric pressure shows the last 24 hours.

• “●” in the middle of this scale is equal to the current pressure and each change (±2, ±4, ±6) represents how high or low in "hPa" the past pressure was compared to the current pressure.

• If the bars go down, it means the atmospheric pressure has dropped and the weather is expected to get worse.

• If the bars are rising it means that the weather is getting better.

11. Positioning of the base station and mounting of the transmitter

• The base station can be placed onto any flat surface with the stand at the back.

• It is recommended to keep a distance of at least 2 metres to possibly interfering sources (TV, computer, microwave, wire- less phones, baby monitors) and large metal objects (e.g. refrigerator).

• Do not use the base station in the vicinity of radiators, other sources of heat or in direct sunlight.

• The outdoor transmitter can be placed onto any flat surface or wall mounted at a chosen location with the mounting hole found at the back of the device. When placed outdoors, choose a shady and dry place for the transmitter. Direct sunlight may trigger incorrect measurement and continuous humidity damages the electronic components needlessly.

• Once the desired location is chosen, check whether the transmission from the transmitter to the base station is possible (transmission range of up to 60 m in open areas). Within solid walls, especially ones with metal parts, the transmission range can be reduced considerably.

• If necessary, choose another position for the outdoor transmitter and/or base station.

12. Additional outdoor transmitters (optional)

• When having more than one transmitter, select a different channel for each one with the 1/2/3 switch inside the transmit- ter's battery compartment. Insert two new AA 1.5 V batteries, polarity as illustrated. Start the base station operation or the manual search for the outdoor transmitters.

• For the manual search choose the respective channel by pressing the –/CH button on the base station. Press and hold the –/CH button for 3 seconds.

• “- -” appears on the outdoor values display and the reception symbol for the transmitter flashes. Press the TX button in the corresponding transmitter's battery compartment. Wireless weather station

• The outdoor values and the channel number will be shown on the base station display. If you have installed more than one transmitter, press the –/CH button on the base station to change between the channels 1 to 3.

• You can also choose an alternating channel display. Press the –/CH button again and after the last registered channel (1 to

3) a circle symbol will appear. To deactivate the function, press the –/CH button again.

• After a successful installation close the outdoor transmitter's battery compartments carefully.

13. Battery replacement

• Change the outdoor transmitter's batteries when the battery symbol appears on the outdoor values display of the base sta- tion or on the display of the transmitter.

• Change the base station batteries when the battery symbol appears on the indoor values display.

• Please note: When the batteries are changed, the contact between the outdoor transmitter and the base station must be restored – so always restart both devices or start a manual transmitter search.

Problem Solution No indication Battery operation: on the base station ➜ Ensure the batteries' polarities are correct ➜ Change the batteries Operation with power adapter: ➜ Connect the base station to the power adapter ➜ Check the power adapter No reception ➜ No outdoor transmitter is installed of the outdoor transmitter ➜ Check the outdoor transmitter's batteries Display “- -” (only use batteries/rechargeable batteries with 1.5V voltage!) ➜ Restart the outdoor transmitter and the base station according to the manual TFA_No. 35.1165_Anleitung 21.03.2022 12:28 Uhr Seite 214342 Wireless weather station

➜ Start the outdoor transmitter manual search according to the instruction manual ➜ Choose another place for the transmitter and/or the base station ➜ Reduce the distance between the transmitter and the base station ➜ Check if there is any source of interference. No DCF reception ➜ Activate DCF reception in setting mode (ON) ➜ Press and hold the + button for 3 seconds to activate the reception ➜ Choose another place for your device ➜ Wait for an attempt reception during the night ➜ Check if there is any source of interference ➜ Restart the instrument according to the manual ➜ Set the clock manually No permanent backlight ➜ Connect the base station to the power adapter ➜ Wait for the DCF signal reception ➜ Set the brightness with the LIGHT button Incorrect indication ➜ Restart the instrument according to the manual Battery operation: ➜ Change the batteries Indication: LL.L / HH.H ➜ Outside measuring range If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice.

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment. Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up. Wireless weather station

Disposal of the electrical device Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them sepa- rately. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end- of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. The return service is free of charge. Observe the current regulations in place! Disposal of the batteries Never dispose of empty batteries and rechargeable batteries with ordinary household waste. They contain pollu- tants which, if improperly disposed of, can harm the environment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The return service is free of charge. The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

Accuracy atmospheric pressure ±5hPa Range max. 60 m (open field) Transmission frequency 433 MHz Maximum radio-frequency power < 10mW Power consumption Base station: Power supply (included) Input: 100-240V AC 50/60Hz 0.3A Max Output: 5.0 V DC 0.6A, 3 W Average active efficiency: ≥69.64% No-load power consumption: ≤0.10 W 2 x AA 1,5 V batteries (not included) Outdoor transmitter: 2 x 1.5 V AA batteries (not included) Base station Dimensions 146 x 83 x 43 mm Weight 162 g (device only) Outdoor transmitter Dimensions 98 x 49 x 32 mm Weight 53 g (device only) Wireless weather station

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 35.1165 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de/service/downloads/ce www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, 97877 Wertheim, Germany Commercial registration number: Reg. Gericht Mannheim HRA 570186 03/22 TFA_No. 35.1165_Anleitung 21.03.2022 12:28 Uhr Seite 234746 Station météo radio-pilotée
