USER MANUAL BOXX2 60.2562.01.GB TFA

Thank you for choosing this instrument from TFA.

Before you use this product

- Please make sure you read the instruction manual carefully.

• The operating instructions are enclosed with the device or can be downloaded at
www.tfa-dostmann.de/en/service/downloads/instruction-manuals
• This product should only be used as described within these instructions.
- Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
- Please take particular note of the safety advice!
- Please keep this instruction manual safe for future reference.

B2B3B4B5 SET A V ALARM SNOOZE LIGHT B1C1 - 12 -

Fig. 3

B 6 B 7

ALUMIN WITH 1-2 5 USEH

B8

-13-

BOXX2 - Radio-controlled alarm clock with indoor climate

GB

1. Delivery contents

• Radio-controlled alarm clock
- Micro USB cable
• Instruction manual

1. Range of application and all the benefits of your new instrument at a glance

• Display of all days of the week (in English) with the current day highlighted
- Two alarm times can be activated individually for each day of the week
- Snooze function with adjustable interval
- Indication of indoor temperature and humidity
- Date optionally with year, calendar week of seconds
• Automatic backlight with light sensor
- ON/OFF SWITCH
- Integrated battery for charging via micro-USB cable (included)

1. For your safety

2. This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.
   • Unauthorized repairs, alterations or changes to the product are prohibited.

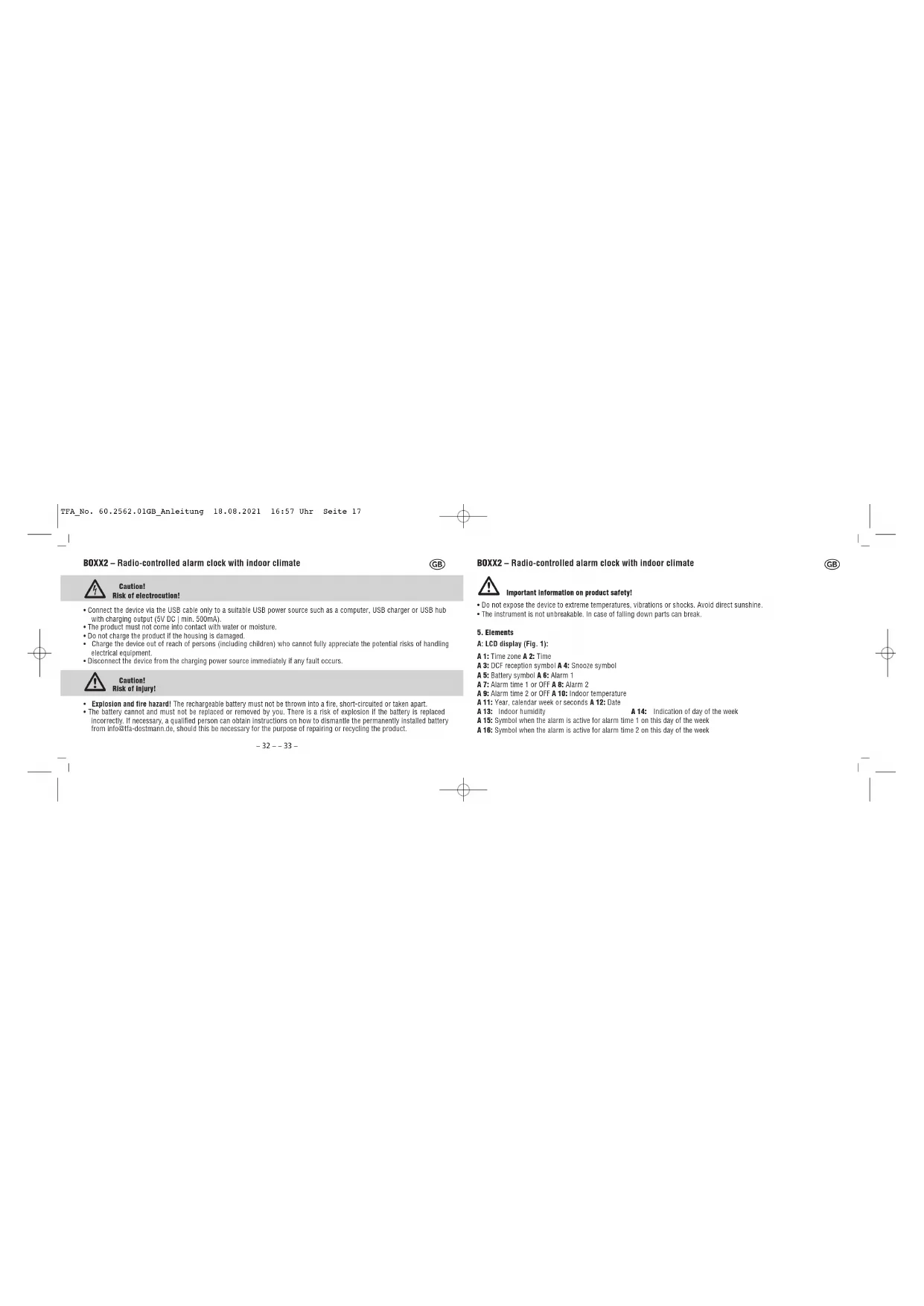

BOXX2 - Radio-controlled alarm clock with indoor climate

Caution! Risk of electrocution!

• Connect the device via the USB cable only to a suitable USB power source such as a computer, USB charger or USB hub with charging output (5V DC | min. 500mA).
  • The product must not come into contact with water or moisture.
• Do not charge the product if the housing is damaged.
• Charge the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.
• Disconnect the device from the charging power source immediately if any fault occurs.

Caution! Risk of injury!

• Explosion and fire hazard! The rechargeable battery must not be thrown into a fire, short-circuited or taken apart.
• The battery cannot and must not be replaced or removed by you. There is a risk of explosion if the battery is replaced incorrectly. If necessary, a qualified person can obtain instructions on how to dismantle the permanently installed battery from [e-mail], should this be necessary for the purpose of repairing or recycling the product.

-32--33

BOXX2 - Radio-controlled alarm clock with indoor climate

GB

Important Information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks. Avoid direct sunshine.
  • The instrument is not unbreakable. In case of falling down parts can break.

5. Elements

A: LCD display (Fig. 1):

A 1: Time zone A 2: Time
A 3: DCF reception symbol A 4: Snooze symbol
A 5: Battery symbol A 6: Alarm 1
A 7: Alarm time 1 or OFF A 8: Alarm 2
A 9: Alarm time 2 or OFF A 10: Indoor temperature

A 11: Year, calendar week or seconds A 12: Date

A 13: Indoor humidity A 14: Indication of day of the week

A 15: Symbol when the alarm is active for alarm time 1 on this day of the week

A 16: Symbol when the alarm is active for alarm time 2 on this day of the week

BOXX2 – Radio-controlled alarm clock with indoor climate

B: Buttons (Fig. 2-4):

B 1: SNOOZE/LIGHT button B 2: SET button

B 3: ▲ button

B 5: ALARM button B 6: ALARM 1 switch

B 7: ALARM 2 switch B 8: ALARM-MODE switch

B 9: POWER ON/OFF switch B 10: AUTO LIGHT ON/OFF switch

C: Housing (Fig. 2+4):

C 1: Light sensor C 2: USB 5V port

C 3: LED light

1. Charging

- The battery symbol appears when the battery needs to be charged (capacity ≤ 15% ).

- Please charge the device immediately to preserve battery life

- Insert the supplied USB cable with the micro-USB plug into the provided opening on the device. Connect the device via the USB cable only to a suitable USB power source.

- Do not apply excessive force when connecting the USB cable. The USB plug fits only one way into the USB port.

• To fully charge, leave the device connected for approximately 4 hours.

-34--35-

GB

BOXX2 - Radio-controlled alarm clock with indoor climate

GB

• The LED light indicates that the built-in rechargeable battery is charging. Once the light is off, the built-in rechargeable battery is charged.
• Disconnect the device from the charging power source.
• Do not leave the fully-charged device connected to the charging power source as this may shorten battery life.
  • Recharge the battery every six months, even if the product is not in use.
• Getting started
  • Before the first use, please charge it fully.
• Slide the POWER ON/OFF switch to ON.
• The device will alert you with a heap and all segments will be displayed for a short moment.
• The device will alert you with a beep and
• The backlight turns on for a short period.
  • The backlight turns on for a short period.
  7.1 Radio-controlled time reception
• The clock will now scan the DCF frequency signal and the DCF symbol flashes on the display. When the time code is successfully received after 3-7 minutes, the radio-controlled time, the date, the current day of the week and the DCF symbol will be shown steadily on the display.
• You can also start the initialization manually.
• Press and hold the ▼ button for 3 seconds.
  • The DCF reception symbol will be flashing.

BOXX2 – Radio-controlled alarm clock with indoor climate

• Interrupt the reception by holding and pressing the ▼ button again. The DCF reception symbol disappears.
  • The DCF reception always takes place daily at 1:00, 2:00 and 3:00 o'clock in the morning. If the reception is not success-
  fully received, another DCF reception will take place the next full hour (up to 2 times).
  • There are three different reception states:

Symbol flashing – reception is active

Symbol solid - reception is successful

no symbol – no reception/time was set manually

- If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually. The DCF reception symbol disappears and the clock will then work as a normal quartz clock (see: Manual settings).

Note on radio-controlled time

• The time is transmitted from an atomic clock near Frankfurt am Main by a DCF-77 (77.5 kHz) frequency signal with a range of about 1,500 km. Your radio-controlled clock receives the signal, converts it and always shows the exact time. The adjustment of Daylight-Saving Time and Standard Time is also automatic.
• Make sure to avoid the vicinity of any source of interference such as computer screens, TV sets or solid metal objects. Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.

-36--37-

BOXX2 - Radio-controlled alarm clock with indoor climate

- During night-time, the atmospheric interference is usually less severe. A single daily reception is adequate to keep the accuracy deviation under 1 second.

8. Operation

8.1 Manual settings

• Press and hold the SET button for three seconds to enter the setting mode.
  • The first adjustable value flashes on the display.
• Use the ▲ or ▼ button to make the desired setting.

• Confirm with the SET button and go to the next setting.
  • The sequence is shown as follows:

• DCF reception ON/OFF (default: DCF ON)
  -Time zone -12/+12 (default: ZONE OH)

• Snooze interval 5/10/15 minutes (default: ZZ 05)
• Optional display: Year (Y), calendar week (CW) or seconds (SEC), (default: Y)
• Hours. minutes
• Year, month, day

- Press and hold the ▲ or ▼ button in the respective setting mode for quick setting. The device will automatically quit the setting mode if no button is pressed for 20 seconds.

BOXX2 - Radio-controlled alarm clock with indoor climate

8.1.1 DCF reception

• By default, the DCF reception is activated (DCF ON) and after successful reception of the DCF signal no manual adjustment is necessary.
• Once the DCF time reception is deactivated (DCF OFF) the clock and the date must be manually set. No time zone will appear.
• If the DCF reception is activated, the manually set time will be overwritten by the DCF time when the signal is received successfully.

8.1.2 Time zone setting

• In the setting mode you can make the time zone correction
• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

8.1.3 Setting of the snooze interval

- You can set the snooze interval (5, 10 or 15 minutes) in the setting mode.

8.1.4 Setting of the optional display

- In the setting mode you can choose whether the year, the calendar week or the seconds are displayed next to the date.

-38--39-

BOXX2 - Radio-controlled alarm clock with indoor climate

8.2 Alarm clock function

8.2.1 Alarm time setting

• Press the ALARM button in normal mode to enter the alarm setting mode.
• 6:00 (default) or the last adjusted alarm time 1 appears on the display. The hour digits flash
• Press the ▲ or ▼ button to set the hours.
• Confirm the setting with the ALARM button.
• Press the ▲ or ▼ button to set the minutes.
• Confirm the setting with the ALARM button.
• 7:30 (default) or the last adjusted alarm time 2 appears on the display. The hour digits flash
• Alarm 2 can be adjusted in the same way.

8.2.2 Activate and deactivate the alarm

• To activate alarm 1 and / or 2, slide the respective ALARM switch forwards. When the alarm is activated, the alarm time appears in the upper (ALARM 1) or lower display (ALARM 2).
• To deactivate alarm 1 and / or 2, slide the respective ALARM switch backwards. When the alarm is deactivated, OFF appears in the upper (ALARM 1) or lower display (ALARM 2).

BOXX2 – Radio-controlled alarm clock with indoor climate

8.2.3 Activation of the alarm time for the days of the week

- Set the alarm type with the ALARM-MODE slide switch:

• Position 1-7: alarm times 1 + 2 activated daily
• Position 1-5: alarm times 1 + 2 activated from Monday to Friday
• Position USER: alarm time 1 + 2 activated on Saturday and Sunday (default setting) or individual setting
  Important note: In order for the alarm to ring, the alarm must be activated. Slide the ALARM switch 1 and 2 forwards.

8.2.3.1 Individual setting of the alarm time for all days of the week

• Press and hold the ALARM button in normal mode for three seconds.
  • The top weekday (MONDAY) flashes.
• With the SET button you can now select which alarm time is activated on Monday.

alarm

-40--41-

BOXX2 - Radio-controlled alarm clock with indoor climate

• With the ▲ or ▼ button you can now select the days of the week one after the other, and activate or deactivate the alarm times with the SET button.
• After completing the entries, confirm the setting with the ALARM button.

8.3 When waking

• When the alarm is activated, the alarm starts to ring when the set alarm time is reached. The corresponding alarm time 1 or 2 flashes on the display. There are two different alarm tones.
• Press briefly any button (except SNODZE/LIGHT) or press and hold and the SNODZE/LIGHT button and the alarm will stop.
• The alarm sound automatically turns off after 2 minutes if not stopped manually
• When the alarm rings, press the SNOOZE/LIGHT button shortly and the snooze function is activated.
• The backlight turns on for 5 seconds. The snooze symbol flashes on the display. The alarm will be interrupted for the set snooze interval.

9. Illumination

• Press the SNOOZE/LIGHT button. The backlight turns on for 5 seconds.
• Move the AUTO LIGHT ON/OFF switch to ON, a weak backlight turns on automatically as soon as the light sensor registers
• To deactivate the night backlight, slide the switch AUTO LIGHT ON/OFF to the position OFF.

BOXX2 - Radio-controlled alarm clock with indoor climate

10. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Turn off the device if you do not use it for a long period of time. Slide the POWER ON/OFF switch to OFF. Warning: The alarm settings are not saved.

• Store the device in a dry place.

• Troubleshooting
  Problem Solution

No display on the device	→ Slide the POWER ON/OFF switch to ON→ Charge the device via micro-USB cable
No DCF reception	→ Press and hold the ▼ button to activate the reception→ Wait for an attempt reception during the night→ Choose another place for your device→ Set the clock manually→ Check if there is any source of interference,→ Restart the instrument according to the manual

-42--43

GB

BOXX2 - Radio-controlled alarm clock with indoor climate

Alarm clock does not ring

→ Slide the ALARM switches 1 and 2 forwards

→ Activate the alarm for the day of the week

(see Activation of the alarm time for the days of the week)

If your device fails to work despite these measures, contact the retailer where you purchased the product.

12. Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment.
Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up.

Disposal of the electrical device

Caution! This device contains a built-in battery that cannot be removed without damaging the housing. Improper removal represents a safety risk. Hand in the device unopened at the collection point; the device and battery will be disposed of properly.

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

BOXX2 - Radio-controlled alarm clock with indoor climate

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. Observe the current regulations in place

WARNING!

Batteries containing lithium can explode

- Old batteries and rechargeable batteries containing lithium (Li=lithium) present a high risk of fire and explosion due to heat or mechanical damage with potentially serious consequences for people and the environment. Pay particular attention to correct disposal.

13. Specifications

Power consumption: Built-in Li-Ion rechargeable battery

Capacity / Energy 3.7V / 1200mAh

Charging power source Micro-USB 5V DC min 500mA

Accessories Charging cable (USB to Micro-USB)

BOXX2 - Radio-controlled alarm clock with indoor climate

Charging time About 4 hours

Battery runtime Up to 6 months (nightlight active and one alarm per day)

Measuring range

temperature 0 °C... +50°C

Accuracy temperature ±1.0 °C at 0 °C...39 °C. otherwise ±2 °C

Measuring range

humidity 10...99%RH

Accuracy humidity ±5%@25°C, 31...84%RH

Housing dimension 138 x 52 x 72 mm

Weight 205 g (device only)

BOXX2 – Radio-controlled alarm clock with indoor climate

GB

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU Declaration of conformity

Heroby, TFA, Dostmann declares that the radio equipment type 60.2562 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de/service/downloads/ce
