Product type	Petrol lawn mower
Brand	STIHL
Model	RM 4 RT
Engine	Kohler HD675, 4-stroke, 149 cm³
Power	2.2 kW (3.0 hp) at 2800 rpm
Cutting width	53 cm
Cutting height	5 adjustable positions from 30 to 70 mm
Tank capacity	1.4 L
Weight	35 kg
Drive type	Self-propelled (bar control)
Mulching	Yes, integrated
Guaranteed sound power level	93 dB(A)
Sound pressure level	79 dB(A)
Vibration level (handle)	3.20 m/s²
Fuel	Unleaded petrol
Engine oil	See Kohler HD675 engine manual
Blade	Steel, min. thickness 2.5 mm, min. width 55 mm
Replacement blade reference	6383 702 0100

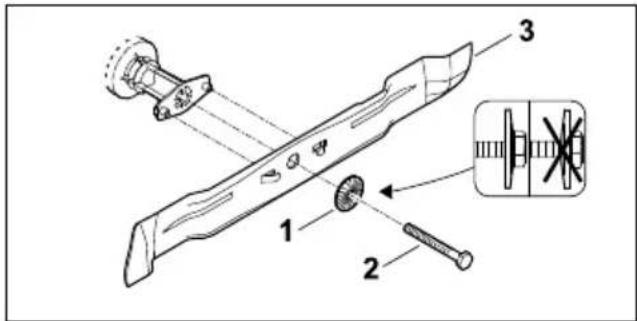

Blade fastening	Screw 9008 319 9075, washer 0000 702 6600

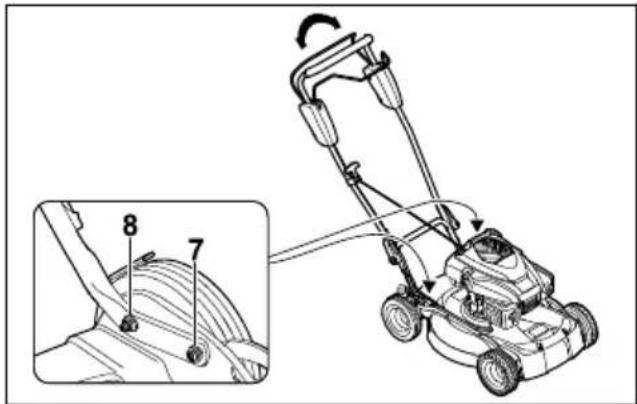

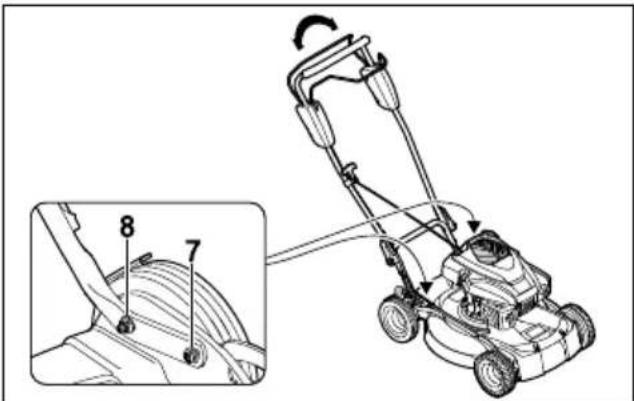

Handlebar	Foldable for storage

Frequently Asked Questions - RM 4 RT STIHL

How to start the STIHL RM 4 RT lawn mower?

Place the lawn mower on a flat surface. With one hand, hold the blade control bar against the handlebar. With the other hand, slowly pull the starter handle until you feel resistance, then pull quickly. The engine should start. Refer to the user manual for more details.

How to stop the lawn mower engine?

Simply release the blade control bar. The engine and blade stop within 3 seconds. Then leave the operator position.

What are the maximum and minimum cutting heights?

The cutting height is adjustable to 5 positions: 30 mm (position 1), 40 mm, 50 mm, 60 mm and 70 mm (position 5). Use the lever near the rear wheel to adjust.

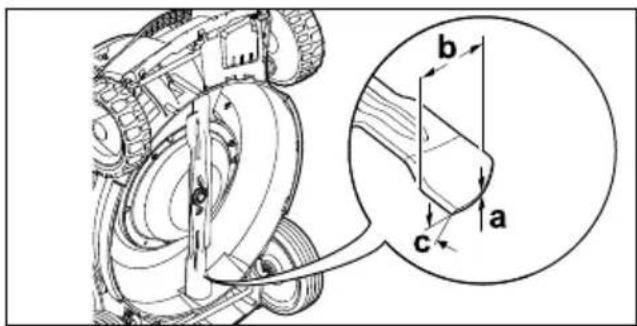

How to maintain the lawn mower blade?

For safety reasons, STIHL recommends having the blade sharpened and balanced by a specialist dealer. If you do it yourself, wear gloves, respect the cutting angle of 30° and let the blade cool down after sharpening.

What type of engine oil to use and how to check the level?

Use the engine oil specified in the Kohler HD675 engine manual. Before each start, check the oil level and top up if necessary. Never start without oil.

How to transport the lawn mower safely?

Stop the engine and wait for the blade to stop completely. Remove the spark plug connector. For two-person transport, use the front and rear handles. In a vehicle, secure the lawn mower on its four wheels.

What to do if the engine does not start?

Check that the blade control bar is pressed. Make sure the tank contains petrol and that the spark plug is clean and properly connected. Consult the troubleshooting table in the manual.

Is the lawn mower equipped with a safety device?

Yes, it has two control bars: one for mowing (stops engine and blade in less than 3 s) and one for drive. These bars must be held during operation.

How to clean the lawn mower after use?

Stop the engine and let it cool. Remove the spark plug connector. Clean the lawn mower with a damp cloth and a soft brush. To clean the blade, tilt the lawn mower to the vertical position after emptying the tank.

What is the cutting width of the RM 4 RT?

The cutting width is 53 cm, suitable for medium-sized gardens. The lawn mower is also suitable for mulching.

USER MANUAL RM 4 RT STIHL

Exterior view of a lawn mower with adjustable arm and wheels (no text or symbols visible)

Technical diagram of a lawn mower with numbered parts and an inset close-up view of the main body.

Technical diagram showing labeled mechanical components with numbered parts and directional arrows indicating motion or assembly.

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction or force.

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a lever mechanism and a motor.

Technical diagram of a mechanical device with labeled parts and an inset magnified view showing component 5, 6, and parts 2, 4.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being cut, including parts numbered 7 and 8.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion direction.

Line drawing of a person using a handheld device to lift a body (no text or symbols)

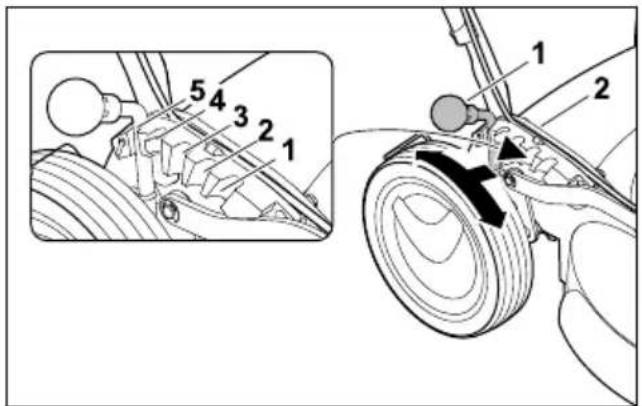

• 30 mm = Position 1
• 40 mm = Position 2
• 50 ~mm = Position 3
• 60 mm = Position 4
• 70 mm = Position 5

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main view.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

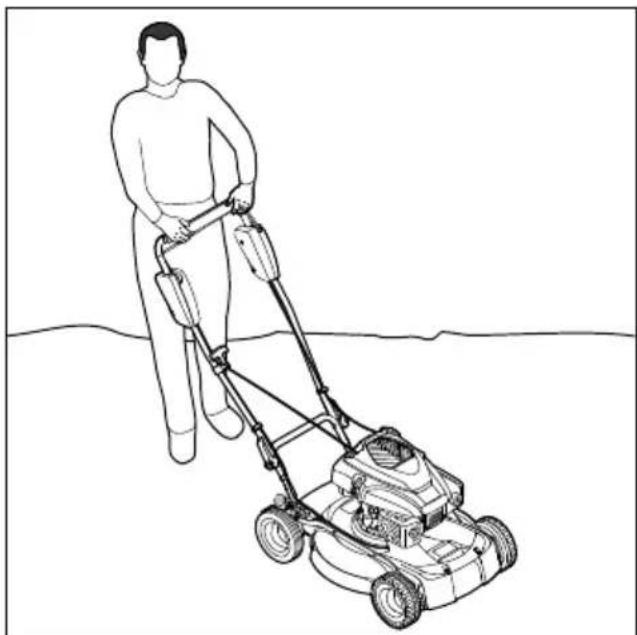

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

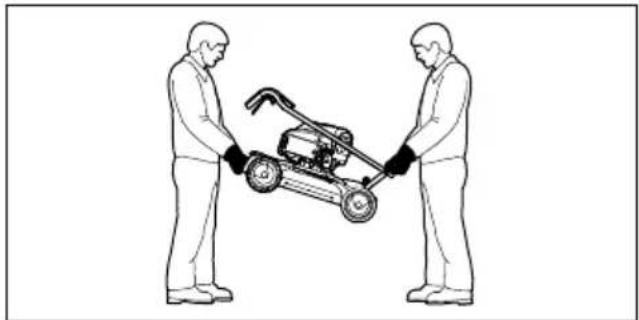

Line drawing of two workers operating a lawn mower (no text or symbols)

Line drawing of two workers operating a lawn mower (no text or symbols)

Technical diagram of a lawn mower with numbered parts labeled 1 through 5

Technical line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

Technical diagram of a mechanical assembly with labeled parts and cross-sectional view

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or machining process.

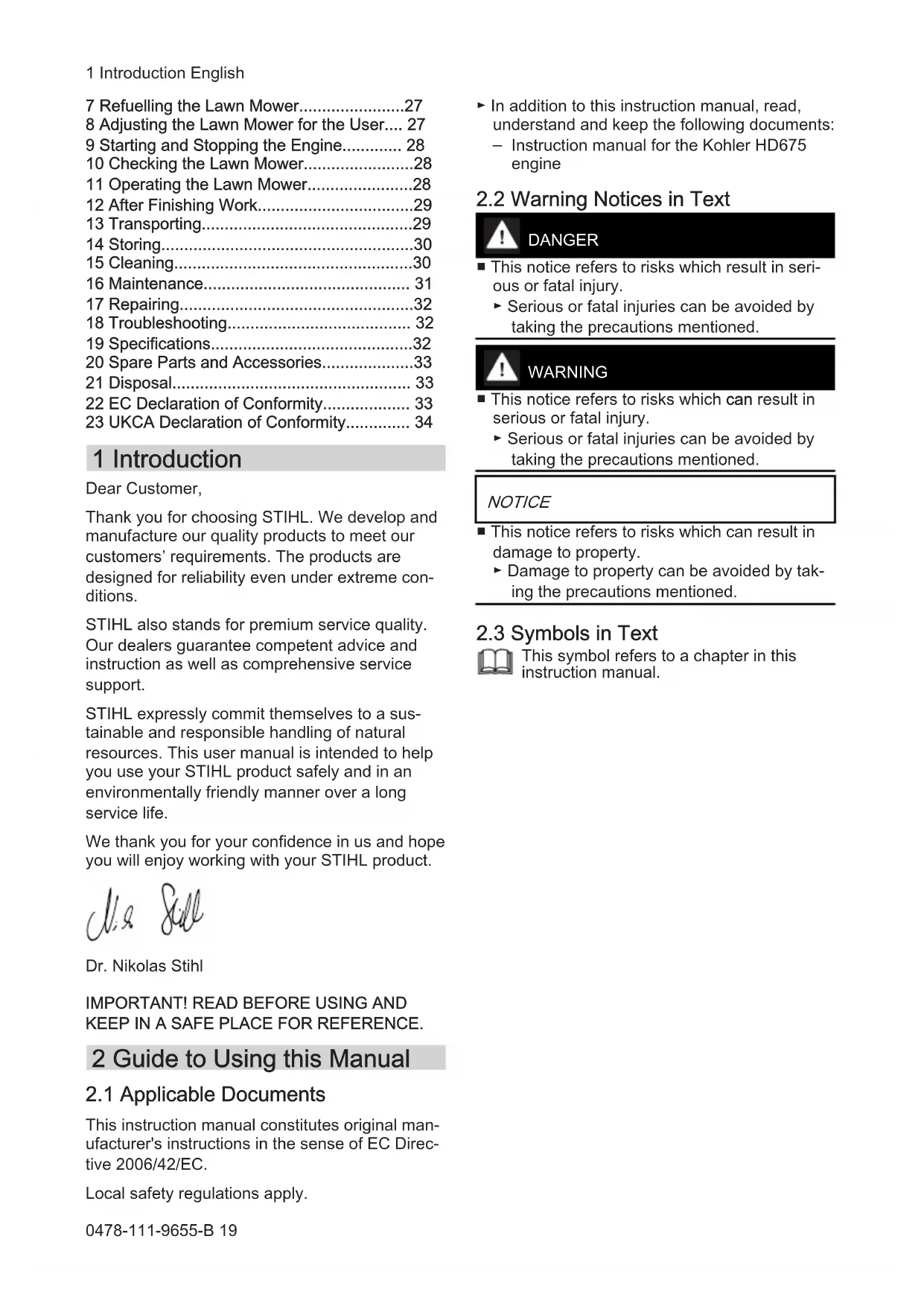

1 Introduction.... 19
2 Guide to Using this Manual....19
3 Overview.... 20
4 Safety Precautions....20
5 Preparing the Lawn Mower for Operation. 25
6 Assembling the Lawn Mower.... 26

1 Introduction English

7 Refuelling the Lawn Mower....27
8 Adjusting the Lawn Mower for the User.... 27
9 Starting and Stopping the Engine.... 28
10 Checking the Lawn Mower....28
11 Operating the Lawn Mower....28
12 After Finishing Work....29
13 Transporting....29
14 Storing....30
15 Cleaning....30
16 Maintenance.... 31
17 Repairing....32
18 Troubleshooting.... 32
19 Specifications....32
20 Spare Parts and Accessories....33
21 Disposal.... 33
22 EC Declaration of Conformity.... 33
23 UKCA Declaration of Conformity.... 34

1 Introduction

Dear Customer,

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.

STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support.

STIHL expressly commit themselves to a sustainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

N.a. Sill

Dr. Nikolas Stihl

IMPORTANT! READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE.

2 Guide to Using this Manual

2.1 Applicable Documents

This instruction manual constitutes original manufacturer's instructions in the sense of EC Directive 2006/42/EC.

Local safety regulations apply.

0478-111-9655-B 19

▶ In addition to this instruction manual, read, understand and keep the following documents:

– Instruction manual for the Kohler HD675 engine

2.2 Warning Notices in Text

DANGER

■ This notice refers to risks which result in serious or fatal injury.

- Serious or fatal injuries can be avoided by taking the precautions mentioned.

WARNING

■ This notice refers to risks which can result in serious or fatal injury.

- Serious or fatal injuries can be avoided by taking the precautions mentioned.

NOTICE

■ This notice refers to risks which can result in damage to property.

▶ Damage to property can be avoided by taking the precautions mentioned.

2.3 Symbols in Text

This symbol refers to a chapter in this instruction manual.

3 Overview

3.1 Lawn Mower

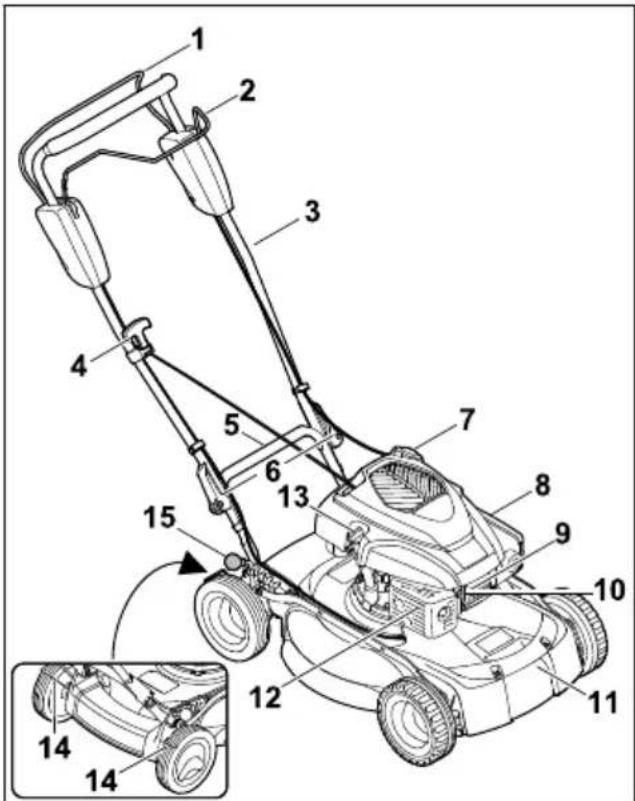

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

1 Control bar for mowing

The control bar for mowing is used to start and stop the engine.

2 Control bar for self-propulsion

The control bar for self-propulsion is used to start and stop the engine.

3 Handlebar

The handlebar is used to hold, guide and transport the lawn mower.

4 Starter handle

The starter handle is used to start the engine.

5 Rear transport handle

The transport handle is used to transport the lawn mower.

6 Quick-clamping devices

The quick-clamping devices clamp the handlebar to the lawn mower.

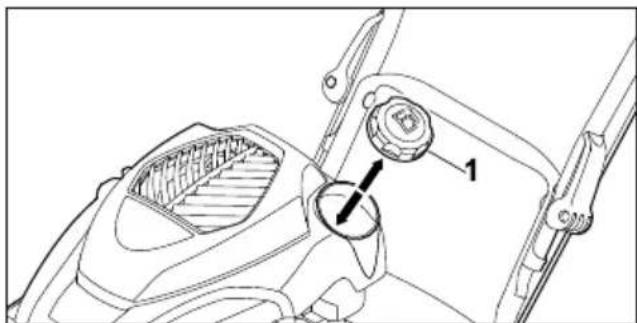

7 Fuel tank cap

The fuel tank cap seals the opening for adding petrol.

8 Filter cover

The filter cover provides protection for the air filter.

9 Spark plug socket

The spark plug socket connects the ignition lead to the spark plug.

10 Spark plug

The spark plug ignites the fuel/air mixture in the engine.

11 Front transport handle

The transport handle is used to transport the lawn mower.

12 Muffler

The muffler reduces the lawn mower's noise level.

13 Engine oil cap

The engine oil cap seals the opening for adding engine oil.

14 Wheel scraper

The wheel scraper is used to clean the rear wheels.

15 Lever

The lever is used to set the cutting height.

3.2 Symbols

The symbols can be on the lawn mower and have the following meaning:

This symbol indicates the lawn mower weight.

LWA

Guaranteed sound power level in accordance with Directive 2000/14/EC in dB(A) for the purpose of comparing the sound emissions of products.

This symbol identifies the fuel tank cap.

This symbol identifies the engine oil cap.

Start the engine.

Stop the engine.

Engage self-propulsion.

4 Safety Precautions

4.1 Warning Symbols

The warning symbols on the lawn mower have the following meaning:

Follow the safety instructions and their measures.

Read, understand and keep the instruction manual.

Observe the safety instructions on objects expelled at high speed by the lawn mower and their measures.

Do not touch a turning blade.

Detach the spark plug socket during transport, storage, maintenance or repair.

Maintain a safety distance.

4.2 Intended Use

The STIHL RM 4.0 RT lawn mower is used to mow grass.

WARNING

■ Failure to use the lawn mower as intended may result in serious or fatal injury to people and damage to property.
▶ Use the lawn mower as described in this instruction manual and in the engine instruction manual.

4.3 Requirements for the User

WARNING

■ Uninstructed users cannot recognise or evaluate the dangers posed by the lawn mower. This may result in serious or fatal injury to the user or other people.

- Read, understand and keep the instruction manual.

▶ If passing on the lawn mower to another person: provide them with the lawn mower and engine instruction manuals also.
- Make sure that the user meets the following conditions:
- The user is rested.
- The user is physically, sensorily and mentally capable of operating the lawn mower and working with it. If the user is physically, sensorily or mentally

impaired, the machine must only be used under supervision or following instruction by a responsible person.

• The user can recognise and evaluate the dangers posed by the lawn mower.
• The user is aware that they are responsible for accidents and damage.
• The user is of legal age or the user is being trained under supervision in a profession in accordance with national regulations.
• The user has received instruction from a STIHL specialist dealer or a competent person before using the lawn mower for the first time.
• The user is not impaired by alcohol, medicines or drugs.

▶ If anything is unclear: consult a STIHL specialist dealer.

4.4 Clothing and Equipment

WARNING

■ Objects may be thrown up at high velocity while working. This may result in injury to the user.

- Wear long trousers made from resistant material.

■ Noise is produced while working. Noise may damage the hearing.

▶ Wear hearing protection.

■ Dust may be stirred up while working. Breathing in dust may be harmful to health and cause allergic reactions.

▶ If dust is stirred up: wear a dust mask.

■ Unsuitable clothing may get caught on wood, briars and in the lawn mower. This may result in serious injury to the user.

▶ Wear close-fitting clothing.
▶ Remove scarves and jewellery.

■ The user may come into contact with the blade during cleaning, maintenance or transport. This may result in injury to the user.

- Wear work gloves made from resistant material.

■ Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user.

- Wear sturdy, closed-toed footwear with high-grip soles.

■ Material particles may be expelled when sharpening the blade. This may result in injury to the user.

▶ Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and

available commercially with the corresponding marking.

- Wear work gloves made from resistant material.

4.5 Work Area and Surroundings

WARNING

■ Bystanding people, children and animals cannot recognise or evaluate the dangers posed by the lawn mower and objects thrown up by the machine. This may result in serious injury to bystanding people, children and animals and damage to property.

- Keep bystanding people, children and animals out of the work area.

• Maintain a distance from objects.
• Do not leave the lawn mower unattended.
  ▶ Make sure that children cannot play with the lawn mower.

■ Hot exhaust gases are emitted from the muffler when the engine is running. Hot exhaust gases may ignite easily inflammable materials and cause fires.

- Keep the exhaust gas flow away from easily inflammable materials.

4.6 Safe Condition

4.6.1 Lawn Mower

The lawn mower is in safe condition when the following conditions are met:

– The lawn mower is undamaged.
- There is no petrol leaking from the lawn mower.
- The fuel tank cap is closed.
- There is no engine oil leaking from the lawn mower.
– The engine oil cap is closed.
- The lawn mower is clean.
- The controls are working and have not been modified.
– The blade is correctly attached.
- Genuine STIHL accessories for this lawn mower are attached.
– The accessories are correctly attached.
- Spring-loaded mechanisms are undamaged and working.
- The engine stops when the control bar for mowing is released.

WARNING

■ If not in safe condition, components may no longer operate correctly, safety devices may

be disabled and fuel may leak. This may result in serous or fatal injury to people.

▶ Do not use a damaged lawn mower.
▶ If there is petrol leaking from the lawn mower: do not use the lawn mower and consult a STIHL specialist dealer.

▶ Close the fuel tank cap.

▶ If there is engine oil leaking from the lawn mower: do not use the lawn mower and consult a STIHL specialist dealer.

▶ Close the engine oil cap.

▶ If the lawn mower is dirty: clean the lawn mower.

- Do not tamper with the lawn mower and its safety systems.

- Tampering with the lawn mower which increases the power output or the engine speed is forbidden.

▶ If the controls are not working: do not use the lawn mower.

▶ Spring-loaded mechanisms may release stored energy.

- Attach genuine STIHL accessories for this lawn mower.

- Attach the blade as described in this instruction manual.

▶ Attach accessories as described in this instruction manual or in the instruction manual for the accessories.

- Do not insert objects into the apertures in the lawn mower.

- Replace worn or damaged warning signs.

▶ If anything is unclear: consult a STIHL specialist dealer.

4.6.2 Blade

The blade is in safe condition when the following conditions are met:

– The blade and attachments are undamaged.
– The blade is not deformed.
– The blade is correctly attached.
– The blade is correctly sharpened.
- The blade is burr-free.
– The blade is correctly balanced.
- The minimum thickness and minimum width of the blade are not fallen below, 19.2.
- The sharpening angle is observed, 19.2.

WARNING

■ In unsafe condition, blade parts may come loose and be expelled. This may result in serious injury to people.

▶ Use an undamaged blade and attachments.
▶ Attach the blade correctly.
▶ Sharpen the blade correctly.

4 Safety Precautions English

▶ If the minimum thickness or minimum width is fallen below: replace the blade.
▶ Have the blade balanced by a STIHL specialist dealer.
▶ If anything is unclear: consult a STIHL specialist dealer.

4.7 Fuel and Refuelling

WARNING

■ The fuel used for this lawn mower is petrol. Petrol is extremely inflammable. If petrol comes into contact with an open flame or hot objects, it may cause fires or explosions. This may result in serious or fatal injury to people and damage to property.

▶ Protect petrol from heat and fire.
▶ Do not spill petrol.
▶ If petrol is spilled: wipe up the petrol with a cloth and wait until all parts of the lawn mower are dry before attempting to start the engine.
▶ Do not smoke.
▶ Do not refuel in the vicinity of flames.
▶ Before refilling the tank, stop the engine and allow it to cool.
▶ If the tank needs to be emptied: do this out of doors.
▶ Start the engine at least 3 m away from the refuelling site.
▶ Never store the lawn mower with petrol in the tank inside a building.

■ Breathing in petrol fumes may result in poisoning.

▶ Do not breathe in petrol fumes.

▶ Refuel in a well-ventilated place.

■ The lawn mower warms up while working. The petrol expands and overpressure may occur in the fuel tank. Petrol may gush out when the fuel tank cap is opened. The gushing petrol may ignite. This may result in serious injury to the user.

- Allow the lawn mower to cool down before opening the fuel tank cap.

■ Clothing that comes into contact with petrol is highly inflammable. This may result in serious or fatal injury to people and damage to property.

▶ If clothing comes into contact with petrol: change clothing.

■ Petrol poses a risk to the environment.

▶ Do not spill fuel.

- Dispose of petrol in accordance with regulations and in an environmentally acceptable way.

■ If petrol comes into contact with the skin or eyes, this may cause irritation.

- Avoid contact with petrol.

▶ In the event of contact with the skin: wash the affected areas with plenty of soap and water.

▶ In the event of contact with the eyes: rinse the eyes with plenty of water for at least 15 minutes and seek medical attention.

■ The lawn mower's ignition system generates sparks. Sparks may escape and cause fires and explosions in highly inflammable or explosive environments. This may result in serious or fatal injury to people and damage to property.

▶ Use the spark plugs described in the engine instruction manual.
▶ Screw in the spark plug and tighten.
▶ Press on the spark plug socket firmly.

■ The lawn mower may be damaged if it is refu-elled with petrol that is not suitable for the engine.

▶ Use fresh, good-quality unleaded petrol.

▶ Observe the specifications in the engine instruction manual.

4.8 Working

WARNING

■ The user may lose control of the lawn mower if they do not start the engine correctly. This may result in serious injury to the user.

- Start the engine as described in this instruction manual.

■ In certain situations, the user may no longer be able to concentrate on their work. This may result in the user stumbling, falling and becoming seriously injured.

▶ Work calmly and carefully.

▶ Only mow when visibility is good. Do not use the lawn mower if the light and visibility conditions are poor.

▶ Operate the lawn mower alone.

▶ Watch out for obstacles.

▶ Do not tilt the lawn mower.

▶ Work standing on the ground and maintain balance.

▶ If signs of fatigue occur: take a break.

▶ If mowing on a slope: mow across the slope.

▶ Do not work on slopes with an inclination greater than 25^ (46.6%).

▶ Use the lawn mower with particular care when working near slopes, terraces, ditches, rubbish piles and embankments.

English 4 Safety Precautions

- Plan your working times so that more severe physical strains over a longer period are avoided.

■ Exhaust gases are produced when the engine is running. Breathing in exhaust gases may result in poisoning.

▶ Do not breathe in exhaust gases.

▶ Use the lawn mower in a well-ventilated place.

▶ If nausea, headaches, vision problems, hearing problems or dizziness occur: stop working and consult a doctor.

■ If the user is wearing hearing protection and the engine is running, their perception and assessment of noise may be limited.

▶ Work calmly and carefully.

■ The lawn mower is equipped with a motorstop device.

▶ Releasing the control bar for mowing causes the engine and blade to stop within 3 seconds.

■ The turning blade may cut the user. This may result in serious injury to the user.

▶ Detach the spark plug socket.

▶ Do not touch a turning blade.

▶ If the blade is blocked by an object: stop the engine. Only then remove the object.

■ If working without self-propulsion when mowing, self-propulsion may unintentionally be engaged and the lawn mower may start moving. This may result in serious injury to people and damage to property.

▶ Only press the control bar for self-propulsion if self-propulsion is to be engaged.

■ If the lawn mower changes or starts to behave differently when working, it may not be in safe condition. This may result in serious injury to people and damage to property.

- Stop working and consult a STIHL specialist dealer.

■ The lawn mower may cause vibrations when working.

▶ Wear work gloves.

▶ Take breaks.

▶ If signs of a circulatory disturbance occur: consult a doctor.

- Inspect the mowing area and look out for obstacles. If the blade hits a foreign object when working, the foreign object or parts of it may be thrown up at high velocity. This may result in injury to people and damage to property.

▶ Remove foreign objects such as stones, sticks, wires, toys or other foreign objects from the working area. Mark hidden objects that cannot be removed.

■ When the control bar for mowing is released, the blade continues to turn for a short time. This may result in serious injury to people.

- Wait until the blade is no longer turning.

■ Sparks may be produced if the turning blade hits a hard object. Sparks may cause fires in highly flammable environments. This may result in serious or fatal injury to people and damage to property.

- Do not work in a highly flammable environment.

■ If the lawn mower is stopped on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to property.

▶ Only release the lawn mower if it is on a level surface and cannot roll away by itself.

■ If objects are attached to the handlebar, the additional weight may cause the lawn mower to tip over. This may result in injury to people and damage to property.

▶ Do not attach objects to the handlebar.

DANGER

■ If working near live wires, the blade may come into contact with the live wires and damage them. This may result in serious or fatal injury to the user.

▶ Do not work near live wires.

■ The user may be struck by lighting if working during a thunderstorm. This may result in serious or fatal injury to the user.

▶ Do not work during thunderstorms.

■ Working in the rain may cause the user to slip. This may result in serious or fatal injury to the user.

▶ Do not work when it is raining.

4.9 Transporting

WARNING

■ The lawn mower may tip over or move during transport. This may result in injury to people and damage to property.

▶ Stop the engine.

▶ Wait until the blade is no longer turning.

5 Preparing the Lawn Mower for Operation English

▶ Detach the spark plug socket.

- Secure the lawn mower on a suitable load floor with lashing straps, belts or a net so it cannot tip over and move.

■ The muffler and engine may be hot after the engine has been running. This may result in the user burning themselves when transporting the machine.

▶ Push the lawn mower.

■ The lawn mower is heavy. Attempting to carry the lawn mower without assistance may result in injury to the user.

▶ Wear work gloves.

▶ The lawn mower must be carried by two people.

4.10 Storing

WARNING

■ Children cannot recognise or evaluate the dangers posed by the lawn mower. There is a risk of serious injury to children.

▶ Stop the engine.

- Keep the lawn mower out of reach of children.

- Keep the lawn mower clean and dry.

■ If the lawn mower is kept on a sloping surface, it may unintentionally roll away. This may result in injury to people and damage to property.

▶ The lawn mower should only be kept on level surfaces.

4.11 Cleaning, Maintenance and Repair

WARNING

■ Having the engine running during cleaning, maintenance or repair may result in serious injury to people and damage to property.

▶ Stop the engine.

- Wait until the blade is no longer turning.

▶ Detach the spark plug socket.

■ The self-propulsion may be unintentionally engaged if the engine is running during cleaning, maintenance or repair. This may result in serious injury to people and damage to property.

▶ Stop the engine.

▶ Detach the spark plug socket.

■ The muffler and engine may be hot after the engine has been running. This may result in people burning themselves.

- Wait until the muffler and engine have cooled down.

■ Abrasive cleaning agents, using a water jet for cleaning or sharp objects may result in damage to the lawn mower or blade. If the lawn mower or blade is not cleaned correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serious injury to people.

- Clean the lawn mower and blade as described in this instruction manual, 15.2.

■ If the lawn mower or blade is not maintained or repaired correctly, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people.

▶ Replace worn or damaged parts.

▶ If the lawn mower needs to be maintained or repaired: consult a STIHL specialist dealer.

- Maintain the blade as described in this instruction manual.

■ The user may cut themselves on sharp cutting edges during blade cleaning, maintenance or repair. This may result in injury to the user.

- Wear work gloves made from resistant material.

■ The blade may become hot during sharpening. This may result in the user burning themselves.

▶ Wait until the blade has cooled down.

- Wear work gloves made from resistant material.

5 Preparing the Lawn Mower for Operation

5.1 Preparing the Lawn Mower for Operation

The following steps must be performed before commencing work:

▶ Make sure that the following components are in safe condition:

- Lawn mower, 4.6.1.

- Blade, 4.6.2.

▶ Clean the lawn mower, 15.2.

▶ Check the blade, 10.2.

English 6 Assembling the Lawn Mower

▶ Add engine oil, 16.2.
▶ Fold up and adjust the handlebar, 8.1.
▶ Refuel the lawn mower, 17.1.
▶ Set the cutting height, 1.2.
▶ Check the controls, 10.1.
▶ If the steps cannot be performed: do not use the lawn mower and consult a STIHL specialist dealer.

6 Assembling the Lawn Mower

6.1 Attaching the Handlebar

• Stop the engine.
  ▶ Detach the spark plug socket.
• Place the lawn mower on a level surface.

2 1

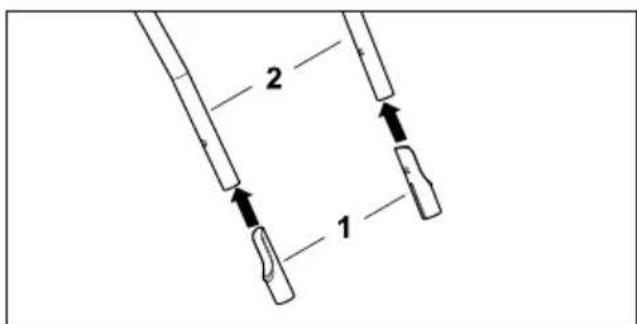

▶ Fit protective sleeves (1) onto upper handlebar (2) with the long side facing inwards.

Technical diagram showing labeled mechanical components with numbered parts and directional arrows indicating motion or assembly.

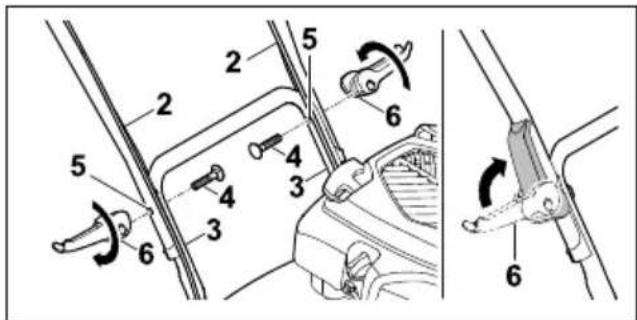

• Hold upper handlebar (2) against lower handlebar (3) so the bores align.
  ▶ Push bolts (4) through bores (5) from the inside to the outside.
  ▶ Screw in quick-clamping devices (6) at bolts (4) and fold upwards so quick-clamping devices (6) are pressed tightly against the handlebar.

8 9 a 7 a 7 7 CLICK

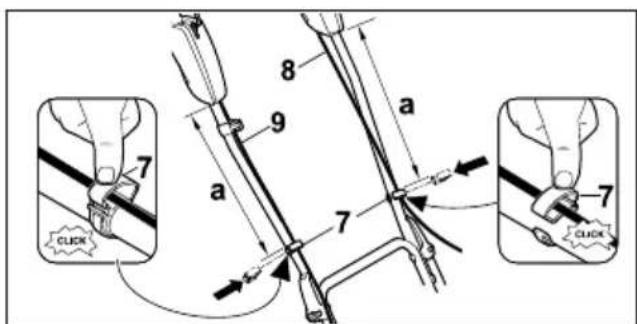

• Press cable clips (7) onto the upper handlebar.
  ▶ Insert cables (8 + 9) in cable clips (7).
• Close cable clips (7) and allow the tab to engage.
  ▶ Fasten motorstop cable (8) to the upper handlebar on the left using cable clip (7), maintaining the distance a = 42 - 44 cm.
  ▶ Fasten self-propulsion cable (9) to the upper handlebar on the right using cable clip (7), maintaining the distance a = 42 - 44 cm.

9 10

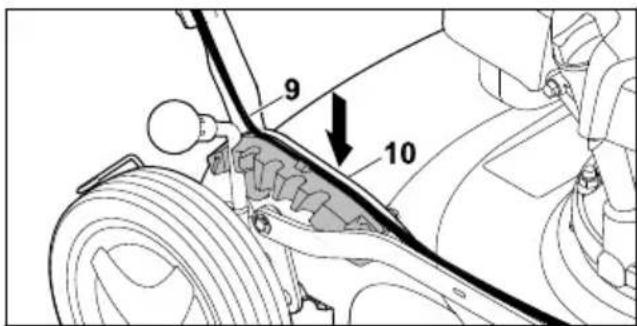

▶ Press self-propulsion cable (9) into guide (10) on the detent segment.

Technical diagram of a mechanical device with numbered components and an inset magnified view showing parts 11, 12, 13, and 14.

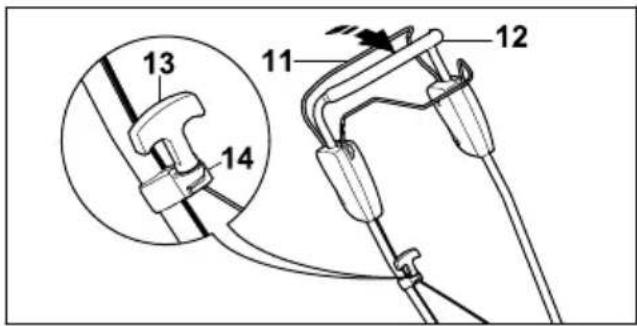

• Press control bar for mowing (11) to handle-bar (12) and hold.
• Slowly pull starter handle (13) in the direction of starter rope guide (14).
• Hook starter handle (13) into starter rope guide (14).
  ▶ Release control bar for mowing (11).
  ▶ Re-attach the spark plug socket.

6.2 Adding Engine Oil

The engine oil lubricates and cools the engine.

The engine oil specification and capacity can be found in the engine instruction manual.

NOTICE

■ The lawn mower does not contain any engine oil on delivery. Starting the engine with no or too little engine oil may damage the lawn mower.
▶ Always check the engine oil level before starting and if necessary top up.

7 Refuelling the Lawn Mower English

- Add the engine oil as described in the engine instruction manual.

7 Refuelling the Lawn Mower

7.1 Refuelling the Lawn Mower

NOTICE

■ The lawn mower may be damaged if the correct fuel is not used.

▶ See the engine instruction manual.

▶ Stop the engine.
- Place the lawn mower on a level surface.
- Clean the area around the fuel tank cap with a damp cloth.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

▶ Turn fuel tank cap (1) anti-clockwise until it can be removed.
▶ Remove the fuel tank cap.
▶ Add fuel using a suitable funnel, stopping at least 15 mm short of the fuel tank brim.
- Place the fuel tank cap on the fuel tank.
▶ Turn the fuel tank cap clockwise and tighten firmly by hand.

The fuel tank is sealed.

8 Adjusting the Lawn Mower for the User

8.1 Folding Up and Adjusting the Handlebar

▶ Stop the engine.
▶ Detach the spark plug socket.
- Place the lawn mower on a level surface.

Diagram illustrating a vehicle suspension system with labeled components and motion arrows

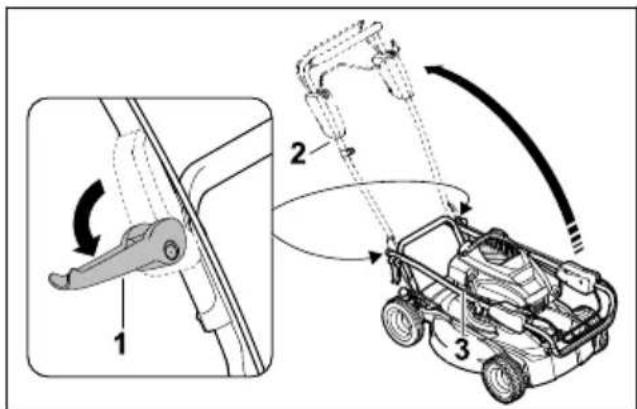

▶ Loosen quick-clamping devices (1) on the left and right.
▶ Fold up handlebar (2), ensuring that cables (3) are not trapped.
- Tighten quick-clamping devices (1) on the left and right.

Handlebar (2) is firmly attached to the lawn mower.

Technical diagram of a mechanical device with numbered components and an inset magnified view showing a component labeled 5, 6, and parts 2, 4.

• Press control bar for mowing (4) to handle-bar (2) and hold.
  ▶ Slowly pull starter handle (5) in the direction of starter rope guide (6).
• Hook starter handle (5) into starter rope guide (6).
  ▶ Release control bar for mowing (4).
  ▶ Re-attach the spark plug socket.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being cut, including parts numbered 7 and 8.

▶ Loosen nuts (7 + 8).
- Adjust the handlebar by moving it upwards or downwards and hold it in position.
▶ Tighten nuts (7 + 8).

The handlebar is firmly attached to the lawn mower.

8.2 Folding the Handlebar

The handlebar can be folded for space-saving transport or storage.

▶ Stop the engine.
▶ Detach the spark plug socket.
- Place the lawn mower on a level surface.
- Press the control bar for mowing to the handlebar and hold.

English 9 Starting and Stopping the Engine

• Detach the starter handle from the starter rope guide and slowly guide back towards the engine.
  ▶ Release the control bar for mowing.
• Hold the handlebar and loosen the nuts of the handlebar screw fastenings.
  ▶ Fold down the handlebar forwards.

9 Starting and Stopping the Engine

9.1 Starting the Engine

- Place the lawn mower on a level surface.

Technical diagram showing a mechanical device with labeled parts and directional arrows, including section 2.

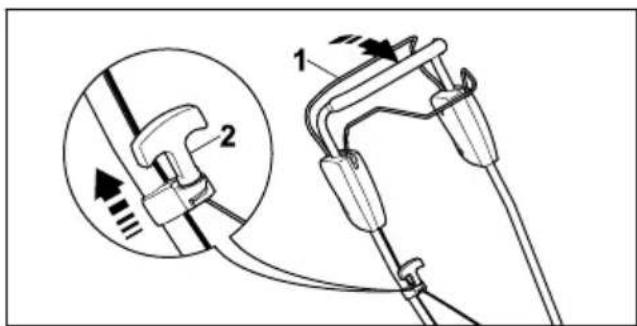

▶ Press control bar for mowing (1) to the handlebar with the left hand and hold.
▶ Slowly pull out starter handle (2) to the point of noticeable resistance with the right hand.
- Keep quickly pulling out and returning starter handle (2) until the engine is running.
▶ If the engine does not start: see the engine instruction manual.

9.2 Stopping the Engine

• Place the lawn mower on a level surface.
  ▶ Release the control bar for mowing. The engine stops.
  Leave the user position.

10 Checking the Lawn Mower

10.1 Checking the Controls

Control bar for mowing and control bar for self-propulsion

▶ Stop the engine.
▶ Pull the control bar for mowing and the control bar for self-propulsion fully in the direction of the handlebar and release again.
▶ If the control bar for mowing or the control bar for self-propulsion is stiff or does not spring back into the initial position: do not use the lawn mower and consult a STIHL specialist dealer.
The control bar for mowing or the control bar for self-propulsion is defective.

10.2 Checking the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower, 15.1.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing a close-up inset view.

▶ Measure the following:
- Thickness a
-Widthb
- Sharpening angle c
▶ If the minimum thickness or minimum width is fallen below: replace the blade, 9.2.
▶ If the sharpening angle is not correct: sharpen the blade, 19.2.
▶ If anything is unclear: consult a STIHL specialist dealer.

11 Operating the Lawn Mower

11.1 Holding and Guiding the Lawn Mower

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

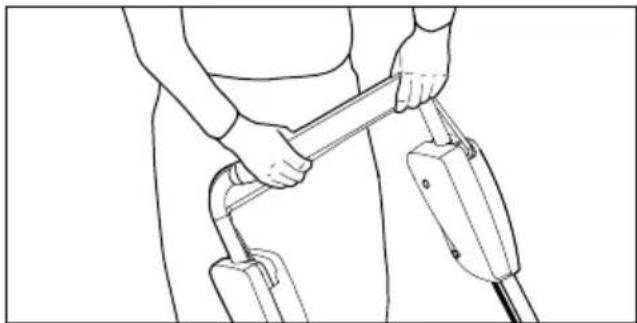

- Hold the handlebar with both hands so the thumbs enclose the handlebar.

11.2 Setting the Cutting Height

Five cutting heights can be set:

• 30 mm = position 1
• 40 mm = position 2
• 50 mm = position 3
• 60 mm = position 4
• 70 mm = position 5

Setting the cutting height

▶ Stop the engine.
The blade must not be turning.

- Place the lawn mower on a level surface.

12 After Finishing Work English

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main view.

▶ Press lever (1) outwards towards the rear wheel and hold in position.
▶ Move lever (1) to the desired position (2) and allow it to engage.

11.3 Switching the Drive On and Off

11.3.1 Engaging Self-propulsion

- Place the lawn mower on a level surface.

▶ Start the engine.

Technical line drawing of a mechanical clamp or connector with labeled component '1' (no text or symbols beyond label)

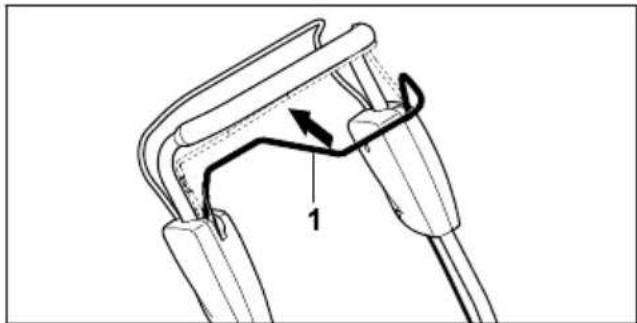

▶ Pull control bar for self-propulsion (1) fully in the direction of the handlebar and hold so the thumb encloses the handlebar. The lawn mower starts moving.

11.3.2 Disengaging Self-propulsion

• Release the control bar for self-propulsion.
• Wait until the lawn mower comes to a standstill.

11.4 Mulching

During mulching, the cut grass is chopped up several times through a special air flow guidance system in the mower blade area and then blown back into the turf. The clippings remain on the lawn surface where they partially decompose and serve as a natural fertiliser. To ensure a perfect, thick lawn, mulch regularly, removing one third of the grass height.

Requirements for good mulching results:

– Frequency: at least twice a week in the spring (main period of growth) and once a week in the summer and autumn.
- Mow the lawn when dry if possible.

• Use well-sharpened cutting blades.
• Select a low rate of feed.
• Vary the mowing direction and ensure that the mowing strips overlap.
  – Always mow very tall grass in stages.

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

▶ If working with self-propulsion engaged: drive the lawn mower forwards in a controlled manner.
▶ If working with self-propulsion disengaged: push the lawn mower forwards slowly and in a controlled manner.

12 After Finishing Work

12.1 After Finishing Work

▶ Stop the engine.
▶ If the lawn mower is wet: allow the lawn mower to dry.
▶ Clean the lawn mower.

13 Transporting

13.1 Transporting the Lawn Mower

▶ Stop the engine.
The blade must not be turning.
▶ Detach the spark plug socket.

Pushing the lawn mower

- Push the lawn mower forwards slowly and in a controlled manner.

Carrying the lawn mower

- Wear work gloves made from resistant material.

Two workers in protective gear handling a lawn mower (no text or symbols visible)

▶ If the lawn mower is being carried with the handlebar unfolded:

▶ One person holds the lawn mower by the front transport handle using both hands and another person holds the handlebar using both hands.
- The lawn mower must be lifted and carried by two people.

Two workers in protective gear handling a lawn mower (no text or symbols visible)

▶ If the lawn mower is being carried with the handlebar folded:

▶ Fold down the handlebar.
▶ One person holds the lawn mower by the front transport handle using both hands and another person holds the rear transport handle using both hands.
▶ The lawn mower must be lifted and carried by two people.

Transporting the lawn mower in a vehicle

- Secure the lawn mower upright so it does not tip over and cannot move.

14 Storing

14.1 Storing the Lawn Mower

• Stop the engine and allow it to cool down.
  ▶ Detach the spark plug socket.

• Store the lawn mower in accordance with the following conditions:

• The lawn mower is out of reach of children.

• The lawn mower is clean and dry.
• The lawn mower cannot tip over.
• The lawn mower cannot roll away.

If the lawn mower is to be stored for more than three months:

▶ Run the fuel tank empty.

▶ Have the fuel tank cleaned by a STIHL specialist dealer.
▶ Change the engine oil as described in the engine instruction manual.
▶ Unscrew the spark plug.

WARNING

■ Sparks may escape if the starter handle is pulled out while the spark plug socket is detached. Sparks may cause fires and explosions in highly flammable or explosive environments. This may result in serious or fatal injury to people and damage to property.

- Keep the spark plug socket away from the spark plug opening.

▶ Pull out and return the starter handle a number of times.
▶ Screw in the spark plug and tighten firmly.

15 Cleaning

15.1 Upending the Lawn Mower

▶ Run the fuel tank empty.
The engine stops.
- Place the lawn mower on a level surface.
▶ Set the cutting height to position 1, ☐1.2.

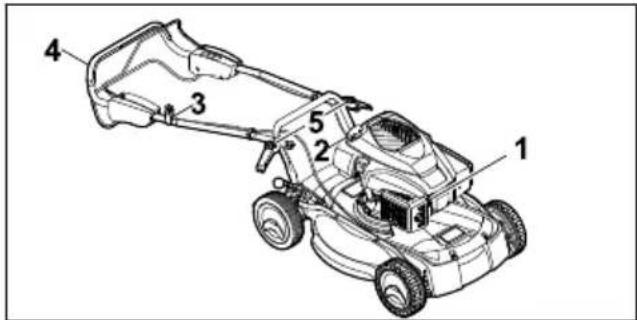

1 2 3 4 5

▶ Detach spark plug socket (1).
▶ Unhook starter handle (2) from starter rope guide (3).
▶ Hold handlebar (4) and open quick-clamping devices (5).
▶ Set down handlebar (4) to the rear.

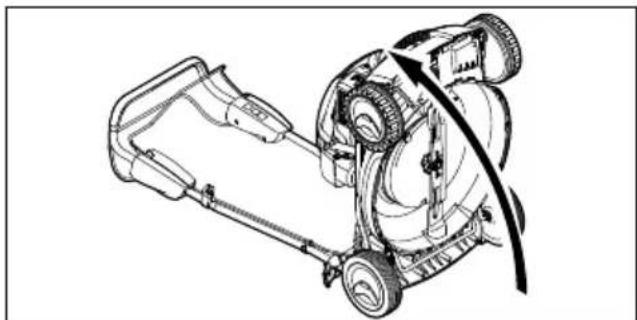

Technical line drawing of a lawn mower with visible blades and wheel (no text or labels)

▶ Upend the lawn mower.

15.2 Cleaning the Lawn Mower

▶ Stop the engine.

16 Maintenance English

▶ Allow the lawn mower to cool down.
▶ Detach the spark plug socket.
▶ Clean the lawn mower with a damp cloth.
▶ Clean the ventilation slots with a paintbrush.
▶ Upend the lawn mower.
- Clean the area around the blade and the blade with a stick, a soft brush or a damp cloth.

16 Maintenance

16.1 Maintenance Intervals

Maintenance intervals are dependent on the ambient conditions and the working conditions. STIHL recommends the following maintenance intervals:

Engine

- Maintain the engine as described in the engine instruction manual.

Lawn mower

▶ Have the lawn mower inspected annually by a STIHL specialist dealer.

16.2 Removing and Attaching the Blade

16.2.1 Removing the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.

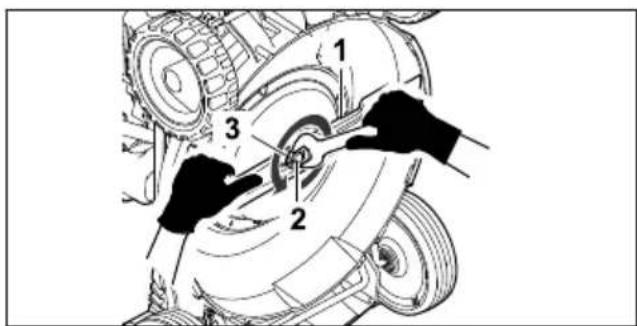

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

▶ Hold blade (1).
▶ Unscrew bolt (2) and remove together with washer (3).
▶ Remove blade (1).
▶ Discard bolt (2) and washer (3).
Use a new bolt and washer to attach blade (1).

16.2.2 Attaching the Blade

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.

Technical diagram of a mechanical assembly with labeled parts and cross-sectional view

▶ Place new washer (1) on new bolt (2).
- Apply Loctite 243 thread locker to the thread of bolt (2).
▶ Position blade (3) so the raised areas on the contact area engage in the notches in blade (3).
▶ Screw in bolt (2) together with washer (1).

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

▶ Hold blade (3).
▶ Tighten bolt (2) to 65 Nm.

16.3 Sharpening and Balancing the Blade

Sharpening and balancing the blade correctly requires a lot of practice.

STIHL recommends having the blade sharpened and balanced by a STIHL specialist dealer.

WARNING

■ The cutting edges of the blade are sharp. This may result in the user cutting themselves.
- Wear work gloves made from resistant material.

▶ Stop the engine.
▶ Detach the spark plug socket.
▶ Upend the lawn mower.
▶ Remove the blade.
▶ Sharpen the blade. Observe the sharpening angle and cool the blade, 9.2.
Bluing of the blade during sharpening is not permitted.
▶ Attach the blade.
▶ If anything is unclear: consult a STIHL specialist dealer.

17 Repairing

17.1 Repairing the Lawn Mower

The user should not repair the lawn mower or blade themselves.

▶ If the lawn mower or blade is damaged: do not use the lawn mower or blade and consult a STIHL specialist dealer.

▶ If warning signs are illegible or damaged: have the warning signs replaced by a STIHL specialist dealer.

18 Troubleshooting

18.1 Remedying Lawn Mower Faults

Fault Cause Remedy
Engine cannot be started.	Control bar for mowing is not pressed.	► Start engine as described in this instruction manual.
Fuel tank is empty. ► Refuel lawn mower.
		Fuel line is blocked. ► Consult a STIHL specialist dealer.
		Inferior, dirty or old fuel in the tank.
		Air filter is dirty. ► Consult a STIHL specialist dealer.
		Spark plug socket is detached from spark plug or ignition lead is not properly fastened to socket.
		Spark plug is dirty, damaged or electrode gap is incorrect.
		Resistance at the blade is too great.
Engine difficult to start or engine power deteriorating.	Lawn mower housing is blocked.	Clean lawn mower.
	Cutting height is set too low or rate of feed is too high.	Adapt cutting height or mow more slowly.
	Water in fuel tank and carburettor or carburettor is blocked.	Empty fuel tank, clean fuel line and carburettor.
	Fuel tank is contaminated. Consult a STIHL specialist dealer.
	Air filter is dirty. Consult a STIHL specialist dealer.
	Spark plug is dirty. Clean or replace spark plug.
	Engine oil level is too low. Add or change engine oil as described in the engine instruction manual.
	Cooling ribs are dirty. Clean lawn mower.
Lawn mower vibrates excessively.	Blade is damaged. Replace blade.
	Blade is not correctly attached. Attach blade.
Grass is not being cut cleanly.	Blade is blunt or worn. Sharpen or replace blade.

19 Specifications

19.1 STIHL RM 4.0 RT Lawn Mower

– Engine type: Kohler HD675
- Displacement: 149~cm^3

• Power: 2.2 KW (3.0 hp) at 2800 rpm
• Speed: 2800 rpm
• Maximum fuel tank capacity: 1400~cm^3 (1.4 l)
• Weight: 35 kg
• Cutting width: 53 cm

20 Spare Parts and Accessories English

19.2 Blade

– Minimum thickness a: 2.5 mm
– Minimum width b: 55 mm
– Sharpening angle: 30^

19.3 Sound Values and Vibration Values

The K value for the sound pressure level is 2 dB(A). The K value for the sound power level is 2.2 dB(A). The K value for the vibration value is 1.60 m/s ^4 .

• Sound pressure level L_pA measured in accordance with EN ISO 5395-2: 79 dB(A)
• Guaranteed sound power level L_WAd measured in accordance with 2000/14/EC / S.I. 2001/1701: 93 dB(A)
• Vibration value a_hv measured in accordance with EN 12096, EN 20643, EN ISO 5395-2, handlebar: 3.20 m/s ^2

For information on compliance with Employers' Vibration Directive 2002/44/EC and S.I. 2005/1093, see www.stihl.com/vib.

19.4 REACH

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

20 Spare Parts and Accessories

20.1 Spare parts and accessories

STIHL These symbols indicate original STIHL spare parts and original STIHL accessories.

STIHL recommends the use of original STIHL spare parts and accessories.

Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitability of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts.

Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.

20.2 Essential Spare Parts

STIHL assumes no liability for injury to people or damage to property resulting from the use of unauthorised attachments or spare parts.

- Blade: 6383 702 0100

• Blade fastening screw: 9008 319 9075
• Washer: 0000 702 6600

21 Disposal

21.1 Disposing of the Lawn Mower

Information on disposal is available from a STIHL specialist dealer.

▶ Dispose of the lawn mower, blade, petrol, engine oil, accessories and packaging in accordance with regulations and in an environmentally friendly manner.

22 EC Declaration of Con- formity

22.1 STIHL RM 4.0 RT Lawn Mower

declares under our sole responsibility that
- design: lawn mower
– manufacturer's brand: STIHL
- type: RM 4.0 RT
– cutting width: 53 cm
– serial number: 6383

complies with the relevant provisions of Directives 2000/14/EC, 2006/42/EC, 2014/30/EU and 2011/65/EU and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN ISO 5395-1, EN ISO 5395-2 and EN ISO 14982.

Approved body involved: TÜV Rheinland LGA Products GmbH Tillystrasse 2

90431 Nuremberg, Germany

The measured and guaranteed sound power levels were determined in accordance with Directive 2000/14/EC, Appendix VIII.

– Measured sound power level: 91.2 dB(A)
– Guaranteed sound power level: 93 dB(A)

The technical documents are stored at STIHL Tirol GmbH.

The year of manufacture and machine number are indicated on the lawn mower.

Langkampfen, 02.01.2020

STIHL Tirol GmbH

These symbols indicate original STIHL spare parts and original STIHL accessories.

STIHL assumes no liability for injury to people or damage to property resulting from the use of unauthorised attachments or spare parts.

p.p. M. Ticca

Matthias Fleischer, Head of Research and Development Division

p.p. finenowmann pm

Sven Zimmermann, Head of Quality Division

23 UKCA Declaration of Con- formity

23.1 STIHL RM 4.0 RT Lawn Mower

declares under our sole responsibility that

• design: lawn mower
• manufacturer's brand: STIHL
• type: RM 4.0 RT
  – cutting width: 53 cm
• serial number: 6383

complies with the relevant provisions of the UK regulations Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Supply of Machinery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 and Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 and has been developed and manufactured in accordance with the versions of the following standards valid on the date of manufacture: EN ISO 5395-1, EN ISO 5395-2 and EN ISO 14982.

Approved body involved:

TUV Rheinland UK Ltd

1011 Stratford Road

Solihull, B90 4BN

The measured and guaranteed sound power levels were determined in accordance with the UK regulation Noise Emission in the Environment by Equipment for Use Outdoors Regulations 2001, Schedule 11.

– Measured sound power level: 91.2 dB(A)

– Guaranteed sound power level: 93 dB(A)

The technical documents are stored at STIHL Tirol GmbH.

The year of manufacture and machine number are indicated on the lawn mower.

Langkampfen, 02.11.2021

STIHL Tirol GmbH

p.p. M. Thicla

Matthias Fleischer, Head of Research and Development Division

p.p.

Sven Zimmermann, Head of Quality Division

Table des matières

2.1 Documents applicables

Technical diagram of a lawn mower with numbered parts and an inset view of the lower part.

▶ Faire attention aux obstacles.

Technical diagram showing labeled parts of a vehicle gear assembly with numbered components and directional arrows indicating motion or movement.

Technical diagram of a mechanical component with labeled parts and directional arrow indicating rotation or movement.

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a lever mechanism and a motor.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with parts 2, 4, and 5.

Diagram of a lawn mower with labeled parts, showing mechanical components and an inset view of the blade assembly.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, including an inset magnified view.

Line drawing of a person using a handheld device to lift a body (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main component.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Line drawing of two workers operating a lawn mower (no text or symbols)

Line drawing of two workers operating a lawn mower (no text or symbols)

Technical line drawing of a lawn mower with attached blade and wheel (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a mechanical assembly with labeled parts and cross-sectional view

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

▶ Maintenir la lame (3).
▶ Serrer la vis (2) à un couple de 65 Nm.

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Technical diagram showing car seatbelt components with numbered parts and directional arrows indicating movement or assembly.

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a lever mechanism and a motor.

Technical diagram of a mechanical device with numbered components and an inset magnified view showing a component labeled 5, 6, and parts 2, 4.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being cut, including parts numbered 7 and 8.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main view.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Line drawing of two workers operating a manual lawn mower (no text or symbols)

Two workers in protective gear holding a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower with visible blades and wheel (no text or labels)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

Technical diagram of a mechanical assembly with labeled parts and cross-sectional view

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a lawn mower with numbered parts and an inset view of the lower part.

1 Drška za pokretanje košnje

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction

• Čep spremnika goriva (1) okrećite u smjeru suprotnom od kazaljke na satu dok se čep spremnika goriva ne može skinuti.
  ▶ Skinite čep spremnika za gorivo.
  ▶ Gorivo ulijte uz pomoć prikladnog lijevka do najviše 15 mm od ruba spremnika goriva.
• Čep spremnika goriva postavite na spremnik goriva.
• Čep spremnika goriva okrećite u smjeru kazaljke na satu i čvrsto ga zategnite rukom. Spremnik goriva je zatvoren.

8 Namještanje kosilice za korisnika

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a lever mechanism and a car.

• Otpustite brzi pritezač (1) s lijeve i desne strane.
  ▶ Rasklopite upravljač (2) i pritom pazite da se užad (3) ne ukliješti.
• Pritegnite brzi pritezač (1) s lijeve i desne strane.
  Upravljač (2) je čvrsto spojen s kosilicom.

Technical diagram of a mechanical device with labeled parts and an inset showing a circular component with numbered parts 2, 4, and 5.

• Pritisnite dršku za pokretanje košnje (4) prema upravljaču (2) i držite je pritisnutom.
  ▶ Ručicu za pokretanje (5) povucite lagano u smjeru vodilice užeta (6).
  ▶ Ručicu za pokretanje (5) objesite u vodilicu užeta (6).
  ▶ Otpustite dršku za pokretanje košnje (4).
  ▶ Ponovno priključite utikač svjećice.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being adjusted.

▶ Otpustiti matice (7 + 8).
- Podizanjem i spuštanjem namjestite upravljač i zadržite ga.
▶ Pritegnite matice (7 + 8). Upravljač je čvrsto spojen s kosilicom.

8.2 Sklapanje upravljača

Upravljač se može sklopiti radi uštede prostora prilikom transporta i skladištenja.

▶ Isključite motor.
- Izvucite utikač svjećice.
▶ Postavite kosilicu na ravnu površinu.
▶ Pritisnite dršku za pokretanje košnje prema upravljaču i držite je.
▶ Ručicu za pokretanje skinite s vodilice užeta i lagano je vraćajte u smjeru motora.
▶ Otpustite dršku za pokretanje košnje.
- Čvrsto držite upravljač i otpustite matice vijčanog spoja upravljača.
▶ Preklopite upravljač prema naprijed.

9 Pokretati/startati i zaustaviti motor

9.1 Pokretanje motora

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

- Čvrsto držite upravljač objema rukama tako da ga palčevi obuhvaćaju.

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main component.

Technical line drawing of a mechanical clamp or bracket component with no visible text or symbols

▶ Potpuno povucite dršku za pokretanje voznog pogona (1) u smjeru upravljača i držite je tako da palac obuhvaća upravljač. Kosilica se počinje kretati.

11.3.2 Isključivanje voznog pogona

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

• Ako se radi uz uključen vozni pogon: kontroli-rano vozite kosilicu prema naprijed.
  ▶ Ako se radi uz isključen vozni pogon: polako i kontrolirano gurajte kosilicu prema naprijed.

12 Nakon rada

12.1 Nakon rada

▶ Isključite motor.
- Ako je kosilica mokra: pričekajte da se kosilica osuši.
▶ Očistite kosilicu.

13 Transport

13.1 Transport kosilice

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower assembly (no text or labels)

▶ Uspravite kosilicu prema natrag.

15.2 Čišćenje kosilice

Technical diagram showing mechanical assembly with numbered components, likely for maintenance or repair instructions

▶ Čvrsto držite nož (1).
- Odvrnite vijak (2) i skinite ga zajedno s podloškom (3).
▶ Skinite nož (1).
▶ Vijak (2) i podlošku (3) odložite u otpad. Za montažu noža (1) upotrijebite novi vijak i podlošku.

16.2.2 Montaža noža

Technical diagram of a sword with labeled parts including blade, screw, and gear mechanism

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or cam mechanism.

▶ Čvrsto držite nož (3).
▶ Vijak (2) zategnite momentom pritezanja od 65 Nm.

16.3 Oštrenje i uravnotežavanje noža

Technical diagram of a lawn mower with numbered parts and an inset close-up view of the base part.

Technical diagram showing numbered mechanical components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a close-up of the lever mechanism.

Technical diagram of a mechanical device with labeled parts and an inset magnified view showing component 5, 6, and parts 2, 4.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being adjusted.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

▶ Mät följande:

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main component.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Line drawing of two workers operating a lawn mower (no text or symbols)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower with visible blades and wheel (no text or labels)

▶ Tippa gräsklipparen bakåt.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a sword with labeled parts and exploded view showing internal components

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or cam mechanism.

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a lever mechanism and a motor.

Technical diagram of a mechanical device with labeled parts and an inset magnified view showing a component with parts 2, 4, and 5.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being cut, including parts numbered 7 and 8.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing a close-up detail of a component.

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main view.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two workers operating a lawn mower with a tool, no text or symbols visible

Two workers in protective gear holding a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower with visible blades and wheel (no text or labels)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

Technical diagram of a mechanical assembly with labeled parts and a close-up inset showing internal components.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

Technical diagram of a lawn mower with numbered parts and an inset view of the engine compartment

Technical diagram showing mechanical components with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a lever mechanism and a car component.

Technical diagram of a mechanical device with numbered components and an inset magnified view showing a component labeled 5, 6, and parts 2, 4.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being cut, including parts numbered 7 and 8.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main view.

Technical line drawing of a mechanical clamp or connector with labeled component '1' (no text or symbols beyond label)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Technical diagram of a lawn mower with numbered parts labeled 1 to 5

Technical line drawing of a lawn mower assembly (no text or labels)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a mechanical assembly with labeled parts and cross-sectional view

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or transmission mechanism.

Technical diagram of a lawn mower with numbered parts and an inset close-up view of the main body.

Technical diagram showing labeled parts of a car interior with numbered components and directional arrows indicating motion or movement.

Technical line drawing of a mechanical component with a circular dial and labeled part '1' (no text or symbols beyond the label)

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a close-up of the lever mechanism.

Technical diagram of a mechanical device with numbered components and an inset magnified view showing a component labeled 5, 6, and parts 2, 4.

Diagram of a lawn mower with labeled parts and an inset showing parts numbered 7 and 8

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device (no text or symbols)

• 30 mm = Position 1
• 40 mm = Position 2
• 50 mm = Position 3
• 60 mm = Position 4
• 70 mm = Position 5

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main view.

Technical line drawing of a mechanical component with labeled parts (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two workers operating a manual lawn mower with a cart, no text or symbols visible

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower with attached blade and wheel (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a sword with labeled parts and exploded view showing internal components

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or transmission system.

Technical diagram of a lawn mower with numbered parts and an inset view of the lower part.

Technical diagram showing mechanical components with numbered parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a close-up of the lever mechanism.

Technical diagram of a mechanical device with labeled parts and an inset magnified view showing component 5, 6, and parts 2, 4.

Technical diagram of a lawn mower with labeled parts and an inset showing parts numbered 7 and 8.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, including an inset magnified view.

Line drawing of a person using a handheld device to lift a body (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of a mechanical component detail.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

▶ Hvis det jobbes med aktivert fremdrift: Kjør gressklipperen kontrollert forover.
▶ Hvis det jobbes med frakoblet fremdrift: Skyv gressklipperen sakte og kontrollert forover.

12 Etter arbeidet

Two workers operating a manual lawn mower with a cart, no text or symbols visible

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower assembly (no text or labels)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

Technical diagram of a sword with labeled parts and exploded view, showing tool path and component layout.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or transmission mechanism.

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical diagram showing a mechanical device with labeled parts 11, 12, 13, and 14, including a magnified inset view.

Technical diagram of a mechanical component with labeled parts and directional arrow indicating rotation or movement.

Diagram illustrating a vehicle climbing mechanism with labeled parts and motion arrows

Technical diagram of a mechanical device with numbered components and an inset magnified view showing a curved component labeled 5, 6, and parts 2, 4.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being adjusted.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up of a component detail view.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Line drawing of two workers operating a manual lawn mower (no text or symbols)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower with handle and wheels (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

Technical diagram of a mechanical assembly with labeled parts and cross-sectional view

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a lawn mower with numbered parts and an inset view of the lower part.

Technical diagram showing labeled mechanical components with numbered parts and directional arrows indicating motion or assembly.

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a close-up of the lever mechanism.

Technical diagram of a mechanical device with numbered components and an inset magnified view showing a component labeled 5, 6, and parts 2, 4.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being cut, including parts numbered 7 and 8.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of a mechanical component detail.

Technical line drawing of a mechanical component with labeled parts (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower with gear and wheel assembly (no text or labels)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing internal components.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a lawn mower with numbered parts and an inset view of the lower part.

Technical diagram showing labeled mechanical components with numbered parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a lever mechanism and a motor.

Technical diagram of a medical or surgical device with labeled parts and an inset magnified view showing a mechanical component.

Technical diagram of a lawn mower with labeled parts and an inset showing parts numbered 7 and 8

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

▶ Meça o seguinte:

Line drawing of a person using a handheld device to lift a body (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of a mechanical component detail.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two workers in protective gear handling a manual lawn mower (no text or symbols visible)

Two workers holding a lawn mower, no text or symbols visible

Technical line drawing of a lawn mower mechanism (no text or labels)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing internal components.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical line drawing of a mechanical component with a circular dial and labeled part '1' (no text or symbols beyond the label)

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a lever mechanism and a motor.

Technical diagram of a mechanical device with labeled parts and an inset showing a close-up of a component with parts 2, 4, and 5.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being cut, including parts numbered 7 and 8.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing a detailed inset view.

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main component.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Line drawing of two workers operating a lawn mower (no text or symbols)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower with visible blades and wheels (no text or labels)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or mounting mechanism.

Technical diagram of a mechanical assembly with labeled parts and cross-sectional view

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Voldoet aan de relevante bepalingen van de UK Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, Supply of Machinery (Safety) Regulations 2008, Electromagnetic Compatibility Regulations 2016 en The Restriction of the Use of Certain Hazardous Substances in Electronic Equipment Regu-

Technical diagram of a lawn mower with numbered parts and an inset close-up view of the main body.

Technical diagram showing mechanical components with numbered parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical component with a circular dial and labeled part '1' (no text or symbols beyond the label)

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a close-up of the lever mechanism.

Technical diagram of a mechanical device with labeled parts and an inset magnified view showing a component with parts 2, 4, and 5.

Diagram of a lawn mower with labeled parts and an inset showing parts numbered 7 and 8

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device to lift a body (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a magnified inset view of the main component.

Technical line drawing of a mechanical clamp or connector with labeled component '1' (no text or symbols beyond label)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two workers in protective gear handling a lawn mower (no text or symbols visible)

Two workers in hard hats holding a lawn mower, no text or symbols visible

Technical line drawing of a lawn mower with visible blades and handle (no text or labels)

Technical diagram showing mechanical assembly with numbered components, likely for maintenance or repair instructions

Technical diagram of a sword with labeled parts including blade, screw, and gear assembly

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a lawn mower with numbered parts and an inset view of the lower part.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction

Diagram illustrating a robotic arm system with labeled components and motion arrows, including a close-up of the lever mechanism.

Technical diagram of a mechanical device with numbered components and an inset magnified view showing parts 2, 4, and 5.

Diagram showing a lawn mower with labeled parts and an inset view of the blade being cut, including parts numbered 7 and 8.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up inset of the main view.

Technical line drawing of a mechanical clamp or connector with labeled component '1' (no text or symbols beyond label)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Two workers in protective gear handling a small manual lawn mower (no text or symbols visible)

Two workers holding a lawn mower, no text or symbols present

Technical diagram of a lawn mower with numbered parts labeled 1 to 5

Technical line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a mechanical assembly with labeled parts and cross-sectional view

Technical diagram showing mechanical assembly with numbered components, likely illustrating a gear or transmission system.

▶ Stingri turiet nazi (3).
▶ Pievelciet skrūvi (2) ar 65 Nm griezes momentu.

Technical diagram of a lawn mower with numbered parts and an inset showing the front view of the engine.

1 Dźwignia koszenia

Technical diagram showing labeled mechanical components with numbered parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical component with a circular dial and labeled part '1' (no text or symbols beyond the label)

Diagram illustrating a mechanical device with labeled parts and motion arrows, including a close-up of the lever mechanism.

Technical diagram of a mechanical device with labeled parts and an inset magnified view showing component 5, 6, and parts 2, 4.

Diagram of a lawn mower with labeled parts and an inset showing parts numbered 7 and 8

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

Line drawing of a person using a handheld device to lift a weight (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a close-up view of the main component.

Technical line drawing of a mechanical clamp or connector with a labeled component (no text or symbols present)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Line drawing of two workers operating a manual lawn mower (no text or symbols)

Two workers in protective gear holding a lawn mower (no text or symbols visible)

Technical line drawing of a lawn mower with visible blades and wheel (no text or labels)

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing internal components.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or cam mechanism.

Technical diagram of a lawn mower with numbered parts and an inset view of the lower part.

Technical diagram showing car seatbelt components with numbered parts and directional arrows indicating movement or assembly.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Diagram illustrating a robotic arm handling a vehicle, with labeled parts and motion arrows indicating movement.

Technical diagram of a mechanical device with numbered components and an inset magnified view showing a component labeled 5, 6, and parts 2, 4.

Diagram of a lawn mower with labeled parts and an inset showing parts numbered 7 and 8

▶ Atlaisvinkite veržles (7 + 8).

Technical diagram showing a mechanical device with labeled parts and directional arrows, including section 2.

Technical diagram of a mechanical assembly with labeled parts a, b, and c, showing internal components and motion indicators.

▶ Patikrinkite:

• storj a,
• plotj b,
  – galandimo kampa c.

Line drawing of a person using a handheld device to lift a body (no text or symbols)

Technical diagram showing mechanical assembly with numbered components and a magnified inset view of the main component.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a person using a lawn mower on a flat surface (no text or symbols)

Line drawing of two workers operating a lawn mower (no text or symbols present)

Two workers holding a lawn mower, no text or symbols visible

Technical line drawing of a lawn mower with visible blades and wheel (no text or labels)

▶ Pastatykite vejapjovę atgal nukreiptu galu.

15.2 Vejapjovès valymas

Technical diagram of a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram of a sword with labeled parts and exploded view showing internal components

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or cam mechanism.

▶ Laikykite peilj (3).
- Priveržkite varžta (2) 65 Nm priveržimo momentu.

16.3 Peilio galandimas ir balansavi- mas

Abstract black-and-white striped pattern with no text or symbols

0478-111-9655-B
