Product Type	2-channel VHF wireless microphone system
Brand	Vonyx
Model	STWM712C
Frequency range	200.175 MHz - 201.400 MHz
Frequency stability	<0.005%
Maximum deviation	15 kHz
Frequency response	40 Hz - 20 kHz
Signal-to-noise ratio	>100 dB
Audio dynamic range	>100 dB
Total harmonic distortion	<0.5%
Receiver power supply	220-240 V AC / 50 Hz, adapter 13-15 V DC / 500 mA
Transmitter power supply	2 x 1.5V type AA batteries
Receiver dimensions	210 x 145 x 42 mm
Bodypack transmitter dimensions	100 x 65 x 30 mm
Handheld microphone dimensions	238 x 50 x 50 mm
Receiving sensitivity	60 dB S/N ratio (12 dBµV)
Number of channels	2
Audio outputs	AF output, AF mix output (jack)
Maintenance	Clean with a dry cloth; replace batteries if necessary
Safety	Do not open the housing; do not expose to moisture; use a grounded outlet
Spare parts	Batteries, power adapter, antennas (depending on model)

Frequently Asked Questions - STWM712C Vonyx

What to do in case of no sound?

Check that the transmitter's Power switch is in the ON position. Make sure the batteries are properly installed and not discharged. Check that the receiver is on (red LED indicator). Turn the receiver's volume control. Check the audio connections between the receiver and the amplifier.

How to replace the transmitter battery?

Open the battery compartment cover of the transmitter. Remove the old batteries, respecting polarity. Insert two new AA 1.5 V batteries. Close the cover. If not used for an extended period, remove the batteries to avoid leakage.

Why does the low battery indicator light up?

The red Low Battery indicator shows that the transmitter batteries are low. Replace them immediately with new batteries to avoid sound loss or distortion.

How to avoid interference?

Identify possible sources of interference (other RF transmitters, electronic devices). Turn them off or use a system operating on a different frequency. Keep the receiver away from metal surfaces and place the antennas at 45° from vertical.

Which countries are allowed for use?

The device does not require a license in the following countries: Austria (AT), France (FR), Germany (DE), Greece (GR), Hungary (HU), Netherlands (NL), Poland (PL), Romania (RO), Slovenia (SI), Switzerland (CH). For other countries, check with the regulatory authority.

How to adjust the volume correctly?

First set the receiver volume to the 12 o'clock position (mid-level). Then adjust the volume of your amplifier or mixing console to the desired level. Avoid turning the receiver volume too high to avoid saturating the amplifier input.

How to clean the device?

Disconnect the device from the mains. Use a dry cloth to wipe the surfaces. Do not use chemicals, aerosols, or liquids that could damage the finish or penetrate inside.

How to install the antennas?

Connect the antennas to the input terminals (channels A and B) on the back of the receiver. Tilt each antenna at 45° from vertical. Make sure the antennas do not touch each other and are not near metal surfaces.

What to do in case of sound distortion?

Distortion may be due to an input level that is too high. Reduce the volume setting of the transmitter or receiver. If the Low Battery indicator lights up, replace the batteries. Also check that the transmitter is not too close to the receiver.

How to connect the receiver to an amplifier?

Use an audio cable to connect the AF output or AF mix output of the receiver to an input of your amplifier (e.g., line input). Make sure the receiver is on and the output volume is set. Then plug in the amplifier.

USER MANUAL STWM712C Vonyx

Product photo of a VONYX wireless microphone receiver with external antenna and earphones (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

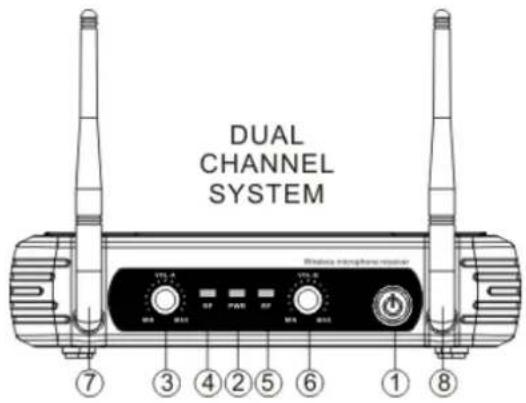

FRONT- AND BACKPANEL

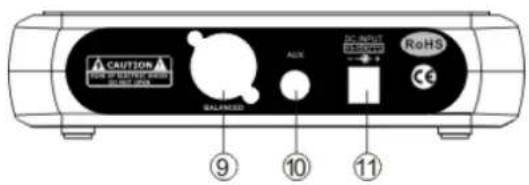

REAR PANEL

1. Power switch
2. Power signal lamp
3. Channel A volume control (not available by 179.185 and 179.187)
4. Channel A signal lamp (not available by 179.185 and 179.187)
5. Channel B signal lamp
6. Channel B volume control
7. Channel A antenna
8. Channel B antenna
9. AF out
10. AF mixing out

Models:

179.178 : STWM712H VHF Microphone System 2 channel Headset microphone
179.180 : STWM712C VHF Microphone System 2 channel combi (handheld and bodypack)
179.183: STWM712 VHF Microphone System 2 channel handheld microphone
179.185: STWM711 VHF Microphone System 1 channel handheld microphone
179.187: STWM711H VHF Microphone System 1 channel Headset

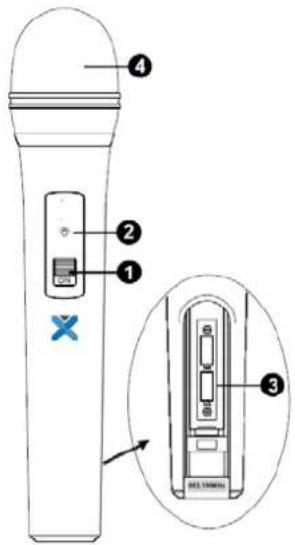

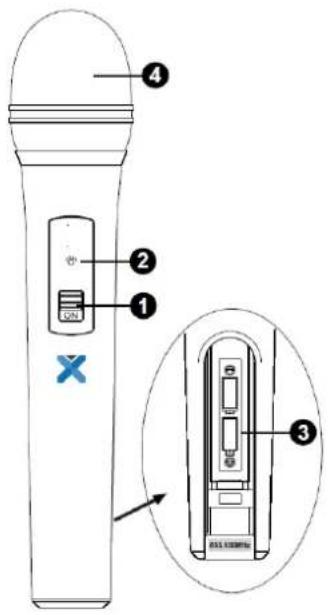

HANDHELD

1. Power ON/OFF Switch.
2. Low battery indicator: Red light glows when the power is low and change the battery.
3. Battery Cover: Open it to install the battery. remove batteries in case of long time no use (prevent leakage).
4. Grille: Protects the cartridge and help reducing the breath sounds and wind noise.

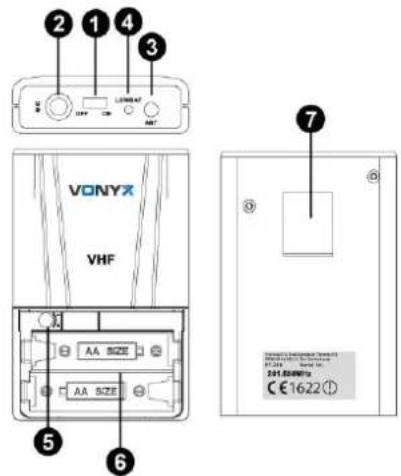

BODYPACK

1. Power ON/OFF and Audio mute switch.
2. Microphone input Jack for headset.
3. Antenna
4. Low battery indicator (Red light glows when the power is low and change the battery)
5. Gain Adjusting Volume: Adjust the transmitter audio input gain.
6. Battery Cover: Open it to install the battery. Remove batteries in case of long time no use (prevent leakage).
7. Belt Clip

HEADSET MICROPHONE

Connect the connector of supplied headset microphone to the connecting jack of transmitter (Shown as below). Set the transmitter work state in wireless headset system (6).

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

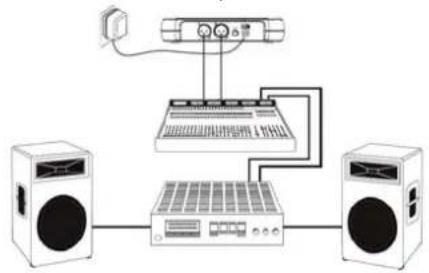

SYSTEM CONNECTIONS

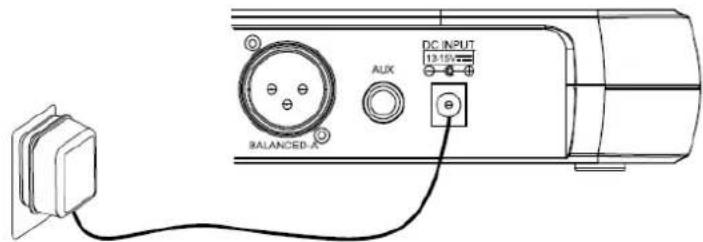

1. Receiver power connection: Connect the AC adapter into the DC power connector on the back of the receiver. Plug the AC adapter into a AC230V 50Hz outlet.

1. Antenna: Keep the position of antenna at a 45^ angle from vertical. Shown as below.

1. Audio connection: Connect the audio cable from the audio output on the receiver to the input on your amplifier equipment.

OPERATION

Turn off the system first, turn down the receivers volume to the minimum and then turn on the receiver, CPU initializes, the LCD screen begins to display and the system reverts to the last shutdown's state!

If the system is turned on look at the transmitter and receiver's frequency. Then the receiver display shows RF signal level value, the antenna status will display antenna A or B. Adjust the volume to the desired level.

Volume adjustment

Adjust the receiver's volume to the 12 o'clock position, then adjust the volume of the amplifier or mixer to a desired level. If the receiver volume has been adjusted too loud the amplifier will produce a saturated distortion which will blow the amplifier or/and the loudspeaker(s)!

Best acoustics:

1. You should always see the receiver antenna from your transmitter location.
2. The distance between transmitter and receiver should be as short as possible.
3. If the receiver has two antennas, they should be adjusted 45^ with a vertical line.
4. Keep the antennas away from metal surfaces and shelter.
5. Let the antennas not contact or cross each other.
6. Before using the system during the presence of public do a test to find out where the "dead spots" are. Avoid these spots when operational

TROUBLESHOOTING

PROBLEM INDICATOR SOLUTION
No sound Red transmitter indicator is not flash Slide transmitter POWER ON/OFF		switch to ON position. Make sure battery is inserted properly, observing battery (+ / -). If battery is inserted properly, replace with fresh battery.
No sound	Red transmitter indicator is flash.	Slide transmitter MUTE/ON switch to ON position.
No sound Red receiver indicator POWER light off. Make sure AC adapter is securely plugged into electrical outlet and into DC input connector.Make sure AC electrical outlet works and supplies proper voltage.
No sound Receiver signal indicators A/B lights glowing.		Turn up receiver volume control. Confirm that the output connections from the receiver to the external equipment are secure.
Sound level differs from level of a cabled instrument.	Receiver signal indicators A/B lights glowing.	Adjust transmitter gain level to compessary.Adjust receiver volume as necessary.
Distortion level increases gradually	Receiver signal indicators A/B lights and transmitter LOW BATTERY light glowing	Replace transmitter battery
Bursts of noise or other audible radio signals present.	Signal indicators A/B/ lights on. Identify potential sources of interferences (other RF-sources) and turn off, remove or use a wireless system operating on a different frequency.
Momentary loss of sound as transmitter is moved around performing area.	Receiver signal indicator A/B lights of when sound is lost	Reposition receiver and perform walk-through test again. If audio dropouts persist, mark “dead” spots and avoid them during performance.

No license required
(excluding geographical restrictions)

AT	FR	DE	GR
HU	NL	PL	RO
SI	CH

CE1622

Austria (AT), France (FR), Germany (DE), Greece (GR), Hungary (HU), Netherlands (NL), Polan (PL), Romania (RO), Slovenia (SI), Switzerland (CH)

Please contact your radio licensing authority in your country, who will advise you on the available frequencies and transmitter power requirements.

NEDERLANDS

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

SYSTEEM AANSLUITEN

PROBLEEM INDICATOR OPLOSSING

RÜCKSEITE

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

SYSTEMANSCHLÜSSE

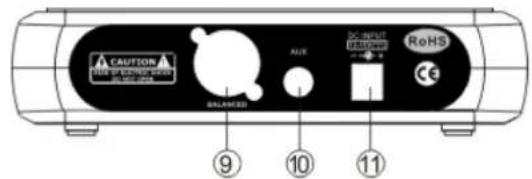

REAR PANEL

179.180 : STWM712C VHF Microphone System 2 channel combi (handheld and bodypack)

179.183: STWM712 VHF Microphone System 2 channel handheld microphone

179.185: STWM711 VHF Microphone System 1 channel handheld microphone

179.187: STWM711H VHF Microphone System 1 channel Headset

MICRÓFONO DE MANO

Line drawing of a handheld electronic device with cable and connector (no text or symbols)

CONEXIONES

Line drawing of a medical device with a coiled cable and connector (no text or symbols)

MICROPHONE SERRE-TETE

Line drawing of a handheld electronic device with a cable and connector (no text or symbols)

BRANCHEMENTS

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
