USER MANUAL IAN 384188 Livarno Lux

Woven lounge chair with gray cushion and open arm, no text or symbols visible

GEFLECHT-SONNENLIEGE/WICKER SUN LOUNGER BAIN DE SOLEIL TRESSÉ

DE AT CH

GEFLECHT-SONNENLIEGE

Assembly and safety instructions

NL BE

VLECHTWERK-LIGBED

www.allibert-outdoor.com

Tel.: [phone]

E-Mail: [e-mail]

geltend zu machen.

Intended use Page 13

Scope of delivery ...... Page 13

Technical data Page 13

Safety information......Page 13

Installation......Page 14

Folding mechanism......Page 14

Cleaning and care ......Page 15

Disposal Page 15

Warranty and service......Page 15

List of pictograms used
	Please read the operating instructions!		Weather-resistant
	Observe the warnings and safety notes!		UV-resistant
	Danger to life and risk of accidents for infants and children!		Dispose of the packaging and product in an environmentally-friendly manner!
	Maximum load bearing capacity		The product can be used when camping.
	The product is suitable for use in private outdoor areas (e.g. in gardens).		The product is not intended for commercial use.

Wicker Sun Lounger

- Introduction

Congratulations! You have purchased a high-quality

product. Familiarise yourself with the product prior to assembly.

Carefully read the following assembly instructions and safety advice.

Only use the product as described and for the specified purposes.

Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

This product is a sun lounger, which is suitable for outdoor use. This product is suitable for personal use by persons with a maximum weight of 110 kg. Any use other than the aforementioned or any product modification is prohibited and can lead to injuries and / or product damage. The manufacturer assumes no liability for damages due to improper use. This product is not intended for commercial use.

- Scope of delivery

Check that all the parts are present and that the product is in perfect condition immediately after unpacking.

1 sun lounger
1 cushion pad
1 set of assembly instructions

- Technical data

Overall

dimensions: approx. 65 cm x

$$ 1 9 5 \mathrm{cm} \times 2 5. 5 \mathrm{cm} $$

$$ (W \times L \times H) $$

Dimensions

seat/reclining

surface: 130 cm x 65 cm

$$ (L \times W); $$

Back rest: 65 cm x 65 cm

$$ (L \times W) $$

Seat / reclining

height: 25.5 cm

Weight: approx. 10.4 kg

Max. load: 110 kg

Safety information

KEEP ALL SAFETY INFORMATION AND INSTRUCTIONS FOR FUTURE REFERENCE!

WARNING!

DANGER TO LIFE

AND RISK OF ACCIDENTS FOR INFANTS AND CHIL-

DREN! Never leave children unsupervised with the packaging material. There is a danger of suffocation.

Keep children out of the area you are working in. The scope of delivery includes a number of small screws and other small parts. These small parts could be inhaled or swallowed and cause a danger to life.

!TAKE GORE!

when unfolding or folding up the product in order to avoid injuries or getting trapped.

■ When unfolding the product, make sure that the folding mechanism and the back rest properly click into place before you use the product (see fig. G and H).
■ Make sure that the product is only assembled by persons who know how to do so.
■ Make sure that the product stands on a solid surface at floor level.

⚠️ CAUTION! Do not leave children unattended! The product is not a climbing frame or toy! Make sure that nobody climbs or leans on the product, particularly children. The product may otherwise become unbalanced and tip over. This may result in injury and/or damage.

⚠️ CAUTION! Do not lift or move the product if it is supporting any object.

■ This product may only be used by one person at a time.
- Do not stand on the product. It could fall or get damaged.

• Keep animals away from the product. Out of control animals may tip the product over.
• Check at regular intervals that all the screws are tight and retighten them regularly.
  ■ Only use the product for the intended purpose.

Do not exceed the product's maximum

load capacity.

• Secure the product in extreme weather conditions e.g. in strong winds.
• Do not use the product near open fire.

- Installation

Note: Assemble the product on an adequately sized, scratch-resistant surface. If necessary, cover the ground to prevent scratches.

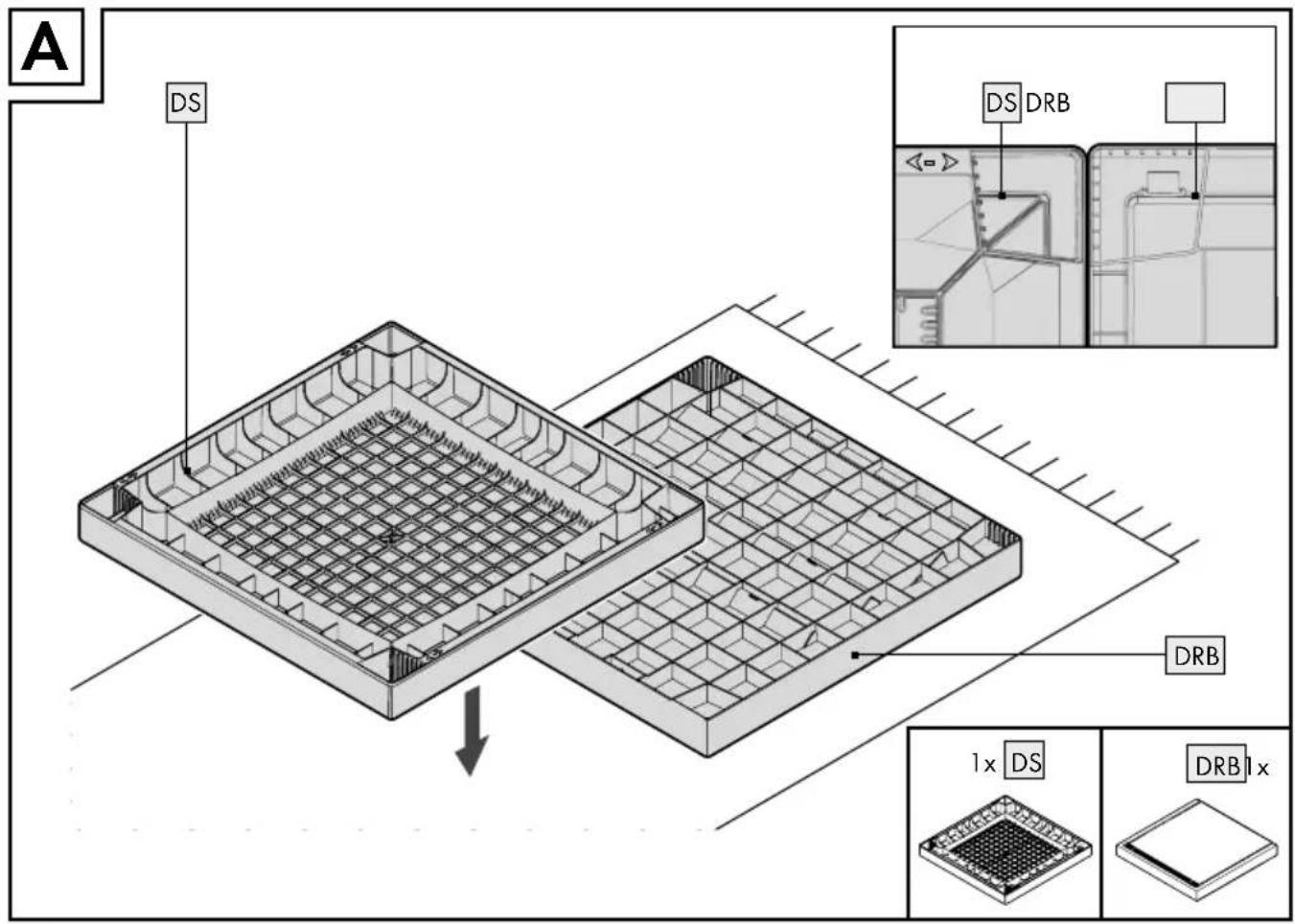

☐ Assemble the product according to figures A to F.

● Folding mechanism

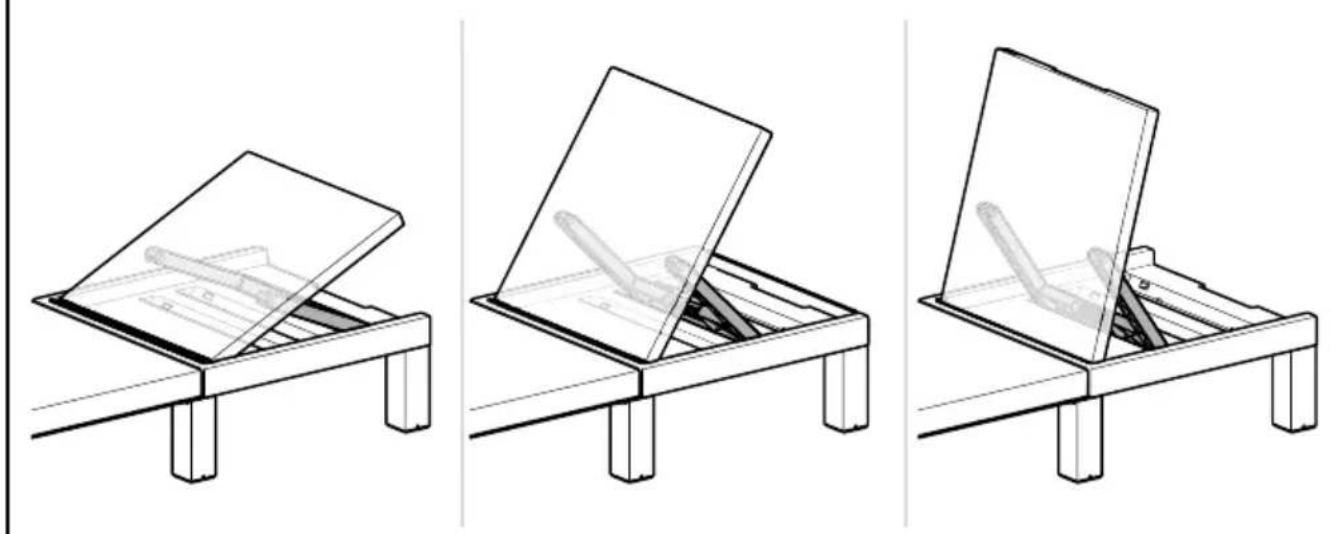

In the default position, the back rest is horizontal. The back rest can also be set to 3 further positions.

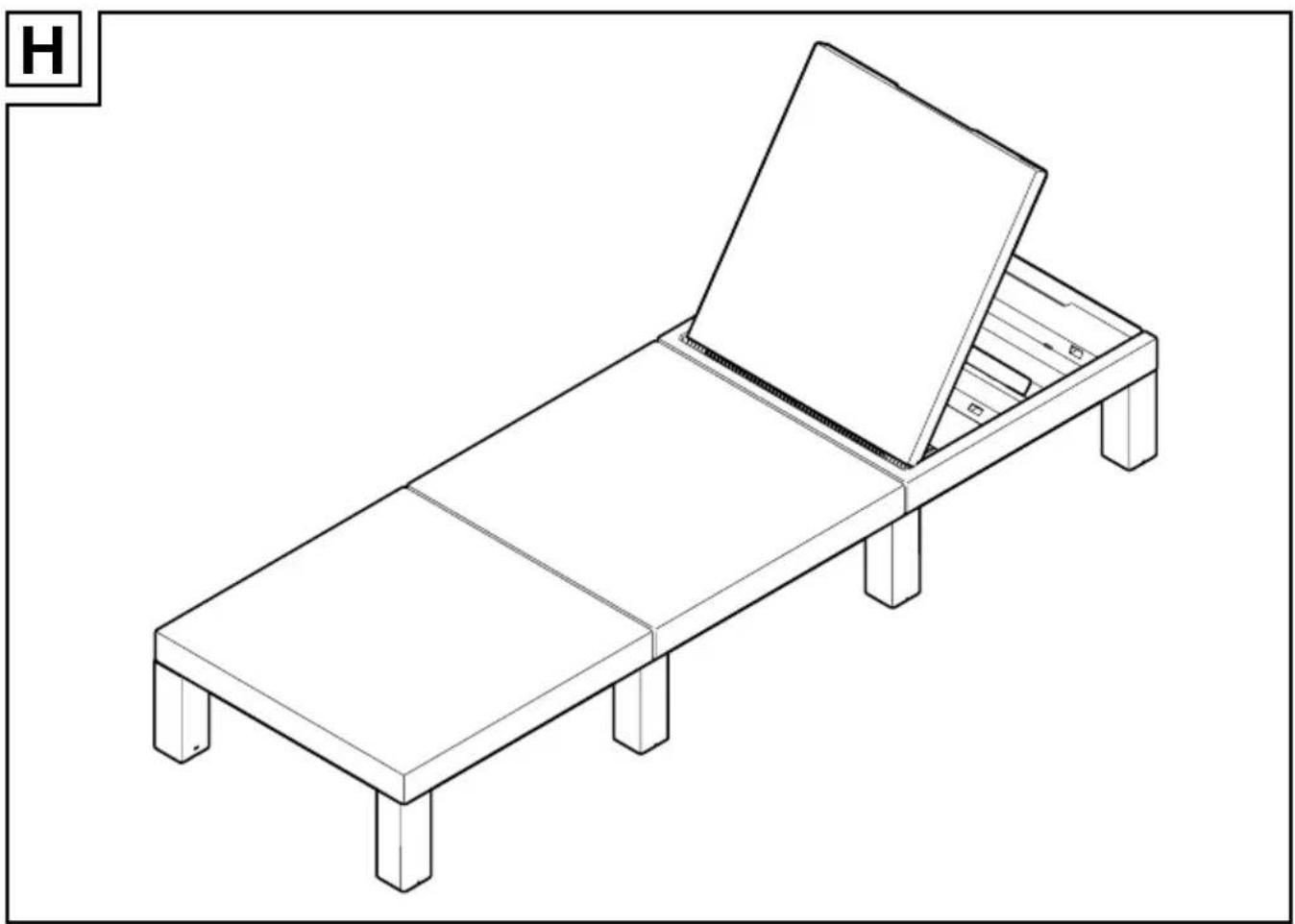

□ Adjust the back rest according to figures G and H.

● Cleaning and care

• Do not use abrasive or corrosive cleaning agents.
  □ Clean the surfaces with a mild soap solution or a commercially available plastic cleaner.
  □ Clean the plastic wickerwork regularly; this will remove dust and dirt easily.
  □ Clean the cushion as necessary using a slightly dampened cloth.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

● Warranty and service

We provide a 2 year warranty from the date of purchase for defects in material and manufacture of the product.

The warranty does not cover:

• Damage resulting from improper use.
• Wear parts.
• Defects the customer was aware of at the time of purchase.
• Damage for which the customer was responsible.

This warranty does not affect the customer's legal rights.

The customer must provide proof of purchase for any warranty claims within the warranty period. Warranty claims must be filed with

JARDIN NETHERLANDS BV

P.O. BOX 224 - 5120 AE Rijen www.allibert-outdoor.com

Tel.: [phone]

E-mail: [e-mail]

within 2 years from the date of purchase.

Repairs made under warranty do not extend the warranty period.

This also applies to replaced and exchanged parts. Complaints are often initiated due to difficulties

encountered during use. Many of these complaints can be resolved by telephone or email. Before filing a claim with the manufacturer, please contact the service point arranged for you.

www.allibert-outdoor.com

Tél. : [phone]

E-Mail : [e-mail]

www.allibert-outdoor.com

Tel.: [phone]

E-mail: [e-mail]

www.allibert-outdoor.com

Tel.: [phone]

E-mail: [e-mail]

www.allibert-outdoor.com

Tel.: [phone]

E-mail: [e-mail]

www.allibert-outdoor.com

Tel.: [phone]

E-mail: [e-mail]

www.allibert-outdoor.com

Tel.: [phone]

Correo

Montering....Side 58

Foldemekanisme....Side 59

www.allibert-outdoor.com

Telf.: [phone]

E-mail: [e-mail]

www.allibert-outdoor.com

Tel.: [phone]

E-mail: [e-mail]

Pooblaščeni serviser:

Jardin Netherlands B.V.

Ericssonstraat 17

5121 MK, Rijen

NIZOZEMSKA

Three black-and-white icons representing different workplace or service symbols: a house with checkmark, a house with tree, and a person holding a drink.

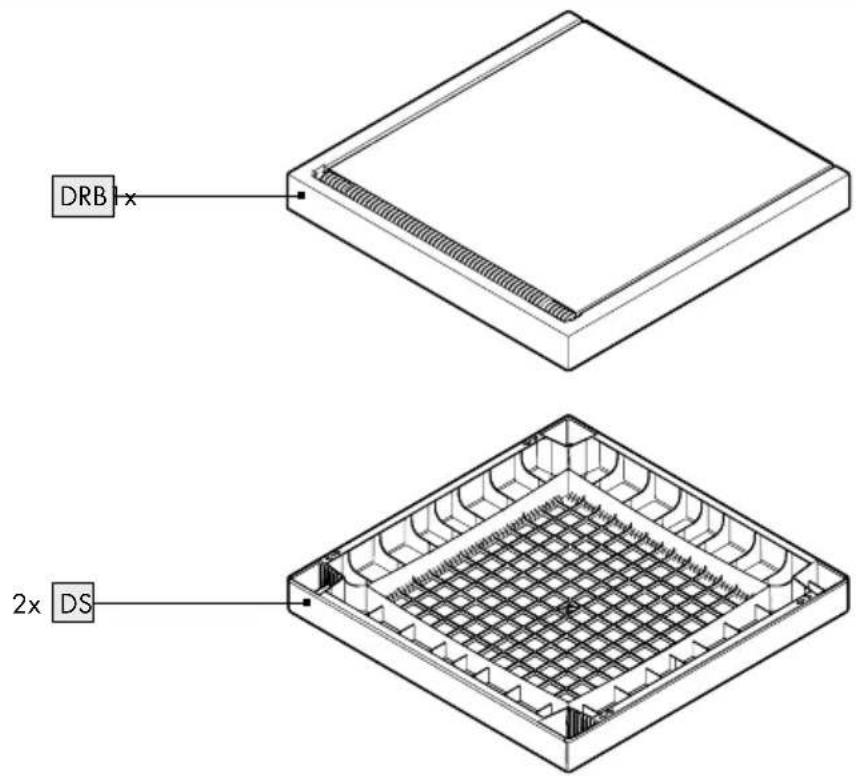

LA1xLB1xLC4x LD1xLE1x 8x M 8x S

C LC 4x LC

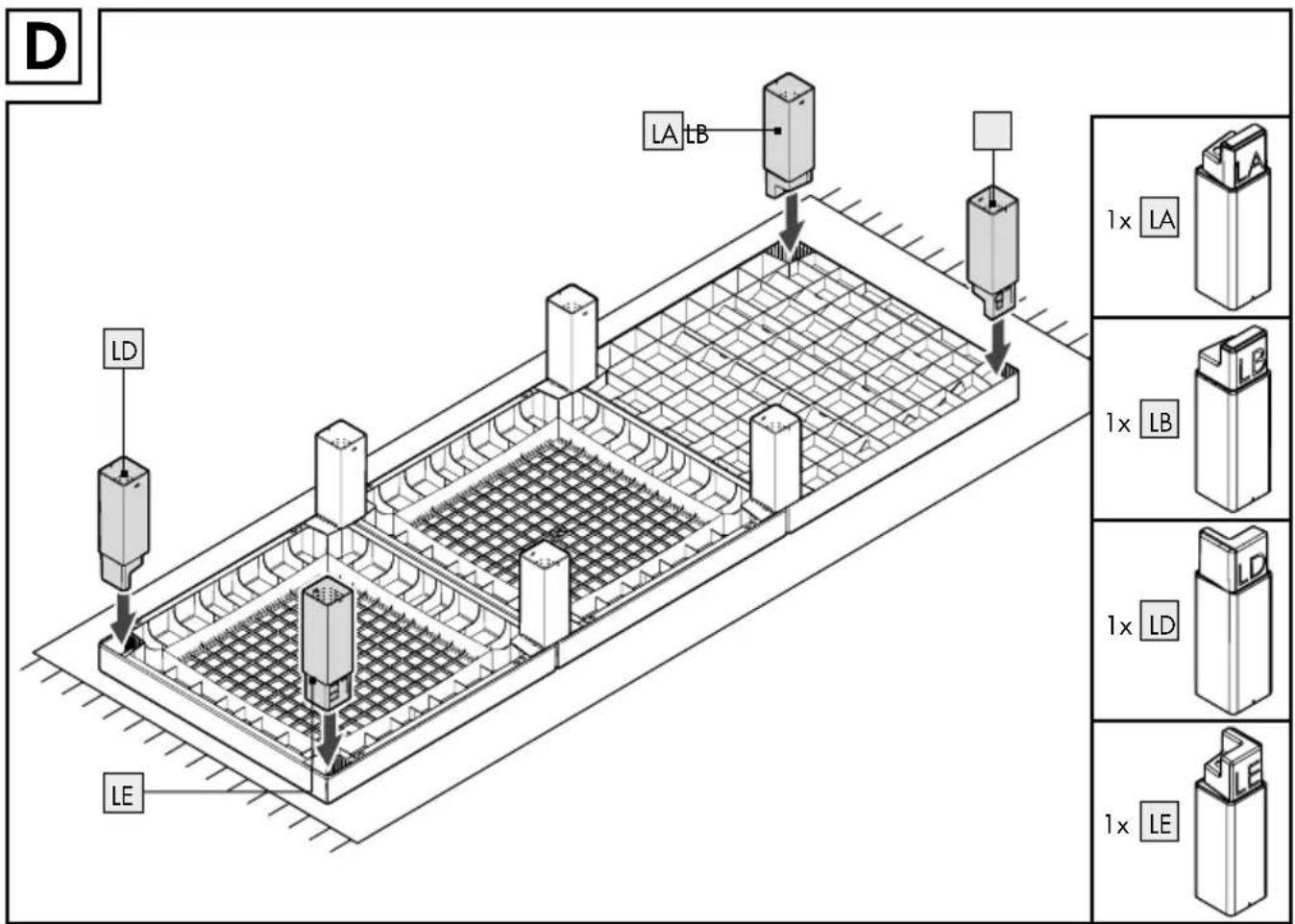

D LA LB LD 1x LA 1x LB 1x LD 1x LE

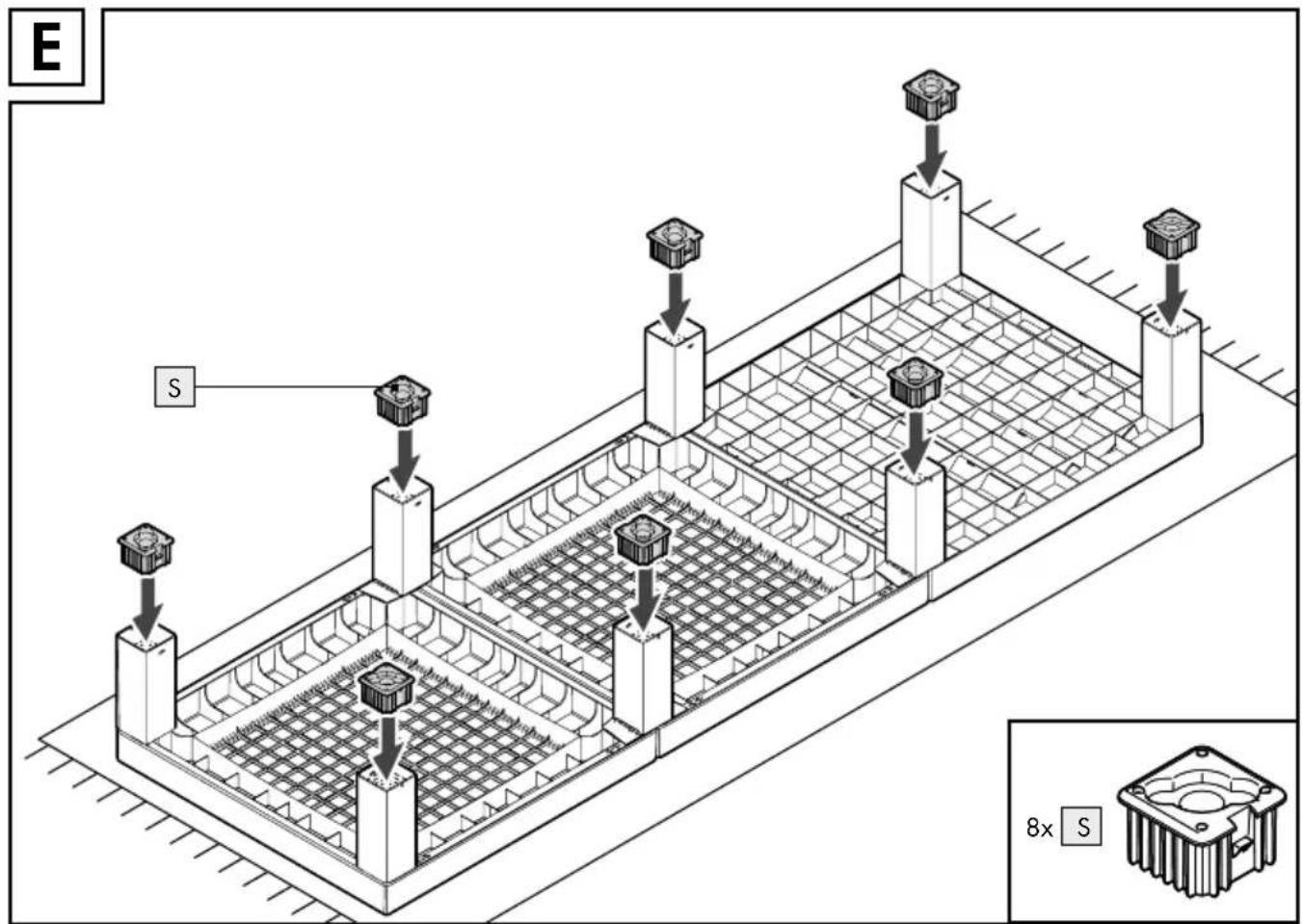

E S 8x S

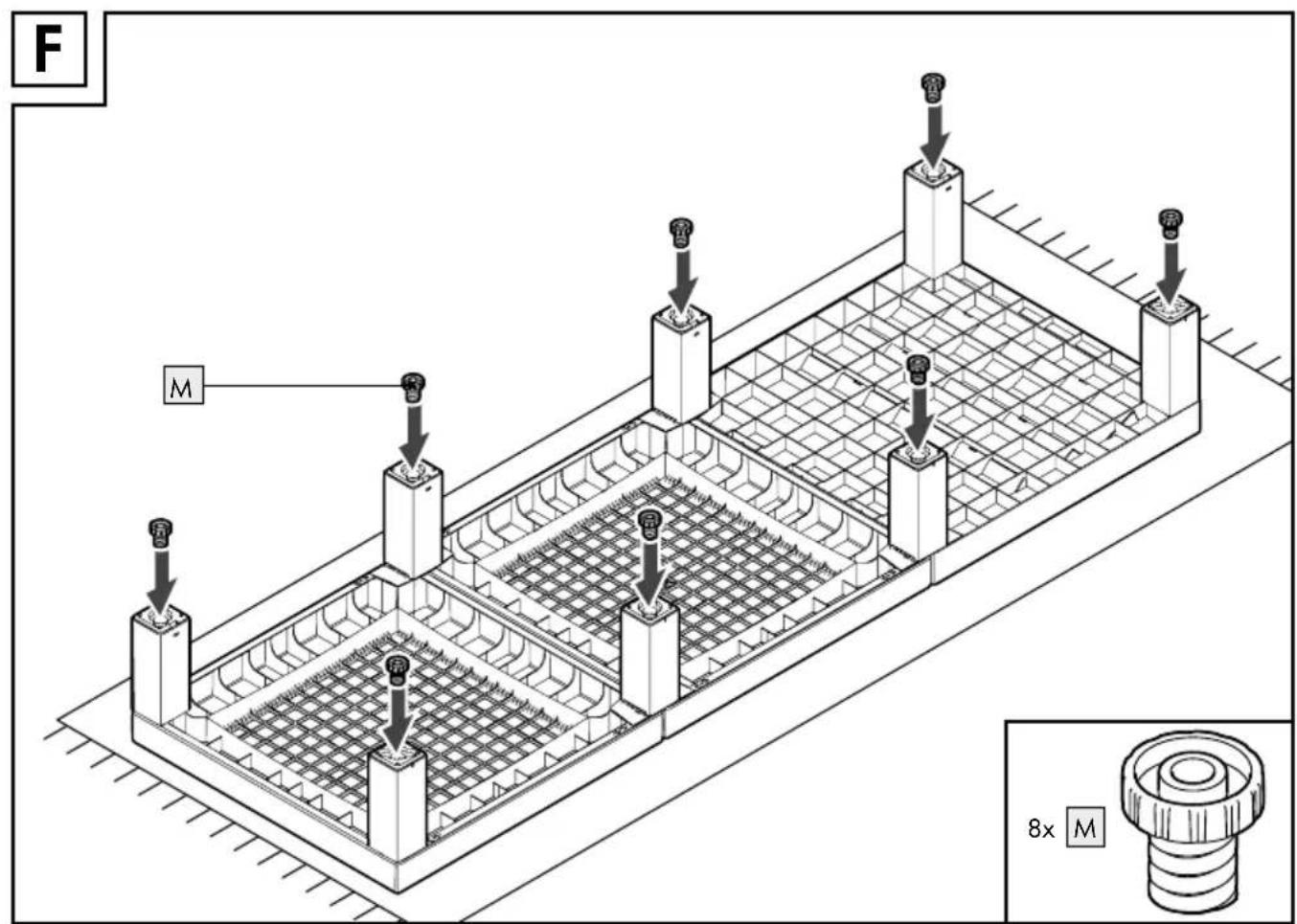

F M 8x M

G

Line drawing of a simple wooden table with a folding panel and base, no text or symbols present

JARDIN NETHERLANDS B.V.

Ericssonstraat 17

5121 MK, Rijen

THE NETHERLANDS

FSC www.fsc.org MIX Paper from responsible sources FSC® C017135

PDF ONLINE www.lidl-service.com

IAN 384188_2107
