Product type	Push-button basin mixer
Brand	Miomare
Model	HG07027A
Connections	G 3/8 (approx. 17 mm)
Connection nut	approx. 19 mm
Main functions	On/Off via push button, temperature adjustment via selector, eccentric drain stopper
Intended use	Pressure-resistant hot water systems (central heating, instantaneous water heater, pressure water heater). Not suitable for low-pressure water heaters.
Included parts	Tap body, 2 hoses (cold/hot water), drain stopper, wrenches, seals, nuts
Care and cleaning	Clean with clear water and mild detergent using a soft cloth. Regularly descale the mixing nozzle.
Safety	Do not leave children unattended. Check tightness after installation. Risk of scalding with hot water.
Materials	Chrome-plated brass (estimated)
Warranty	Contact customer service (www.lidl-service.com)
Spare parts and repairability	Seals, hoses, cartridge available as wear parts. Contact the manufacturer.
Maximum water temperature	Up to 80°C (estimated)
Recommended operating pressure	0.5 to 5 bar (estimated)

Frequently Asked Questions - HG07027A MIOMARE

How to install the Miomare HG07027A tap?

Turn off the main water supply. Install the tap according to illustrations A-D in the manual. Be careful not to kink the hoses. Use the supplied seals to ensure tightness. Tighten the fixing nut. Connect the hoses to the water inlets (hot water on left, cold water on right).

How to adjust the water temperature?

Turn the temperature selector (part 2) to the left for hot water and to the right for cold water. Water flows when you press the On/Off switch (part 1).

How to clean the tap?

Clean the tap with clear water and a mild detergent using a soft cloth. Do not use corrosive or alcohol-based products. Unscrew the mixing nozzle (part 17) regularly to remove limescale deposits.

What to do if the tap leaks?

Check that all seals are correctly positioned and that connections are properly tightened. Seals are wear parts; replace them if necessary. If the leak persists, contact a qualified technician.

Can I use this tap with a low-pressure water heater?

No, this tap is designed for pressure-resistant hot water systems (such as central heating or an instantaneous water heater). It is not suitable for low-pressure water heaters (wood-fired baths, etc.).

How to flush the tap before first use?

Unscrew the mixing nozzle (part 17), open the main water supply and let the water run for two minutes. Then screw the nozzle back on.

What are the risks of incorrect installation?

Incorrect installation can cause water leaks, property damage, or risk of electric shock (if water reaches electrical cables). Follow the instructions carefully and contact a qualified technician if necessary.

Is this tap suitable for drinking water?

Yes, but after stagnation of more than 4 hours, let the water run for a few seconds before consuming. If you are allergic to nickel, avoid using stagnant water from chrome-plated pipes.

How to maintain the eccentric drain stopper?

The eccentric drain stopper is operated by a push button. Clean it regularly with a mild detergent. In case of malfunction, check the control rod and seals.

Where can I find spare parts?

Spare parts (seals, hoses, cartridge) are available through the Lidl customer service (www.lidl-service.com). Use the QR code or model number HG07027A.

USER MANUAL HG07027A MIOMARE

PDF ONLINE www.lidl-service.com

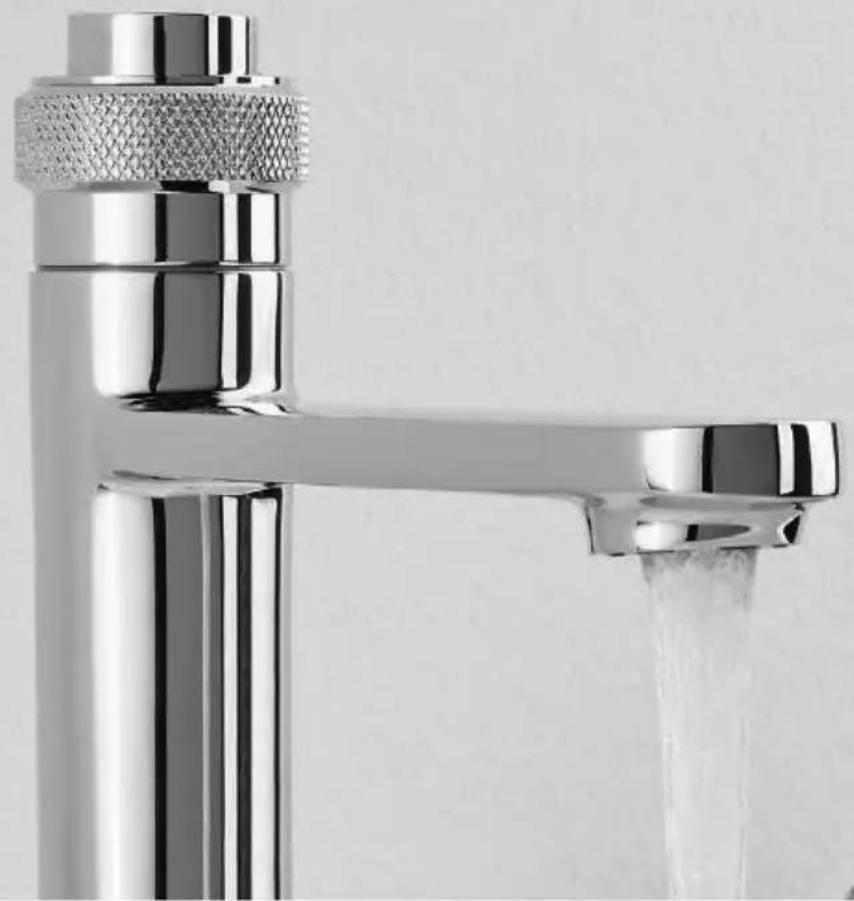

Close-up of a modern stainless steel faucet with water flowing from its side (no text or symbols visible)

Close-up of a metallic faucet handle with water flowing from its side (no text or symbols visible)

PUSH-BUTTON-WASCHTISCHARMATUR / PUSH-BUTTON MIXER TAP / MITIGEUR DE LAVABO À BOUTON-POUSSOIR

DE AT CH

PUSH-BUTTON-WASCHTISCHARMATUR

Kurzanleitung

FR BE

MITIGEUR DE LAVABO À BOUTON-POUSSOIR

Line drawing of a pair of pliers (no text or symbols)

Line drawing of an adjustable wrench with a magnified inset showing internal components (no text or symbols)

A

Exploded view diagram of a cleaning or cleaning device with numbered parts and component labels

B 3 4 5 8 10

Diagram of a mechanical component with a threaded base and arrow indicating direction (no text or symbols)

D 6 7 9

E 13 14 15 16

Two identical mechanical components with threaded ends and a central knob, each with a downward arrow indicating force or direction (no text or symbols present)

H

1 11

J 17 12

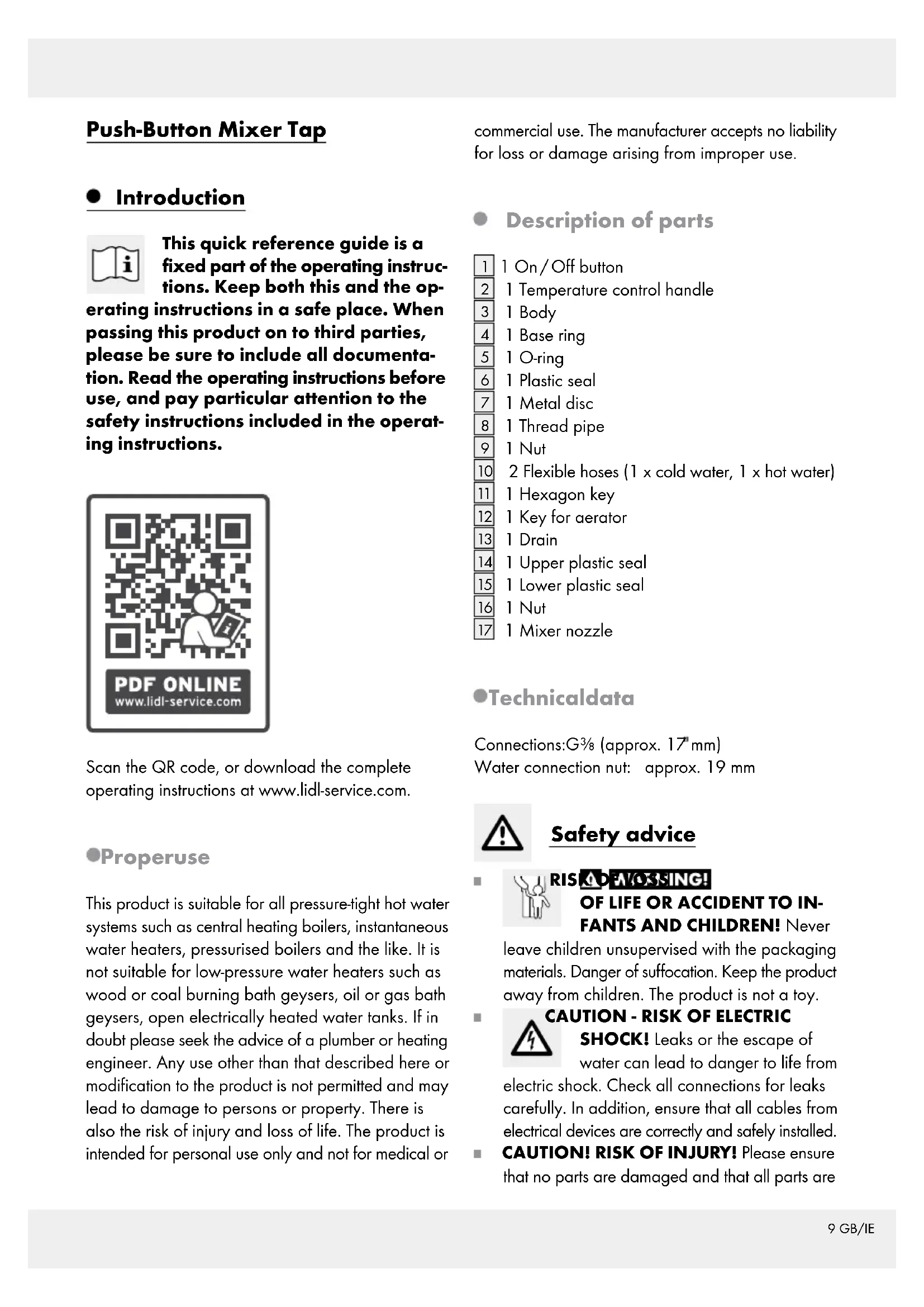

Push-Button Mixer Tap

- Introduction

This quick reference guide is a fixed part of the operating instructions. Keep both this and the operating instructions in a safe place. When passing this product on to third parties, please be sure to include all documentation. Read the operating instructions before use, and pay particular attention to the safety instructions included in the operating instructions.

PDF ONLINE www.lidl-service.com

Scan the QR code, or download the complete operating instructions at www.lidl-service.com.

Properuse

This product is suitable for all pressure-tight hot water systems such as central heating boilers, instantaneous water heaters, pressurised boilers and the like. It is not suitable for low-pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. If in doubt please seek the advice of a plumber or heating engineer. Any use other than that described here or modification to the product is not permitted and may lead to damage to persons or property. There is also the risk of injury and loss of life. The product is intended for personal use only and not for medical or commercial use. The manufacturer accepts no liability for loss or damage arising from improper use.

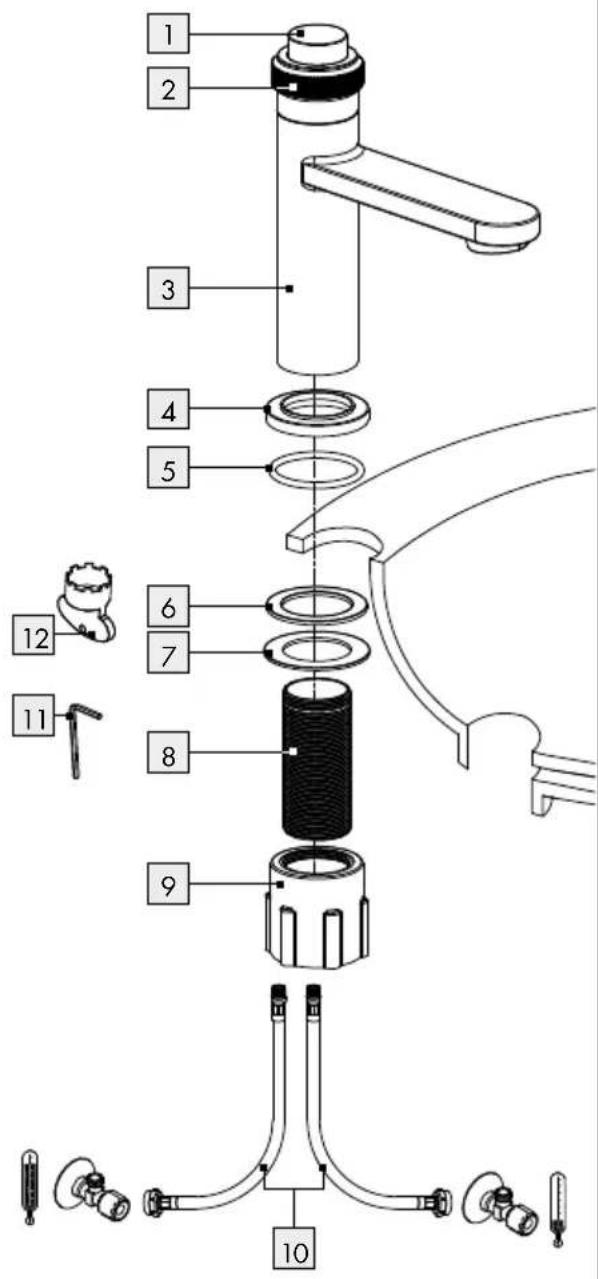

• Description of parts

1 On/Off button
2 1 Temperature control handle
3 1 Body
4 1 Base ring
5 1 O-ring
6 1 Plastic seal
7 1 Metal disc
8 1 Thread pipe
9 1 Nut
10 2 Flexible hoses (1 x cold water, 1 x hot water)
11 1 Hexagon key
12 1 Key for aerator
13 1 Drain
14 1 Upper plastic seal
15 1 Lower plastic seal
16 1 Nut
17 1 Mixer nozzle

- Technicaldata

Connections: G^3/8 (approx. 17 mm)

Water connection nut: approx. 19 mm

Safety advice

RISK A D W OSSING! OF LIFE OR ACC FANTS AND CH

leave children unsupervised with the packaging materials. Danger of suffocation. Keep the product away from children. The product is not a toy.

CAUTION - RISK OF ELECTRIC

SHOCK! Leaks or the escape of water can lead to danger to life from electric shock. Check all connections for leaks carefully. In addition, ensure that all cables from electrical devices are correctly and safely installed.

■ CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are

correctly assembled. Incorrect assembly could lead to injury. Please note that seals are wear parts and therefore will require to be replaced from time to time. Damaged parts could adversely affect safety and proper function.

■ CAUTION! RISK OF DAMAGE TO PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings or household fittings and furniture. Check all connections for leaks carefully.
■ Ensure that all seals are correctly seated to prevent leakage of water.
■ CAUTION! DANGER OF SCALDING! When making the hot water setting please ensure that the temperature of the water is not too high.
Before installation, make yourself familiar with all the existing services, e.g. water connection and stopcocks.
Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instructions in a safe place for future reference!

●Installation

• Installing the tap
■ Turn off the main water supply to prevent serious leakage of water. Allow any remaining water in the pipework to drain.

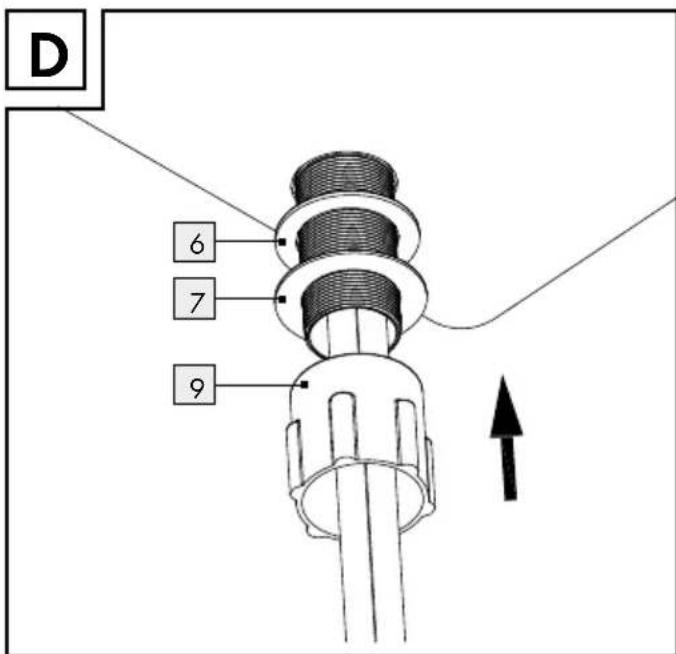

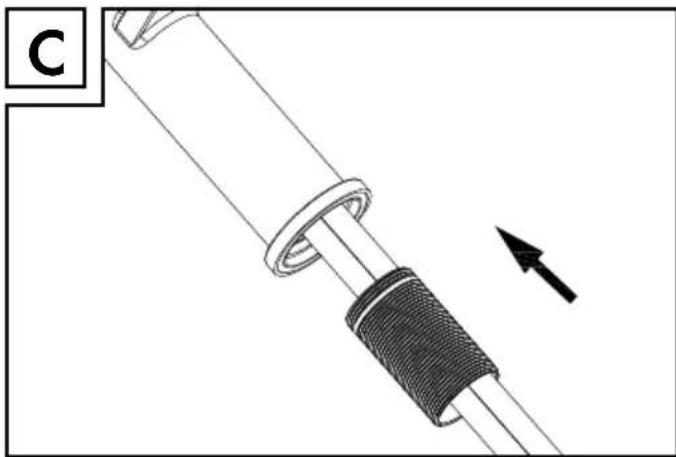

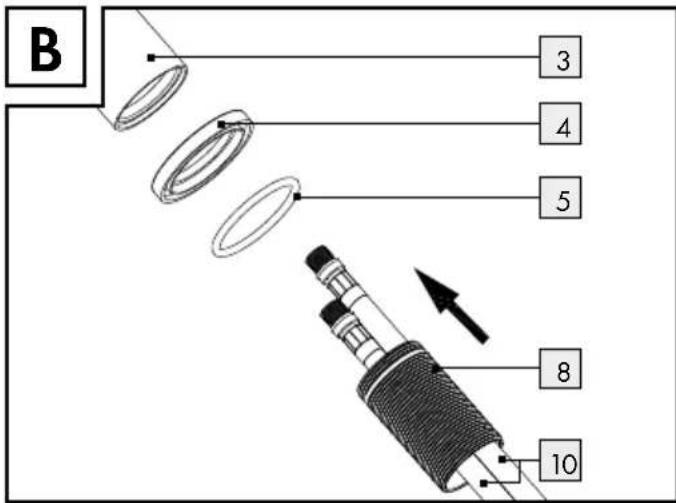

☐ Install the tap as shown in Figs. A–D.

CAUTION! Do not bend the hoses or place them under tension. Otherwise material damage could result.

• Attaching the pop-up waste

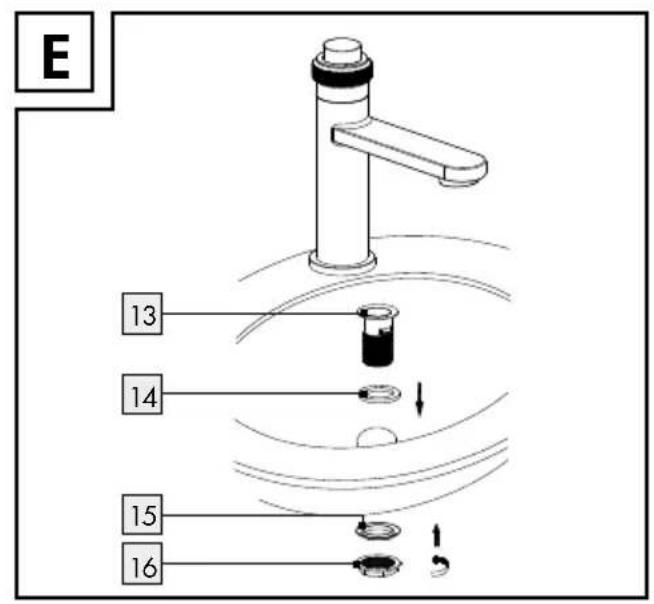

  ☐ Install the pop-up waste as shown in Fig. E.
  • Using the pop-up waste

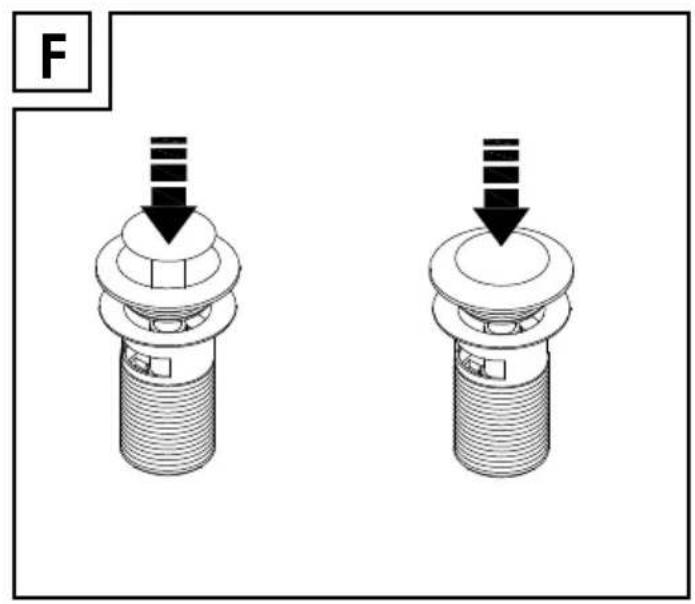

  □ See Fig. F.

- Flushing the tap

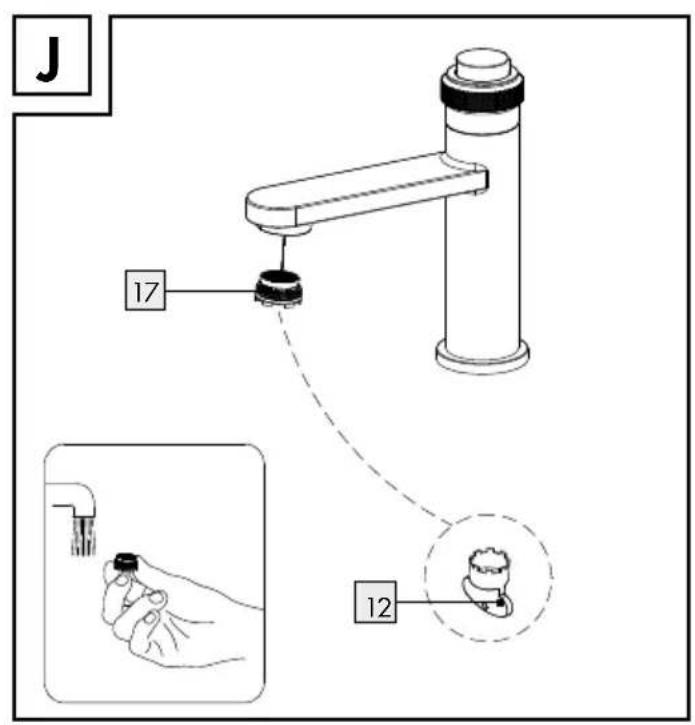

☐ The tap must be flushed through before first use to remove any dirt. To do this, follow these steps (see Fig. J):
□ Screw the mixer nozzle 17 off.
☐ Open the main water supply and allow the water to run for two minutes.
☐ Then screw the mixer nozzle 17 on again.

Operation

- Bringing into use

Note: If the tap has not been used for a long period flush the pipes through thoroughly in order to avoid stagnation and build-up of residues in the drinking water supply.

□ Open the main water supply.
☐ Press the on / off button 1 to open the tap, let the water flush for a while.
☐ Turn the temperature control handle 2 to the right or left to regulate the temperature of the water flow.

Turn on or off water:

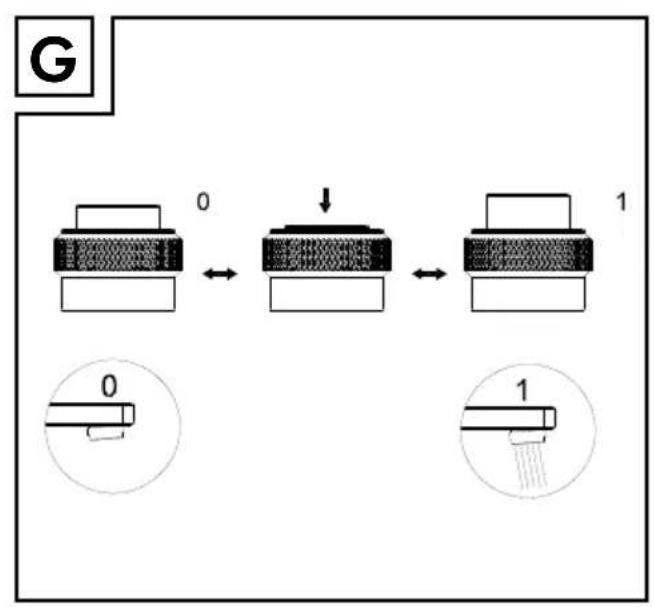

☐ Press the on / off button ☐ (see Fig. G).

Hot water:

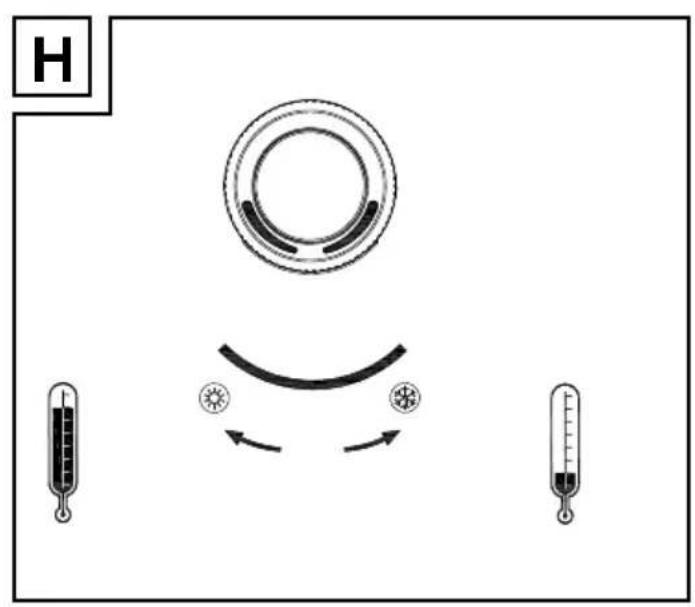

☐ Turn the temperature control handle 2 to the left (see Fig. H).

Cold water:

☐ Turn the temperature control handle 2 to the right (see Fig. H).
☐ Check that the mixer tap is working properly. To do this, press the on / off button 1, turn the temperature control handle 2 into all the possible positions. Please check the connections regularly for leaks.

● Maintenance and cleaning

Tap care and cleaning

Please note that sanitary fittings require special care and attention. Therefore you should follow the following advice:

■ Never use corrosive or alcohol-based materials for cleaning, as these could damage the product.
□ Clean your fittings with clean water, mild detergent and a soft cloth or leather only.
☐ Screw out the mixer nozzle 17 at regular intervals and remove lime deposits or foreign bodies.

Non-observance of the above care advice can be expected to result in damage to the surface of the fittings. In this event your rights under the warranty may be invalidated.

Information

- Potability of mains water

☐ Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.

The following general recommendations apply to the potability of the water from your pipework:

- Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler.

Do not use stagnant water from chromium-plated pipework for the preparation of food or for drinking or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.

Do not use water from lead pipework for preparing food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.

• Installation of armaturet
