USER MANUAL Olé Osann

Icon of an open book with an information symbol inside a yellow circle (no text or symbols)

DE EN

FR IT

ES NL

CZ PL

SK

Line drawing of a stroller with wheels and fan assembly (no text or symbols)

osann

SPORTWAGENAUFSATZ / BUGGY / POUSSETTE / PASEANTE / PASSEGGINO / WANDELAAR / SPORTOVNÍ KORBA / SPACEROWNIK / NADSTAVEC NA ŠPORTOVÝ KOČÍK

A L B C D E J I H K G F

Mechanical component diagram showing a curved bracket with internal parts and an upward arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with tripod base and support legs (no text or symbols)

Line drawing of a hand holding a tool next to a curved object, no text or symbols present

Line drawings showing two hand tools: one using a tool to cut the blade, the other holding a tool (no text or symbols present)

Diagram of a mechanical clamp or connector with a black arrow pointing to the center (no text or symbols present)

Diagram of a mechanical assembly with two vertical rods and directional arrows indicating movement (no text or symbols)

Line drawing of a car seatbelt buckle with a magnified inset showing the detail (no text or symbols)

Technical line drawing of a roof structure with an inset magnified detail (no text or symbols)

Line drawings of two stuccoetry car models with a hand tool, no text or symbols present

Illustration of two mechanical components with arrows indicating motion, no text or symbols present

Line drawing of a vehicle chassis with wheels and a handle (no text or symbols)

Technical line drawing of two mechanical clamping or cutting tool configurations (no text or symbols)

Diagram showing three mechanical components with directional arrows, no text or symbols present

Line drawing of a baby stroller with wheels and seat (no text or symbols)

Technical line drawing of a roof structure with an inset close-up showing detail (no text or symbols)

BABYWANNE / CARRYCOT / COUFFIN / MOISÉS / CULLA PORTATILE / BASSINET / HLUBOKÁ KORBA / GONDOLA / DETSKÁ VANIČKA

A B D C

Line drawing of a car's rear view showing the body and seat (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Simple line drawing of a rectangular frame with internal components and connectors (no text or symbols)

Top-down line drawing of a rectangular frame with internal geometric shapes and no text or symbols

Illustration of two hand tools: a grip and a tool, both without any text or symbols

Diagram showing a mechanical device interacting with two labeled baskets, no text or symbols present

Technical line drawing of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Technical line drawing of a roof structure with an inset close-up showing detail (no text or symbols)

Four line drawings of a stroller with different body positions and directional arrows, no text or symbols present.

DE

Thank you very much for choosing our OLÉ pushchair. If you need help with this product, please contact our customer service.

WARNINGS

- WARNING Always use the crotch strap in combination with the waist strap. We recommend that you also use the shoulder strap.

- WARNING Before use, make sure that all locking parts are locked.

- WARNING Do not let your child play with this product.

- WARNING Before use, make sure that the prams and seat supports are properly locked.

- The product must be assembled by an adult.

- Only use the stroller for children under 22 kg. Otherwise the pram may be damaged. (Please note the individual maximum weights for pushchair attachment and baby carrier).

- Never place more than 4.5 kg in the storage basket so that the pram does not become unstable.

- Never leave your child unattended. Always keep your child in sight.

- Use the stroller with only one child. Never place bags, shopping bags, packages or accessories on the handle or the hood.

• Overloading, incorrect folding or the use of parts from other manufacturers may impair or damage the safety of the stroller. Read the instruction manual carefully.

- Never use it with accessories from other manufacturers.

- Read all instructions in this manual before using this product. Keep this manual for future reference. Failure to follow these warnings and instructions could result in serious injury or death.

- The safety belts and the restraint system must be used correctly.

• Always use the seat belts to prevent serious injury from falling or sliding out.

• Make sure that your child does not come into contact with parts that move when you adjust the pram.

- The child can slide into the openings of the legs and strangle himself if the belt system is not used.

- Do not use stairs or escalators with the pram.

- Keep away from hot objects, liquids and electronic devices.

- Do not allow your child to climb on the pram or sit head forward in it.

- Do not park the pram on roads, slopes or dangerous areas.

- Make sure that all mechanical parts are locked before using the stroller.

- To avoid strangulation, DO NOT place any objects with a band around your child's neck. Remove the straps from these objects or fix them in place in some other way.

- Do NOT place anything on the handle so that the stroller does not tip over.

- DO NOT lift the pram while your child is sitting in it.

- DO NOT use the storage basket as a storage space for your child.

- Do not allow your child to climb on the pram or it may tip over. Always lift your child into or out of the pram.

• Always fold the stroller carefully up or down so that nothing can be trapped.

• Make sure that the stroller is fully folded or unfolded before letting your child near you.

- For the safety of your child, check that all parts are assembled and fixed before using the stroller.

- Keep your child away from the hood so it doesn't get caught in it.

• Always activate the brakes when you park the stroller.

- Do not use the stroller if it is damaged.

- The pram may only be used at walking speed. This product must not be used for jogging.

• To avoid suffocation, remove plastic bags and packaging materials before using this product. Plastic bags and packaging materials should be kept away from babies and children.

• This product is not suitable for jogging or skating.

- The sports stroller attachment / buggy attachment is suitable for children from 6 months up to a maximum body weight of 22 kg.

- Use the parking brake when inserting or removing the child.

- The baby carrier is only suitable for children who cannot sit independently, turn and/or support themselves with their hands and knees. Maximum weight of the child: 9 kg.

- The baby carrier is NOT suitable for longer sleep.

- Use only the mattress supplied with the baby carrier; DO NOT add another mattress.

• For car seats in combination with a substructure, this means of transport is not a substitute for a cot. If your child is tired, you should place him or her in a suitable pram, cot or baby bed.
• Please make sure that the child's head in the baby carrier is never lower than the child's body.
• Before carrying or lifting, please make sure that the handle is in the correct position for use.
• Do not let other children play unattended near the baby carrier.
• Handles and underside should be checked regularly for damage and signs of wear.
  • Tested according to EN 1888-2:2018

CARE INFORMATION

• The cleaning and maintenance of the stroller is a task that may only be performed by adults.
• The cover is not removable. Clean the fabric parts with a damp sponge and a neutral cleaner. Please observe the instructions on the care label.
• Only clean the pram frame with commercially available soap and warm water. Do not bleach or treat with cleaning agents.
• Check your stroller occasionally for loose screws, worn parts, worn materials or torn seams. Replace or repair the parts if necessary.
• Excessive exposure to sunlight or heat may cause parts to fade or deform.
• If the stroller has become wet, open the hood and allow it to dry completely before stowing it away.
• For squeaking wheels, apply a light oil (e.g. silicone spray, anti-rust oil or sewing machine oil). It is important that the oil gets into the axle and the wheel connection.
• If you take your stroller for a walk on the beach, you must clean it completely to remove sand and salt from the mechanics and wheel connections.

MAINTENANCE

Regularly check the condition of the product for possible damage. In case of damage, do not use and keep out of the reach of children.

If you have any problems, please contact Osann Customer Service at +49(0)7731/970077.

EN

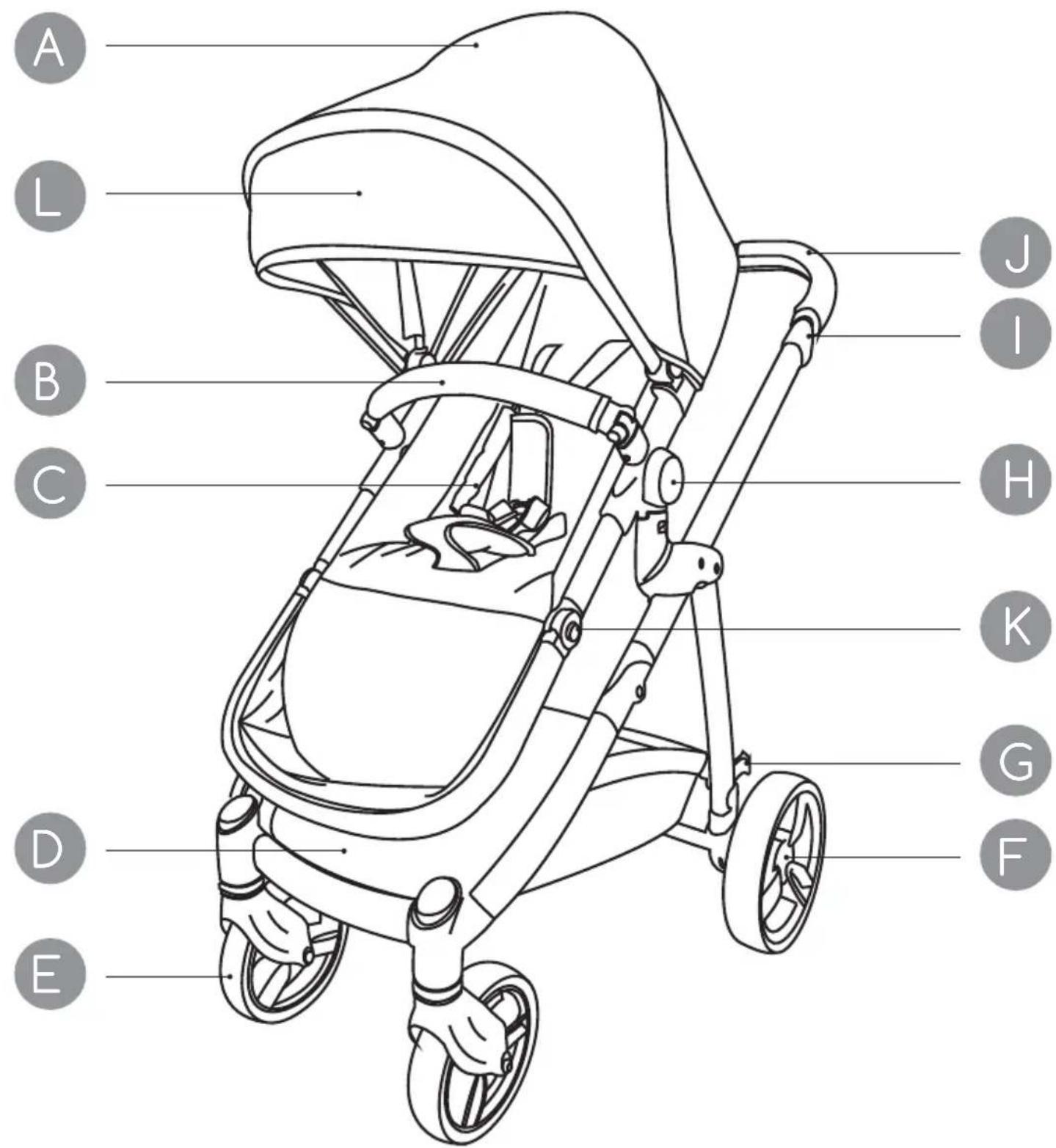

BUGGY

A: Canopy
B: Frontbar
C: Five point harness system
D: Basket
E: Front wheel
F: Rear wheel

G: Folding locker
H: Function button
I: Folding mechanism
J: Handle bar
K: Footrest adjuster
L: Sun visor

1.-2. Open:

Unhook the folding locker, uplift the handle bar until the tube click into position.

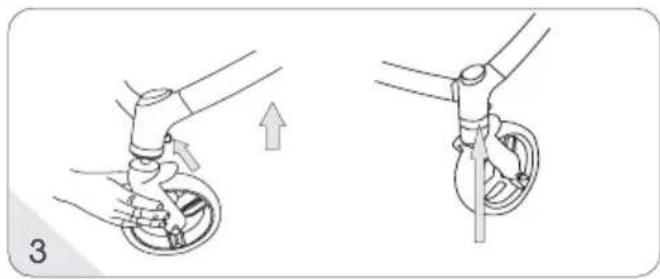

3. Attaching the front wheels:

Insert the front wheel sets into the housing until it clicks into the knukle and make sure the wheel attached well; rotate the locher clockwise to make the wheel to straight, on the counterclockwise rotaion to make the wheel swivel.

4. Attaching the rear wheels:

Put the wheel set into the housing as shown, and make sure they are clicked into position and attached well.

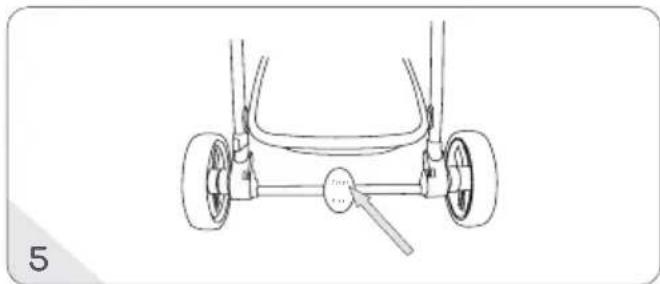

5. Adjust rear wheel brakes:

Step on the rear part of the brake to stop, to release brake, step on the front part.

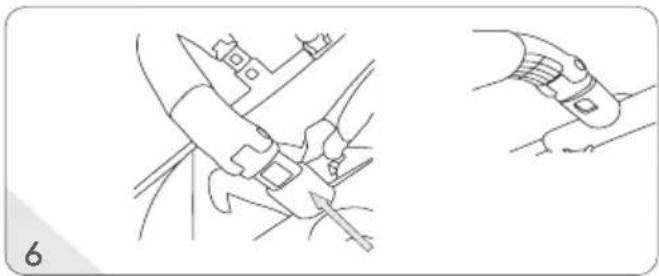

6. Install the bumper bar:

Click the front bar into the plastic housing and make sure it is fixed into position.

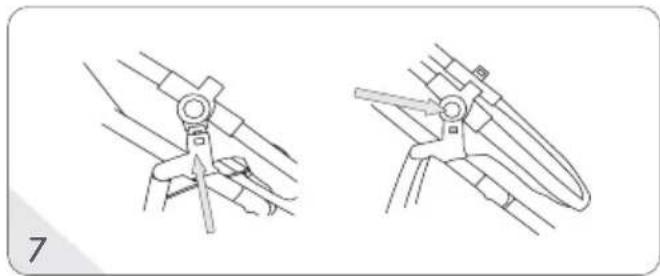

7. Install and move the seatunit:

Place the seat unit on to the mounting points on the both side, push down until the button located in the holes of the seat mountings, press the button on the both side to move the seat out.

8. Harness Release:

Press down the button on the buckle, pull it to open.

9. Harness fastening:

Insert the two latches into the buckle on both sides until they click for locking. Sliding adjusters are fitted and should be carefully adjusted on each side so the harness fits your child comfortably.

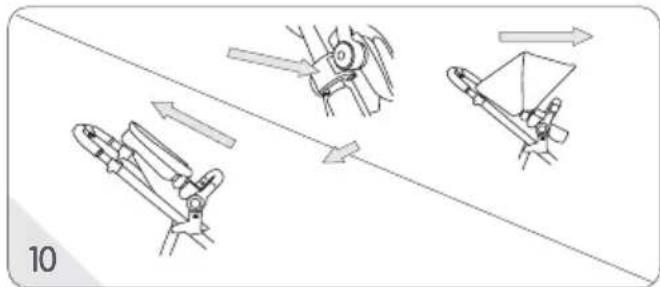

10. Canopy installation and use:

Canopy installation: Buckle up the canopy to the upper seat frame.

Canopy using: Pull forward the canopy to stretch the canopy, and back to fold.

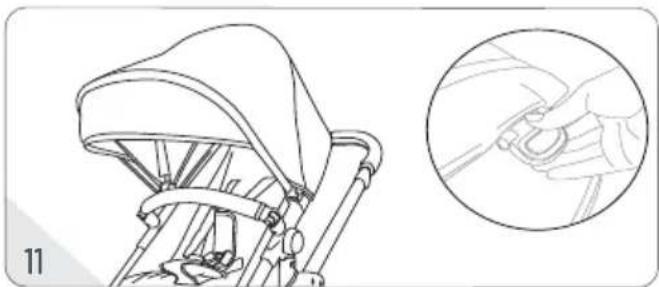

11. Adjust the seating position:

Use the lever on the back of the backrest to adjust the seating position.

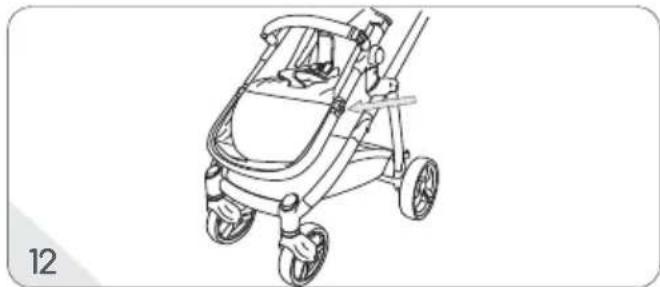

12. Adjustment of the footrest:

Press pushbuttons on both sides of the footrest to set the position.

13. Attaching the sun visor

To mount the extra sun visor, attach it to the front zipper of the hood.

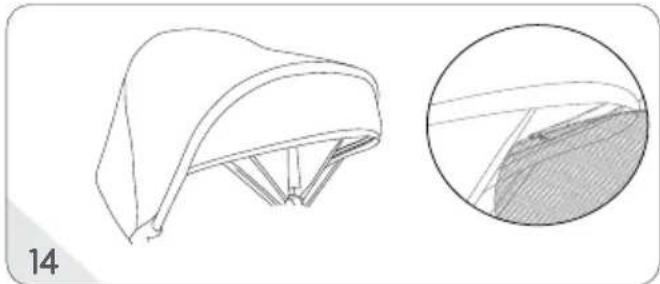

14. Attaching the mosquito net

To attach the mosquito net to the hood and sports seat, close the zipper on the net with the rear zipper on the hood. Fix the mosquito net to the sides of the sports seat with the straps and tension.

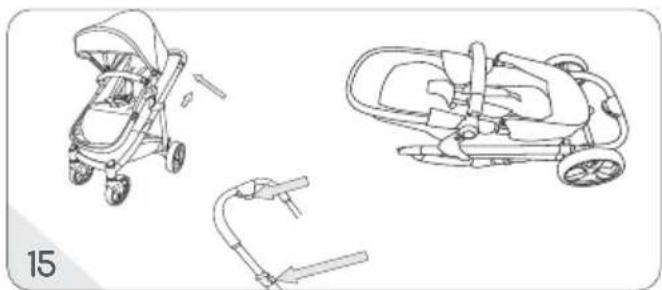

15. Folding:

Adjust front wheel to swivel, then press the 2nd locker, and pull the folding system on the both side, downward the stroller into lock it.

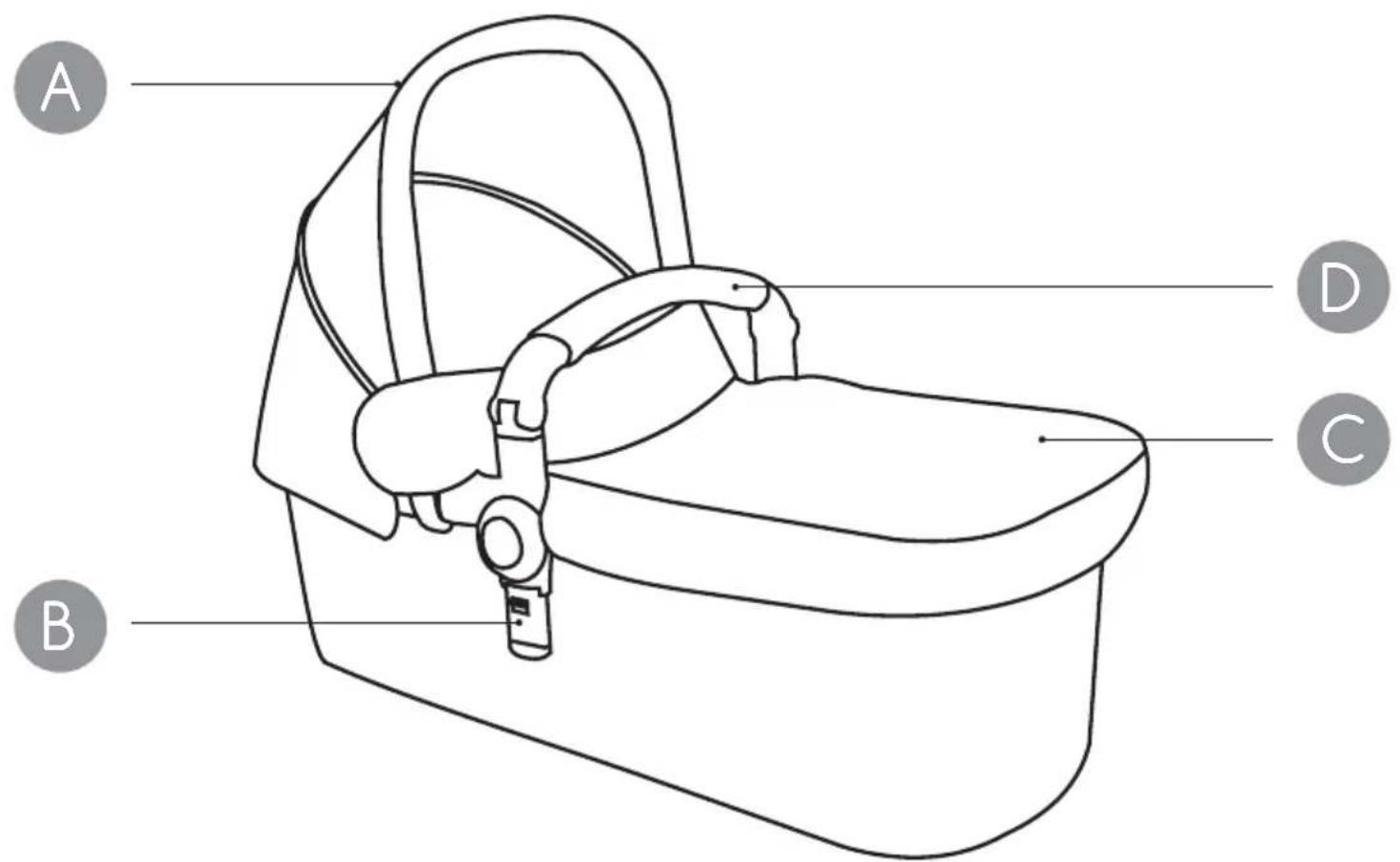

CARRYCOT

A: Canopy
B: Socket Join
C: Boot Cover
D: Armrest

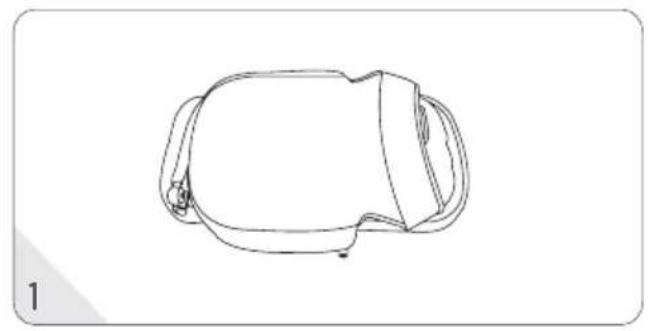

1. Open:

Take out the bassinet as photo showed.

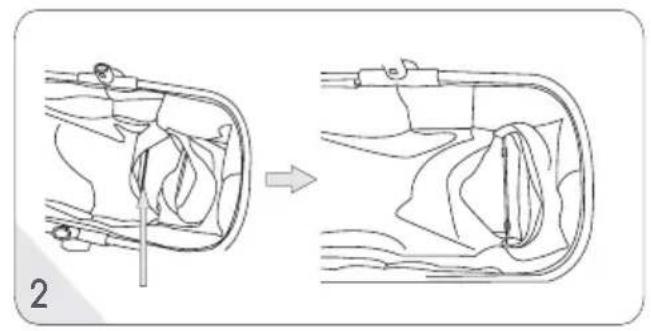

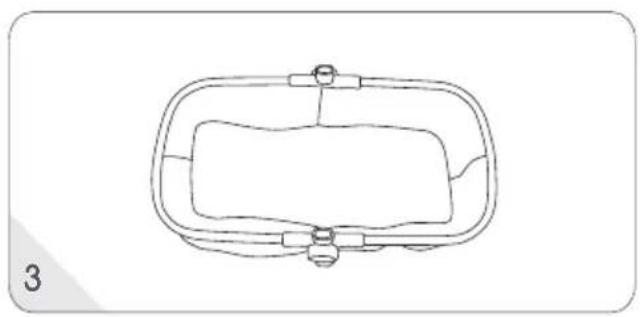

2.-3. Attaching the iron lining:

Click the iron lining into the support plastic, check and ensure that the iron lining and the support plastic closed in the right position.

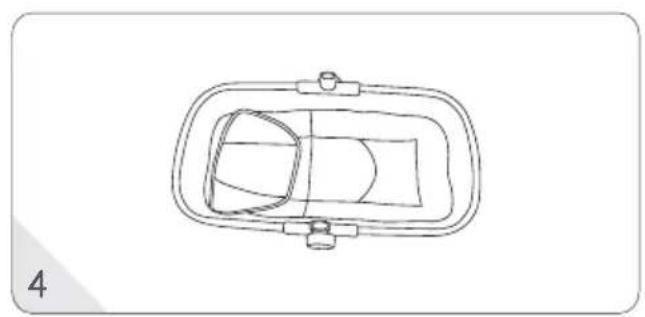

4. Attaching the sleeping pads:

Put the sleeping pads into the bassinet.

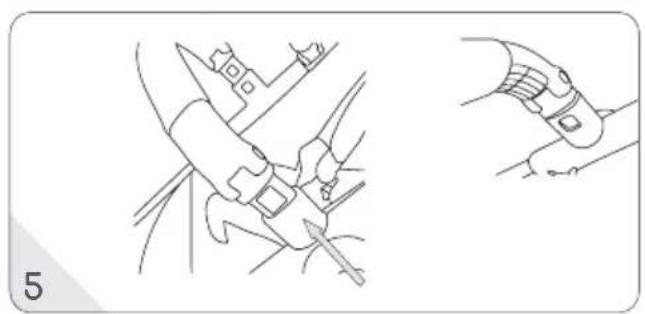

5. Front armrest installation:

Put the armrest into the both side of the frame plastic housing, ensure the armrest fixed in the right position.

6. Canopy installation and use:

Canopy installation: Buckle up the canopy buckle to the upper seat frame.

Canopy using: Pull forward the canopy to stretch the canopy, and back to fold.

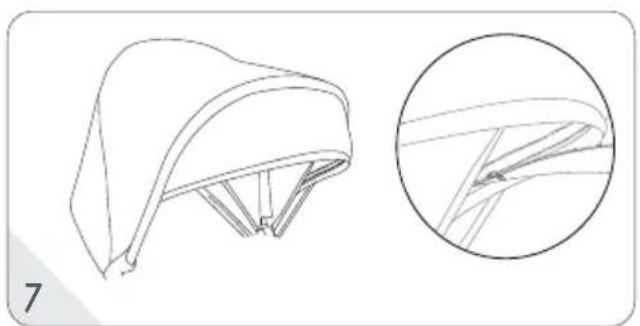

7. Attaching the sun visor

To mount the extra sun visor, attach it to the front zipper of the hood.

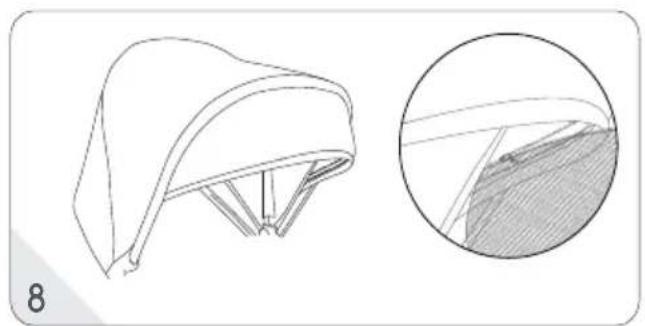

8. Attaching the mosquito net

To attach the mosquito net to the canopy and the baby carrier, close the zipper on the net with the rear zipper on the canopy, fix the mosquito net with the tabs on the sides of the baby carrier and tighten.

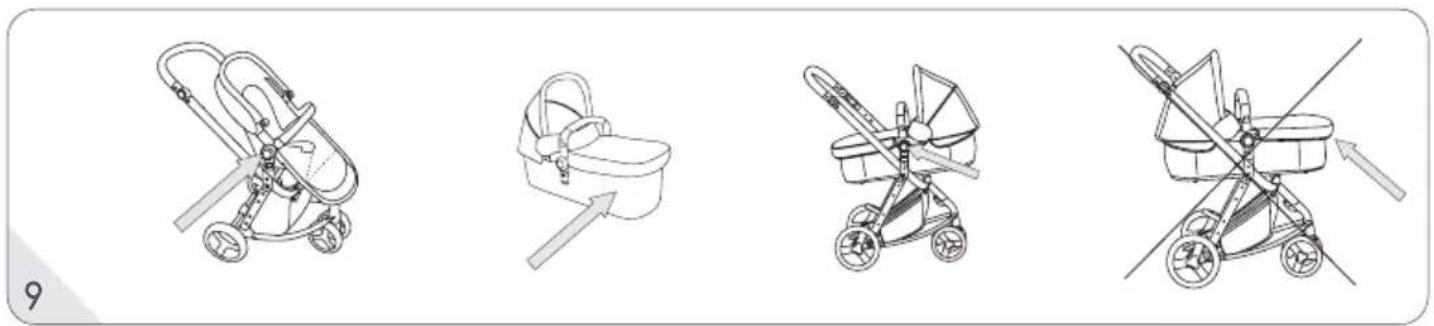

9. Installation carrycot:

Press the bottoms on the seat unit to move the seat out, then locate the carrycot on to the chassis as shown. Warning: Make sure to locate the carrycot on the right way.

FR

A: Kap
B: Insteekverbinding
C: Armleuning
D: Wiegafdekking

1. Openen:
