USER MANUAL Rose Osann

Line drawing of a baby stroller with adjustable canopy and wheels (no text or symbols)

Bedienungsanleitung

Instruction Manual

Line drawing of a stroller with a roller and handle, showing motion direction (no text or symbols)

Illustration of a stroller with two stages showing body movement and seat positioning (no text or symbols)

Line drawing of a baby stroller with wheels and a black arrow indicating motion (no text or symbols)

Line drawing of a baby stroller with wheels and canopy (no text or symbols)

4 Lock Unlock

5a

5b

6

Line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a car's seat and wheel assembly with arrows indicating components (no text or symbols)

9a 9b C C A A C C BB C To lock

10 back of seat

Line drawing of a car seatbelt with harness and seatbelt (no text or symbols)

14

Illustration of a person using a cart with a vertical pole and upward arrow, no text or symbols present

9b To release

11 back of seat

Simple diagram showing a curved path with an arrow, no text or symbols present

15

17

ACHTUNG!

DE

Kinderwagens/Buggys.

• Never leave your child unattended
• This seat unit is not suitable for children under 6 months
• Ensure that all the locking devices are engaged before use
  • To avoid injury ensure that your child is kept away when unfolding and folding this product
• Do not let your child play with this product
  • Always use the restraint system
• Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use
• This product is not suitable for running or skating or any other sport activities
• IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Any load attached to the handle, backrest or sides affects the stability of the pram/pushchair.

Only use accessories sold or approved by the manufacturer.

Only use spare parts sold or approved by the manufacturer.

The brake must always be on when putting the child in or taking him out.

Never carry more than 1 child per place in the pushchair at a time.

This pushchair is intended for children from 6 months, up to 15 kg.

For buggies with accessories (depending on the version), please respect the maximum weight loads indicated below: basket 4.5kg.

Cleaning and Maintenance

The cleaning and maintenance of this product must be carried out on a regular basis by the user. The cleaning and maintenance of the stroller must only be carried out by an adult. The cover is not removable. Clean the fabric parts with a damp sponge and neutral detergent. Please refer to the product's care label. Routinely wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water. For the textile parts intended by the manufacture to be removable and washable, please read the attached care label. Never use sharp or abrasive cleaning products, instead use a mild soap solution or a special textile cleaning products. The plastic parts and the frame can also be cleaned with a soap solution.

1. To open the stroller

Release the folding latch. (Fig. 1)

WARNING: Keeping stroller flat on the floor when unfolding.

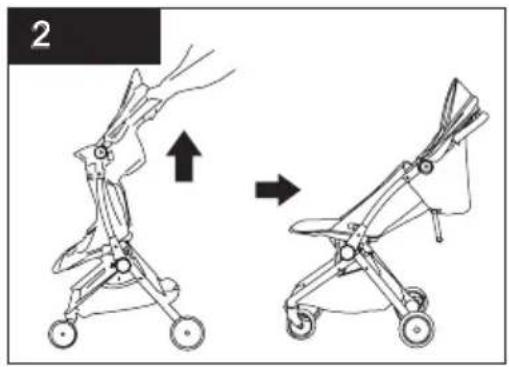

1. Lift the handle upwards while keeping the folding latch unlock. Continue this action until the frame is fully open with a „click“ sound from lock. (Fig. 2)

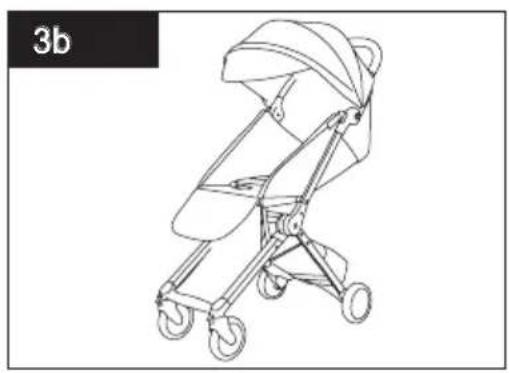

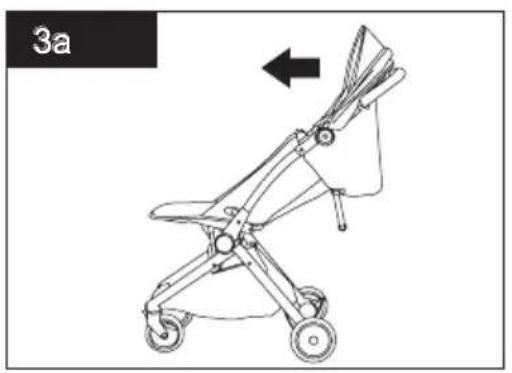

2. Open the canopy by flipping it forward. (Fig. 3a & Fig. 3b)
3. Locking & unlocking front wheels

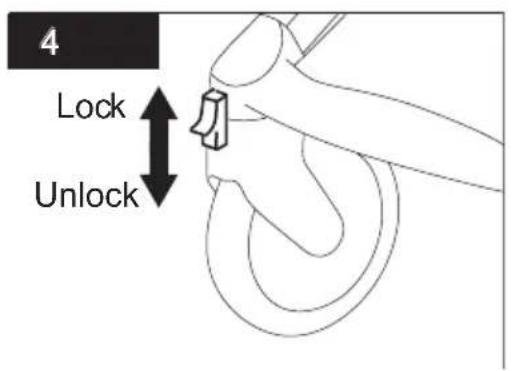

To lock the front swivel wheels in place, lift the clip upwards. To unlock the front wheels, press the clip downwards. (Fig.4)

1. Rear wheels assembly

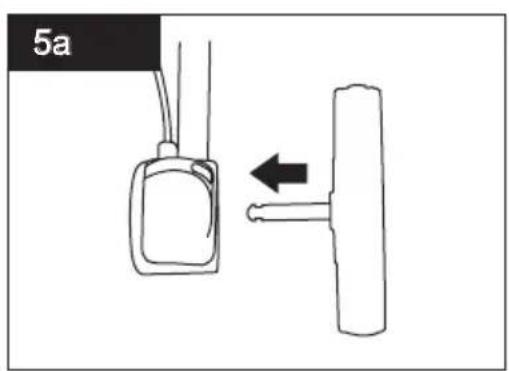

Push the rear wheel into the rear leg tube until the spring loaded pin engages repeat on the other side. Check wheels are fully engaged.(Fig. 5a)

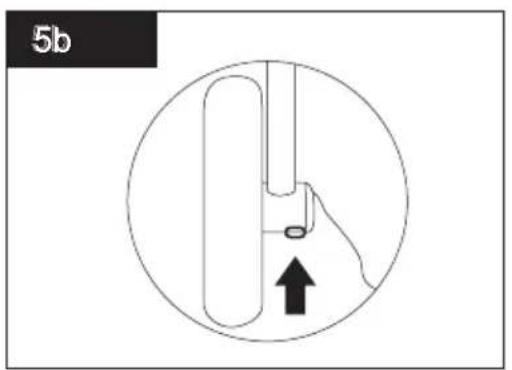

Rear wheel disassembly: Press in the spring loaded clip and remove the rear wheel. (Fig. 5b)

1. Brakes

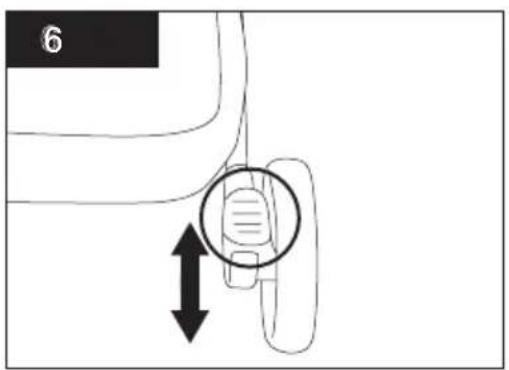

To engage the brake, press down firmly on the red rear brake pedal. Check brakes are engaged. To release, lift the brake pedal until the brake has fully disengaged. (Fig.6)

1. To recline seat back

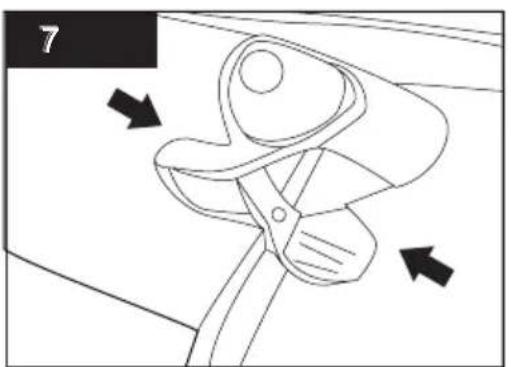

To adjust the backrest, use clip shown in (Fig 7), press both sides to release the strap allowing the backrest to move. Lift the backrest up for an upright position by pressing the clip and moving it forwards towards the seat, whilst holding the strap.

WARNING: DO NOT ADJUST THE BACKREST WHILE YOUR CHILD IS IN THE STROLLER.

1. Footrest adjustment

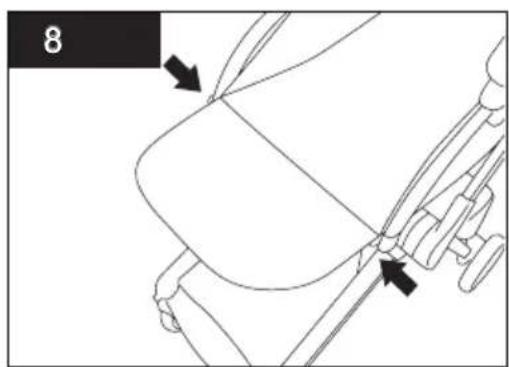

Press the side locks on both sides to move the footrest downwards. Press side locks again to lift up the foot rest. (Fig 8)

9. To use harness

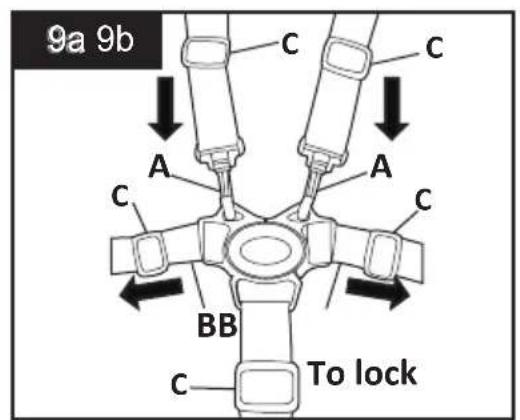

To attach the harness and waist straps into the center buckle, clip shoulder straps A onto the waist straps B as shown, then clip them into the center buckle.(Fig 9a)

To adjust harness around your child, tighten or loosen the waist strap/shoulder straps and center buckle straps by sliding the buckles(C). (Fig 9a)

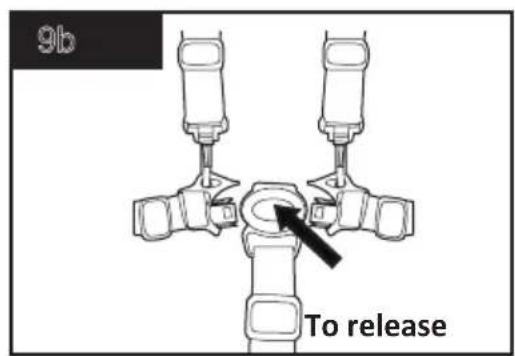

To unlock harness, push the button on the center buckle to release the waist straps. (Fig 9b)

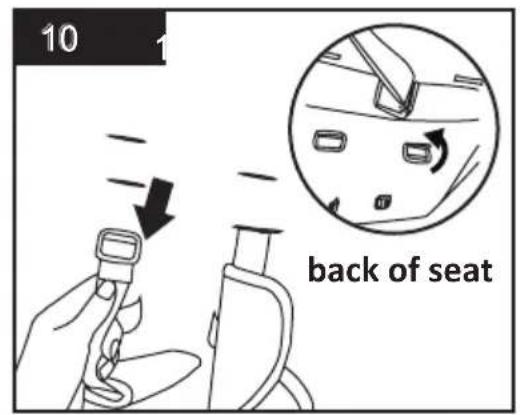

1. From the back of the seat locate the plastic square stopper. Turn stopper and pass through the openings in the seat back frame and seat fabric. (Fig 10)

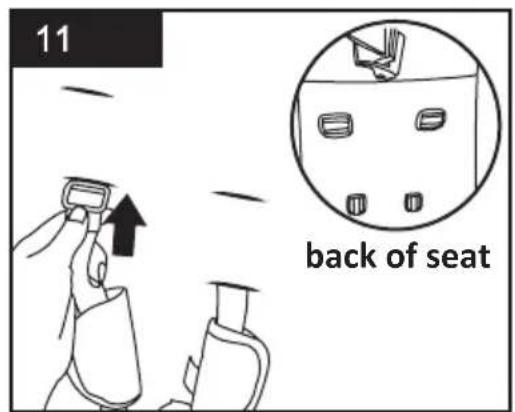

2. Reinsert stopper at seat opening closest to child's shoulders. Pass back through seat fabric and the seat back frame. Tug on strap to ensure stopper is locked. Repeat on both sides. (Fig 11)

WARNING: AVOID SERIOUS INJURY FROM FALLING OR SLI-DING OUT. ALWAYS PROPERLY ADJUST AND FASTEN SAFETY HARNESS.

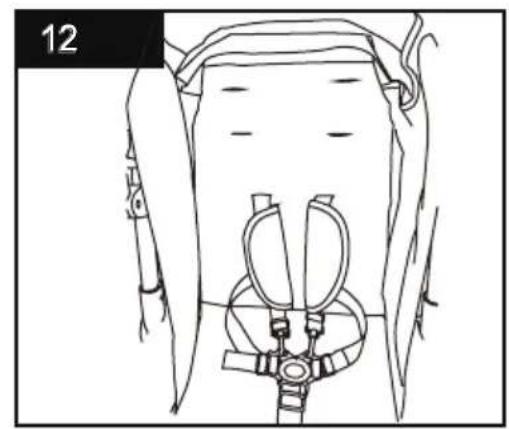

1. The lowest shoulder strap position is suitable for newborn babies. Please adjust the harness to suit your child.

13. To fold the stroller

NOTE - Check the following before folding the stroller:

- Backrest is in its upright position.

- Canopy is retracted.

- Brake has been engaged.

- All accessories have been removed.

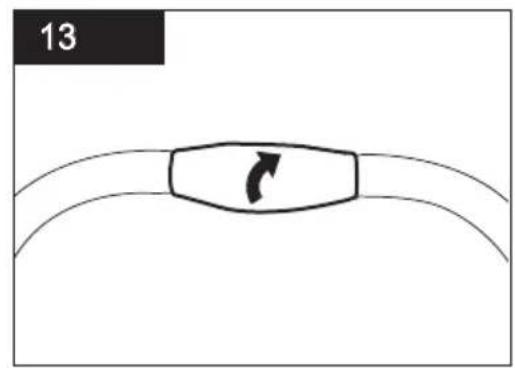

Turn the lock to hindward in position whilst folding. (Fig. 13)

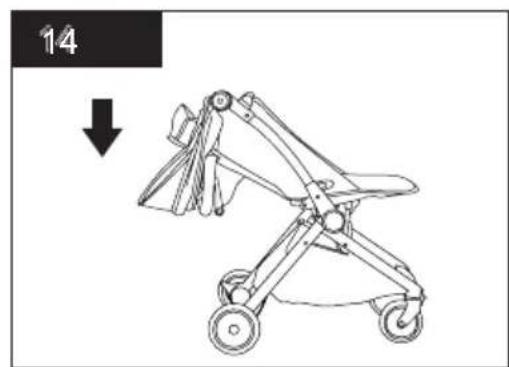

1. Pushing the handle downwards to fold the pushchair. (Fig. 14)

2. To fold the pushchair completely, push downward to fold until the automatic safety lock clicks into place and locks the pushchair. (Fig. 15)

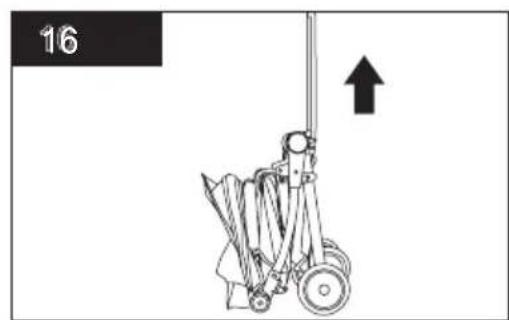

3. Pull up the handle in order to push the folded stroller around . (Fig. 16)

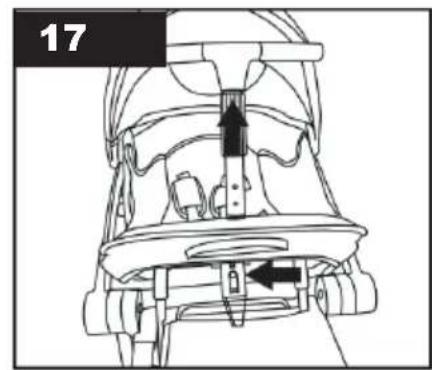

4. To remove the guard, press the button below the seat and pull the guard away. To re-assemble it, simply push it back into the opening provided until you hear a „click“ sound. (Fig. 17)
