| Product Type | Cordless Drill/Driver |
| Brand | Stanley |
| Model | FMC010 (Fat Max) |
| Rated Voltage | 10.8 V DC |
| No Load Speed | 0-315 rpm (1st gear) / 0-1200 rpm (2nd gear) |
| Maximum Torque | 27 Nm (PTI) |
| Chuck Capacity | 10 mm (self-tightening) |
| Max Drilling Capacity (Steel) | 10 mm |
| Max Drilling Capacity (Wood) | 25 mm |
| Weight | 1.1 kg |
| Battery Type | Lithium-ion (Li-Ion) |
| Battery Capacity | 1.5 Ah (model FMC085L) |
| Charging Time | Approximately 30 minutes |
| Charger | FMC090L (input 220-240 V AC, output 10.8 V DC / 2 A) |
| Sound Pressure Level (LpA) | 62.5 dB(A), uncertainty K=3 dB(A) |
| Sound Power Level (LWA) | 73.5 dB(A), uncertainty K=3 dB(A) |
| Vibration (Drilling in Metal) | < 2.5 m/s², uncertainty K=1.5 m/s² |
| Vibration (Screwdriving without Impact) | < 2.5 m/s², uncertainty K=1.5 m/s² |

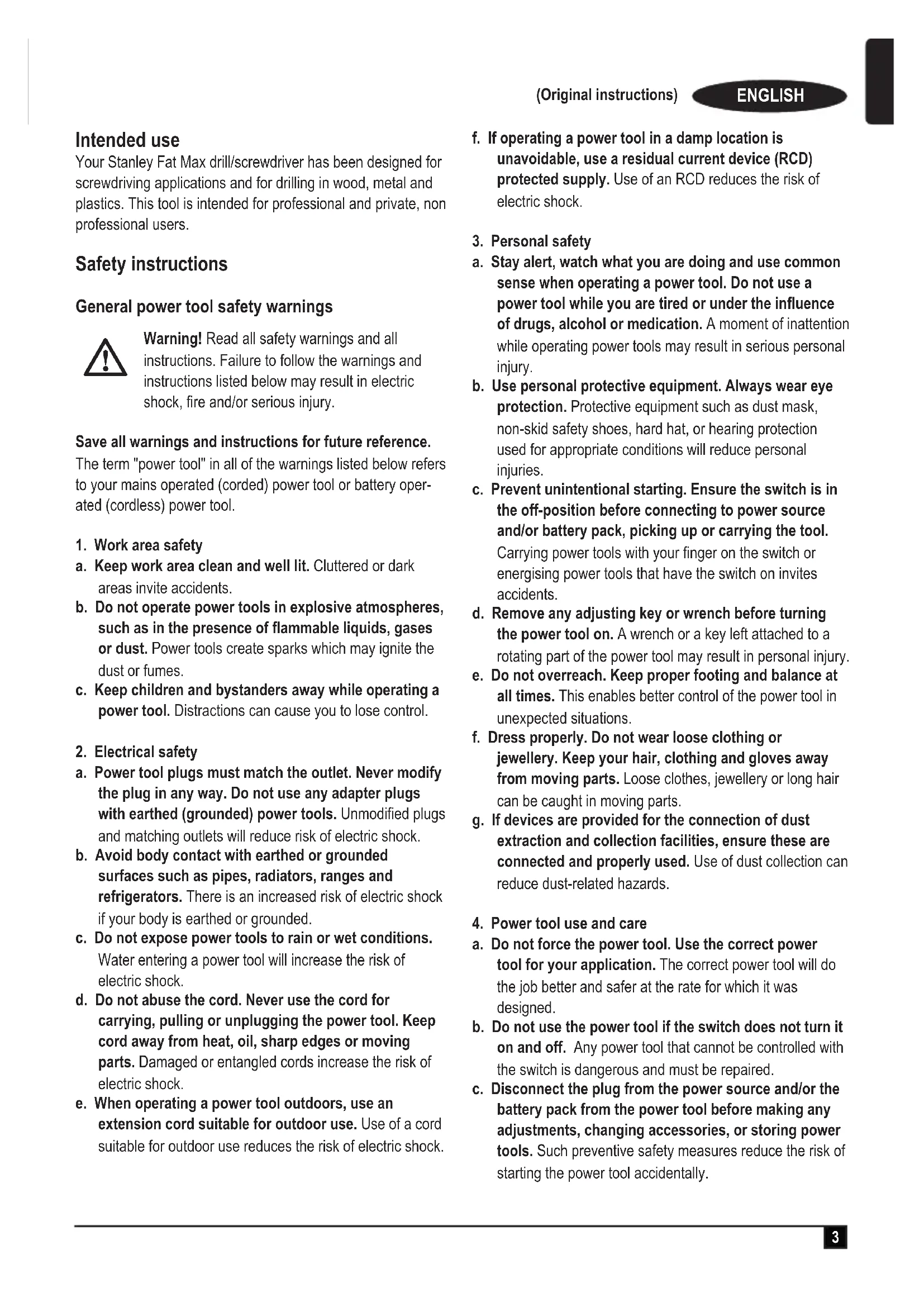

| Intended Use | Drilling and screwdriving in wood, metal, and plastic |
| Main Functions | 2-speed selector, variable speed trigger, forward/reverse switch, torque adjustment collar (16 positions + drill), LED work light, belt clip |
| Maintenance and Cleaning | Clean ventilation slots with a soft brush; clean motor compartment with a damp cloth; regularly open the chuck to remove dust |
| Safety | Double electrical insulation of the charger; detailed safety instructions (work area, electrical, personal, battery use) |
| Spare Parts and Repairability | Repairs exclusively by qualified personnel; use Stanley approved spare parts |
| Warranty | 12 months against any material or manufacturing defect (subject to proper use) |
| Environmental Information | Recycling: do not dispose of with household waste; take used batteries to a recycling center |
Frequently Asked Questions - FMC010 STANLEY
How to change a drill bit or screwdriver bit?
First set the forward/reverse switch to the center position (lock). Hold the chuck and turn it counterclockwise to open it. Insert the bit shank, then tighten firmly by turning the chuck clockwise. Never tighten by gripping the front of the chuck and operating the tool.
How to charge the battery of the Stanley FMC010 drill?
Insert the battery into the FMC090L charger until it clicks. Plug the charger into a mains socket (220-240 V). The green light flashes slowly during charging and stays on steadily when charging is complete. Charging takes about 30 minutes. Do not charge if the ambient temperature is below 10 °C or above 40 °C.
How to adjust the tightening torque?
Turn the torque adjustment collar located behind the chuck. The numbered positions correspond to different torque levels for screwdriving. For drilling, set the collar to the drill symbol. Start with the lowest torque and increase if necessary until the desired tightening is achieved without the clutch disengaging too early.
How to reverse the rotation direction?
Use the forward/reverse switch located above the trigger. Push it to the left for clockwise rotation (drilling, screwdriving). Push it to the right for reverse rotation (unscrewing). To lock the tool, set the switch to the center position.
What materials can be drilled with this drill?
The Stanley FMC010 can drill wood, metal, and plastic. For steel, use HSS bits and lubricate if necessary (except for brass and cast iron). For wood, use three-point bits for large diameters. For soft stone, use masonry bits.
What is the battery life of the Li-Ion battery?
Battery life depends on usage. The 1.5 Ah battery allows driving many screws or drilling several holes in wood/metal. To maximize service life, recharge the battery each week and do not store it discharged. Full charge takes about 30 minutes.
What is the integrated work light for?
The LED work light turns on automatically when you press the trigger halfway, before the tool starts rotating. It illuminates the work area, useful in dark or poorly lit places.
How to maintain the Stanley FMC010 drill?
Before any maintenance, remove the battery and unplug the charger. Clean the ventilation slots regularly with a soft brush or dry cloth. Clean the motor compartment with a damp cloth (no solvents). Open the chuck from time to time to remove accumulated dust.
What are the essential safety precautions?
Always wear safety glasses and ear protection when using a hammer drill. Hold the tool by insulated gripping surfaces to avoid electric shock if contact is made with a hidden wire. Do not drill without checking for cables or pipes in the wall. Read the manual carefully before use.
What to do if the battery does not charge or the charger flashes red?
If the charger indicator flashes rapidly red, it indicates a defective battery or one that is too hot/cold. Let the battery cool down or warm up to room temperature (10-40 °C). If the problem persists, reinsert the battery or test with another battery. If the fault continues, contact a Stanley authorized repair center.
