USER MANUAL SCD6900 Soundmaster

ALLES NORMALE WIEDERGABE ZUFALLThis symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock. This symbol indicates the presence of important operating and maintenance instructions for the device.

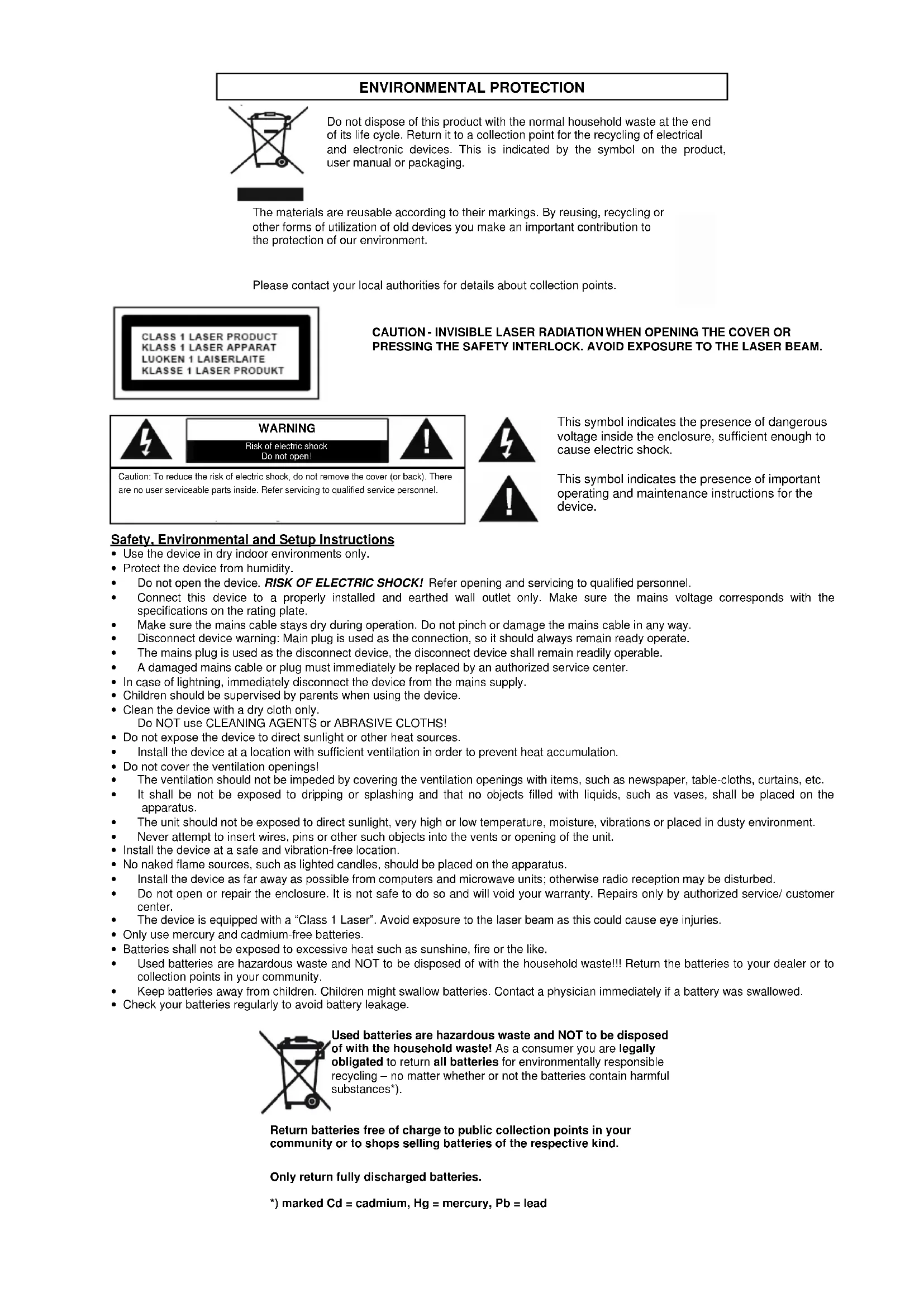

Safety, Environmental and Setup Instructions

• Use the device in dry indoor environments only. • Protect the device from humidity.
• Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.

• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.

• Disconnect device warning: Main plug is used as the connection, so it should always remain ready operate.

• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply. • Children should be supervised by parents when using the device. • Clean the device with a dry cloth only. Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS! • Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.

• It shall be not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.

• Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.
• Install the device at a safe and vibration-free location. • No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.

• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• The device is equipped with a “Class 1 Laser”. Avoid exposure to the laser beam as this could cause eye injuries.
• Only use mercury and cadmium-free batteries. • Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!! Return the batteries to your dealer or to collection points in your community.
• Keep batteries away from children. Children might swallow batteries. Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.

WHEN OPENING THE COVER

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging. The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment. Please contact your local authorities for details about collection points. WARNING Risk of electric shock Do not open

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel. Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*).

Return batteries free of charge to public collection points in your community or to shops selling batteries of the respective kind. Only return fully discharged batteries. *) marked Cd = cadmium, Hg = mercury, Pb = leadWARNING

1. WARNING：Please refer the information on exterior bottom enclosure for electrical and safety

information before installing or operating the apparatus.

2. WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus to rain or

3. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat

such as sunshine, fire or the like.

4. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain

on when open and interlocks defeated. Avoid exposure to beam of laser.

6. Correct Disposal of this product. This marking indicates that this product should not be disposed

with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems

contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

7. No naked flame sources, such as lighted candles, should be placed on the apparatus.

8. Attention should be drawn to environmental aspects of battery disposal.

9. Use of the apparatus in moderate climates.

10. The rating and marking information are located at the bottom of the unit.

11. Excessive sound pressure from earphone and headphones can cause h

12. The mains plug of unit should be obstructed or should be easily accessed during intended use.

13. To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type CAUTION moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.WARNING E-1 TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LIGHTING FLASH WITH ARROWHEAD SYMBOL -

within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitude a risk of electric shock to persons. EXCLAMATION POINT - within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason. The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT LABEL -

This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION -

This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1. CLASS 1 LASER PRODUCTKLASS 1 LASER APPARATLUOKEN 1 LAISERLAITEKLASSE 1 LASER PRODUKTSAFETY INSTRUCTIONS E-2

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.

2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.

3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS - All operating instructions should be followed.

5. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl,

.tnemesab tew a ni ro loop gnimmiws ,butyrdnual ,knis nehctik

6. VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper

ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ven tilation openings.

7. HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances

(including amplifiers) that produce heat.

8. POWER SOURCE - The appliance should be connected to power supply only of the type described in the

operating instructions or as marked on the appliance.

9. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked

on or pinched by items placed upon or against them.

10. POWER LINES - An outdoor antenna should be located away from power lines.

11. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into

the enclosure through openings.

12. ESD WARNING - The display does not function properly or no reaction to operation of any the control may due

to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.

13. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:

a. The power-supply cord or plug has been damaged. b. Objects have fallen into, or liquid has been spilled into the appliance enclosure. c. The appliance has been exposed to rain. d. The appliance has been dropped, or the enclosure damaged. e. The appliance does not appear to operate normally.

14. SERVICING - The user should not attempt to service the appliance beyond that described in the user operating

instructions. All other servicing should be referred to qualified service personnel. Notes: a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD. b. If an error display or malfunction occurs, disconncet the AC cord and remove all the batteries. Then turn the power back on. BEFORE OPERATION Notes: CONCERNING COMPACT DISCS. Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items: a. Usable compact discs. Use only compact disc with the mark shown below. b. CD compact disc only with digital audio signals.BATTERY POWER Insert 8 x “C” size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set. Notes: - Use batteries of the same type. Never use different types of batteries together. - To use the appliance with batteries, disconnect the AC power cord from it. AC POWER You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance. POWER SOURCES E-3 to AC INto a wall outlet Insert 8 x “C” size batteries into the battery compartmentLOCATION OF CONTROL E-4 BAND SELECTOR CD DOOR FM ANTENNA TUNING CONTROL OPEN / CLOSE TAPE BUTTONS - PAUSE, STOP / EJECT, FAST FORWARD, REWIND, PLAY FUNCTION SELECTOR VOLUME CONTROL DIAL POINTER PLAY / PAUSE SKIP - MODE SKIP + ALBUM STOP CASSETTE DOOR LCD DISPLAY

FM STEREO INDICATORPOWER INDICATORGENERAL OPERATION

1. Set the “FUNCTION” selector to “RADIO” mode.

2. Select desired band by using the “BAND” selector.

3. Adjust radio frequency to your desired station by using the “TUNING” control.

4. Adjust the “VOLUME” control to the desired level.

FM / FM-STEREO RECEPTION

- Set the “BAND” selector to FM mode for MONO reception. - Set the “BAND” selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode. RADIO OPERATION E-5

FOR BETTER RECEPTION

- Reorient the antenna for better reception. - Reorient the appliance to get better AM reception.TAPE OPERATION E-6 GENERAL OPERATION PAUSE Press to stop playing tape operation temporarily. Press again to resume tape operation. STOP / EJECT Press to stop tape operations. Press again to open the cassette door after the tape spools stop turning. FAST FORWARD & Press to start rapid tape winding either forward or reverse direction. REWIND PLAY Press to start playing tape. PLAYBACK

1. Set the “FUNCTION” selector to “TAPE” mode.

2. Press the “STOP / EJECT” button to open the cassette door and insert your tape.

3. Close the cassette door.

4. Press the “PLAY” button to start playing tape.

5. Adjust the “VOLUME” control to the desired level.

6. Press the “PAUSE” button when you want to stop playing tape operation temporarily.

7. Press the “STOP / EJECT” button when finished.CD / MP3 OPERATION

E-7 GENERAL OPERATION PLAY / PAUSE Press to start playing CD / MP3 disc. Press again to stop playing CD / MP3 operation temporarily. Press again to resume playback. SKIP + & Press to go to the next track or back to the previous track. SKIP - Press and hold while playing until you find the point of the sound. STOP Press to stop all CD / MP3 operation. PLAYBACK

1. Set the “FUNCTION” selector to “CD / MP3 ” mode.

2. Open the CD door and place a CD / MP3 disc with the label up on the CD compartment.

3. Close the CD door.

4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.

5. Playback will start automatically from the first track.

6. Adjust the “VOLUME” control to the desired level.

7. Press the “PLAY / PAUSE” button again when you want to stop playback temporarily.

8. Press the “STOP” button when finished.M

AUTO OFF ODE Press the “MODE” button before or during playing CD / MP3 disc, each press switches the mode function as follows:

PROGRAM Up to 20 tracks fo CD disc, 99 tracks of MP3 disc can be programmed for disc play in any order. This product is equipped with an auto power-save function at the CD mode, if the unit remains in STOP, PAUSE or NO DISC mode for more than 10 minutes it will automatically switch off. To switch the unit back on, slide the FUNCTION switch to ‘OFF’ position and then back to CD again. Be sure to press the “STOP” button before use.

1. Press the “MODE” button, the display will show “P01” and flash.

2. Select desired track by using the “SKIP +” or “SKIP -” button. (You may select a desired album

by pressing the “ALBUM” button).

3. Press the “MODE” button again to confirm desired track into the program memory.

4. Repeat step 2 and 3 to enter additional tracks into the program memory.

5. When all the desired tracks have been programmed, press the “PLAY / PAUSE” button to play the

disc in the order you have programmed.

6. Press the “STOP” button twice to terminate programmed playback.
