Ashley 411 - Vacuum Cleaner Lavor - Free user manual and instructions

Product Type	Ash Vacuum
Brand	Lavor
Model	Ashley 411
Use	Vacuuming cold ash (fireplaces, stoves, barbecues)
Power Supply	Mains (220-240 V, 50/60 Hz)
Power	1200 W
Tank Capacity	15 L
Filter	Washable foam filter
Filter Cage	Yes
Flexible Hose	Metal
Nozzle	Metal
Blower Function	Yes
Power Cord	5 m (approx.)
Carrying Handle	Yes
On/Off Switch	Yes
Power Regulator	Yes
Double Isolation	Yes (depending on model)
Weight	6 kg (approx.)
Dimensions (L x W x H)	40 x 40 x 50 cm (approx.)
Maintenance	Clean filter after each use; wipe exterior with dry cloth
Safety	Do not vacuum hot ash, liquids, or flammable substances
Warranty	Against manufacturing defects (according to applicable standards)
Spare Parts	Replacement filter available
Included Accessories	Flexible hose, metal nozzle, filter, cage

Frequently Asked Questions - Ashley 411 Lavor

Can I vacuum hot ash with the Ashley 411?

No, the vacuum is designed to vacuum only cold ash (temperature below 40 °C). Never vacuum glowing embers or hot ash.

How do I clean the vacuum filter?

Unplug the device, disassemble the filter (step 1), wash it with water (steps 2-3), then let it dry completely before reassembling (step 4). Check that it is not damaged.

Can I use the vacuum to vacuum liquids?

No, this device is strictly intended for dry vacuuming. Do not vacuum water or any liquid.

What is the tank capacity?

The approximate tank capacity is 15 litres. It is recommended to empty it after each use to avoid fire risks.

How do I use the blower function?

Before use, ensure the filter, container, and hose are clean. Connect the hose to the blower outlet (figure 2). The blower function allows you to move ashes or clean hard-to-reach areas.

What do I do if suction power decreases?

Immediately turn off the device and check the filter: it is likely clogged. Clean or replace the filter. Also check that the hose is not blocked.

Can I use a paper dust bag?

No, do not use any paper bag or flammable material. The vacuum operates with a washable filter only.

How do I maintain the vacuum?

Unplug the device before any maintenance. Clean the exterior with a dry cloth. Clean the filter after each use. Store the device in a dry, safe place, out of reach of children.

What types of ash can I vacuum?

You can vacuum cold ash from fireplaces, wood or coal stoves, barbecues, and ashtrays. Do not vacuum soot, plaster ash, or cement ash.

Is the vacuum covered by a warranty?

Yes, all Lavor devices are guaranteed against manufacturing defects according to applicable standards. The warranty excludes normal wear, filters, accessories, and damage due to incorrect use.

USER MANUAL Ashley 411 Lavor

Diagram of a mechanical device with a rotating arrow and plus signs, no readable text or symbols present.

OPTIONAL OPTIONAL

⑥

12

Filtro lavabile
EN Washable filter
FR Filtre lavable
DE Waschbarer Filter
NL Filtro lavable
ES Filterelement Wa- sbaar
PT Lave o filtro
S Filtr Prací
DA Filter Vaskbar
ET Pestav filter
Filtro Pestävä
HU Szürő mosató
LT Plaunamas filtras
LV Mazgājamo filtru

NO Vask filteret
PL Filtr wielokrotnego użytku
RU Промыть фильтр
SK Umyte filter
SL Filter Pralna
SV Filter Tvättbar
BG Перяем филтър
HR Filter Perivi
RO Spălați-I filtru
TR Filtre Yıkanabilir
UK Промийте фільтр

OPTIONAL

7

IT Filtro
EN filter
FR Filtre
DE Spezialfeinfilter
NL Filtro
ES Filterelement
PT Filtro
C Filtr
DA Filter
ET Filter
Filtro
HU Szürő
LT Filtras
LV filtrs

NO Filteret
PL Filtr
RU фильтр
SK Umývatelný filter
SL Filter
SV Filter
BG филтър
HR Filter
RO filtrul
TR Filtre
UK фільтр

13

OPTIONAL

IT SE PRESENTE (vedi imballaggio). EN IF PRESENT (see packaging). FR SI INCLUSE (voir

l'emballage). DE WENN VORHANDEN (siehe Verpackung). ES SI ESTUVIERA PRESENTE (véase embalaje). NL INDIEN AANWEZIG (zie verpakking). PT SE PRESENTE (ver embalagem). CS JE-LI PRÍTOMNÁ (viz obal). DA SÄFREMT ER FORSYNET DERMED (se emballagen). EL E'AN YПАРХЕІ (аватрéξτε στη συσκευασία). FI MIKÄLI VARUSTEENA (katso laatikon). HU KISZERELÉS SZERINT (lásd a csomagoláson) ET KUI OLEMAS (vt pakendit). LT JEI YRA (žr. paketą). LV JA IR (skatit iepakojumu). MT JEKK PREŽENTI (ara I-pakkett). NO DERSOM SLIK FINNES (se emballasjen). PL JEŽELI WYSTĘPUJE (patrz opakowanie). RU ЕСЛИ ЕСТЬ (см. упаковку) SK AK JE K DISPOZÍCII (pozri obal). SL ČE JE V KOMPLETU (glejte embalažo). SV I FÖREKOMMANDE FALL (se förpackningen). BG AKO E НАЛИЧЕН (вижте опаковката) HR NEKI MODELI (vidi ambalažu). RO DACĂ ESTE PREZENTĂ (vezi ambalajul). TR MEVCUT İSE (Bkz. Ambalaj). UK ЯКЩО ПРИСУТНЯ (див. пакет). SR UKOLIKO POSTOJI (vidi ambalažu) (види пакет)

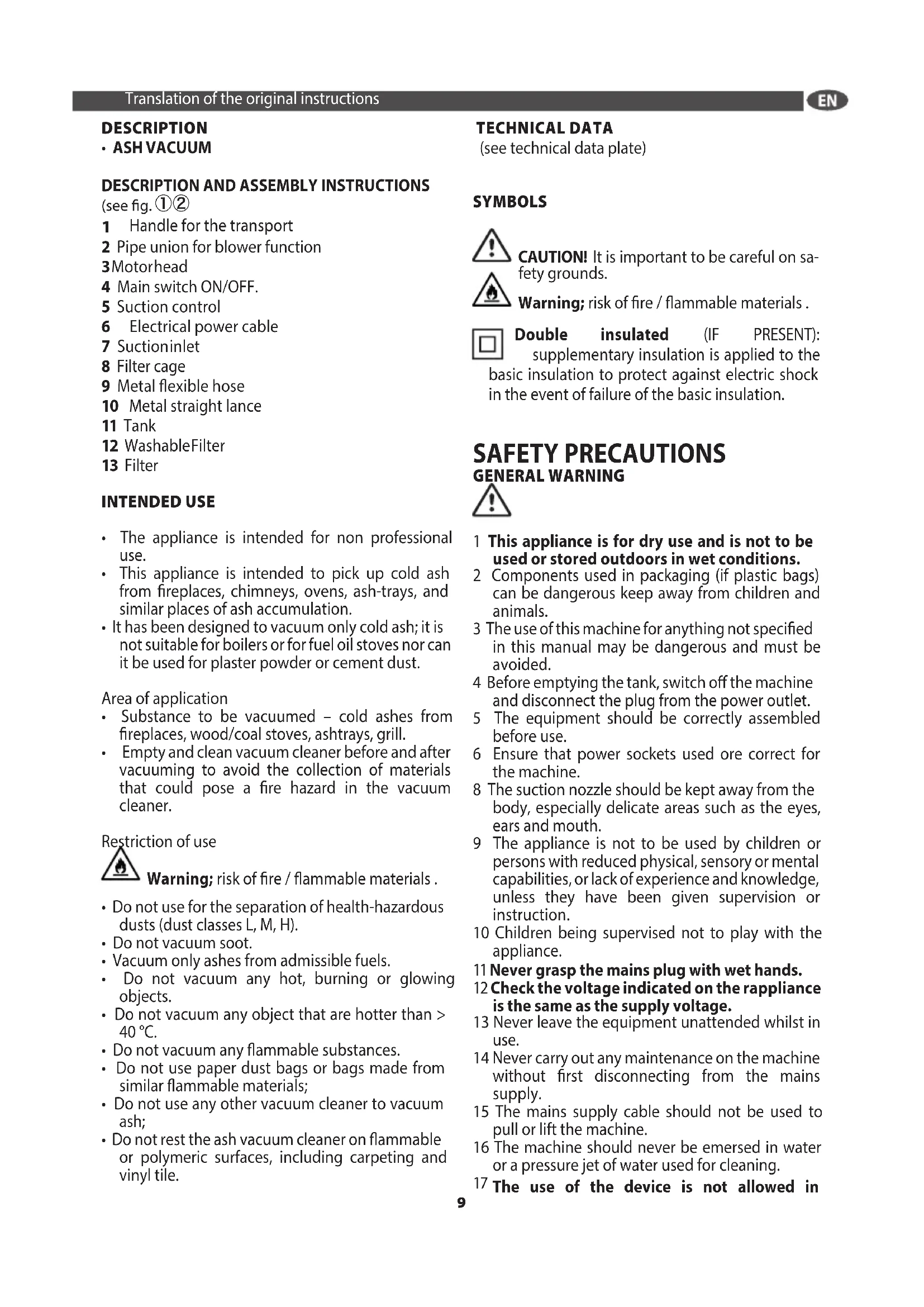

DESCRIZIONE

• ASPIRACENERE

K (uncertainly) ± 1 dB

DESCRIPTION

- ASH VACUUM

DESCRIPTION AND ASSEMBLY INSTRUCTIONS

(see fig. ①②)

1 Handle for the transport
2 Pipe union for blower function
3 Motorhead
4 Main switch ON/OFF.
5 Suction control
6 Electrical power cable
7 Suctioninlet
8 Filter cage
9 Metal flexible hose
10 Metal straight lance
11 Tank
12 WashableFilter
13 Filter

INTENDED USE

• The appliance is intended for non professional use.
• This appliance is intended to pick up cold ash from fireplaces, chimneys, ovens, ash-trays, and similar places of ash accumulation.
• It has been designed to vacuum only cold ash; it is not suitable for boilers or for fuel oil stoves nor can it be used for plaster powder or cement dust.

Area of application

• Substance to be vacuumed – cold ashes from fireplaces, wood/coal stoves, ashtrays, grill.
• Empty and clean vacuum cleaner before and after vacuuming to avoid the collection of materials that could pose a fire hazard in the vacuum cleaner.

Restriction of use

Warning; risk of fire / flammable materials.

• Do not use for the separation of health-hazardous dusts (dust classes L, M, H).
• Do not vacuum soot.
  • Vacuum only ashes from admissible fuels.
• Do not vacuum any hot, burning or glowing objects.
• Do not vacuum any object that are hotter than >40^ .
• Do not vacuum any flammable substances.
• Do not use paper dust bags or bags made from similar flammable materials;
• Do not use any other vacuum cleaner to vacuum ash;
• Do not rest the ash vacuum cleaner on flammable or polymeric surfaces, including carpeting and vinyl tile.

TECHNICAL DATA

(see technical data plate)

SYMBOLS

CAUTION! It is important to be careful on safety grounds.

Warning; risk of fire / flammable materials.

Double insulated (IF PRESENT):

supplementary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation.

SAFETY PRECAUTIONS

GENERAL WARNING

1 This appliance is for dry use and is not to be used or stored outdoors in wet conditions.
2 Components used in packaging (if plastic bags) can be dangerous keep away from children and animals.
3 The use of this machine for anything not specified in this manual may be dangerous and must be avoided.
4 Before emptying the tank, switch off the machine and disconnect the plug from the power outlet.
5 The equipment should be correctly assembled before use.
6 Ensure that power sockets used ore correct for the machine.
8 The suction nozzle should be kept away from the body, especially delicate areas such as the eyes, ears and mouth.
9 The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
10 Children being supervised not to play with the appliance.
11 Never grasp the mains plug with wet hands.
12 Check the voltage indicated on the rappliance is the same as the supply voltage.
13 Never leave the equipment unattended whilst in use.
14 Never carry out any maintenance on the machine without first disconnecting from the mains supply.
15 The mains supply cable should not be used to pull or lift the machine.
16 The machine should never be emersed in water or a pressure jet of water used for cleaning.
^17 The use of the device is not allowed in

potentially damp areas (for example in the bathroom).

18 Examine the mains cable and machine for damage. If any damage is found, do not use the appliance but contact your service centre for repair.
20 Should extension cables be used, ensure that these lay on dry surfaces and protected against water jets.
21 The use of extension leads, connectors or adaptors that do not conform to the applicable regulations is not permitted.
23 The machine must be always used on horizontal bases.
24 Do not use the machine without proper filters.
25 Do not use to vacuum water or other liquids.
26 These machine are not designed for picking up health endangering dusts or inflammable/explosives substances.
27 The cover of the motor compartment must only be cleaned with a dry cloth.
29 Service and repairs must be carried out by qualified personnel only. Only use manufacturer original spare parts for service repair.
30 The manufacturer cannot be held responsible for any damage/injury caused to persons, animals or property caused by misuse of the appliance, not in compliance with manual instructions.

Warning; risk of fire / flammable materials.

• do not pick up hot, glowing or burning ash. Pick up cold ash only;
• the dust container must be emptied and cleaned before and after each use;
• do not use paper dust bags or bags made from similar flammable materials;
• do not use any other vacuum cleaner to vacuum ash;
• do not rest the ash vacuum cleaner on flammable or polymeric surfaces, including carpeting and vinyl tile.

HOW TO PREPARE AND USE THE ELECTRIC ASH VACUUM CLEANER

fig. ③④

• Make sure the filter is fitted in its housing.
- Insert cloth bag (13) fully inside cage (8) fig. ③, Or:
- Remove the cage (8), push filter (12) fully home fig. ④.
- Connect steel pipe (9) to the relevant seat (7) fig. ④
⚠️ Before vacuuming the ash, check that it is cold and no longer alight.
Do not vacuum burning embers
Do not empty the drum into a container which is easily inflammable and make sure that the ashes are completely cool.

⚠️ If ashes hose becomes hot during use, turn the device off immediately and let it cool.

• Turn the appliance on using the (I)ON/(0)OFF switch, located on the cover of the motor.
  • Vacuum the ash directly from the fireplace or from the stove (wood or pellet-burning). Hold the suction nozze about 1 cm. above the ash.
• If there should be a reduction in the suction power, turn the motor off using the switch
• When the appliance is no longer in use, turn it off and take the plug out.
• Perform the cleaning operations first on the stove or fireplace and then on the appliance and the suction filter (to be performed outside the building).

BLOWING FUNCTION

fig.②

Before using the appliance blowing function, proceed as follows to prevent dirtying the house with ash:

• make sure the filter is clean.
• Make sure the drum is clean.
- Make sure the flex hose is clean.
- Make sure that filter is inserted in the relevant seat.

CARE AND MAINTENANCE

The unit is maintenance-free.

The machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance
- Clean the exterior part of the machine with a dry cloth.
- Move the appliance only by catching the carrying handle located on the motor head.
- Store the appliance and the accessories in a dry safe place, out of the reach of children.

FILTER CLEANING

fig.⑥⑦

The machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance

1- Remove the filter (12), (13)
2- Shake the filter (12), (13)
3- wash tge filter (12)
4- Let the filter (12) drying very well, before reassemble it
Once the filter has been cleaned, check whether it is suitable for further use. If it has been damaged or broken, replace it with an original filter.

WARRANTY CONDITIONS

All our machines are subjected to strict tests and

are covered against manufacturing defects in accordance with applicable regulations. The warranty is effective from the date of purchase.

The following are not included in the warranty: - Parts subject to normal wear. - Rubber parts, charcoal, filters and the accessories and optional accessories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or improper use and installation failing - The warranty shall not cover any cleaning operations to which the operative components may be subjected, such as clogged nozzles and filter blocked due to limestones.

This pressure cleaner is intended to be used for domestic and hobby work: the warranty does not cover any other different kind of use.

DISPOSAL (WEEE)

As the owner of electrical or electronic equipment, the law (according to European Directive 2012/19/EU) prohibits you from disposing of this product or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities. The product can be disposed of by returning it to the distributor when a new product is purchased. The new product must be equivalent to that being disposed of.

Acoustic pressure LpA = 75 dB (A)

K (uncertainly) ± 1 dB
