High Steam 1600 - Steam cleaner Di4 - Free user manual and instructions

Product Type	Vertical steam cleaner and fabric steamer
Brand	Di4
Model	High Steam 1600
Power	1600 W
Voltage	220-240 V ~ 50/60 Hz
Water tank capacity	1 L (estimate)
Weight	3 kg (estimate)
Main functions	Vertical steaming, fabric brushing, adjustable continuous steam
Included accessories	Steam nozzle, telescopic aluminum tube, special fabric brush, clamp, attachment
Body material	Plastic and aluminum
Heat-up time	Approximately 1 minute
Steam type	Continuous hot steam
Steam adjustment	Steam control knob (G)
Indicator light	Indicator light (F)
Recommended use	Household use only
Maintenance	Empty the tank after each use, clean with a damp cloth
Safety	Do not direct steam at people or animals
Warranty	2 years
Repairability	Spare parts available through after-sales service
Water type	Untreated tap water (avoid pure distilled water)

Frequently Asked Questions - High Steam 1600 Di4

How do I fill the water tank?

Unplug the appliance. Remove the water tank, unscrew the fill cap, fill with untreated tap water to the top, screw the cap back on and replace the tank.

Can I use distilled or demineralized water?

No, do not use pure distilled, demineralized, softened, scented, rain, filtered, bottled or boiled water. These waters can damage the appliance. Use only untreated tap water. If the water is very hard, mix 50% tap water with 50% distilled water.

How do I start the appliance?

Plug in the appliance and turn the steam control knob (G) to the left. The indicator light comes on. Wait about 1 minute for the appliance to heat up, then it is ready to use.

How do I adjust the steam amount?

Turn the steam control knob (G) to select the amount of steam suitable for the fabric. For best results, pass the steam jets from top to bottom over hanging garments.

Can I steam clothes while wearing them?

No, never steam a garment while wearing it. The steam is very hot. Always hang clothes on a hanger before steaming.

How do I use the special fabric brush?

The special fabric brush opens the fabric fibers for better steam penetration. Attach it to the steam nozzle after unplugging and cooling the appliance. Use the clamp for more precise steaming.

Why is water leaking from the steam head?

This can happen if the steam head is too low or damaged. Raise the head to a higher position to allow steam to circulate normally. If the problem persists, check that the head is not damaged.

What should I do if the appliance does not work and the indicator light does not come on?

Check the wall outlet and the power cord. Make sure the plug is properly inserted. If the thermal fuse has blown, contact after-sales service. Do not attempt to repair it yourself.

How do I clean and maintain the appliance?

After each use, completely empty the water tank. Before cleaning, unplug the appliance and let it cool. Clean the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or chemical solvents.

Where can I find spare parts or have the appliance repaired?

For any repairs, contact the official Di4 technical service. Only qualified personnel are authorized to intervene. Spare parts are available through after-sales service. Keep the invoice and warranty to benefit from the 2-year coverage.

USER MANUAL High Steam 1600 Di4

A. Steam nozzle
B. Steam hose
C. Telescopic aluminium rod
D. Aluminium rod lock
E. Steam pipe fixed button
F. Indicator light
G. Button to control the steam
H.Water tank Button
I. Drainage button
J. Fabric brush and clamp
K.Clamp

FR DESCRIPTION

Colocar as peças de roupa no cobide para as engomar.

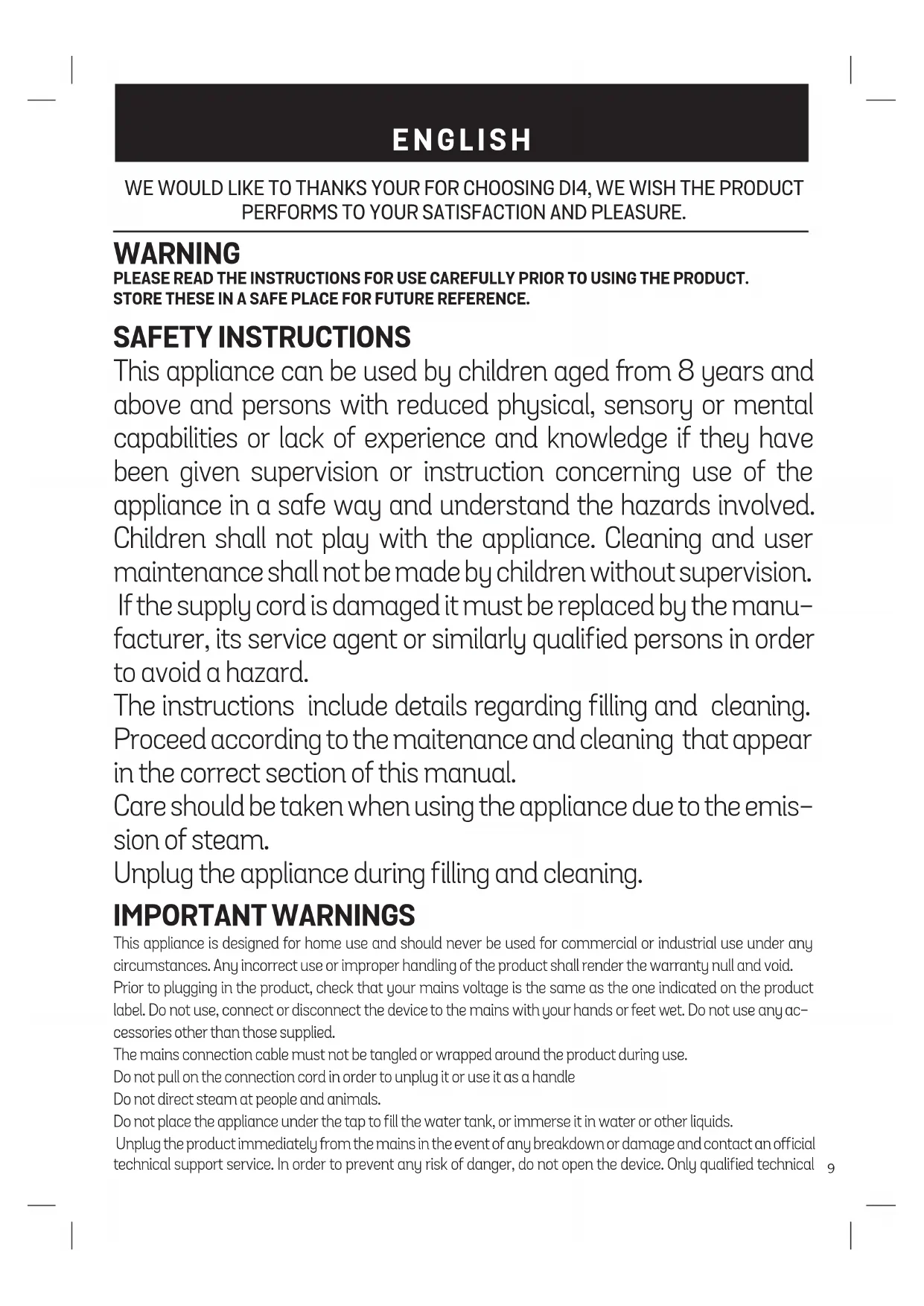

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING DI4, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The instructions include details regarding filling and cleaning. Proceed according to the maintenance and cleaning that appear in the correct section of this manual.

Care should be taken when using the appliance due to the emission of steam.

Unplug the appliance during filling and cleaning.

IMPORTANTWARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void. Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label. Do not use, connect or disconnect the device to the mains with your hands or feet wet. Do not use any accessories other than those supplied.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not pull on the connection cord in order to unplug it or use it as a handle

Do not direct steam at people and animals.

Do not place the appliance under the tap to fill the water tank, or immerse it in water or other liquids.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical

personnel from the brand's official technical support service may carry out repairs or procedures on the device. Only an official technical support service centre may carry out repairs on this product.

B&TRENDSSL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observation of these warnings.

BEFORE THE FIRST USE

In the first use they can break off odours or fumes that sent quickly. Do not spray for the first time on clothes and there may be traces of dirt on the steam head.

Remove the mains plug from the wall socket before filling (or emptying) the garment

Insert the telescopic aluminium rod in the holders, then open the aluminium rod lock and expand the telescopic aluminium then close the aluminium rod lock to fix them. Insert the hanger in the top.

Install the steam pipe fixed button press and turn the left to the position lock.

Take out the water tank and unscrew the filler plug. Fill the water tank to the top and screw the filler cup. Your appliance was designed to operate using untreated tap water and Return the water tank to its place on the appliance then plug it in.

Do not use pure demineralised or pure distilled water, water from clothes dryers, scented or softened water, rain water, filtered, bottled or boiled water, water from refrigerators, batteries or air conditioners as these may damage the appliance. These types of water contain organic waste, mineral elements that become concentrated when heated and cause spitting, brown staining, leaking or premature wear on your appliance. If your water is very hard, mix 50% untreated tap water with 50% distilled water.

HOW TO USE

Before the using please check the fabric's label for recommendations.

We recommended that you test acrylic, nylon or other synthetic fabrics in an inconspicuous area to ensure these fabrics are not damaged by hot steam.

Use clothes in the hanger to iron.

Plug-in the appliance and turn the button to left (G) the light is brighter. Wait approximately 1min, the appliance is ready to use. You can choose the quantity of the steam that you need accordingly the fabric.

For optimal use, pass the steam jets over your garment from top to bottom.

As steam is very hot: never attempt to remove creases from a garment while it is being worn, always hang garments on a clothes hanger.

The fabric brush opens the weaves of the fabrics for better steam penetration, and the clamp if you want to do creases in your clothes. Before removing or attaching the steam brush or clamp, unplug your appliance and allow it to cool down.

During use or while unit is heating or cooling do not rest appliance on its head. Place the product on a stable, heat resistant, flat surface, as the head will be hot. As the appliance heats, the housing becomes warm. This is normal.

Remove the main plug from the wall socket. Wait for an hour for your appliance to cool before storing.

MAINTENANCE AND CLEANING

After use it, please remove the water tank, empty the water tank completely, and then return the water tank to its place.

Before cleaning the garment steamer ensure it is unplugged from the power supply and has completely cooled down.

Do not use abrasive cleaners.

To clean exterior surfaces, use a damp soft cloth and wipe dry. Do not use any chemical solvents, as these will damage the surface.

If the appliance will not be using for a long time, it is recommended that the water will be completely drained, for this purpose turn open the drainage button (l) of the main unit, and let the water come out. Put the cover back at the same position.

Problems and Solutions

TYPE POSSIBLE CAUSE SOLUTIONS
Unit not working at all Something	thing wrong with power supply Plugisnot firmly loaded on the socket The thermal fuse melted The indicate light is not on	Ask the qualified technician to check and fix
Loud noise from the steam hose while steam amount is low	The steam head is too low Raise the steaam head to higher position and let the water flow back to boiler
Water drop from the steam head	Steam head damaged Steam head is too low	Replace the steam head with a new one Raise the Steam head to higher position
Water leaking at the connecting position of steam hose and main unit	Hardened seal rubber Loose connection of the steam hose	Replace the seal rubber with new one Make the steam hose securely and firmly loaded
Water leaking on water tank	Water tank damaged	Substituir o depósito de agua por um novoReplace the water tank with new one
Water becomes hot in water tank	Blockage in steam hose Delete the blockage
Steam amount is low Voltage	is not proper Blockage in steam hose	Adopt an power adapter Delete the blockage
Deformed water tank Filled it	with hot water Used the chemical detergents improperly	Replace it with new one Use the chemical detergents properly
No steam output while the indicate light is on	The boiler doesn’t work Internal components damaged	Ask the qualified technician to check and fix

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

MERCI D'AVoir PLACÉ LEUR CONFIANCE EN DI4 ET NOUS ESPÉRONS QUE CE PRODUIT VOUS DONNERA ENTière SATISFACTION ET PLAISIR.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÜR EN VUE DE CONSULTATION FUTURE.

CONSIGNES DE SECURITÉ

B&B TRENDS, SL. guarantees compliance of this product for the purpose for which it is intended for a period of two years for the entire Spanish territory. In the case of breakdown during the term of this warranty, you are entitled to repair or to the replacement of the product at no charge if the former is unavailable, unless one of these options prove impossible or disproportionate. In this case, you can then choose a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is unaccredited by B&B TRENDS, SL. This warranty does not affect your rights as a consumer in accordance with the provisions of Law 23/2003 dated 10 July 2003 on warranties on the sale of consumer goods in the Spanish territory.

USE OF WARRANTY

Consumers should contact a technical service centre authorised by B&B TRENDS, SL. for repair of the product as any tampering thereof by persons not authorised by B&B TRENDS, SL., as well as misuse or inappropriate use, will lead to the cancellation of this warranty. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

Claims must take place within three years from delivery of the product according to the provisions of the warranty, and the consumer must inform the sales vendor of the lack of conformity, provided that such claim is made within the statutory period of warranty. This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item or by contacting B&B TRENDS, SL.
