Jet Pressing 2850W - Iron Di4 - Free user manual and instructions

Product type	Steam generator (iron)
Brand	Di4
Model	Jet Pressing 2850W
Power	2850 W
Supply voltage	220-240 V ~ 50/60 Hz
Soleplate material	Ceramic
Main functions	Steam ironing, dry ironing, vertical steam, adjustable steam jet, temperature adjustment, steam flow adjustment, self-cleaning function
Boiler type	Steam generator with boiler
Safety	Do not leave unattended, do not immerse, do not direct steam at people or animals, water level indicator
Maintenance and cleaning	Clean the soleplate with a non-metallic pad; descale the boiler every 10 uses or once a month
Included accessories	Measuring cup
Warranty	2 years
Usage	Domestic
Compliance	WEEE Directive 2012/19/EU

Frequently Asked Questions - Jet Pressing 2850W Di4

How to fill the water tank?

Remove the water tank by pushing the release latch upwards. Fill it under a tap up to the MAX level (do not exceed). Replace the tank by pushing it in until it clicks.

What to do if the iron does not heat up and does not produce steam?

Check that the appliance is plugged into a power outlet and that the circuit switch is in the on position. If the power indicator does not light up, contact technical support.

Why does water come out of the soleplate holes?

This may be due to condensation in the pipes (first use or prolonged non-use). Press the steam trigger away from the board until steam is produced. If the soleplate is not hot enough, reduce the steam flow.

How to remove white marks on the soleplate?

White marks indicate limescale buildup in the boiler. Perform a descaling procedure: turn off the appliance, remove the cleaning cap, place a container under the opening, then plug in and run steam for 2-3 minutes on Max setting.

How to clean the soleplate?

Regularly clean the ceramic soleplate with a non-metallic damp cleaning pad. Do not use abrasive products or detergents.

How to descale the boiler?

After complete cooling, turn off and unplug the appliance. Remove the cleaning screw with a flathead screwdriver, place a container under the opening, plug in, set steam to Max and press the steam button for 2-3 minutes. Turn off, let cool, then screw the cap back on.

How to use the vertical steam function?

To steam hanging garments, hold the iron in an upright position. Set the steam flow to Max and direct the steam onto the garment without touching it. Never direct steam at a person.

What water to use in the steam generator?

Use tap water. If the water is hard or semi-hard, mix it with distilled or demineralized water in a 2:1 ratio (hard) or 1:1 ratio (semi-hard). Never use 100% distilled, demineralized, rainwater, scented water, or water from other appliances.

What to do if steam is weak or absent?

Check the water level in the tank; fill if necessary. Ensure the steam flow control knob is not at the minimum. Increase the flow by turning the knob to the right.

How to adjust temperature and steam flow?

Turn the temperature control knob according to the fabric type (see guide table). For steam ironing, set the temperature to Max. Adjust the steam flow with the flow control knob: turn right to increase, left to decrease.

USER MANUAL Jet Pressing 2850W Di4

Cuando el nivel de agua está bajo, el Centro de Planchado deja de emitir vapor, although the air is still warm. The water evaporates and the center of the building is filled with water.

MANTENIMIENTO Y LIMPIEZA

Limpieza

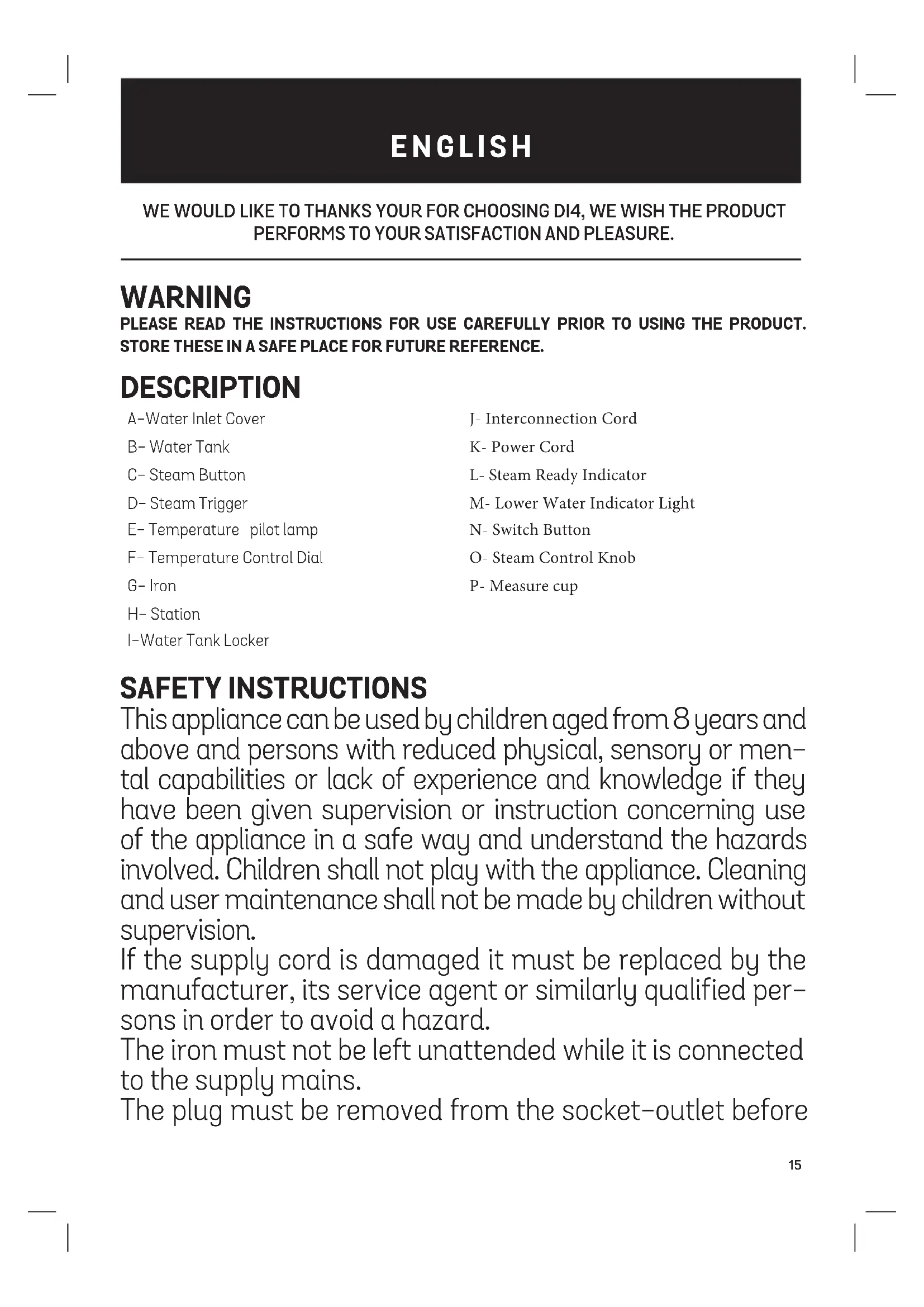

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING DI4, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

A-Water Inlet Cover

B-Water Tank

C- Steam Button

D- Steam Trigger

E- Temperature pilot lamp

F- Temperature Control Dial

G-Iron

H- Station

I-Water Tank Locker

J- Interconnection Cord

K- Power Cord

L- Steam Ready Indicator

M- Lower Water Indicator Light

N- Switch Button

O- Steam Control Knob

P- Measure cup

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The iron must not be left unattended while it is connected to the supply mains.

The plug must be removed from the socket-outlet before

the water reservoir is filled with water.

The irons must be used and rested on a flat, stable surface. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

The self-clean cover must not be opened during use. Instruction for the safe refilling of the water reservoir are given of filling the water tank selection

CAUTION Hot surfaces. Surfaces are liable to get hot during use.

IMPORTANTWARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

If you use one adaptor make sure it can reach 16 A and is provided with earth socket

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Do not direct steam at people and animals.

Do not place the appliance under the tap to fill the water tank, or immerse it in water or other liquids.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an Official Technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device. Only an Official Technical support service centre may carry out repairs on this product.

Proceed according to the conservation and cleaning section of this manual for cleaning

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observation of these warnings.

BEFORE THE FIRST USE

Before using the Steam Station, please ensure you read the user manual and understand all parts and features of the Steam Station. Be sure to remove any packaging material and labels before using for the first time.

In the first use they can break off odors or fumes that sent quickly. Do not spray for the first time on clothes and there may be traces of dirt on the soleplate

WATER TO BE USED

The device is designed for use with tap water. If the water in your area is hard or semi-hard use mix tap water with distilled or demineralized water purchased in stores, in the ratio 2: 1 and 1: 1 respectively. Check with your water supplier to determine the type of water in your area.

Never use 100% distilled or demineralized, rain water, softened water, scented water, water from other appliances such as refrigerators, air conditioners, dryers or other types of home water preparation water.

FILLING THE WATER TANK

Locate the water tank release latch under the front of the water tank and push up. This will release the water tank, enabling you to pull it out.

Place the water tank inlet under a tap and fill. Do NOT fill over the MAX level indicator.

Slide the water tank back in position and push in, you will hear it click when it is locked in place.

OPERATING INSTRUCTIONS

Place the Steam Station on a firm level table, bench or ironing board.

Plug the unit into a power outlet and switch on at the power point.

Wait until the indicator of boiler operating will light on.

Adjust the temperature dial in terms of choose the kind of fabrics that you want to iron.

Note: If you want to use the steam ironing, we suggest you to adjust the temperature dial on MAX.

When the iron operating light indicator goes out the device will be ready for use.

NOTE: During the whole operating time, the iron operating light indicator will go on and off in erratic intervals, this is normal.

Adjust the steam jet turning the steam temperature dial.

To make the steam jet come out, press the steam button (C), and if you want to stop the steam press the steam tigger (D), in a few seconds steam will stop.

IRONING TIPS

• Start with the fabrics to be ironed at a low temperature and finish with those which need higher temperatures.
• For mixed fibre fabric, set the ironing temperature to a lower setting.
• For woollen garments, press the steam trigger repeatedly over the garment without physically touching it with the iron.
• For thicker fabrics, raise the steam output by turning the steam control dial to the right.
• For low temperature setting on the dial, reduce the steam level by turning the steam control dial to the left.

VERTICAL STEAM IRONING

This feature allows you to smooth out creases in garments or drapery in a similar manner to a garment steamer. The high steam pressure of the Steam Station can provide bursts of steam while holding the iron vertically. For best results, utilise on delicate or light fabrics. To produce the maximum amount of steam, set the steam setting to MAX. Only direct steam at hanging garments in a safe area and ensure you always refer to garment manufacturer recommendations.

WARNING: Do NOT direct the steam onto a garment that is being worn or at any person.

REFILLING THE WATER TANK

When running low on water, the Steam Station will stop emitting steam even if you press the steam trigger, and the low water indicator light will flash red. You do not have to switch off the Steam Station to refill the water tank. Simply remove the water tank to refill, or use a cup or bottle to pour water into the easy-fill water tank inlet.

MANITENCE AND CLEANING

Cleaning

Turn off the Steam Station and unplug at the power outlet.

Remove the water tank, empty and rinse.

Regularly clean the ceramic soleplate with a damp, non-metallic washing pad.

Wipe the exterior of the Steam Station with a soft cloth.

Do NOT use abrasive cleaners, detergent or other chemicals to clean the Steam Station.

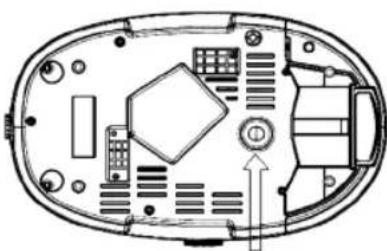

Dscaling operation

NOTE: Ensure the Steam Station has cooled completely before descending operation.

To extend the effective operating life of the Steam Station and avoid scale particle build up, it is recommended to rinse the chamber out once a month or after every 10 uses.

1. Turn off the Steam Station and unplug at the power outlet.

2. Take off the cleaning bolt by the Slotted screwdriver, put a container under the cleaning opening.

1. Plug in, set the steam control knob to Max. position, press steam button 2-3 minutes for cleaning.
2. Turn off the Steam Station and wait for it cool.
3. Screw the plug.

NOTE: There is hot water and steam eject from cleaning bolt, carefully scalds

Ironing Guide Chart

Below is a guide on the temperature setting required for different types of fabric, along with the recommended iron method.

Fabric Temperature	Setting Ironing Recommendation
Acrylic Synth Dry iron on wrong side of garment.
Acetate Synth		Dry iron on wrong side while still damp or use spray to dampen.
Silk Silk/Wool		Iron on wrong side. Place iron cloth on top to prevent shine marks.
Nylon Silk/Wool		Iron on wrong side while still damp or use spray to dampen.
Polyester Silk/Wool		Iron on wrong side while still damp or use spray to dampen.
Wool Silk/Wool Steam Iron on wrong side or use an ironing cloth.
Wool Blends Silk/Wool Steam Iron on wrong side or use an ironing cloth.
Cotton Blends Cot/Lin		Check label and follow manufacturer's instructions. Use setting for the fibre requiring the lowest setting.
Cotton Cot/Lin Use steam medium to high.
Linen Cot/Lin		Iron on wrong side or use an ironing cloth to prevent shine marks.
Denim	Max	Use maximum steam.

TROUBLESHOOTING GUIDE

Please consult troubleshooting table below for any issues you may face prior to contacting our support centre.

PROBLEM POSSIBLE CAUSE SOLUTION
UNIT FAILS TO HEAT UP AND STEAM. POWER INDICATOR LIGHT DOES NOT ILLUMINATE.	Unit is not plugged in. Plug into electrical outlet.
	Household Circuit Breaker	Turn the knob on the circuit breaker to the on position.
WATER RUNS OUT OF THE HOLES IN THE SOLEPLATE.	Water has condensed in the pipes because you are using for the first time or you have not used it for some time.	Press the steam trigger away from your ironing board until the iron produces steam.
	The soleplate is not hot enough. Decrease the steam output while ironing at low temperature.
WHITE STREAKS COME THROUGH THE HOLES IN THE SOLEPLATE.	The boiler has a build-up of scale because it has not been rinsed out regularly.	Rinse out the boiler.
BROWN STREAKS COME THROUGH THE HOLES IN THE SOLEPLATE AND STAIN THE LINEN.	You are using chemical descaling agents or additives in the water for ironing.	Never add this type of product in the water tank or in the boiler.
THE SOLEPLATE IS DIRTY OR BROWN AND MAY STAIN THE GARMENT .THE CLOTHE STICKS IN THE SOLEPLATE	You are ironing at too high a temperature.	Adjust the temperature dial to a lower heat setting.
THERE IS NO STEAM OR THERE IS LITTLE STEAM.	The water tank is empty. Fill the water tank.
	The steam control dial is set at minimum.	Increase the steam output.

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.
