Product type	Canister vacuum cleaner with cyclone
Brand	Di4
Model	Aspirovac Cyclone 1.5
Energy efficiency class	A
Annual energy consumption	26.3 kWh/year
Nominal power input	700 W
Acoustic power level	78 dB(A)
Cleaning performance class on carpets	D
Cleaning performance class on hard floors	A
Dust emission class	A
Dust container type	Bagless, transparent container with level indicator
Filtration	Washable HEPA filter
Power cord length	Approximately 6 m (with winder)
Included accessories	Special floor brush (adjustable bristles), crevice tool, flexible hose, tube extension
Power adjustment	Airflow regulator on the handle
Maintenance	Empty the dust container when it reaches the yellow level; wash the HEPA filter regularly; replace the filter after approximately 100 hours of use
Safety	Do not vacuum liquids, glowing embers or sharp objects; unplug before cleaning; do not use if cord is damaged
Warranty	2 years
Country of origin	Spain (brand B&B TRENDS)

Frequently Asked Questions - Aspirovac Cyclone 1.5 Di4

How to empty the dust container of the Aspirovac Cyclone 1.5?

When the dust reaches the yellow level indicated on the container, open the clip (J) and remove the container. Empty it and replace it. The HEPA filter should be washed regularly and replaced after approximately 100 hours of use.

What to do if the vacuum loses suction power?

Check that the tube and hose are not blocked, that the dust container is not full, that the airflow regulator (C) is fully open, and that the container cover is properly closed. If the HEPA filter is dirty, wash or replace it.

Can I use the vacuum to pick up water or liquids?

No, the appliance is designed only for dry waste. Never vacuum liquids, incandescent objects (cigarettes, matches) or sharp objects (glass, needles).

How to adjust the brush for hard floor or carpet?

The special floor brush (A) has adjustable bristles: extend them for hard floors, retract them for carpet. You can also reduce the suction power with the regulator (C) to avoid sticking to the floor.

The vacuum does not start, what to check?

Make sure the power cord is properly plugged in and the on/off button (I) is pressed. Check that the socket works. If the cord or plug is damaged, have it repaired by an authorized service.

How to clean the HEPA filter?

Remove the filter (K) from the dust container. Wash it with warm soapy water, rinse and let it dry completely before replacing. Replace it after approximately 100 hours of use to maintain performance.

Where to find the instruction manual in French?

The manual is available free of charge in PDF format on notice-facile.com. You can also request a translation in another language via the form on the site.

What accessories are included with the vacuum?

The vacuum comes with a special floor brush (with adjustable bristles), a crevice tool, a flexible hose, a tube extension and a handle with airflow regulator.

How to use the cord winder?

Pull the cord (H) to the desired length, do not exceed the red mark. To store it, press the winder button and guide the cord so that it winds correctly.

What to do in case of breakdown?

Unplug the appliance immediately and contact an authorized technical service. Do not open the appliance yourself. The 2-year warranty covers conformity defects, but not misuse.

USER MANUAL Aspirovac Cyclone 1.5 Di4

Bagless vacuum cleaner

Aspirateur sans sac

Line drawings of a vacuum cleaner's internal components, showing hand positioning and cleaning steps (no text or symbols)

MANTENIMIENTO

Line drawings of a robotic device with hand gestures and close-ups of internal components (no text or symbols)

MANUTENÇÃO

CARTÃO DO PRODUTO

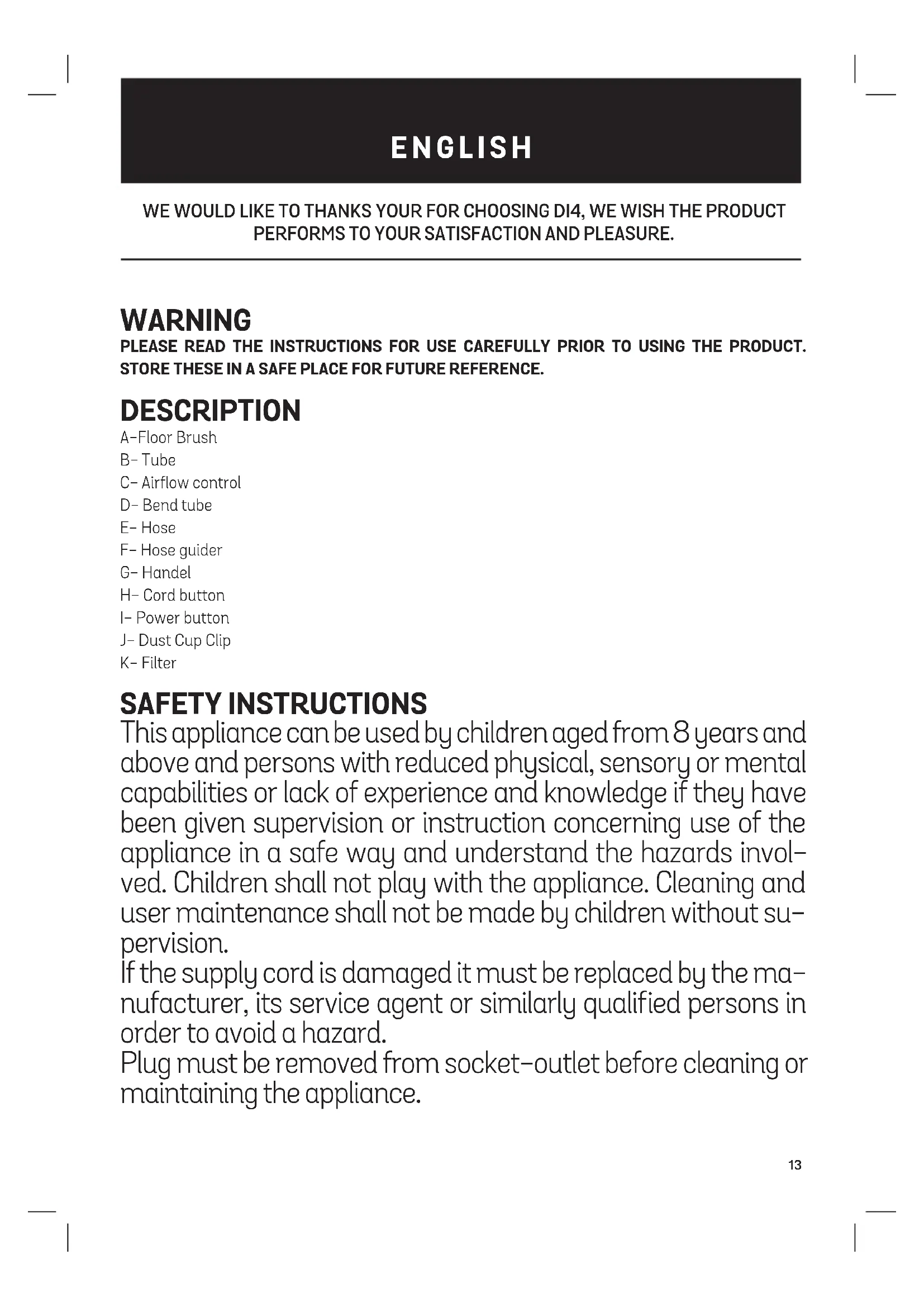

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING DI4, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

A-Floor Brush

B- Tube

C- Airflow control

D- Bend tube

E-Hose

F- Hose guider

G- Handel

H- Cord button

I- Power button

J- Dust Cup Clip

K-Filter

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Plug must be removed from socket-outlet before cleaning or maintaining the appliance.

IMPORTANT WARNINGS

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not pull on the connection cord in order to unplug it.

Do not use, connect or disconnect the device to the mains with your hands or feet wet.

Proceed according to the conservation and cleaning section of this manual for cleaning.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an authorised Technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device.

Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorised technical support service centre may carry out repairs on this product.

This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use. In case of misuse or tampering with the product, it will be out of warranty.

Do not use the appliance to vacuum liquids (water, etc), sharp objects (pins, pins, nails, glass, etc), incandescent objects (matches, cigarettes)

Never use the turbobrush to: Polish floors, suck (Liquids, wet or damp dust, hot ash, burning objects, such as cigarettes, matches, sharp and hard items, such us: razors, pins, thumbtacks, pieces of glass, etc), flour, cement, plaster, printer or photocopier toner, etc.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

PREPARATION:

1. Insert the end of the hose into the inlet of pressurized air
2. After use, press the pressure pins to remove the hose
3. Fit the extension tube to the handle, tube and tube the floor brush as showing in the picture.

USING THE MACHINE:

1. Pull out the wire to suitable length; insert the plug into power socket.

Press the switch to run the machine. The vacuum cleaner begins to work. The part, which can adjust the wind volume, is on the handle. Attention: Don't extend the cable beyond the RED mark.

1. Using accessories:

a. Bristles extended for hard floor
b. Bristles retracted for carpet

1. The narrow nozzle is for cleaning corners, edges of drawers, curtains, lamps, clothing etc.

REPLACING THE DUST-CUP:

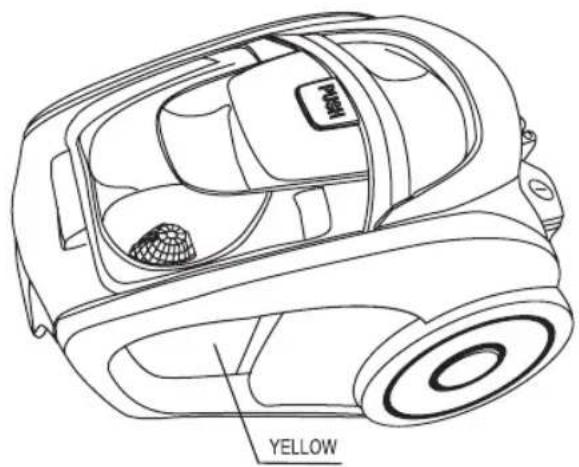

1. When the dust reaches to the yellow board level in the dust-cup, it means dust cup is full. At this moment, dust-cup should be emptied or the HEPA-filter should be replaced.

YELLOW

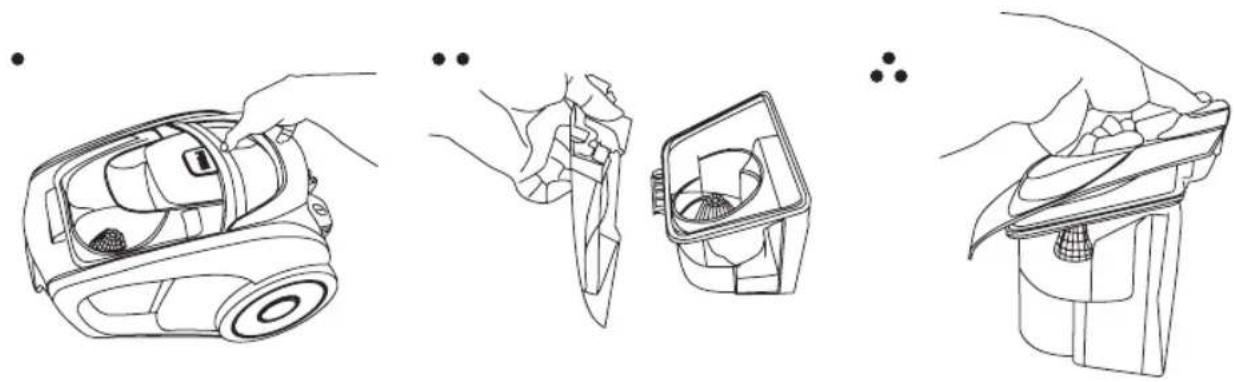

1. Open the dust cup as showing on the picture.

Line drawings of a hand holding a small device, showing internal components and cleaning steps (no text or symbols)

MAINTENANCE

1. The HEPA filter should often be washed when it is dirty and suggest to be replaced after using 100 hours or so in order to avoid barrier.
2. When HEPA filter is full of dust it should be washed or replaced.

DUST CONTAINER CLEANING

PRODUCT CARD

Product card in accordance with the Delegate (EU) Commission Regulation 665/2013.

Comercial Brand Di4
Model ASPIROVAC CYCLONE 1.5
Energy efficiency class A
Target annual energy consumption (kWh per year) calculated based on 50 cleaning sessionsThe real annual energy consumption will depend on how the appliance is used	26,3
Class of rugs and carpets cleaning power D
Class of hard floors cleaning power A
Class of (re-)emission of dust A
Sound power level, db (A) 78
Nominal input power, W 700

IF THERE IS A PROBLEM?

PROBLEM CAUSE	SOLUTION
IF THE DEVICE DOESN'T START	Power cable not connected.ON/OFF key offThe cable or plug may be damaged	Connect the power cable to a suitable electrical outlet.Switch the ON/OFF key onThey must be repaired by an authorized service centre.
LOSS OF SUCTION POWER	Flexible tube / telescopic tube obstructed.Dust collection bag too full.The power regulator is not at the minimum level, if there is one.The dust collection bag is not fitted.The deposit cover is not fully closed	Clean the tubes.Change the dust collection bagIncrease the suction level.Introduce the dust collection bag.Close the cover properly.
ADHERENCE TO THE FLOOR	The pad is not adjusted to the type of floor it is attempting to clean	Use the pad brushes for a smooth floor and remove them when vacuum cleaning rugs and carpetsReduce the suction power using dial (G)

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

MERCI D'AVOIR PLACÉ LEUR CONFIANCE EN DI4 ET NOUS ESPÉRONS QUE CE PRODUIT VOUS DONNERA ENTIÈRE SATISFACTION ET PLAISIR.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÛR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

Line drawings of a robotic device with hand gestures and three views (no text or symbols)

ENTRETIEN

FICHE PRODUIT

ÉLIMINATION DU PRODUIT

Line drawings of a robotic vacuum cleaner with three different views (top, front, side), showing hand positioning and cleaning process (no text or symbols)

MANUTENZIONE

B&B TRENDS, SL. guarantees compliance of this product for the purpose for which it is intended for a period of two years for the entire Spanish territory. In the case of breakdown during the term of this warranty, you are entitled to repair or to the replacement of the product at no charge if the former is unavailable, unless one of these options prove impossible or disproportionate. In this case, you can then choose a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is unaccredited by B&B TRENDS, SL. This warranty does not affect your rights as a consumer in accordance with the provisions of Law 23/2003 dated 10 July 2003 on warranties on the sale of consumer goods in the Spanish territory.
