Product type	Steam cleaner
Brand	Di4
Model	SteamClean Caddy XL
Steam pressure	4,0 bar
Water tank capacity	1,5 liters maximum
Heating time	Approximately 7 minutes
Indicators	Red light (empty water), green light (steam ready)
Power supply	Mains (230 V ~ 50 Hz, estimated 1500 W)
Included accessories	Steam pistol, flexible hose, extension tube, crevice nozzle, round brushes (metal and nylon), ironing brush, window brush, special floor brush, carpet glider
Main functions	Steam cleaning of floors, windows, textiles, smooth surfaces, radiators, etc.
Safety	Safety valve, child safety lock on trigger, automatic shut-off in case of water shortage, hot surfaces indicated
Maintenance and cleaning	Empty the boiler after use, clean with a dry cloth, descale regularly
Spare parts and repairability	Repairs reserved for authorized technical service; 2-year warranty
General information	Household use only; compliant with WEEE directive

Frequently Asked Questions - SteamClean Caddy XL Di4

What to do if steam does not come out?

Check that the plug is properly connected, that the switch is on, and that the water tank contains water. Make sure to press the child safety lock before operating the trigger.

Why does water leak from the nozzle?

This is normal during first use or after a pause: condensation in the hose produces a few drops of water. This disappears quickly.

How long does it take for the steam to be ready?

Approximately 7 minutes. The green light turns on when the pressure of 4 bar is reached.

How much water can I put in the tank?

The tank can hold up to 1,5 liters. Do not exceed this level for optimal steam.

Can I use chemical products or stain removers?

No, use only clean water. Adding liquids may damage the appliance.

How to clean the boiler?

After use, empty the residual water. Add some water, shake vigorously, then empty. Repeat if the water is dirty. This prevents limescale blockage.

Can steam damage certain surfaces?

Avoid directing steam at electrical components, unsuitable carpets, or heat-sensitive surfaces. Always test on an inconspicuous area.

What does the red light mean?

The red light indicates that the water tank is empty. Turn off the appliance, let it cool, then fill with water.

How to use the window brush?

Attach the window brush to the pistol. It is equipped with a rubber blade for cleaning windows, mirrors, and smooth surfaces. Assemble the hooks and the cover until they click.

Is the appliance under warranty?

Yes, the warranty is 2 years for compliant domestic use. Wear parts are not covered. Keep the invoice and warranty certificate.

USER MANUAL SteamClean Caddy XL Di4

Line drawing of a vacuum cleaner with attached plug and hose, no text or symbols present

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN DI4 Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

OBSERVACIÓN:

Line drawing of a handheld electric shaver tool (no text or symbols)

2. Boquilla grande

Line drawings of two different types of hair tools or devices, one with a handle and the other with a curved handle (no text or symbols present)

3. Cepillo redondo

Technical line drawings of a hairdryer tool with labeled parts (no text or symbols present)

4. Cepillo para planchar

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

5. Cepillo de ventana

Line drawing of a hand holding a device with a spring, no text or symbols present

Line drawing of a vacuum cleaner's handle assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with wheels and handle (no text or symbols)

ATENÇÃO:

Technical line drawings of two mechanical components (no text or symbols)

2. Bocal grande

Line drawing of two different types of handheld devices, one with a handle and the other with a clip (no text or symbols)

3. Escova redonda

Empurrar firmemente a escova redonda metálica e de nylon

Technical line drawings of a mechanical component with labeled parts (① and ②), no text or symbols present.

4. Escova de engomar

Line drawing of a vacuum cleaner with attached base and handle (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a vacuum cleaner's handle assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

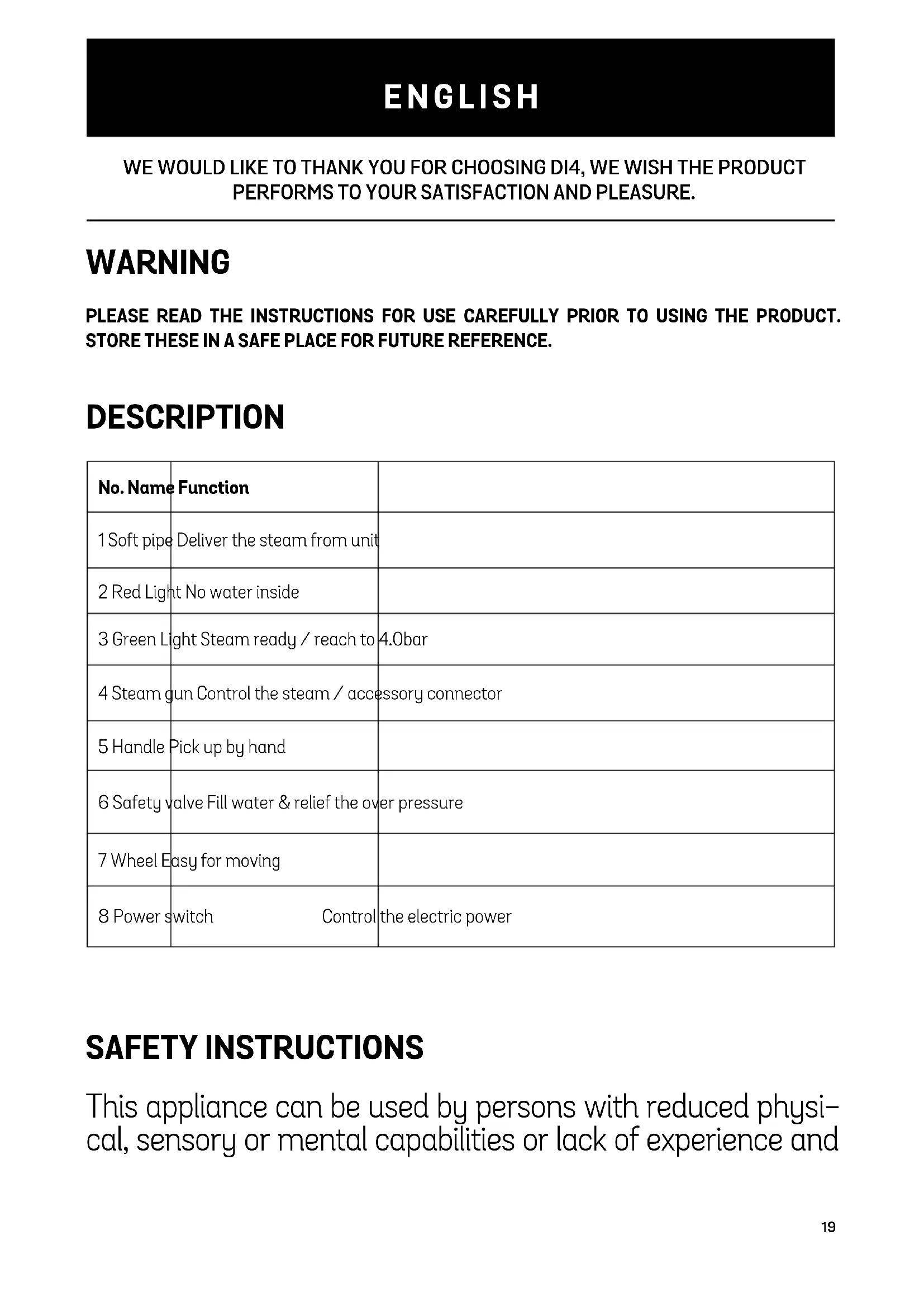

WE WOULD LIKE TO THANK YOU FOR CHOOSING DI4, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

No. Name Function
1 Soft pipe Deliver the steam from unit
2 Red Light No water inside
3 Green Light Steam ready / reach to	4.0bar
4 Steam gun Control the steam / accessory connector
5 Handle Pick up by hand
6 Safety valve Fill water & relief the over pressure
7 Wheel Easy for moving
8 Power switch Control the electric power

SAFETY INSTRUCTIONS

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The appliance shall not be left unattended while it is connected to the supply mains.

The filling aperture shall not be opened during use

The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

Keep the appliance out of reach of children when it is energized or cooling down.

Steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

Appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

Plug must be removed from socket-outlet before cleaning or maintaining the appliance.

WARNING: Danger of scolding. If this symbol is market in the appliance means that hot steam is emitted by this appliance.

CAUTION. Hot surface. If this symbol is marked on the appliance means that surfaces are liable to get hot during use.

IMPORTANT WARNINGS

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not pull on the connection cord in order to unplug it.

Do not use, connect or disconnect the device to the mains with your hands or feet wet.

Proceed according to the conservation and cleaning section of this manual for cleaning.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an authorised Technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device.

Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorised technical support service centre may carry out repairs on this product.

This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use. In case of misuse or tampering with the product, it will be out of warranty.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings

INSTRUCTIONS FOR USE

Operation Instruction

1. Fill water

Please kindly fill water before using.

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

REMARK:

please make sure that no residual water in the boiler before adding water. Pour out the rest water after finish using and clean the boiler. There will be calcification inside which may clog the steam after long time.

Method of cleaning boiler: first add small amount of water in the boiler, fully shaking hands rock the machine, and then pour out the water completely. Suggest you can repeat above action if the water contains a lot of impurity.

In order to get idea steam, please be sure to fill maximum 1.5 liter water. You can check the scale in the cup.

Please screw the safety valve when water filled.

Do not inject any liquid except clean water

2. Power on

Please ensure that the boiler with water and the safety valve in a tight status before power on.

Put the plug into socket and open the power switch. If the power is on, the red light will on.

Do not use wet hand to touch the power

Do not use any power cord & socket in broken status.

3. Operation

After about 7 minutes, the green light will show on, it means steam is ready.

Hold the steam gun by hand, press the children lock. At the same time, use other four finger to press the steam trigger. Steam come out directly.

The green light will be on and off during usage. If it is on, it means the pressure reach to 4bar, but it will not influence use when off.

There will be some water come out at first time as of condensate in the pipe. Do not use to clean carpet, ironing clothes etc. Suggest you can spray to some container. It will be dry after 2–3 seconds.

Please choose the appropriate accessories to clean according to the actual situation. Detailed please refer to the accessories instructions.

Do not screw the safety valve during using or power is on or hot steam & water will be released

Red light show on it means short of water.

Following steps from 1\~3 for repeat using.

4. Storage & Cleaning

After use, please turn the power off.

If the steam has not fully released, please open the safety valve until cooling and then pour out the water.

Please note that there is a risk of burns when pouring water since it is still hot.

If there is dirt on the surface of body, please use dry dishcloth with some water to wipe gently.

Do not use water to spray the machine.

Don't place it under damp which may cause short circuit.

After cleaning please keep it in a dark and dry place.

INSTRUCTION USING FOR ACCESSORIES

1. Extension tube

Assemble the extension tube if the steam cleaner is to be used to clean floor or high place windows or difficult to reach areas. To do this, push the open end of the tube into the steam gun until the release button of the steam gun clicks into place. And one or two extension tube if required. Press in the appropriate the release button and pull the tubes apart with a download movement to take the extension tube off.

Technical line drawings of two mechanical components (no text or symbols)

2. Big nozzle

This nozzle makes it possible to clean hard to reach places such as corners, joints and toilets with ease. Simple push the bent nozzle firmly into the gun directly.

Line drawing of two different types of hair tools or devices, one with a handle and the other with a clip (no text or symbols present)

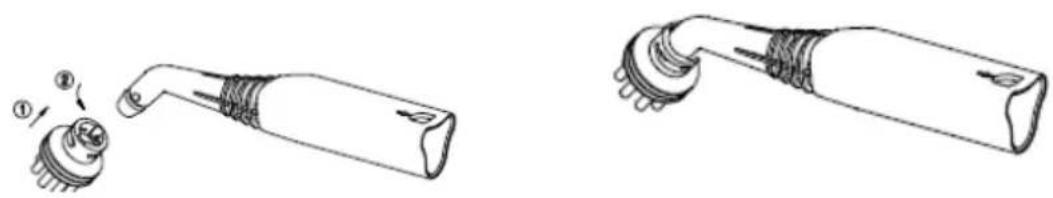

3. Round brush

The metal and nylon round brush are pushed

Firmly into the big nozzle until you hear a sound. Even the most stubborn dirt can be removed. e.g. blinds, central heating radiators etc. Please use small mental brush. The nylon brush is suitable for heavy staining on less sensitive materials such as stainless steel. Simply pulling it off with a downward movement can remove it directly.

Technical line drawings of a mechanical component with two views (① and ②), no text or symbols present.

4. Ironing brush

To iron the cloth, sofa etc, put the white ironing towel on the ironing brush and connect with steam gun. Besides, you can fixed the extension tube in the hole by open the back cover to put the clothes hanger on the extension tube.

Line drawing of a vacuum cleaner with attached base (no text or symbols)

5. Window brush

To clean window, mirrors, or tiles those which with smooth surface objects, please use the window brush which is with rubber blade combined with brush sprayer to clean. When installed, knot on two prominent part of the hook on to the glass scraper, then

put the whole cover of glass brush to ironing, issued a "clicking" sound, then installation is complete.

Line drawing of a mechanical device with a spring and handle (no text or symbols)

If temperature is lower than 0^ C, please do not use this product to clean glass
Do not placed in the same position more than 2 seconds

6. Floor brush

Line drawing of a mobile phone mount assembly (no text or symbols)

Floor brush nozzle to the end of extension tube. Ensure that nozzle clicks into place on assembly. The floor brush is ideal for cleaning washable wall and floor coverings. It may be used with or without the towel. Pressure on the inner side of the holder, open the clips to hold the towel.

Add the carpet glider if you need to clean the carpet.

Or add the brush if you need to clean the geostrophy etc.

Technical line drawing of a mechanical assembly with no visible text or symbols

TROUBLE SHOOTING

Issue Please check as below Solution
No spray steam	Plug not insert to the power socket tightly	Insert again or change the socket
	Switch indicator light off Turn on the switch
	No water Fill water
	Not press the steam lock Press on children lock
	Other questions Ask professional service
Water is flowing from nozzle	There may some water in the steam for first usage or stopped for a while.	normal phenomenon. Will disappear quickly
	Influence the normal use Ask professional service
Others	Steam come out besides the nozzle	Ask professional service
	plastic deformation and softening phenomenon
	Other electric equipment cannot be used
	Steam come out from safety valve

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

NOUS TENONS À VOUS REMERCIER D'AVOIR CHOISI DI4 ET SOUHAITONS QUE LE PRODUIT FONCTIONNE ET COMBLE VOS ATTENTES.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÛR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

OBSERVATION :

Technical line drawings of two mechanical components: a hand tool and a cylindrical rod (no text or symbols)

2. Suceur large

Line drawing of two different types of electric shaver tools (no text or symbols present)

3. Brosse ronde

Technical line drawings of two types of electrical connectors, one with a pin labeled ① and the other with a terminal block (no text or symbols present)

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

5. Brosse à vitre

Line drawing of a hand holding a device with a spring attached (no text or symbols)

Line drawing of a vacuum cleaner's base assembly with a handle attachment (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

RÉSOLUTION DES PROBLÈMES

ÉLIMINATION DU PRODUIT

Line drawing of a vacuum cleaner with wheels and handle (no text or symbols)

NOTA:

Line drawing of a handheld electric shaver tool (no text or symbols)

2. Bocchetta grande

Line drawing of a handheld electric shaver with handle and screw (no text or symbols)

3. Spazzola rotonda

Technical line drawing of a mechanical component with numbered parts (no text or symbols)

Line drawing of a mechanical component with threaded ends and a curved shaft (no text or symbols)

4. Spazzola stiratrice

Line drawing of a handheld vacuum cleaner with attached lever (no text or symbols)

Line drawing of a mechanical device with a handle and spring mechanism (no text or symbols)

Line drawing of a vacuum cleaner's arm and base assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

B&B TRENDS, SL. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BOLETIM DE GARANTIA

SUM. ELECT. DALMAU, S.C.P.

VILADOMAT, 108

934539276

[e-mail]

08240 MANRESA

SERVICIO ELDE - JORGE MANERO

BRUCH, 55

938728542

[e-mail]

08027 BARCELONA

SELAROM

PASSEIG MARAGALL, 102

933 521 805

[e-mail]

08020 BARCELONA

SAT MARINE, S.C.P.

C/HUELVA, 67-69

932664697

[e-mail]

08620 SANT VICENÇ DELS HORTS

SAT JARO -

C/ MALAGA, 20-22

647 054 779

[e-mail]

08950 ESPLUGUES DE LLOBREGAT

SAT J. BAUTISTA

POL.INDR."DOMENYS I" NAVE 9

938904852

[e-mail]

SUREDA | ASSOCIATS, S.C.

FRANCESCAARTAU,2

972236588

[e-mail]

17200 PALAFRUGELL

NEW MERESA

DE LA SURERA BERTRAN, 23

972304454

[e-mail]

17300 BLANES

FRANCISCO PORTILLO PEIRO

ASIAS MARC 1

972331249

[e-mail]

17740 VILAFANT

ELECTRONICA VILAFANT - SAT

NAVATA.13

972506515/615090154

[e-mail]

GRANADA

18015 GRANADA

LUNSOL, S.L.

SANTIAGO APOSTOL 18 Local

959283415/627349431

URBISAT (BALEAR SERVICE)

C/MATEU OBRADOR,8

971-733886/733879

[e-mail]

7740 MENORCA

ES MERCADAL

SERVEIS MENORCA, S.L.

CARRER NOU N° 53

971375380

[e-mail]

JAÉN

23400 UBEDA

MAGOCA UBEDA

GRANADA 7

953751838

[e-mail]

23001JAEN

CARRIL DE LAS FLORES, 34-B

982242015

[e-mail]

27400 MONFORTE DE LEMOS

RAUL E HIJOS,S.L.

CAMPO DE LA COMPAÑÍA, 19

982400711

[e-mail]

27850 VIVERO (CASCO

SERVICIO TECNICO SILDO 101, S.L.U.

LODEIRO, 26

982061819

MADRID

28931 MOSTOLES

Valle Inclan 32 Local

917054624

[e-mail]

28047 CARABANCHEL

REPARACIONES CARLOS (CARLOS

GOMEZ YUSTE)

GUABAIRO,2

914665369

Electro Servicio Muñoz S. L. (ESM

Corella)

C/ Santa Barbara, 52

948780729

[e-mail]

31500 TUDELA

ELECTRICIDAD FERNANDO, S.C.I.

YANGUAS Y MIRANDA, 12

948826457

[e-mail]

VALENCIA

46600 ALZIRA

TALLERES MOYA

C/ FAVARETA,49

96 241 85 87

[e-mail]

46011 VALENCIA

ROBERTO BARRACHINA ALIAGA

-VALENCIANA, SA TECNICA-

C/FRANCISCO BALDOMA, 86 Bajos

963554244/607304279

[e-mail]

46700 GANDIA

RELGAN - CAMILO GARCIA

MAGISTRADO CATALA, 16

962872810

[e-mail]

46005 VALENCIA

RELEVAN,S.L

C/ MATIAS PERELLO ,49

963 222 529

[e-mail]

46800 XATIVA

JOSE PASTOR DIEZ

C/ ABU MASAIFA, 6

962274794

[e-mail]

46680 ALGEMESI

JOSE A. LLACER SANGROS

ALBALAT, 88

962423519

[e-mail]

46700 GANDIA

JOAQUIN MAYOR ESTRUGO

(TECNOGAR)

PRIMER DE MAIG 41-B

962865335

[e-mail]

46470 CATARROJA
