BELLE PCLX 1240E - Vibratory plate Lescha - Free user manual and instructions

Product Type	Unidirectional vibrating plate
Brand	Lescha
Model	BELLE PCLX 1240E
Weight	50 kg
Motor Type	Electric
Motor Power	2.0 Hp / 1.5 kW
Motor Speed	2800 rpm
Rated Voltage	110 V or 230 V
Rated Current	14.2 A (110 V) / 6.66 A (230 V)
Protection Rating	IP44
Vibrator Force	12 kN
Vibration Frequency	50 Hz
Compaction Force	388 kg/m²
Maximum Travel Speed	24 m/min
Maximum Slope	20°
Maximum Operating Time	190 minutes
Sound Power Level	104 dB(A)
Vibrator Oil	SAE 10W40, quantity 0.22 L
Applications	Cohesive, granular and bituminous materials
Maintenance	Vibrator oil change every 500 h, belt check every 4 h
Warranty	12 months (excluding normal wear and belt)
Spare Parts	Use genuine Altrad Belle parts
Safety	Mandatory PPE, do not use in wet conditions, do not lift by the motor housing

Frequently Asked Questions - BELLE PCLX 1240E Lescha

How to start the BELLE PCLX 1240E vibrating plate?

Connect the power cable to a suitable source (110 V or 230 V). Make sure the switch is on OFF (position 0). Press the GREEN button (I) to start. To stop, press the RED button (O).

What to do if the motor does not start?

First check the fuse or circuit breaker. If the motor hums but does not start, it may indicate a short circuit in the stator. In this case, contact your dealer or Altrad Belle. Also check the supply voltage and the condition of the capacitor on single-phase models.

What type of oil to use for the vibrator and how to check the level?

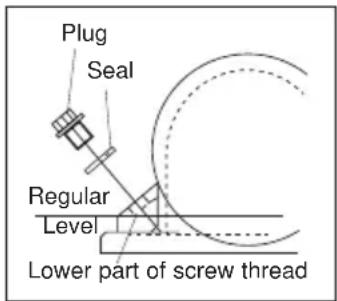

Use SAE 10W40 oil. The capacity is 0.22 L. To check the level, remove the vibrator oil plug. The level should reach the bottom of the filling hole thread. Top up if necessary.

How to maintain the drive belt?

Check the belt tension every 4 hours of use. Adjust it if loose. If the belt is damaged, replace it with a genuine Altrad Belle part.

What safety precautions should I take before use?

Wear safety shoes, ear protection, safety glasses and gloves. Never use the plate in wet conditions. Make sure the motor housing is not used as a lifting point. Check the condition of the cable and belt guard before each use.

How to transport the vibrating plate safely?

Transport requires two people. Use the manual lifting points provided on the machine (never use the motor housing or a mechanical hoist). Before any movement, stop the engine and disconnect the power.

What is the compaction force and how to optimize it?

The compaction force is 388 kg/m². For effective compaction, work in successive layers and cross the passes. Adapt the travel speed (max 24 m/min) to the ground condition. For bituminous materials, use the water sprinkler system if necessary.

Can the plate be used on slopes?

Yes, up to a maximum slope of 20°. Work uphill or downhill, never across. If necessary, a rope attached to a low point on the frame can help a second person control the machine.

What to do if asphalt sticks to the plate?

Use the water sprinkler system to lubricate the plate. Lack of lubrication can cause flaking of the bituminous surface. Also check that you are not over-compacting the material.

What is the warranty coverage?

The warranty is 12 months from the date of purchase for the original purchaser. It covers defects in materials or workmanship. Exclusions: normal wear, drive belt, damage due to misuse or unauthorized repairs. Contact Altrad Belle for any claims.

USER MANUAL BELLE PCLX 1240E Lescha

Technical line drawing of a mechanical device with no visible text or symbols

• Spare Parts Book
• Pièces Détachées
  • Onderdelen Boekje
• Reservedele Skrift
• Ersatzteilhandbuch
• Manuale dei Ricambi
• Bruksanvisning
• Varaosaluettelo
• Lista Części Zamiennych
  • Запасные Части Книга
• Varuosade Nimekiri
• Rezerves Dalu Saraksts
• Atsarginiu Daliu Sarašas

GB Operators Manual
F Manuel De L'Opérateur
NL Handleiding
DK Betjeningsvejledning
D Bedienungshandbuch
① Manuale Dell'Operatore
s Bruksanvisning
SF Käyttöohje
PL Instrukcja Obstugi
RUS Руководство для оператора
EST Kasutusjuhend
LV Lietotāja rokasgrāmata
LT Naudojimo Instrukcija
6
16
26
36
46
56
66
76
86
96
106
116
126

EC DECLARATION OF CONFORMITY / DECLARATION CE DE CONFORMITE / DECLARACIÓN DE CONFORMIDAD CE / DECLARAÇÃO CE DE CONFORMIDADE / EG-VERKLARING VAN OVEREENSTEMMING / EF OVERENSSTEMMELSESERKLAERING

We, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, hereby certify that if the product described within this certificate is bought from an authorised Belle Group dealer within the EEC, it conforms to the following EEC directives: 2006/42/CE (This directive replaces directive 98/37/EC), Electromagnetic Compatibility Directive 2004/108/CE (as amended by 89/336/EEC, 92/31/EEC & 93/68 EEC). The Waste Electrical and Electronic Equipment (WEEE) 2002/96/CE, the low voltage directive 2006/95/CE, BS EN ISO 12100-1:2003 Safety of machinery and associated harmonised standards, where applicable. Noise emissions conform to directives 2000/14/EC Annex VI & 2005/88/EC, for machines under article 12 the notified body is AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, GB. Noise Technical files are held by Ray Neilson at the Belle group Head Office address which is stated above.

PRODUCT TYPE .... TYPE DE PRODUIT.... TIPO DE PRODUCTO....

MODEL...... MODELE...... MODELO......

SERIAL No..... N° DE SERIE..... N° DE SERIE.....

Empty white rectangle with dashed border (no text or symbols)

Signed by:

Signature:

Medido por:

Assinado por:

Getekend door:

Uunderskrevetaf:

O.Nah

Ray Neilson

Managing Director - On behalf of BELLE GROUP (SHEEN) UK.

Date of Declaration - 2016....

Empty white square with dashed border (no text or symbols)

Unterzeichnet vo:

Firmato da:

Undertecknat:

Signatur:

Allekirjoitus:

Podpisat:

O.Nah

Ray Neilson

Empty rectangular frame with dashed border (no text or symbols)

R. Nath Ray Neilson

Empty white square with dashed border (no text or symbols)

Podepsal:

Semnat de:

Aláírás:

Potpisao:

Imzalayan:

Podpísal:

O.Nah

Ray Neilson

Director General - in numele BELLE GROUP (SHEEN), UK

This manual has been written to help you operate and service the 'PCLX 12/40E' Plate compactor safely. This manual is intended for dealers and operators of the 'PCLX 12/40E' Plate compactor.

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine's layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The ‘Operating Instructions’ section helps you with the setting up and use of the machine.

The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine.

The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine.

The ‘Warranty’ Section details the nature of the warranty cover and the claims procedure.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How To Use This Manual....6

Warning 6

Machine Description....7

Environment 7

Technical Data....8

Decals....9

Safety Instructions....10

Health And Safety....11

Reasons For Compaction....11

Compaction Specification....11

Applications....11

Pre-Start Checks 11

Operating Instructions....12

Trouble Shooting Guide .... 13

Service & Maintenance .... 14

Warranty 15

Declaration Of Conformity....2

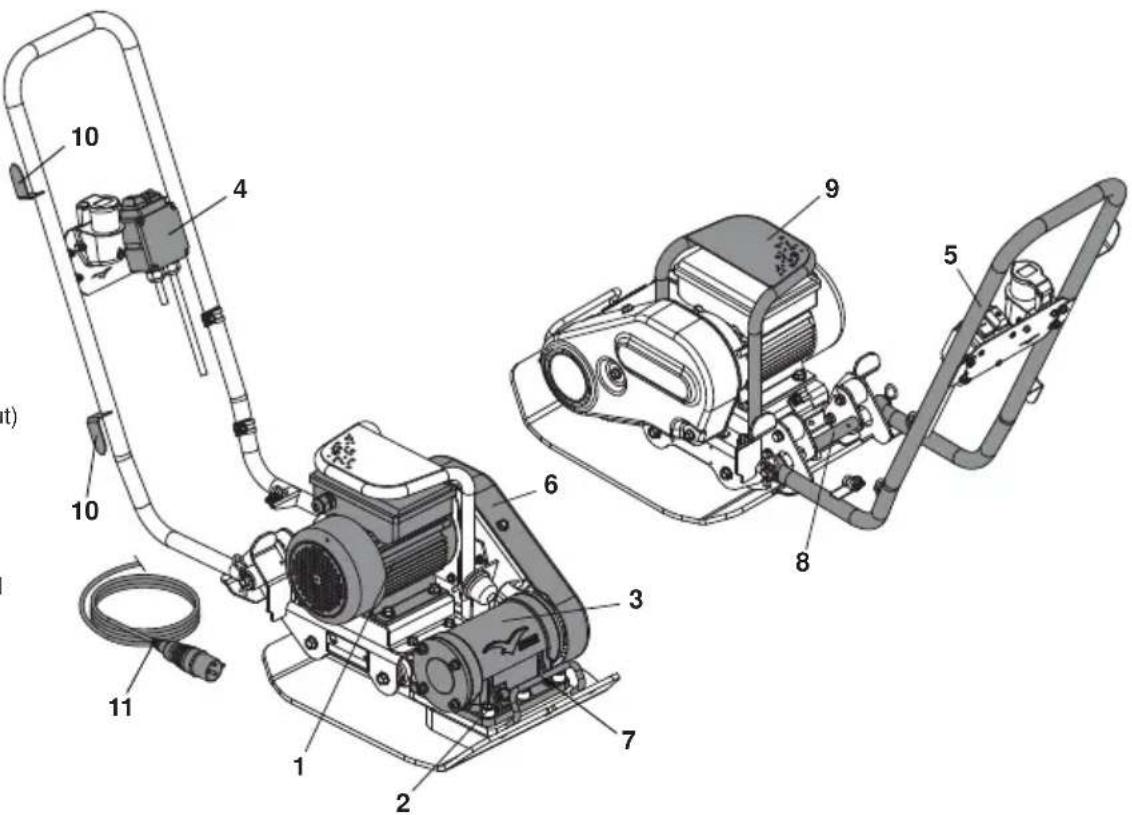

Machine type:

Single Direction Plate Compactor

1. Electric Motor
2. Vibrator Unit Oil Plug.
3. Vibrator Unit
4. On / Off Switch
5. Operating Handle,
6. Belt Guard,
7. Hand Lifting Point
8. Hand Lifting Point (Strut)
9. Motor Guard
10. Cable Storage Hook
11. Power Cable

DO NOT use a Mechanical Hoist on the Hand Lifting Points (No's 7 & 8) and Motor Guard (No. 9)

Technical diagram of a mechanical device with numbered components, likely an engine or pump assembly.

Environment

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component Material
Operator Handle Steel
Hand Grip Steel
Base Plate Steel
Eccentric Weights Steel
Electric Motor Steel & Various Parts Steel	Aluminium & Copper& Aluminium

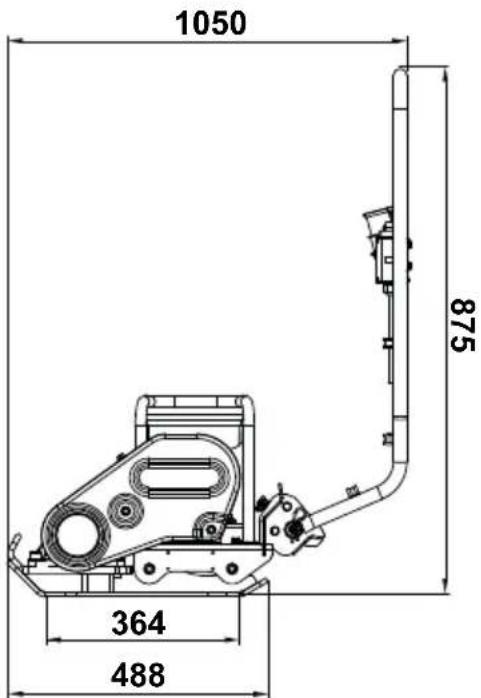

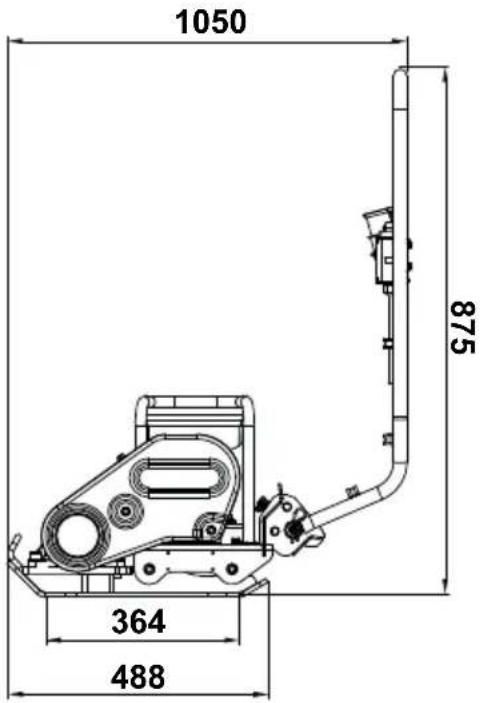

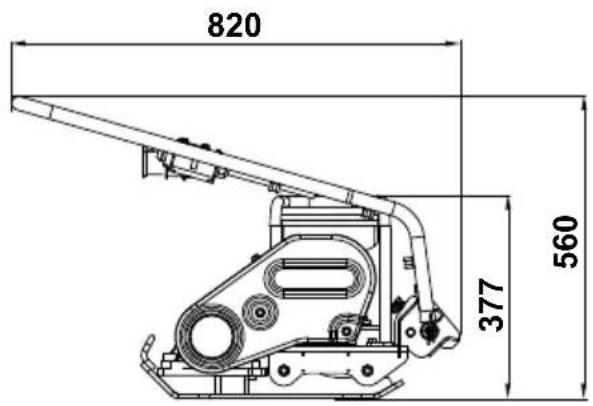

1050 875 364 488

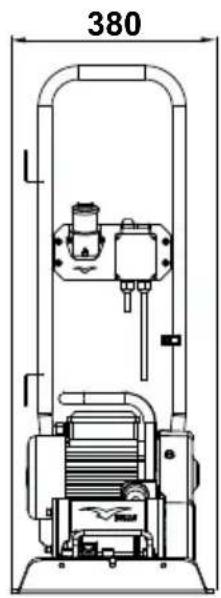

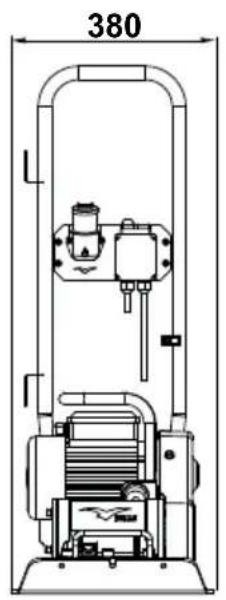

380

820 377 560

Model 110v 50Hz 230v 50Hz
Weight (kg) 50 50
Motor Power (Hp / kW) 2.0 / 1.5 2.0 / 1.5
Motor RPM 2800 2800
Nominal Voltage (v) 110 230
Full Load Current (A) 14.2 6.66
Motor Protection Rating IP44	IP44
Power Consumption (kW)	0.94 0.94
Vibrator Force (kN)	12 12
Frequency (Hz)	50 50
Minimum Transformer Size (kVA)	3.3	N/A
Maximum Travel Speed (m/min)	24 24
Max. Gradient (°)	20 20
Compaction Force (kg/m2)	388	388
3 Axis Vibration* (m/sec2)	3.97 3.97
Usage Time (Mins)	190	190
Sound Power Level (dB(A))	104	104

* Minimum level to EN500 Part 4

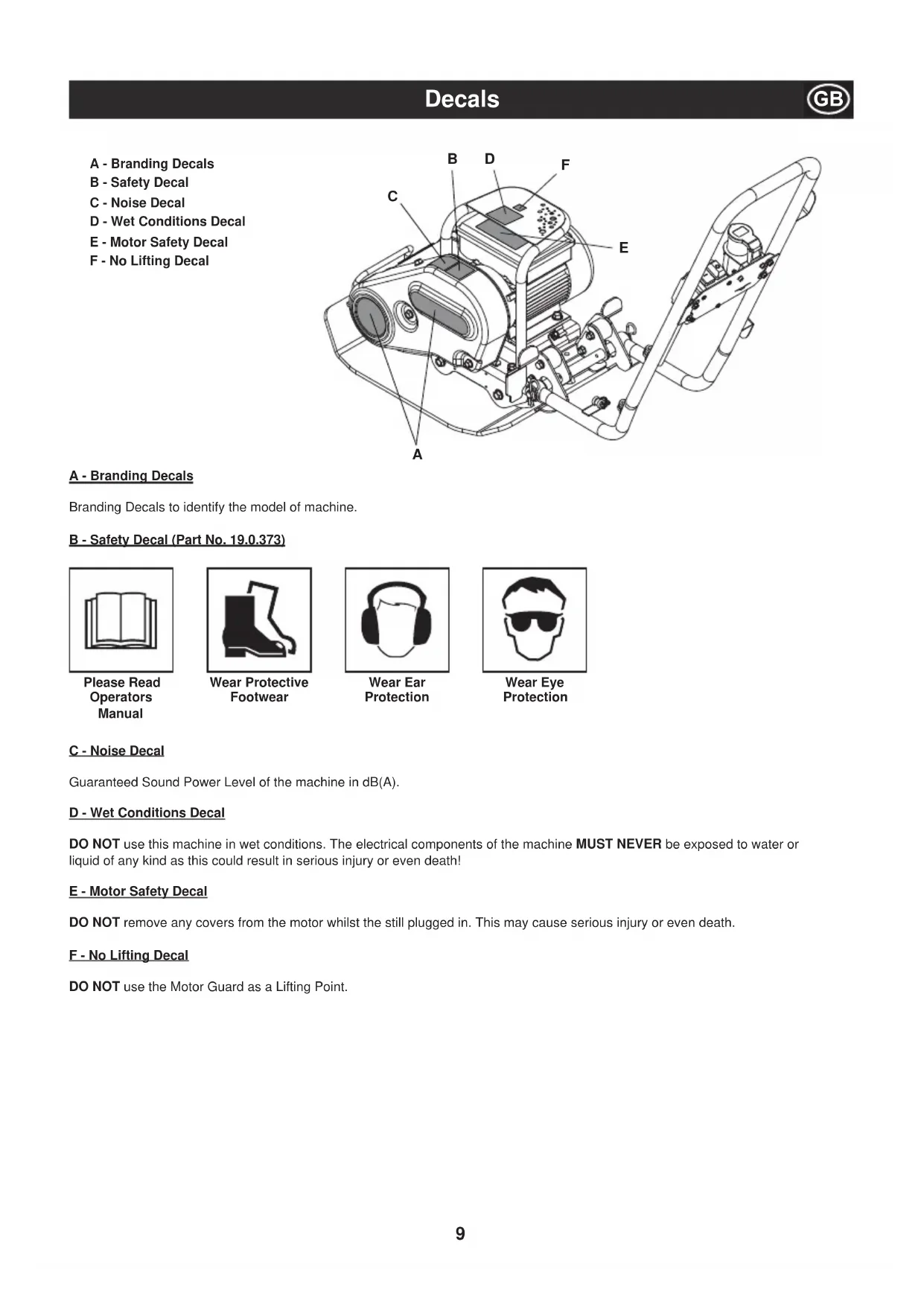

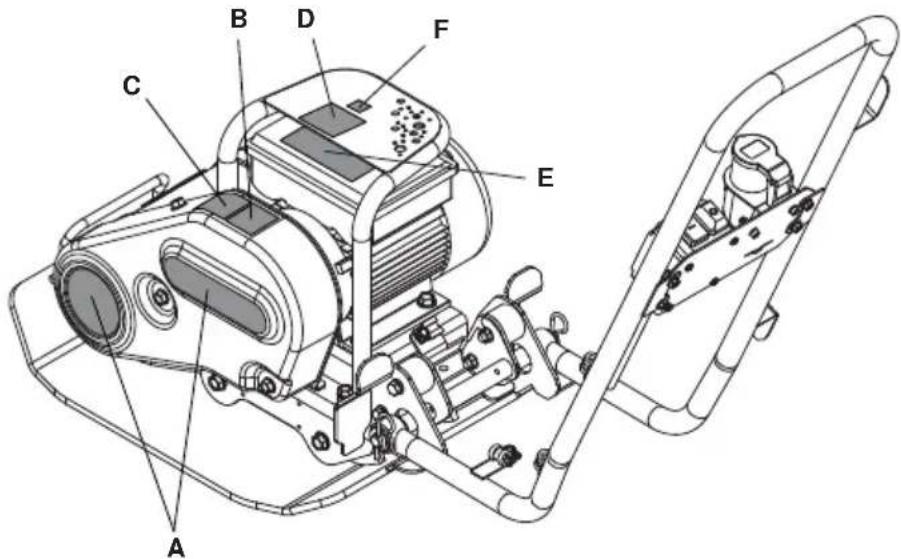

A - Branding Decals
B - Safety Decal
C - Noise Decal
D - Wet Conditions Decal
E - Motor Safety Decal
F - No Lifting Decal

Technical diagram of a mechanical device with labeled parts A through F

A - Branding Decals

Branding Decals to identify the model of machine.

B - Safety Decal (Part No. 19.0.373)

Please Read Operators Manual

Wear Protective Footwear

Wear Ear Protection

Wear Eye Protection

C - Noise Decal

Guaranteed Sound Power Level of the machine in dB(A).

D - Wet Conditions Decal

DO NOT use this machine in wet conditions. The electrical components of the machine MUST NEVER be exposed to water or liquid of any kind as this could result in serious injury or even death!

E - Motor Safety Decal

DO NOT remove any covers from the motor whilst the still plugged in. This may cause serious injury or even death.

F - No Lifting Decal

DO NOT use the Motor Guard as a Lifting Point.

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'PCLX 12/40E' Plate compactor, consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF and un-plug the motor before transporting, moving it around the site or servicing it.
- During use the motor becomes very hot, allow the motor to cool before touching it. Never leave the motor running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.
- Never pull or guide the machine using the cable and never pull on the cable to disconnect the plug.
• DO NOT operate the MACHINE when you are ill, feeling tired, or when under the influence of alcohol or drugs.
- Ensure that any trailing cable is protected against damage and not liable to be tripped over or trapped underneath the machine.
• DO NOT use the Motor Guard as a Lifting Point.
• DO NOT Jet Wash the machine as this could result in serious injury or even death!
- DO NOT use this machine in wet conditions. The electrical components of the machine MUST NEVER be exposed to water or liquid of any kind as this could result in serious injury or even death!
- Belle strongly recommends the use of a Residual Current Device on 220/240v electrics.

Fire Fighting

If your machine catches fire, turn off the electric supply. Using a dry powder or C02 fire extinguisher put out the fire. If the fire can not be put out, keep away and call the fire brigade. If you are in any doubt about the safety condition of your machine, please consult your nearest Altrad Belle dealer or Altrad Belle direct.

Electric Motors

All portable electric appliances are dangerous if abused. This machine will only operate on one voltage. Check the power supply to ensure it corresponds to the voltage as stamped on the motor. Make sure that the motor is switched off before you plug it into the power supply.

220/240v - Always use a Residual Current Device ("RCD"), (earth leakage trip), plugged directly into the 220/240v socket.

If using an extension cable, plug it directly into the RCD.

110v - When using a portable transformer it must have a minimum output of 3.3kw and be continuously rated.

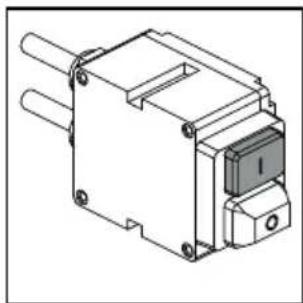

The symbols on the ON/OFF switch are 0=OFF and I=ON in accordance with international standards.

WARNING

DO NOT use an extension cable between the transformer and the power supply. Always ensure that the cable between the 110v machine and transformer is a minimum length of 3 metres. Ensure cable is fitted with cable clip to the operating handle at all times.

Plugs

The PCLX 12/40E Plate Compactor is intended for DIY or site usage, the following plug types are supplied fitted to the product:-

110v Motor - 16 amp rated BS4343 plug type. or 3-pin CEE7/7 Euro plug type.

230v Motor - 13 amp rated 3-pin BS1363 plug type

Fitting a plug - WARNING THIS PRODUCT MUST BE EARTHED

IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:

GREEN / YELLOW = EARTH, BLUE = NEUTRAL, BROWN = LIVE

The wire which is coloured Green and Yellow must be connected to the terminal in the plug marked E or coloured Green and Yellow. The wire which is coloured Brown must be connected to the terminal in the plug marked L or coloured Red. The wire which is coloured Blue must be connected to the terminal in the plug marked N or coloured Black. Always ensure before connecting to the supply that the supply voltage is the same as the rated voltage marked on the motor

Extension Cables

If you need to use an extension cable it must be no longer than 25 metres (82 feet) in length. The wire section must be 2.5mm^2 on 230v and 2.5mm^2 on 110v. Ensure that the extension cable is carefully laid out avoiding liquids, sharp edges and places where vehicles might run over it. Avoid allowing the extension cable to be trapped underneath the plate compactor. Unroll it fully or it will overheat and could catch fire. Make sure that any extension cable connections are dry and safe.

NVR - No Volt Release

The motors which are fitted to the machine are fitted with a NVR (No Volt Release) Switch. This mean that if the power fails, the motor will not automatically restart when the power is restored. The machine will need to be manually restarted.

Health & Safety

Vibration

Some vibration from the compacting operation is transmitted through the handle to the operator's hands. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment).

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear (with anti-slip soles for added protection). Wear clothing suitable for the work you are doing. Always protect skin from contact with concrete.

Dust.

The compaction process can produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

Compaction Specification

Various methods have been employed in the past to specify the compaction required for various applications. The factors to consider are, material properties, layer thickness, pressure applied, vibration and number of passess. Greater understanding of how compaction works has lead to new compaction specifications being introduced. The most up to date specification is part of the U.K.'s NRSWA (New Roads & Street Works Act). Civil Engineers are now adopting these specifications to ensure good compaction for all site work.

Applications

Applications/materials fall into three categories:

1. Cohesive materials (less than 20% granular) e.g clay, silt & heavy soils.
2. Granular materials (more than 20% granular) e.g hard core, sand & light soils.
3. Bituminous materials e.g asphalt (tarmac), cold lay (bitumin emulsion products).

Pre-start Checks

Pre start-up inspection.

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the 'PCLX 12/40E' must not be used until the fault is rectified.

1. Thoroughly inspect the 'PCLX 12/40E' and all cables for signs of damage. Make sure that the belt guard is secure before using the machine.
2. Check hoses, filler openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

WARNING

NEVER pass over the electric cable with the compactor during operation.

• Take the compactor to where it is required.

DO NOT use a Mechanical Hoist on the Hand Lifting Points (See Machine Description section).

Transporting the PCLX 12/40E is a 2 person operation. Use the provided Hand Lifting Points (See Machine Description section)

• NEVER leave the motor running whilst transporting or moving the PCLX 12/40E, even if it is only a short distance.
• Having carried out the checks listed in the 'Pre-Start' section, you may start the motor.
• Switch the machine on and use the control handle to steer or turn the PCLX 12/40E.

The vibrator will not only cause the baseplate to vibrate but will also cause it to travel forward. During normal operation you should not have to push the PCLX 12/40E but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. If the surface to be compacted is on a slope, great care must be taken when controlling the PCLX 12/40E's direction of travel. If necessary, use a suitable rope attached to the PCLX 12/40E at a low point on the chassis, to allow a helper to take part of the PCLX 12/40E's weight. Work up and down a slope not across.

• Work the PCLX 12/40E over the surface in an organized pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

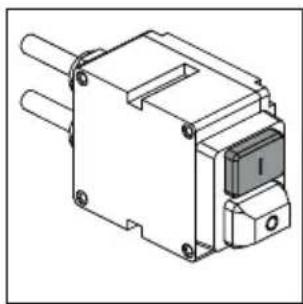

Stopping the Motor

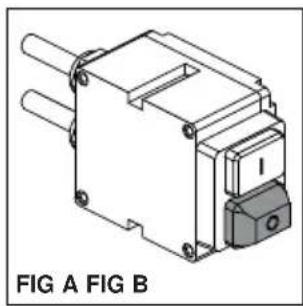

1. Depress the RED Button (O) to stop the machine (Fig A).

Starting the Motor

1. Plug into power supply.
2. Depress the GREEN Button (I) to start the machine (Fig B).

Technical line drawing of an electrical component (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

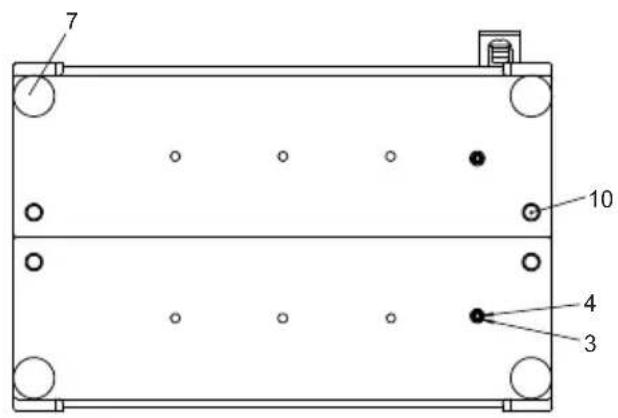

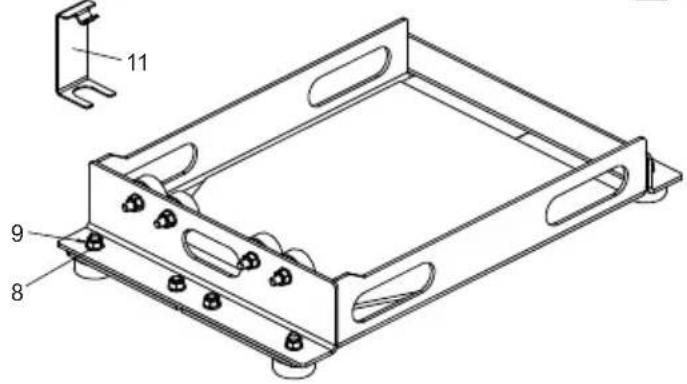

Guide to using optional PCLX 12/40E Portable Appliance Test (PAT) Rig

WARNING

Make sure that the plate is unplugged from the power source prior to carrying out first steps or the visual inspection!

Prior to the PAT a Formal Visual Inspection must be carried out by a competent person to check the electrical safety of the equipment following correct procedure. For guidelines on PAT and definitions involved please visit government website:

http://www.hse.gov.uk/electricity/faq-portable-appliance-testing.htm.

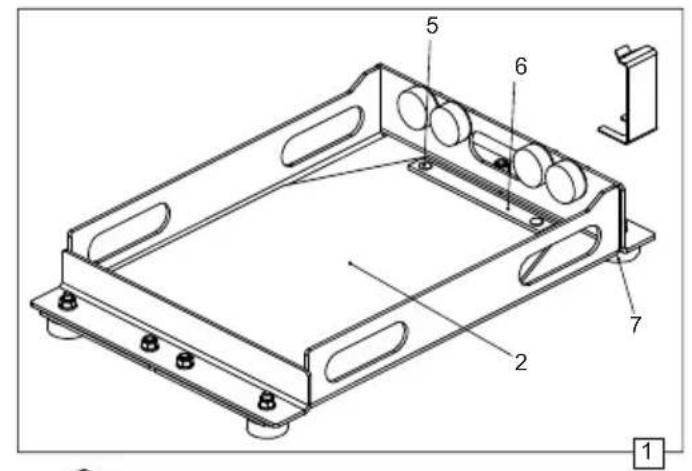

1. Place the PCLX 12/40E plate compactor into the test rig / fixture (Part No. 968/01200) with the front of the plate facing the anti-vibration mounts (Item 1), resting on the matting and with the handle swung back (Fig C). The Test rig must be located on a level floor, in dry ambient conditions with only the rubber feet touching the ground for appropriate vibration damping (NOTE: rubber feet are NOT designed to isolate the product from the ground).
2. Fit the Z-Bracket (Item 2) (Part No. 968/01205) to the switch by sliding it until it securely clicks into place and presses the green ON button of the switch.
3. Connect an approved PAT tester, configuring it according to your PCLX 12/40E specifications (e.g. Voltage; Appliance Insulation Class; Correct type of test etc.).
4. Make sure that PCEL-E plate compactor and PAT test fixture are not touched by a human, animal or any other object and are not at risk of doing so during the test. Conduct the test when and if you are happy that it is safe to do so.

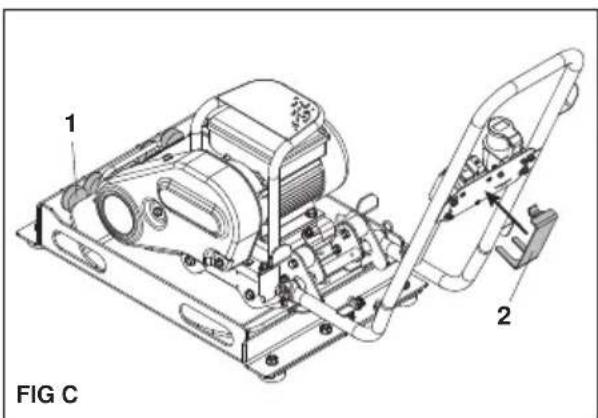

1 2 FIG C

Troubleshooting Guide

Problem Cause Problem
Motor fails to start.	Fuse or Circuit Breaker tripped. Replace Fuse or reset the Breaker.
	Stator is shorted or went to ground. Motor will make a humming noise and the circuit breaker or fuse will trip.	Contact Agent or Altrad Belle.
	Motor overloaded or load jammed.	Inspect to see that the load is free. If free, Contact Agent or Altrad Belle.
	Capacitor (on single phase motor) may have failed.	Contact Agent or Altrad Belle.
	Starting switch has failed. Contact Agent or	Altrad Belle.
Motor runs but dies down.	Voltage drop.	If voltage is less than 10% of the motor's rating contact power company or check if some other equipment is taking power away from the motor or Contact Agent or Altrad Belle.
	Load increased.	Verify the load has not changed. Verify equipment hasn't got tighter. If fan application verify the air flow hasn't changed or Contact Agent or Altrad Belle.
Motor takes too long to accelerate.	Defective capacitor Contact Agent or Altrad Belle.
	Faulty stationary switch. Contact Agent or Altrad Belle.
	Bad bearings. Contact Agent or Altrad Belle.
	Voltage too low.	Make sure that the voltage is within 10% of the motor's nameplate rating. If not, contact power company or check if some other equipment is taking power away from the motor or contact Belle.
Motor overload protector continually trips.	Load too high.	Verify that the load is not jammed. If motor is a replacement, verify that the rating is the same as the old motor. If previous motor was a special design, a stock motor may not be able to duplicate the performance. Remove the load from the motor and check motor doesn't trip.
	Ambient temperature too high.	Verify that the motor is getting enough air for proper cooling. Most motors are designed to run in an ambient temperature of less than 40°C. (Note: A properly operating motor may be hot to the touch.)
	Protector may be defective. Contact Agent or Altrad Belle.
	Winding shorted or grounded. Contact Agent or Altrad Belle.
The motor makes a loud rubbing or grinding noise.	Damage to internal workings. Contact Agent or Altrad Belle.
Unit will not vibrate.	Drive belt tension loose. Adjust belt tension.
	Drive failure. Contact Agent or Altrad Belle.
	Vibrator failure.	Contact Agent or Altrad Belle.
Asphalt adhering to plate. Bituminous surface flaking (laminating).	Lack of lubrication.	Use water.
	Over compaction.	Remove and relay.
Low travel speed (plate sinking).	Layer thickness too deep.	Remove some of the material.
	Moisture content too high or too low.	Remove material and adjust.

Maintenance

The Altrad Belle 'PCLX 12/40E' is designed to give many years of trouble free operation. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty. Before any maintenance is carried out on the machine, switch off the motor and disconnect the power supply.

Always set the ‘PCLX 12/40E’ on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart below).

Running In Period

The vibrator shaft case oil must be replaced after the first 100 hours use, then after every 500 working hours. For detail on vibrator shaft case oil replacement, see 'Vibrator unit'. The belt tension should be checked after 4 hours use.

Cleaning

This is an electrical appliance. During cleaning, the electrical components of this machine MUST NEVER be exposed to water or liquid of any kind as this could result in serious injury or even death!

Routine Maintenance		Before Each Use	First 4 Hours	First Month /	3 Months / 50 Hours
Cables	Check	√
	Replace when necessary
Drive Belt Tension			√ √	√

Oil / Fuel Type & Quantity

	Oil Type	Quantity (Litre)	Fuel Type	Capacity (Litre)	Spark Plug Type	Electrode Gap (mm)
Vibrator SAE 10w40 0.22 N/A	N/A N/A N/A

Plug Seal Regular Level Lower part of screw thread

Vibrator Unit.

Remove the plug complete with seal, check that the oil level reaches the bottom thread on the oil plug hole. Top up as necessary with the correct oil (see chart).

Your new Altrad Belle 'PCLX 12/40E' single direction plate compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase.

The Altrad Belle warranty is against defects in design, materials and workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

- Drivebelt/s

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.

For warranty claims:

Tel: [phone] Fax: [phone] Email : [e-mail]

Write to:

Altrad Belle Warranty Department

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

Compaction Specification

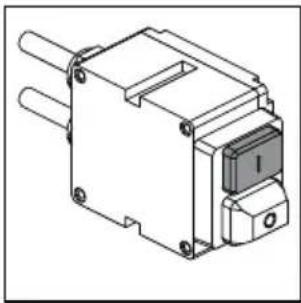

Technical line drawing of an electrical component (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with mounting holes and a central button (no text or symbols)

http://www.hse.gov.uk/electricity/faq-portable-appliance-testing.htm.

Technical diagram of a mechanical device with labeled parts 1 and 2

FIG C

Altrad Belle Warranty Department,

Sheen, Nr. Buxton,

Derbyshire

SK17 0EU

Angleterre

Technical diagram of a mechanical device with labeled parts A through F

A - Merkstickers

GEEL / GROEN = AARDE, BLAUW = NUL, BRUIN = FASE

Technical line drawing of a mechanical component labeled FIG A, FIG B (no other text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

http://www.hse.gov.uk/electricity/faq-portable-appliance-testing.htm.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire,

SK17 0EU, England.

Technical diagram of a mechanical device with numbered components, including a propeller and motor assembly.

Etikette

Technical diagram of a mechanical device with labeled parts A through F

A - Fabrikatsmærkat

GR∅N / GUL = JORD, BLÅ = NEUTRAL, BRUN = LEVENDE

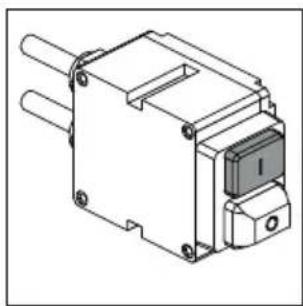

Technical line drawing of an electrical component labeled FIG A, FIG B (no other text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

Technical diagram of a mechanical device with labeled parts A through F

A - Markenaufkleber

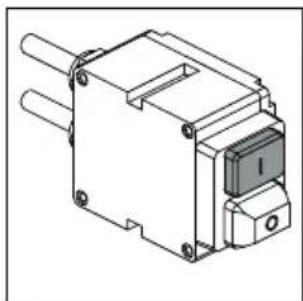

Technical line drawing of an electrical component (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with mounting holes and a central block (no text or symbols)

http://www.hse.gov.uk/electricity/faq-portable-appliance-testing.htm.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU, England

I

Technical diagram of a mechanical device with numbered components, including a pump, motor, and hose assembly.

1050 875 364 488

380

820 377 560

Technical line drawing of an electrical component (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with mounting holes and a central button (no text or symbols)

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

Technical diagram of a mechanical device with labeled parts A through F

A - Varumärkesdekal

GRÖN/GUL = JORD, BLÅ = NEUTRAL, BRUN = SPÄNNING

Technical line drawing of an electrical component labeled FIG A, FIG B (no other text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU England

Technical diagram of a mechanical device with labeled parts A through F

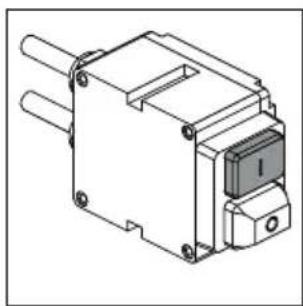

A - Tuotetarra

Technical line drawing of a KUVA A KUVA B electrical contactor component (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

http://www.hse.gov.uk/electricity/faq-portable-appliance-testing.htm.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU,

England

Technical diagram of a mechanical device with numbered components, including a motor, pump, and cable assembly.

Środowisko

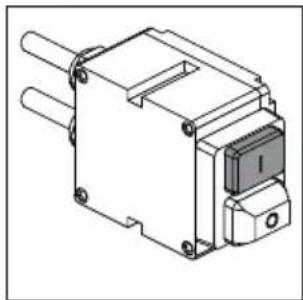

Isometric line drawing of an electrical component with two leads and a button (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU,

England

Technical diagram of a mechanical device with numbered parts and Chinese labels, including a power pump and cable.

Окружающая среда

Technical diagram of a mechanical device with labeled parts A through F

Technical line drawing of an electrical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU,

Англия

Technical diagram of a mechanical device with labeled parts A through F

A - kaubamärgi silt

Kaubamärgi sildile tuvastada mudeli masin.

Technical line drawing of a JOONIS A JOONIS B electrical contactor component (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU,

England

Technical diagram of a mechanical device with numbered components, including a motor and attached frame assembly.

Vide

Droša iznīcināšana

Technical diagram of a mechanical device with labeled parts A through F

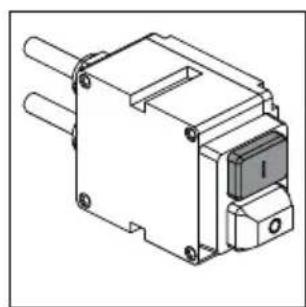

A - Zimola uzlime

Zimola uzlime identificet modeli mašinu.

Technical line drawing of an electrical component labeled Attels A and B (no additional text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU, England

Technical line drawing of an electrical contactor or relay component (no text or symbols)

PCEL-E portatyvinio prietaiso bandymo (PAT) stendo vadovas

WARNING

Make sure that the plate is unplugged from the power source prior to carrying out first steps or the visual inspection!

http://www.hse.gov.uk/electricity/faq-portable-appliance-testing.htm.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU,

England

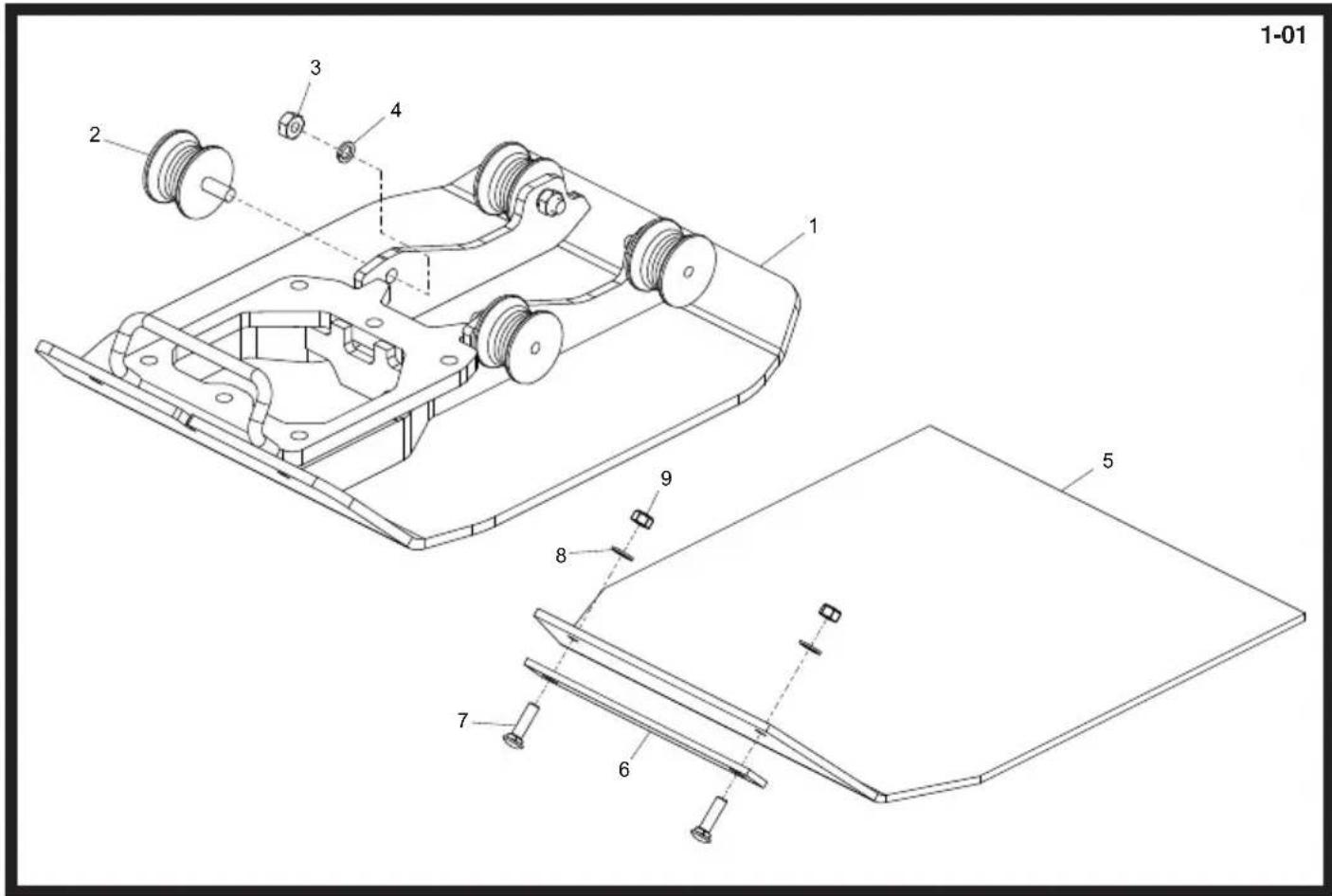

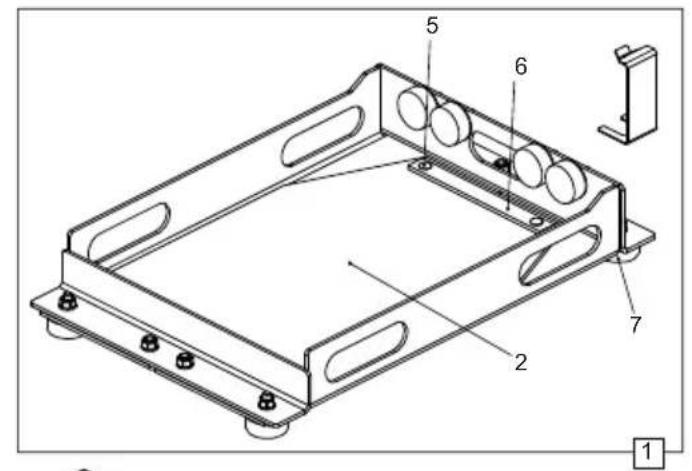

1-01 1 2 3 4 1 5 9 8 7 6

Baseplate Assembly, Plaque d'embase, Cto. Placa de Base, Conj. Place de Base

1	968/01000	Baseplate	Plaque d'embase	Placa de base	Placa de Base	1
2	21.0.292	Anti-Vibration Mount	Tampon antivibratoire	Montura antivibratoria	Bloco Anti-vibração	4
3	8/10003	Nut	Ecrou	Tuerca	Porca	M10
4	4/1003	Washer	Rondelle	Arandela	Anilha	M10
5	968/99909	Paving Pad	Tampon de Pavage	Tampón de Pavimentación	Bloco de Pavimentação	1
6	943/99907	Clamp Strip	Barrette de blocage	Barra de fijación	Tira de Grampeamento	1
7	00.0.860	Bolt	Boulon	Perno	Perno	M8 x 30
8	4/8006	Washer	Rondelle	Arandela	Anilha	M8
9	8/8008	Nut	Ecrou	Tuerca	Porca	M8

1-01 1 2 3 4 1 5 9 8 7 6

Vloerplaat, Ruttelplatten -Zsb., Bundplade, Gruppo Piastra di Base

1	968/01000	Vloerplaat	Rüttelplatten	Bundplade	Piastra di Base	1
2	21.0.292	Anti-trilbevestiging	Schwingungsdämpfer	Antivibrationsophæng	Supporto antivibrazioni	4
3	8/10003	Moer	Mutter	Møtrik	Dado	M10
4	4/1003	Afdichtring	Scheibe	Spændeskive	Rondella	M10
5	968/99909	Paving Pad	Tampon de Pavage	Tampón de Pavimentación	Bloco de Pavimentação	1
6	943/99907	Clamp Strip	Barrette de blocage	Barra de fijación	Tira de Grampeamento	1
7	00.0.860	Bouten	Bolzen	Skruebolt	Bullone	M8 x 30
8	4/8006	Afdichtring	Scheibe	Spændeskive	Rondella	M8
9	8/8008	Moer	Mutter	Møtrik	Dado	M8

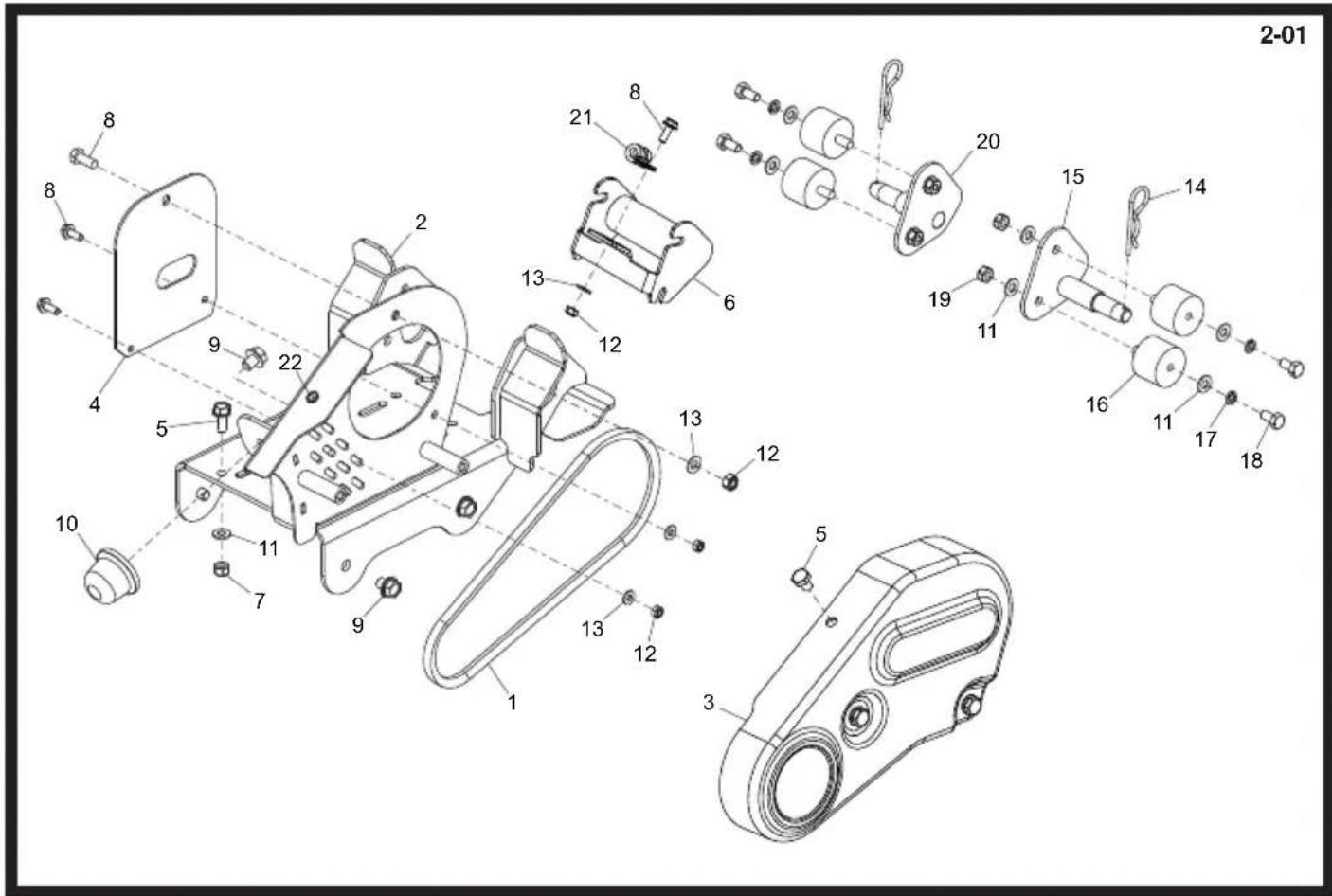

2-01 8 8 21 20 15 14 6 13 12 19 11 16 11 17 18 10 9 22 4 5 11 7 9 13 12 13 12 1 3 5

Bedplate Assembly, Ensemble Socle, Conjunto de Bancada, Conjunto da Placa de Apoio

1	21/0148....Belt....Courroie....Correa....Cinta....	1
2	968/00100....Bedplate....Plaque d'assise....Bancada....Placa de Apoio....	1
3	968/99901S....Belt Guard - Orange....Capot de courroie - Orange....Protector de la correa - Naranja....Guarda da Cinta - Laranja....	1
3	968/99901B....Belt Guard - Blue....Capot de courroie - Bleu....Protector de la correa - Azúl....Guarda da Cinta - Azul....	1
3	968/99901G....Belt Guard - Green....Capot de courroie - Vert....Protector de la correa - Verde....Guarda da Cinta - Verde....	1
3	968/99901R....Belt Guard - Red....Capot de courroie - Rouge....Protector de la correa - Roja....Guarda da Cinta - Vermelho....	1
3	968/99901Y....Belt Guard - Yellow....Capot de courroie - Jaune....Protector de la correa - Amarillo....Guarda da Cinta - Amarelo....	1
3	968/99901W....Belt Guard - White....Capot de courroie - Blanc....Protector de la correa - Blanco....Guarda da Cinta - Branco....	1
4	968/99908....Plate....Plaque....Placa....Placa....	1
5	7/8037....Screw....Vis....Tornillo....Parafuse....M8 x 20....	4
6	943/20000....Handle....Guidon....Manillar....Punho....	1
7	8/8008....Nut....Ecrou....Tuerca....Porca....M8....	1
8	7/6064....Screw....Vis....Tornillo....Parafuse....M6 x 16....	4
9	7/10025....Screw....Vis....Tornillo....Parafuse....M10 x 12....	5
10	21.0.333....Rubber Stop....Butée en caoutchouc....Tope de caucho....Batente de Borracha....	1
11	4/8006....Washer....Rondelle....Arandela....Anilha....M8....	9
12	8/6007....Nut....Ecrou....Tuerca....Porca....M6....	4
13	4/6007....Washer....Rondelle....Arandela....Anilha....M6....	4
14	3/2004....R-Clip....Collier en "R"...Abrazadera "R"...Gancho "R"...	2
15	968/00500....Pivot....Pivot....Pivote....Pivô....	1
16	21/0157....Anti-Vibration Mount....Tampon antivibratoire....Montura antivibratoria....Bloco Anti-vibração....	4
17	4/8003....Washer....Rondelle....Arandela....Anilha....M8....	4
18	7/8008....Screw....Vis....Tornillo....Parafuse....M8....	4
19	8/8002....Nut....Ecrou....Tuerca....Porca....M8....	4
20	968/00600....Pivot....Pivot....Pivote....Pivô....	1
21	900/10200....P-Clip....Collier en "P"...Abrazadera "P"...Gancho "P"...	1
22	8/8011....Nut....Ecrou....Tuerca....Porca....M8....	1

2-01 8 8 21 20 15 14 6 13 12 19 11 16 11 17 18 10 9 22 4 5 11 7 9 13 12 13 12 3 5

Grondplaat, Sohlplatten-Zsb., Fundamentplademontage, Gruppo Piastra di Base

1	21/0418....Riem....Riemen....Remmen....Cinghia....1
2	968/00100....Grondplaat....Sohlplatte....Fundamentplade....Piastra di Base....1
3	968/99901S....Riembeschermkap - Oranje....Riemenabdeckung - Orange....Remskærm - Orange....Protezione Cinghia - Arancione....1
3	968/99901B....Riembeschermkap - Blauw....Riemenabdeckung - Blau....Remskærm - Blå....Protezione Cinghia - Blu....1
3	968/99901G....Riembeschermkap - Groen....Riemenabdeckung - Grün....Remskærm - Gron....Protezione Cinghia - verde....1
3	968/99901R....Riembeschermkap - Rood....Riemenabdeckung - Rot....Remskærm - Rød....Protezione Cinghia - Rosso....1
3	968/99901Y....Riembeschermkap - Geel....Riemenabdeckung - Gelb....Remskærm - Gul....Protezione Cinghia - Giallo....1
3	968/99901W....Riembeschermkap - Wit....Riemenabdeckung - Weiß....Remskærm - Hvid....Protezione Cinghia - Blanco....1
4	968/99908....Plaat....Platte....Plade....Piastra....1
5	7/8037....Schroef....Schraube....Skrue....Vite....M8 x 20....4
6	943/20000....Hendel....Griff....Handtag....Impugnatura....1
7	8/8008....Moer....Mutter....Møtrik....Dado....M8....1
8	7/6064....Schroef....Schraube....Skrue....Vite....M6 x 16....4
9	7/10025....Schroef....Schraube....Skrue....Vite....M10 x 12....5
10	21.0.333....Aanslagrubber....Gummianschlag....Gummistop....Arresto in gomma....1
11	4/8006....Afdichtring....Scheibe....Spændeskive....Rondella....M8....9
12	8/6007....Moer....Mutter....Møtrik....Dado....M6....4
13	4/6007....Afdichtring....Scheibe....Spændeskive....Rondella....M6....4
14	3/2004....R-klemmen....‘R’-Schellen....‘R’-klemmer....Fermagli a “R”....2
15	968/00500....Roteren....Achse....Dreje....Perno....1
16	21/0157....Anti-trilbevestiging....Schwingungsdämpfer....Antivibrationsophæng....Supporto antivibrazioni....4
17	4/8003....Afdichtring....Schelbe....Spændeskive....Rondella....4
18	7/8008....Schroef....Schraube....Skrue....Vite....M8....4
19	8/8002....Moer....Mutter....Møtrik....Dado....M8....4
20	968/00600....Roteren....Achse....Dreje....Perno....1
21	900/10200....P-klemmen....‘P’-Schellen....‘P’-klemmer....Fermagli a “P”....5
22	8/8011....Moer....Mutter....Møtrik....Dado....M8....1

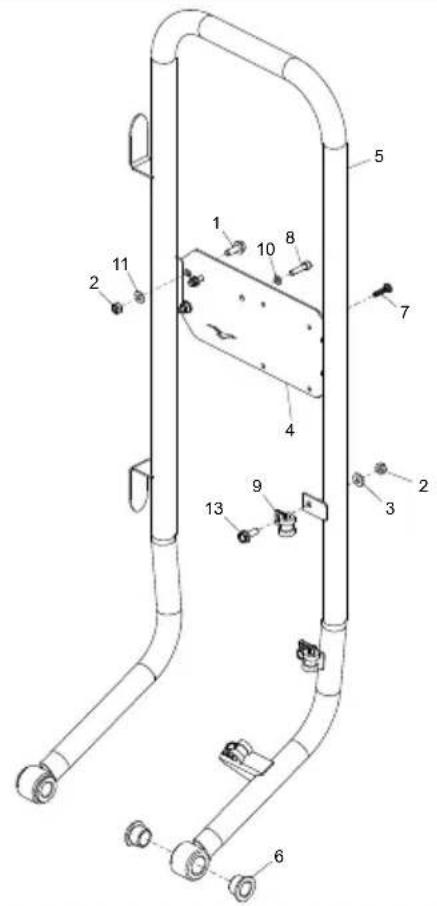

3-01

Technical diagram of a mechanical device with numbered components for identification

Handle Assembly, Ensemble Poignée, Conjunto de Manillar, Conjunto do Punho

1	7/6034	Screw	Vis	Tornillo	Parafuse	4
2	8/6007	Nut	Ecrou	Tuerca	Porca	M6
3	4/6007	Washer	Rondelle	Arandela	Anilha	M6
4	943/99963	Plate	Plaque	Placa	Placa	1
5	943/19000S	Handle - Orange	Guidon - Orange	Manillar - Naranja	Punho - Laranja	1
5	943/19000B	Handle - Blue	Guidon - Bleu	Manillar - Azúl	Punho - Azul	1
5	943/19000G	Handle - Green	Guidon - Vert	Manillar - Verde	Punho - Verde	1
5	943/19000R	Handle - Red	Guidon - Rouge	Manillar - Roja	Punho - Vermelho	1
5	943/19000Y	Handle - Yellow	Guidon - Jaune	Manillar - Amarillo	Punho - Amarelo	1
5	943/19000W	Handle - White	Guidon - Blanc	Manillar - Blanco	Punho - Branco	1
6	50/000068	Bush	Douille	Buje	Bucha	4
7	7/5019	Screw	Vis	Tornillo	Parafuse	M5 x 19.
8	7/5025	Screw	Vis	Tornillo	Parafuse	M5 x 20.
9	900/10200	P-Clip	Collier en "P"	Abrazadera "P"	Gancho "P"	1
11	4/6001	Washer	Rondelle	Arandela	Anilha	M6
13	7/6034	Screw	Vis	Tornillo	Parafuse	M6 x 16.

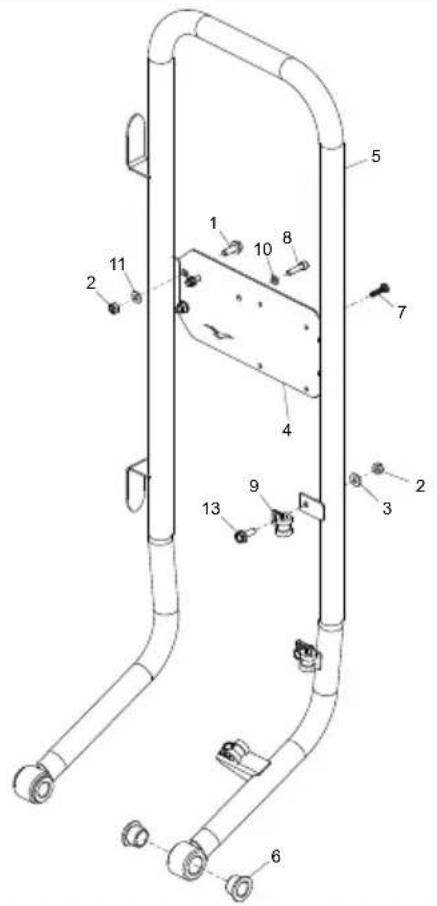

3-01

Technical diagram of a mechanical device with numbered components for identification

Complete Hendel, Griff-zsb., Händtagsenhed, Gruppo Impugnatura

1	7/6034	Schroef	Schraube	Skrue	Vite	4
2	8/6007	Moer	Mutter	Møtrik	Dado	M6
3	4/6007	Afdichtring	Scheibe	Spændeskive	Rondella	M6
4	943/99963	Plaat	Platte	Plade	Piastra	1
5	943/19000S	Hendel - Oranje	Griff - Orange	Håndtag - Orange	Impugnatura - Arancione	1
5	943/19000B	Hendel - Blauw	Griff - Blau	Håndtag - Blå	Impugnatura - Blu	1
5	943/19000G	Hendel - Groen	Griff - Grün	Håndtag - Grøn	Impugnatura - Verde	1
5	943/19000R	Hendel - Rood	Griff - Rot	Håndtag - Rød	Impugnatura - Rosso	1
5	943/19000Y	Hendel - Geel	Griff - Gelb	Håndtag - Gul	Impugnatura - Giallo	1
5	943/19000W	Hendel - Wit	Griff - Weiß	Håndtag - Hvid	Impugnatura - Blanco	1
6	50/000068	Bus	Buchse	Bøsning	Boccola	4
7	7/5019	Schroef	Schraube	Skrue	Vite	M5 x 19
8	7/5025	Schroef	Schraube	Skrue	Vite	M5 x 20
9	900/10200	P-klemmen	‘P’-Schellen	‘P’-klemmer	Fermagli a “P”	1
11	4/6001	Afdichtring	Scheibe	Spændeskive	Rondella	M6
13	7/6059	Schroef	Schraube	Skrue	Vite	M6 x 16

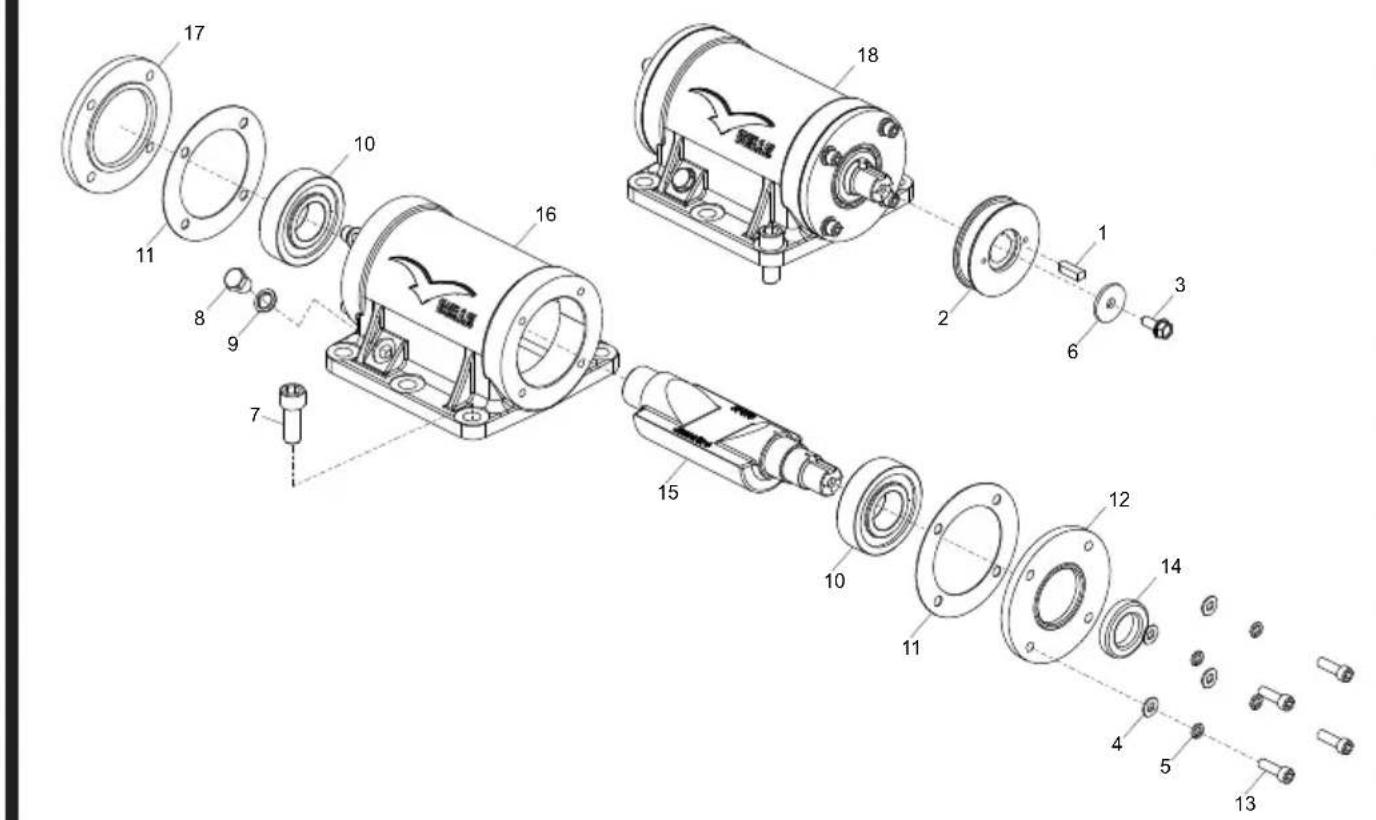

4-01

Exploded view diagram of a mechanical assembly with numbered parts for identification

Vibrator Unit, Unité de Vibration, Unidade Vibradora, Unidade do Vibrador

1	06.3.014....	Key....	Clavette....	Chaveta....	Chaveta....	8 x 7 x 25....	1
2	943/99961....	Pulley....	Poelie....	Polea....	Polia....		1
3	7/8037....	Screw....	Vis....	Tornillo....	Parafuse....	M8 x 20....	1
4	4/8006....	Washer....	Rondelle....	Arandela....	Anilha....	M8....	8
5	4/8003....	Washer....	Rondelle....	Arandela....	Anilha....	M8....	8
6	4/8014....	Washer....	Rondelle....	Arandela....	Anilha....	M8....	1
7	7/14001....	Screw....	Vis....	Tornillo....	Parafuse....	M14 x 35....	6
8	MS12....	Bung....	Obturateur....	Tapón....	Tampão....	1/4"....	1
9	15.0.102....	Washer....	Rondelle....	Arandela....	Anilha....		1
10	12.1.057....	Bearing....	Roulement....	Cojinete....	Rolamanto....		2
11	943/99904....	Gasket....	Joint....	Junta....	Gaxeta....		2
12	77.0.015....	End Cover....	Carter d'extrémité....	Tapa de fondo....	Tampa de extremidade....		1
13	7/8010....	Screw....	Vis....	Tornillo....	Parafuse....	M8 x 25....	4
14	15.0.196....	Oil Seal....	Joint d'étanchéité à l'huile....	Obturador aceite....	Vedação de Óleo....		1
15	942/99907....	Vibrator Shaft....	Axe....	Eje....	Veio....		1
16	151/99999....	Housing....	Carter de boîte de vitesses....	Envoltura de la transmisión....	Estojo da caixa de engrenagens....		1
17	77.0.016....	End Cover....	Carter d'extrémité....	Tapa de fondo....	Tampa de extremidade....		1
18	PCLX/VIB-03SP....	Vibrator Assembly....	Ensemble vibrateur....	Conjunto de vibrador....	Conjunto do Vibrador....		1

4-01

Exploded view diagram of a mechanical assembly with numbered parts for identification

Trilelement, Rüttlerteil, Vibratorenhed, Gruppo Vibratore

1	06.3.014....Spie....Keil....Feder....Chiave....8 x 7 x 25....1
2	943/99961....Poelie....Riemenscheibe....Remskive....Puleggia....1
3	7/8037....Schroef....Schraube....Skrue....Vite....M8 x 20....1
4	4/8006....Afdichtring....Scheibe....Spændeskive....Cuscinetto....M8....8
5	4/8003....Afdichtring....Scheibe....Spændeskive....Cuscinetto....M8....8
6	4/8014....Washer....Rondelle....Arandela....Anilha....M8....1
7	7/14001....Schroef....Schraube....Skrue....Vite....M14 x 35....6
8	MS12....Plug....Verschlusschraube....Prop....Candela....1/4"....1
9	15.0.102....Afdichtring....Scheibe....Spændeskive....Cuscinetto....1
10	12.1.057....Lager....Lager....Leje....Rolamanto....2
11	943/99904....Tætningsring....Flachdichtung....Pakking....Gaurnizione....2
12	77.0.015....Einddeksel....Endschild....Endedæksel....Coperchio Estremità....1
13	7/8010....Schroef....Schraube....Skrue....Vite....M8 x 25....4
14	15.0.196....Olieafdichtring....Oldichtung....Oliepakning....Paraolio....1
15	942/99907....As....Welle....Aksel....Albero....1
16	151/99999....Versnellingsbakhuis....Getriebekasten....Gearkassehus....Involucro scatola ingranaggi....1
17	77.0.016....Einddeksel....Endschild....Endedæksel....Coperchio Estremità....1
18	PCLX/VIB-03SP....Trilelement....Rüttelwerk....Vibratorenhed....Gruppo vibratore....1

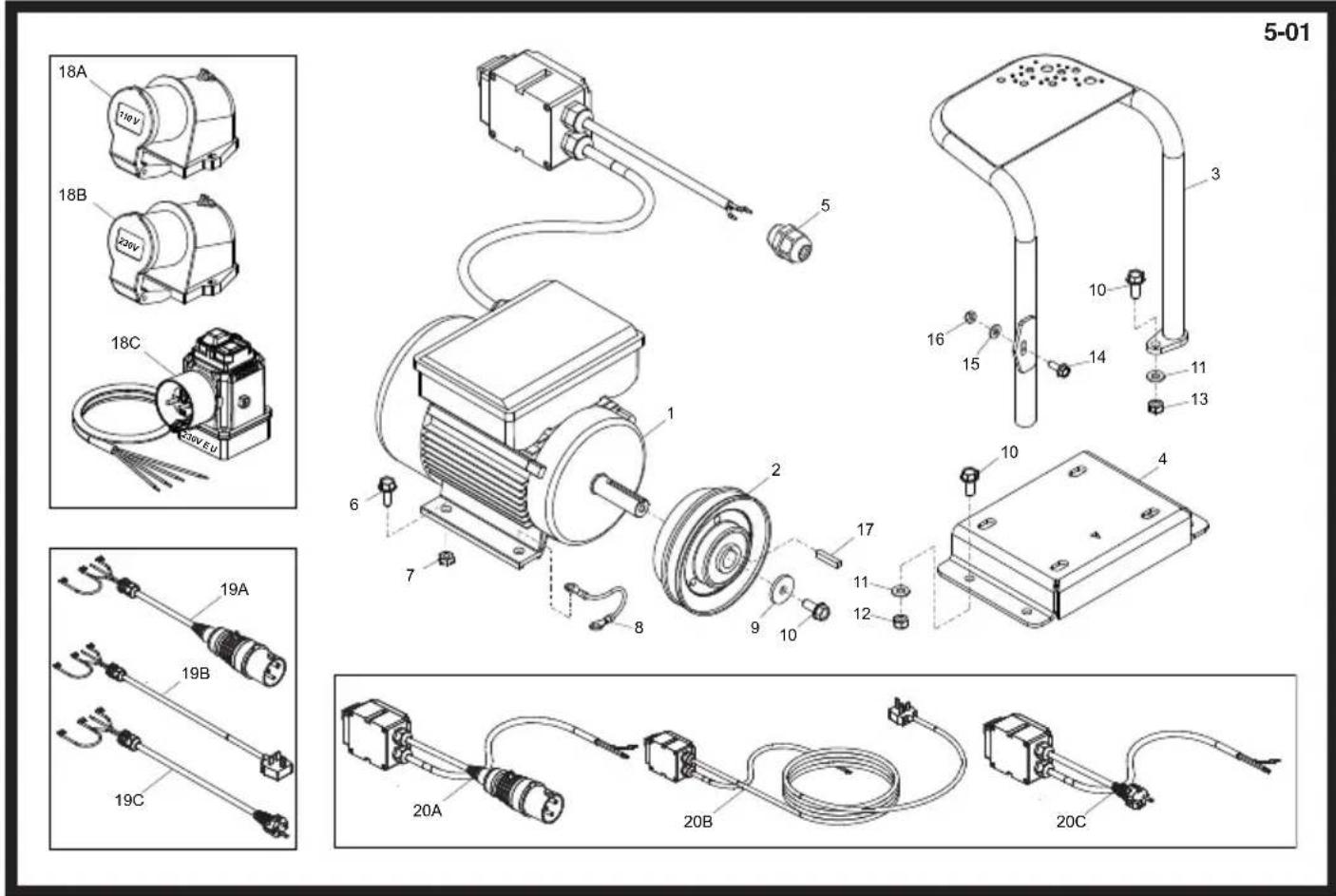

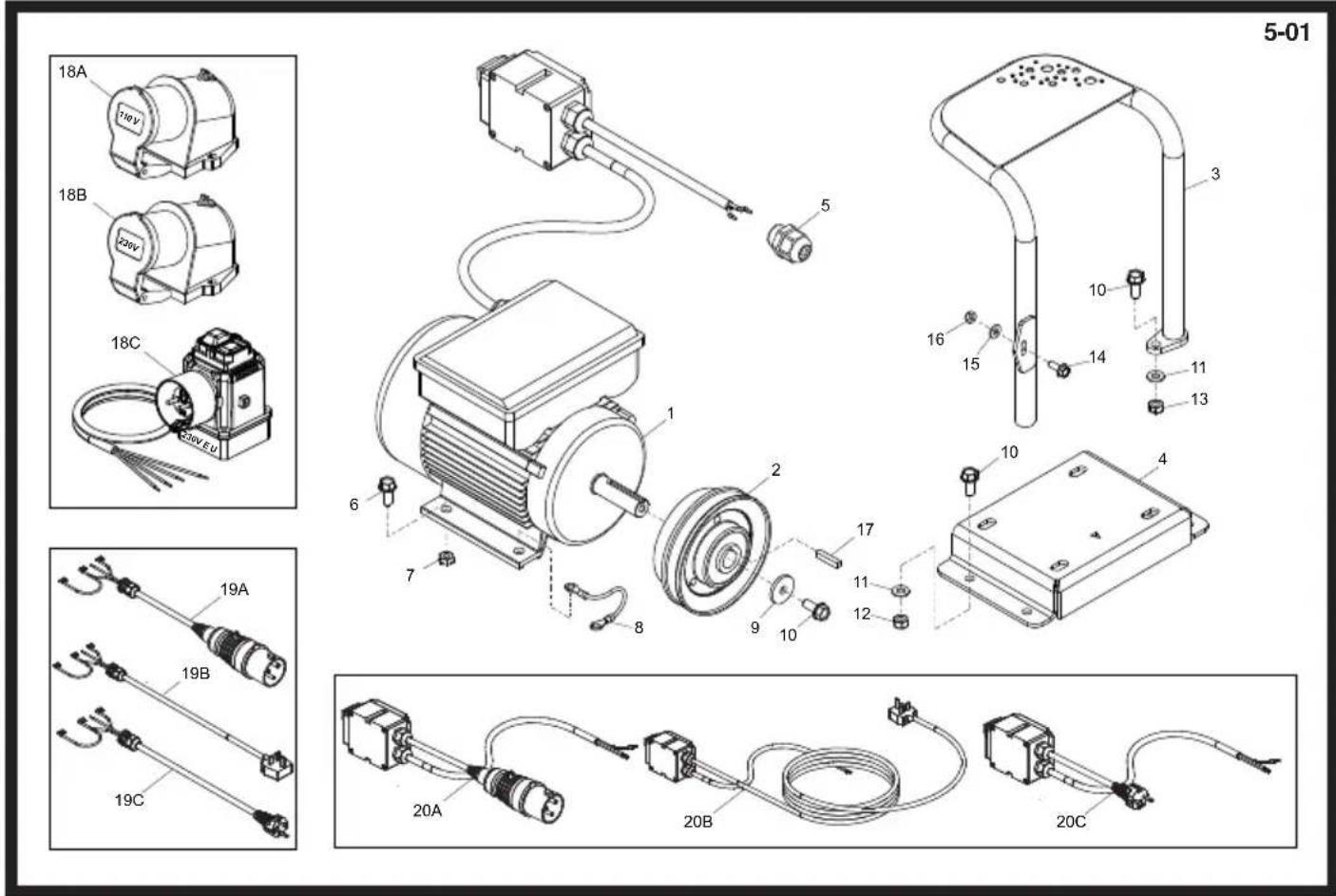

5-01 18A 18B 20V 18C 30V E.U 16 15 14 13 10 4 3 2 17 11 12 9 10 8 6 7 1 2 19A 19B 19C 20A 20B 20C

Motor and Drive Kit, Moteur et Kit d'Entraînement, Motor y Kit Transmision, Motor e Kit de Transmissão

1A	20/0126	Motor	Moteur	Motor	Motor	110v	1
1B	20/0124	Motor	Moteur	Motor	Motor	230v	1
2	20/0416	Clutch	Embrayage	Embrague	Embraiagem		1
3	943/18000	Guard	Carène	Defensa	Guarda		1
4	943/99962	Motor Deck	Plate-Forme De Moteur	Cubierta Motor	Plataforma motor		1
5	70/0288	Gland	Presse-étoupe	Prensaestopas	Bucha		1
6	7/10039	Screw	Vis	Tornillo	Parafuso	M10 x 20	4
7	8/10001	Nut	Ecrou	Tuerca	Porca	M10	4
8	71/0303	Earth Cable	Cable - de Terre	Cable - Positivo	Cable - Terra		1
9	4/8014	Washer	Rondelle	Arandela	Anilha		1
10	7/8037	Screw	Vis	Tornillo	Parafuso	M8 x 20	6
11	4/8006	Washer	Rondelle	Arandela	Anilha	M8	5
12	8/8008	Nut	Ecrou	Tuerca	Porca	M8	4
13	8/8002	Nut	Ecrou	Tuerca	Porca	M8	1
14	7/6034	Screw	Vis	Tornillo	Parafuso	M6 x 14	1
15	4/6007	Washer	Rondelle	Arandela	Anilha	M6	1
16	8/6007	Nut	Ecrou	Tuerca	Porca	M6	1
17	21/0419	Key	Clavette	Chaveta	Chave	3/16" x 37.8mm	1
18A	70/0285	Socket	Prise	Enchufe	Tomado	110v	1
18B	70/0286	Socket	Prise	Enchufe	Tomado	230v	1
18C	70/0287	Socket	Prise	Enchufe	Tomado	230v EU	1
19A	71/0288	Harness	Faisceau	Cableado	Arnês	110v	1
19B	71/0284	Harness	Faisceau	Cableado	Arnês	230v	1
19C	71/0283	Harness	Faisceau	Cableado	Arnês	230v EU	1
20A	71/0291	Harness	Faisceau	Cableado	Arnês	110v	1
20B	71/0290	Harness	Faisceau	Cableado	Arnês	230v	1
20C	71/0292	Harness	Faisceau	Cableado	Arnês	230v EU	1

5-01 18A 18B 20V 18C 30V E.U 16 15 14 13 10 4 3 2 17 11 12 9 10 8 6 7 1 2 3 18A 19B 19C 20A 20B 20C

Motor en Aandrijfset, Motor und Antriebsbausatz, Motor og Gearkit, Motore e Kit Trasmissione

1A	20/0126	Motor	Motor	Motor	Motore	110v	1
1B	20/0124	Motor	Motor	Motor	Motore	230v	1
2	20/0416	Koppeling	Kupplung	Kobling	Frizione		1
3	943/18000	Beschermkap	Schutz	Skærm	Protezione		1
4	943/99962	Motor Dek	Motordeck	Motor Dæk	Deck Motore		1
5	70/0288	Pakkingbus	Durchführung	Pakdåse	Premistoppa		1
6	7/10039	Schroef	Schraube	Skrue	Vite	M10 x 20	4
7	8/10001	Moer	Mutter	Møtrik	Dado	M10	4
8	71/0303	Aardkabel	Erdungskabel	Jordkabel	Cavo di Terra		1
9	4/8014	Afdichtring	Scheibe	Spændeskive	Cuscinetto		1
10	7/8037	Schroef	Schraube	Skrue	Vite	M8 x 20	6
11	4/8006	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M8	5
12	8/8008	Moer	Mutter	Møtrik	Dado	M8	4
13	8/8002	Moer	Mutter	Møtrik	Dado	M8	1
14	7/6034	Schroef	Schraube	Skrue	Vite	M6 x 14	1
15	4/6007	Afdichtring	Scheibe	Spændeskive	Cuscinetto	M6	1
16	8/6007	Moer	Mutter	Møtrik	Dado	M6	1
17	21/0419	Spie	Passfeder	Kile	Chiave	3/16" x 37.8mm	1
18A	70/0285	Mof	Buchsenausführung	Stikdåse	Presa	110v	1
18B	70/0286	Mof	Buchsenausführung	Stikdåse	Presa	230v	1
18C	70/0287	Mof	Buchsenausführung	Stikdåse	Presa	230v EU	1
19A	71/0288	Kabelboom	Kabelbaum	Ledningsnet	Cablaggio	110v	1
19B	71/0284	Kabelboom	Kabelbaum	Ledningsnet	Cablaggio	230v	1
19C	71/0283	Kabelboom	Kabelbaum	Ledningsnet	Cablaggio	230v EU	1
20A	71/0291	Kabelboom	Kabelbaum	Ledningsnet	Cablaggio	110v	1
20B	71/0290	Kabelboom	Kabelbaum	Ledningsnet	Cablaggio	230v	1
20C	71/0292	Kabelboom	Kabelbaum	Ledningsnet	Cablaggio	230v EU	1

6-01

Technical diagram of a mechanical device with numbered components labeled 2 through 7

7 10 4 3

11 9 8

PAT Test Rig, Appareil Portable Dispositif d'Essai, Aparato Portátil de Prueba de Plataforma, Kit de Teste de Aparelho Portátil

1	968/01200....PAT Test Rig....	Appareil portable dispositif....	Aparato portátil de prueba....	Kit de teste de aparelho portátil....	1
		d'essai....	de plataforma....
2	968/99909....Paving Pad....	Tampon de pavage....	Tampón de pavimentación....	Bloco de Pavimentação....	1
3	4/8006....Washer....	Rondelle....	Arandela....	Anilha....	M8....2
4	8/8008....Nut....	Ecrou....	Tuerca....	Porca....	M8....2
5	00.0.860....Bolt....	Boulon....	Perno....	Perno....	M8 x 30....2
6	943/99907....Clamp Plate....	Plaque de serrage....	Placa de fijación....	Placa de Fixação....	1
7	00525-B....Anti-Vibration Mounting..	Tampon antivibratoire....	Montura antivibratoria....	Montagem Anti-Vibração....	8
8	4/1005....Washer....	Rondelle....	Arandela....	Anilha....	M10....16
9	8/10006....Nut....	Ecrou....	Tuerca....	Porca....	M10....12
10	7/10005....Screw....	Vis....	Tornillo....	Parafuso....	M10 x 25....4
11	968/01205....Bracket....	Patte de montage....	Escuadra....	Suporte....	1

6-01

Technical diagram of a rectangular electronic device with numbered components labeled 2 through 7

7 10 4 3

11 9 8

Testen van Draagbare Apparaten Kit, Tragbares Gerät Prüfstand, Bærbar Apparat Testkit, Kit di Test Apparecchio Portatile

1	968/01200......Testen van draagbare ....Tragbares Gerät Prüfstand....Bærbar apparat testkit......Kit di test apparecchio portatile......1
	apparaten kit......
2	968/99909......Kunststof Onderplaat......Blockpflasterrüttler......Belægningsklodsudstyr......Pavimentazione a blocchi......1
3	4/8006......Afdichtring......Scheibe......Spændeskive......Cuscinetto......M8......2
4	8/8008......Moer......Mutter......Møtrik......Dado......M8......2
5	00.0.860......Bouten......Bolzen......Skruebolt......Bullone......M8 x 30......2
6	943/99907......Klemplaat......Klemmplatte......Holdeplade......Piastra di serraggio......1
7	00525-B......Anti-trilbevestiging......Schwingungsdämpfer......Antivibrationsophæng......Supporto antivibrazioni......8
8	4/1005......Afdichtring......Scheibe......Spændeskive......Cuscinetto......M10......16
9	8/10006......Moer......Mutter......Møtrik......Dado......M10......12
10	7/10005......Schroef......Schraube......Skrue......Vite......M10 x 25......4
11	968/01205......Steun......Halterung......Beslag......Staffa......1

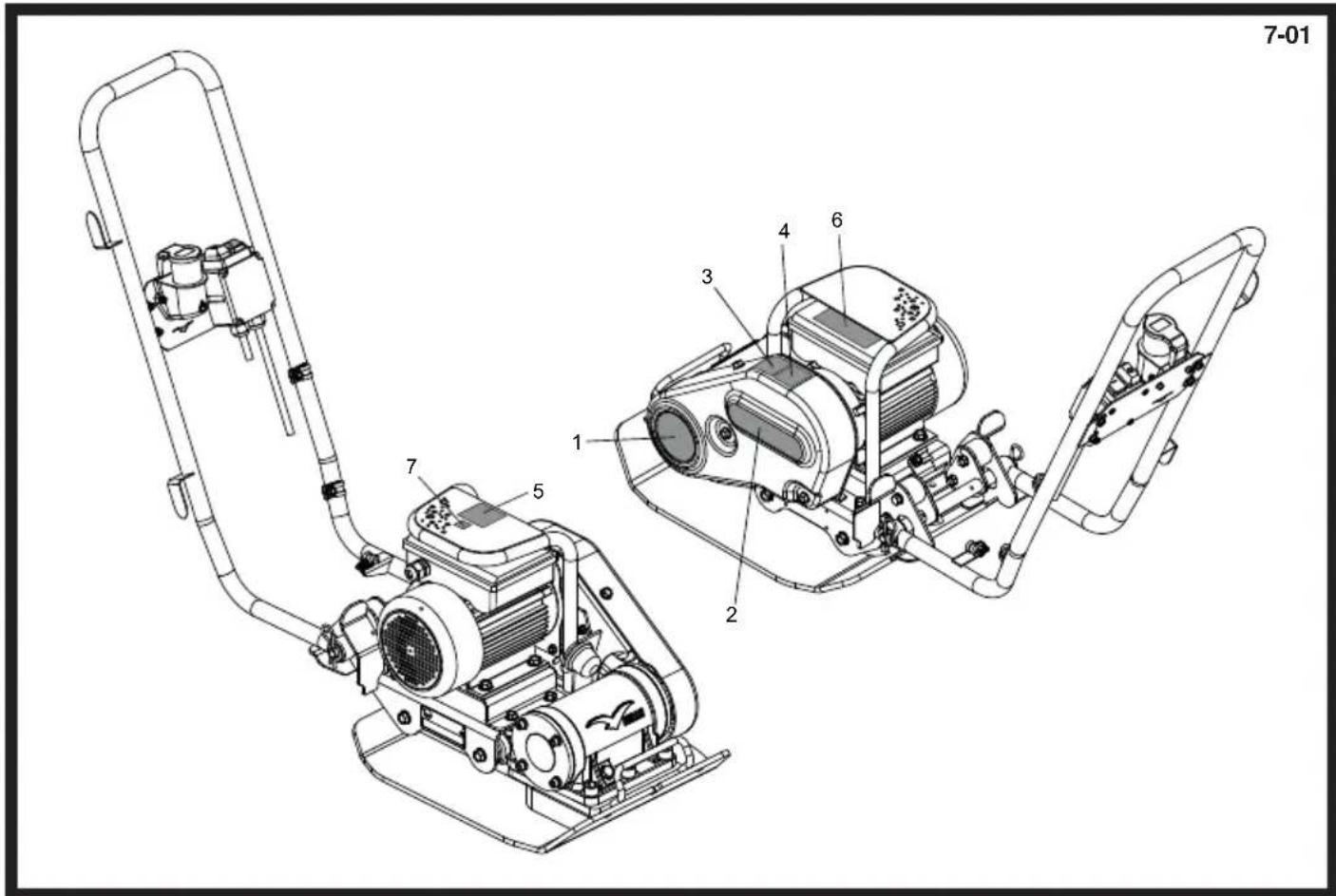

7-01 1 2 3 4 5 6 7

Decals, Autocollant, Rótulo, Decalque

Abstract gray curved shape on white background (no text or symbols)
