USER MANUAL Audio Anywhere 625 MARMITEK

1 Table of contents. 3
2 Safety instructions. 4
3 Your product 5
3.1 Introduction 5
3.2 Package contents.. 5
3.3 Connections 6
4 Getting started 7
4.1 Installing the transmitter 7
4.2 Installing the receiver 7
4.3 Extra receiver 8
5 Frequently asked questions (FAQs) 8
6 Technical specifications 10
7 Notification 11
7.1 Declaration of Conformity 11
7.2 Recycling 12
7.3 Copyrights 12

2 Safety instructions

Please read these instructions thoroughly before you use the device and keep them for future reference.

• Only for indoor use.
• Do not use the product in a damp environment or near water.
• Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.
• This product is not a toy. Keep out of reach of children.
• Avoid using headphones/speakers with the volume turned up for an extended period of time. Doing so may damage your hearing. It is advisable to keep the volume at a moderate level at all times.
• Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time.
• Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.
• Never open the product: the device may contain parts with deadly voltage.
• Repairs or service should only be performed by qualified personnel.
• Improper use, self-installed modifications or repairs will void any and all warranties.
• Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended.
• Marmitek does not accept liability for any consequential damage other than the legal product responsibility.

3 Your product

3.1 Introduction

Congratulations with your purchase of the Marmitek Audio Anywhere 625. The Audio Anywhere 625 comprises a transmitter and a receiver. The signal is transmitted on 2.4 GHz and can thus pass through walls and ceilings. This transmitter/receiver allows (stereo) audio signals to be transmitted wirelessly.

• Digital, wireless audio transmitter
• Enjoy music and TV sound wirelessly
• Transmit the sound from your TV or computer wirelessly to your stereo or home cinema set
• Listen to the music you are playing in the living room and in other rooms (e.g. kitchen/conservatory) simultaneously
  Digital technology for interference-free CD quality
• Easy to connect and use
• Multiple receivers can be connected to one transmitter

You can play music from a sound source, via the

Audio Anywhere 625, on your audio installation without having to connect the source with cables. This source could be a PC or laptop or even a TV.

You can then control your music via the sound source without having to walk over to the sound system.

The Audio Anywhere 625 has a range of about 10 metres, allowing you to control your music in the same or in an adjoining room.

3.2 Package contents

1 x Audio Anywhere 625 transmitter
1 x Audio Anywhere 625 receiver
2 x mini USB cable
2 x USB power adapter
2 x Mini Jack female to coaxial converter cable
2 x Mini Jack to Mini Jack cable

1 x set of instructions

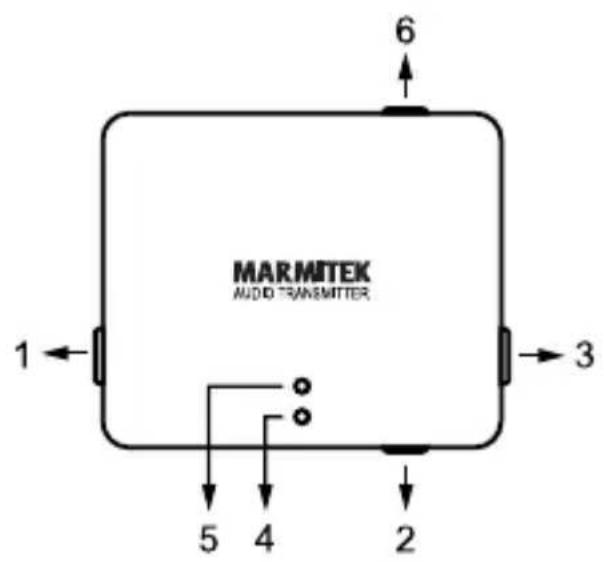

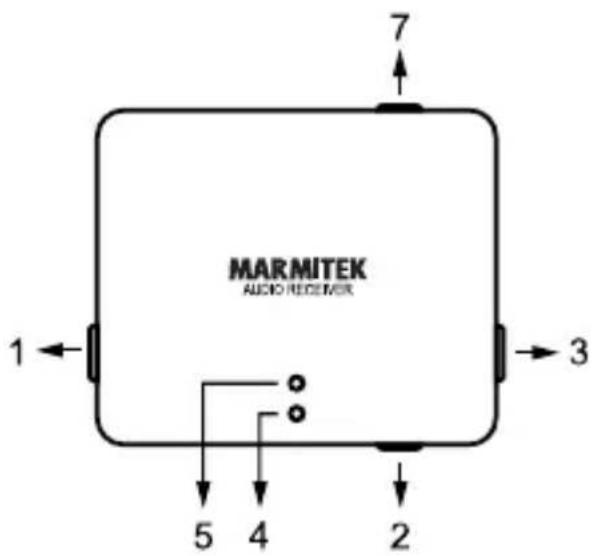

3.3 Connections

1. Mute
2. Mini USB port for power supply
3. On/off switch
4. Connection LED. Lights up green if a connection is made. Blinks if there is no audio or no connection. Off if the transmitter/receiver is off.
5. Power LED. Lights up red if the transmitter/receiver is receiving power.
6. Audio input
7. Audio output

4 Getting started

4.1 Installing the transmitter

The transmitter can be connected to any audio source, including a TV, satellite receiver, MP3 player, stereo equipment, etc.

1. Connect the mini jack plug to the headphone connection point on a device such as your TV, smartphone or radio/CD player. Use the converter cable supplied to connect the Audio Anywhere 625 transmitter to the AUX OUT coaxial (Cinch/RCA) connection on your sound system.
2. Connect the adapter to the mini USB port and insert the adapter into the electrical socket. The red LED will now light up.
3. The Audio Anywhere 625 transmitter will now automatically switch on and the green LED will begin to flash.
4. Now the sound of your audio source will be reproduced.

4.2 Installing the receiver

1. Connect the mini jack-plug to the AUX IN on a docking speaker or radio/CD player, for example.
   Use the converter cable supplied to connect the Audio Anywhere 625 receiver to the AUX IN coaxial (Cinch/RCA) connection on your sound system.
2. Connect the adapter to the mini USB port and insert the adapter into the electrical socket. The red LED will now light up.
3. The Audio Anywhere 625 receiver will now automatically switch on and the green LED will begin to flash.

The transmitter and receiver will now attempt to connect with one another and you will hear the audio source on the device connected to the receiver. The green LED will stop flashing and then stay illuminated.

4.3 Extra receiver

Extra receiver for your Audio Anywhere 625.

With an extra receiver you can receive the signal of the sender at more places in your house.

5 Frequently asked questions (FAQs)

I can't connect my Audio Anywhere 625.

Check the following:

1. Ensure that the power adapter is connected and the power LED (5) is on (red).
2. Ensure that the distance between the transmitter and receiver is not greater than 10 metres and that there are no large obstacles in the way.
3. Check that the connection LED (4) is on (not blinking). If it is not on, press the ON/OFF switch (3).

No sound comes out of the audio installation.

• Ensure that the audio cable is correctly connected (AUX IN), that the correct input has been selected on your audio installation and that your audio system's volume is set to the desired level.
• Check that neither the transmitter nor receiver is muted.

I have connected the sound from the TV wirelessly with my audio installation but the sound is not synchronised with the picture.

Your TV needs more time to construct the picture than it does to play the sound.

The sound from your TV is therefore played slightly later so that both picture and sound are synchronised.

For the best result, connect the Audio Anywhere transmitter to the audio output on your TV and not to the audio output on your set-top box or satellite receiver.

If you connect the transmitter to the headphone output, the TV's speakers will be disconnected and you can continue to use the TV remote control to regulate volume via the Audio Anywhere 625.

Can I connect my speakers directly to the receiver?

In order to hear sound or music, connect the receiver to an amplifier with separate (built-in) speakers or so-called active speakers (with built-in amplifier). You cannot connect passive speakers directly to the receiver.

Can I connect the USB cable from my transmitter/receiver to a USB connection on my amplifier or TV, for example?

Yes you can. But the connection is only used for powering your Audio Anywhere 625. The transmitter/receiver then switches on and off automatically in line with the amplifier or TV (auto power on).

Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com

6 Technical specifications

Supply voltage: 5 V 500 mA by Mini USB

Power Consumption: < 2W

LEDs Power, Link

AV RF transmission digital

pairing Automatically

RF data rate Up to 2 Mbps, GFSK modulation

Audio frequency range 20 Hz ~ 48 KHz

audio in/output RCA and 3.5 mm jack

Audio Stereo

Audio Latency 12.5 ms

Transmission Range Up to 40m free field, up to 10m

through walls and ceilings

RF frequency 2.4 GHz

Ambient temperature: 0 +50^ C (Operation)

-20°C tot +70°C (storage)

weight 20 grams

Dimensions: 61 × 51 × 12 ~mm

Power Adapter

Input voltage 100-240 VAC

Input AC frequency 50-60 Hz

Output voltage 5.0 V

Output current 0.5 A

Output power 2.5 W

Average active efficiency 73.76%

Efficiency at low load (10%) 61.9%

No-load power consumption 0.05 W

Efficiency marking VI

Specifications may be modified without prior notice.

7 Notification

7.1 Declaration of Conformity

Hereby, Marmitek BV, declares that this Audio Anywhere 625 is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC.

Directive (EU) 2017/2102 of the European Parliament and of the Council of 15 November 2017 amending Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Commission Regulation (EU) 2019/1782 of 1 October 2019 laying down eco-design requirements for external power supplies pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing Commission Regulation (EC) No 278/2009.

You can read the Declaration of Conformity at http://www.marmitek.com

7.2 Recycling

Environmental Information for Customers in the European Union and other European countries with separate collection systems.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

7.3 Copyrights

Marmitek is a trademark of Germatron B.V.

Audio Anywhere 625^TM is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation.

Marmitek assumes no responsibility with regard to the performance or use of these products.

Marmitek BV - PO Box 4257 - 5604 EG Eindhoven The Netherlands
