USER MANUAL BoomBoom 380 MARMITEK

• Do not expose the components of your system to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than that covered by the legal product responsibility.
  This product is not a toy. Keep out of reach of children.
• Avoid using headphones/speakers with the volume turned up for an extended period of time. Doing so may damage your hearing. It is advisable to keep the volume at a moderate level at all times.
• Do not open the product (battery panel excepted): the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.
• Disconnect the AC/DC Power Adapter from the mains, when this device is not in use for a prolonged period of time.

TABLE OF CONTENTS

SAFETYWARNINGS 3
TABLE OF CONTENTS 4
INTRODUCTION 5
FEATURES 5
SET INCLUDES 5
COMPONENT IDENTIFICATION 6
INSTALLATION 7
BLUETOOTH PAIRING 8
TURNING ON BLUETOOTH AUDIO 8
STANDBY 9
WIRED CONNECTION 9
ATMOSPHERIC LIGHTING 10
FREQUENTLY ASKED QUESTIONS 10
TECHNICAL DATA 11
OPTIONAL ACCESSORIES 12

INTRODUCTION

The Marmitek BoomBoom 380 Outdoor XL Bluetooth Speaker uses the latest Bluetooth technology that enables you to enjoy music and enhanced TV sound anywhere inside and around your house. You can simply pair the system to Bluetooth Devices such as iPhone, iPad, iPod Touch, Smartphone and Mobile, or even directly connect the system to any audio source such as Panel TV, DVD, and Hi-Fi/CD/MP3...etc. Without complicated wiring and installation to your Audio/Video equipment and rear channel amplifier, the system enables you to enjoy thrilling, lifelike stereo sound in minutes.

FEATURES

• Wirelessly enjoy music from your smartphone or tablet PC anywhere (kitchen, garden, garage, etc.).
  Superb sound quality with clear mids and deep bass.
• Need some serious beats at the park or beach? With batteries, you can take it anywhere.
• Rainwater proof, making it very suitable for outdoor use.
• The (optional) Marmitek BoomBoom 380 Battery pack automatically recharges when the speaker is connected to the wall socket. When fully charged, it gives you more than 8 hours of wireless listening pleasure.
• Suitable for all Bluetooth-enabled audio sources such as iPad/iPhone, Blackberry, Android smartphones, tablets and laptops.
• With additional aux-input for wired use with TV, amplifier, CD/MP3/MP4 player.

SET INCLUDES

1 x BoomBoom 380 Outdoor XL Bluetooth Speaker
1 x AC/DC Power Adaptor
1 × 3,5 ~mm jack audio cable (1 meter)
1 x set of instructions in English, German, French, Spanish, Italian, Dutch.

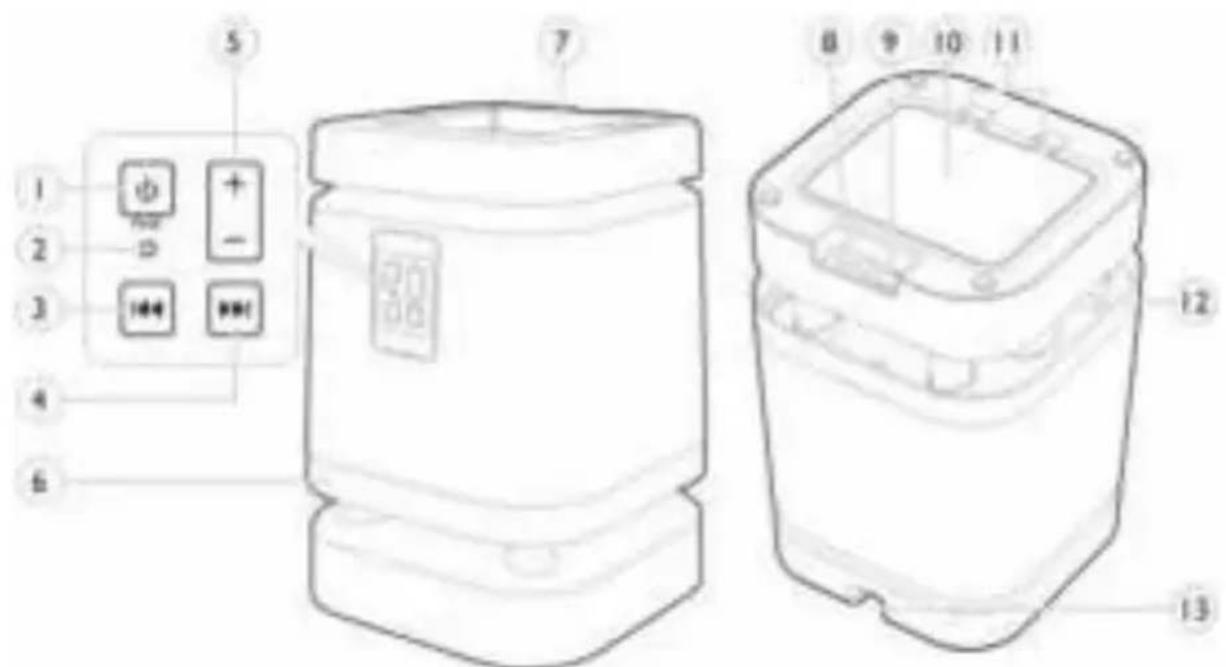

COMPONENT IDENTIFICATION

Fig.1

1. Power On/Off
2. LED Indicator (Green/Blue)
3. Previous/Fast Backward
4. Next/Fast Forward
5. Volume Control
6. Atmospheric lighting

7. Handle

8. 3.5mm Direct Audio-In

9. DC In
10. Battery Door
11. Battery Door Lock
12. Mood Light Emitter
13. Drainage

INSTALLATION

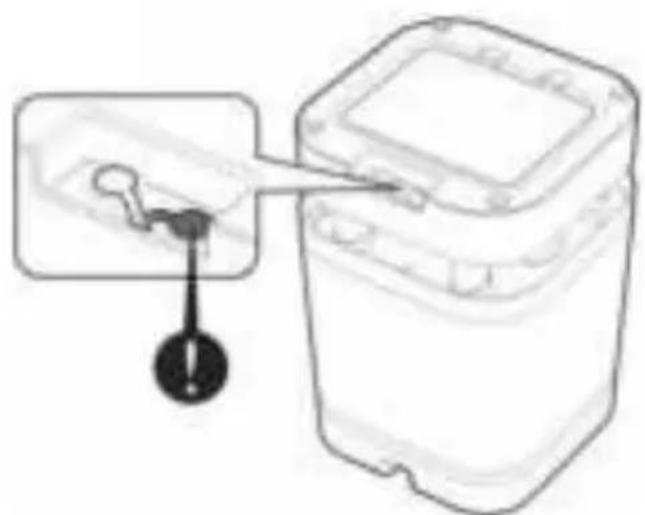

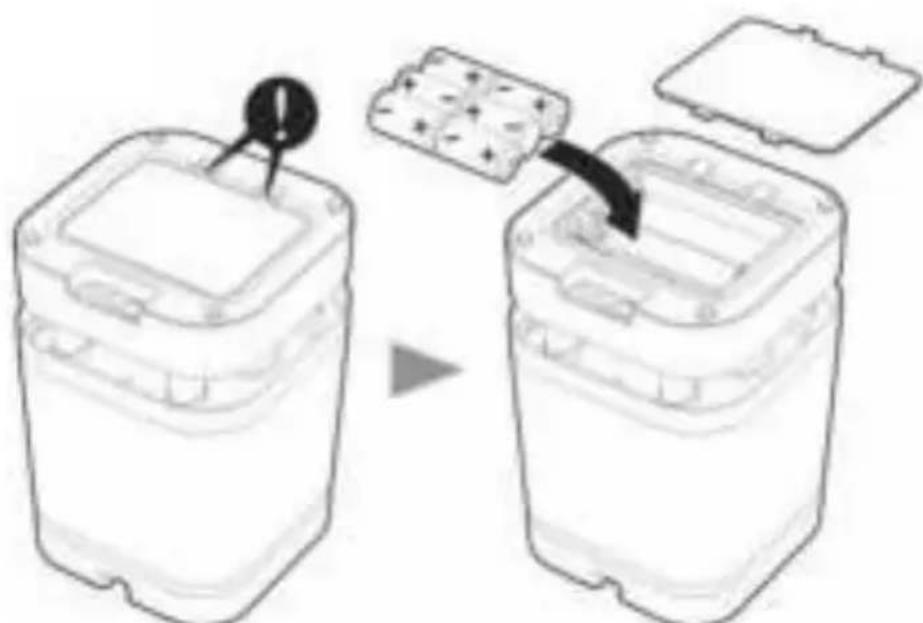

This Speaker can be powered either by connecting it to an AC/DC Power Adapter (Fig.2) for continuous playing, by 6 D Size 1.5V (non rechargeable) Batteries (Fig.3) for greatest portability, or by special Marmitek rechargeable batteries. Make sure the batteries are inserted correctly. The BoomBoom 380 will charge the Marmitek rechargeable batteries when connected to the AC/DC Power Adapter.

Fig.2

Fig.3

BLUETOOTH PAIRING

1. Make sure the BoomBoom 380 is switched off.
2. Turn on the BoomBoom 380 by pressing the POWER button and keep the button pressed. The Indicator LED will first turn Blue, then Green and then flashing Blue/Green. Now release the POWER button.
3. Turn on a device that supports Bluetooth, such as an iPod, iPhone, Android or MP3 player and go to: Settings > General > Bluetooth. Click ON 'Bluetooth' and the BoomBoom 380 will appear on the device. Click on 'BoomBoom 380'. The device is now connected and paired with the speaker. If the device prompts for a pairing code, enter:"0000".
4. When the Speaker and Bluetooth Source Device are successfully paired up, the LED will slowly flash Blue.

TURNING ON BLUETOOTH AUDIO

1. Make sure the Bluetooth Source Device (e.g. Mobile Phone) to which the Speaker is paired up is switched on.
2. Make sure the BoomBoom 380 is switched on. This can be done by pressing the Power Button once. The LED will first turn Blue, then flashing green and when a connection is made, it will slowly flash Blue.
3. If your device does not connect automatically, go to the device's Bluetooth settings and select the BoomBoom 380. A connection will then be made.
4. Play Music from the Bluetooth Source Device, and adjust Master Volume to the middle position.
5. Music should be heard from the Speaker. Adjust the Volume from the Speaker to desired level by pressing + and -
6. If the Volume Intensity from the Speaker is too weak, adjust the Master Volume from the Bluetooth Source Device accordingly.
7. To switch off the Speaker, simply press the Power button once again.

STANDBY

When the distance between the BoomBoom 380 and your Bluetooth Source Device becomes too far apart, audio will default back to your Bluetooth Source device. If you come back in range of the BoomBoom 380 within three minutes, audio will switch back to the BoomBoom 380 automatically. If the Bluetooth Source device is out of range for more than three minutes, the BoomBoom 380 will go into standby mode. When the Bluetooth Source device comes back in range again, go to the pairing list on your device and select the BoomBoom 380. The Atmospheric Lighting of the BoomBoom 380 will start to glow steadily and the connection is made automatically.

Wired Connection

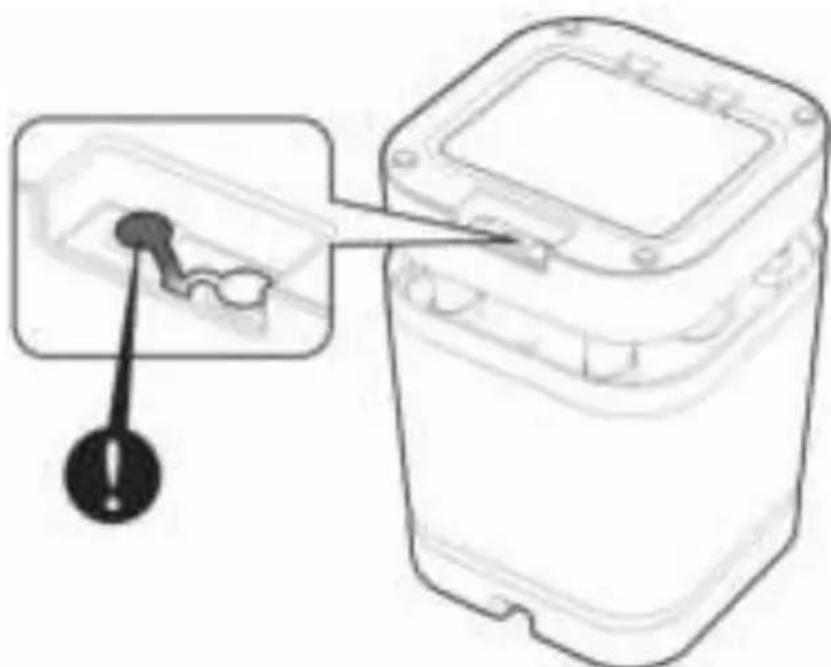

This BoomBoom 380 can also be used as a conventional Wired Stereo Speaker with Direct Line-In to your Panel TV or other Audio Devices simply by connecting the 3.5mm Audio Cable from the rear of the BoomBoom 380 to your Music Source.

When the Circuit inside the Speaker detects the Signal from Direct Line-In, the LED Indicator glows steadily in Green.

Fig.4

ATMOSPHERIC LIGHTING

The blue Atmospheric Lighting (6 fig.1) cannot be controlled manually. When the Mood Light is flashing, the rechargeable batteries are charging.

Frequently Asked Questions

No Sound

• Ensure the AC adaptor is fully inserted into the AC outlet and the power connection input on the transmitter.
• Ensure the BoomBoom 380 and Bluetooth device has been paired up.
• Ensure the BoomBoom 380 is switched ON.
• Ensure the TV or audio component is ON.
• The connected audio / video equipment is not playing. Start playing the equipment.
• The volume of BoomBoom 380 is too low. Adjust the volume to an appropriate level.

Distorted sound

• Ensure the volume level of the speaker is adjusted properly.
• The BoomBoom 380 is too far away from the Bluetooth device. Move them closer together.
• Ensure batteries are ok.

Do you have other questions that have not been resolved by the above information?

Please go to www.marmitek.com

TECHNICAL DATA

Supply voltage: 100-240VAC

12V 1.2 A

6x 'D' size Alkaline Battery (not included)

6x 'D' size Ni-MH 1.2V 4500mAh

Rechargeable Battery (not included)

6x 'D' size Ni-MH 1.2V 2500mAh

Rechargeable Battery (not included)

Power Consumption: < 0.5W standby

< 10W operation

7W for charging

Bluetooth Frequency: 2.402GHz~2.480GHz ISM Band

Bluetooth version: V2.1 + EDR (Enhanced Data Rate) Class 2

Range: Up to 30 metres with Class 2 source.

Up to 50 metres with Class 1 source.

Charger Time: 4~8 hours, depending on the battery mAh

Battery Life: 8~48 hours, depending on the volume and battery mAh.

Audio Input Connection: 3.5mm plug

Audio functions: Volume+, Volume-, Next song, previous song, power

Total Harmonic Distortion: 1.5%

Output power (RMS): 5W

Output power (PMPO): 10W

Signal to Noise Ratio S/N: 65dB

Frequency response: 50-12000 Hz

Cables: 1M long, 3.5mm plug

Waterproofness: IPX3 (rainwaterproof)

Ambient temperature: -10°C to +50°C (Operation)

-20°C to +70°C (storage)

Weight: 2 Kgs

Dimensions: 282 × 200 × 200 (mm)

Specifications may be modified without prior notice.

OPTIONAL ACCESSORIES

Rechargeable Batteries

Marmitek offers special rechargeable batteries for the BoomBoom 380.

(Art.nr. 08153 for 6 × 2500mAh Ni-MH batteries)

Don't use any non-Marmitek rechargeable batteries!

More information about rechargeable batteries can be found at

www.marmitek.com.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

COPYRIGHTS

Marmitek is a trademark of Pattiude B.V.

BoomBoom 380^TM is a trademark of Marmitek B.V. All rights reserved.

Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors.

Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.

Other company and product names mentioned herein may be trademarks of their respective companies.

Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products.

MARMITEK BV - P.O. BOX 4257 - 5604 EG EINDHOVEN - THE NETHERLANDS

SICHERHEITSHINWEISE

Bluetooth Version V2.1+EDR (Enhanced Data Rate) Class 2

1.2V 4500mAh (non fournies)

6x piles rechargeables format 'D' Ni-MH

1.2V 2500mAh (non fournies)

Signal-rapport signal

surbruit(S/N)：65dB

Distorsione Armonica Totale (Total Harmonic Distortion, THD):

1,5%

VEILIGHEIDSWAARSCHUWINGEN

VEILIGHEIDSWAARSCHUWINGEN 53

INHOUDSOPGAVE 54

INTRODUCTIE 55

EIGENSCHAPPEN 55

INHOUD SET 55

OVERZICHTCOMPONENTEN 56

INSTALLATIE 57

EENMALIG KOPPELEN VAN BLUETOOTH APPARATEN 58

BLUETOOTH AUDIO INSCHAKELEN 58

STAND-BY 59

BEKABELDE VERBINDING 59

SFEERVERLICHTINGRAND 60

VEEL VOORKOMENDE VRAGEN 60

OPTIONELE ACCESSOIRES 62

INTRODUCTIE

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this BOOMBOOM 380 is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2011/65/eu of the european parliament and of the council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for no-load condition electric power consumption and average active efficiency of external power supplies
