XF 3200 PRO - Docking station Trevi - Free user manual and instructions

Product Type	Docking station / Portable amplified speaker
Brand	Trevi
Model	XF 3200 PRO
Mains power supply	110-230 V ~ 50 Hz
Internal battery	Rechargeable lead-acid 12 V / 4 Ah
Maximum consumption	40 W
Maximum audio power	160 W
Frequency response	55 Hz - 20 kHz
Signal-to-noise ratio	64 dB
Sensitivity	93 ± 3 dB
FM radio	Yes, 87.5 - 108 MHz with telescopic antenna
Bluetooth	Yes, 2.4 GHz version, power 2.5 mW peak / 1.9 mW max
Main connections	Microphone input (MIC), guitar input (GUITAR), AUX-IN (3.5 mm jack), USB, SD card slot, 12 V socket for auxiliary battery, mains socket
Audio functions	Preset equalizer (6 modes), treble/bass adjustments, microphone echo, microphone priority, MP3 recording on USB/SD, play/pause, repeat, track selection, automatic FM search
Lighting	Front Disco Light, ON/OFF switch at rear
Remote control	Yes, with stand-by, mode, EQ, volume, tracks, repeat, numeric keys, mute functions
Dimensions (W x D x H)	330 x 358 x 936 mm
Weight	16.1 kg
Maintenance and cleaning	Soft cloth slightly damp, avoid solvents and abrasives
Safety	Do not expose to water, do not obstruct ventilation slots, maintain 5 cm clearance around, do not use near heat sources
Operating temperature and humidity	0 °C ~ 40 °C / 5 % ~ 90 % RH

Frequently Asked Questions - XF 3200 PRO Trevi

How to pair a Bluetooth device with the XF 3200 PRO?

Press the MODE button (17) repeatedly until the Bluetooth function is selected (the display shows 'BLUE'). The ✝ symbol flashes, indicating the device is searching. Enable Bluetooth on your smartphone or tablet, search for devices, select 'XF 3200 PRO' and enter code '0000' if necessary. The connection is established.

How to charge the internal battery?

Set the POWER ON/OFF switch (5) to OFF. Plug the power cord into the mains socket (27) and into a wall outlet. The LED indicator (24) lights red during charging and turns blue when charging is complete. Normal charging time is about 6 to 8 hours.

How to use the microphone priority function?

Connect a microphone to the MIC jack (2). During music playback, press the PRIORITY button (12). 'PON' is displayed: the microphone voice automatically reduces the music volume. Press again to deactivate ('POFF'). Adjust microphone volume with M VOL (10) and echo with ECHO (4).

How to record audio on a USB key or SD card?

Insert a USB key or SD card (FAT16/32 format). Select the Radio function via MODE. Press and hold the RECORD button (11) for a few seconds: the display shows flashing 'USB RECO'. Recording starts. Press RECORD again to stop. The MP3 file is saved in a 'REC' folder on the device. Note: recording is not possible in Bluetooth mode.

How to adjust the audio equalizer?

Press the EQ button (13) on the unit or on the remote control repeatedly to cycle through the 6 equalizer presets. You can also adjust treble with TREBLE (6) and bass with BASS (7).

How to activate the Disco Light?

At the rear of the unit, toggle the LED LIGHT switch (26) to ON (position '1') to turn on the front lights. To turn off, set to OFF ('0').

What to do if the unit produces no sound?

Check that the unit is turned on (POWER ON/OFF to ON). Make sure an audio source is connected (USB, SD, AUX, Bluetooth, radio). Adjust the main volume (VOLUME 21) and the source volume (microphone, guitar). Ensure the correct mode is selected (MODE). If the problem persists, try another source or consult the troubleshooting table in the manual.

How to use the remote control?

Insert two AAA batteries into the compartment on the back of the remote control, respecting polarity. The remote control allows you to put the unit in stand-by, change mode (MODE), adjust volume (VOL+/VOL-), navigate tracks (CH+/CH-), play/pause (▶II), repeat (RPT), equalizer (EQ), and directly enter track number or radio frequency using the 0-9 keys.

How to clean the unit?

Use a soft cloth slightly damp to wipe the surfaces. Never use solvents, alcohol or abrasive products that could damage the casing. Before cleaning, disconnect the unit from the mains.

How to connect an external auxiliary battery?

If the internal battery is discharged and you cannot plug the unit into mains, use the DC 12V socket (23) at the rear. Connect an external 12 V battery, respecting the indicated polarities (+ and -). This allows you to continue using the unit temporarily.

USER MANUAL XF 3200 PRO Trevi

Connection and Operation Manual

HAUT-PARLEUR PORTABLE AMPLIFIE

Exterior view of a black XFEST multi-tiered electronic device with blue LED lighting and illuminated fans (no text or symbols visible)

WARNINGS

ATTENZIONE

RISCHIO DI SCOSSE ELETTRICHE! NON ESPORRE A PIOGGIA E UMIDITÀ

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO TREVI

ATTENTION

RISQUE DE DECHARGES ELECTRIQUES NE PAS EXPOSER A LA PLUIE ET A L'HUMIDITE

ATTENTION: NE PAS OUVRIR L'APPAREIL, A L'INTERIEUR IL N'Y A PAS DE COMMANDES A MANIPULER PAR L'UTILISATEUR OU DE PIECES DE RECHANGE. POUR TOUTES LES OPERATIONS DE SERVICE IL FAUT S'ADRESSER A UN SERVICE D'ASSISTANCE AUTORISE TREVI.

ATENCION

PELIGRO DE CHOQUES ELECTRICOS NO EXPONER A LLUVIA Y HUMEDAD

WARNING: DO NOT OPEN THE SET. NEITHER CONTROLS OR SPARE PARTS TO BE USED BY THE USER ARE TO BE FOUND INSIDE IT. APPLY TO AUTHORISED TREVI CENTERS FOR SERVICE OPERATIONS.

ACHTUNG

To avoid possible hearing damage, limit the listening time to high volumes

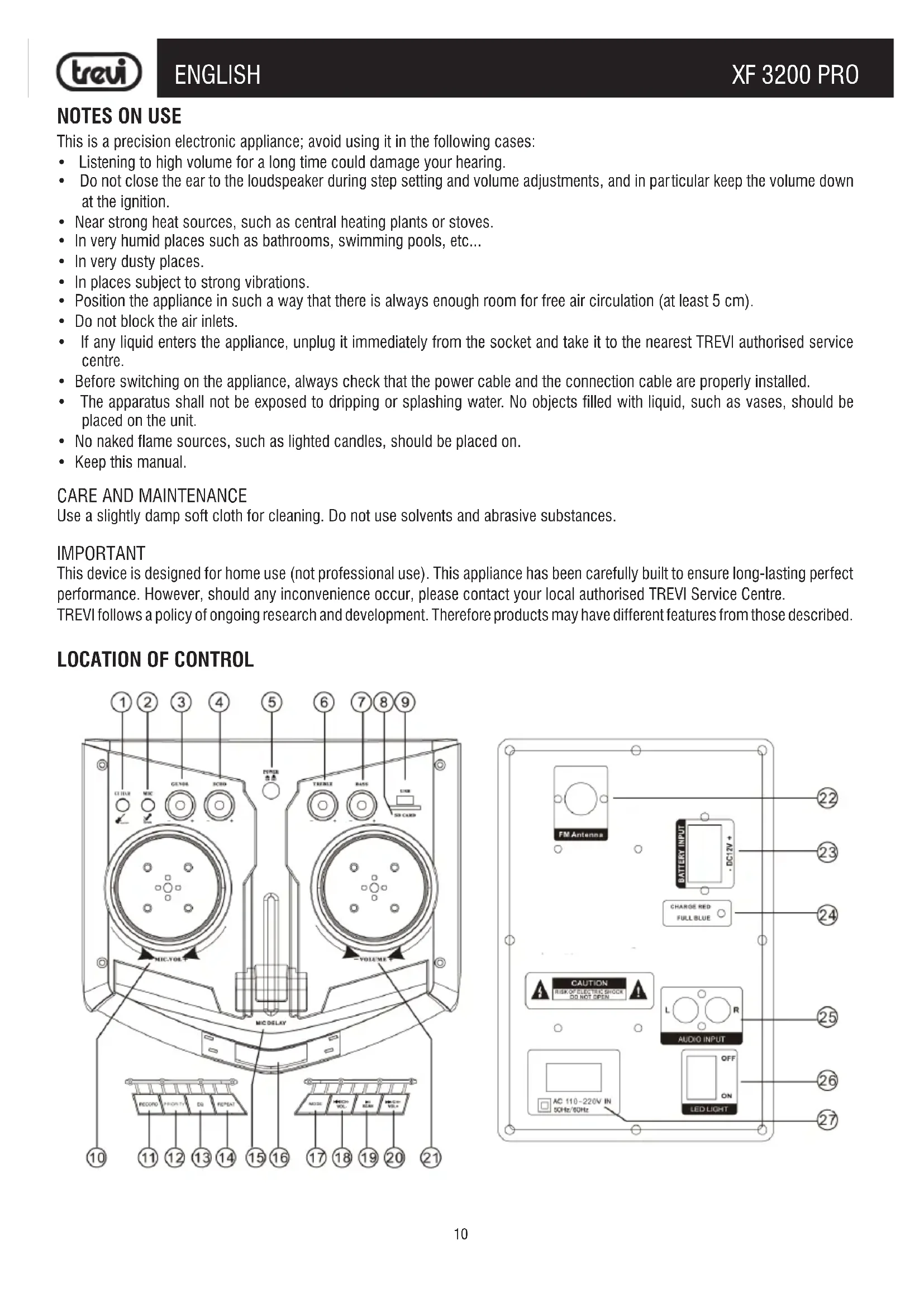

This is a precision electronic appliance; avoid using it in the following cases:

• Listening to high volume for a long time could damage your hearing.
• Do not close the ear to the loudspeaker during step setting and volume adjustments, and in particular keep the volume down at the ignition.
• Near strong heat sources, such as central heating plants or stoves.
  • In very humid places such as bathrooms, swimming pools, etc...
  • In very dusty places.
  • In places subject to strong vibrations.
• Position the appliance in such a way that there is always enough room for free air circulation (at least 5 cm).
• Do not block the air inlets.
• If any liquid enters the appliance, unplug it immediately from the socket and take it to the nearest TREVI authorised service centre.
• Before switching on the appliance, always check that the power cable and the connection cable are properly installed.
• The apparatus shall not be exposed to dripping or splashing water. No objects filled with liquid, such as vases, should be placed on the unit.
• No naked flame sources, such as lighted candles, should be placed on.
• Keep this manual.

CARE AND MAINTENANCE

Use a slightly damp soft cloth for cleaning. Do not use solvents and abrasive substances.

IMPORTANT

This device is designed for home use (not professional use). This appliance has been carefully built to ensure long-lasting perfect performance. However, should any inconvenience occur, please contact your local authorised TREVI Service Centre.

TREVI follows a policy of ongoing research and development. Therefore products may have different features from those described.

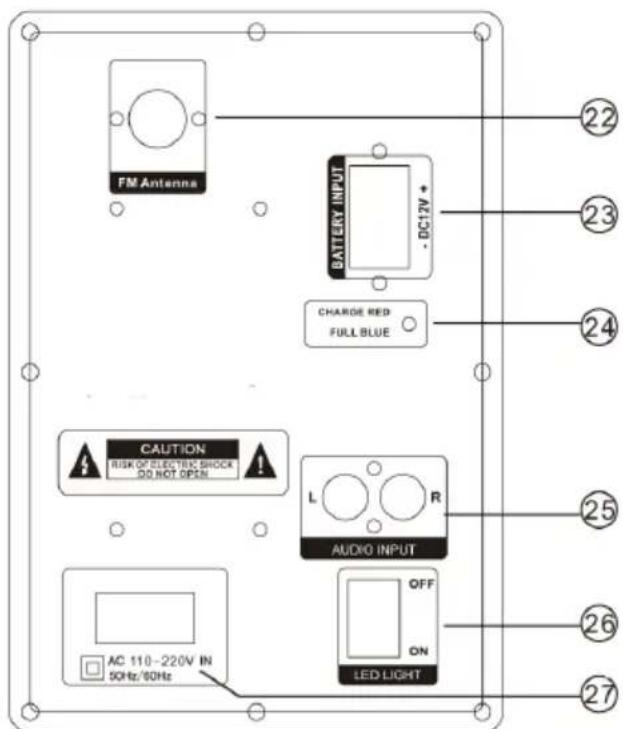

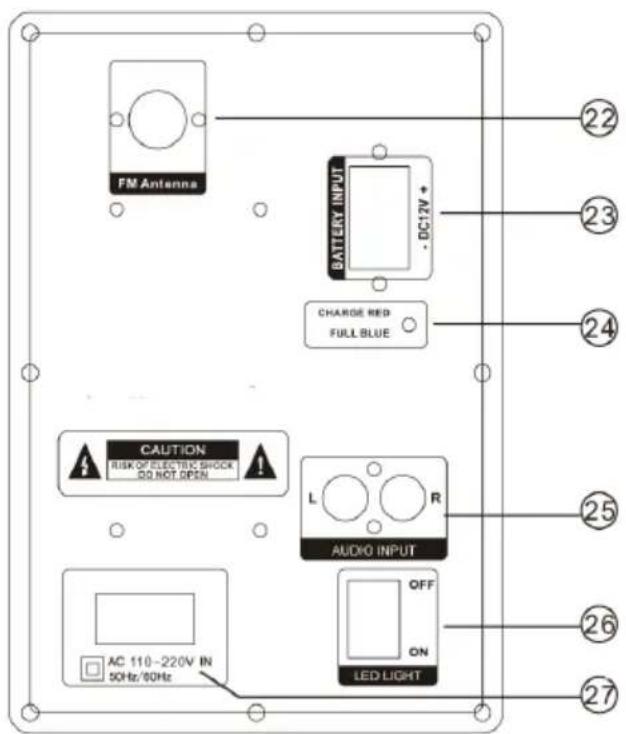

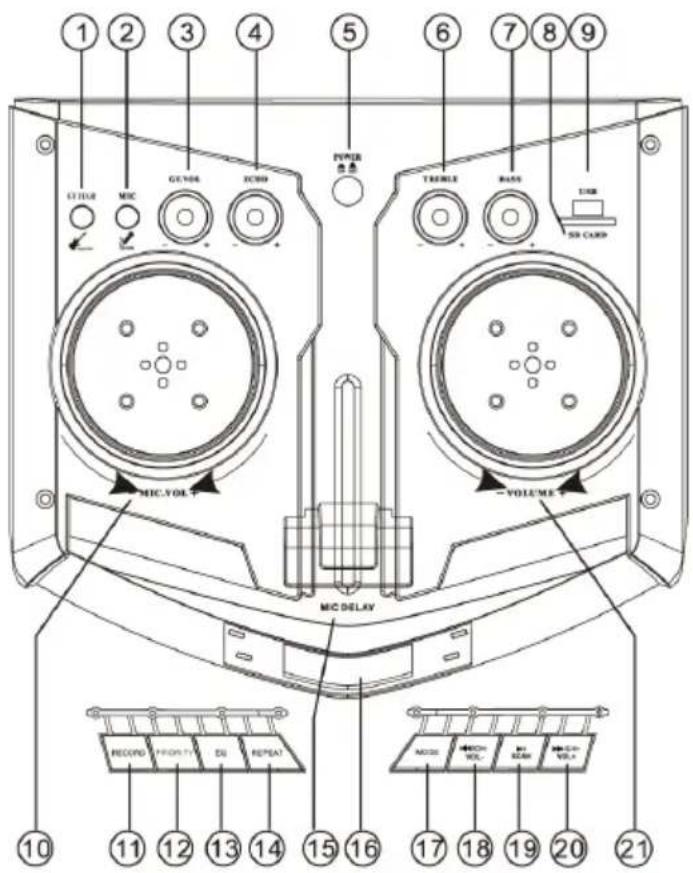

LOCATION OF CONTROL

1 2 3 4 5 6 7 8 9 TURER MIC GENOS ICBD POWER VOLT TREMBLE RASS USB USB CARD MIC.VOLT VOLUME MIC DELAY RECORD PRIORITY EU REPEAT 10 11 12 13 14 15 16 17 18 19 20 21 MODI RECH VOLT. BI SEAM BI CO-VOLT.

FM Antenna BATTERY INPUT DC12V + CHARGE RED FULL BLUE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AUDIO INPUT L R AC 110-220V IN 50Hz/60Hz LED LIGHT OFF ON ②2 ②3 ②4 ②5 ②6 ②7

1. GUITAR Input
2. MIC Input
3. GUITAR, Adjust Volume Guitar In
4. ECHO, Adjust Echo mic
5. Button ⚙POWER ON/OFF Switch
6. TREBLE Adjustment
7. BASS Adjustment
8. SD Card Input
9. USB Input
10. MIC Volume
11. REC button, recording
12. PRIORITY button
13. EQ button, pre-set equalizations

14. REPEAT button, repetition of all the tracks or of the single song

15. MIC DELAY Adjust

16. Display
17. MODE button
18. ◀◀/CH-/VOL - button, PREV track/Volume -
19. ▶ II, PLAY/PAUSE button
20. ▶I/CH+/VOL+ button, NEXT track/Volume +
21. Main Volume control
22. FM antenna
23. DC 12V External battery input
24. LED RECHARGE indicator
25. AUDIO INPUT (AUX IN)
26. LED Disco Light Switch, activation light effect
27. 220V\~, Power Socket

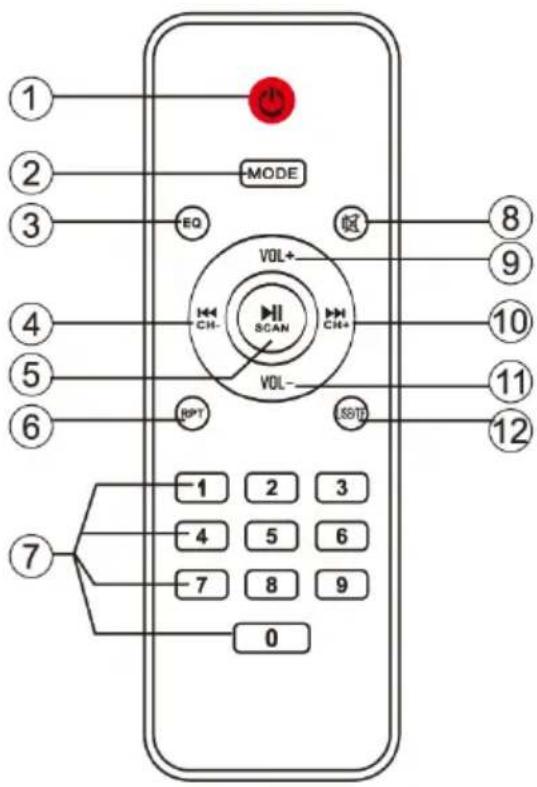

REMOTE CONTROL

1 2 3 4 5 6 7 MODE EQ VOL+ CH- SCAN VOL- SS/10 8 9 10 11 12 -1 2 3 -4 5 6 -7 8 9 0

1. Button; Stand-by
2. MODE button; shift AUX/USB/SD
3. EQ button (several sound modes)
4. ◀◀/CH- button; previous track
5. ▶ II button; Play/Pausa
6. RPT button; single repeat, repeat all
7. 0-9 Keys
8. MUTE button
9. Volume +
10. ▶▶/CH+ button; next track
11. Volume -
12. USB/SD button; shift USB/SD

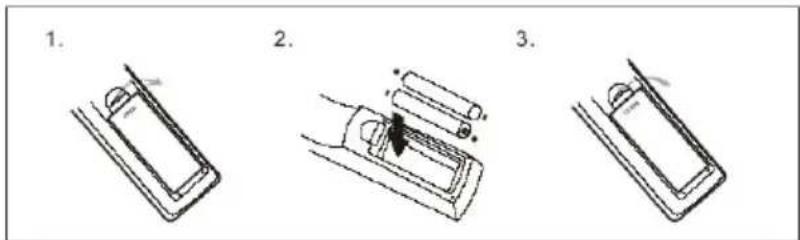

Installing the Batteries

Remove the battery cover from the Remote Control and put 2xAAA size batteries inside the compartment. The diagram inside the Battery Compartment shows the correct way to install the batteries.

1. 2. 3.

TRANSPORTATION

For transport it is possible to use the two handles placed on the side of the appliance or moving it as a trolley: using the trolley handle, slightly bend the appliance and take advantage of the two rear wheels.

To unlock and close the trolley handle, press the button on the handle and lower the handle completely.

POWER

This unit works with rechargeable lead-acid 12V -4Ah and power supply 230V 50Hz.

When the battery is running out or the unit does not turn on, turn the main POWER ON/OFF switch(5) to the "OFF" position, insert the power cord into the socket(27) on the device and the plug into a socket to charge, the Led indicator light(24) will light up. Indicator status LED Indicator Battery charging:

- LED indicator light(24) RED: the device and 'properly connected with the power cord and battery and' being charged.

- LED indicator light(24) BLUE: Charging finished, the battery is charged.

Caution: Do not connect the appliance to sockets with a voltage other than that indicated.

BASIC FUNCTIONS

POWER ON/OFF

Press the main switch POWER ON/OFF(5) to turn ON and use the device with its internal battery.

Press again the main switch POWER ON/OFF(5) to switch off the device or charge the battery.

STAND-BY

You can switch the system to standby mode using the button ⏻ on remote control;

Caution:

- In Stand-by mode, the upper knobs and the battery icon on the display remain lit.

- We remember leaving the unit in stand-by function the battery discharges faster than using the POWER ON/OFF switch(5).

MODE SETTING FUNCTION

To change the mode function, press more 'times the MODE key(17) on the unit or press the MODE button(2) on the remote control to select: AUX (the display shows AUX), BLUETOOTH (the display BLUE), Radio (the radio frequency appears on the display), USB/SD (only if the USB/SD socket(8 and 9) is connected to a memory, the display shows for a few seconds "USB" or "SD").

ADJUSTING THE VOLUME

1. Turn the VOLUME knob(21) to increase or decrease the overall playback volume or use the buttons(9) and (11) on the remote control for fine adjustment;
2. Turn the M. VOL (10) knob to adjust the volume of the signal at the MIC input(2);
3. Turn the GT.VOL dial(3) to adjust the volume of the signal at the GUITAR input(1).

EQUALIZER

This unit has a pre audio equalization system set. Press the EQ button(13) on the unit or the (3) button on the remote control to select one of six available audio equalizers, and that best suits the sound playback.

SETTING TONE TREBLE AND BASS

Turn the TREBLE knob(6) to adjust the treble.

Turn the BASS knob(7) to adjust the bass.

ECHO EFFECT

Turn the ECHO knob(4) to increase or decrease the echo effect on the inputs MIC.

Note: the echo only works on microphone inputs.

DISCO-LIGHT EFFECTS

To turn on the Disco-Light effects on the speakers, press the LED button(26) on the back.

To turn off the effect Disco-Light, press again the LED button(26).

RADIO FM FUNCTION

AUTO MEMORY

1. Fully extend the antenna(22);
2. Turn on the unit and press repeatedly the MODE key(17) on unit, or the MODE(2) on remote control and select RADIO function (the display will show the frequency);
3. Press the ▶ II (19) button on the unit or the key(5) on remote control to activate the auto memory (the radio starts an automatic search radio stations and saves them automatically). The station's number stored depends on the radio signal in your area. During the search, press ▶ II (19) button on unit or the key(5) on remote control to stop recording;
4. Use the ▶I/CH+/VOL+(20) o ◀◀/CH-/VOL-(18) on unit, or ▶ICH+(10) and ◀◀CH-(4) on the remote control to listen radio stations saved in memory;
5. To call the number of a preset station using the number keys(25) on the remote control. For example, to call up the station number 12, first press 1 and then 2.

DIRECT RECALL OF FREQUENCY

1. Use the keypad (7) on remote control to tune the desired frequency. For example, to listen to 93.1MHz frequency type 9 3 1.

Note:

• The FM reception depends on the place where you place the unit.
• The proximity of TV sets, fluorescent lamps or other appliances may cause interference in the reception of radio programs, in this case, move this unit.

BLUETOOTH FUNCTION

1. Turn on the machine and press the MODE(17) on unit, or MODE(2) button on remote control to select the Bluetooth function, the display shows "BLUE";
2. In the Bluetooth mode, the symbol ✝ on display will start flashing, the system automatically enters search mode;
3. Activate the Bluetooth feature on the external device to be coupled;
4. Initiate a search for devices. After select the "XF 3200 PRO";
5. Enter the password "0000" if required;
6. Press the ▶ II (19) button on the unit or the key(5) on remote control, to start playing and the buttons ▶I/CH+/VOL+(20) or I◀/CH-/VOL-(18) on the unit, or the keys ▶I/CH+(10) and I◀/CH-(4) for selection of songs.

PLAY ON INPUT USB/SD

1. Turn on the unit;
2. Insert a USB memory or an SD card into the USB or SD(8 and 19) slot. Playback starts automatically;
3. To pause playback, press the ▶ II (19) button on the unit or the key ▶ II (5) on remote control, the display will show "PAUS";
4. To resume playback, press the ▶ II (19) on the unit or the key ▶ II (5) on the remote control;
5. Press ▶I/CH+/VOL+(20) button on unit or key ▶I/CH+(10) on remote control while listening to switch to the next track. Press the ◀◀/CH-/VOL-(18) button on unit or ◀◀/CH-(4) on remote to go to the previous tracks;
6. Using the numeric keypad(7) on remote control you can directly enter the number of the song you want to play;
7. Press once REPEAT button(14) on on unit or RPT button(6) on remote control, the display will show "ONE", to continually play the same track; press it a second time, the display will show "ALL" to continuously play all songs in the USB/SD.

Note:

• The player may not support some USB/SD devices, this is due to the incompatibility of some processors.
• To avoid harmful interference, always connect USB devices directly to the unit, do not use extension cords.
• From the computer to format the USB memory/SD in FAT(16 or 32).

AUX-IN

1. Press the MODE button(17) on unit or press MODE button(2) on the remote control and select the "AUX" function;
2. Connect any unit equipped with audio output, through a cable 3.5mm jack (included) to the AUDIO INPUT(25) in the back side;
3. Use the external device from their commands.

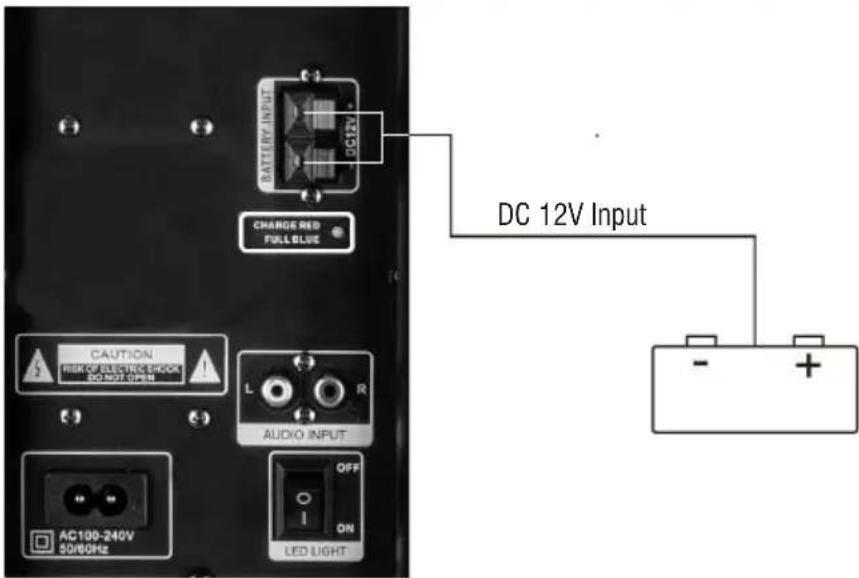

BATTERY AUXILIARY CONNECTION

The appliance is set up to connect an auxiliary battery if you were with the internal battery completely empty and there was no possibility of connecting the appliance to a mains socket.

Use the rear socket (23) and connect an external 12V battery making sure to respect the indicated polarities.

DC 12V Input BATTERY INPUT CHARGE RED FULL BLUE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN L R AUDIO INPUT AC100-240V 50/60Hz OFF ON LED LIGHT - +

1. Connect the microphone supplied into MIC(2) jack;
2. Turn on the microphone using the switch on the handle of the microphone to the ON position;
3. Adjust the microphone input volume and the echo effect as desired by commands(10) and (4);
4. Press the PRIORITY key(12), the display shows the word "PON", if you want to give priority to the microphone voice compared to the music played (the music is automatically lowered in volume when speaking with the microphone), press it again (the word "POFF" appears on the display) to return it to the normal condition;
5. Adjust the MIC DELAY using the appropriate control (15).

RECORDING

MUSIC RECORDING

This unit and 'capable of recording on USB or SD card memory the music from radio function or Aux-in (it is NOT possible to record from the Bluetooth). The device will automatically create a folder called "Record" inside the USB memory or SD Card and it will store all log files.

1. Turn on the unit;
2. Insert a USB memory or a SD Card into the socket (8 and 9);
3. Select the Radio function or Aux-in by MODE button(17) on the unit, or the MODE(2) key on the remote control.
4. Press RECORD button(11) on the unit to start recording, the display will show the time and signature will start.
5. Press again RECORD button(11) to stop recording. The device will automatically go into USB/SD function to immediately playback the recorded file. After playing the unit will report on the initial function.

Note:

• The recording feature may not support some USB/SD devices, this is due to the incompatibility of some processors.
• When you turn on the "Registration" some functions of unit are inhibited, they will take their normal function when the recording will stop.

TROUBLESHOOTING

If a problem occurs, follow the steps in the table below.

If the problem still can't be solved, please contact your retailer.

Problem Possible cause Solution
No sound when power is turned ON	1. No input sound source comes2. Volume knob in the lowest position3. Voice switch off4. USB/SD card not plugged	1. Input AUX signal2. Adjust volume3. Turn on voice switch4. Plug USB/SD card, play MP3
Distorted sound 1. Volume	s too loud2. Audio file error	1. Turn the volume down2. Check and change the audio file
No sound from the microphone	1. Microphone socket may not be plugged properly.2. Microphone switch may not be on.3. Microphone volume is on lowest mode.	1. Ensure the microphone is correctly plugged into the socket.2. Turn on the microphone3. Adjust the microphone volume as per users wish
No sound comes after inserting USB/SD Card	1. Incorrect file format2. USB/SD may not be plugged properly	1. File format should be MP32. Plug USB/SD card correctly
Battery status indicator on the display flashes when the charge is low	The charging power cable is not inserted correctly	Connect the power cord firmly and check that the back charging light is on
Unable to charge or the battery works only for short duration	1. Connect with power cord to charge2. Battery not fully charged3. Battery life may have ended	1. Check if power cord connected properly2. Extend charging time; normally it takes 6-8 hour to fully charge3. Replace old batteries with the same specification as the old batteries.
If Speaker makes loud noises	1. Microphone switched on but may too close to the speaker2. Microphone switched on but is not being used3. Microphone volume may be too loud4. Mobile phone is being used too close to the speaker5. Other wireless equipment may be placed very close to the speaker	1. Keep the microphone 2 meters away from the speaker2. Turn off microphone if not in use.3. Adjust microphone volume to lower mode4. Keep mobile away from the speaker whilst a ending a call.5. Keep the speaker away from other wireless equipment

INFORMATION NOTE ON THE REMOVAL BATTERY

Warning: Only high-qualified personnel should perform this operation!

BATTERY REMOVAL

The appliance should not be plugged to the mains socket when performing this operation!

1. Remove the screws that secure the slot panel battery;
2. Remove the metal panel;
3. Remove the screws that secure the supports of the battery, remove the supports, disconnect the battery and remove it.

INFORMATION ON DISPOSAL BATTERY

Used batteries should not be disposed of with household waste or thrown into fire or water. Used batteries should be recycled or disposed of in separate waste collection centres.

INFORMATION TO USERS

pursuant to Legislative Decree No. 49 of March 14, 2014

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)"

This wheeled bin symbol on the product indicates that at the end of its life must be collected separately from other waste. The user must, therefore, take the remote control integrates the essential components that got to its life to the appropriate differentiated collection centers for electronic and electro-technical waste, or return it to the dealer when purchasing a new appliance of equivalent type, in terms of one to one, or one to zero for equipment having longer side of less than 25cm. Appropriate separate collection for the decommissioned equipment for recycling, processing and environmentally compatible disposal helps prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. Illegal dumping of the product by the user entails the application of administrative sanctions stated in Legislative Decree n. Legislative Decree No. 49 of March 14, 2014.

TECHNICAL SPECIFICATIONS

Power Supply:	110-230V 50/60Hz
internal lead acid rechargeable battery 12V 4Ah
Power:	Max 40W
Operating temperature:	0° ~ 40°C
Humidity:	5% ~ 90%
Output Audio power:	160W
Frequency response:	55Hz - 20KHz
S/N ratio:	64dB
Sensibility:	93±3db
FM Radio bands reception:	87.5MHz - 108MHz
Bluetooth peak transmission power:	2,5mW
Bluetooth max power transmission:	1,9mW
Band transmission Bluetooth:	2,4GHz
Dimensions:	330x358x936mm
Weight:	16.1kg

NOTES D'EMPLOI

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ LETRMR MIC GELVOL RCHD PETER TREMBL MASS EAM VOL CAND MIC.VOL VOLUME MIC DELAY RECORD PROGRY EQ REPEAT 10 ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑

FM Antenna BATTERY INPUT DC17V + CHARGE RED FULL BLUE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AUDIO INPUT L R AC 110-220V IN 50Hz/50Hz LED LIGHT OFF ON ②2 ②3 ②4 ②5 ②6 ②7

Simplified EU Declaration Of Conformity

Hereby TREVI S.p.a declares that "Power portable speaker with trolley" model XF 3200 PRO is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://www.trevi.it/dms/zidi/TREVI/DOCXR3200PRO.pdf
