Product type	CD player/recorder with radio, cassette, USB and AUX
Brand	Roadstar
Model	RCR4625NU
Power supply	AC 230 V ~ 50 Hz or DC 9 V (6 LR14 batteries)
Speaker power	2 × 2 W RMS
Radio frequency range	FM 87.5 – 108 MHz
Connectivity	USB port, 3.5 mm AUX-In jack, headphone jack not mentioned
Supported audio formats	Audio CD, MP3 (on CD or USB key)
Main functions	FM radio, cassette player, CD/MP3 player, CD recorder not specified, USB playback, AUX input
Clock setting	Yes, with 12/24 h display
Radio presets	Up to 30 FM stations
Programmed playback	Yes, for CD and USB (up to memory full)
Auto standby	Automatic standby after approximately 10 minutes without audio in CD/USB/cassette mode
Safety	Do not expose to water, moisture, heat or direct sunlight. Entrust repairs to a qualified technician.
Maintenance	Clean with a soft dry cloth. Do not use liquids or aerosols.
Dimensions (approx.)	Not specified, typical of a portable stereo system (approx. 40 × 20 × 25 cm)
Weight (approx.)	Not specified, estimate 3‑5 kg
Reparability	Spare parts not mentioned; professional repair recommended
Warranty	Compliant with directive 99/44/EC; duration according to country
Included accessories	AC power cord, user manual

Frequently Asked Questions - RCR4625NU ROADSTAR

How to set the clock on the RCR4625NU?

In standby mode, press and hold CLOCK/PLAY until "12/24 Hr" flashes. Use BACK/PROG -/+ to select the format, then press CLOCK/PLAY to confirm. Then set the hours and minutes in the same way.

How to listen to FM radio?

Press POWER/FUNCTION until "rAd" appears. Use BACK/PROG -/+ for manual tuning or hold SCAN for automatic scanning.

How to preset radio stations?

In radio mode, hold SCAN/MODE for 2‑3 seconds for automatic preset. For manual preset, tune to the desired station, press SCAN/MODE, select a location (P01‑P30) and confirm.

How to play a CD or MP3?

Select CD mode with FUNCTION until "Cd". Open the lid, insert a CD (printed side up) and close. Playback starts automatically. For MP3, use PRESET/FOLDER/STOP to browse between folders.

How to program a track list on CD or USB?

Press PRESET/FOLDER/STOP, then SCAN/MODE. Use BACK/PROG -/+ to select a track, press SCAN/MODE to add it. Repeat, then press CLOCK/PLAY to start programmed playback.

How to use a USB key?

Select USB mode with FUNCTION. Plug the key into the USB port, playback starts automatically. Use PRESET/FOLDER/STOP to change folder. Remove the key only when the device is off.

How to connect an external device via AUX?

Select AUX mode with FUNCTION. Connect a 3.5 mm jack cable (not included) from the external device to the AUX-IN jack at the rear. Music control is done from the external device.

How to use the cassette player?

Select TAPE mode. Press STOP/EJECT to open the compartment, insert the cassette, close. Use the PLAY, PAUSE, FAST FORWARD, REWIND and STOP/EJECT buttons.

What to do if the device stops responding?

This may be due to electrostatic discharge. Turn off the device, unplug the power cord, remove all batteries, wait a few seconds, then plug back in and turn on.

How to clean and maintain the device?

Use a soft dry cloth. Never use liquids, aerosols or abrasive products. Avoid exposure to moisture, heat and direct sunlight.

USER MANUAL RCR4625NU ROADSTAR

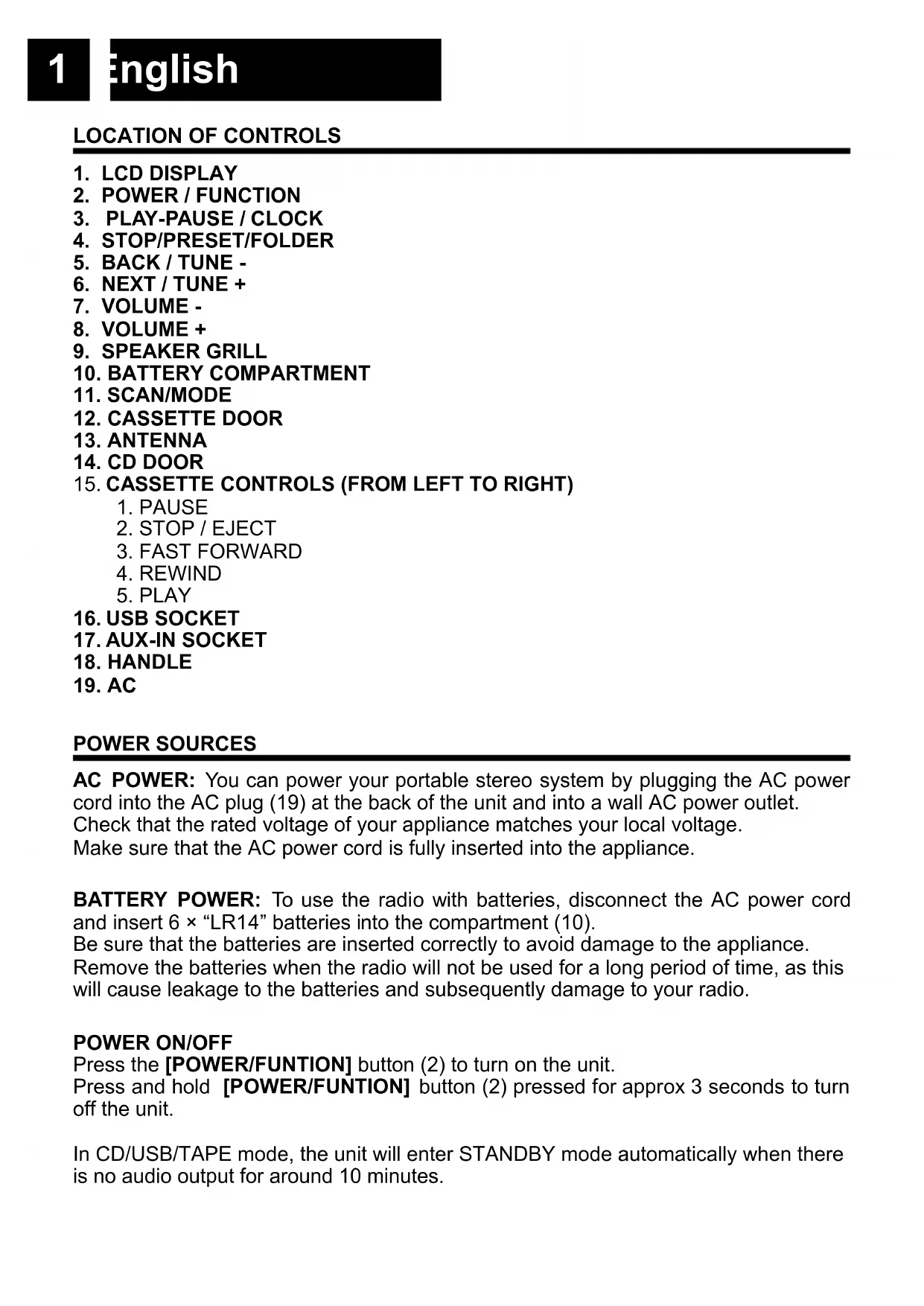

AC POWER: You can power your portable stereo system by plugging the AC power cord into the AC plug (19) at the back of the unit and into a wall AC power outlet.

Check that the rated voltage of your appliance matches your local voltage.

Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER: To use the radio with batteries, disconnect the AC power cord and insert 6 × "LR14" batteries into the compartment (10).

Be sure that the batteries are inserted correctly to avoid damage to the appliance.

Remove the batteries when the radio will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your radio.

POWER ON/OFF

Press the [POWER/FUNCTION] button (2) to turn on the unit.

Press and hold [POWER/FUNCTION] button (2) pressed for approx 3 seconds to turn off the unit.

In CD/USB/TAPE mode, the unit will enter STANDBY mode automatically when there is no audio output for around 10 minutes.

PRECAUTION

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
• HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
• OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
• DAMAGE REQUIRING SERVICE

The appliance should be serviced by qualified service personnel when:

• The power supply cord or plug has been damaged;
• Objects have fallen into or liquids has been spilled into the radio;
• The appliance has been exposed to rain;
• The appliance has been dropped or the enclosure damaged;

• The appliance does not appear to operate normally.

• SERVICING - The user should not attempt to service the appliance beyond that describe in the user operating instructions. All the servicing should be referred to qualified service personnel

Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord and remove all the batteries, then turn the power back on after a few seconds.

CLOCK

In stand-by mode:

1. Press and hold the [PLAY-PAUSE / CLOCK] (3) button for approx. 2 seconds until the display shows "12/24 Hr";
2. Press the [SKIP -/+] buttons (5/6) to choose 12 or 24 hour format;
3. Confirm with the [PLAY-PAUSE / CLOCK] (3) button;
4. Press the [SKIP -/+] (5/6) buttons to adjust the hour;
5. Confirm with the [PLAY-PAUSE / CLOCK / ENTER] (3) button;
6. Press the [SKIP -/+] (5/6) buttons to adjust the minutes;
7. Confirm with the [PLAY-PAUSE / CLOCK] (3) button;

RADIO

1. Select the RADIO mode with the [STANDBY / FUNCTION] (2) button, until "rAd" is shown in the display.
2. Adjust radio frequency to your desired station as follows:

MANUAL SCAN: Use the [SKIP / TUN -/+] (5/6) buttons to fine tune your desired station or press and hold the [SKIP / TUN -/+] (5/6) buttons to scan the next/previous available station.

AUTO SCAN: Press & Hold [SCAN] (11) button about 3 seconds to start automatic scan.

Preset station:

Automatic Preset:

1. Press and hold the [SCAN / MODE] (11) button on unit for about 2-3 seconds to start the automatic preset process.
2. Display will show the memory sequence number and radio stations will be automatically preset into the sequence number (Note: Each sequence number means 1 preset station while during automatic preset process.)
3. Once all the stations were automatic preset, press the [PRESET / FOLDER/ STOP] (4) button, the display will show "PrE" then press [SKIP+ / TUN+] or [SKIP-/TUN-] buttons (5-6) to choose the preset stations.

Manual Preset:

1. Use the above "Manual scan for radio stations" method to choose your desired radio stations.
2. Press [SCAN / MODE] (11) button. "P01" (Storage space) and the notification "PROG" will appear in the display.
3. Use the [SKIP+ / TUN+] or [SKIP- / TUN-] (5-6) buttons to select the memory slot (P01 - P30) and then press the [SCAN / MODE] (11) button to confirm.
4. The desired radio stations will be saved at your requested memory slot.
5. Press the [PRESET / FOLDER / STOP] (4) button, the display will show "PrE" then press [SKIP+ / TUNING+] or [SKIP- / TUNING-] (5-6) buttons to choose the preset stations.

TAPE OPERATION

1. Select "TAPE" mode by pressing the [FUNCTION] (2) button;
2. Press [STOP/EJECT] (15.2) button to open the cassette door (12) and insert your tape;
3. Close the cassette door (12);
4. Press [PLAY] (15.5) button to start playing tape.
5. Press [PAUSE] (15.1) button when you want to stop playing tape operation temporarily, press again to resume tape operation.
6. Press [STOP/EJECT] (15.2) button when finished, press again to open the cassette door.
7. Press [F.FWD] (15.3) button or [RWD] (15.4) button to start rapid tape winding forward / reverse direction.

CD-MP3 OPERATION

1. Select the CD mode with the [STANDBY / FUNCTION] (2) button, until "Cd" is shown in the display.
2. Insert an audio CD with the printed side facing upwards and then close the lid of the CD compartment.
3. In order to remove a CD, please press the [PRESET/FOLDER/STOP] (4) button, open the CD compartment and lift the CD out carefully.
4. During the playback of MP3 disc, you can press and hold [PRESET/FOLDER/STOP] (4) button the display will show "FOLD" then press [SKIP+ / TUNING+] & [SKIP- / TUNING-] (5-6) buttons to chose folder.

Programmed Play

This can be used to program any desired sequence of tracks.

1. Press the [PRESET / FODER/STOP] (4) button.
2. Press the [SCAN / MODE] (11) button. "P01" (Storage space) and the notification "PROG" will appear in the display.
3. Use the [SKIP+ / TUNING+] & [SKIP- / TUNING-] (5-6) buttons to select the desired track and then press the [SCAN / MODE] (11) button again.
4. The display changes to memory slot P02.
5. Select the next track with the [SKIP+ / TUNING+] & [SKIP- / TUNING-] (5-6) buttons and press the [SCAN / MODE] (11) button again. Repeat the procedure until all the desired tracks are selected.

NOTE:

1. Once the storage capacity of the tracks to be programmed has been reached "FUL" flashes in the display.
2. Press the [CLOCK / PLAY / PAUSE] (3) button. The playback starts.
3. To delete the program, press the [PRESET / FOLDER/STOP] (4) button twice. The notification "PROG" will disappear.

USB OPERATION

1. Select "USB" mode by pressing the [FUNCTION] (2) button;
2. Plug an USB device into the [USB SOCKET] (16);
3. Playback will start automatically from the first track.
4. During the playback of MP3 disc, you can press and hold [PRESET/FOLDER/STOP] (4) button, the display will show "FOLd" then press [SKIP+/-] (5/6) button to choose folder

PROGRAMMING

The PROGRAMMING operation is the same as that of CD-MP3.

Note: Some mp3 player may not be able to play via the usb socket. this is not a maulfunction of the system.

Note: To avoid damage to USB memory, remove it only when the radio is turned off.

AUX IN OPERATION

1. Select "AUX" mode by pressing the [FUNCTION] (2) button;
2. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the AUX-IN socket (17).
   Note: Music control (play, pause, etc) must be done from your external device.

TECHNICAL SPECIFICATIONS

Power Supply: AC 230V ~ 50Hz.

DC 9V = (6 x "LR14" Batteries).

Radio Frequency Coverage

FM: 87.5 - 108 MHz.

Speaker

Output Power: 2 × 2 Wrms.

General

Aux-ln: 3.5mm jack plug.

Specifications and design are subject to possible modifications without notice due to improvement.

·WARNING

230v~

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed other commercial wastes for disposal.

ORT DER BEDIENELEMENTE

1. LCD-ANZEIGE
2. POWER / FUNCTION
3. PLAY-PAUSE / CLOCK (UHR)
4. STOP/PRESET/FOLDER
5. BACK / FREQUENZ -
6. NEXT/FREQUENZ+:
7. LAUTSTARKE -
8. LAUTSTARKE +
9. LAUTSPRECHERGRILL
10. BATTERIEFACH
11. AMS / MODE
12. KASSETTENFACH
13. ANTENNE
14. CD-TÜR

15. KASSETTEN-KONTROLLEN (VON LINKS NACH RECHTS)

16. PAUSE

17. STOP / EJECT
18. FAST FORWARD
19. REWIND

20. PLAY

21. USB-BUCHSE

22. AUX-IN-BUCHSE
23. HANDHABEN
24. NETZSTECKER

STROMQUELLEN

FONCTIONNEMENT AUX-IN

Ingresso Aux-In 3.5mm jack.
