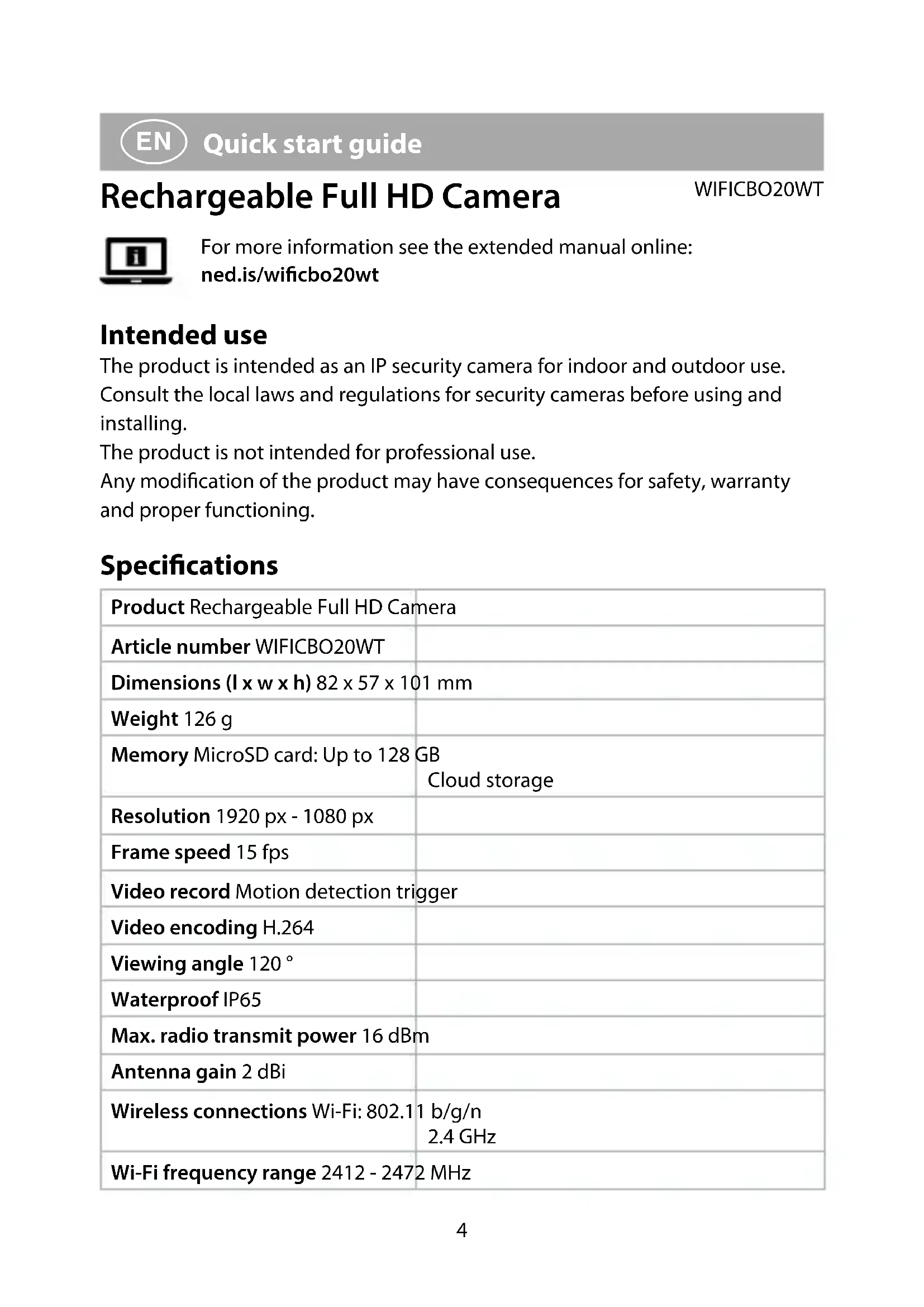

Quick start guide 4

Kurzanleitung 9

Technical diagram of an electronic device with numbered components labeled 10 to 13

Diagram of two USB connectors with a numbered circle marker (14), no text or symbols present

Rechargeable Full HD Camera

WIFICBO20WT

For more information see the extended manual online:

ned.is/wificbo20wt

Intended use

The product is intended as an IP security camera for indoor and outdoor use. Consult the local laws and regulations for security cameras before using and installing.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Rechargeable Full HD Camera
Article number WIFICBO20WT
Dimensions (l x w x h) 82 x 57 x 101 mm
Weight 126 g
Memory MicroSD card: Up to 128 GB
Resolution 1920 px - 1080 px
Frame speed 15 fps
Video record Motion detection trigger
Video encoding H.264
Viewing angle 120°
Waterproof IP65
Max. radio transmit power 16 dBm
Antenna gain 2 dBi
Wireless connections Wi-Fi: 802.11 b/g/n
Wi-Fi frequency range 2412 - 2472 MHz
Storage temperature -20 - 60 °C
Working temperature -20 - 55 °C
Power input 5 VDC
Night vision range 6 - 8 m
Image sensor 2 MP 1/2.9" CMOS sensor
Built-in microphone - 38 dB
Built-in speaker 8 Ω	1 W
Battery type 2 x 18650 (Li-ion)

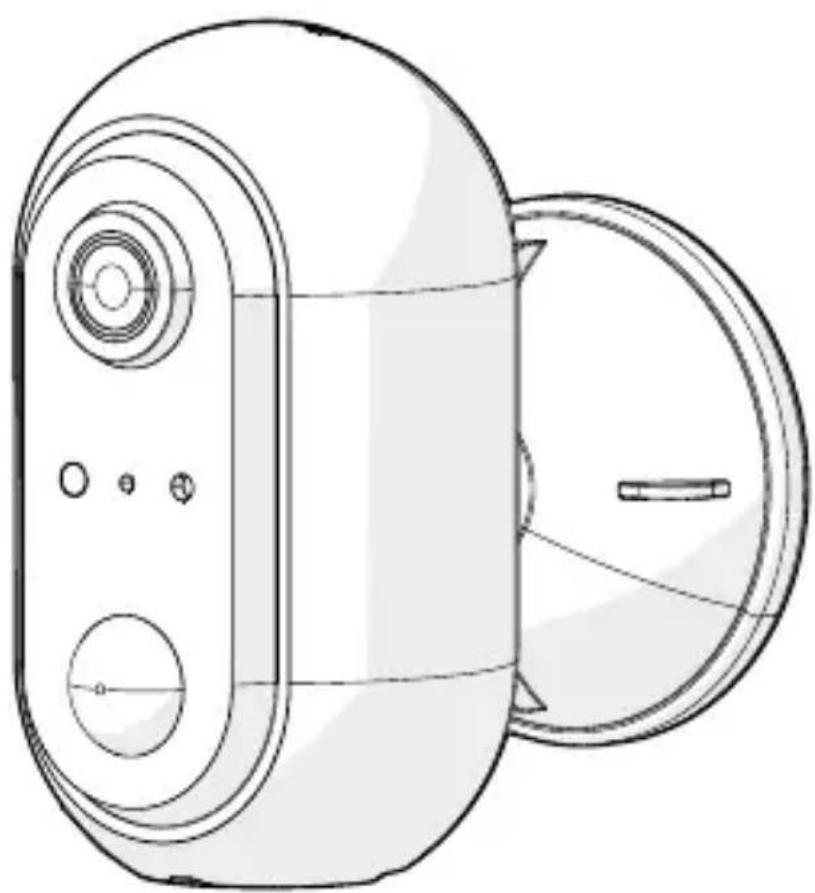

Main parts (image A)

① Mounting bracket
② Lock switch
③ Camera lens
④ Microphone
⑤ Light sensor

⑥ Status indicator LED
⑦ PIR sensor
⑧ Micro USB port
⑨ Speaker
⑩ MicroSD card slot

⑪ Reset button
⑫ Power button
⑬ Battery compartment

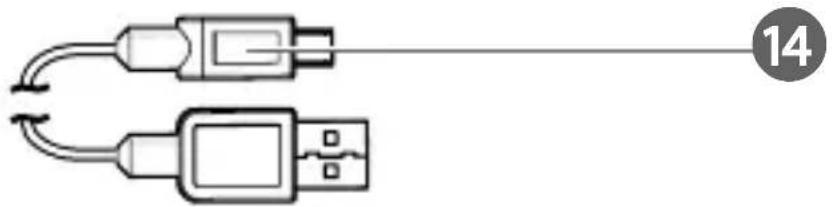

⑭ Micro USB cable

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Disconnect the product from the electrical outlet and other equipment if problems occur.
• Clean the product regularly with a soft, clean, dry cloth. Avoid abrasives that can damage the surface.

• Do not use aggressive chemical cleaning agents such as ammonia, acid or acetone when cleaning the product.

• Do not remove a cell or battery from the original packaging until required for use.

• Do not use any cell or battery that is not designed for use with the product.
• Use only the cell or battery in the application for which it was intended.
• Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
• Battery usage by children should be supervised.
• Observe the plus (+) and minus (−) marks on the cell, battery and equipment and ensure correct use.
• Dispose of the cell or battery properly.
• Seek medical advice immediately if a cell or a battery has been swallowed.
• Only use the provided USB cable
• Consult the local laws and regulations for this product before installing and using.

Preparing the security camera

1. Slide the lock switch A② to open the product.
2. Insert a microSD card (not included) into the microSD card slot A⑩.
3. Insert the required batteries into the battery compartment A ^13 .
   Observe the plus (+) and minus (−) marks on the cell, battery and equipment and ensure correct use.
4. Plug the micro USB cable A⑭ into the micro USB port A⑧.
5. Plug the other end of A ^14 into a USB adapter (not included).
6. Connect the USB power adapter to a power outlet to charge the camera.
7. Press and hold the power button A ^12 for 5 seconds to switch on the product. The status indicator LED A ^6 starts blinking.

Installing the Nedis SmartLife app

1. Download the Nedis Smartlife app for Android or iOS on your phone via Google Play or the Apple App Store.
2. Open the Nedis Smartlife app on your phone.
3. Create an account with your mobile phone number or your e-mail address and tap Continue.

You will receive a verification code on your mobile phone or e-mail address.

1. Enter the received verification code.
2. Create a password and tap Done.
3. Tap Add Home to create a SmartLife Home.
4. Set your location, choose the rooms you want to connect with and tap Done.

Connecting the app

1. Tap + in the top right corner in the Nedis SmartLife app.
2. Select the product type you want to add from the list.
3. Confirm the status indicator LED A⑥ is blinking.
4. Enter the Wi-Fi network data and tap Confirm.
5. Tap Continue and a QR-code will appear.
6. Hold your phone with a 15 - 20 cm distance in front of the camera.

If the camera has detected the QR-code, you will hear a sound.

1. Tap to confirm you heard the sound.
2. Give the product a name and tap Done. A⑥ turns blue. The product is now ready for use.

If the product failed to connect, the status indicator LED A⑥ burns red.

To reset the camera:

• Slide the lock switch A ② to open the product.
• Press and hold the reset button A ^11 for 5 seconds until you heard the sound. Then repeat step 1 to 8 closer to the router.

Important instructions to reduce false alarms

• Do not install the camera facing any objects with bright lights, including sunshine, etc.
• The ideal viewing distance is 2 - 10 meters.
• Do not place the camera close to frequently moving vehicles. The recommended distance between the camera and moving vehicles is 15 meters.
• Stay away from air outlets, including air conditioner and heat transfer vents, etc.
• Do not place the camera facing a mirror or highly reflective object.
• Keep the camera at least 1 meter away from any wireless devices, including Wi-Fi routers and phones, in order to avoid wireless interference.

The start screen of the Nedis SmartLife app

After making a successful connection with the security camera, the Nedis SmartLife app displays an overview of the products that are connected.

Select the desired product in the overview.

Making video recordings and screenshots

You can make video recordings and screenshots on your phone, by tapping Record and Screenshot.

Playing back motion detected videos

Motion detected videos are automatically saved on the microSD card. (If inserted in the camera).

1. Tap Playback to open the stored videos.
2. Select the day of the recording.
3. Zoom and drag the timeline to select the recording.

Settings

Tap the settings key to open the settings screen.

Modify product name Change the name of the security camera.

Share products Share access to the product with others.

Product info View information of the product.

Power manage View the battery status and set the low battery signal.

Basic feature settings Change the camera settings.

PIR switch Adjust the sensitivity of the motion detection.

SD card settings View the microSD card settings and set recording settings.

Feedback Send product related feedback to Nedis.

Firmware info View the version of the software.

Remove product Remove the product from the Nedis SmartLife app.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product WIFICBO20WT from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/WIFICBO20WT#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
