USER MANUAL TR275 MTX Audio

2-channel Class-AB Amplifier 6G0W Peak - 2x75W RMS

TR450

4-channel Class-AB Amplifier 900W Peak - 4x50W RMS

Designed by MTX in Phoenix, AZ - USA

Thank You!

Thank you for purchasing an MTX Audio TR amplifier. Proper installation matched with MTX speakers and subwoofer provide superior sound and performance for endless hours of waking the neighbors. Congrats and enjoy the ultimate audio experience with MTX!

Specifications:

TR275

Specifications :

2-channel Class-AB wide range amplifier
- CEA2006 certified Power Output :

• 2x110W RMS @2Ω and THD+N ≤ 1%

• 2x75W RMS @4Ω and THD+N ≤1%

• 1x220W RMS bridged @4Ω and THD+N ≤ 1%

Crossover:

• High pass 12dB/oct 80Hz

• Low pass 12dB/ocf 80Hz

• Signal-to-Noise Ratio (1 Watt): > 74dB

• THD+Noise (Distortion) (1 Watt): ≤ 0,18%
  Frequency Response (± 1dB) : 10Hz - 60000Hz
  Maximum Input Signal: 6V
  Maximum Sensitivity: 200mV
• Dimensions : 142x134x51mm
  High level inputs
• Optional EBC remote control (EBC-1)

TR450

Specifications :

• 4-Channel Class-AB wide range amplifier
• CEA2006 certified Power Output :
• 4x75W RMS @2Ω and THD+N ≤ 1%
• 4x50W RMS @4Ω and THD+N ≤1%
• 2x150W RMS bridged @4Ω and THD+N ≤1%
  Crossover:
• High pass 12dB/occt 80Hz
• Low pass 12dB/oct 80Hz
  Signal-to-Noise Ratio (1 Watt) : > 73dB
• THD+Noise (Distortion) (1 Watt): ≤ 0,2%
  Frequency Response (± 1dB) : 10Hz - 60000Hz
  Maximum Input Signal : 6V
  Maximum Sensitivity: 200mV
  Dimensions:182x134x51mm
  High level inputs
• Optional EBC remote control (EBC-1)

- Settings, Power and Speaker connections :

TR275

TR450

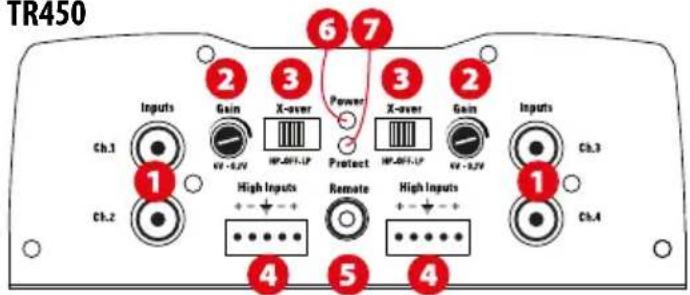

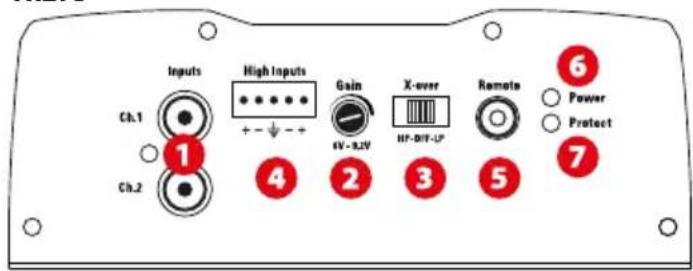

RCA Inputs (Input) : These RCA inputs are used with source units that have RCA or Line level outputs. (Source units need a minimum level of 200mV output for proper operation of the amplifier).

MTX recommends only high quality twisted pair cables (such as MTX ZNX) to decrease the possibility of radiated noise entering the system.

2 Gain Control (Gain) : The gain control matches the input sensitivity of the amplifier to the source unit being used. The operating range varies from 200mv to 6V.

Adjusting the gain

1. Turn the gain control on the amplifier all the way down (counter clockwise).
2. Turn up the volume control on the source unit to approximately 3/4 of maximum.
3. Adjust the gain control on the amplifier until audible distortion occurs.
4. Adjust the gain control down until audible distortion disappears.
5. The amplifier is now calibrated to the output of the source unit.

X-Over Switch (X-Over) :

In "LP" position, the active low pass (LP) x-over is turned on to 80Hz 12dB/Oct. Use this position for subwoofer application. In "HP" position, the active high pass (HP) x-over is turned on to 80Hz 12dB/Oct. Use this position for speaker application. In "Off" position, the x-over is turned off. The amp is in wide range mode.

Speaker level inputs (High Inputs): This input will allow the amplifier to operate from source units with speaker-level outputs. Output speaker leads from the source unit should be tied directly to the wire harness provided with the amplifier.
Note : When speaker level inputs are used, a remote turn on wire must used to switch the amplifier on and off.
External Bass Control Port (Remote) - The Subwoofer Level Control Remote (EBC) plugs directly into this port, while the EBC itself can be placed anywhere in the vehicle for on demand bass adjustments. Attention, the EBC is optional. You can purchase it separately (Reference : EBC-1).
PowerOn LED (Power): The LED illuminates green when the amp is switched on.
Protection LED (Protec.): The LED illuminates red when the amp is in short circuit or thermal protection.

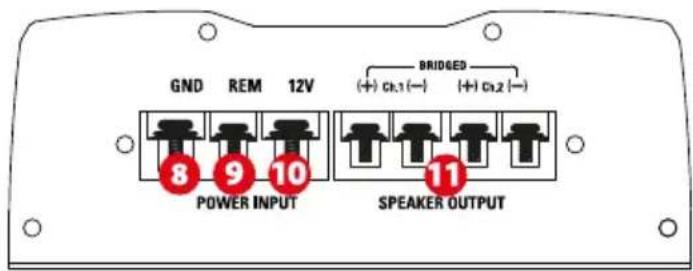

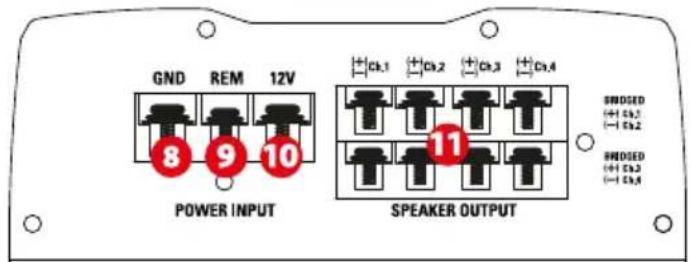

Ground Terminal (GND): A proper ground is required for your amplifier to operate at peak performance. A short ground cable the same diameter as the power cable should be used to attach the ground terminal directly to the chassis of the vehicle. Always remove paint, dirt or debris to expose bare metal where the ground will be attached.
Remote Terminal (REM) : The amplifier can be turned on by applying 12 volts to this terminal. Typically this voltage is supplied by a wire from the source unit marked “remote” or “power antenna”.
(+12V) Power Terminal (12V): This is the main power input for the amplifier and must be connected directly to the positive terminal of the vehicles battery for proper operation. Use caution when installing (+12) power cable in the vehicle. Avoid running this cable parallel with RCA cables, antennas, or other sensitive equipment due to massive currents that can induce noise into the audio system. It is also very important to have a tight, secure connection for maximum performance. MTX recommends using 8 10mm^2 power wire with the MTXTR275 and TR450.

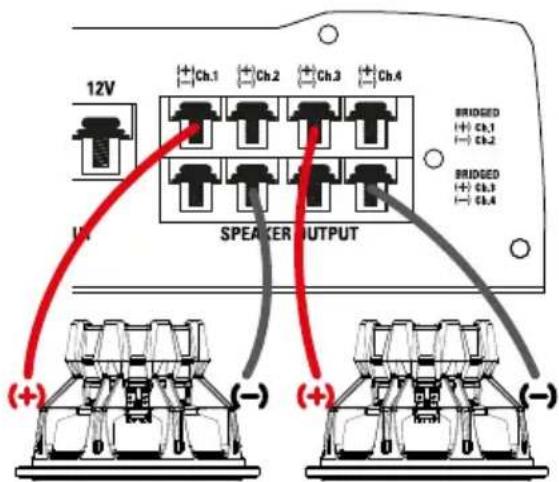

Speaker Terminals (Speaker Output): Connect speakers to these terminals. Ensure correct polarity, positive-to-positive (+ / +) and negative-to-negative (- / -) . Reversing the polarity strongly degrades the bass level and the sound quality.

Bridge Mode :

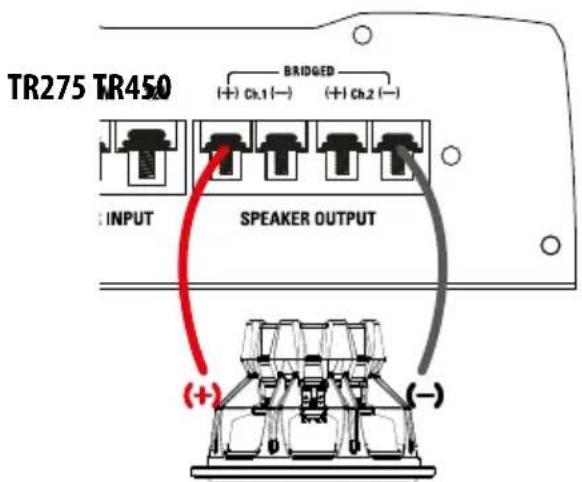

TR275 : When bridging the amplifier, use the Ch.1 positive terminal and the Ch.2 negative terminal only.

TR450 : When bridging the amplifier, for the two first channels, use the Ch.1 positive terminal and the Ch.2 negative terminal only. For the two following channels, take the Ch.3 positive terminal and the Ch.4 negative terminal.

Warning : do not bridge the amplifier with an impedance lower than 4

Installation & Mounting :

MTX recommends your new amplifier be installed by an Authorized MTX retailer. Any deviation from specified installation instructions can cause serious damage to the amplifier, speakers and/or vehicle's electrical system. Damage caused from improper installation is NOT covered under warranty. Please verify all connections prior to system turn on!

1. Disconnect the vehicle's negative battery cable.
2. Determine the mounting place for your MTX amplifier. Keep in mind there should be sufficient air flow for proper cooling. Mark the mounting holes from the amplifier to be drilled. Before drilling make sure all vehicle wires, gas lines, brake lines and gas tank are clear and will not interfere with installation. Drill the desired holes and mount the MTX amplifier.
3. Install a positive (+) power cable from the vehicle's battery through the firewall using a grommet or firewall bushing to avoid cable damage from sharp edges of the firewall. Run the cable through the interior of the vehicle and connect it to the amplifier's (12V) terminal. Do Not connect to the battery at this time.

Note : Use only proper gauge wire for both positive and negative connections.

1. Install a circuit breaker or fuse within 20cm of the battery. This effectively lowers the risk of severe damage to you or your vehicle in case of a short circuit or accident. Make sure the circuit breaker is switched off or the fuse is taken out of the fuse holder until all connections are made. Now connect your positive power cable to the positive battery terminal of the battery.
2. Grounding - Locate a proper ground point on the vehicle's chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach the ground wire to that contact point. Connect the opposite end of the ground wire to the (GND) terminal on the MTX amplifier.
3. Connect a Remote Turn-on wire from the head unit to the MTX amplifier's Remote terminal. If the head unit does not have a dedicated Remote Turn-on lead, you may connect to the head unit's Power Antenna lead.
4. Connect RCA cables from the head unit to the MTX amplifier's RCA inputs. Run all signal cables away from vehicle wiring, computers and power cables. If cables must be crossed do so at a 90^ angle. Use only high quality RCA cables to decrease radiated noise from entering the system.
5. Connect your speakers to the MTX amplifier's speaker terminals using proper gauge wire.
6. Double check all previous installation steps, in particular, wiring and component connections. Once verified, reconnect the vehicle's negative battery cable, turn the circuit breaker on or place the fuse in the fuse holder.

Note : Gain Levels on the amplifier should be turned all the way down (counter clockwise) before proceeding with adjustments.

Troubleshooting:

Problem

Cause

Solution

Power LED is off No +12V at remote connection Supply +12V to terminal

No +12V at Power connection Supply +12V to terminal

Insufficient ground connection Verify ground connection

Blown power fuse Replace fuse and try to understand why

Blown amp Return for service

3 LEDs are flashing red Speaker load is too low Remove the speaker(s)

The amp is in thermal protection Wait for the amp to cool down

Input tension is too high or too low Check your battery and your alternator

3 LEDs are solid red, Volume on head unit off Increase volume on head unit

but no output

Speaker connections not made Make speaker connections

Gain control on amplifier set to minimum

Turn up gain

Signal processing units off

Apply power to signal processor

All speakers blown

Replace speakers

Output distorted

Head unit volume set too high Lower head unit volume

Amplifier gain set too high

Lower amplifier gain

Balance reversed

Speakers wired reversed

RCA inputs reversed

Reverse RCA input

Bass is weak

Speakers wired out of phase

Not using MTX woofers

Buy MTX woofers

Blowing fuses

Excessive output levels

Amplifier defective

Return for service

Wire speakers with correct orientation

Wire speakers with correct phase

Lower the volume

Stay Tuned - Technical support :

mtxaudio.eu

[e-mail]

twitter.com/MTXEurope

facebook.com/MTXEurope

Installation examples :

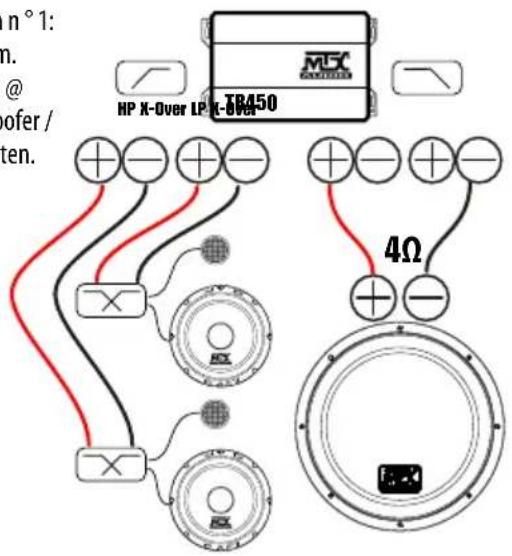

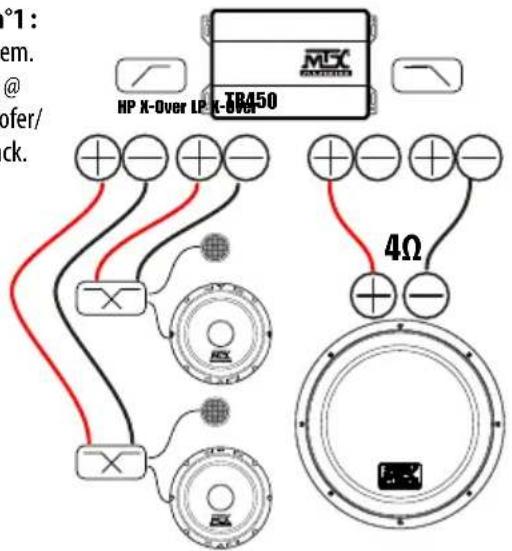

Installation n°1: 3-Channel system. Compo system @ front + subwoofer/ enclosure @ back.

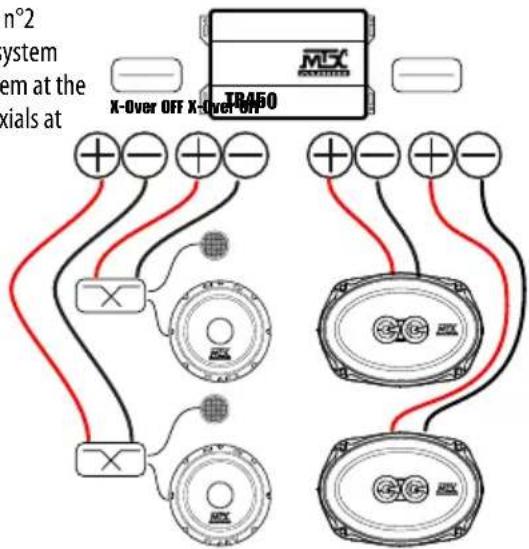

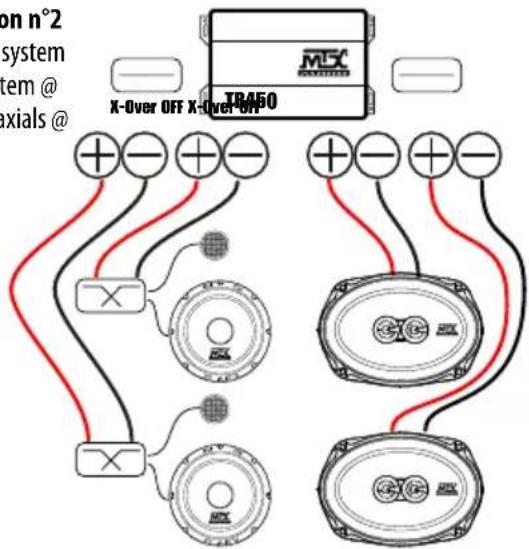

Installation n°2 4-Channel system Compo system @ front + coaxials @ back.

Installation n°3: 5-Channel system. Compo system @ front + coaxials @ back + subwoofer/enclosure system @ back

Installation n°4:

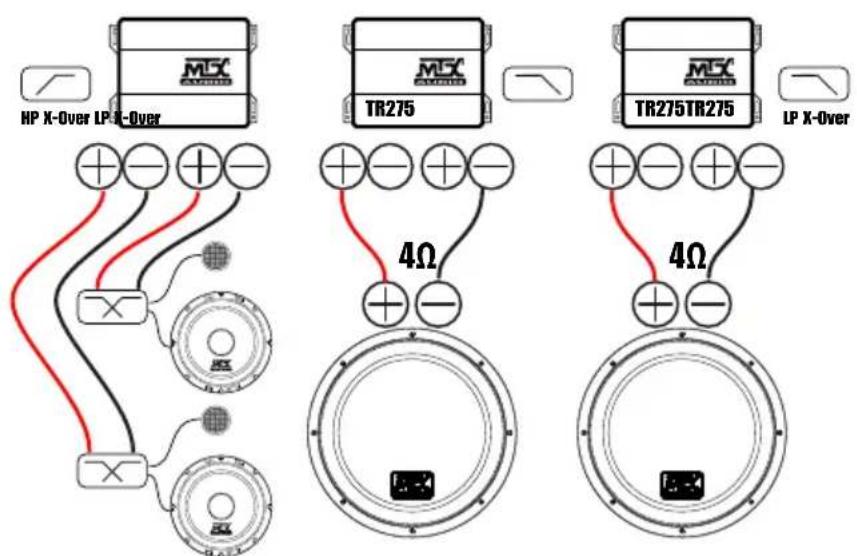

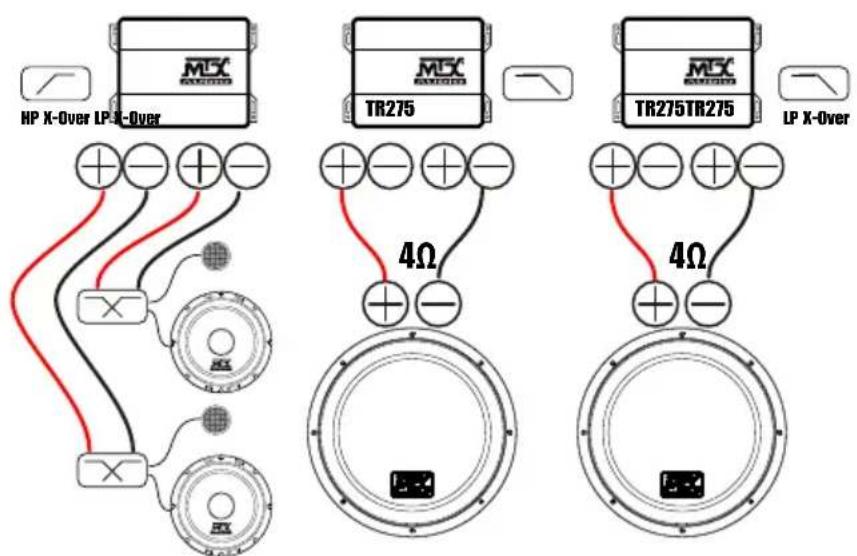

3-Channel system
with multiple amps.
Compo system @ front
+ dual subwoofer/enclosure system @ back

Recommended subwooers/enclosures: TR12-04, TR12AV, RTE12AS, RTF10AS, RT12AT, RT10AS, RT12AV
Recommended speakers: any TR/TRS speakers, any TX2 speakers, any TX4 speakers, any RTC/RTS speakers

Merci!

twitter.com/MTXFrance

facebook.com/MTXFrance

twitter.com/MTXEurope

facebook.com/MTXEurope

Einbaubeispiele :

Die Installation n°1: 3-Kanal-System. Compo System @ Front + Subwoofer / Gehäuse @ hinten.
Die Installation n°2 4-Kanal-System Compo System @ X-Over Off X-Over Off 0
Vorne + Coaxials @
hinten.

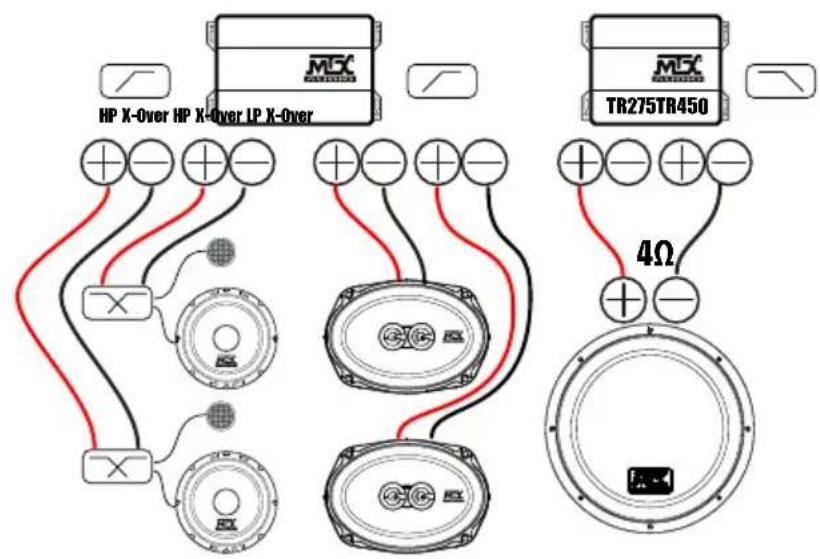

Die Installation n°3: 5-Kanal-System. Compo System @ Front + Coaxials @ hinten + Subwoofer / Gehause System @ hinten.

twitter.com/MTXEurope

facebook.com/MTXEurope

Exemplos de instalacao :

twitter.com/MTXEurope

facebook.com/MTXEurope

PnmuHHe: yOboEnb ycIneHndoJIoKHe6bIbY6paH DoYo npoTnB YacOBn CTpeKN, npeaHaJOM KoppeKtnpOBKn yOboHnycIneHn.

YctpaHHe HeNCnPaBHOCTeI:

Ipo6nema

PpHnHa

PeweHne

3 CBeToDIOda BbIKIOueHb Het +12 Ha ynpabIAIOUeM npOBOe IOnKIIIOHTe NITaHHe KaIeMMy +12B

He+12B npn noKkIooHm nTahm IooKIOUHTe nTahme Ha KJIeMMy + 12 B

HnpeBnBHoe noKJIoueHne 3a3emHeHn IpoBepbTe 3a3emHeHn

IpeperopnpeoopaHTeB nTAHm3aMeHnTe ppeoopaHTeB n nonbtaTecb noHTb, noemy

YcHJNTeB HeCNpbaEH 06paTntecb B cepBnC

3 CBeToIIOHa MmraIOT KpaChbIM Harpy3Ka DnHAMNKOB CNMIXKOM Hn3Ka CHIMITE DnHAMNK (I)

yCJNTeHb HaxoHTcB B pexIMe TeNIOBo 3aunTbI DaTe yCJNTeIOO cTbTb

Bxodhoe HapjkeHne CnIeKOM BbICoKo NII CNIeKOM HN3K IpOBePbTe AkkymyTOp n RehepaTOp

3 CBeToIOHa rOpT KpaChbIM, 3ByK Ha rOIOBHom yCTpoIcTBe BbIKNoHcYbENuBte TpOMKocTb Ha rOIOBHom yCTpoIcTBe

Hn HET 3Byka He npou3BeHeo nOIOKNIQUeHne DInHaMnKOB

PeryIaTOp ynpablenHy ycHHeHem BbCTaBHeHa MmHmMyM

06pa6oTKa CMHaNa BBkHIOHeHa

BceDINHAMKINBbIINH3CTPO8

BbIXOHOH CmHn NcKaJhaTcY OoBeHb TpOMKoCTn YC mIuKOM BbICOKO

Ko3ΦΦHHT yCmHn CHNtKOM BbICOKO

Ipepyan 6anaHc Ipepyan 6anaHc

IpepyntaHbXoDbRCA

Bac cna6bI DnHaMnK pa0a3npoBaHbI

He nclnoh3yetcMTX ca6byeep

PpeOxpaHnTei HneCnpaBhbl POnbIeHbIypoBeHb BixoJa

YcHInTeB HeHcnpaBeH 06paTHeB CepBnC

NIOIbTaIaTeCb IOHrTb,IOYEMy

M3KaA CHIMITE dmHAMNK (N)

e110ocTbTB.

BepTe aKcyMnyaTOp n reHepaTOp

YBENbTe TpOMKoCTb Ha rONOBHOM yCTPOICTBE

BbINOHTe NOKNIQUEHINHAAMKOB

Otperyuyeucnne

IpaaiTe nTahne Ha npocccop CnHaIOB

3aMeHnTb DnHaMnKu

ymehbwnite KO3ΦmneHT ycnneHn

IIOKJIQUHTE BXOdbi RCA B COOTBETCTBn C KaHAnAMn T

PoiKlOuHTe DnHaMnK CcoBNoJeHnEM fo3bl

Kynntb MTX ca6Byepe

a YmehbuntepomKoCTb

OCTaBaItecb cHaMn :

mtx-audio.de

[e-mail]

twitter.com/MTXEurope

facebook.com/MTXEurope

twitter.com/MTXEurope

facebook.com/MTXEurope

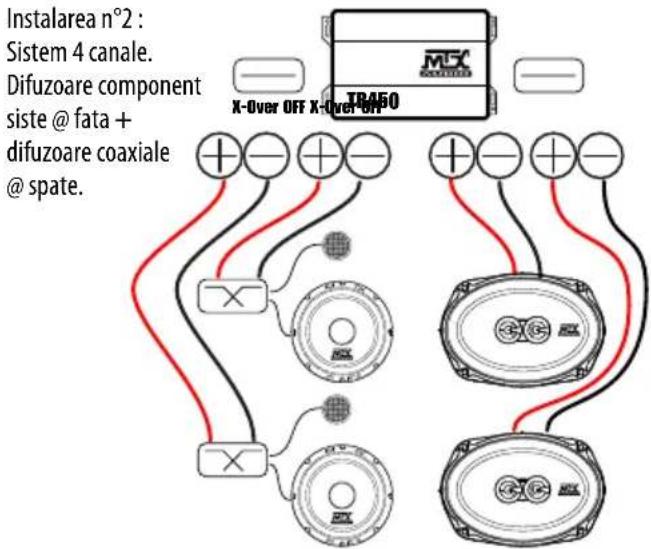

Exemple instalare :

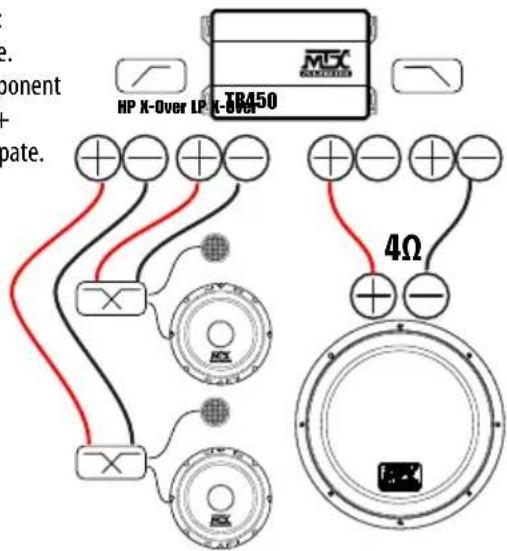

Instalarea n°1:
