USER MANUAL TX2275 MTX Audio

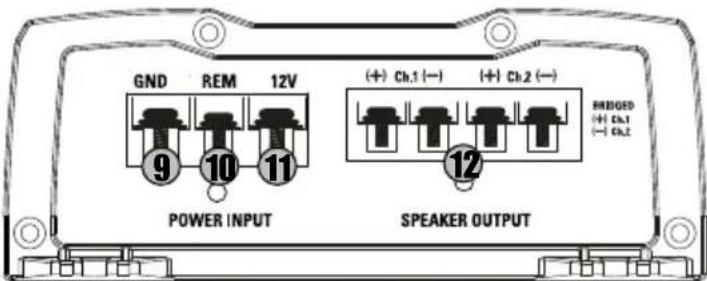

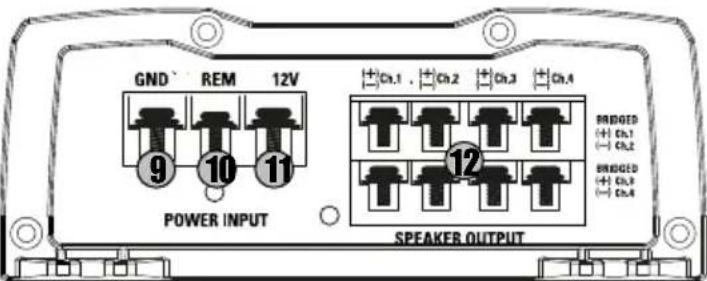

mtxaudio.eu facebook.com/MTXEuropetwitter.com/MTXEurope TX2275 2-channel Class-AB Amplifier 660W Peak - 2x75W RMS Designed by MTX in Phoenix, AZ - USA TX2450 4-channel Class-AB Amplifier 900W Peak - 4x50W RMSSettings, Power and Speaker connections : TX2275 TX2450 Thank you for purchasing an MTX Audio TX2 amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of waking the neighbors. Congrats and enjoy the ultimate audio experience with MTX ! Thank You ! Specifications :

• 4-Channel Class-AB wide range amplifier

• CEA2006 certified Power Output : - 4x75W RMS @2Ω and THD+N ≤1% - 4x50W RMS @4Ω and THD+N ≤1% - 2x150W RMS bridged @4Ω and THD+N ≤1%

• Crossover : - High pass 12dB/oct, variable from 50Hz to 120Hz - Low pass 12dB/oct, variable from 50Hz to 120Hz

• Optional EBC remote control (EBC-1)

• 2-channel Class-AB wide range amplifier

• CEA2006 certified Power Output : - 2x110W RMS @2Ω and THD+N ≤1% - 2x75W RMS @4Ω and THD+N ≤1% - 1x220W RMS bridged @4Ω and THD+N ≤1%

• Crossover : - High pass 12dB/oct, variable from 50Hz to 120Hz - Low pass 12dB/oct, variable from 50Hz to 120Hz

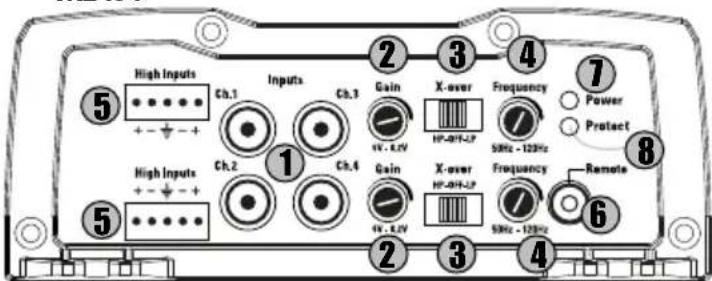

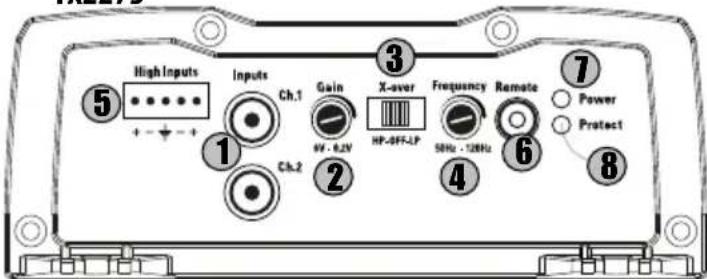

• Optional EBC remote control (EBC-1) RCA Inputs (Input) : These RCA inputs are used with source units that have RCA or Line level outputs. (Source units need a minimum level of 200mV output for proper operation of the amplifier). MTX recommends only high quality twisted pair cables (such as MTX ZNX) to decrease the possibility of radiated noise entering the system. Gain Control (Gain) : The gain control matches the input sensitivity of the amplifier to the source unit being used. The operating range varies from 200mv to 6V.

USA - UKAdjusting the gain

1. Turn the gain control on the amplifier all the way down (counter clockwise).

2. Turn up the volume control on the source unit to approximately 3⁄4 of maximum.

3. Adjust the gain control on the amplifier until audible distortion occurs.

4. Adjust the gain control down until audible distortion disappears.

5. The amplifier is now calibrated to the output of the source unit.

X-Over Switch (X-Over) : In “LP” position, the active low pass (LP) x-over is turned on. Use this position for subwoofer application. In “HP” position, the active high pass (HP) x-over is turned on. Use this position for speaker application. In “Off” position, the x-over is turned off. The amp is in wide range mode. X-Over Frequency Control (Frequency) : Used to select the desired x-over frequency. The frequency is adjustable from 50Hz to 120Hz. Speaker level inputs (High Inputs) : This input will allow the amplifier to operate from source units with speaker-level outputs. Output speaker leads from the source unit should be tied directly to the wire harness provided with the amplifier. Note : When speaker level inputs are used, a remote turn on wire mustbe used to switch the amplifier on and off. External Bass Control Port (Remote) - The Subwoofer Level Control Remote (EBC) plugs directly into this port, while the EBC itself can be placed anywhere in the vehicle for on demand bass adjustments. Attention, the EBC is optional. You can purchase it separately (Reference : EBC-1). PowerOn LED (Power) : The LED illuminates green when the amp is switched on. Protection LED (Protec.) : The LED illuminates red when the amp is in short circuit or thermal protection. Ground Terminal (GND) : A proper ground is required for your amplifier to operate at peak performance. A short ground cable the same diameter as the power cable should be used to attach the ground terminal directly to the chassis of the vehicle. Always remove paint, dirt or debris to expose bare metal where the ground will be attached. Remote Terminal (REM) : The amplifier can be turned on by applying 12 volts to this terminal. Typically this voltage is supplied by a wire from the source unit marked “remote” or “power antenna”. (+12V) Power Terminal (12V) : This is the main power input for the amplifier and must be connected directly to the positive terminal of the vehicles battery for proper operation. Use caution when installing (+12) power cable in the vehicle. Avoid running this cable parallel with RCA cables, antennas, or other sensitive equipment due to massive currents that can induce noise into the audio system. It is also very important to have a tight, secure connection for maximum performance. MTX recommends using 8~10mm power wire with the MTX TX2275 and TX2450. Speaker Terminals (Speaker Output) : Connect speakers to these terminals. Ensure correct polarity, positive-to-positive (+/+) and negative-to- negative (-/-). Reversing the polarity strongly degrades the bass level and the sound quality. Bridge Mode : TX2275 : When bridging the amplifier, use the Ch.1 positive terminal and the Ch.2 negative terminal only. TX2450 : When bridging the amplifier, for the two first channels, use the Ch.1 positive terminal and the Ch.2 negative terminal only. For the two following channels, take the Ch.3 positive terminal and the Ch.4 negative terminal.

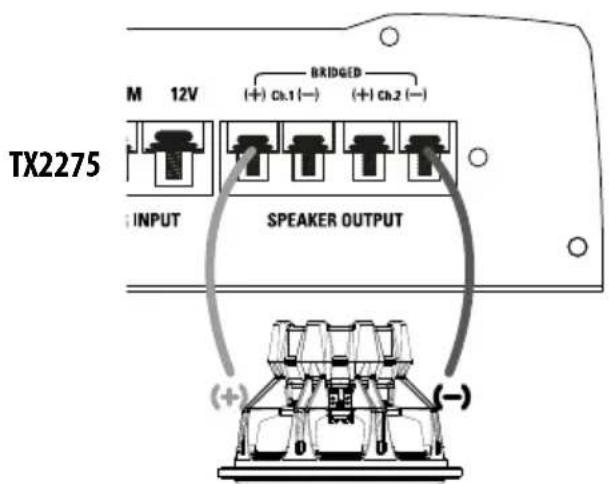

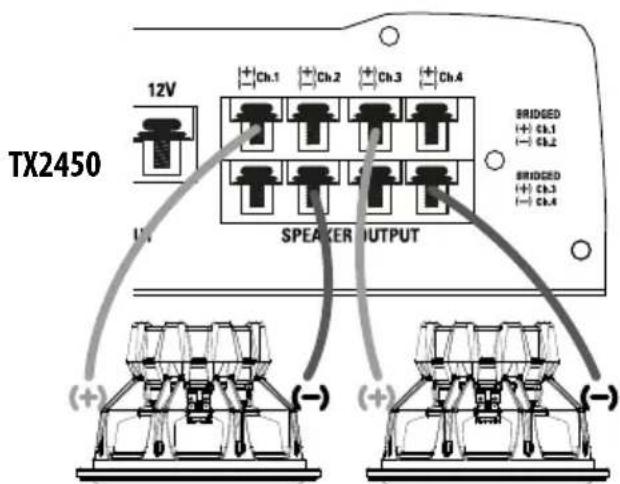

Warning : do not bridge the amplifier with an impedance lower than 4Ω.

8mtxaudio.eu facebook.com/MTXEurope [e-mail] twitter.com/MTXEurope Installation & Mounting : MTX recommends your new amplifier be installed by an Authorized MTX retailer. Any deviation from specified installation instructions can cause serious damage to the amplifier, speakers and/or vehicle’s electrical system. Damage caused from improper installation is NOT covered under warranty. Please verify all connections prior to system turn on !

1. Disconnect the vehicle’s negative battery cable.

2. Determine the mounting place for your MTX amplifier. Keep in mind there should be sufficient air flow for proper cooling. Mark the mounting holes from the amplifier to be drilled. Before drilling make sure all vehicle wires, gas lines, brake lines and gas tank are clear and will not interfere with installation. Drill the desired holes and mount the MTX amplifier. 3. Install a positive (+) power cable from the vehicle’s battery through the firewall using a grommet or firewall bushing to avoid cable damage from sharp edges of the firewall. Run the cable through the interior of the vehicle and connect it to the amplifier’s (12V) terminal. Do Not connect to the battery at this time. Note : Use only proper gauge wire for both positive and negative connections. 4. Install a circuit breaker or fuse within 20cm of the battery. This effectively lowers the risk of severe damage to you or your vehicle in case of a short circuit or accident. Make sure the circuit breaker is switched off or the fuse is taken out of the fuse holder untill all connections are made. Now connect your positive power cable to the positive battery terminal of the battery. 5. Grounding - Locate a proper ground point on the vehicle’s chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach the ground wire to that contact point. Connect the opposite end of the ground wire to the (GND) terminal on the MTX amplifier. 6. Connect a Remote Turn-on wire from the head unit to the MTX amplifier’s Remote terminal. If the head unit does not have a dedicated Remote Turn-on lead, you may connect to the head unit’s Power Antenna lead. 7. Connect RCA cables from the head unit to the MTX amplifier’s RCA inputs. Run all signal cables away from vehicle wiring, computers and power cables. If cables must be crossed do so at a 90° angle. Use only high quality RCA cables to decrease radiated noise from entering the system.

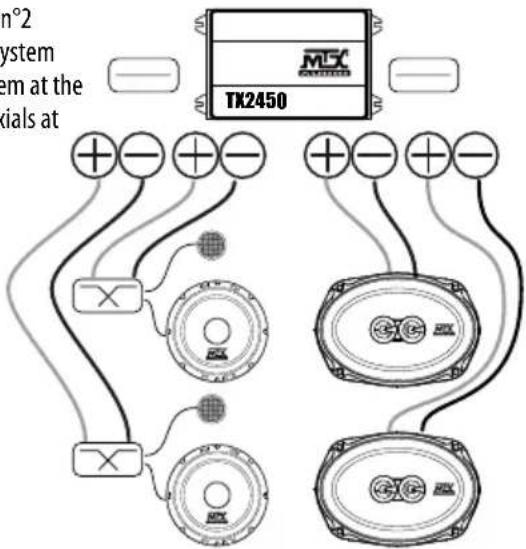

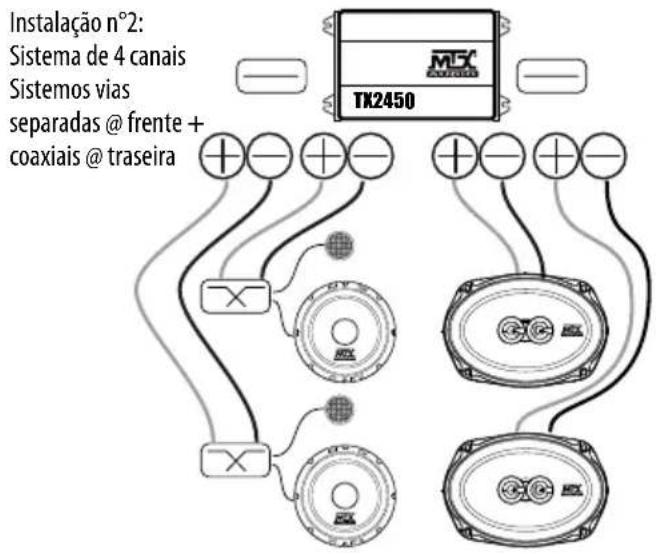

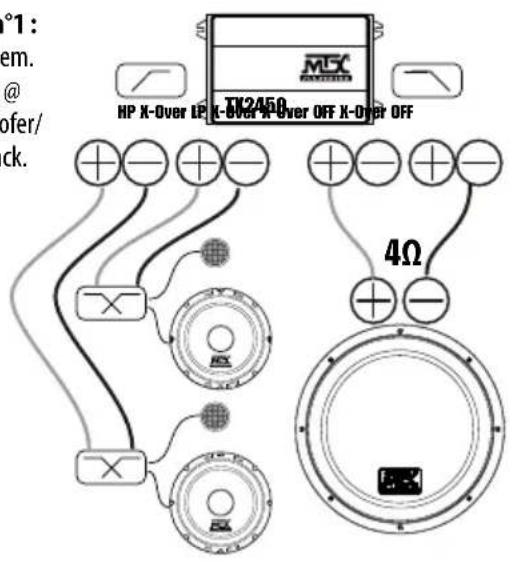

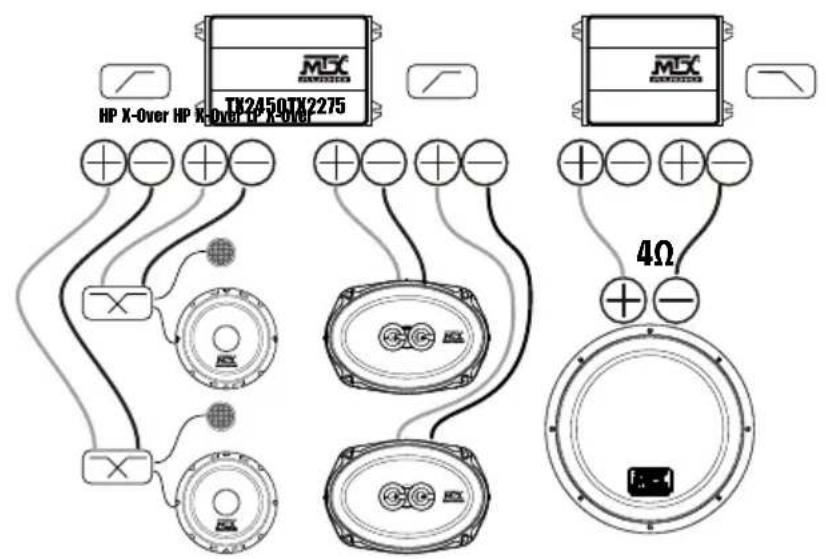

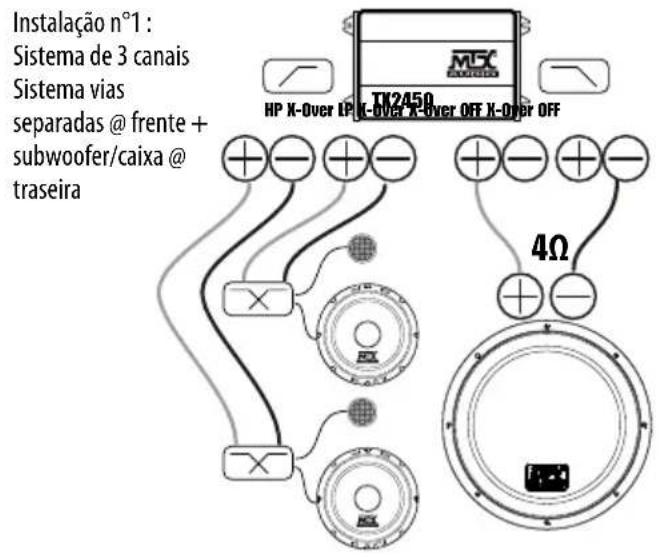

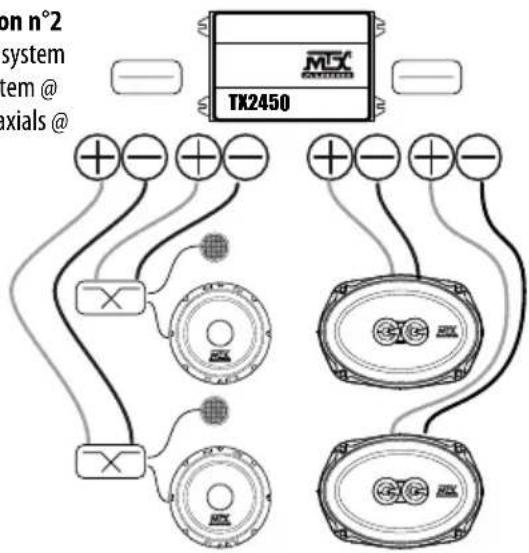

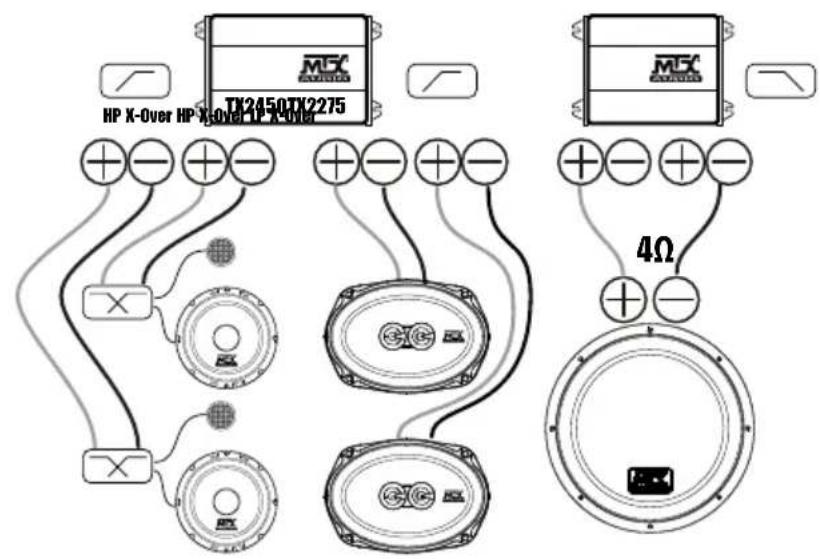

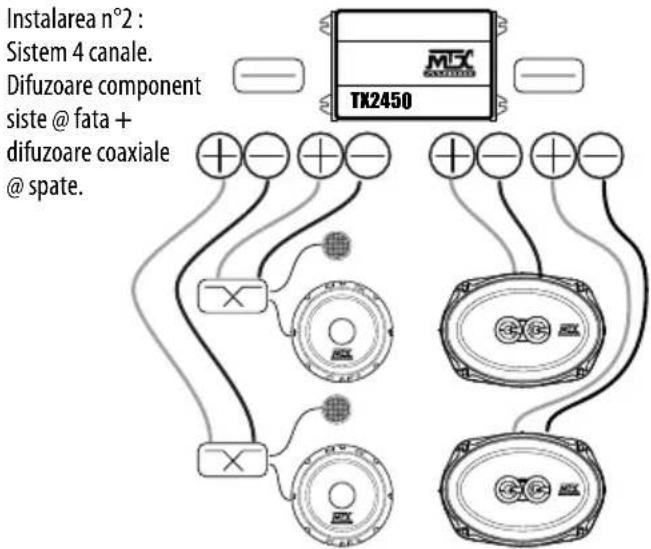

8. Connect your speakers to the MTX amplifier’s speaker terminals using proper gauge wire.

9. Double check all previous installation steps, in particular, wiring and component connections. Once verified, reconnect the vehicle’s negative battery cable, turn the circuit breaker on or place the fuse in the fuse holder. Note : Gain Levels on the amplifier should be turned all the way down (counter clockwise) before proceeding with adjustments. Troubleshooting : Problem Cause Solution Power LED is off No +12V at remote connection Supply +12V to terminal No +12V at Power connection Supply +12V to terminal Insufficient ground connection Verify ground connection Blown power fuse Replace fuse and try to understand why Blown amp Return for service 3 LEDs are flashing red Speaker load is too low Remove the speaker(s) The amp is in thermal protection Wait for the amp to cool down Input tension is too high or too low Check your battery and your alternator 3 LEDs are solid red, Volume on head unit off Increase volume on head unit but no output Speaker connections not made Make speaker connections Gain control on amplifier set to minimum Turn up gain Signal processing units off Apply power to signal processor All speakers blown Replace speakers Output distorted Head unit volume set too high Lower head unit volume Amplifier gain set too high Lower amplifier gain Balance reversed Speakers wired reversed Wire speakers with correct orientation RCA inputs reversed Reverse RCA input Bass is weak Speakers wired out of phase Wire speakers with correct phase Not using MTX woofers Buy MTX woofers Blowing fuses Excessive output levels Lower the volume Amplifier defective Return for service Stay Tuned - Technical support :Installation examples :

PROBLÈMES CAUSES SOLUTIONS
