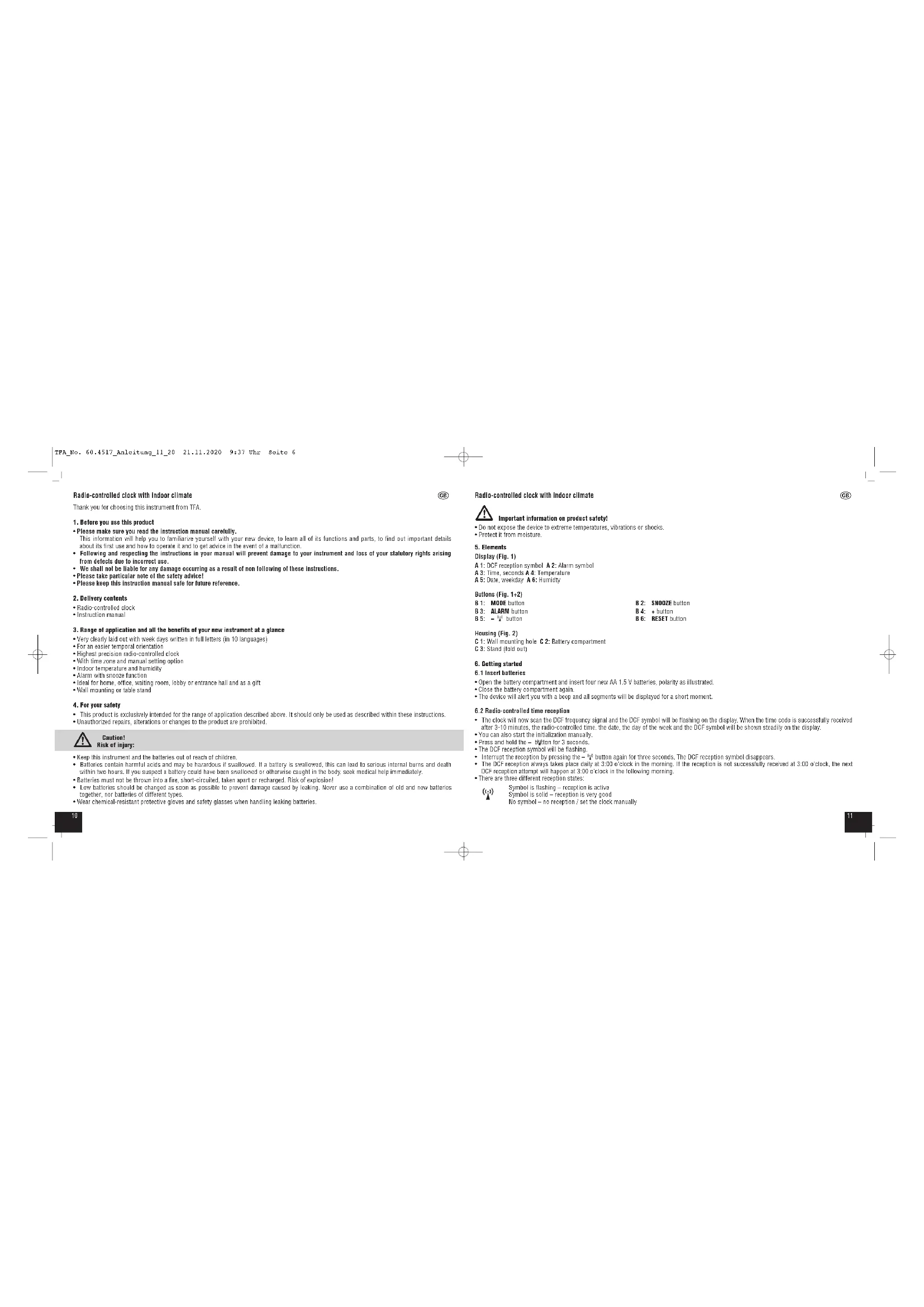

USER MANUAL 60.4517.54 TFA

Radio-controlled clock with Indoor climate

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the Instruction manual carefully.
  This information will help you to familiarize yourself with your new device, to learn all of its functions and parts. To find out important details about its first use and how to operate it and in what direction in the event of a malfunction.
  Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
  We shall not be liable for any damage occurring as a result of non following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Radio-controlled clock
• Instruction manual

3. Range of application and all the benefits of your new instrument at a glance

• Very clearly laid out with week days written in full letters (in 10 languages)
  For an easier temporal orientation
  Highest precision radio-controlled
  With time zone and manual setting option
• Indoor temperature and humidity
• Alarm with snooze function
  Iieal for hame, cthc, waling room, looby or enance nall and as a girl

4. For your safety

• This product is exclusively intended for the range of apoloaion described abo. It should only be used as described within these instructions.
  Unauthorized repairs, alterations or changes to the product are prohibited.

Caution!

Risk of injury:

• Keep this instrument and the batteries out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
  within 10 hours . If you suspect a baby could have been swarmed or disturbed while caught in the house ,Batteries must not be thrown into a fire , when provoked , taken away as recovered Risk of unplanned
• Bacteria must not be uninfected in the first instance; taken apart or reactivated, risk of exposure
• Low bacteria should be changed as soon as possible to prevent damage caused by scaling. Never use a combination of old and new bacteria
  Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Radio-controlled clock with Indoor climate

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
• Protect it from moisture

5. Elements

Display (Fig. 1)

A1:DCFreepion symbol A2:Alarmsymbol
A 3: Time, seconds A 4: Temperature
A5:Date,weekday A6:Hurmidty

Bullons (Fig. 1+2)

B1:MODE button
B.3:ALARM button
B5:-%Dutico

B2:SNOOZEBuTan
A4：+ button
B6：RESETDUTIO

Housing (Fig. 2)

C1:Wallmounting hole C2:Battery compartment
C3: Stand ifold out

6. Getting started

6.1 Insert batteries

Open the battery compartment and insert four new AA 1.5 V batteries, polarity as illustrated.
- Close the battery compartment again
The device will alert you with a beep and all segments will be displayed for a short moment.

6.2 Radio-controlled time reception

The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code is successfully received
after 3-10 minutes, the radio-controlled time, the date, the day of the week and the DCF symbol will be shown steadily on the display.
- You can also start the initialization manually.
Press and hold the button for 3 seconds. The DRS command will be displayed.
- The DCF reception symbol will be flashing.
- Interrupt the generation by pressing the -2 button again in three seconds. The DCF reception symbol disappears.
The DCF reception always takes place daily at 3:00 o'clock in the morning. If the reception is not successfully received at 3:00 o'clock, the next
DCF reception attempt will happen at 3:00 o'clock in the following morning.
There are three different reception states

Symbol is flashing - reception is active

Symidi is solid - responion is very good.

Radio-controlled clock with Indoor climate

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting disturbances, etc.), the time can be set manually. The DCF reception symbol disappears and the clock will then work as a normal quartz clock (see: Manual settings).

6.2.1 Note on radio-controlled time

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braunschweig (Trondheim), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainlflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. The adjustment to Daylight Saving Time (summer/winter time) is automatic. In Daylight Saving Time the DST system is shown to the display. The reception quality depends initially on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.
• Within concrete walls (teached with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close in a shield to impede reception.
• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

7. Operation

• Press and hold the or button in the respective setting mode for quick setting.
• The device will automatically quit the setting mode if no button is pressed for a long period of time.

7.1 Manual settings

Press and hold the MODE button in normal mode for two seconds. The 24 h light (default) will be flashing. Press the + or -H button in choose 12 FR or 24 TR system. In the 12-hour system AM or PM (after 12 o'clock) appears on the display. Press the MODE button again to do the settings in the following sequence: the radio signal reception (ccn - default), time zone (00 - default), the day-of-the-week language (GERMAN - default), the hours, the minutes, the seconds, the year, the month and the day, the temperature unit (°C - default) and the alarm interval (2 minutes - default). Press the + or -H button to adjust it.

-Once the DCF time signal is successfully received and the DCF reception is activated, the manually set time is overwritten.

7.1.1 DCF reception

• By default, the DCF reception is activated (rec en) and after successful reception of the DCF signal on manual adjustment it is necessary.
• In the setting mode, press the 4 = -P^ button if you want to clean the DCF reception (rec CF).
• The DCF reception is turned off when the DCF receiver is turned off.

7.1.2 Time zone setting

+in the setting mode you can make the time zone correction (= 23 +1) The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1 one hour plus).

Radio-controlled clock with Indoor climate

7.1.3 Day-of-the-week language

In the setting made you can art the day-of-the-week language: GFRMAN, FRENCH, ITALIAN, SPANISH, DANISH, DUTCH, CZEICH, POLI, SWEDISIT and ENGLISH.

7.1.4 Temperature unit setting

In the setting mode you can change between ^ C (Celsius) or ^ F (Fahrenheit) as temperature unit.

7.1.5 Alarm duration setting

In the setting mode you can change between 1 or 2 minutes (default) for alarm duration.

7.2 Alarm time setting

• Press the MODE button in normal mode, to enter the alarm mode.
• MI ARM TIMF and 7:00 (default) or the last adjusted alarm time appear on the display.
• Press and hold the MODE button.
• The hour digits flash.
• Press the -flat icon to adjust the hours.
• Confirm the setting with the MODE button and set minutes in the same way.
• Confirm the setting with the MODE button and return to normal mode.

7.2.1 Activale and deactivite the alarm limiter

To activate or deactivate the alarm function press the ALARM button in normal mode
- Where the alarm is activated and the adjusted alarm time is reached, the alarm rings. - Press any button and the alarm will stop.
If the alarm is not stopped manually, the alarm force automatically runs off after two minutes (default) on one minute and will be reactivated at the same set time in the following day.
The alarm symbol remains on the display.
- When the alarm rings, press the SNOOZE button and the snoeze function is activated. - Once the snoozoe function is activated, the alarm symbol will be flashing on the display, indicating that the alarm has been activated.
- Press any button (except SNOOZE) and the alarm will stop.
The alarm symbol remains on the display.

8. Mounting

With the suspension device you can fix the device with a nail or a solid screw and dowel on a wall. The device can be placed onto flat surfaces with the indut-stand.

9. Care and maintenance

Clean the device with a soft damp cloth. Do not use solvents or scouring agents. Remove the batteries if the device will not be used for an extended period of time. Keep the device in a dry place.

Radio-controlled clock with indoor climate

9.1 Battery replacement

Change the batteries when the battery symbol appears on the display.
Open the battery compartment and insert four new AA 1.5 V batteries, polarity as illustrated.
- Close the battery compartment again.

10. Troubleshooting

No display on the device Ensurer the batteries, no activity are correct.

Change the barriers

No DCF reception Press and hold the - button for three seconds to activate the reception

Activate GCF reception in setting mode
Wait for an attempt reception during the night
Choose another place for your product
Set the clock manually
Check if there is any source of interference.
→Restart the instiunrncl according to the nurnual

Incorrect Indication

Change the batteries
Use a pin to press the RESET button

If your device fails to work despite these measures contact the retailer where you purchased the product.

11. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.
Fever disperse of empty batteries and recharangeable batteries in primary household waste.
As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or
local regulations in order to protect the environment.
The symbols for the contained heavy metals are
Co-admiun, Hg-mercury, Pb-lead
This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a
designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible dis

Radio-controlled clock with Indoor climate

12. Specifications

Power consumption 4 x AA 1.5 V batteries (not included) - Use alkaline batteries
Measuring range - temperature -10°C... 50°C/14°F...122°F
Resolution 0.1oC (0.1oF)
Measuring range - humidity 20%..99%
Resolutior 1%
Indication: LL/HH Temperature is outside measuring range
Display: #idity is below the measuring range.
Housing dimension 368 x 29 (80) x 230 mm
Weight 881 g (device only)

C

The part of this manuall may be reproduced without written consent at The Dostman. The technical data are correct at the time of going to print and may change without prior notice.

The alesse tectnical data and information about this product can be found in our homepage by simply entering the product number in the search box
