USER MANUAL PDMS804A Power Dynamics
Power Dynamics Professional Audio
PDM Stage Mixer Series
Ref. nr.: 172.630; 172.632; 172.634


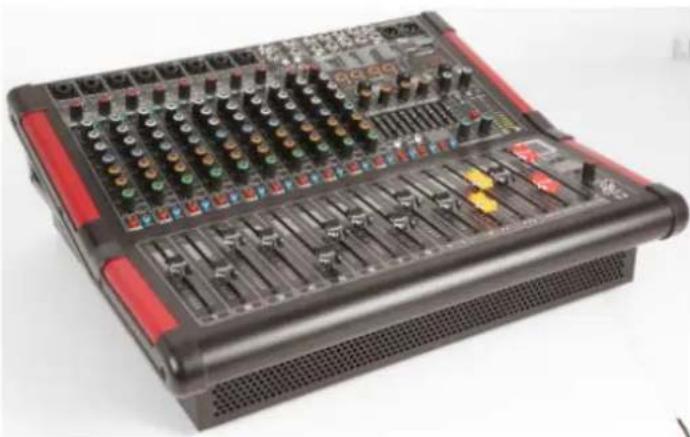

Black audio mixing console with multiple knobs and control knobs (no visible text or labels)INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI
V1.0

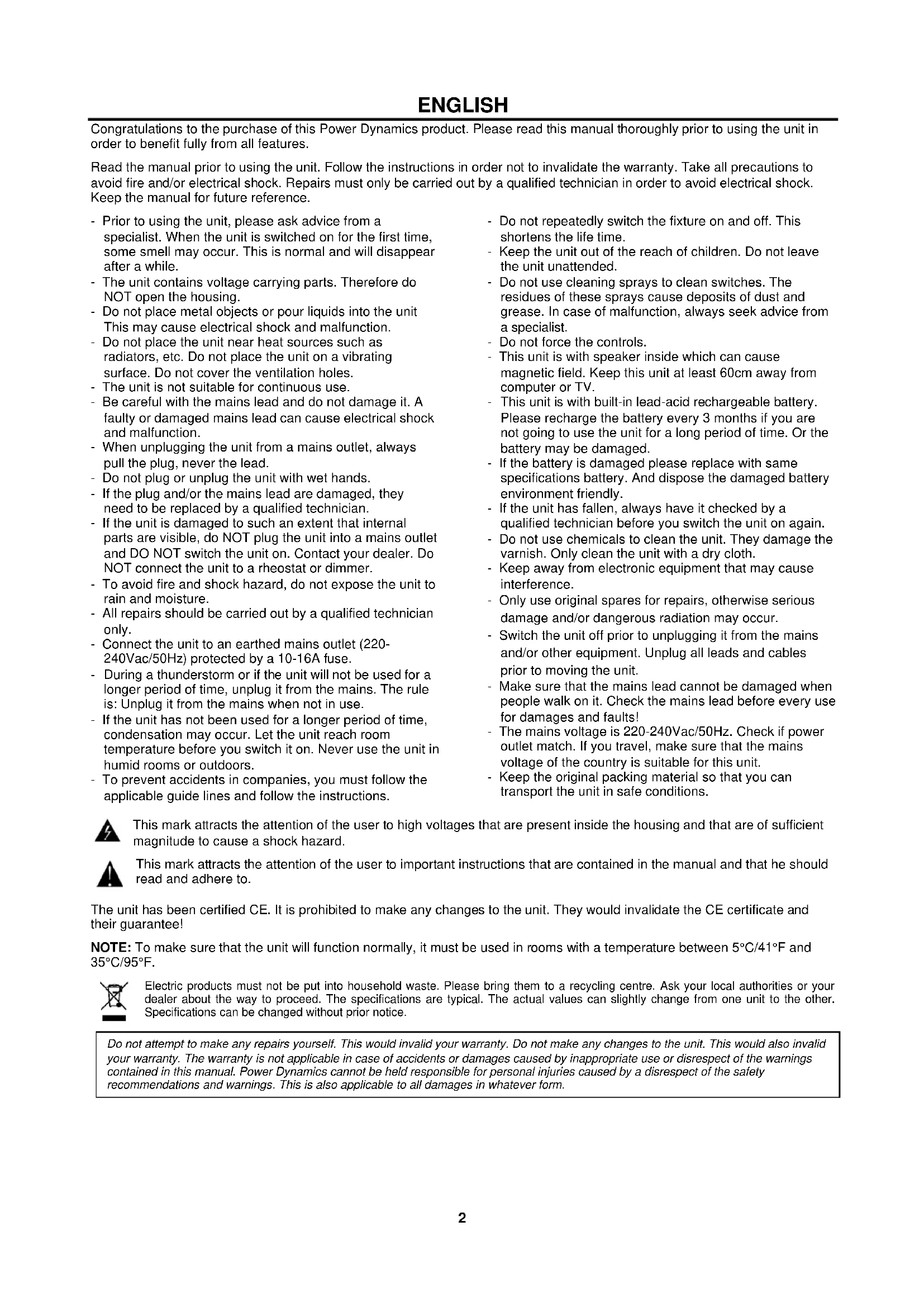

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.
Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.
- Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
- The unit contains voltage carrying parts. Therefore do NOT open the housing.
- Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
- Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
- The unit is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
- When unplugging the unit from a mains outlet, always pull the plug, never the lead.
- Do not plug or unplug the unit with wet hands.
- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
- If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
- To avoid fire and shock hazard, do not expose the unit to rain and moisture.
- All repairs should be carried out by a qualified technician only.
- Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
- If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.
-
To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
-
Do not repeatedly switch the fixture on and off. This shortens the life time.
- Keep the unit out of the reach of children. Do not leave the unit unattended.
- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
- Do not force the controls.
- This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
- This unit is with built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
- If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
- If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
- Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
- Keep away from electronic equipment that may cause interference.
- Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
- Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
- Keep the original packing material so that you can transport the unit in safe conditions.
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.
The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/ 41^ F and 35^ C/ 95^ F.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
UNPACKING INSTRUCTION
CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the product be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

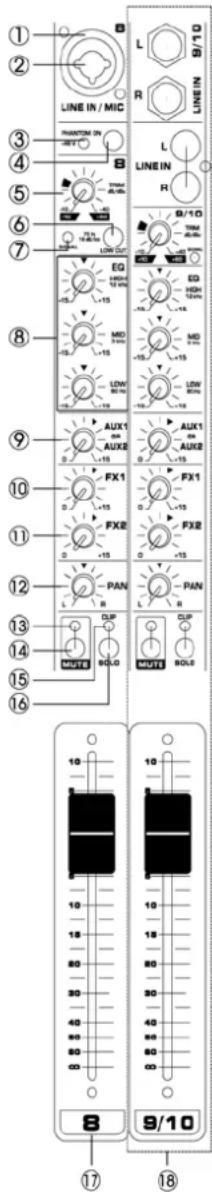

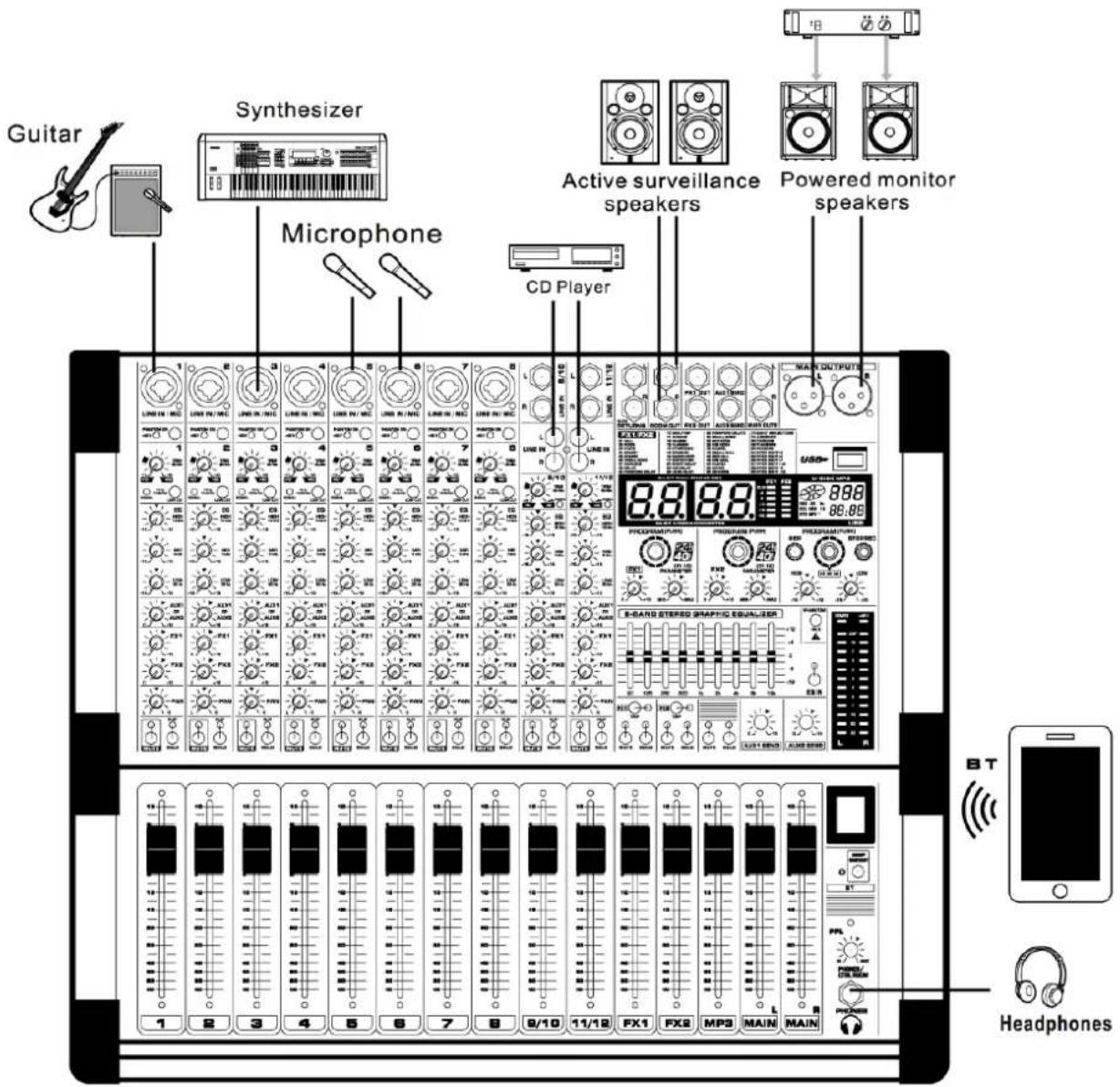

CONTROL ELEMENTS
1. Microphone Input
Balanced XLR input jacks.
2. Line Input
Balanced 6.3mm (1/4") jack line inputs. You can connect either balanced or unbalanced phone plugs to these jacks.
3. 48V indicator
The red LED lights up when phantom power is switched on. Phantom power is required to operate condenser microphones.
4. Phantom +48V
This switch toggles phantom power on and off. When the switch is on the mixer supplies +48V phantom power to all channels that have XLR input jacks. Turn this switch on when using one or more phantom-powered condenser microphones.
5. TRIM Control
Adjusts the input signal level. To get the best balance between the S/N ratio and the dynamic range, adjust the gain so that the peak indicator (15) lights only occasionally and briefly on the highest input transients. The -60 to +10 scale is the MIC input adjustment range. The 40 to +10 scale is the line input adjustment range.
6. Low Out Switch
This switch toggles the HPF on or off. To turn the HPF on, the HPF cuts frequencies below 75Hz.
7. Signal LED Indicator
Check the input signal.
8. Equalizer
Three-band equalizer adjusts the channel's high, mid and low frequency bands. Setting the knob to the "O" position produces a fiat response in the corresponding band. Turning the knob to the right boosts the corresponding frequency band, while turning to the left attenuates the band.
9. Aux Control
Monitor and effect busses (Aux sends) source their signals via a control from one or more channels and sum these signals to a so-called bus. This bus signal is sent to an aux send connector (for monitoring applications: Mon Out) and then routed, for example, to an active monitor speaker or external effect device. In the latter case, the effects return can then be brought back into the console via the aux return connectors. All monitor and effect busses are mono, are tapped into post EQ and offer amplification of up to +15dB.
10. FX1 Control
The aux send marked FX offers a direct route to the built-in effects processor and is therefore post-fader and post-mute.
11. FX2 Control
The aux send marked FX offers a direct route to the built-in effects processor and is therefore post-fader and post-mute.
12. PAN Control
The PAN control determines the position of the channel signal within the stereo image. When working with subgroups, you can use the PAN control to assign the signal to just one output, which gives you additional flexibility in recording situations.
13. Mute LED
The mute LED indicates a muted channel.
14. Mute Switch
The MUTE switch breaks the signal channel fader.
15. Clip LED
The clip-led lights up when the input signal is driven too high. If this happens, back off the Trim control and, if necessary, check the setting of the channel EQ.
16. Solo Switch
The solo switch is used to route the channel signal to the solo bus (Solo In Place) or to the PFL bus (Pre Fader Listen). This enables you to listen to a channel signal without affecting the main output signal. The signal you hear is taken either before the pan control (PFL, mono) or after the pan and channel fader.
17. Channel Fader
Adjusts the level if the channel signal. Use these faders to adjust the balance between the various channels.
18. The same as single channel

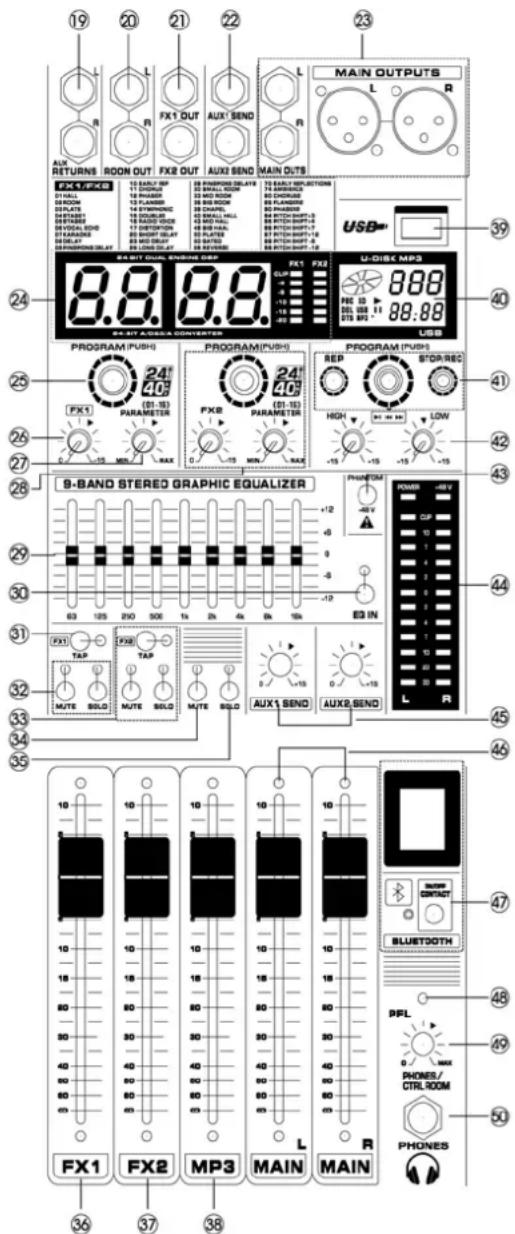

19. Returns stereo
The stereo aux return jacks generally serve as the return for the effects mix (created using the post-fader aux sends) by connecting the output of an external effects device. If only the left jack is connected, the aux return is automatically switched to mono.
20. Room Output
The control room output is normally connected to the monitoring system in the control room and carries the stereo mix or, when selected, the solo signals.
21. FX Output
The FX output jacks carries the master aux mix (from the channel FX controls). You can connect this to an external effects device to process the FX bus. The processed FX-signal can then be brought from the effects device back into the stereo Return jacks.
22. Aux Send
The Aux send jack carries the master aux mix (from the channel's Aux controls).
23. Main Out
The XLR and 6.3mm ( 14 ) jacks deliver the mixer's stereo output. You use these jacks, for example, to connect to the power amplifier driving your main speakers.
24. Effect Display
Show the kind of effect.
25. Program Dial
You can select the effect preset by turning the program control. The display flashes with the number of the current preset. To recall the selected preset, press on the button; the flashing stops. You can also recall the selected preset with the foot switch.
26. FX Control
The aux send jacks carries the master aux mix (from the channel
FX controls). You can connect this to an external effects device to process the FX bus. The processed signal can then be brought from the effects device back into the Stereo Aux return jacks.
27. Repeat Control
Adjusts the parameter (Depth, speed, etc.) for the selected effect.
28. Same as No. 25/26/27
29. 9-Band Stereo Graphic Equalizer
The graphic stereo equalizer allows you to tailor the sound to the room acoustics.
30. EQ Switch
Use this switch to activate the graphic equalizer.
31. Tap Switch
Continuous press the switch two times can change the effect of repeat time.
Note: Press faster, the repeat time will be shorter.
Press slower, the repeat time will be longer
32. Same as No. 13/14/15/16 for FX1
33. Same as No 31/32 for FX2
34. Same as No. 13/14 for MP3
35. Same as No. 15/16 for MP3
36. FX1 Fader
Control effect input signal level.
37. FX2 Fader
Control effect input signal level.
38. MP3 Fader
Control effect input signal level.
39. USB Port
USB: can be play through U-DISK
40. MP3 Display
Show the MP3 time, song name and other play instruction.
41. MP3/BT Command
STOP: Press shortly to stop playing. Press for seconds for recording, also press 2 seconds to stop recording.
PREV / NEXT: Turning the program control.
PLAY: Press the program control knob.
REP: Repeating of single track or all tracks.
Program Dial
You can select the MP3 preset by turning the program control. The display flashes with the number of the current preset. To recall the selected preset, press on the button; the flashing stops
42. MP3 EQ
Two-band equalizer adjusts the level if the two bands MP3 player.
43. Phantom +48V
This switch toggles phantom power on and off. When the switch is on the mixer supplies +48V phantom power to all channels that have XLR input jacks. Turn this switch on when using one or more phantom-powered condenser microphones.
44. VU-Meter
Displays the signal of output.
NOTE: The "0" segment corresponds to the nominal output level. The peak indicator lights up red when the output reaches the clipping level.
45. Aux Control
Use this fader to control the aux output jack.
46. Main Mix Fader
You use the high-precision quality faders to control the output level of the main mix.
47. BT-Function
Contact mobile phone or tablet.
Connecting: Press the “contact switch” for two seconds, then the signal LED light up, use your mobile phone or tablet and choose “MIXER-01” BT-connection.
48. PFL indicator
When open the monitor, PFL is lighting.
49. Headphone/Room Level
Use this control to adjust the output level of headphone.
50. Headphone Input
6.3mm (1/4") input jack for connecting a headphone.

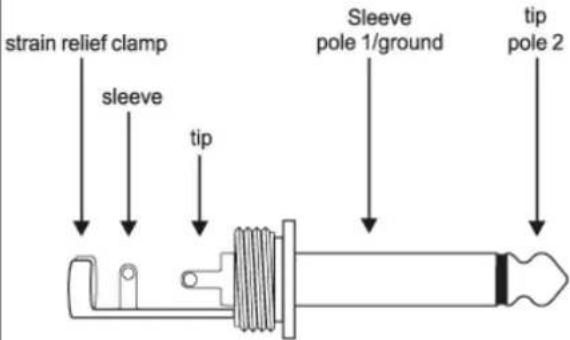

Unbalanced "TS connector

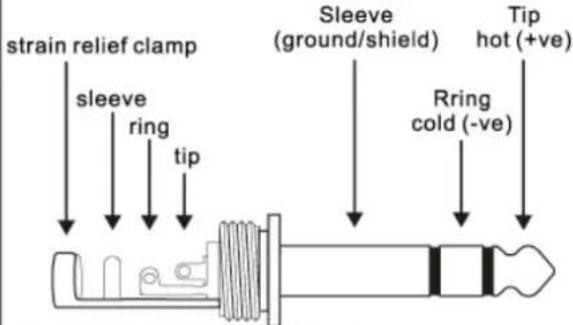

Balanced 1/4" TRS connector
For connection of balanced and unbalanced plugs, ring and sleeve have to be bridged at the stereo plug.
1/4" TS footswitch connector
The footswitch connects both poles momentarily

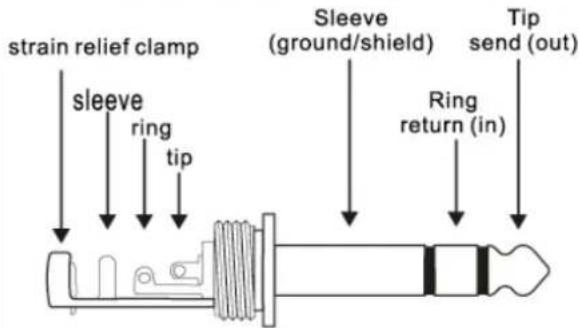

Insert send return 1/4" TRS connector
Connect the insert send with the input and the insert return with the output of the effects device.
Balanced use with XLR connectors
Input
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
Output
For unbalanced use, pin 1 and pin 3 have to be bridged

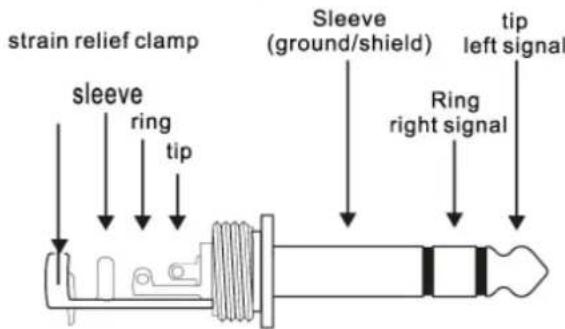

1/4" TRS headphones connector
MICROPHONE INPUTS (XENYX MIC PREAMP)
| Type | XLR, electronically balanced, discrete input circuit |
| Mic E.I.N. (20 Hz - 20 kHz) | |
| @ 0 Ω source resistance | -134 dB / 135.7 dB A-weighted |
| @ 50 Ω source resistance | -131 dB / 133.3 dB A-weighted |
| @ 150 Ω source resistance | -129 dB / 130.5 dB A-weighted |
| Frequency response | <10 Hz - 150 kHz (-1 dB), <10 Hz - 200 kHz (-3 dB) |
| Gain range | +10 to +60 dB |
| Max. input level | +12 dBu @ +10 dB Gain |
| Impedance | approx. 2.6 kΩ balanced |
| Signal-to-noise ratio | 110 dB / 112 dB A-weighted(0 dBu In @ +22 dB gain) |
| Distortion (THD+N) | 0.005% / 0.004% A-weighted |
| Line input | |
| Type | 14 " TRS connector electronically balanced |
| Impedance | approx. 20 kΩ balanced |
| 10 kΩ unbalanced | |
| Gain range | -10 to +40 dB |
| Max. input level | 30 dBu |
FADE-OUT ATTENUATION ^1
(CROSSTALK ATTENUATION)
| Main fader closed | 90 dB |
| Channel muted | 89 dB |
| Channel fader closed | 89 dB |
FREQUENCY RESPONSE
| Microphone input to main out | |
| <10 Hz - 90 kHz | +0 dB / -1 dB |
| <10 Hz - 160 kHz | +0 dB / -3 dB |
| Stereo inputs | |
| Type | 14" TRS connector, electronically balanced |
| Impedance | approx. 20 kΩ |
| Max. input level | +22 dBu |
| EQ mono channels | |
| Low | 80 Hz/ ±15 dB |
| Mid | 100 Hz - 8 kHz/ ±15 dB |
| High | 12 kHz/ ±15 dB |
| EQ stereo channels | |
| Low | 80 Hz/ ±15 dB |
| Low Mid | 500 Hz/ ±15 dB |
| High Mid | 3 kHz/ ±15 dB |
| High | 12 kHz/ ±15 dB |
| Aux sends | |
| Type | 14" TS connector, unbalanced |
| Impedance | approx. 120 Ω |
| Max. output level | +22 dBu |
Stereo aux returns
| Type | 1⁄4"TRS connector,electronically balanced |
| Impedance | approx. 20 kΩ bal. / 10 kΩ unbal. |
| Max. input level | +22 dBu |
| Main outputs | |
| Type | XLR, electronically balancedand 1⁄4"TRS balanced |
| 1622FX only: | 1⁄4"TS connector unbalanced |
| Impedance | approx. 240 Ω symm. / 120 Ω unbalanced |
| Max. output level | +28 dBu+22 dBu |
| Control room outputs | |
| Type | 1⁄4"TS connector unbalanced |
| Impedance | approx. 120 Ω |
| Max. output level | +22 dBu |
| Headphones outputs | |
| Type | 1⁄4"TRS connector, unbalanced |
| Max. output level | +19 dBu / 150 Ω (+25 dBm) |
| DSP | |
| Converter | 24-bit Sigma-Delta,64/128-times oversampling |
| Sampling rate | 40 kHz |
MAIN MIX SYSTEM DATA ^2
| Noise | |
| Main mix @ -∞ | |
| Channel fader @ -oo | -101 dB |
| -100 dB | |
| Main mix @ 0 dB, | |
| Channel fader @ -oo | -93 dB |
| -96 dB | |
| -87 dB | |
| Main mix @ 0 dB, | |
| Channel fader @ 0 dB | -81 dB |
| -83 dB | |
| -80 dB | |
| Power supply | |
| Mains voltage | 230 V~, 50/60 Hz |
| Power consumption CH8. 300W | 4 ohm |
| CH12. 300W | |
| CH16. 300W | |
| Fuse | 230 V~:T 12 A H 250 V |
| Mains connection | Standard IEC receptacle |
Sound & Light
CE Declaration of Conformity
Manufacturer: TRONIOS BV
Trade Name: POWER DYNAMICS
Regulatory Requirement: EN 301489-1 V1.9.2:2011
EN 301489-17 V2.2.1:2012
EN 300328 V1.9.1:2015
EN 60065:2014
I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.
Almelo,
26-01-2017
Name : M. Velders
Signature :
Specifications and design are subject to change without prior notice..
www.tronios.com
Copyright © 2017 by TRONIOS the Netherlands
