Product type	Wireless audio receiver
Brand	Monacor
Model	ATS-16R
Category	Receiver for audio transmission system
Transmission technology	PLL, 16 channels, 863-865 MHz
Range	Approx. 110 m (in open field)
Power supply	2 NiMH rechargeable batteries 1.2 V (included) or 2 R6 1.5 V batteries or mains 5 V DC (3.5/1.3 mm plug)
Battery life	Varies depending on battery type; rechargeable batteries via ATS-16PS charging station or ATS-36C charging case
Power consumption	150 mA (with mains adapter)
Dimensions (W x H x D)	66 x 111 x 35 mm
Weight	97 g (without batteries)
Operating temperature	0 to 40 °C
Audio outputs	1 EAR jack 3.5 mm (earphone), 1 AUX OUT stereo jack 3.5 mm (line)
Internal speaker	Yes, disconnected if earphone plugged in
LED indicators	RX LED (green/red): reception and battery status; PL LED (red): low battery
Settings	Channel selection dial (0-F), on/off switch and volume
Included accessories	2 NiMH rechargeable batteries 1.2 V, ES-16 earphone
Care and cleaning	Clean with a dry, soft cloth; do not use chemicals or water
Safety	Indoor use only; protect from moisture and heat; remove batteries if not used for extended periods
Spare parts and repairability	Parts available from the manufacturer or an authorized dealer
Warranty	Manufacturer's warranty; void if used improperly or repaired by unauthorized personnel

Frequently Asked Questions - ATS16R Monacor

How to select the channel on the receiver?

Use the dial (3) to select a channel from the 16 (0 to F). Ensure the transmitter is set to the same channel for proper reception.

What to do if the RX LED turns red?

The red RX LED indicates that the rechargeable batteries or batteries are almost empty. Recharge the rechargeable batteries or replace the batteries as soon as possible.

Can I use non-rechargeable batteries?

Yes, you can use two 1.5 V R6 (non-rechargeable) batteries instead of the supplied NiMH rechargeable batteries.

How to recharge the rechargeable batteries?

Remove the rechargeable batteries from the battery compartment and place them in the ATS-16PS charging station or the ATS-36C charging case (sold separately).

What is the maximum range of the receiver?

The range is approximately 110 meters in open field without obstacles. It may be reduced by walls or interference.

Can I connect headphones or an amplifier?

Yes, plug headphones into the EAR jack (6) or an amplifier into the AUX OUT jack (10) with a 3.5 mm jack cable.

How to clean the receiver?

Use a dry, soft cloth. Never use chemicals, alcohol, or water to avoid damaging the device.

Can multiple receivers be used with a single transmitter?

Yes, you can use multiple ATS-16R receivers set to the same channel as the ATS-16T transmitter for simultaneous broadcast.

What to do if reception is poor or disturbed?

Try changing the channel (5.a), reduce the distance, remove obstacles, or avoid sources of interference such as fluorescent tubes.

How to turn off the receiver?

Turn the volume control (4) fully left to the OFF position. The PL LED flashes briefly and then the device turns off.

USER MANUAL ATS16R Monacor

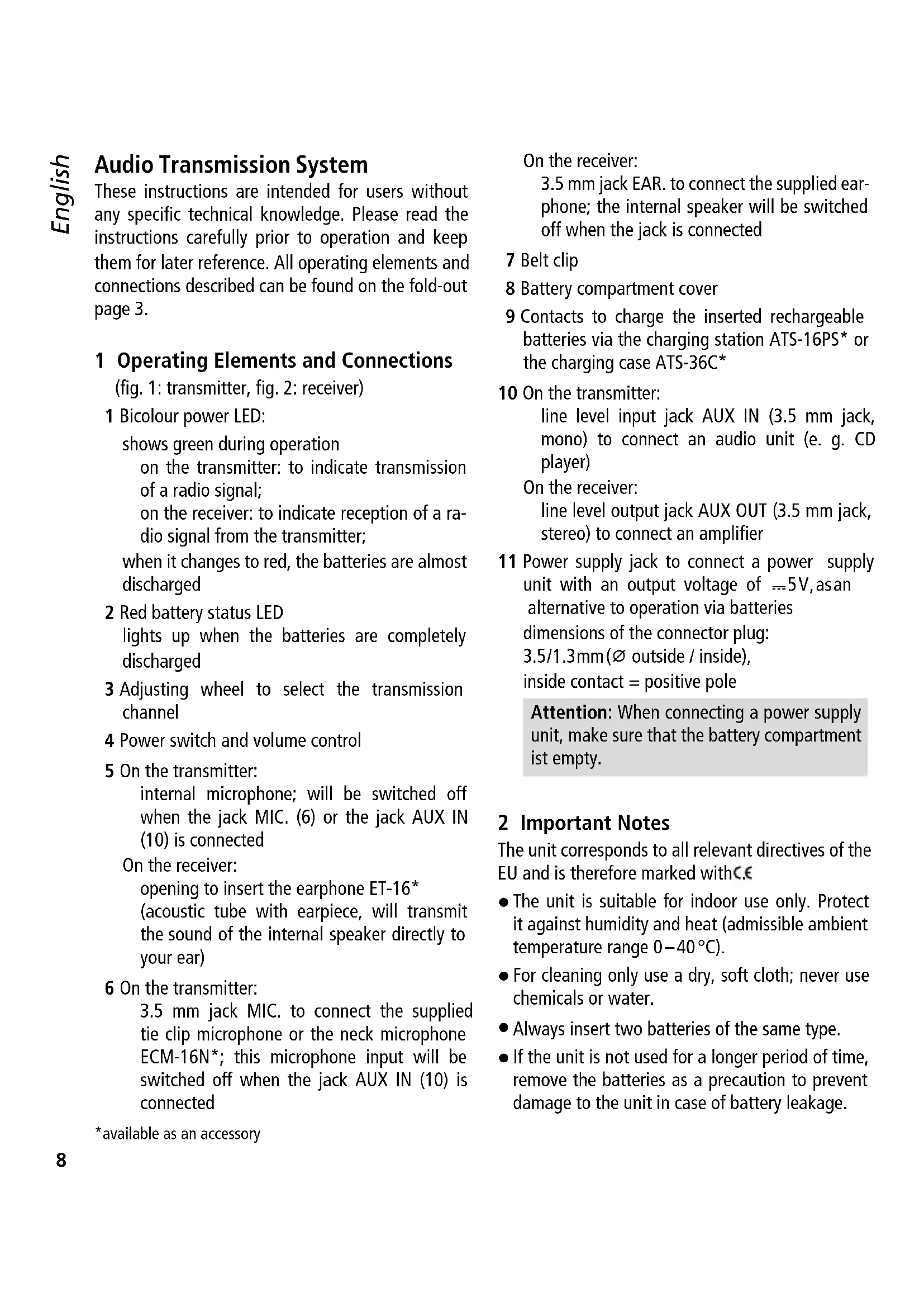

Audio Transmission System

These instructions are intended for users without any specific technical knowledge. Please read the instructions carefully prior to operation and keep them for later reference. All operating elements and connections described can be found on the fold-out page 3.

1 Operating Elements and Connections

(fig. 1: transmitter, fig. 2: receiver)

1 Bicolour power LED: shows green during operation on the transmitter: to indicate transmission of a radio signal; on the receiver: to indicate reception of a radio signal from the transmitter; when it changes to red, the batteries are almost discharged
2 Red battery status LED lights up when the batteries are completely discharged
3 Adjusting wheel to select the transmission channel
4 Power switch and volume control
5 On the transmitter: internal microphone; will be switched off when the jack MIC. (6) or the jack AUX IN (10) is connected

On the receiver: opening to insert the earphone ET-16* (acoustic tube with earpiece, will transmit the sound of the internal speaker directly to your ear)

6 On the transmitter: 3.5 mm jack MIC. to connect the supplied tie clip microphone or the neck microphone ECM-16N*; this microphone input will be switched off when the jack AUX IN (10) is connected

*available as an accessory

On the receiver: 3.5 mm jack EAR. to connect the supplied earphone; the internal speaker will be switched off when the jack is connected

7 Belt clip
8 Battery compartment cover
9 Contacts to charge the inserted rechargeable batteries via the charging station ATS-16PS or the charging case ATS-36C
10 On the transmitter: line level input jack AUX IN (3.5 mm jack, mono) to connect an audio unit (e.g. CD player) On the receiver: line level output jack AUX OUT (3.5 mm jack, stereo) to connect an amplifier
11 Power supply jack to connect a power supply unit with an output voltage of 5V , as an alternative to operation via batteries dimensions of the connector plug: 3.5/1.3mm (Ø outside / inside), inside contact = positive pole

Attention: When connecting a power supply unit, make sure that the battery compartment is empty.

2 Important Notes

The unit corresponds to all relevant directives of the EU and is therefore marked with C.€

• The unit is suitable for indoor use only. Protect it against humidity and heat (admissible ambient temperature range 0 - 40^ ).
• For cleaning only use a dry, soft cloth; never use chemicals or water.
• Always insert two batteries of the same type.

• If the unit is not used for a longer period of time, remove the batteries as a precaution to prevent damage to the unit in case of battery leakage.

• No guarantee claims for the unit and no liability for any resulting personal damage or material damage will be accepted if the unit is used for other purposes than originally intended, if it is not correctly operated or not repaired in an expert way.

If the unit is to be put out of operation definitively, dispose of the unit in accordance with local regulations.

3 Applications

In combination with a receiver or several receivers of the type ATS-16R, the transmitter ATS-16T creates a mobile wireless transmission system for speech and music. This system is ideally suited for any application where the signal of a single audio source is transmitted to several people, e.g. for guided tours or multilingual lectures. For wireless transmission, 16 channels in the frequency range of 863 - 865MHz are available.

3.1 Conformity and approval

Herewith, MONACOR INTERNATIONAL declare that the receiver ATS-16R and the transmitter ATS-16T comply with the directive 2014 / 53 / EU. The EU declarations of conformity are available on the Internet: www.monacor.com

The units are generally approved for operation in EU and EFTA countries. The operation of the units is licence-free and requires no registration.

4 Power Supply

The transmitter and the receiver can be supplied with power via (rechargeable) batteries or a 5 V power supply unit.

4.1 (Rechargeable) Batteries

Each unit is supplied with two rechargeable 1.2 V NiMH batteries. For fast and convenient charging of

these batteries, the following items are available as accessories:

• charging station ATS-16PS (for charging the batteries of up to 2 transmitters / receivers at the same time)
• transport and charging case ATS-36C (for charging the batteries of up to 36 transmitters / receivers at the same time)

Instead of the rechargeable batteries, two non-rechargeable 1.5 V batteries of size AA may be used. To insert the batteries:

1) Slightly press the marked area on the battery compartment cover (8) while simultaneously pulling the cover downwards.
2) Insert the batteries with their positive and negative connections as indicated in the compartment.
3) Replace the cover and make sure it engages.

Never put batteries in the household waste. Always dispose of the batteries in accordance with local regulations.

4.2 Power supply unit

Connect a power supply unit with an output voltage of = 5V and a permanent rating of 150mA to the jack DC IN 5V (11). For connection, a low-voltage plug of the dimensions 3.5 / 1.3mm (outside/inside diameter) is required. The positive pole must be at the inside contact of the plug.

Attention: To prevent damage to the batteries or to the transmitter / receiver, always remove the (rechargeable) batteries from the battery compartment before connecting a power supply unit.

5 Selecting the Signal Source

The transmitter can be operated with a microphone, however, a unit with line output level may also be connected.

a) Microphone operation:
- Either use the internal microphone (5)
- or connect an external microphone, the supplied electret tie clip microphone or the neck microphone ECM-16N (available as an accessory) to the jack MIC. (6). When the jack is connected, the internal microphone will be switched off. Place the windshield on the microphone and attach the microphone to your body: attach the tie clip microphone to your clothes (e.g. lapel) via its clip or put the neck microphone around your neck.
b) Operation with an audio unit:
Connect the output of the audio unit (e. g. cassette recorder, CD player) via a 3.5mm plug to the jack AUX IN (10). When connecting the jack, both the internal microphone and any external microphone connected to the jack MIC. (6) will be switched off.

6 Selecting the Sound Reproduction

The receiver offers different ways to reproduce the sound.

a) Via the internal speaker:
The sound of the speaker can either be radiated freely or be directly transmitted to your ear via the acoustic tube earphone ET-16 available as an accessory. Place the acoustic tube into the opening (5) provided on the receiver and insert the yellow earpiece into your ear in such a way that a tight fit is ensured.
b) Via the supplied earphone:

Connect the earphone to the jack EAR. (6) and attach it to your ear. When connecting the jack EAR., the internal speaker will be switched off.

c) Via an amplifier system:

Connect the amplifier via a 3.5mm plug to the stereo jack AUX OUT (10).

Note: When connecting the jack AUX OUT, the internal speaker is still switched on. To switch it off, connect a 3.5mm plug to the jack EAR. (6).

7 Operation

1) With the adjusting wheel (3) on the transmitter, select the channel for transmission from the 16 channels (0 to F): Turn the wheel in such a way that the arrow below it will point to the desired channel (in fig. 1, channel 0 is adjusted as an example).

Set the adjusting wheel (3) on the receiver to the same channel.

2) Attach the units to your clothes, e. g. your belt, via their clips (7).

For attaching the units to your body, the following items are available as additional accessories: - ATS-16BAG, protective bag, to be attached to your belt via a loop

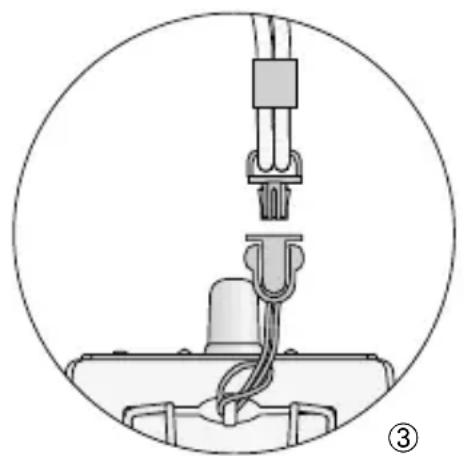

- ATS-16CORD, neck cord (for attaching it to the unit see fig. 3)

3) To switch on the units, turn the control (4) clockwise from the position OFF:

On the transmitter, the LED TX (1) shows green to indicate transmission of a radio signal.

On the receiver, the red LED PL (2) briefly lights up first. Then the LED RX (1) shows green to indicate reception of a radio signal from the transmitter. (If it fails to light up, check if the transmitter and receiver have been adjusted to the same channel.)

When the LED TX or RX (1) changes to red, the batteries are almost discharged. When the LED TX or RX is extinguished and the red LED PL (2) lights up instead, the batteries are completely discharged.

4) With the control (4), adjust the volume for the audio signal transmitted on the transmitter and the reproduction volume on the receiver.
5) In case of poor reception or interference please check

a) if the reception can be improved by using a different transmission channel.
b) if the transmitter and the receiver are too far apart.
c) if the reception is disturbed by objects in the transmission path.

6) To switch off the units, set the control (4) to the left stop (OFF):

On the transmitter, the LED PL lights up for a few seconds before it is completely extinguished.

On the receiver, the LED PL flashes briefly.

Note concerning multichannel operation:

The number of channels to be used in parallel depends on the conditions at the place of application (e.g. on interference due to other wireless systems or high-frequency sources such as fluorescent lamps). In ideal conditions, up to eight channels can be operated at the same time without mutual interference. Two examples of a suitable channel selection for four wireless transmission paths:

Example 1:

channel 0 - channel 2 - channel 5 - channel B

Example 2:

channel 5 - channel 8 - channel E - channel F

8 Specifications

Type of system:PLL wireless system for audio transmission

Radio frequency range: . . . 863-865 MHz, divided into 16 channels

Range: approx. 110m

Noise suppression: . . . . . pilot tone and noise squelch

Ambient temperature: . . . 0-40°C

Power supply for

each unit: via two rechargeable 1.2 V NiMH batteries (supplied) or via two 1.5 V AA batteries or via +5 V at the jack DC IN 5V

Transmitter ATS-16T

Transmitting power: ≤ 10mW (EIRP)

Audio connections

Microphone: 3.5 mm jack, mono

Line input: 3.5 mm jack, mono

Dimensions (W× H× D) .. 66× 111× 35mm

Weight: 81 g (without batteries)

Receiver ATS-16R

Earphone ES-16 (supplied): mono earphone, dynamic 32 system with 1.2 m cable and 3.5 mm plug

Line output: 3.5 mm jack, stereo

Dimensions (W× H× D) .. 66× 111× 35mm

Weight: 97g

(without batteries)

Subject to technical modification.
